Jenn-Air JMC6224HL0

Model: JMC6224HL0

Save Part Not Listed?
product name

Popular Parts

Popular Parts

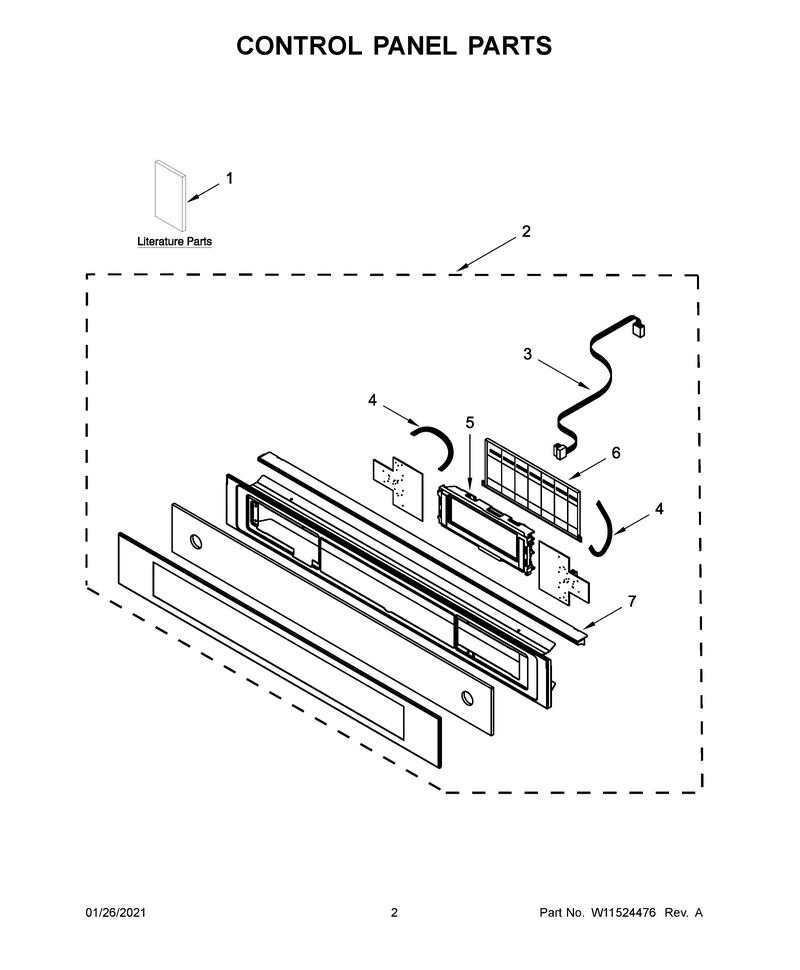

02 - Control Panel Parts

...
...
1
Installation Instructions WPL-W11322487
...
1B
Tech Sheet WPL-W11330679
...
1A
Owner's Manual WPL-W11320668
...
2
Assembly, Control Panel WPL-W11257567
...
3
Wiring, Display Board WPL-W11266455
...
4
Wiring, Left Control WPL-W11348033
...
5
Interface, User WPL-W11510710
...
6
Cover, Control WPL-W11348132
...
7
Vent, Trim Control Panel WPL-W11353026

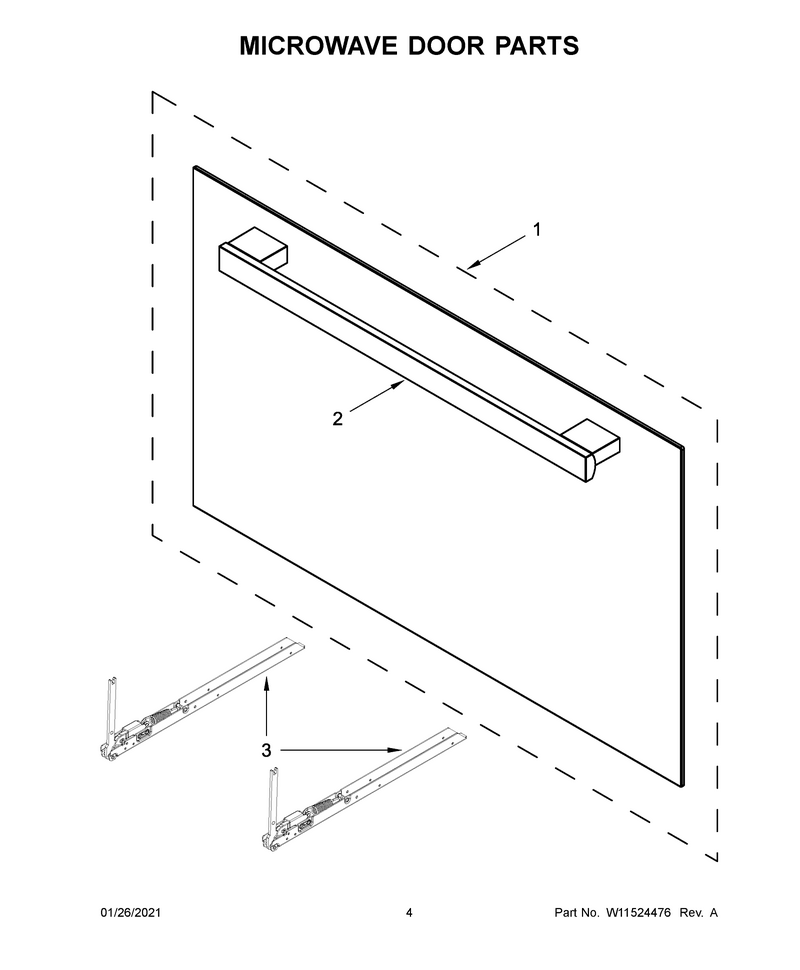

03 - Microwave Door Parts

...
...
1
Door/mw WPL-W11512450
...
2
Handle, Door WPL-W11353331
...
3
Hinge-Door WPL-W11512007

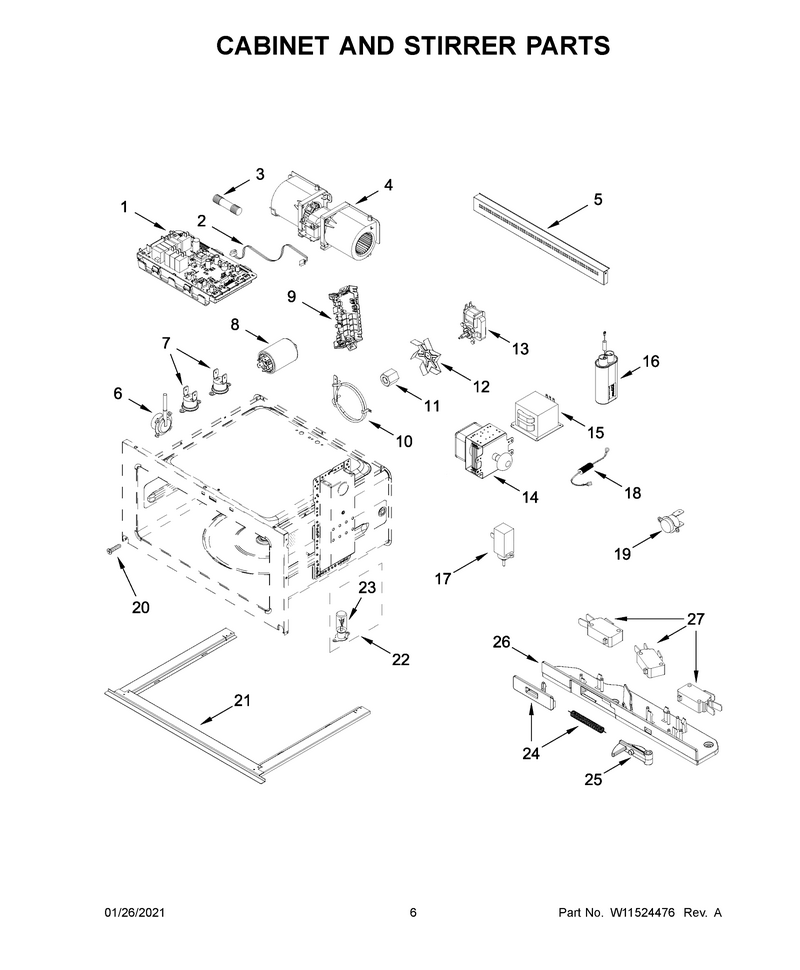

04 - Cabinet And Stirrer Parts

...
...
NI
Trim Kit, Rise WPL-W11300447
...
1
Cntrl-Elec WPL-W11512477
...
2
Harness, Control WPL-W10904797
...
3
Fuse WPL-W11512077
...
4
Motor-Fan WPL-W11512060
...
5
Trim WPL-W11512005
...
6
Sensor WPL-W11699906
...
7
Sensor WPL-W11512070
...
8
Filter, Line Noise WPL-W10549523
...
9
Inverter WPL-W11512066
...
10
Element, Convection WPL-W11304778
...
11
Nut, Convection Fan WPL-W11101380
...
12
Fan WPL-W11512064
...
13
Mtr-Convct WPL-W11512467
...
14
Magnetron WPL-W11512457
...
15
Transformr WPL-W11512463
...
16
Capacitor, High Voltage WPL-W10561770
...
17
Actuator WPL-W11512078
...
18
Diode WPL-W11512058
...
19
Sensor WPL-W11512073
...
20
Mount-Cbnt WPL-W11512483
...
21
Trim WPL-W11511999
...
22
Housng-Lmp WPL-W11512479
...
23
Bulb, Halogen WPL-W11243743
...
24
Switch WPL-W11512018
...
25
Rod-Rel WPL-W11512034
...
26
Housing WPL-W11512016
...
27
Switch WPL-W11512093

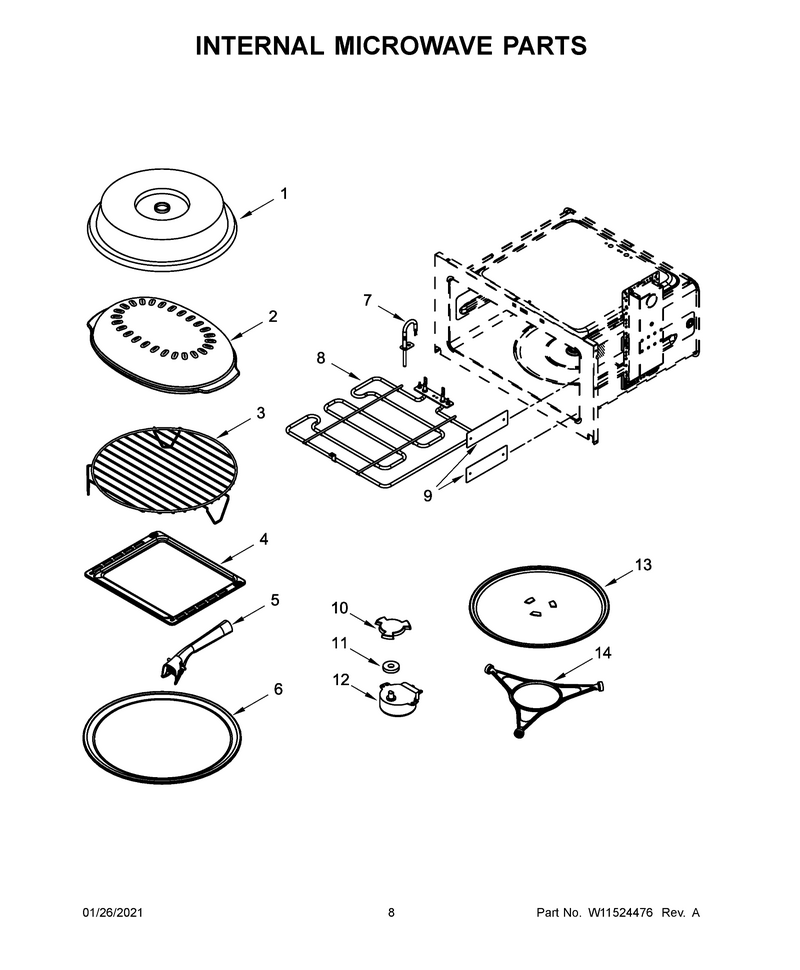

05 - Internal Microwave Parts

...
...
1
Cookware WPL-W11512486
...
2
Cookware WPL-W11654017
...
3
Rack WPL-W11512487
...
4
Tray-Cook WPL-W11512489
...
5
Cookware WPL-W11512012
...
6
Cookware WPL-W11512490
...
7
Sensor WPL-W11512106
...
8
Element WPL-W11512475
...
9
Covr-Inlet WPL-W11512481
...
10
Shaft-Turn WPL-W11512454
...
11
Ring, Rubber WPL-W10769146
...
12
Motor-Turn WPL-W11512458
...
13
Tray-Cook WPL-W11373838
...
14
Ring-Turn WPL-W11512453
