Jenn-Air JMC2427LM00

Model: JMC2427LM00

Save Part Not Listed?
product name

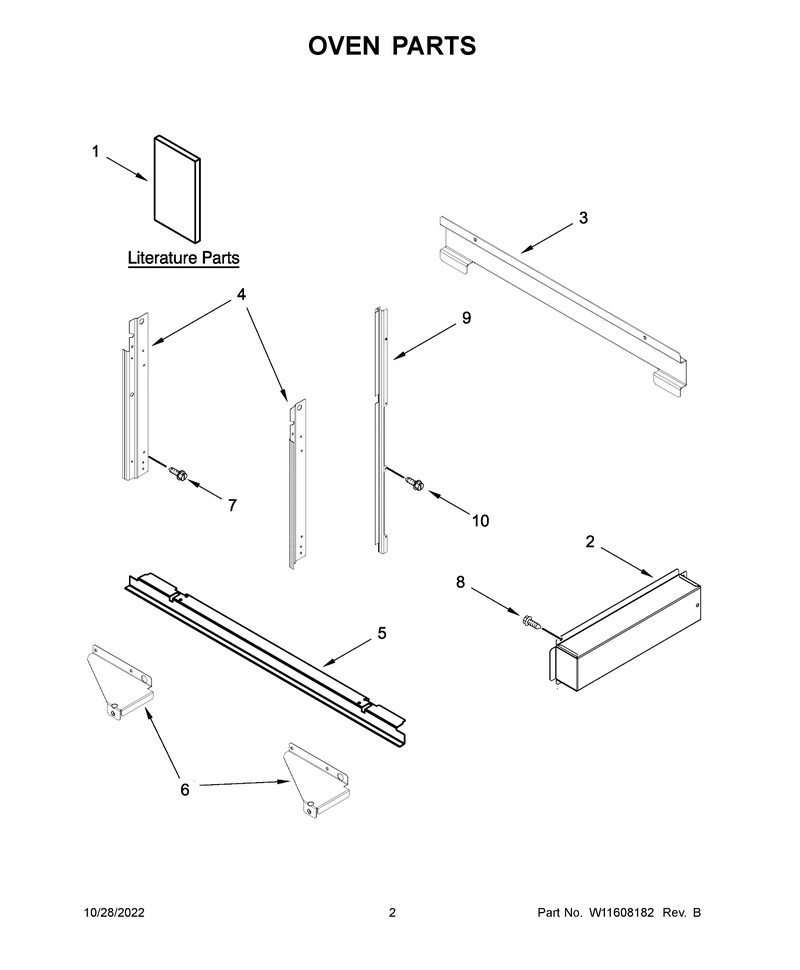

02 - Oven Parts

...
...
NI
Hardware WPL-W11598162
...
1A
Quick Start Guide WPL-W11423731
...
1
Owner's Manual WPL-W11340511
...
1B
Literature Parts (Tech Sheet) WPL-W11399175
...
2
Box, Conduit WPL-W10239155
...
3
Support WPL-W11673269
...
4
Siderail, Combo (Left) WPL-W11627410
...
4A
Siderail, Combo (Right) WPL-W11627411
...
5
Trim, Bottom WPL-W11312229
...
6
Bracket, Lower (Left) WPL-W10239158
...
6A
Bracket, Lower (Right) WPL-W10239159
...
7
Screw WPL-WPY706189
...
8
Screw WPL-WP90767
...
9A
Trim, Bended Side (Right) WPL-W11239805
...
9
Trim, Bended Side (Left) WPL-W11239807
...
10
Screw WPL-W11602623

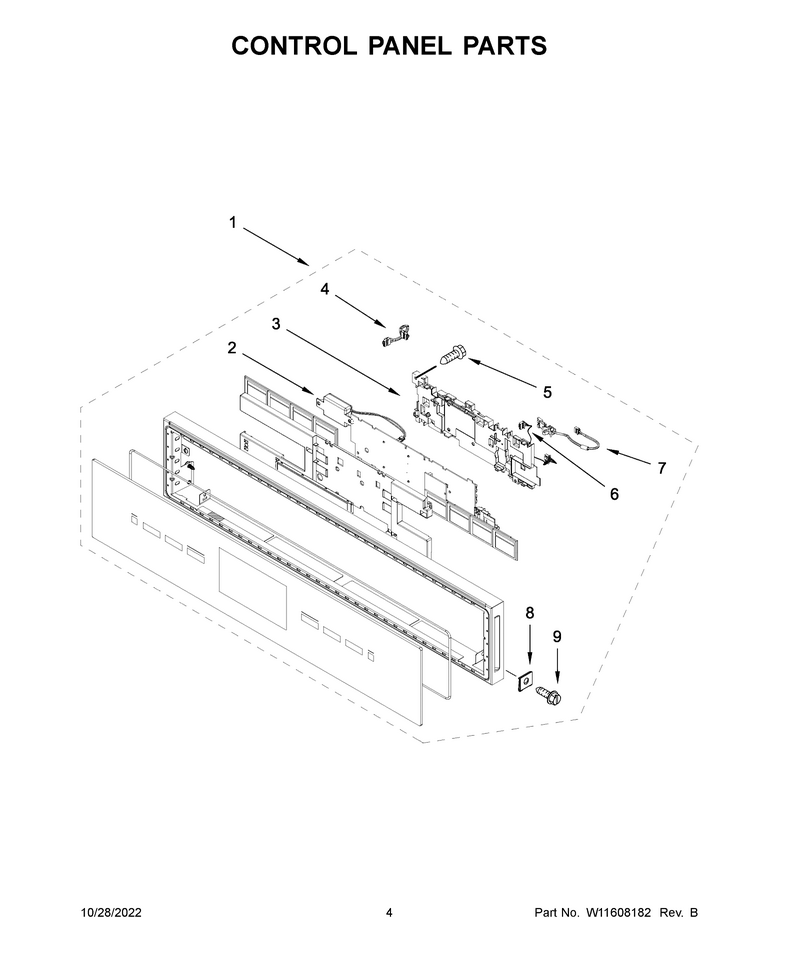

03 - Control Panel Parts

...
...
1
Console WPL-W11598163
...
2
Speaker WPL-W11123146
...
3
Housing WPL-W10668510
...
4
Harness, Keypad (Left To Center) WPL-W10566973
...
5
Screw WPL-W10489172
...
6
Harness, Keypad (Right To Center) WPL-W10524350
...
7
Jumper Harness, Power Supply WPL-W10575307
...
8
Nut WPL-WP4450118
...
9
Screw WPL-W11602625

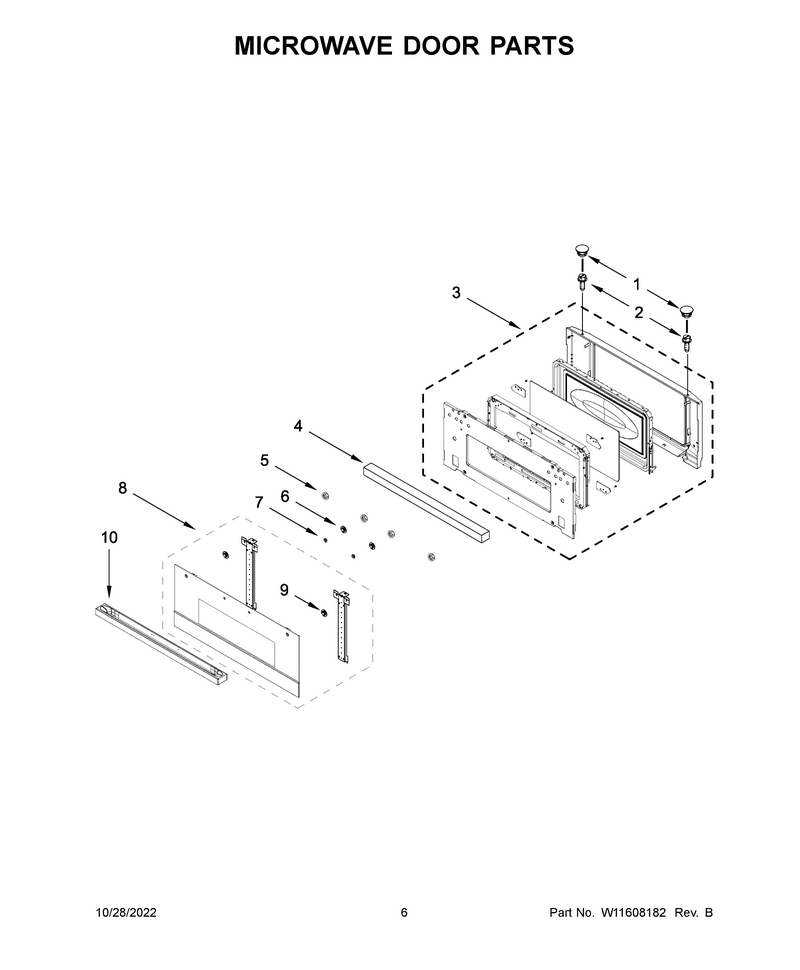

04 - Microwave Door Parts

...
...
1
Cap, Screw WPL-8304588BL
...
2
Screw WPL-W11233072
...
3
Inner Door Assembly WPL-W11639552
...
4
Foam, Door Handle WPL-W10359769
...
5
Nut WPL-W11602632
...
6
Washer WPL-W11607071
...
7
Spacer, Handle WPL-W11132942
...
8
Glass-Door WPL-W11598164
...
9
Washer WPL-W11676355
...
10
Assembly, Handle (Stainless) WPL-W11411895

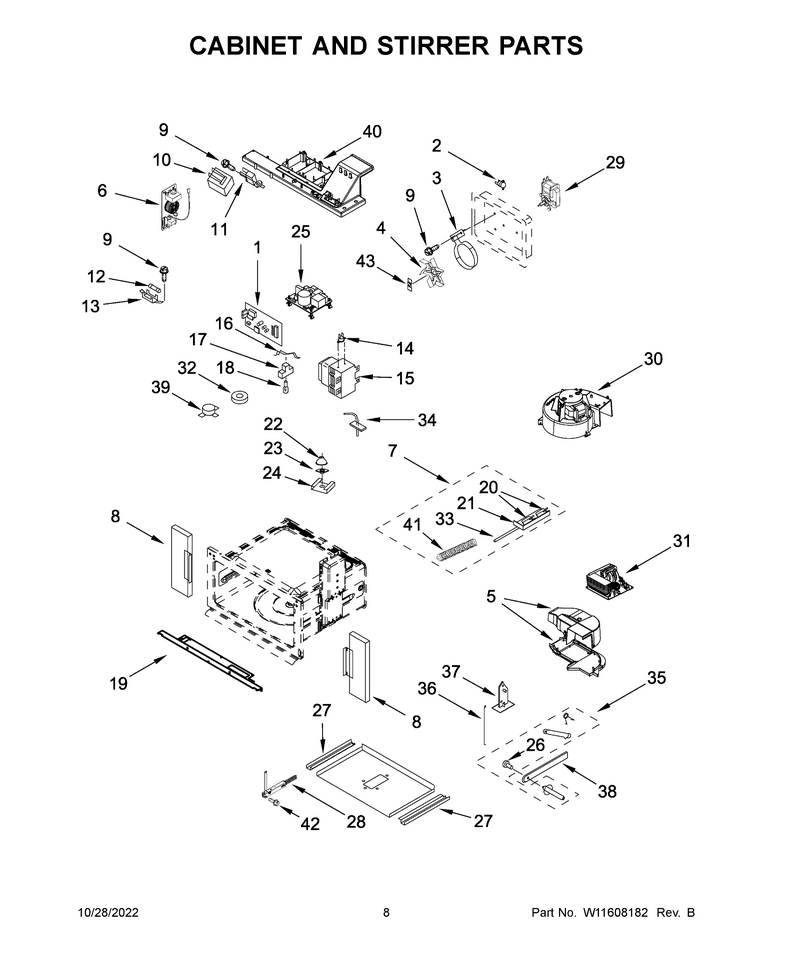

05 - Cabinet And Stirrer Parts

...
...
1
Cntrl-Elec WPL-W11325784
...
2
Thrmst-Fix WPL-W11607085
...
3
Heater WPL-WPW10493735
...
4
Fan WPL-W11512064
...
5
Housing WPL-W11646906
...
5A
Housing WPL-W11646907
...
6
Water Filter WPL-FILTER
...
7
Interlock WPL-W11033422
...
8
Trim, Side (Left) WPL-461967017511
...
8A
Trim, Side (Right) WPL-W11044584
...
9
Screw WPL-461967825321
...
10
Transformr WPL-W11238401
...
11
Thermoactuator WPL-461967842541
...
12
Fuse WPL-W11188752
...
13
Holder, Fuse WPL-W10245194
...
14
Sensor WPL-W11233913
...
15
Magnetron WPL-W11578959
...
16
Spring, Lamp WPL-W10465869
...
17
Housng-Lmp WPL-WPW10490593
...
18
Lmp-Basles WPL-W10886919
...
19
Vent, Top WPL-W11334717
...
20
Switch, Micro V15t16-Cz200 WPL-W10211972
...
21
Interlock WPL-W11214928
...
22
Reflector WPL-423107022541
...
23
Lens-Lamp WPL-W11193483
...
24
Clip, Spring WPL-W11440819
...
25
Cntrl-Elec WPL-WPW10260060
...
26
Arm WPL-WPW10128850
...
27
Support, Bottom WPL-8205707
...
28
Hinge-Door WPL-W11732689
...
29
Mtr-Convct WPL-W11534564
...
30
Motor-Fan WPL-W11344874
...
31
Inverter WPL-W11578579
...
32
Sealing, Lamp WPL-W10769147
...
33
Rod-Rel WPL-WPW10120235
...
34
Sensor WPL-W11208292
...
35
Arm WPL-WPW10128850
...
36
Spring WPL-W11700292
...
37
Support WPL-W11684510
...
38
Arm WPL-W11607070
...
39
Sensor WPL-W11699906
...
40
Duct, Magnetron WPL-461967754821
...
41
Spring WPL-W11715912
...
42
Screw WPL-W11690594
...
43
Support WPL-W11724411

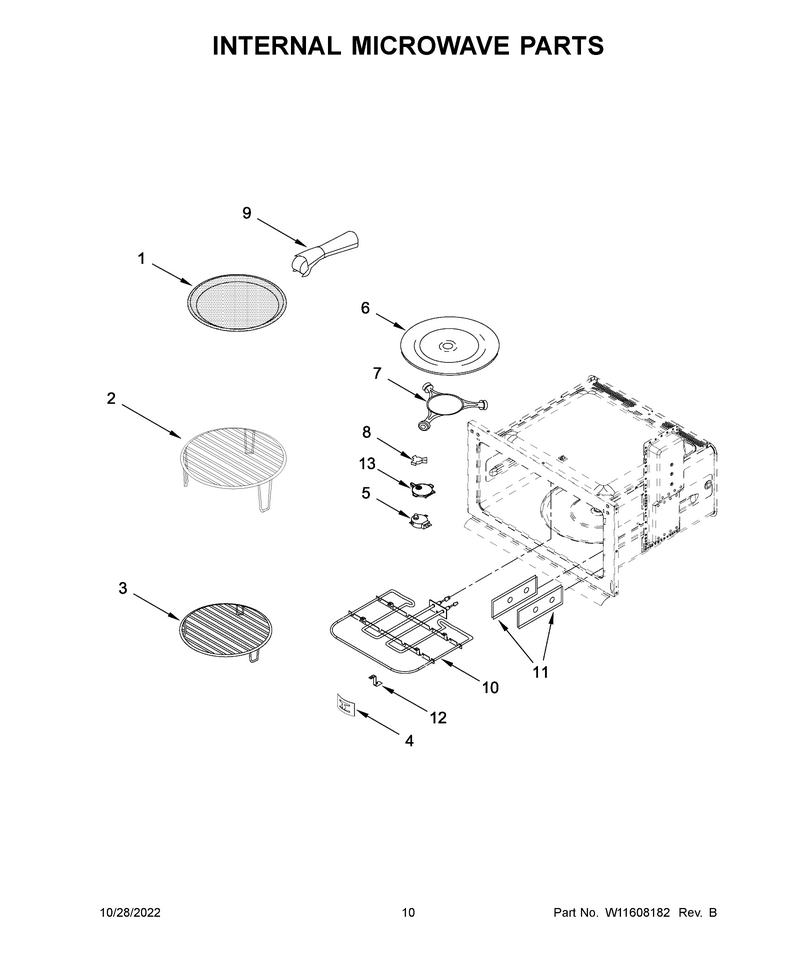

06 - Internal Microwave Parts

...
...
1
Pan-Crisp WPL-W11755098
...
2
Rack, High Convection WPL-W10748280
...
3
Rack WPL-W11175831
...
4
Support WPL-W11724411
...
5
Motor-Turn WPL-W10911403
...
6
Tray-Cook WPL-W11373838
...
7
Ring-Turn WPL-W11110134
...
8
Shaft-Turn WPL-W11179756
...
9
Handle-Pan WPL-W11218702
...
10
Element WPL-WPW10387651
...
11
Cover-Plt WPL-W10915651
...
12
Support WPL-W11724411
...
13
Covr-Motor WPL-W11676353

...
...
NI
Adhesive WPL-WP482338
