Jenn-Air JJW3830IM01

Model: JJW3830IM01

Save Part Not Listed?
product name

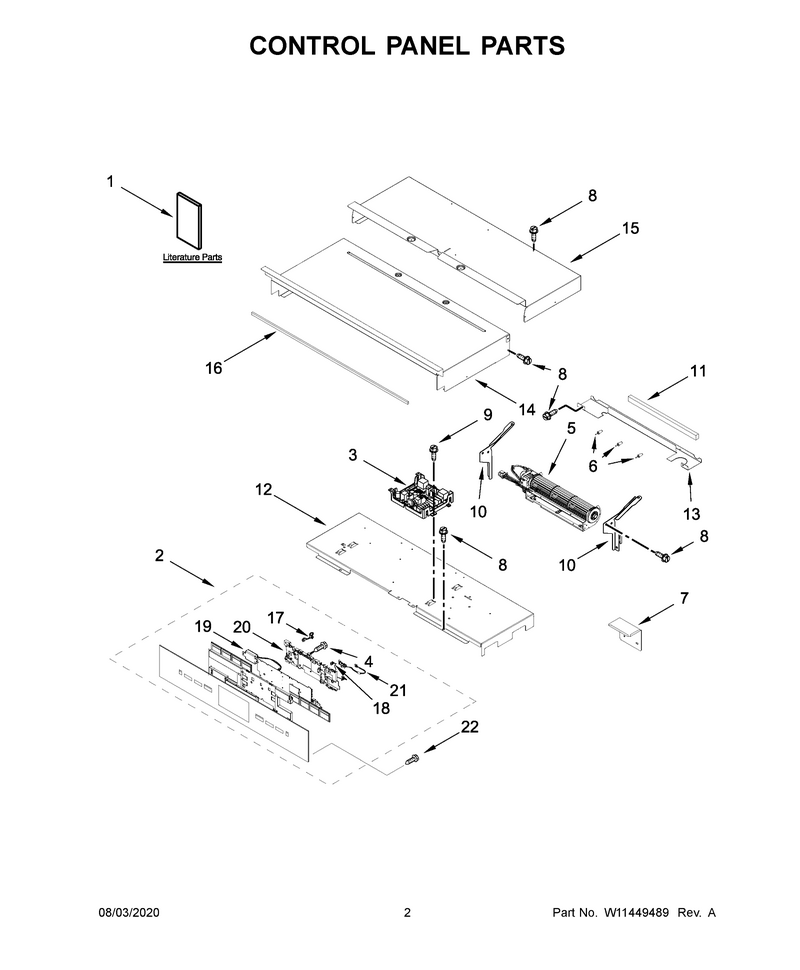

02 - Control Panel Parts

...
...
NI
Harns-Wire WPL-W11699910
...
1
Guide, Use & Care (Oven) WPL-W11235343
...
1A
Instructions, Installation WPL-W11235620
...
1B
Guide, Internet Connectivity WPL-W11234441
...
1C
Diagram, Wiring WPL-W11235304
...
1D
Sheet, Tech WPL-W11284426
...
2
Console WPL-W11451452
...
3
Cntrl-Elec WPL-W11448961
...
4
Screw WPL-W10489172
...
5
Blower WPL-W11248652
...
6
Bumper WPL-W10351295
...
7
Shield, Wifi Access WPL-W10810292
...
8
Screw WPL-WP90767
...
9
Screw WPL-WP7101P434-60
...
10
Bracket, Blower (Left) WPL-W10655463
...
10A
Bracket, Blower (Right) WPL-W10655462
...
11
Seal-Foam WPL-W10491987
...
12
Tray, Electronic WPL-W10864102
...
13
Chassis, Back Divider WPL-W10655465
...
14
Chassis, Cover Top Front 30" WPL-W11333978
...
15
Chassis, Cover Top Back 30" WPL-W10667383
...
16
Gasket, Rubber WPL-W10728475
...
17
Harness, Keypad (Left To Center) WPL-W10566973
...
18
Harness, Keypad (Right To Center) WPL-W10524350
...
19
Speaker WPL-W11123146
...
20
Housing WPL-W10668510
...
21
Jumper Harness, Power Supply WPL-W10575307
...
22
Screw WPL-WP98008545

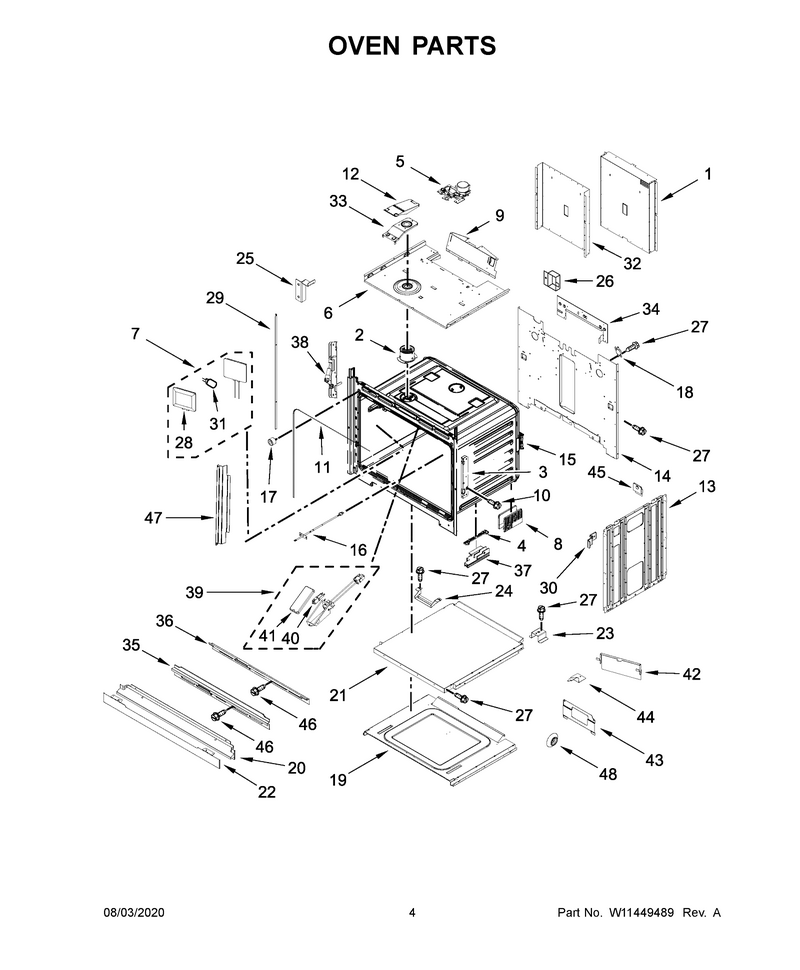

03 - Oven Parts

...
...
NI
Insulation WPL-W11685004
...
1
Duct, Chassis Back WPL-W10318196
...
2
Tube-Vent WPL-W11240525
...
3
Hinge-Recv WPL-W11613828
...
4
Spacer WPL-W11240831
...
5
Latch-Door WPL-W10883049
...
6
Top, Chassis WPL-W10904158
...
7
Light-Oven WPL-W11292252
...
8
Foot-Level WPL-W10821321
...
9
Deflector, Blower WPL-W10904163
...
10
Screw WPL-WPW10254050
...
11
Gasket-Ovn WPL-W11623080
...
12
Cover, Vent Exhaust WPL-W10616810
...
13
Side, Chassis (Left) WPL-W10663556
...
13A
Side, Chassis WPL-W10318190
...
14
Following Parts Not Illustrated WPL-N/P
...
15
Following Parts Not Illustrated WPL-N/P
...
16
Thrmst-Fix WPL-W11290976
...
17
Bumper WPL-WPW10351278
...
18
Thrmst-Fix WPL-WP4449751
...
19
Base, Chassis WPL-W11238787
...
20
Vent-Oven WPL-WPW10327374
...
21
Covr-Acess WPL-WPW10283008
...
22
Trim WPL-WPW10327377
...
23
Support, Air Channel WPL-W10213759
...
24
Spacer, Chassis Bottom Duct WPL-W10351308
...
25
Bracket, Side Cover (Left) WPL-W10863234
...
25A
Bracket, Side Cover (Right) WPL-W10863233
...
26
Cover, Connector WPL-8285593
...
27
Screw WPL-WP90767
...
28
Light-Oven WPL-WPW10519866
...
29
Accessories, Kit, Built-In Double Oven Side Trim (Black) WPL-W10536161
...
29A
Accessories, Kit, Built-In Double Oven Side Trim (Black) WPL-W10536161
...
30
Spacers, Front WPL-W10834501
...
31
Bulb-Light WPL-WPW10472384
...
32
Duct, Chassis Back (Lower) WPL-W10542857
...
33
Base, Vent Exhaust WPL-W10616809
...
34
Bracket, U-Shape WPL-W10904155
...
35
Vent, Center 30" WPL-W10283040
...
36
Trim-Vent WPL-WPW10283036
...
37
Foot-Level WPL-W10848812
...
37A
Foot-Level WPL-W10848812
...
38
Receiver, Slow Close Hinge WPL-W11045086
...
39
Light-Oven WPL-W11325525
...
40
Bulb-Light WPL-WPW10169757
...
41
Lens, Light WPL-W10169756
...
42
Shield, Slow Close Hinge WPL-W11034940
...
43
Shield, Outer WPL-W10846765
...
44
Shield. Bottom (Left) WPL-W10832249
...
44A
Shield. Bottom (Right) WPL-W10832250
...
45
Spacer, Center WPL-W10834286
...
46
Screw WPL-WPY706189
...
47
Shield, Front Frame Heat WPL-W10791505
...
48
Spacer, Lateral WPL-W10618105

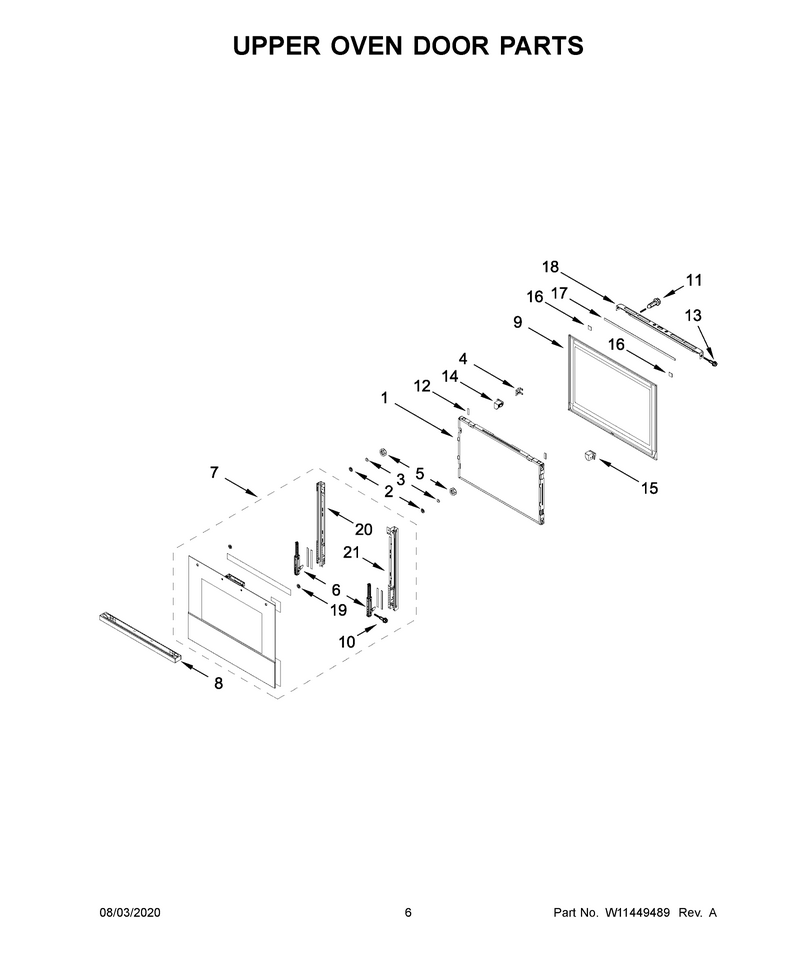

04 - Upper Oven Door Parts

...
...
1
Glass-Door WPL-W11295339
...
2
Spacer, Handle WPL-W11132942
...
3
Washer WPL-W11313010
...
4
Clip WPL-WPW10549747
...
5
Nut WPL-WP488130
...
6
Hinge, Door WPL-W11220343
...
7
Glass-Door WPL-W11325159
...
8
Assembly, Handle (Stainless) WPL-W11411894
...
9
Glass-Door WPL-W11325529
...
10
Screw WPL-WP3196183
...
11
Screw WPL-WPY706189
...
12
Spacer WPL-W10840861
...
13
Screw WPL-W11690596
...
14
Brkt-Suprt WPL-WPW10581831
...
15
Brkt-Suprt WPL-WPW10581826
...
16
Spacer WPL-WPW10517428
...
17
Gaskt-Vent WPL-W11082539
...
18
Vent, Top Metal WPL-W11280091
...
19
Washer WPL-W11676355
...
20
Rail, Door Side (Left) WPL-W11355410
...
21
Rail, Door Side (Right) WPL-W11355411

05 - Lower Oven Door Parts

...
...
1
Glass-Door WPL-W11295339
...
2
Spacer, Handle WPL-W11132942
...
3
Washer WPL-W11313010
...
4
Nut WPL-WP488130
...
5
Spacer WPL-W10840861
...
6
Hinge, Door WPL-W11220343
...
7
Glass-Door WPL-W11325162
...
8
Assembly, Handle (Stainless) WPL-W11411894
...
9
Glass-Door WPL-W11325529
...
10
Screw WPL-WP3196183
...
11
Screw WPL-WPY706189
...
12
Brkt-Suprt WPL-WPW10581831
...
13
Screw WPL-W11690596
...
14
Clip WPL-WPW10549747
...
15
Brkt-Suprt WPL-WPW10581826
...
16
Spacer WPL-WPW10517428
...
17
Gaskt-Vent WPL-W11082539
...
18
Vent, Top Metal WPL-W11280091
...
19
Washer WPL-W11676355
...
20
Rail, Door Side (Left) WPL-W11355410
...
21
Rail, Door Side (Right) WPL-W11355411

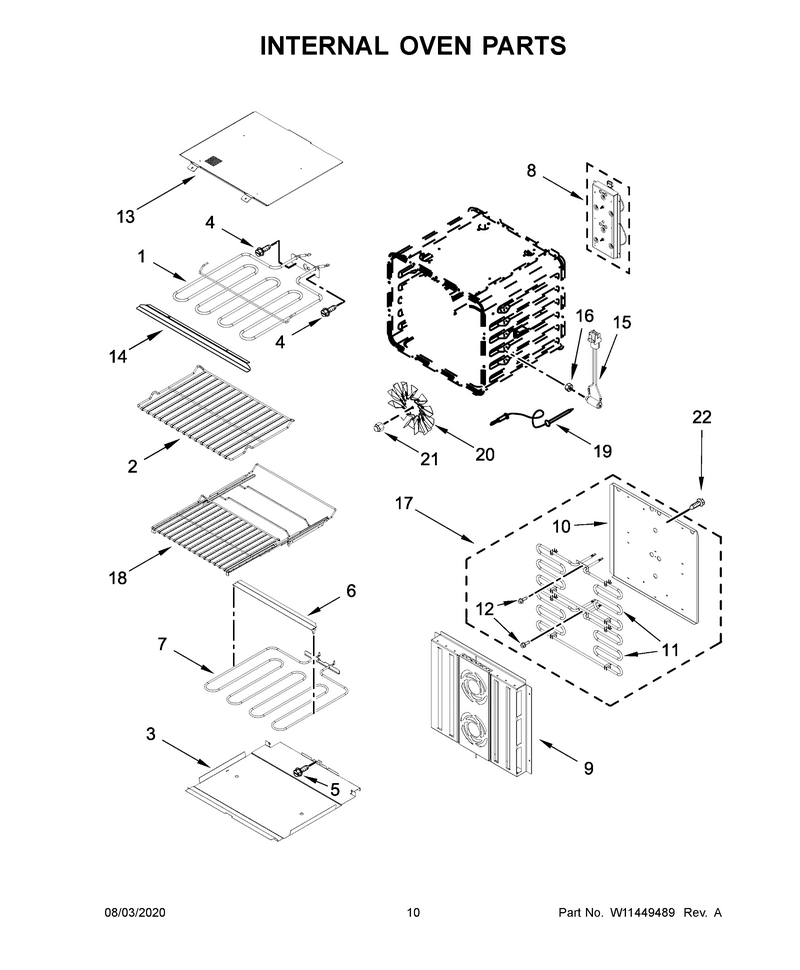

06 - Internal Oven Parts

...
...
1
Elmnt-Brol WPL-W10804429
...
2
Rack, Oven WPL-W11242906
...
3
Tray, Hidden Bake WPL-W10318198
...
4
Screw WPL-WP7101P434-60
...
5
Screw WPL-WP90767
...
6
Crossbar, Hidden Bake Tray WPL-W10282957
...
7
Elmnt-Bake WPL-W11545804
...
8
Motor-Fan WPL-W11255349
...
9
Assembly, Baffle WPL-W11313747
...
10
Shield, Convection WPL-W10853277
...
11
Element, Convection WPL-W10663735
...
12
Screw WPL-WP489464
...
13
Shield-Ht WPL-W11290999
...
14
Shield, Broil Front WPL-W10588737
...
15
Jack, Meat Probe WPL-W11252826
...
16
Locknut WPL-W11231343
...
17
Element WPL-W11098805
...
18
Rack, Sliding WPL-W11256305
...
19
Probe-Meat WPL-WP9755542
...
20
Fan-Convct WPL-W11301887
...
21
Nut WPL-W10794042
...
21A
Nut, Acorn (Rh) WPL-W10803140
...
22
Screw WPL-W10739592

...
...
NI
Paint, Pressurized Spray (12 Oz. Black) WPL-285006
