Jenn-Air JJW3430LM00

Model: JJW3430LM00

Save Part Not Listed?
product name

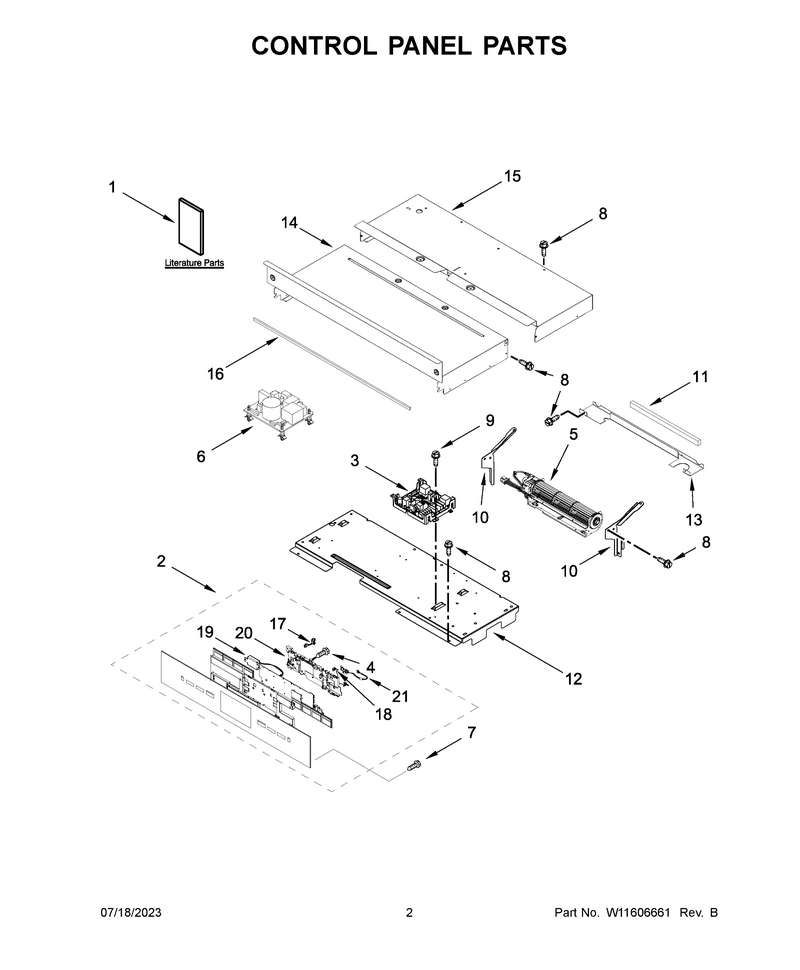

02 - Control Panel Parts

...
...
NI
Hardware WPL-W11607072
...
1
Owner's Manual WPL-W11340513
...
1A
Quick Start Guide WPL-W11423731
...
1B
Tech Sheet WPL-W11405740
...
2
Console WPL-W11598137
...
3
Cntrl-Elec WPL-W11448961
...
4
Screw WPL-W10489172
...
5
Blower WPL-W11598119
...
6
Cntrl-Elec WPL-WPW10260060
...
7
Screw WPL-W11602625
...
8
Screw WPL-WP90767
...
9
Screw WPL-WP7101P434-60
...
10
Bracket, Blower (Left) WPL-W10655463
...
10A
Bracket, Blower (Right) WPL-W10655462
...
11
Seal-Foam WPL-W10491987
...
12
Tray, Electronic WPL-W11179509
...
13
Divider, Chassis Back WPL-W11166802
...
14
Cover, Chassis Top Front (30") WPL-W11168600
...
15
Cover, 30 In Chassis Top Back WPL-W11223325
...
16
Gasket, Rubber WPL-W10728475
...
17
Harness, Keypad (Left To Center) WPL-W10566973
...
18
Harness, Keypad (Right To Center) WPL-W10524350
...
19
Speaker WPL-W11123146
...
20
Housing WPL-W10668510
...
21
Jumper Harness, Power Supply WPL-W10575307

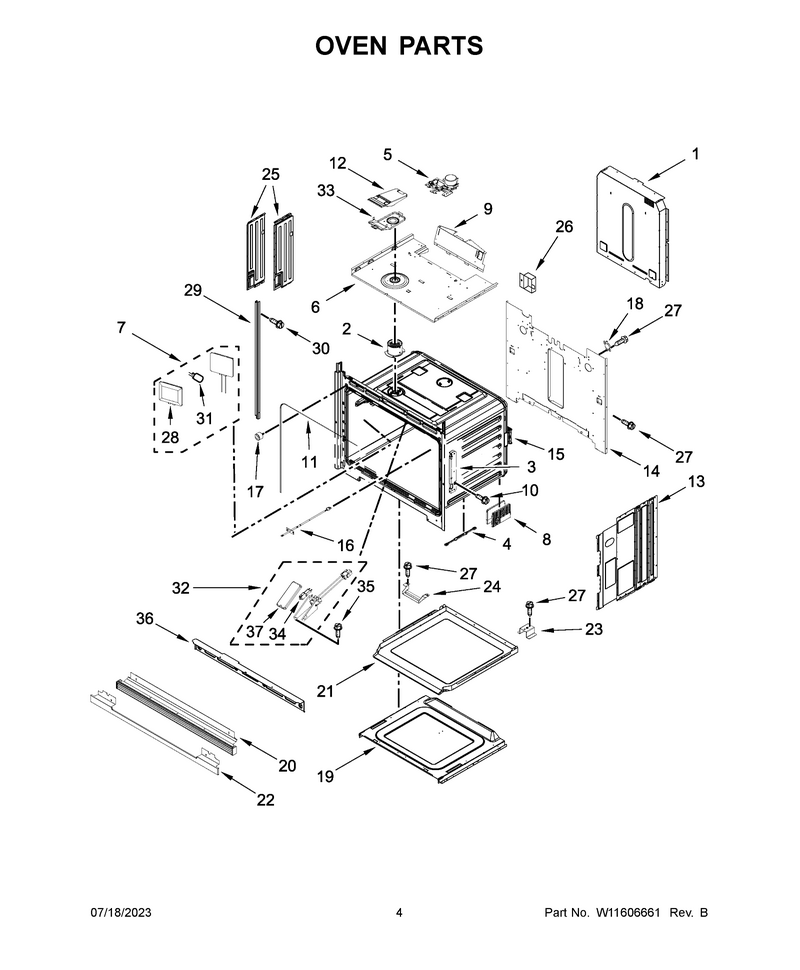

03 - Oven Parts

...
...
NI
Insulation, Top Back WPL-W11244449
...
1
Duct, Chassis Back WPL-W11165250
...
2
Tube-Vent WPL-W11240525
...
3
Hinge-Recv WPL-W11712405
...
3A
Hinge-Recv WPL-W11712406
...
4
Spacer WPL-W11598152
...
5
Latch-Door WPL-W11686858
...
6
Top, Chassis WPL-W11168071
...
7
Light-Oven WPL-W11292252
...
8
Foot-Level WPL-W11598170
...
9
Deflector, Blower WPL-W10904163
...
10
Screw WPL-WPW10254050
...
11
Gasket-Ovn WPL-W11676903
...
12
Cover, Vent Exhaust WPL-W11256424
...
13
Side, Chassis WPL-W11165274
...
14
Following Parts Not Illustrated WPL-N/P
...
15
Following Parts Not Illustrated WPL-N/P
...
16
Thrmst-Fix WPL-W11598120
...
17
Bumper WPL-W11598125
...
18
Thrmst-Fix WPL-WP4449751
...
19
Covr-Acess WPL-W11598115
...
20
Assembly, Bottom Vent (Black) WPL-W11369884
...
21
Duct, Bottom Chassis WPL-W11244446
...
22
Trim WPL-W11598135
...
23
Support, Air Channel WPL-W11135135
...
24
Brkt-Suprt WPL-W11731183
...
25
Cover-Side WPL-W11598150
...
25A
Cover-Side WPL-W11598151
...
26
Cover, Connector WPL-8285593
...
27
Screw WPL-WP90767
...
28
Light-Oven WPL-WPW10519866
...
29
Cover, Side Trim (Black (Left)) WPL-W11235463
...
29A
Cover, Side Trim (Black (Right)) WPL-W11235462
...
30
Screw WPL-W11602623
...
31
Bulb-Light WPL-WPW10472384
...
32
Light-Oven WPL-W11325525
...
33
Base, Vent Exhaust WPL-W11256423
...
34
Bulb-Light WPL-WPW10169757
...
35
Screw WPL-WPY706189
...
36
Trim-Vent WPL-W11715951
...
37
Lens, Light WPL-W10169756

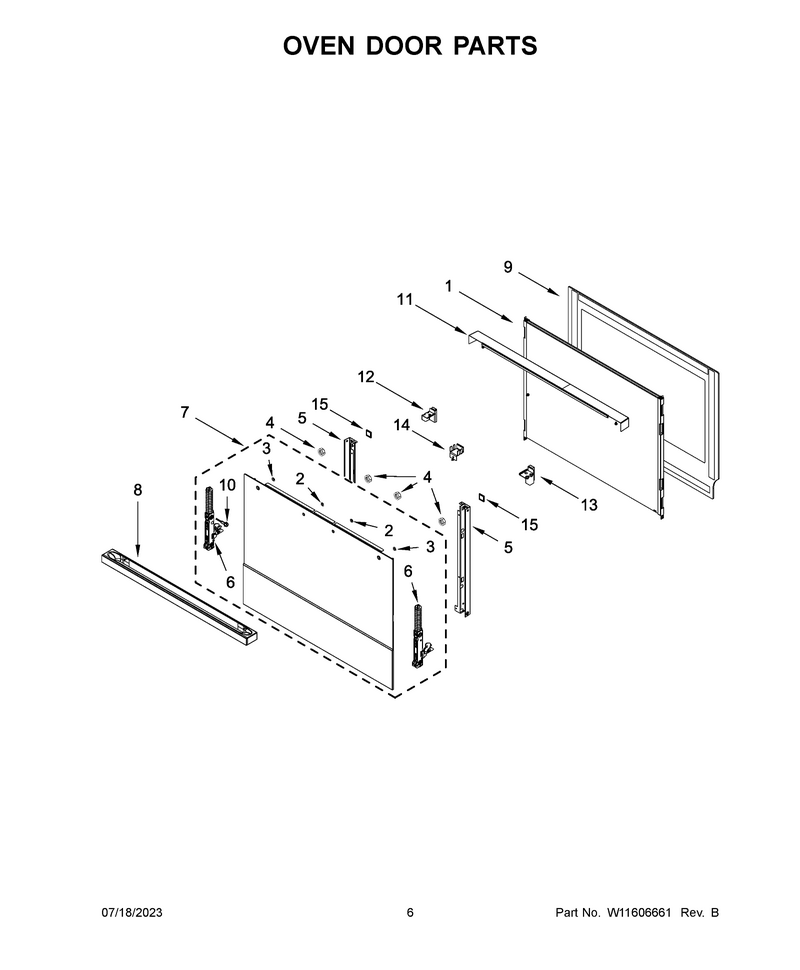

04 - Oven Door Parts

...
...
1
Glass-Door WPL-W11600213
...
2
Spacer, Handle WPL-W11132942
...
3
Washer WPL-W11676355
...
4
Nut WPL-W11602632
...
5
Brkt-Suprt WPL-W11598126
...
5A
Brkt-Suprt WPL-W11598127
...
6
Hinge, Door (Left) WPL-W11111221
...
6A
Hinge, Door (Right) WPL-W11111222
...
7
Glass-Door WPL-W11602614
...
8
Assembly, Handle (Stainless) WPL-W11411894
...
9
Glass-Door WPL-W11602610
...
10
Screw WPL-WP3196183
...
11
Trim-Vent WPL-W11705878
...
12
Brkt-Suprt WPL-W11598130
...
13
Brkt-Suprt WPL-W11598128
...
14
Clip WPL-W11598131
...
15
Spacer WPL-WPW10517428

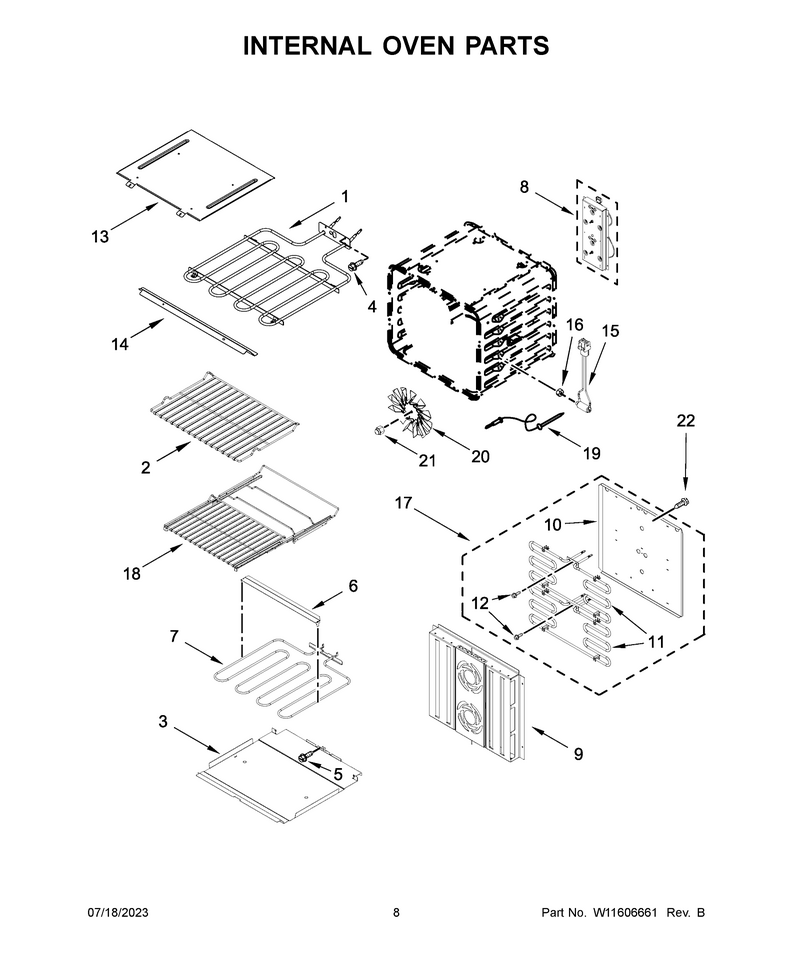

05 - Internal Oven Parts

...
...
1
Elmnt-Brol WPL-W11598122
...
2
Rack, Oven WPL-W11242906
...
3
Tray, Hidden Bake WPL-W10318198
...
4
Screw WPL-WP7101P434-60
...
5
Screw WPL-WP90767
...
6
Crossbar, Hidden Bake Tray WPL-W10282957
...
7
Elmnt-Bake WPL-W11545804
...
8
Motor-Fan WPL-W11255349
...
9
Assembly, Baffle WPL-W11313747
...
10
Shield, Convection WPL-W10853277
...
11
Element, Convection WPL-W10663735
...
12
Screw WPL-WP489464
...
13
Top-Cabnt WPL-W11598121
...
14
Shield, Broil Front WPL-W10588737
...
15
Jack, Meat Probe WPL-W11252826
...
16
Locknut WPL-W11231343
...
17
Element WPL-W11098805
...
18
Rack, Sliding WPL-W11256305
...
19
Probe-Meat WPL-WP9755542
...
20
Fan-Convct WPL-W11301887
...
21
Nut WPL-W11548755
...
21A
Nut, Acorn (Rh) WPL-W10803140
...
22
Screw WPL-W10739592

...
...
NI
Accessories, Wipes, Stainless Steel Cleaning WPL-W10355049
