Jenn-Air JJW2427LM01

Model: JJW2427LM01

Save Part Not Listed?
product name

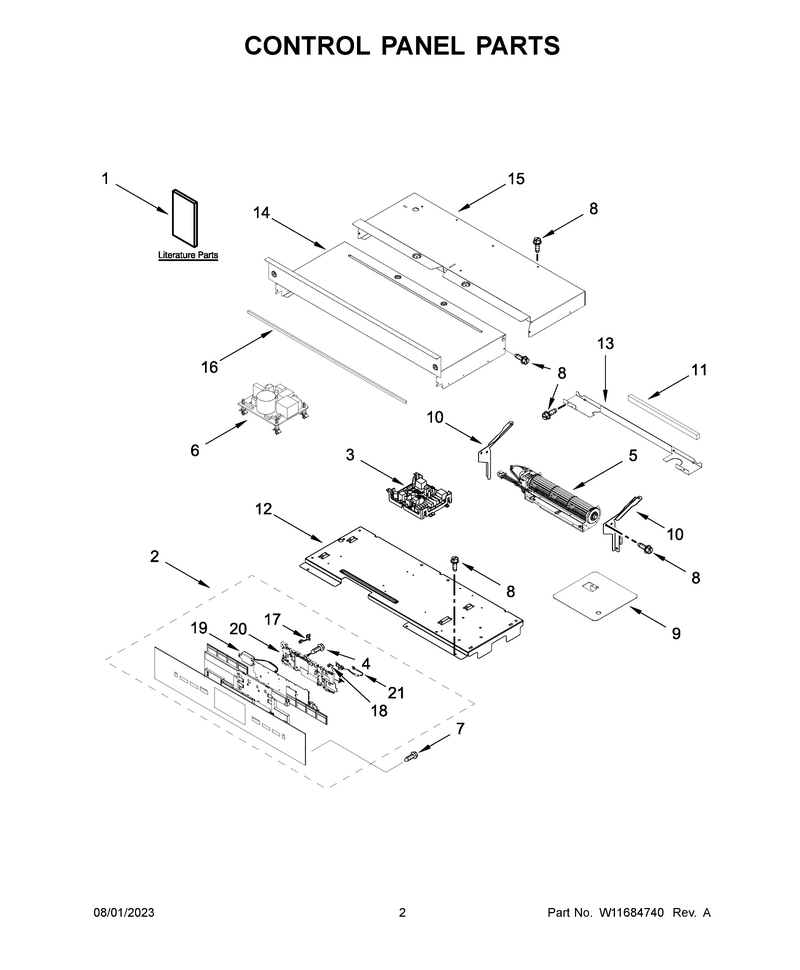

02 - Control Panel Parts

...
...
NI
Hardware WPL-W11607072
...
1
Owner's Manual WPL-W11340513
...
1A
Quick Start Guide WPL-W11423731
...
1B
Tech Sheet WPL-W11382345
...
2
Console WPL-W11598154
...
3
Cntrl-Elec WPL-W11448962
...
4
Screw WPL-W10489172
...
5
Blower WPL-W11598119
...
6
Cntrl-Elec WPL-WPW10260060
...
7
Screw WPL-W11602625
...
8
Screw WPL-WP90767
...
9
Cover, Wifi WPL-W11308343
...
10
Bracket, Blower (Left) WPL-W10655463
...
10A
Bracket, Blower (Right) WPL-W10655462
...
11
Seal-Foam WPL-W10491987
...
12
Tray, Electronic WPL-W11179509
...
13
Divider, Chassis Back WPL-W11166802
...
14
Chassis, Cover Top Front 27" WPL-W11244465
...
15
Cover, Top Back 27 In Chassis WPL-W11244459
...
16
Gasket, Rubber WPL-W10728475
...
17
Harness, Keypad (Left To Center) WPL-W10566973
...
18
Harness, Keypad (Right To Center) WPL-W10524350
...
19
Speaker WPL-W11123146
...
20
Housing WPL-W10668510
...
21
Jumper Harness, Power Supply WPL-W10575307

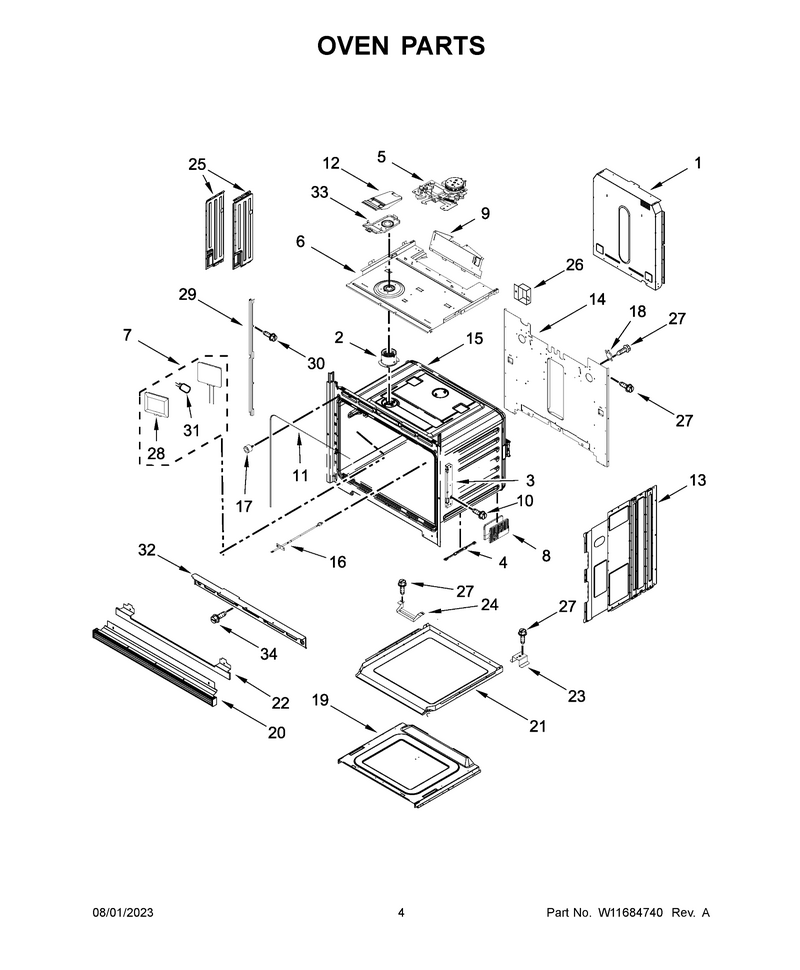

03 - Oven Parts

...
...
NI
Insulation, Back WPL-W11244475
...
1
Duct, Chassis Back WPL-W11165250
...
2
Tube-Vent WPL-W11240525
...
3
Hinge-Recv WPL-W11712405
...
3A
Hinge-Recv WPL-W11712406
...
4
Spacer WPL-W11598152
...
5
Latch-Door WPL-W11686858
...
6
Top, Chassis WPL-W11244456
...
7
Light-Oven WPL-W11292252
...
8
Foot-Level WPL-W11598170
...
9
Deflector, Blower WPL-W10904163
...
10
Screw WPL-WPW10254050
...
11
Gasket, Cavity WPL-W11608109
...
12
Cover, Vent Exhaust WPL-W11256424
...
13
Side, Chassis WPL-W11165274
...
14
Back, Chassis (Not Serviced) WPL---
...
15
Liner, Oven (Not Serviceable) WPL---
...
16
Thrmst-Fix WPL-W11598120
...
17
Bumper WPL-W11598125
...
18
Thrmst-Fix WPL-WP4449751
...
19
Covr-Acess WPL-W11598139
...
20
Assembly, Bottom Vent (Black) WPL-W11369893
...
21
Duct, Bottom Chassis WPL-W11244446
...
22
Trim WPL-W11712432
...
23
Support, Air Channel WPL-W11135135
...
24
Brkt-Suprt WPL-W11731183
...
25
Cover-Side WPL-W11598150
...
25A
Cover-Side WPL-W11598151
...
26
Cover, Connector WPL-8285593
...
27
Screw WPL-WP90767
...
28
Light-Oven WPL-WPW10519866
...
29
Cover, Side Trim (Black (Left)) WPL-W11235463
...
29A
Cover, Side Trim (Black (Right)) WPL-W11235462
...
30
Screw WPL-W11602623
...
31
Bulb-Light WPL-WPW10472384
...
32
Vent, Top 27 In WPL-W11334858
...
33
Base, Vent Exhaust WPL-W11256423
...
34
Screw WPL-WPY706189

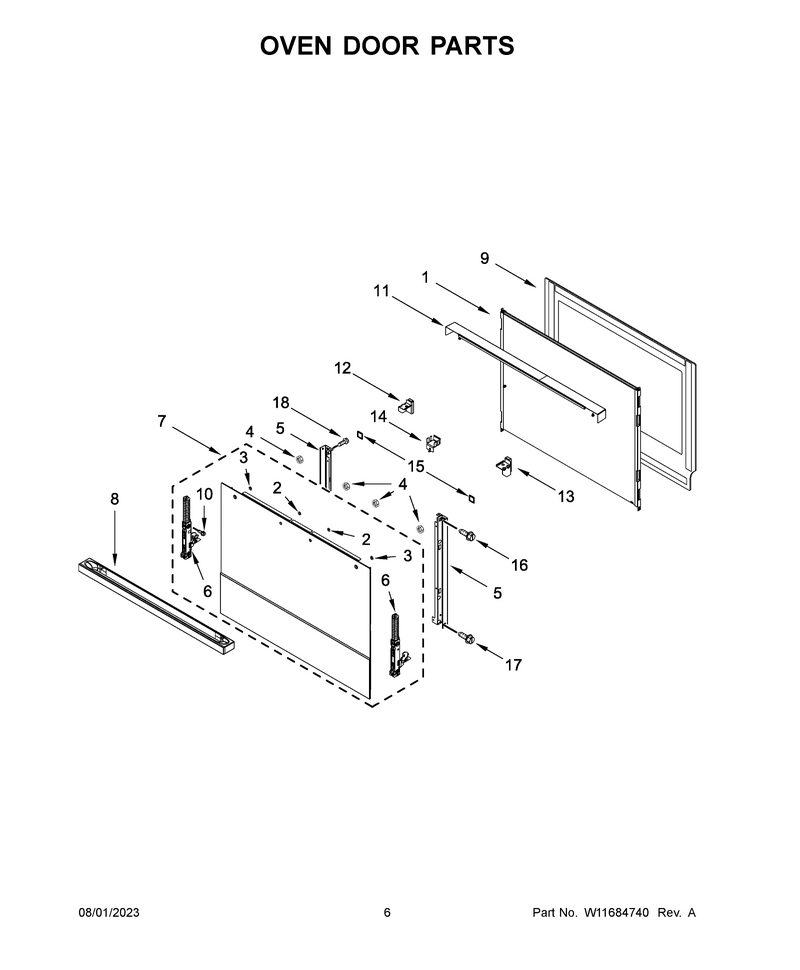

04 - Oven Door Parts

...
...
1
Glass-Door WPL-W11602513
...
2
Spacer, Handle WPL-W11132942
...
3
Washer WPL-W11676355
...
4
Nut WPL-W11602632
...
5
Brkt-Suprt WPL-W11598126
...
5A
Brkt-Suprt WPL-W11598127
...
6
Hinge, Door (Left) WPL-W11394209
...
6A
Hinge, Door (Right) WPL-W11394210
...
7
Glass-Door WPL-W11602616
...
8
Assembly, Handle (Stainless) WPL-W11411895
...
9
Glass-Door WPL-W11602631
...
10
Screw WPL-WP3196183
...
11
Top Vent Trim Assembly WPL-W11597416
...
12
Brkt-Suprt WPL-W11598130
...
13
Brkt-Suprt WPL-W11598128
...
14
Clip WPL-W11598131
...
15
Spacer WPL-WPW10517428
...
16
Screw WPL-WP694091
...
17
Screw WPL-W11617225
...
18
Screw WPL-W10443110

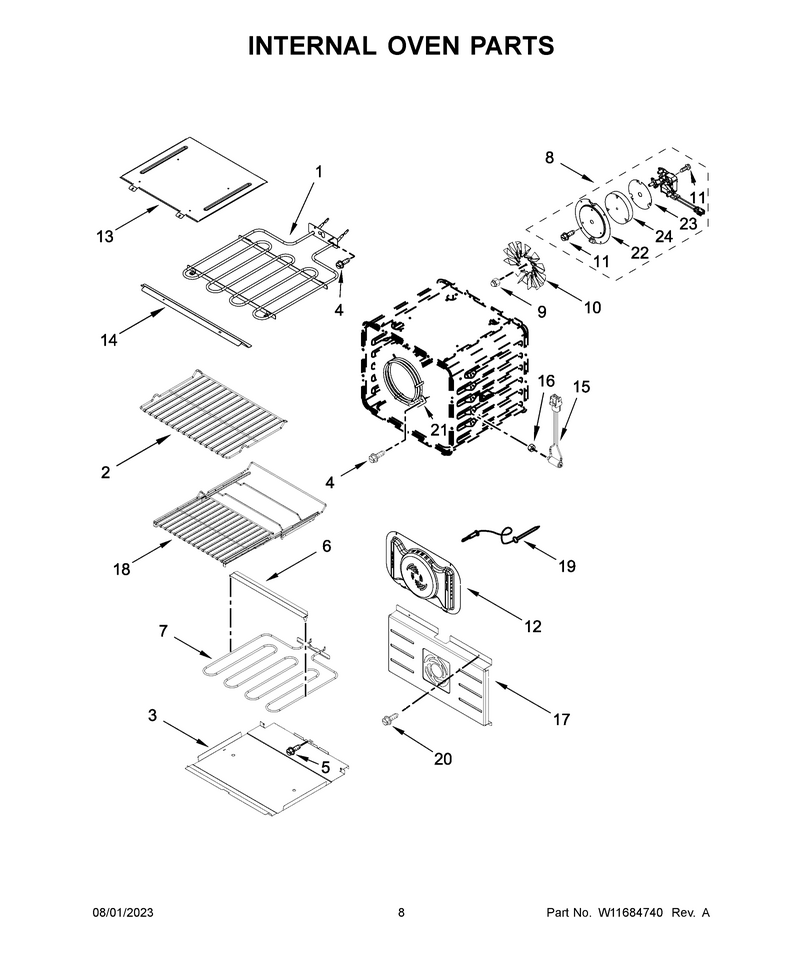

05 - Internal Oven Parts

...
...
1
Elmnt-Brol WPL-W11598122
...
2
Rack, 27 In Oven WPL-W11242909
...
3
Tray, Hidden Bake WPL-W10318198
...
4
Screw WPL-WP7101P434-60
...
5
Screw WPL-WP90767
...
6
Crossbar, Hidden Bake Tray WPL-W10282957
...
7
Elmnt-Bake WPL-W11545804
...
8
Motor-Fan WPL-W11602628
...
9
Nut WPL-W11548755
...
10
Fan-Convct WPL-W11548753
...
11
Screw WPL-W10850807
...
12
Baffl-Conv WPL-W11241587
...
13
Top-Cabnt WPL-W11598121
...
14
Shield, Broil Front WPL-W10588737
...
15
Jack, Meat Probe WPL-W11252826
...
16
Locknut WPL-W11231343
...
17
Cover, Baffle WPL-W10521808
...
18
Rack, 27 In Sliding WPL-W11256306
...
19
Probe-Meat WPL-WP9755542
...
20
Screw WPL-W10739592
...
21
Element WPL-W11678579
...
22
Cover WPL-W11602630
...
23
Cover WPL-W11602629
...
24
Insulation WPL-W11706806

...
...
NI
Accessory Parts, Trim, Tall Vent (Black) WPL-W11570326
