Jenn-Air JJW2424HL0

Model: JJW2424HL0

Save Part Not Listed?
product name

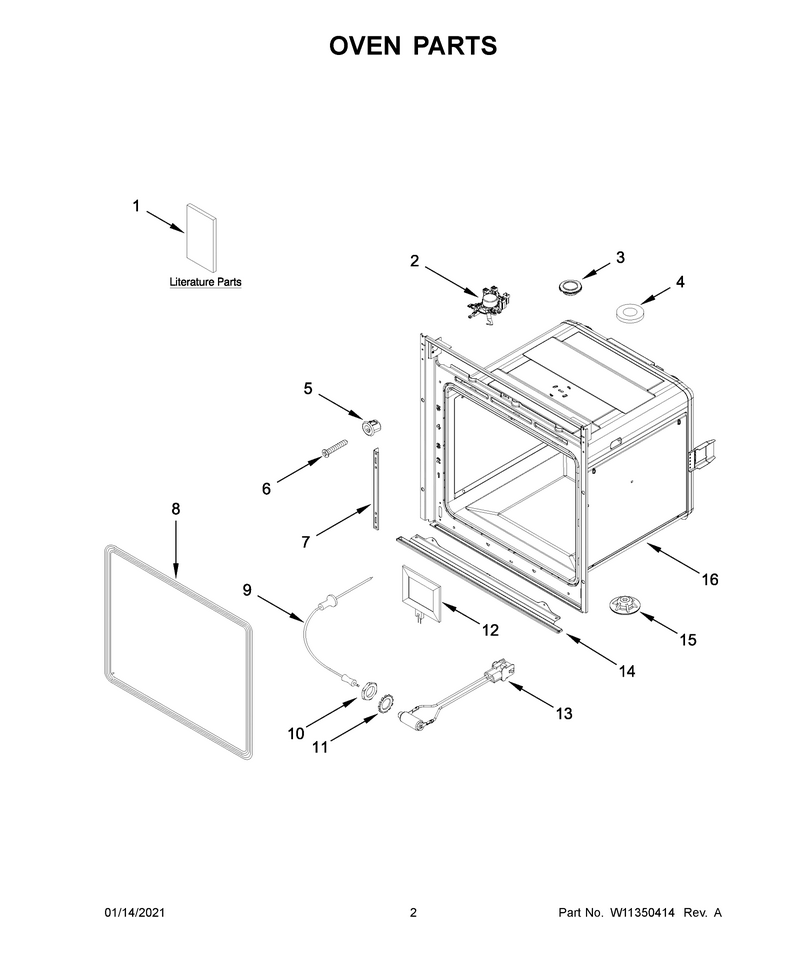

02 - Oven Parts

...
...
NI
Kit, Power Cord (No Plug) WPL-W11348047
...
1A
Use And Care Guide WPL-W11260125
...
1B
Tech Sheet WPL-W11260148
...
1
Installation Instructions WPL-W11260094
...
2
Latch, Door WPL-W11347847
...
3
Cap WPL-W11509867
...
4
Gasket, Top Panel WPL-8186903
...
5
Bumper WPL-W10578780
...
6
Kit, Adjustment Screw WPL-W10646201
...
7
Hinge, Running Mechanism WPL-W10517968
...
8
Gasket, Door WPL-W10518387
...
9
Probe, Meat WPL-W11348089
...
10
Nut, Meat Probe WPL-W11348125
...
11
Washer, Meat Probe WPL-W11348127
...
12
Lamp, Halogen 25 Watt (With Gasket) WPL-W11348087
...
13
Socket, Meat Probe With Harness WPL-W11348099
...
14
Trim, Lower WPL-W10517979
...
15
Foot, Level Oven WPL-W10545973
...
16
Following Parts Not Illustrated WPL-N/P

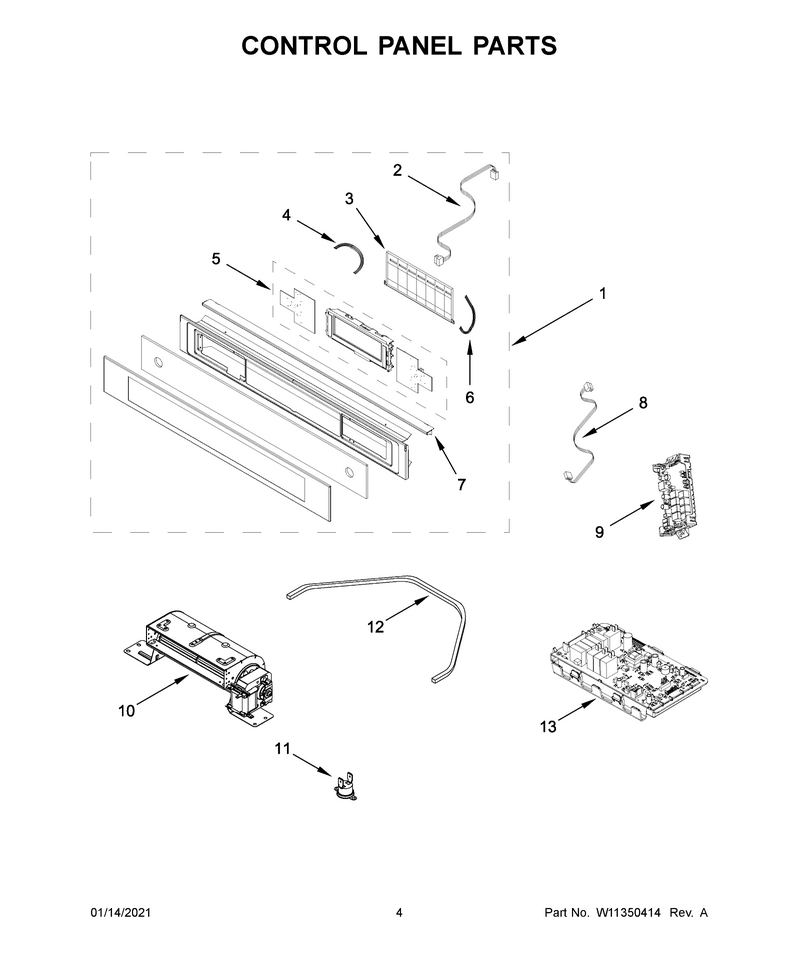

03 - Control Panel Parts

...
...
1
Console WPL-W11510270
...
2
Harness, Touch Display WPL-W11348035
...
3
Cover, Control WPL-W11348132
...
4
Wiring, Right Control WPL-W11348036
...
5
Display WPL-W11510271
...
6
Wiring, Left Control WPL-W11348033
...
7
Vent, Trim Control Panel WPL-W11353026
...
8
Harness, Display To Power Unit WPL-W11348046
...
9
Control, Electronic WPL-W11348128
...
10
Blower, Cooling Fan WPL-W11347859
...
11
Thrmst-Fix WPL-W11259047
...
12
Gasket, Blower Motor WPL-W10519009
...
13
Cntrl-Elec WPL-W11510272

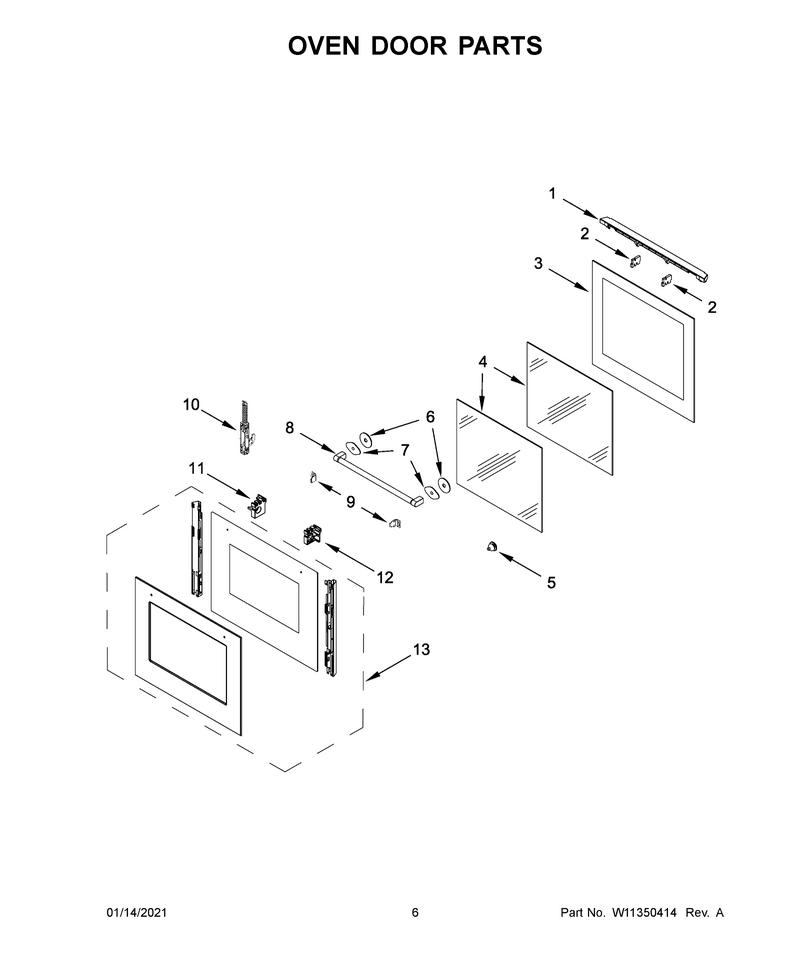

04 - Oven Door Parts

...
...
1
Vent, Door Trim Top WPL-W10518369
...
2
Spacer, Door Trim Top WPL-W10518307
...
3
Glass-Door WPL-W11348805
...
4
Glass-Door WPL-WPW10518377
...
5
Spacer, Oven Door Glass WPL-W10519004
...
6
Spacer WPL-W11236907
...
7
Spacer, Rubber WPL-W10260705
...
8
Handle, Door WPL-W11353331
...
9
Support, Oven Door Glass WPL-481010387617
...
10
Hinge, Door WPL-W11347846
...
11
Support, Oven Glass WPL-W11509863
...
12
Support, Oven Door Glass WPL-W10518384
...
13
Glass-Door WPL-W11348803

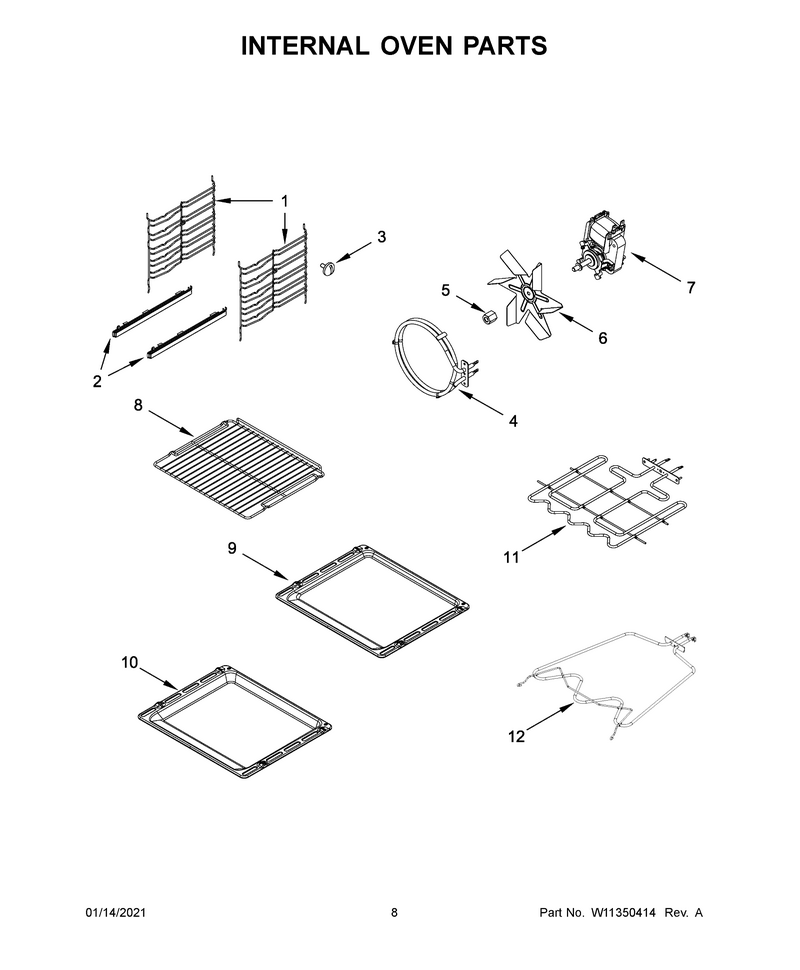

05 - Internal Oven Parts

...
...
1
Brkt-Suprt WPL-W11236920
...
2
Kit, Sliding Rail (Partial Extension) WPL-W11347856
...
2A
Slide-Drwr WPL-W11237237
...
3
Screw, Grid WPL-W10519022
...
4
Element, Convection WPL-W11347860
...
5
Nut, Fan WPL-W10901439
...
6
Wheel-Fan WPL-W11752199
...
7
Motor-Fan WPL-W11740804
...
8
Rack-Oven WPL-W11236918
...
9
Tray-Bake WPL-W11348807
...
10
Tray-Bake WPL-W11348808
...
11
Element, Upper Grill WPL-W11347861
...
12
Element, Lower WPL-W11348032
