Jenn-Air JIS1450ML1

Model: JIS1450ML1

Save Part Not Listed?
product name

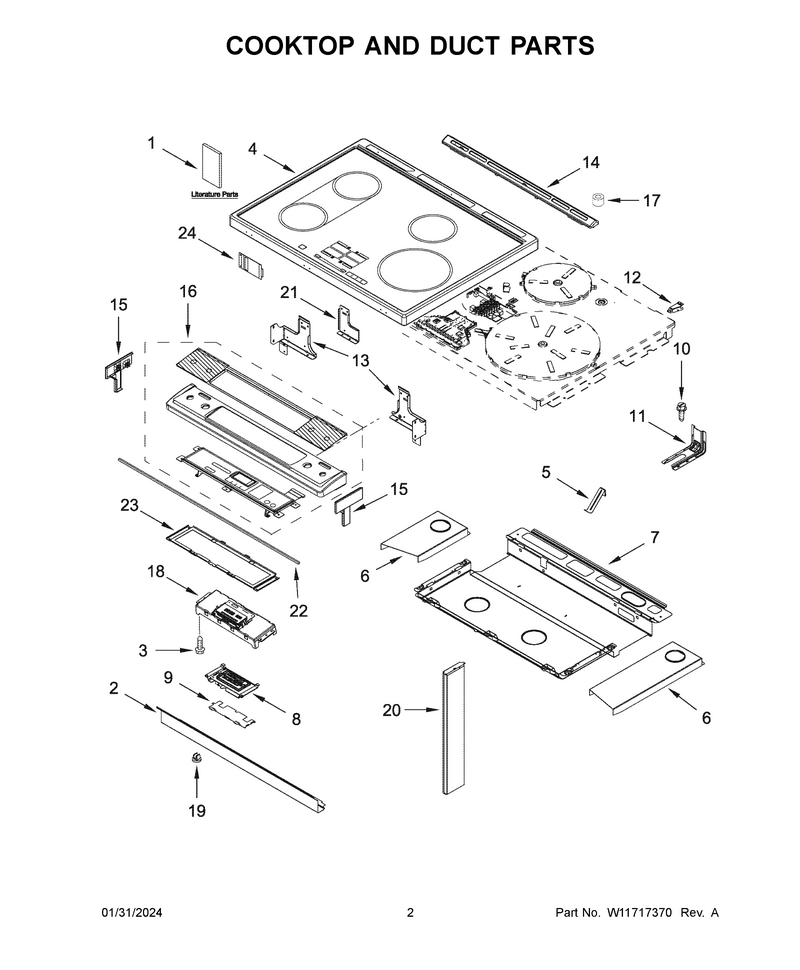

02 - Cooktop And Duct Parts

...
...
NI
Harns-Wire WPL-W11025616
...
1
Use And Care Guide WPL-W11637353
...
1A
Tech Sheet WPL-W11637366
...
1B
Quick Start Guide WPL-W11637355
...
1C
Dimension Guide WPL-W11644568
...
2
Console, Lower Panel (Stainless) WPL-W10743281
...
3
Screw WPL-W11233072
...
4
Cooktop WPL-W11690815
...
5
Spring WPL-W11691364
...
6
Duct-Side WPL-W11693489
...
6A
Duct-Side WPL-W11693490
...
7
Pan WPL-W11691349
...
8
Display WPL-W11108634
...
9
Bracket, Control WPL-W10558372
...
10
Anchor-Tip WPL-WP7101P485-60
...
11
Anchor-Tip WPL-W11502257
...
12
Brace, Corner (Left) WPL-W10162253
...
12A
Brace, Corner (Right) WPL-W10162252
...
13
Support, Cooktop (Right) WPL-W10289169
...
13A
Support, Cooktop (Left) WPL-W10289170
...
14
Trim-Vent WPL-W11170796
...
15
Endcap (Stainless (Left)) WPL-W10557751
...
15A
Endcap (Stainless (Right)) WPL-W10557754
...
16
Panl-Cntrl WPL-W11691366
...
17
Bumper WPL-W11690600
...
18
Cntrl-Elec WPL-W11701893
...
19
Insert WPL-W11025100
...
20
Duct-Side WPL-W11691362
...
21
Bracket, Console (Center) WPL-W10598048
...
22
Gasket WPL-W10802441
...
23
Bracket , Control WPL-W10557780
...
24
Shield, Keypad WPL-W11158783

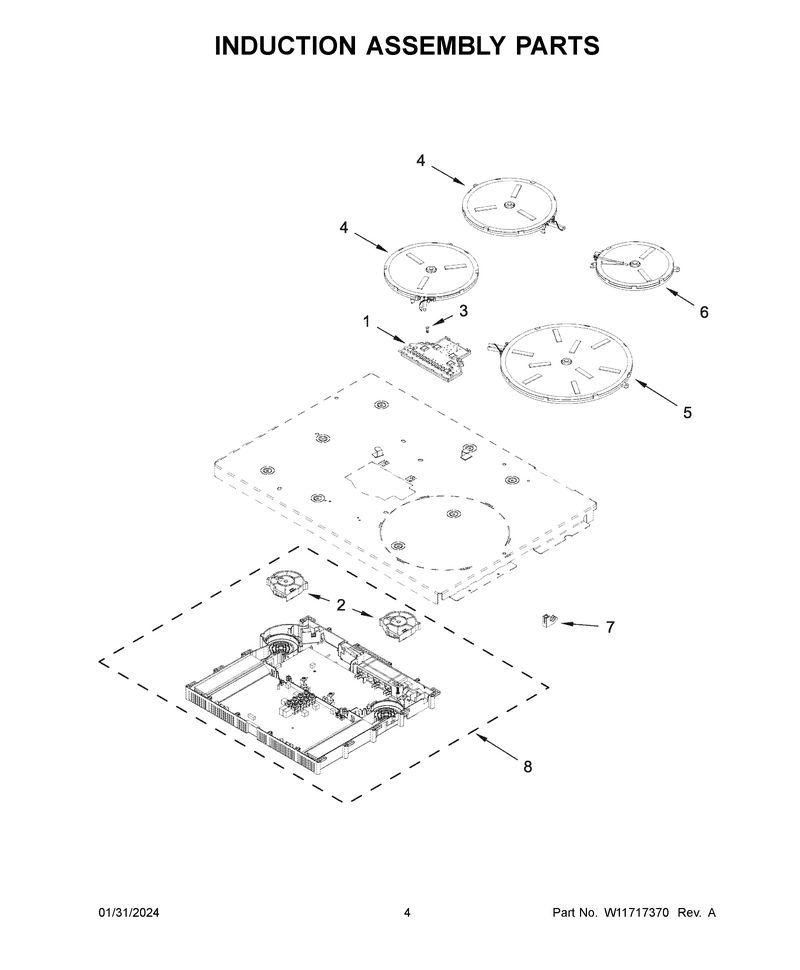

03 - Induction Assembly Parts

...
...
NI
Harns-Wire WPL-W11689159
...
1
Display WPL-W11689156
...
2
Fan-Blwr WPL-W11687652
...
3
Display WPL-W11689156
...
4
Hotplate WPL-W11689152
...
5
Hotplate WPL-W11689153
...
6
Hotplate WPL-W11689154
...
7
Relief WPL-W11689160
...
8
Module WPL-W11689155

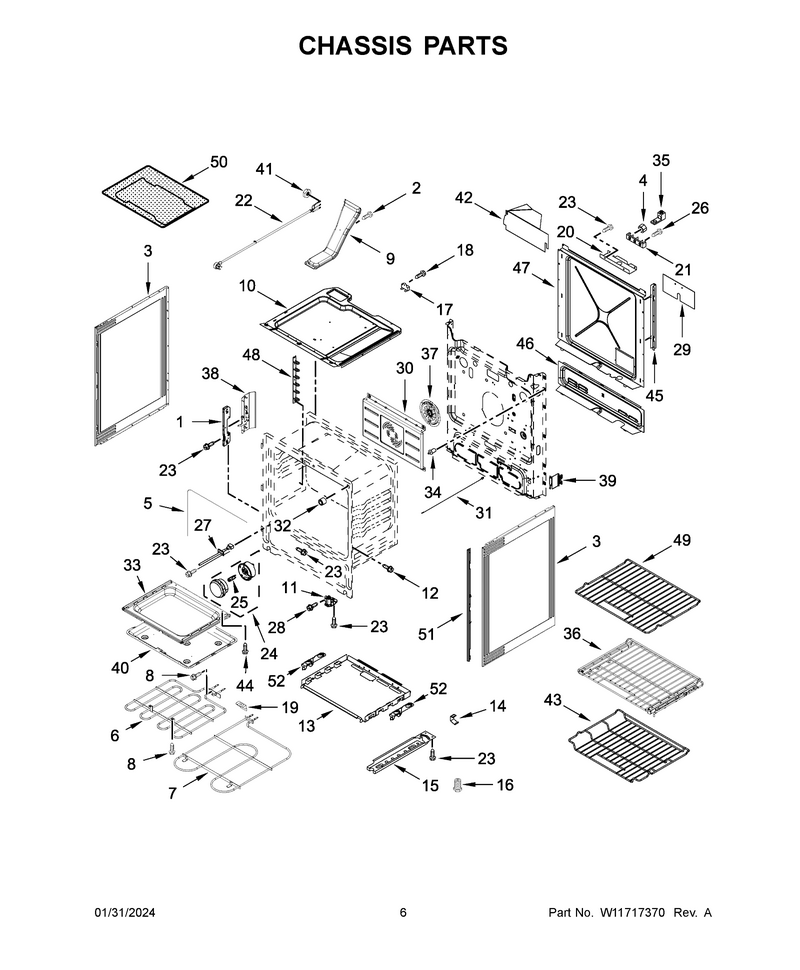

04 - Chassis Parts

...
...
NI
Clip WPL-W10841090
...
1
Hinge, Receiver WPL-W10634238
...
2
Screw WPL-W11233072
...
3
Panel-Side WPL-W11730303
...
4
Nut WPL-WP3400029
...
5
Gaskt-Door WPL-W11562931
...
6
Elmnt-Brol WPL-W11238400
...
7
Elmnt-Bake WPL-W10779716
...
8
Screw WPL-W11233072
...
9
Assembly, Flue WPL-W11122085
...
10
Box, Burner Si WPL-W10289168
...
11
Foot-Level WPL-WPW10341186
...
12
Screw WPL-WPW10067840
...
13
Shield, Bake WPL-W10541959
...
14
Clip, Panel WPL-W10137382
...
15
Rail-Base WPL-WPW10306546
...
15A
Rail-Base WPL-WPW10306546
...
16
Foot-Level WPL-WPW10058460
...
17
Fuse-Thrml WPL-WP3196548
...
18
Screw WPL-3196172
...
19
Support, Oven Bottom WPL-W10035900
...
20
Brkt-Srvce WPL-W11728255
...
21
Block-Term WPL-WP8203546
...
22
Cord-Power WPL-W11226497
...
23
Screw WPL-W11233072
...
24
Light-Oven WPL-W11707255
...
25
Light Bulb WPL-8009
...
26
Screw WPL-WP3400016
...
27
Sensor WPL-W10833885
...
28
Screw WPL-WP3196557
...
29
Shield, Power Cord WPL-W10655441
...
30
Baffle, Full Convection WPL-W10554262
...
31
Rod, Door Switch WPL-W10273192
...
32
Spacer WPL-W10877054
...
33
Bottm-Oven WPL-W10777210
...
34
Swtch-Lite WPL-W11620712
...
35
Connector WPL-WPW10281322
...
36
Rack-Oven WPL-W11225131
...
37
Fan-Convct WPL-W11414552
...
38
Receiver, Slow Close Hinge WPL-W10605411
...
39
Bracket, Oven Support WPL-W10273002
...
40
Bake Pan WPL-W11379357
...
41
Nut WPL-WP7103P027-60
...
42
Shield, Wire WPL-W10818358
...
43
Rack-Oven WPL-W11256463
...
44
Screw WPL-W10516115
...
45
Channel, Rear WPL-W10162241
...
46
Cover, Wire WPL-W10162248
...
47
Cover, Back WPL-W11379354
...
48
Rack, Ladder WPL-W10603482
...
49
Rack-Oven WPL-W11699908
...
50
Accessory Parts, Basket, Air Fry WPL-W11692811
...
51
Barrier Rail, Rubber (Front Left) WPL-W11510561
...
51A
Barrier Rail, Rubber (Front Right) WPL-W11510562
...
52
Bracket, Panel (Left) WPL-W10828883
...
52A
Bracket, Panel (Right) WPL-W10828882

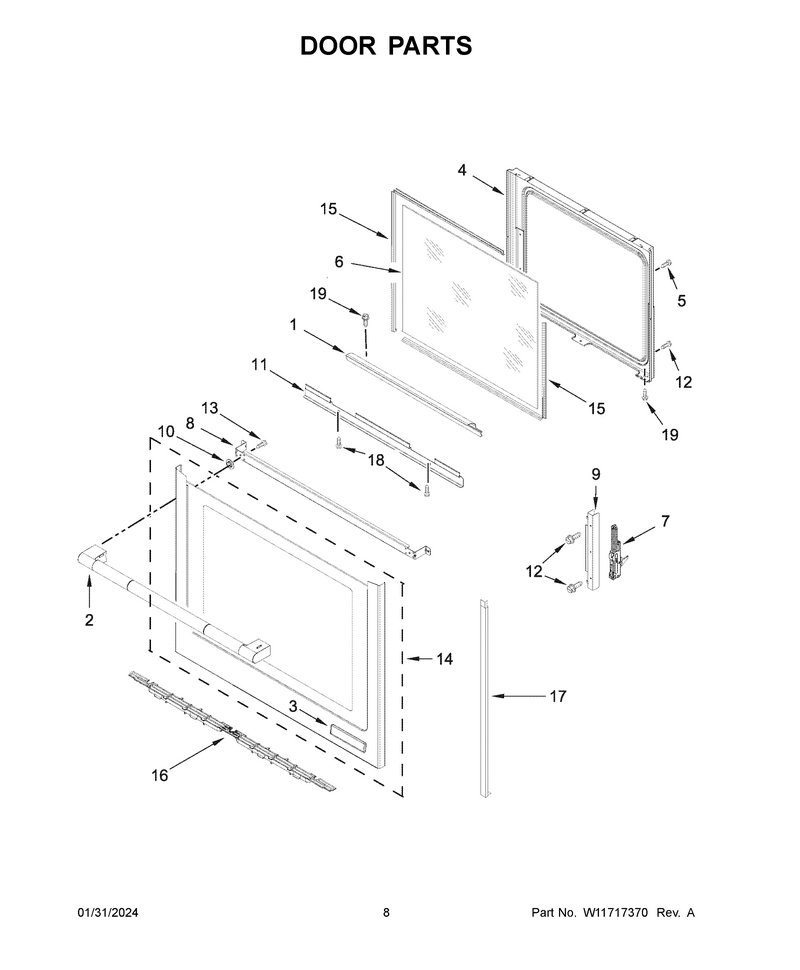

05 - Door Parts

...
...
1
Trim-Vent WPL-W11251351
...
2
Hndle-Door WPL-W11647008
...
3
Nameplate WPL-W11700312
...
4
Liner-Door WPL-W10902192
...
5
Screw WPL-WPW10031790
...
6
Glass-Door WPL-W11339500
...
7
Hinge-Door WPL-W11647009
...
8
Bracket, Glass Upper Handle WPL-W10541911
...
9
Hinge, Support Rail WPL-W10541883
...
10
Washer WPL-W11676355
...
11
Rail, Horizontal Support WPL-W10813140
...
12
Screw WPL-W10777162
...
13
Screw WPL-WP8533988
...
14
Glass-Door WPL-W11647013
...
15
Spacr-Glas WPL-W11673273
...
16
Bottom, Door Cover WPL-W11440161
...
17
Support WPL-W11744483
...
18
Screw WPL-WP355214
...
19
Screw WPL-W11245710

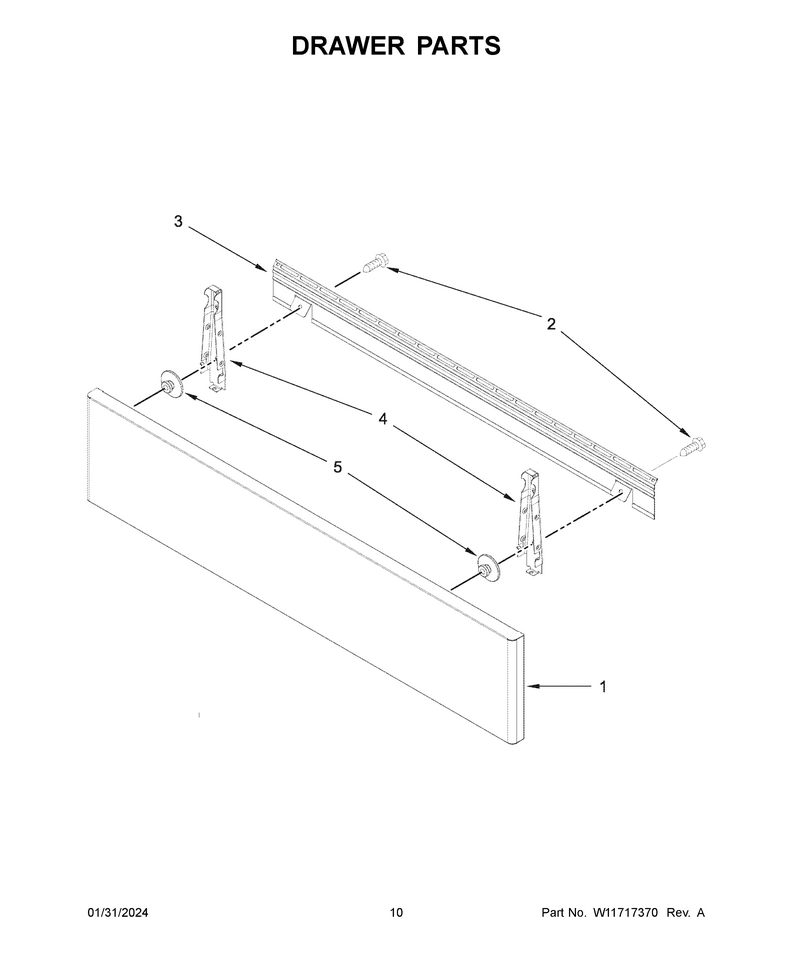

06 - Drawer Parts

...
...
1
Panel, Drawer Front (Stainless) WPL-W10602484
...
2
Screw WPL-WP3400882
...
3
Baffle, Drawer Panel WPL-W11452957
...
4
Brkt-Mntg WPL-WPW10318026
...
5
Spacer WPL-W10857933

...
...
NI
Backsplash Assembly (Stainless) WPL-W10655450
