Jenn-Air JIS1450DS3

Model: JIS1450DS3

Save Part Not Listed?
product name

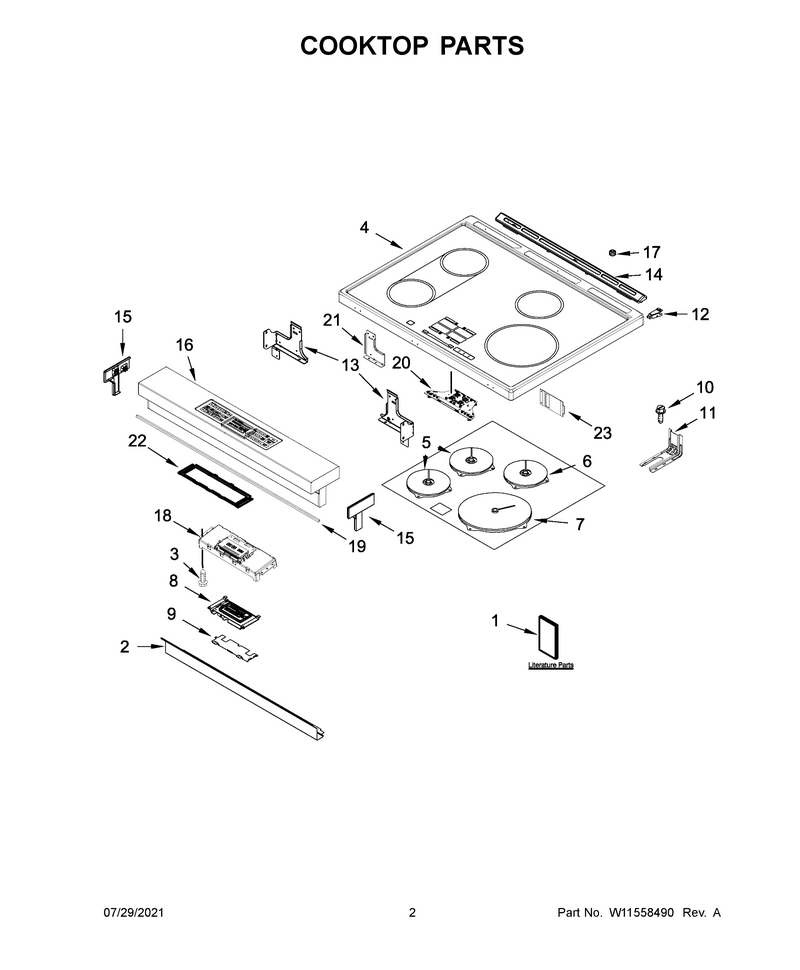

02 - Cooktop Parts

...
...
NI
Screw, Ground WPL-3400964
...
1
Installation, Instructions WPL-W10744014
...
1A
Use And Care Guide WPL-W10896673
...
1B
Tech Sheet WPL-W11382121
...
1C
Quick Start Guide WPL-W10400064
...
1D
Quick Start Guide (French) WPL-W10400065
...
2
Console, Lower Panel (Stainless) WPL-W10743281
...
3
Screw WPL-W11233072
...
4
Cooktop WPL-W10751485
...
5
Elmnt-Surf WPL-W11672688
...
6
Hotplate WPL-WPW10410580
...
7
Hotplate WPL-WPW10410578
...
8
Cntrl-Elec WPL-W11120573
...
9
Bracket, Control WPL-W10558372
...
10
Anchor-Tip WPL-WP7101P485-60
...
11
Anchor-Tip WPL-W11502257
...
12
Brace, Corner (Left) WPL-W10162253
...
12A
Brace, Corner (Right) WPL-W10162252
...
13
Support, Cooktop (Right) WPL-W10289169
...
13A
Support, Cooktop (Left) WPL-W10289170
...
14
Trim-Vent WPL-W11170796
...
15
Endcap (Stainless (Left)) WPL-W10557751
...
15A
Endcap (Stainless (Right)) WPL-W10557754
...
16
Panl-Cntrl WPL-W11043339
...
17
Bumper WPL-W11104127
...
18
Cntrl-Elec WPL-W11296051
...
19
Gasket WPL-W10802441
...
20
Display WPL-W11677629
...
21
Bracket, Console (Center) WPL-W10598048
...
22
Bracket , Control WPL-W10557780
...
23
Shield, Keypad WPL-W11158783

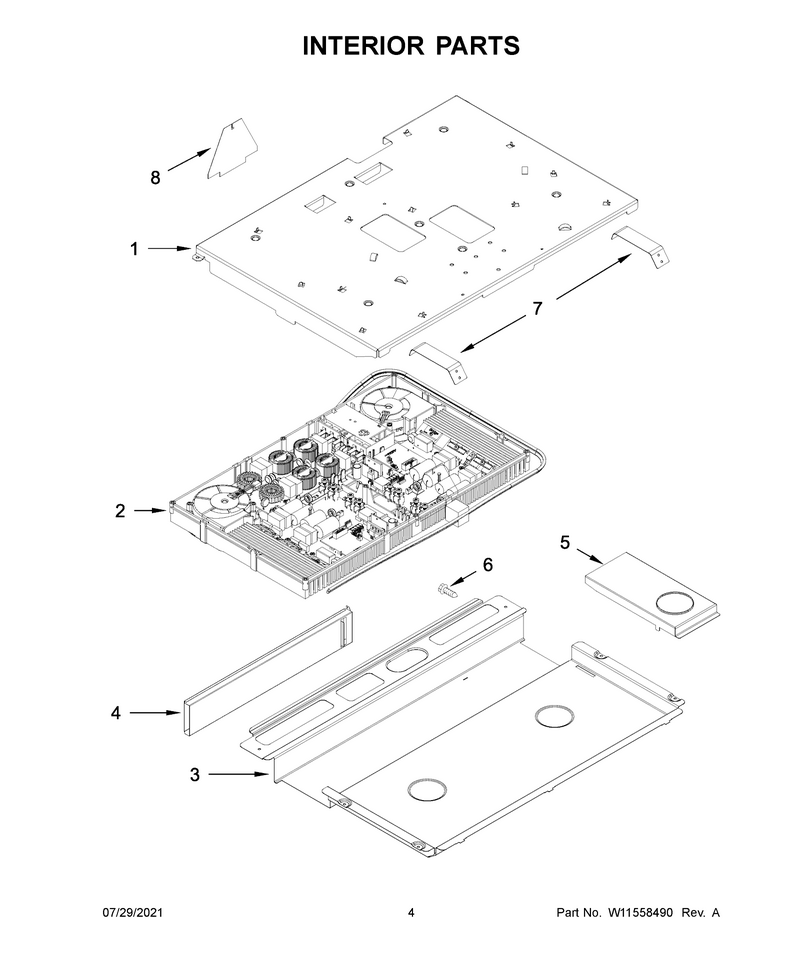

03 - Interior Parts

...
...
1
Plate WPL-W11727219
...
2
Module WPL-W10886867
...
3
Pan, Induction (Lower) WPL-W10536319
...
4
Assembly, Induction Side Duct WPL-W10719194
...
5
Duct, Recirculation Plate WPL-W10606133
...
6
Screw WPL-WP3196557
...
7
Spring (Cantilever) WPL-W10854045
...
8
Insulation, Shield WPL-W10884792

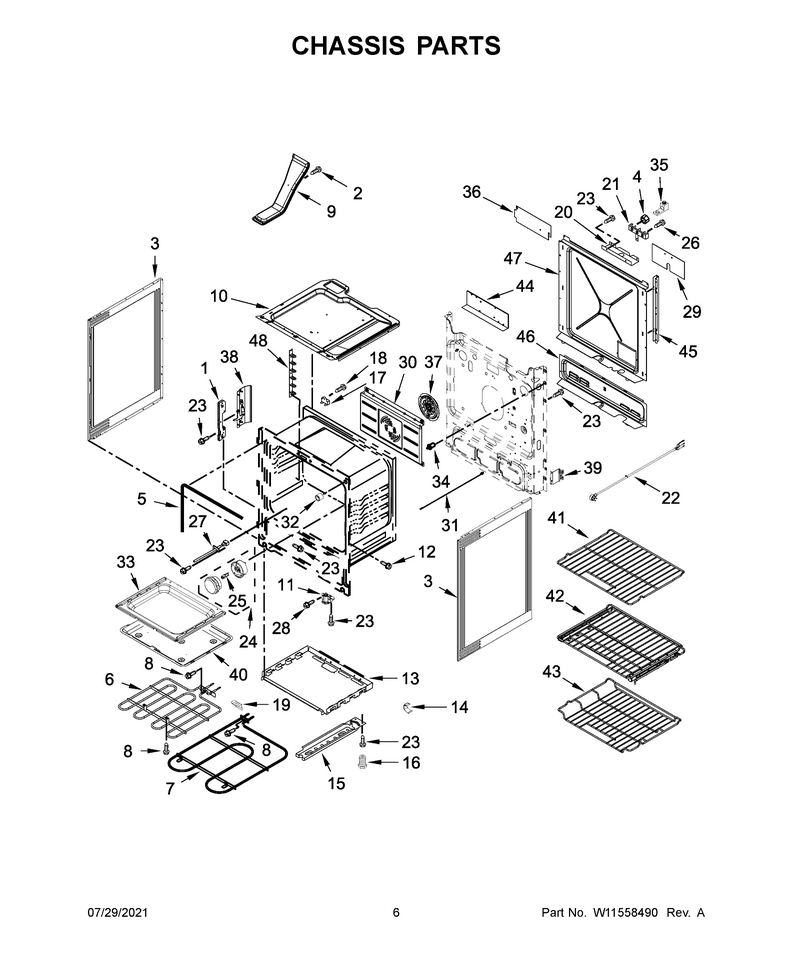

04 - Chassis Parts

...
...
NI
Insulation WPL-W11688815
...
1
Hinge, Receiver WPL-W10634238
...
2
Screw WPL-W11233072
...
3
Panel-Side WPL-W11730303
...
4
Nut WPL-WP3400029
...
5
Gaskt-Door WPL-W11562931
...
6
Elmnt-Brol WPL-W11238400
...
7
Elmnt-Bake WPL-W10779716
...
8
Screw WPL-W11233072
...
9
Assembly, Flue WPL-W11122085
...
10
Box, Burner Si WPL-W10289168
...
11
Foot-Level WPL-WPW10341186
...
12
Screw WPL-WPW10067840
...
13
Shield, Bake WPL-W10541959
...
14
Clip, Panel WPL-W10137382
...
15
Rail-Base WPL-WPW10306546
...
15A
Rail-Base WPL-WPW10306546
...
16
Foot-Level WPL-WPW10058460
...
17
Fuse-Thrml WPL-WP3196548
...
18
Screw WPL-3196172
...
19
Support, Oven Bottom WPL-W10035900
...
20
Brkt-Srvce WPL-W11728255
...
21
Block-Term WPL-WP8203546
...
22
Cord-Power WPL-W11226497
...
23
Screw WPL-W11233072
...
24
Sockt-Lite WPL-W11594170
...
25
Bulb-Light WPL-WPW10571723
...
26
Screw WPL-WP3400016
...
27
Sensor WPL-W10833885
...
28
Screw WPL-WP3196557
...
29
Shield, Power Cord WPL-W10655441
...
30
Baffle, Full Convection WPL-W10554262
...
31
Rod, Door Switch WPL-W11370463
...
32
Spacer WPL-W10877054
...
33
Bottm-Oven WPL-W10777210
...
34
Swtch-Lite WPL-WP9757262
...
35
Connector WPL-WPW10281322
...
36
Shield, Wire WPL-W11117035
...
37
Fan-Convct WPL-W11414552
...
38
Receiver, Slow Close Hinge WPL-W10605411
...
39
Bracket, Oven Support WPL-W10273002
...
40
Bake Pan WPL-W11379357
...
41
Rack-Oven WPL-W11699908
...
42
Rack-Oven WPL-W11225131
...
43
Rack-Oven WPL-W11256463
...
44
Shield, Heat WPL-W10162260
...
45
Channel, Rear WPL-W10162241
...
46
Cover, Wire WPL-W10162248
...
47
Cover, Back WPL-W11379354
...
48
Rack, Ladder WPL-W10603482

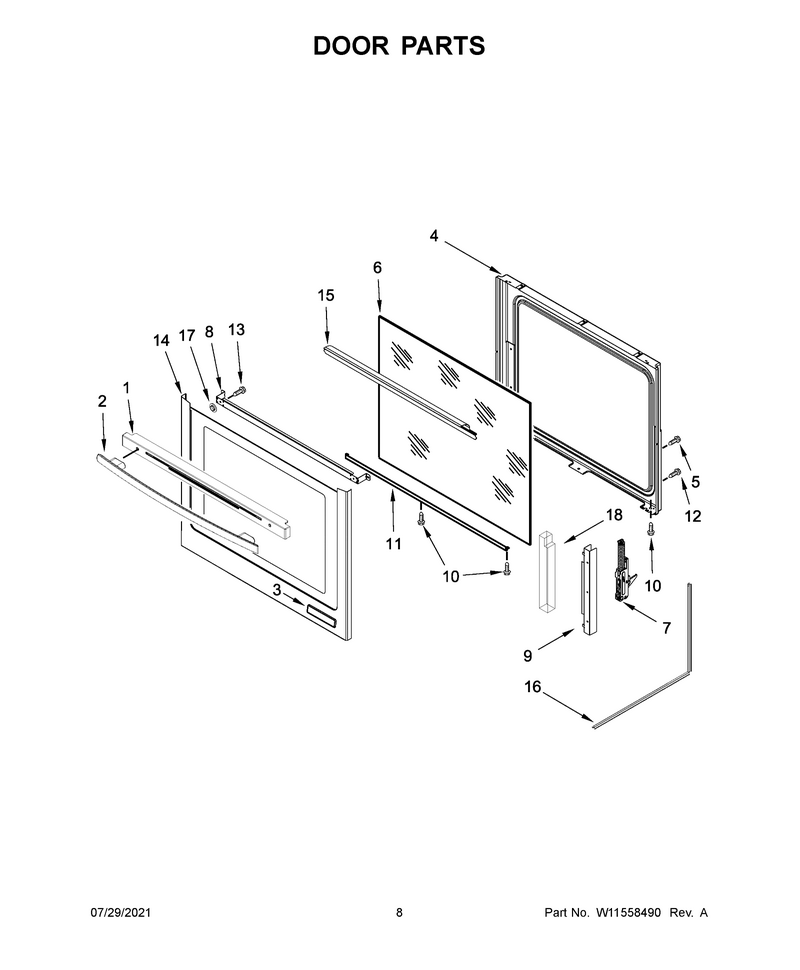

05 - Door Parts

...
...
1
Trim-Vent WPL-W11170796
...
2
Hndle-Door WPL-W11195001
...
3
Nameplate WPL-WPW10214168
...
4
Liner-Door WPL-W10902192
...
5
Screw WPL-WPW10031790
...
6
Glass-Door WPL-W11339500
...
7
Hinge-Door WPL-W11226493
...
8
Bracket, Glass Upper Handle WPL-W10541911
...
9
Support WPL-W11744483
...
10
Screw WPL-W11245710
...
11
Rail, Horizontal Support WPL-W10813140
...
12
Screw WPL-W10777162
...
13
Screw WPL-WP8533988
...
14
Glass-Door WPL-WPW10634268
...
15
Trim-Vent WPL-W11251351
...
16
Spacr-Glas WPL-W11673273
...
17
Washer WPL-W11676355
...
18
Insulation WPL-W11025151

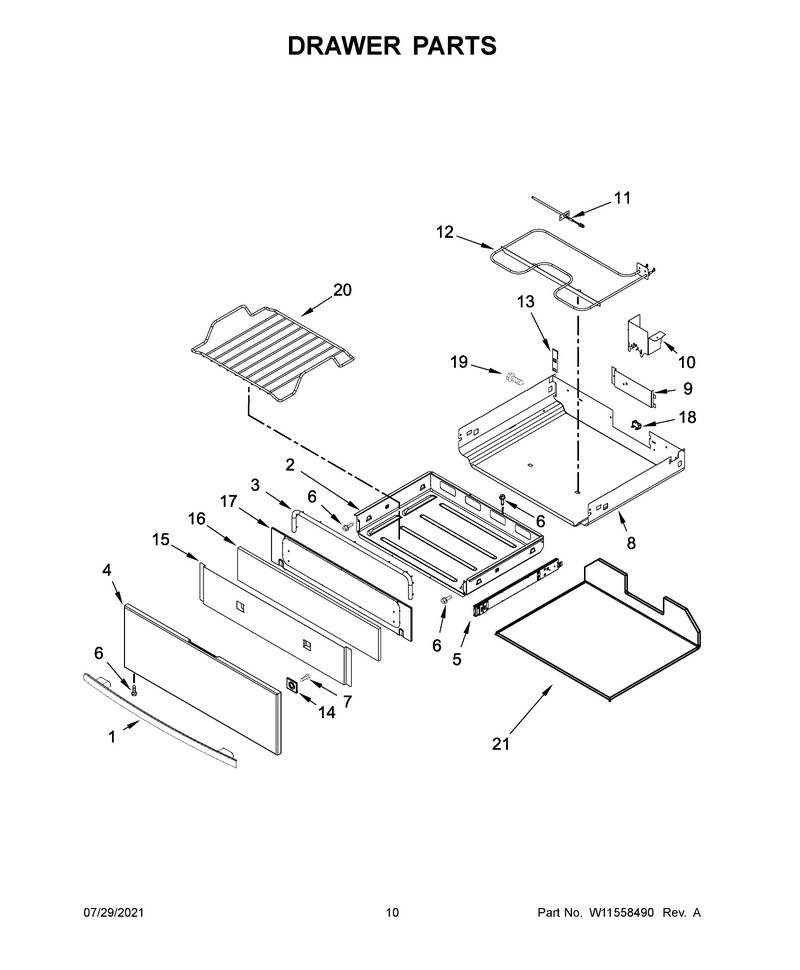

06 - Drawer Parts

...
...
1
Hndle-Door WPL-W11195001
...
2
Drawr-Util WPL-W11036176
...
3
Seal, Drawer WPL-W10550987
...
4
Panel, Drawer Front (Stainless) WPL-W10541958
...
5
Slide-Drwr WPL-W11670722
...
5A
Slide-Drwr WPL-W11670723
...
6
Screw WPL-W11169708
...
7
Screw WPL-WP3400882
...
8
Enclosure, Warming WPL-W10634260
...
9
Cover, Gas Valve WPL-W10727084
...
10
Cover, Wire WPL-W10634259
...
11
Sensor WPL-W11676788
...
12
Element, Bake WPL-W10541944
...
13
Cover, Side WPL-W10551019
...
14
Spacer WPL-W11190816
...
15
Insulation, Drawer Front WPL-W10551018
...
16
Insulation WPL-W11688515
...
17
Panel, Front Inner WPL-W10541947
...
18
Fuse, Thermal WPL-W10729897
...
19
Screw WPL-W11169708
...
20
Rack, Bake Drawer WPL-W10602493
...
21
Insulation WPL-W11688775

...
...
NI
Backsplash Assembly (Stainless) WPL-W10655450
