Jenn-Air JIC4536KS00

Model: JIC4536KS00

Save Part Not Listed?
product name

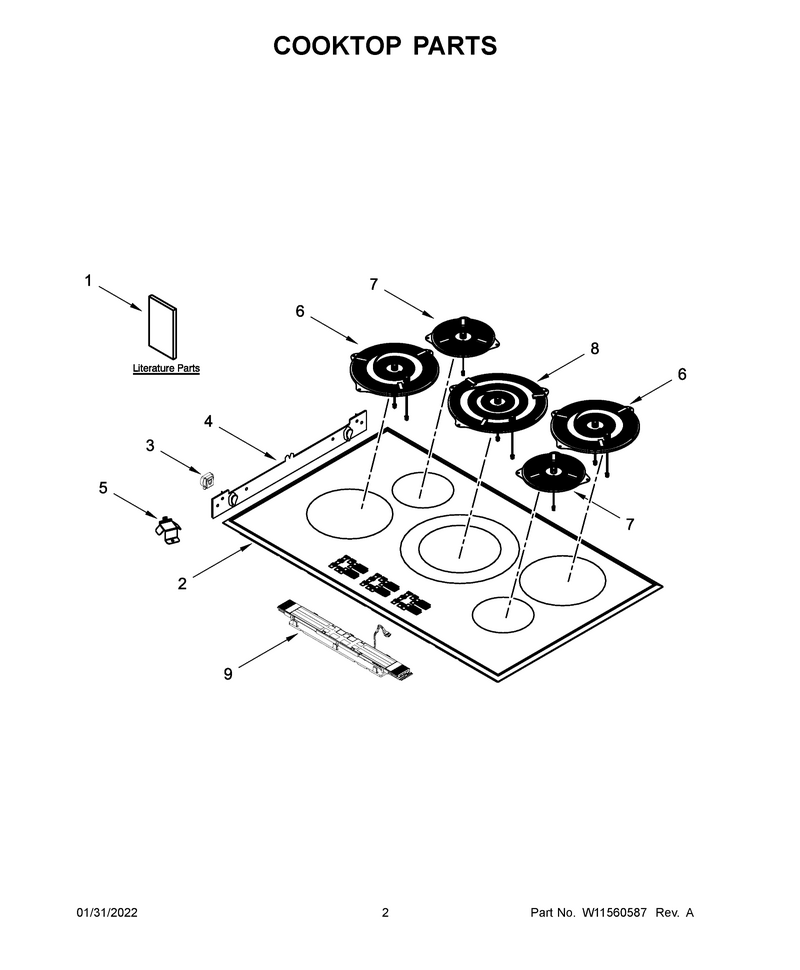

02 - Cooktop Parts

...
...
1
Installation Instructions WPL-W11362914
...
1A
Instructions, Undercounter Installation WPL-W11245478
...
1B
Owner's Manual WPL-W11393159
...
1C
Tech Sheet WPL-W11417123
...
2
Cooktop WPL-W11638087
...
3
Spring WPL-W11495019
...
4
Brkt-Suprt WPL-W11495626
...
5
Filter Support WPL-W11302457
...
6
Hotplate WPL-W11586461
...
7
Hotplate WPL-W11560534
...
8
Hotplate WPL-W11586463
...
9
Display WPL-W11589955

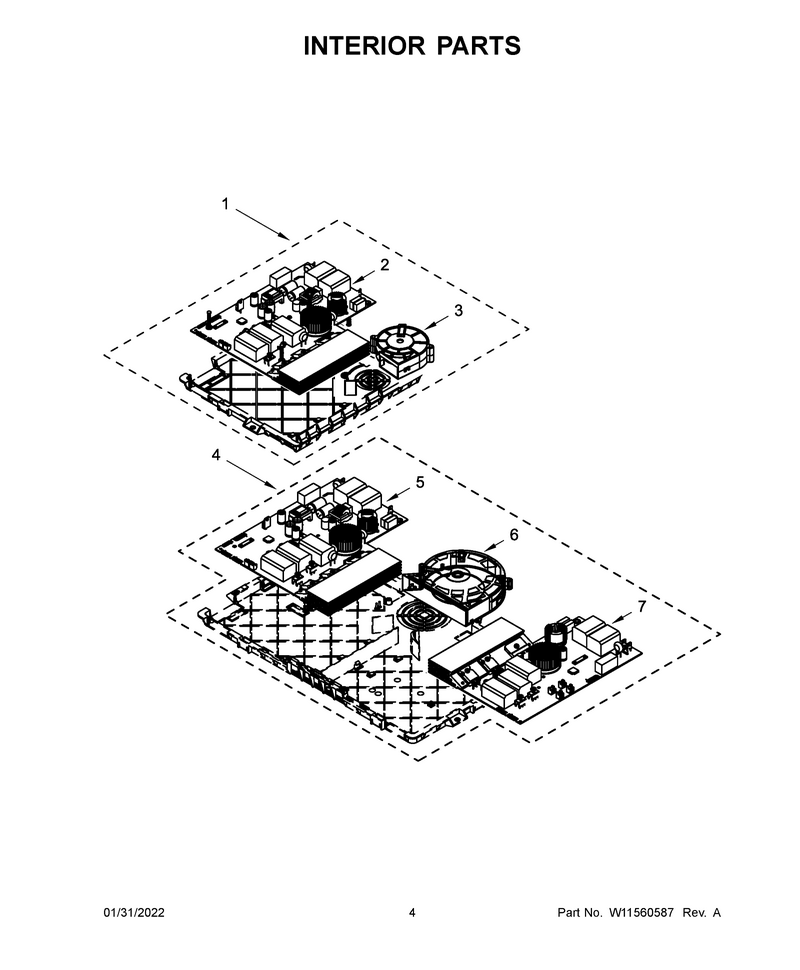

03 - Interior Parts

...
...
NI
Jumper Harness (Ipc Oddjob) WPL-W11348005
...
1
Following Parts Not Illustrated WPL-N/P
...
2
Module WPL-W11739786
...
3
Blower Assembly (Domino) WPL-W11251205
...
4
Following Parts Not Illustrated WPL-N/P
...
5
Cntrl-Elec WPL-W11591149
...
6
Blower Assembly WPL-W11246545
...
7
Cntrl-Elec WPL-W11591150

...
...
NI
Accessory Parts, Cleaner, Stainless Steel WPL-W10355016
