Jenn-Air JGS8850CDS00

Model: JGS8850CDS00

Save Part Not Listed?
product name

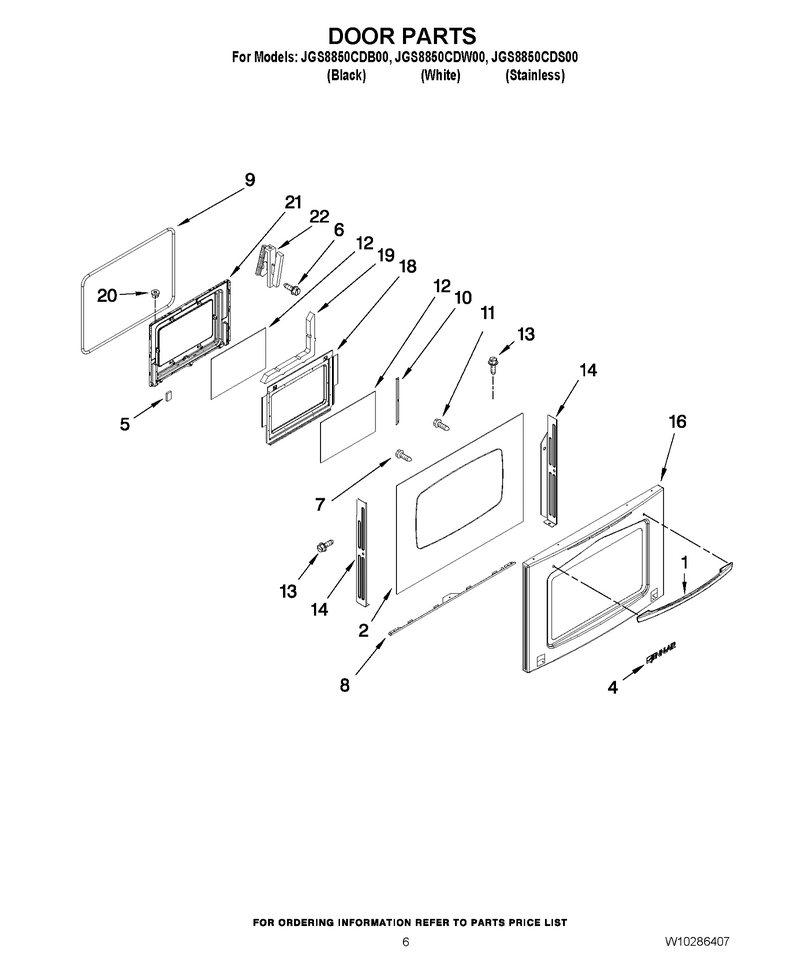

04 - Door Parts

...
...
1
Handle, Door (Stainless) WPL-W10223152
...
2
Glass, Door (Stainless) WPL-2001D312-50
...
4
Nameplate (White) WPL-W10190723
...
5
Washer, Handle WPL-74009194
...
6
Nut WPL-WP3400029
...
7
Screw WPL-WP90767
...
8
Support, Glass WPL-8020P074-60
...
9
Gaskt-Door WPL-WPW10162384
...
10
Bracket, Glass WPL-3801F886-51
...
11
Screw WPL-W11347848
...
12
Glass, Inner WPL-74003645
...
13
Screw WPL-WP98008545
...
14
Trim-Side WPL-WP3608F138-70
...
16
Frame, Door (Black) WPL-3603F075-70
...
18
Baffle, Door WPL-3601F373-51
...
19
Insulation, Door WPL-7002P246-60
...
20
Nut- Snap WPL-WP74001574
...
21
Liner-Door WPL-WP2402W312-19
...
22
Hinge, Door WPL-74011475

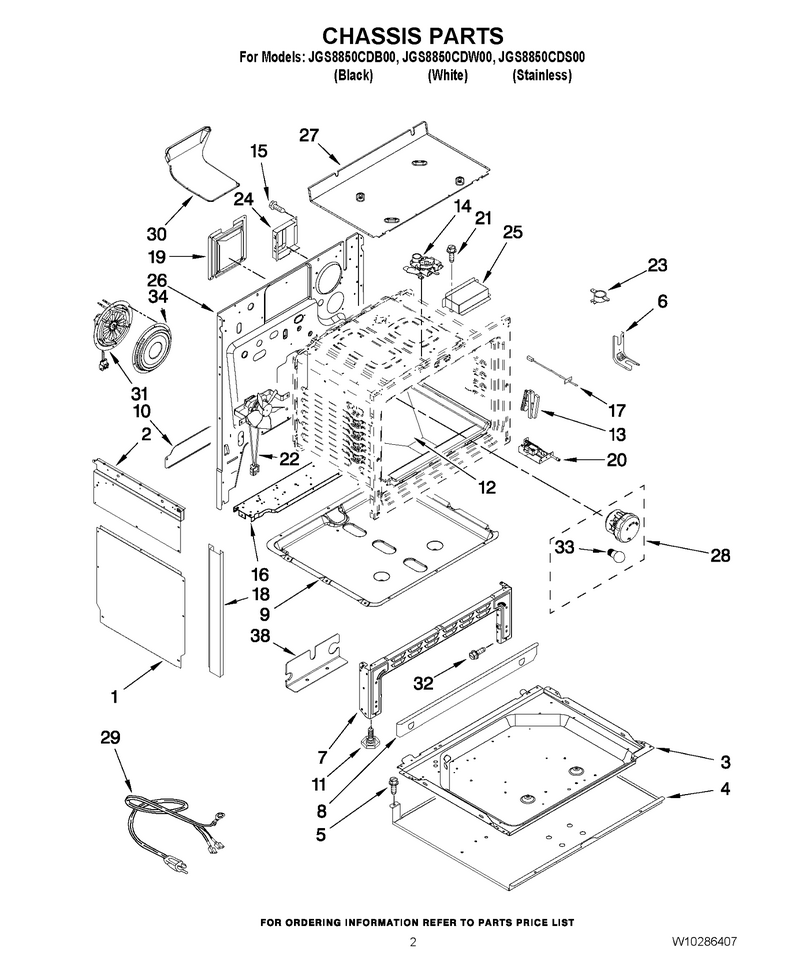

02 - Chassis Parts

...
...
NI
Insulation, Wrap WPL-7002P471-60
...
1
Shield, Lower Side WPL-3604F416-51
...
2
Panel, Shield (Left) WPL-2618F201-51
...
3
Retainer, Bottom WPL-3804F245-51
...
4
Shield, Drawer WPL-3604F326-45
...
5
Screw WPL-W11347848
...
6
Bracket WPL-WP3801F656-51
...
7
Oven, Front Lower WPL-W10271711
...
8
Baffle, Oven Front WPL-3601F251-45
...
9
Pan, Burner WPL-3401F044-45
...
10
Extention, Back WPL-3826F066-51
...
11
Screw WPL-WP74010805
...
12
Bottm-Oven WPL-WP2205F054-19
...
13
Hinge, Door WPL-74011475
...
14
Latch Asy WPL-74010819
...
15
Screw (8abx3/8-Blk) WPL-74003975
...
16
Support, Valve/reg WPL-3807F640-51
...
17
Sensor WPL-12001655
...
18
Trim-Side WPL-WP3608F138-71
...
19
Retainer, Conv Insulation WPL-3804F245-51
...
20
Swtch-Lite WPL-WP7450P108-60
...
21
Screw WPL-WP7101P434-60
...
22
Fan-Blwr WPL-WPW10586440
...
23
Switch, Limit WPL-7450P030-60
...
24
Cover, Access WPL-4005F810-51
...
25
Cover, Door Lock WPL-4005F750-51
...
26
Back, Main Gas WPL-3804F313-51
...
27
Bottom,burner Box WPL-4011F496-51
...
28
Light Asy- WPL-WP74011220
...
29
Cord, Power WPL-7402P086-60
...
30
Box, Assy Vent WPL-8026P095-60
...
31
Fan-Convct WPL-WPW10206590
...
32
Screw WPL-WP4159193
...
33
Light Bulb WPL-8009
...
34
Cover, Fan WPL-3605F350-19
...
38
Bracket,pwr Supply WPL-3801F911-51

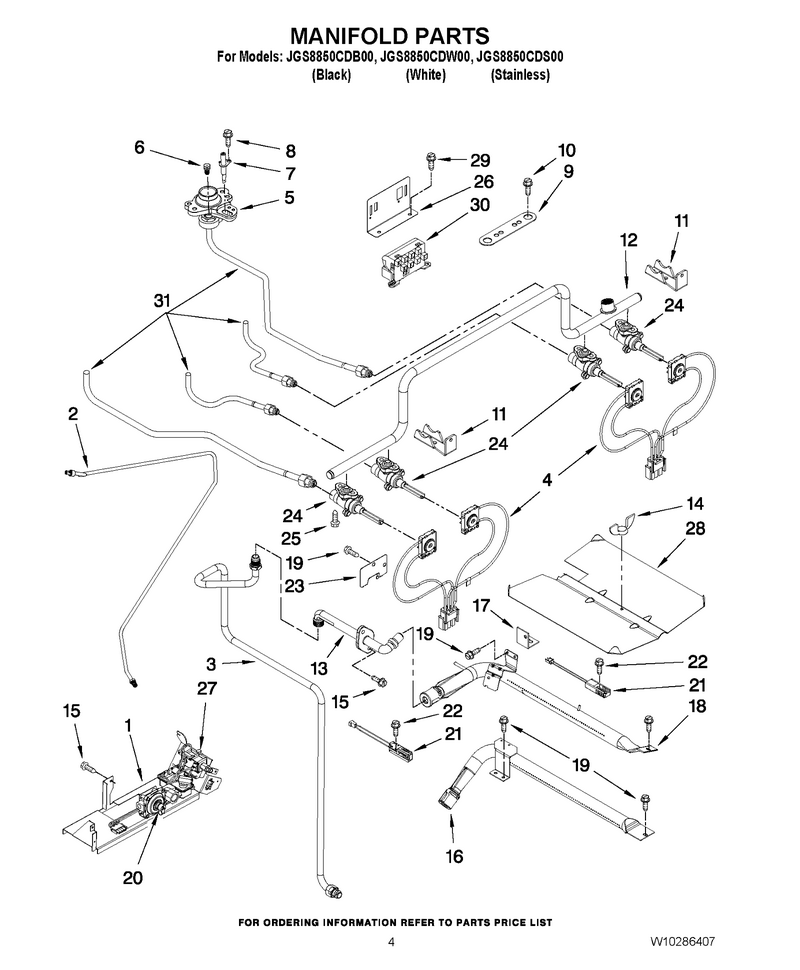

03 - Manifold Parts

...
...
NI
Spuds, Lp Gas WPL-W10258117
...
1
Cover, Bnr Valve WPL-4005F638-51
...
2
Tubing, Gas Supply WPL-7506P489-60
...
3
Tube, Broil WPL-7506P536-60
...
4
Switch Har WPL-WP74011648
...
5
Holder-Orf WPL-WP7527P004-60
...
6
Holder-Orf WPL-WPW10407679
...
7
Igntr-Surf WPL-WP74009336
...
8
Screw WPL-WP8273062
...
9
Retainer, Base (4) WPL-W10160530
...
10
Screw WPL-WP4159193
...
11
Bracket, Valve (4) WPL-W10160655
...
12
Pipe,manifold WPL-7513P473-60
...
13
Fitting- B WPL-WP74010901
...
14
Nut, Wing WPL-7103P030-60
...
15
Screw WPL-7101P676-60
...
16
Burner, Bake WPL-7505P254-60
...
17
Support, Bake Bnr WPL-3807F480-45
...
18
Burner, Broil WPL-7505P293-60
...
19
Screw WPL-WP7101P434-60
...
20
Regulator WPL-WP74006035
...
21
Igniter, Oven WPL-74007498
...
22
Screw WPL-WP4159193
...
23
Cover,ignitor Wire WPL-4005F421-45
...
24
Kit, Valve/screw 5k(Mueller) WPL-12002268
...
25
Screw WPL-W11233072
...
26
Support, Spark Mod WPL-3807F752-45
...
27
Valve-Oven WPL-WP7501P232-60
...
28
Baffle, Bake (Bake) WPL-3601F239-45
...
29
Screw WPL-WPY706189
...
30
Module-Spk WPL-WPW10475147
...
31
Tube, Burner (Rf) WPL-7506P445-60

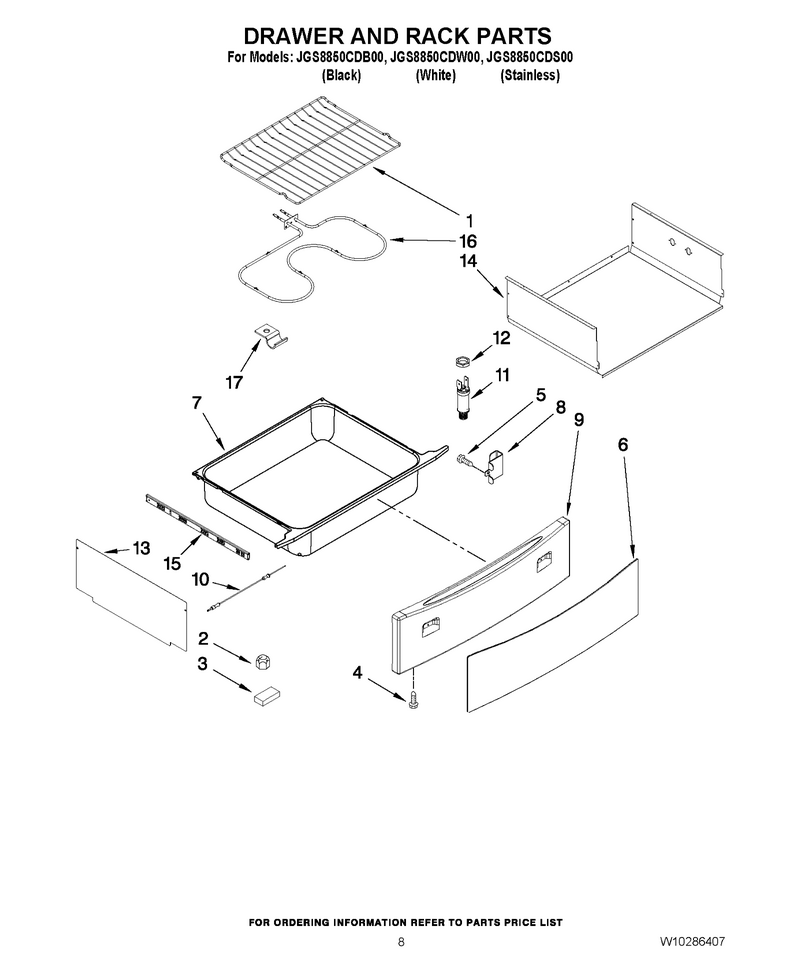

05 - Drawer And Rack Parts

...
...
1
Rack-Oven WPL-WP7801P173-60
...
2
Nut WPL-WPW10131078
...
3
Spacer- Ru WPL-WP74005546
...
4
Screw (8abx3/8-Blk) WPL-74003975
...
5
Screw WPL-W11347848
...
6
Panel-Drwr WPL-WPW10297248
...
7
Drawer, Warming WPL-3505W043-19
...
8
Bracket, Drawer WPL-3801F887-51
...
9
Panel WPL-WP2416F086-70
...
10
Probe-Meat WPL-WP7430P038-60
...
11
Receptacle WPL-WP7408P086-60
...
12
Nut WPL-7103P177-60
...
13
Shield Warming Drawer WPL-3604F435-51
...
14
Body, Warm Drawer WPL-2206F087-45
...
15
Glide-Drwr WPL-WPW10293200
...
16
Element, Warmer WPL-7406P294-60
...
17
Clip Warmer Element WPL-7112P153-60

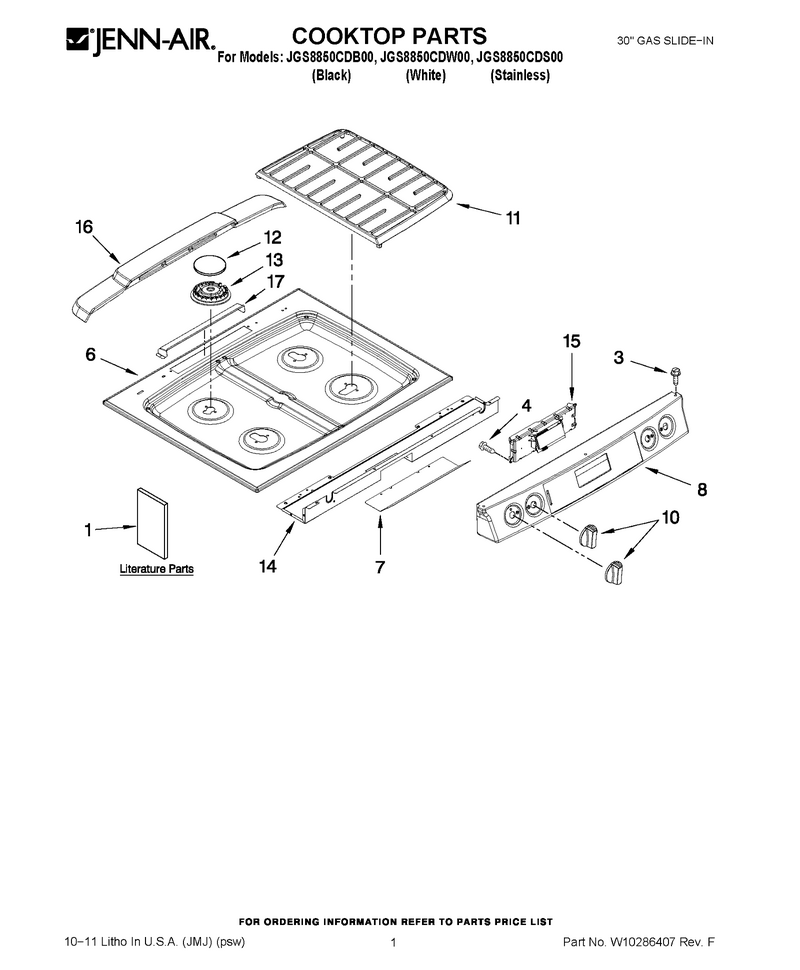

01 - Cooktop Parts

...
...
1
Installation Instructions WPL-W10253459
...
3
Screw WPL-WP90767
...
4
Screw WPL-WP59002061
...
6
Cooktop (Black) WPL-W10202584
...
7
Shield, Control WPL-7003P154-60
...
8
Panel, Control (Black) WPL-W10235331
...
10
Knob, Valve (4) (White) WPL-W10255423
...
11
Grate (Blk) WPL-74011706
...
12
Cap-Burner WPL-WP74007750
...
13
Burner, Base (Small (Lf)) WPL-W10203534
...
14
Support, Cntl Pnl WPL-3807F751-51
...
15
Cntrl-Elec WPL-WP8507P228-60
...
16
Cover-Vent WPL-WP7724P200-60
...
17
Baffle,vent Cover WPL-3601F221-45

...
...
NI
Paint, Pressurized Spray (12 Oz.) (Superior Black) WPL-285006
