Jenn-Air JGRP636HM05

Model: JGRP636HM05

Save Part Not Listed?
product name

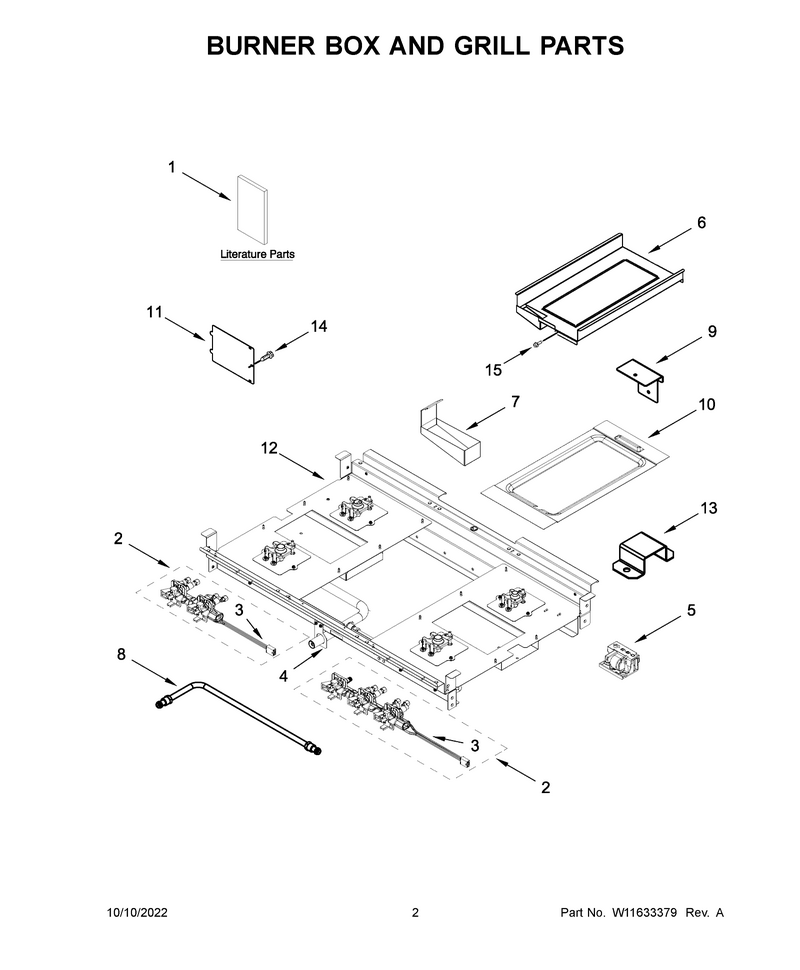

02 - Burner Box And Grill Parts

...
...
NI
Harns-Wire WPL-W11446239
...
1
Use And Care Guide WPL-W11508896
...
1A
Installation Instructions WPL-W11508888
...
1B
Guide, Internet Connectivity WPL-W11184746
...
1C
Diagram, Wiring (Cooktop) WPL-W11575703
...
1D
Diagram, Wiring (Oven) WPL-W11565476
...
1E
Sheet, Tech WPL-W11202275
...
1F
Guide, Quick Start WPL-W11177312
...
2
Manifold WPL-W11333175
...
2A
Manifold WPL-W11334161
...
3
Harns-Wire WPL-W11320016
...
3A
Harns-Wire WPL-W11328263
...
4
Brkt-Mntg WPL-W11320153
...
5
Module-Spk WPL-W11319687
...
6
Tray-Drip WPL-W11328011
...
7
Tray-Drip WPL-W11328012
...
8
Tubing-Gas WPL-W11333177
...
8A
Tubing-Gas WPL-W11334162
...
9
Bracket, Grill Grease Capture WPL-W11285353
...
10
Deflctr-Ht WPL-W11328372
...
11
Cover, Ignition WPL-W10115843
...
12
Following Parts Not Illustrated WPL-N/P
...
13
Bracket, Grill Orifice Holder WPL-W11174418
...
14
Screw WPL-WP90767
...
15
Screw WPL-WP3196557

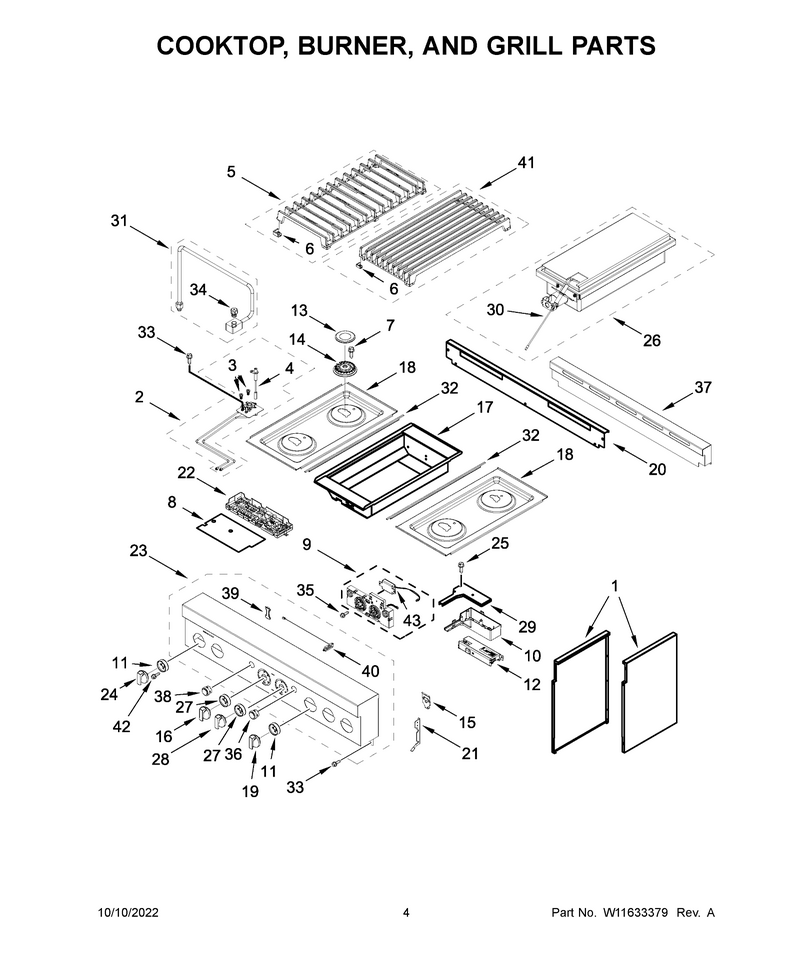

03 - Cooktop, Burner, And Grill Parts

...
...
1
Side-Compt WPL-W11333179
...
1A
Side-Compt WPL-W11333303
...
2
Holder-Orf WPL-W11333305
...
2A
Holder-Orf WPL-W11333306
...
2B
Holder-Orf WPL-W11333307
...
2C
Holder-Orf WPL-W11333309
...
3
Spud-Orfce WPL-W11643164
...
3A
Orifice, Main (15.4k) (Left Rear And Right Front) WPL-W10892418
...
3B
Orifice, Main (7.2k) (Left Center Rear) WPL-W10892440
...
3C
Spud-Orfce WPL-W11661909
...
3D
Orifice, Simmer (2.0k) (Left Center Rear) WPL-W10892429
...
4
Igntr-Surf WPL-W11573760
...
4A
Igniter (Left Center Rear) WPL-W11238756
...
5
Grate-Brnr WPL-W11516449
...
5A
Grate-Brnr WPL-W11516462
...
6
Pad-Grate WPL-W11550692
...
7
Screw WPL-W11323260
...
8
Insulator WPL-W11320149
...
9
Cntrl-Elec WPL-W11492283
...
10
Cover-Cntl WPL-W11320411
...
11
Bezel-Knob WPL-W11317889
...
12
Cntrl-Elec WPL-W11234290
...
13
Cap-Burner WPL-W11328971
...
14
Burnr-Head WPL-W11319683
...
14A
Burnr-Head WPL-W11319673
...
15
Clip WPL-W11318207
...
16
Knob WPL-W11397970
...
17
Box-Burner WPL-W11328566
...
18
Cooktop WPL-W11316700
...
18A
Cooktop WPL-W11333312
...
19
Knob WPL-W11328010
...
20
Insert, Island Trim WPL-W10323250
...
21
Bracket, Moving Console (Left) WPL-W10130760
...
21A
Bracket, Moving Console (Right) WPL-W10130759
...
22
Cntrl-Elec WPL-W11620692
...
23
Panl-Cntrl WPL-W11444047
...
24
Knob WPL-W11317537
...
25
Screw WPL-W11169708
...
26
Burnr-Gril WPL-W11328568
...
27
Bezel-Knob WPL-W11317892
...
28
Knob WPL-W11317539
...
29
Cover-Cntl WPL-W11320410
...
30
Igntr-Surf WPL-W11328571
...
31
Holder-Orf WPL-W11522777
...
32
Trim, L-Strip WPL-W10291193
...
33
Screw WPL-WP90767
...
34
Orifice, Grill (18k) (Center) WPL-W11419282
...
35
Screw WPL-WP3400814
...
36
Buttn-Push WPL-W11319196
...
37
Trim, Island WPL-W11476245
...
38
Buttn-Push WPL-W11318857
...
39
Light-Ind WPL-W11318856
...
40
Antenna WPL-W11318855
...
41
Grate-Gril WPL-W11328377
...
42
Screw WPL-W11509770
...
43
Speaker WPL-W11123146

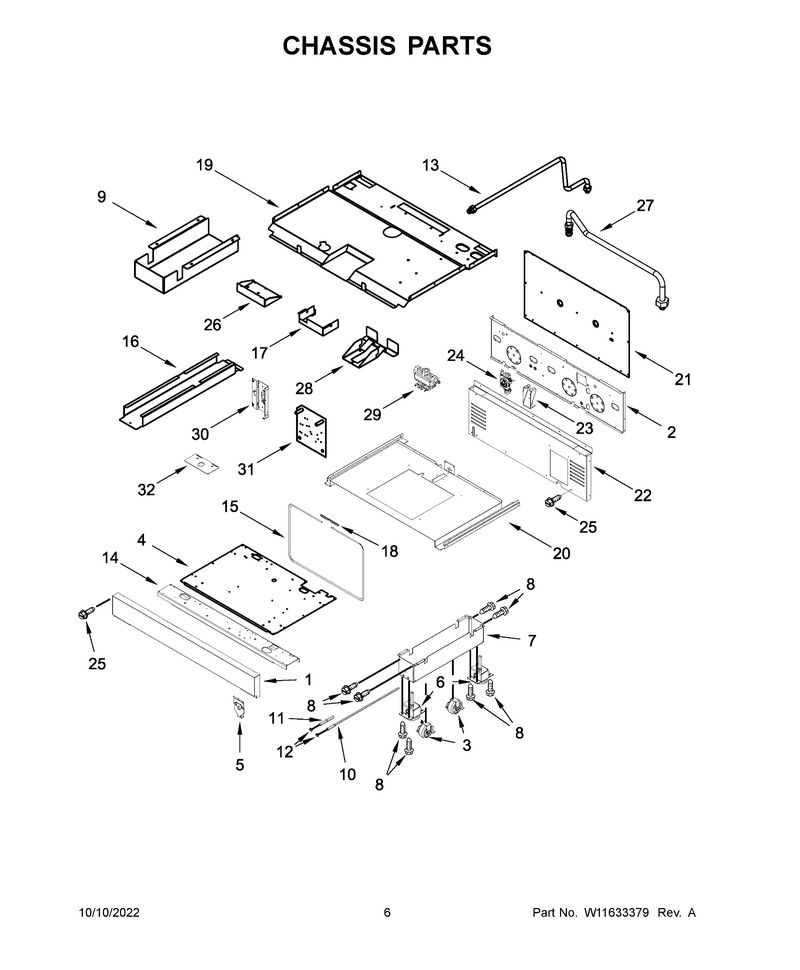

04 - Chassis Parts

...
...
1
Plate-Covr WPL-W11333399
...
2
Back, Chassis WPL-W11324988
...
3
Roller-Cab WPL-WPW10138054
...
4
Duct, Bottom (36 In) WPL-W11095572
...
5
Clip WPL-W11318207
...
6
Foot-Level WPL-W10859931
...
7
Base, Leveling Leg WPL-W10908710
...
8
Screw WPL-WP4449743
...
9
Channel, Wire WPL-W11368831
...
10
Shaft, Long WPL-W10115869
...
11
Shaft, Short WPL-W10115793
...
12
E-Ring WPL-489504
...
13
Tubing-Gas WPL-W11364214
...
14
Support, Channel WPL-W11087493
...
15
Gasket-Ovn WPL-W11676901
...
16
Duct-Chassis, Rear WPL-W11050145
...
17
Cabinet, Appliance Manager WPL-W11369237
...
18
Retainer, Gasket (9 In Long) WPL-W11362015
...
19
Top, Chassis WPL-W11324985
...
20
Chassis, Bottom WPL-W11040801
...
21
Panel, Back Top WPL-W11103333
...
22
Panel, Back Bottom WPL-W11034133
...
23
Brkt-Mntg WPL-W11320155
...
24
Regulator WPL-W11193822
...
25
Screw WPL-WP90767
...
26
Drawer WPL-W11320147
...
27
Tubing-Gas WPL-W11356251
...
28
Bracket, Bake Alignment WPL-W11190223
...
29
Valve-Gas WPL-W11239228
...
30
Bracket-Board, Dsi WPL-W10145362
...
31
Module-Spk WPL-WPW10511278
...
32
Holder, Strain Relief WPL-W10115855

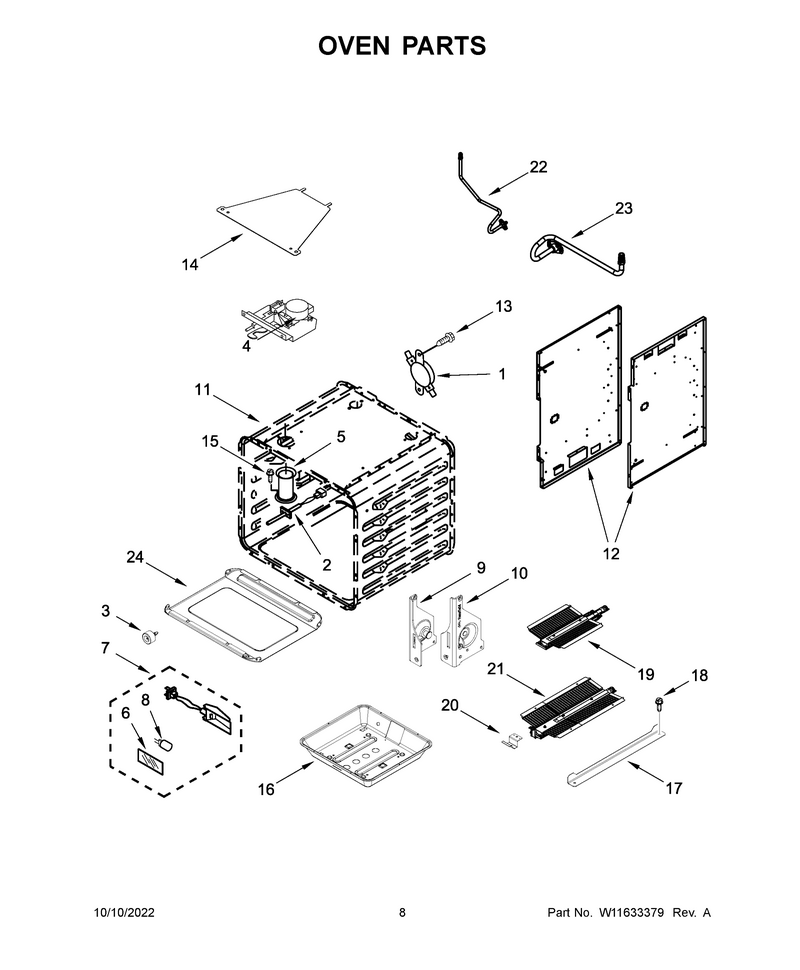

05 - Oven Parts

...
...
NI
Nut WPL-WP3400968
...
1
Thrmst-Fix WPL-WP4450249
...
2
Sensor WPL-W10859573
...
3
Bumper WPL-WPW10351278
...
4
Latch-Door WPL-W11029221
...
5
Tube, Vent WPL-W10145743
...
6
Lens, Light WPL-W10169756
...
7
Light-Oven WPL-W11233684
...
8
Bulb-Light WPL-WPW10169757
...
9
Hinge-Recv WPL-W11318331
...
10
Hinge-Recv WPL-W11317948
...
11
Following Parts Not Illustrated WPL-N/P
...
12
Panel-Cbnt WPL-W11320145
...
12A
Panel-Cbnt WPL-W11320144
...
13
Screw WPL-WP90767
...
14
Cover, Latch WPL-W10160858
...
15
Screw WPL-W11233072
...
16
Support WPL-WPW10145744
...
17
Bracket, Broil Standoff WPL-W10317437
...
18
Screw WPL-WP7101P434-60
...
19
Burnr-Oven WPL-W11643161
...
20
Bracket, Bake Burner WPL-W10308040
...
21
Burnr-Brlr WPL-W11661180
...
22
Tubing-Gas WPL-W11355244
...
23
Tubing-Gas WPL-W11355919
...
24
Pan-Broilr WPL-W11661576

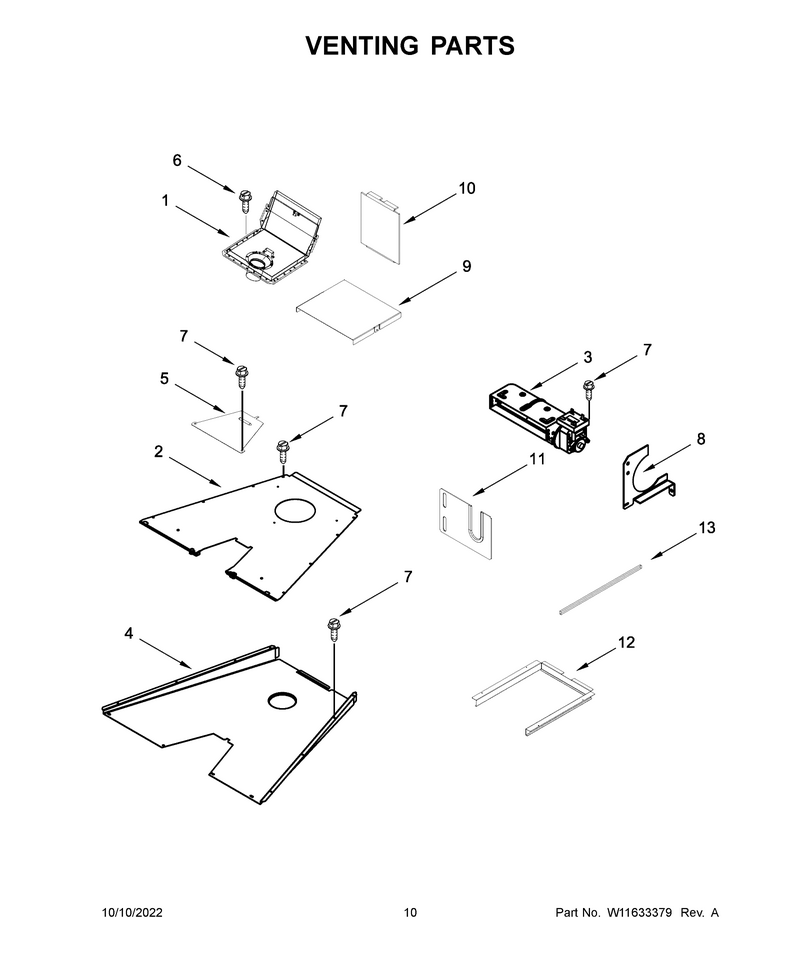

06 - Venting Parts

...
...
1
Vent, Chimney Box (30 In / 36 In) WPL-W10340579
...
2
Vent, Cooling Top (30 In) WPL-W11105221
...
3
Blower WPL-W11248652
...
4
Vent, Cooling Bottom (30 In) WPL-W11091676
...
5
Cover-Ltch WPL-W11320405
...
6
Screw WPL-WP3400805
...
7
Screw WPL-WP90767
...
8
Bracket, Blower Mount WPL-W11047754
...
9
Retainer, Insulation WPL-W10246086
...
10
Insulation, Chimney WPL-W10246087
...
11
Covr-Acess WPL-W11320407
...
12
Duct, Primary Air (30 In) WPL-W10145363
...
13
Gasket WPL-W11175143

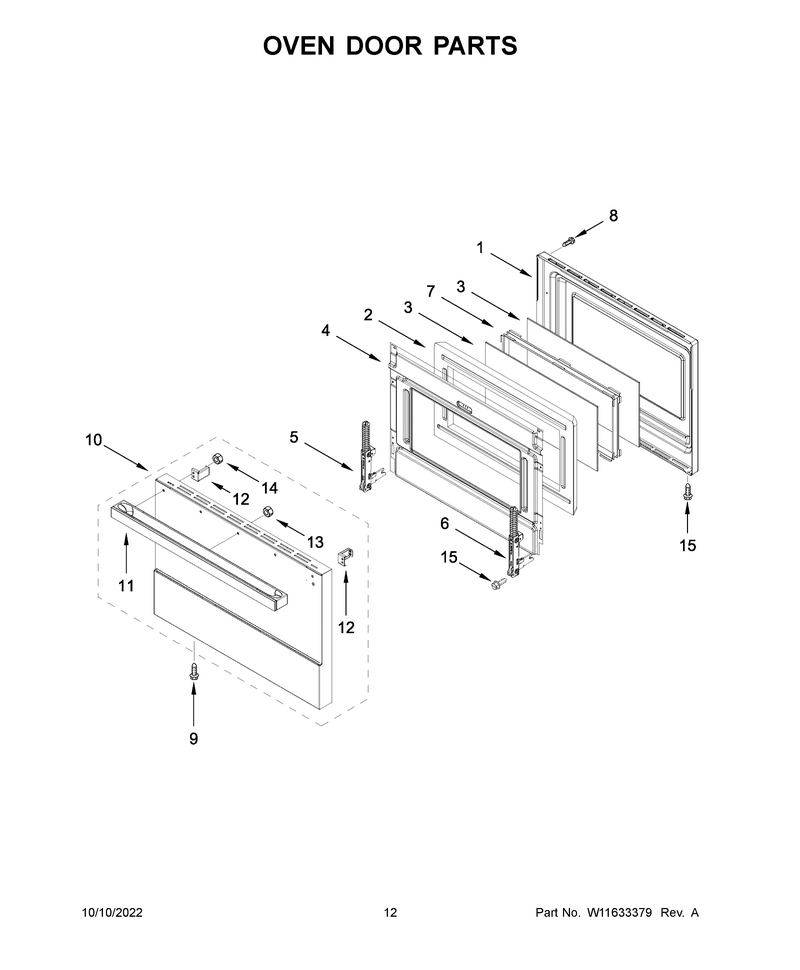

07 - Oven Door Parts

...
...
1
Frame-Glas WPL-W11334152
...
2
Insulation WPL-W11688331
...
3
Glass-Door WPL-W11334153
...
4
Retainer, Glass WPL-W11194820
...
5
Hinge, Door (Left) WPL-W11096984
...
6
Hinge, Door (Right) WPL-W11096983
...
7
Frame, Glass WPL-W11194814
...
8
Screw WPL-W11712404
...
9
Screw WPL-W10162096
...
10
Glass-Door WPL-W11315587
...
11
Hndle-Door WPL-W11620691
...
12
Brkt-Mntg WPL-W11317894
...
13
Nut WPL-W11198435
...
14
Nut WPL-999299
...
15
Screw WPL-W11193480

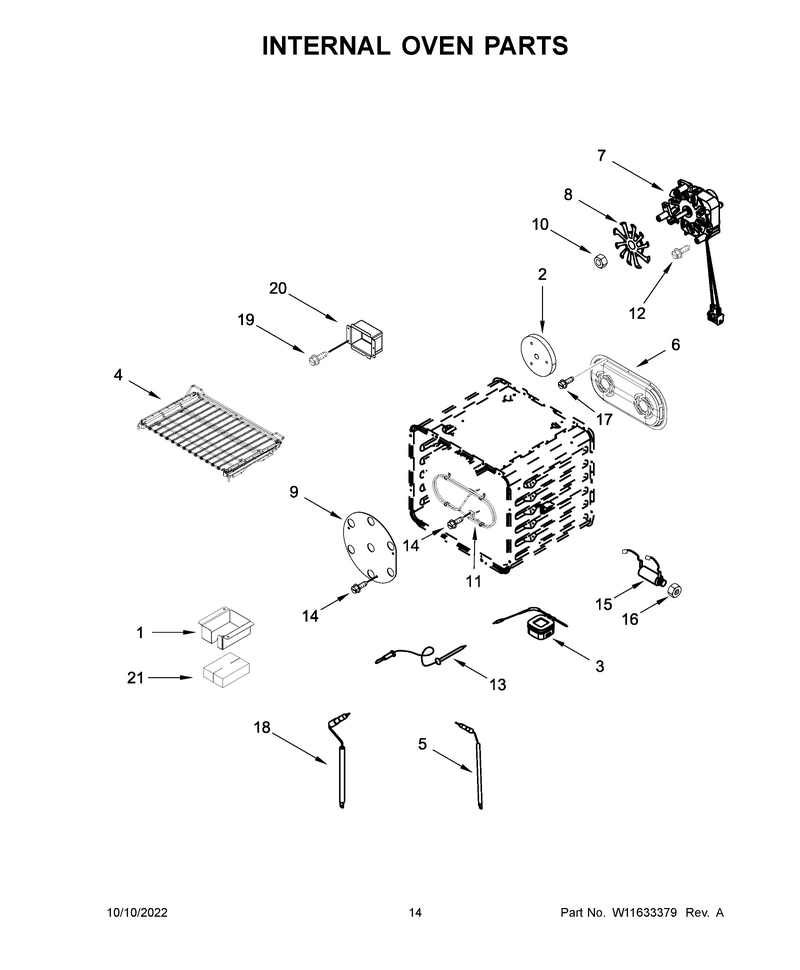

08 - Internal Oven Parts

...
...
1
Cover, Broil WPL-W10310985
...
2
Insulation WPL-W11688507
...
3
Probe-Meat WPL-W11318341
...
4
Rack-Oven WPL-W11545292
...
5
Igntr-Surf WPL-W11355922
...
6
Baffle, Convection WPL-W11232487
...
7
Motor-Fan WPL-W10794440
...
8
Fan-Convct WPL-W11320150
...
9
Plate, Fan WPL-W10261523
...
10
Nut WPL-W10794042
...
11
Element WPL-W11033310
...
12
Screw WPL-W10850807
...
13
Probe-Meat WPL-WP9755542
...
14
Screw WPL-WP4449154
...
15
Jack-Probe WPL-8186589
...
16
Locknut WPL-W11231343
...
17
Screw WPL-W10739592
...
18
Igntr-Surf WPL-W11355920
...
19
Screw WPL-WP7101P434-60
...
20
Box, Broil WPL-W10308051
...
21
Insulation WPL-W11688851

...
...
NI
Brass, Large Kit, Bezel (Set Of 4) WPL-W11323012
