Jenn-Air JGRP548HL05

Model: JGRP548HL05

Save Part Not Listed?
product name

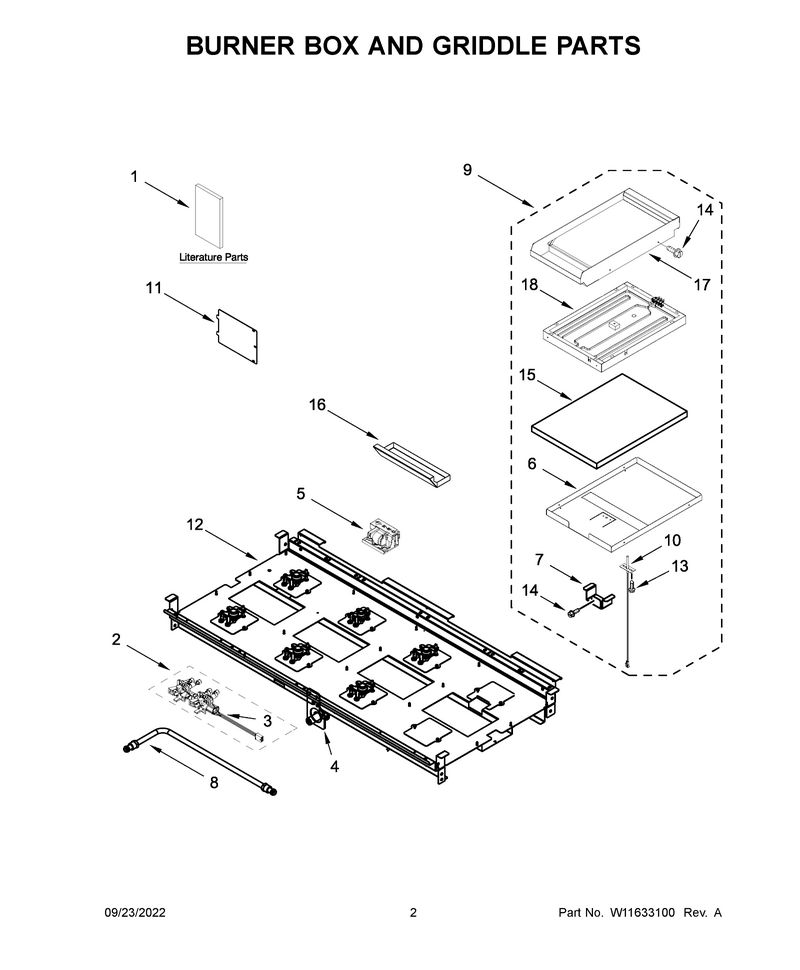

02 - Burner Box And Griddle Parts

...
...
NI
Cnvrsn-Kit WPL-W11428599
...
1
Use And Care Guide WPL-W11508896
...
1A
Installation Instructions WPL-W11508888
...
1B
Guide, Quick Start WPL-W11177312
...
1C
Guide, Internet Connectivity WPL-W11184746
...
1D
Wiring Diagram (Oven) WPL-W11565477
...
1E
Wiring Diagram (Cooktop) WPL-W11575704
...
1F
Sheet, Tech WPL-W11202275
...
2
Manifold WPL-W11320017
...
2A
Manifold WPL-W11320019
...
2B
Manifold WPL-W11320025
...
3
Harns-Wire WPL-W11320016
...
4
Brkt-Mntg WPL-W11320153
...
5
Module-Spk WPL-W11319687
...
6
Tray, Griddle Insulation WPL-W11330430
...
7
Brkt-Mntg WPL-W11319226
...
8
Tubing-Gas WPL-W11320029
...
8A
Tubing-Gas WPL-W11320027
...
8B
Tubing-Gas WPL-W11320139
...
9
Module WPL-W11602621
...
10
Sensor WPL-W11319618
...
11
Cover, Ignition WPL-W10115843
...
12
Following Parts Not Illustrated WPL-N/P
...
13
Screw WPL-W10491985
...
14
Screw WPL-W10162096
...
15
Insulation WPL-W11319228
...
16
Tray, Griddle Drip WPL-W10276497
...
17
Griddle WPL-W11602622
...
18
Elmnt-Gril WPL-W11319602

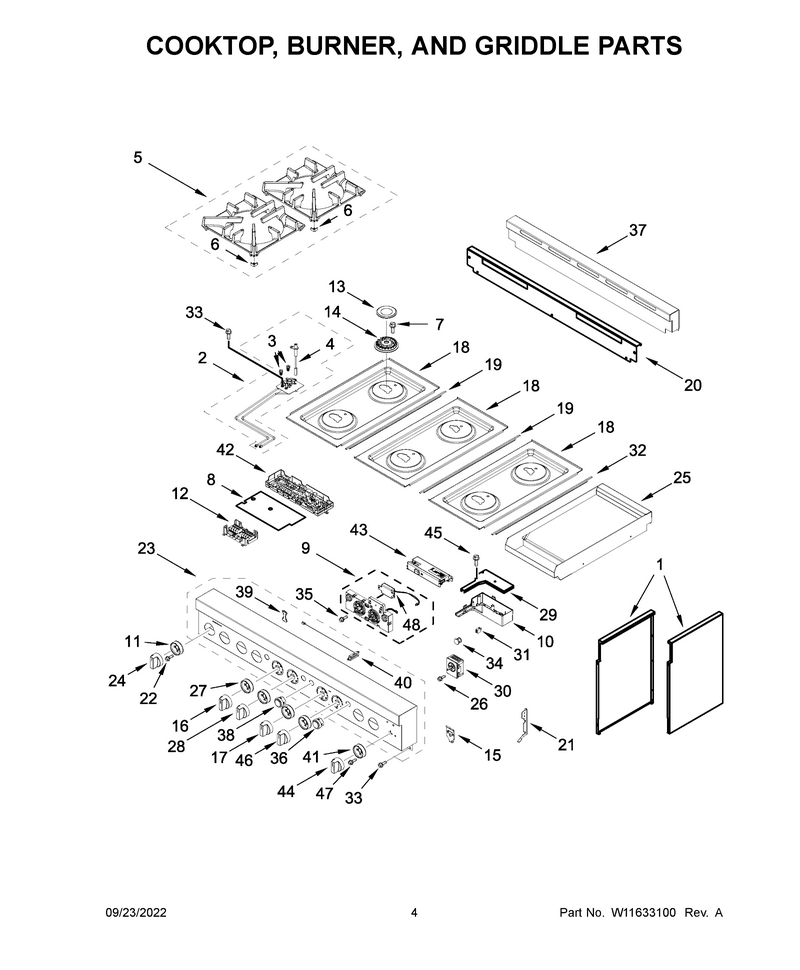

03 - Cooktop, Burner, And Griddle Parts

...
...
1
Side-Compt WPL-W11321067
...
1A
Side-Compt WPL-W11320596
...
2
Holder-Orf WPL-W11319741
...
2A
Holder-Orf WPL-W11319746
...
2B
Holder-Orf WPL-W11319745
...
2C
Holder-Orf WPL-W11319740
...
2D
Holder-Orf WPL-W11319743
...
2E
Holder-Orf WPL-W11319747
...
3
Spud-Orfce WPL-W11643164
...
3A
Orifice, Main (15.4k) (Left Rear And Right Front) WPL-W10892418
...
3B
Orifice, Main (7.2k) (Left Center Rear) WPL-W10892440
...
3C
Spud-Orfce WPL-W11661909
...
3D
Orifice, Simmer (2.0k) (Left Center Rear) WPL-W10892429
...
4
Igntr-Surf WPL-W11573760
...
4A
Igntr-Surf WPL-W11580024
...
4B
Igniter (Left Center Rear) WPL-W11238756
...
5
Grate-Brnr WPL-W11515370
...
6
Pad-Grate WPL-W11550692
...
7
Screw WPL-W11323260
...
8
Insulator WPL-W11320149
...
9
Cntrl-Elec WPL-W11492275
...
10
Cover-Cntl WPL-W11320411
...
11
Accessory Parts, Brass, Surface And Gril WPL-W11316873
...
12
Cntrl-Elec WPL-W11355250
...
13
Cap-Burner WPL-W11319224
...
14
Burnr-Head WPL-W11319683
...
14A
Burnr-Head WPL-W11319673
...
15
Clip WPL-W11318207
...
16
Knob WPL-W11591511
...
17
Knob WPL-W11574370
...
18
Cooktop WPL-W11316696
...
18A
Cooktop WPL-W11316697
...
18B
Cooktop WPL-W11316698
...
19
Trim, T-Strip (Black) WPL-W10271524
...
20
Trim, Island Insert WPL-W10323252
...
21
Bracket, Moving Console (Left) WPL-W10130760
...
21A
Bracket, Moving Console (Right) WPL-W10130759
...
22
Screw WPL-W11509770
...
23
Panl-Cntrl WPL-W11289593
...
24
Knob WPL-W11574368
...
25
Following Parts Not Illustrated WPL-N/P
...
26
Screw WPL-WP3196557
...
27
Accessory Parts, Chrome, Oven WPL-W11317499
...
28
Knob WPL-W11620695
...
29
Cover-Cntl WPL-W11320410
...
30
Switch-Inf WPL-W11318834
...
31
Light, Indicator Housing WPL-W10116114
...
32
Trim, L-Strip WPL-W10291193
...
33
Screw WPL-WP90767
...
34
Lens, Indicator Light WPL-W10294500
...
35
Screw WPL-WP3400814
...
36
Buttn-Push WPL-W11319196
...
37
Trim-Top WPL-W11516014
...
38
Buttn-Push WPL-W11318857
...
39
Light-Ind WPL-W11318856
...
40
Antenna WPL-W11318855
...
41
Accessory Parts, Brass, Griddle WPL-W11317495
...
42
Cntrl-Elec WPL-W11620696
...
43
Cntrl-Elec WPL-W11234290
...
44
Knob WPL-W11620693
...
45
Screw WPL-W10709795
...
46
Knob WPL-W11574369
...
47
Screw WPL-WP7101P309-60
...
48
Speaker WPL-W11123146

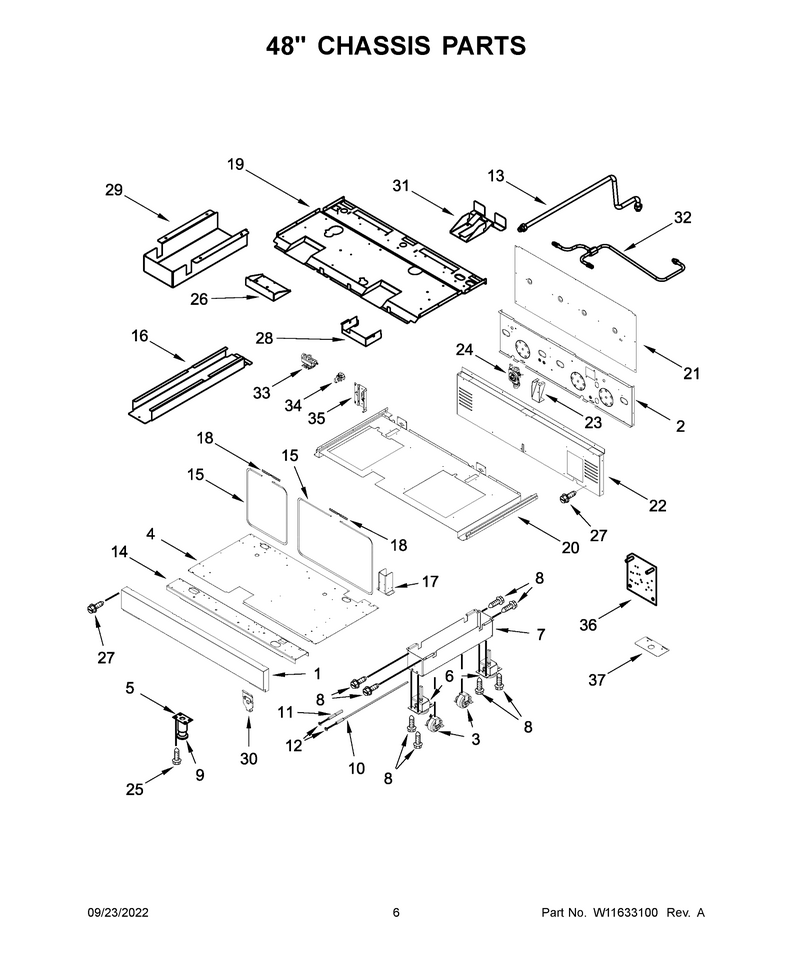

04 - 48" Chassis Parts

...
...
1
Plate-Covr WPL-W11317946
...
2
Cover-Rear WPL-W11388050
...
3
Roller-Cab WPL-WPW10138054
...
4
Duct WPL-W11320536
...
5
Plate-Mtg WPL-WP9759118
...
6
Foot-Level WPL-W10859931
...
7
Base, Leveling Leg WPL-W10908710
...
8
Screw WPL-WP4449743
...
9
Foot-Level WPL-WP9759117
...
10
Shaft, Long WPL-W10115869
...
11
Shaft, Short WPL-W10115793
...
12
E-Ring WPL-489504
...
13
Tubing-Gas WPL-W11364214
...
14
Support, Channel WPL-W11369238
...
15
Gasket-Ovn WPL-W11675844
...
15A
Gasket, Cavity (18 In) WPL-W11115326
...
16
Duct-Chassis, Rear WPL-W11050145
...
17
Column, Central WPL-W10115819
...
18
Retainer, Gasket (9 In Long) WPL-W11362015
...
19
Top-Oven WPL-W11388055
...
20
Bottm-Main WPL-W11320545
...
21
Cover-Rear WPL-W11320600
...
22
Cover-Rear WPL-W11320599
...
23
Brkt-Mntg WPL-W11320155
...
24
Regulator WPL-W11193822
...
25
Screw WPL-3400518
...
26
Drawer WPL-W11320147
...
27
Screw WPL-WP90767
...
28
Cabinet, Appliance Manager WPL-W11369237
...
29
Channel, Wire WPL-W11368831
...
30
Clip WPL-W11318207
...
31
Bracket, Bake Alignment WPL-W11190223
...
32
Tubing-Gas WPL-W11355235
...
33
Valve-Gas WPL-W11239228
...
34
Valve, Single WPL-W10311268
...
35
Bracket-Board, Dsi WPL-W10145362
...
36
Module-Spk WPL-WPW10511278
...
37
Holder, Strain Relief WPL-W10115855

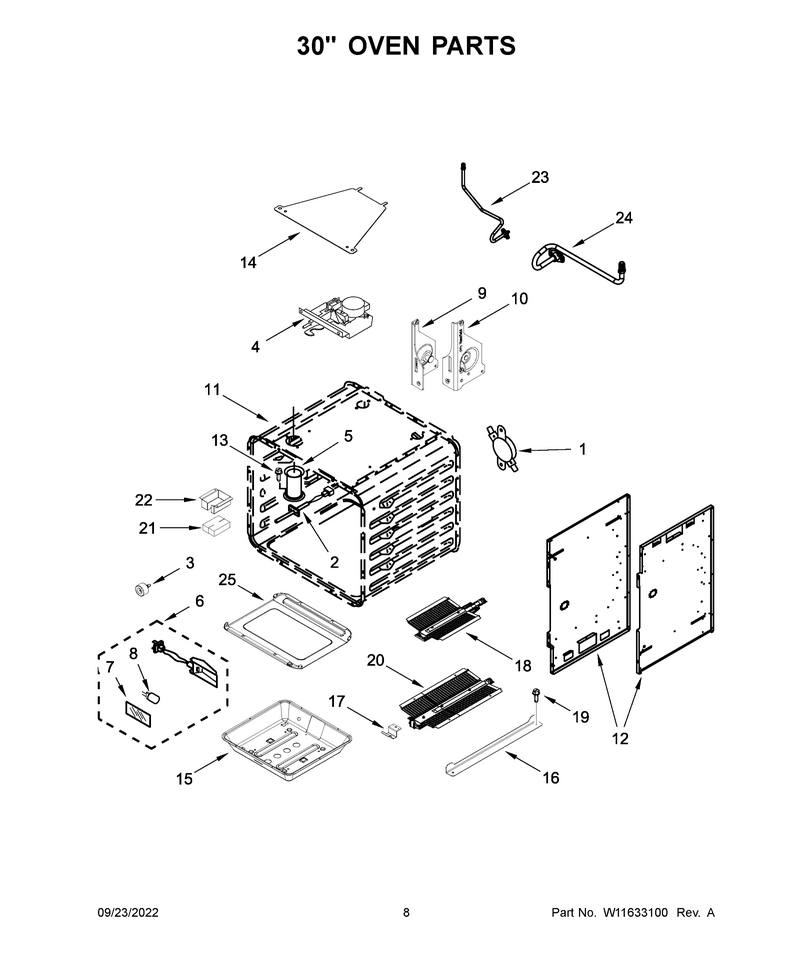

05 - 30" Oven Parts

...
...
NI
Nut WPL-WP3400968
...
1
Thrmst-Fix WPL-WP4450249
...
2
Sensor WPL-W10859573
...
3
Bumper WPL-WPW10351278
...
4
Latch-Door WPL-W11029221
...
5
Tube, Vent WPL-W10145743
...
6
Light-Oven WPL-W11233684
...
7
Lens, Light WPL-W10169756
...
8
Bulb-Light WPL-WPW10169757
...
9
Hinge-Recv WPL-W11318331
...
10
Hinge-Recv WPL-W11317948
...
11
Following Parts Not Illustrated WPL-N/P
...
12
Panel-Cbnt WPL-W11320145
...
12A
Panel-Cbnt WPL-W11320144
...
13
Screw WPL-W11233072
...
14
Cover, Latch WPL-W10160858
...
15
Support WPL-WPW10145744
...
16
Bracket, Broil Standoff WPL-W10317437
...
17
Bracket, Bake Burner WPL-W10308040
...
18
Burnr-Oven WPL-W11643161
...
19
Screw WPL-WP7101P434-60
...
20
Burnr-Brlr WPL-W11661180
...
21
Insulation WPL-W11688851
...
22
Cover, Broil WPL-W10310985
...
23
Tubing-Gas WPL-W11355244
...
24
Tubing-Gas WPL-W11355919
...
25
Pan-Broilr WPL-W11661576

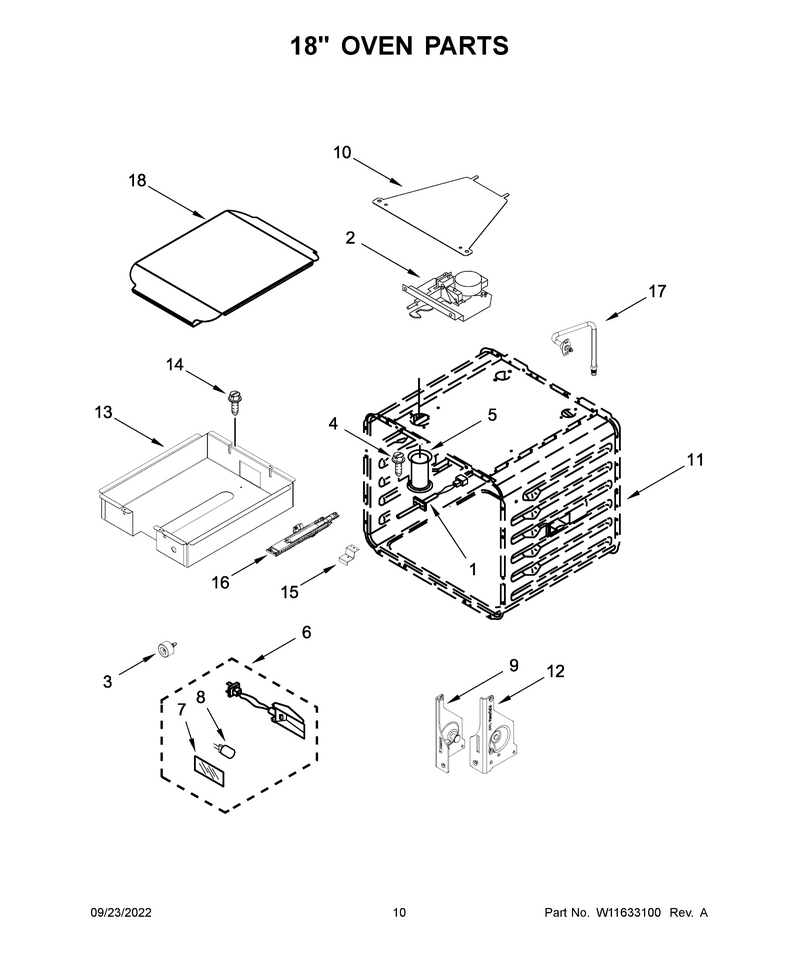

06 - 18" Oven Parts

...
...
NI
Nut WPL-WP3400968
...
1
Sensor WPL-W10859573
...
2
Latch-Door WPL-W11029221
...
3
Bumper WPL-WPW10351278
...
4
Screw WPL-W11233072
...
5
Tube, Vent WPL-W10145743
...
6
Light-Oven WPL-W11233684
...
7
Lens, Light WPL-W10169756
...
8
Bulb-Light WPL-WPW10169757
...
9
Hinge-Recv WPL-W11318331
...
10
Cover, Latch WPL-W10160858
...
11
Following Parts Not Illustrated WPL-N/P
...
12
Hinge-Recv WPL-W11317948
...
13
Support, Bake Pan WPL-W10145651
...
14
Screw WPL-WP12992902
...
15
Bracket, Bake Burner (18 In Cavity) WPL-W10308041
...
16
Burner, Bake W/o Spreader WPL-W10878505
...
17
Tube, Bake WPL-W10145706
...
18
Pan-Broilr WPL-W11504377

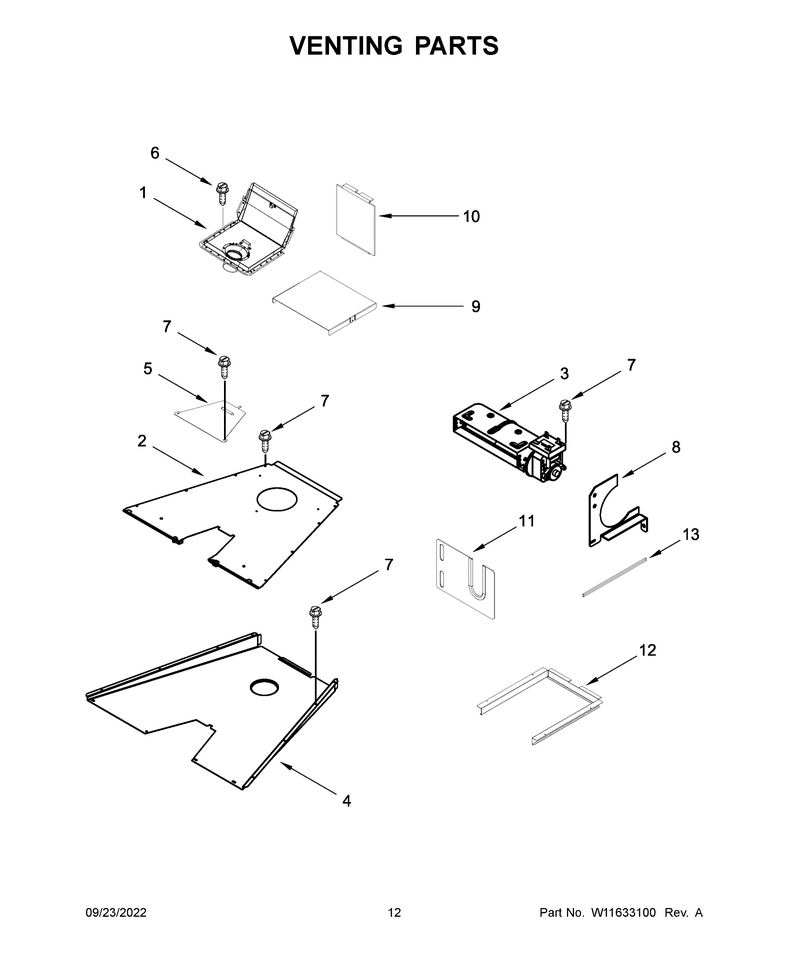

07 - Venting Parts

...
...
1
Vent, Chimney Box (30 In / 36 In) WPL-W10340579
...
1A
Vent, Chimney Box (18 In) WPL-W11476247
...
2
Vent, Cooling Top (30 In) WPL-W11105221
...
2A
Vent, Cooling Top (18 In) WPL-W11113379
...
3
Blower WPL-W11248652
...
4
Vent, Cooling Bottom (30 In) WPL-W11091676
...
4A
Vent, Cooling Bottom (18 In) WPL-W11113377
...
5
Cover-Ltch WPL-W11320405
...
6
Screw WPL-WP3400805
...
7
Screw WPL-WP90767
...
8
Bracket, Blower Mount WPL-W11047754
...
9
Retainer, Insulation WPL-W10246086
...
10
Insulation, Chimney WPL-W10246087
...
11
Covr-Acess WPL-W11320407
...
12
Duct, Primary Air (30 In) WPL-W10145363
...
12A
Duct, Primary Air (18 In) WPL-W10145364
...
13
Gasket WPL-W11175143

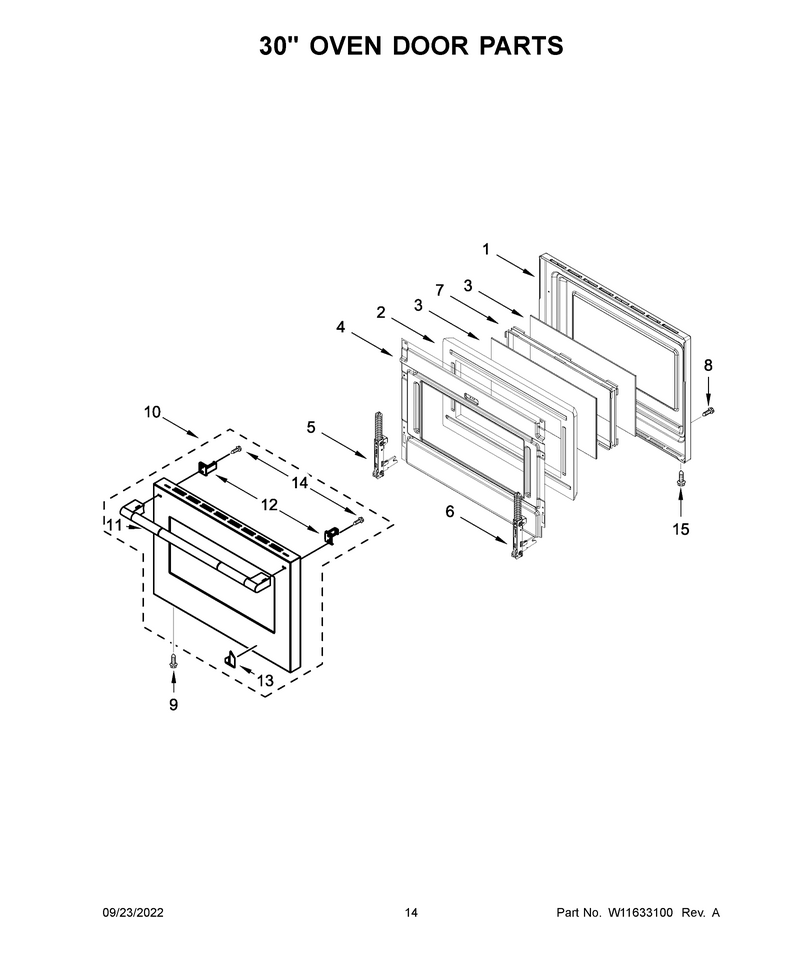

08 - 30" Oven Door Parts

...
...
1
Frame-Glas WPL-W11318831
...
2
Insulation WPL-W11688537
...
3
Glass-Door WPL-W11318823
...
4
Retainer WPL-W11318344
...
5
Hinge-Door WPL-W11643630
...
6
Hinge-Door WPL-W11643898
...
7
Frame-Wndw WPL-WPW10272594
...
8
Screw WPL-W11712404
...
9
Screw WPL-W10162096
...
10
Glass-Door WPL-W11315557
...
11
Hndle-Door WPL-W11317501
...
12
Brkt-Mntg WPL-W11317513
...
13
Nameplate WPL-W11317500
...
14
Screw WPL-WPW10276043
...
15
Screw WPL-W11193480

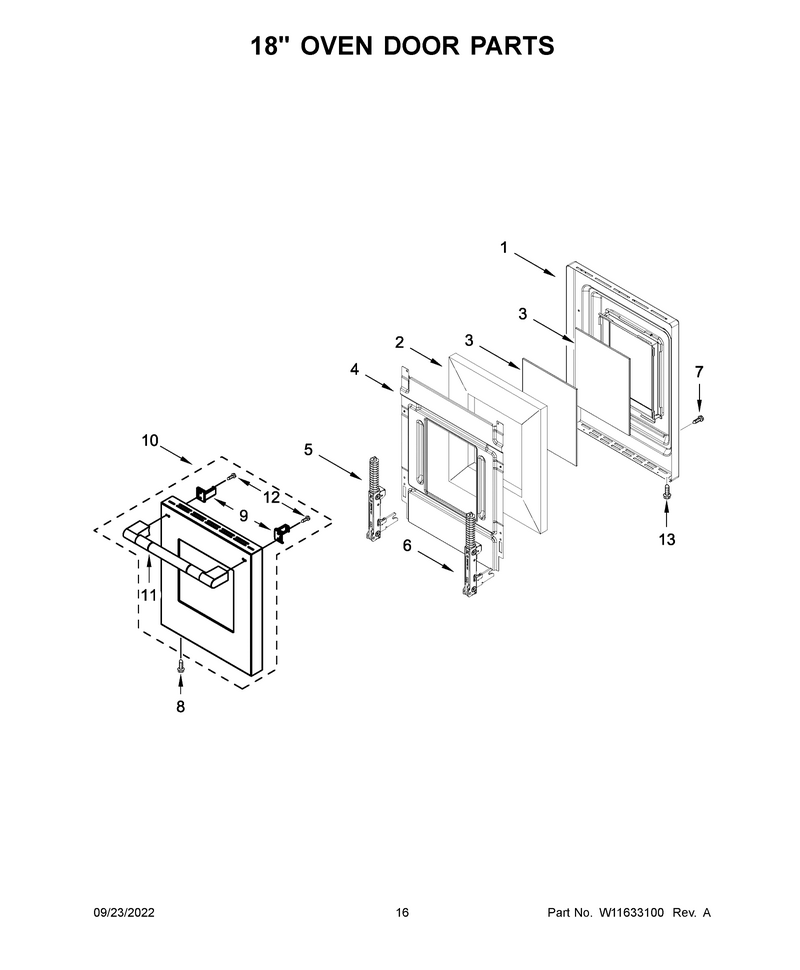

09 - 18" Oven Door Parts

...
...
1
Frame-Glas WPL-W11318335
...
2
Insulation WPL-W11317950
...
3
Glass-Door WPL-W11317951
...
4
Retainer WPL-W11318328
...
5
Hinge-Door WPL-W11643896
...
6
Hinge-Door WPL-W11643900
...
7
Screw WPL-W11712404
...
8
Screw WPL-W10162096
...
9
Brkt-Mntg WPL-W11317513
...
10
Glass-Door WPL-W11315559
...
11
Hndle-Door WPL-W11317517
...
12
Screw WPL-WPW10276043
...
13
Screw WPL-W11193480

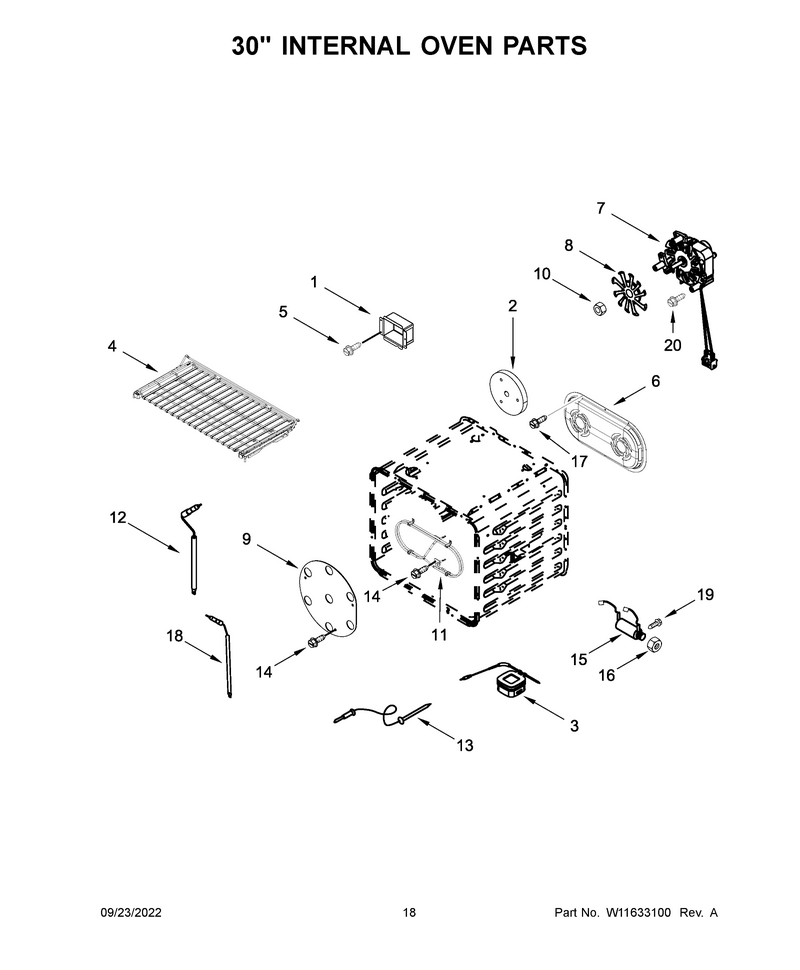

10 - 30" Internal Oven Parts

...
...
1
Box, Broil WPL-W10308051
...
2
Insulation WPL-W11688507
...
3
Probe-Meat WPL-W11318341
...
4
Rack-Oven WPL-W11563568
...
5
Screw WPL-WP7101P434-60
...
6
Baffle, Convection WPL-W11232487
...
7
Motor-Fan WPL-W10794440
...
8
Fan-Convct WPL-W11320150
...
9
Plate, Fan WPL-W10261523
...
10
Nut WPL-W10794042
...
11
Element WPL-W11033310
...
12
Igntr-Surf WPL-W11355920
...
13
Probe-Meat WPL-WP9755542
...
14
Screw WPL-WP4449154
...
15
Jack-Probe WPL-8186589
...
16
Locknut WPL-W11231343
...
17
Screw WPL-W10739592
...
18
Igntr-Surf WPL-W11355922
...
19
Screw WPL-WP12992902
...
20
Screw WPL-W10850807

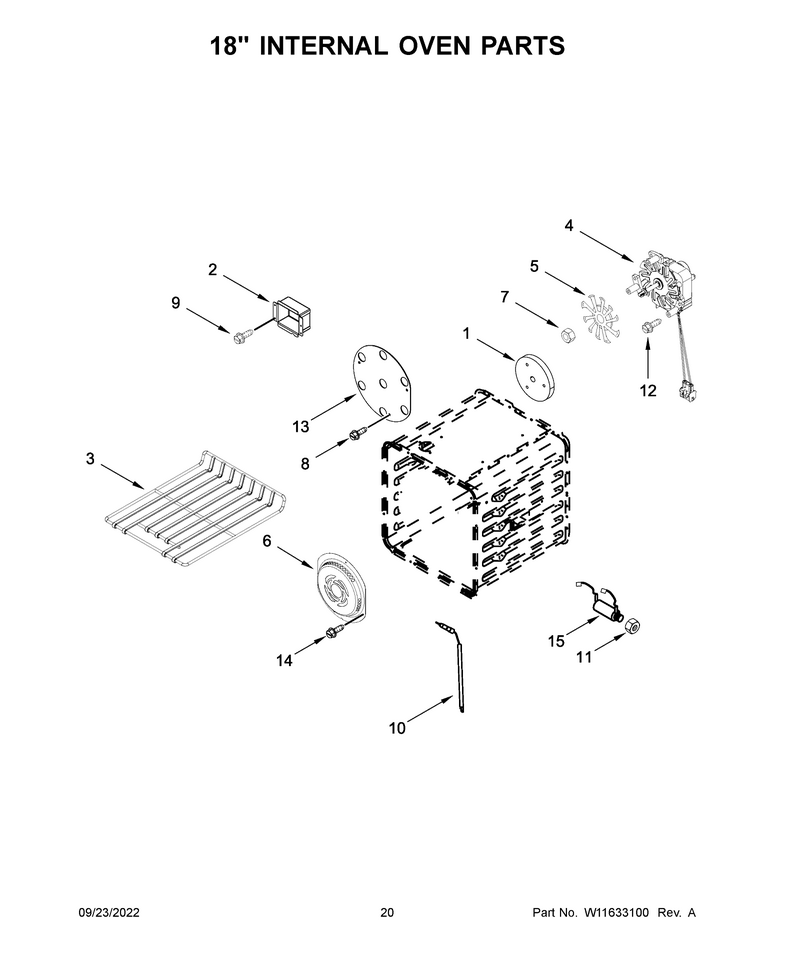

11 - 18" Internal Oven Parts

...
...
1
Insulation WPL-W11688507
...
2
Box, Broil WPL-W10308051
...
3
Rack, Oven (18 In) WPL-W11111351
...
4
Motor-Fan WPL-W10794440
...
5
Fan-Convct WPL-W11320150
...
6
Cover, Fan WPL-W11368180
...
7
Nut WPL-W10794042
...
8
Screw WPL-WP4449154
...
9
Screw WPL-WP7101P434-60
...
10
Igntr-Surf WPL-W11355922
...
11
Locknut WPL-W11231343
...
12
Screw WPL-W10850807
...
13
Plate, Fan WPL-W10261523
...
14
Screw WPL-W10739592
...
15
Jack-Probe WPL-8186589

...
...
NI
Chrome, Surface And Grill WPL-W11323061
