Jenn-Air JGD3536GB05

Model: JGD3536GB05

Save Part Not Listed?
product name

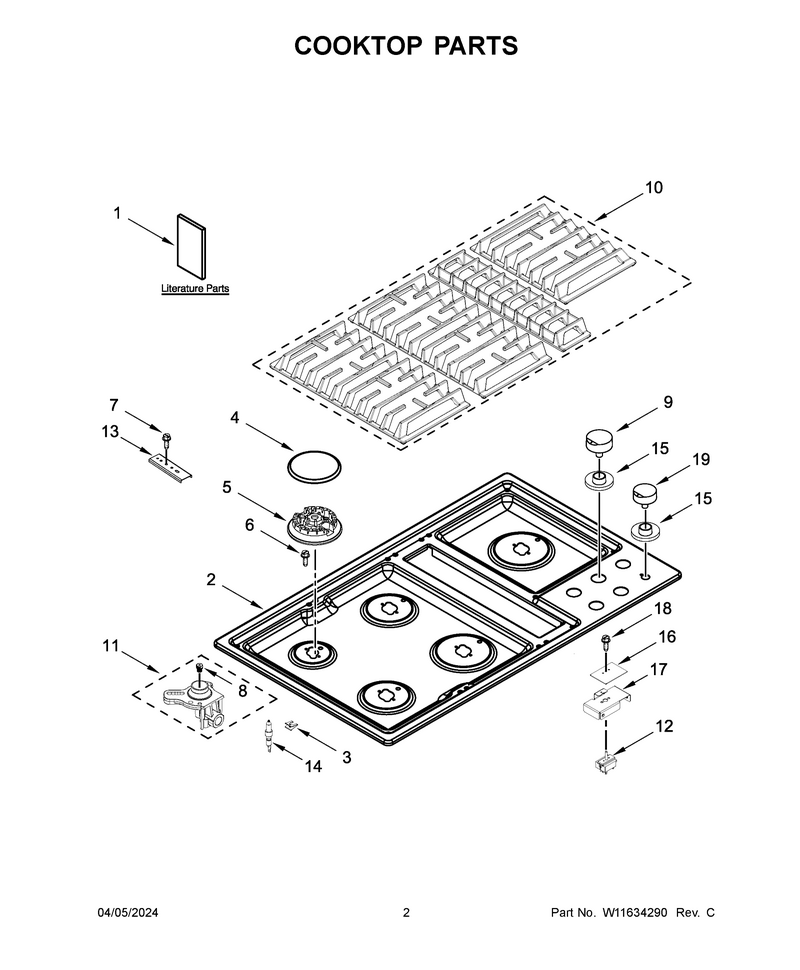

02 - Cooktop Parts

...
...
NI
Cnvrsn-Kit WPL-W11083838
...
1A
Installation Instructions WPL-W11125095
...
1
Use And Care Guide WPL-W11125099
...
1B
Wiring Diagram WPL-W11565420
...
2
Cooktop WPL-W11476219
...
2A
Cooktop WPL-W11476220
...
3
Clip WPL-W11684564
...
4
Cap-Burner WPL-W11379294
...
5C
Burnr-Head WPL-W11084067
...
5B
Burnr-Head WPL-W11084065
...
5A
Burnr-Head WPL-W11084066
...
5
Burnr-Head WPL-W11084064
...
6
Screw WPL-W11241230
...
7
Screw WPL-WP3400093
...
8
Orifice (10k) (Center) Orifice, Not Serviced WPL-W10907868
...
8A
Spud-Orfce WPL-W11677633
...
8B
Orifice (Center Front) WPL-W10907866
...
8C
Orifice (Center Rear) WPL-W10907867
...
8D
Orifice (Left Front) WPL-W10907865
...
9A
Knob WPL-W11620702
...
9
Knob WPL-W11620701
...
10
Grate-Kit WPL-W11369702
...
11
Holder, Orifice (10k) (Left Front) WPL-W10826754
...
11A
Holder, Orifice (5k) (Left Rear) WPL-W10826751
...
11B
Holder, Orifice (15k) (Center Front) WPL-W10826753
...
11C
Holder, Orifice (12.5k) (Center Rear) WPL-W10827697
...
11D
Holder, Orifice (17k) (Right Rear) WPL-W10826752
...
12
Swtch-Oven WPL-W11676792
...
13
Hardware WPL-8186533
...
14
Igntr-Surf WPL-W11690659
...
14D
Electrode (Right Rear) WPL-W10876262
...
14C
Electrode (Center Rear) WPL-W10876261
...
14B
Igntr-Surf WPL-W11688146
...
14A
Electrode (Left Rear) WPL-W10905489
...
15
Grommet WPL-W11544657
...
15A
Grommet WPL-WPW10559494
...
16
Seal, Downdraft Pad WPL-W11508237
...
17
Bracket, Switch Mount WPL-W10814795
...
18
Screw WPL-WP7101P309-60
...
19A
Knob WPL-WPW10559475
...
19
Knob, Fan (Black) WPL-W10559476

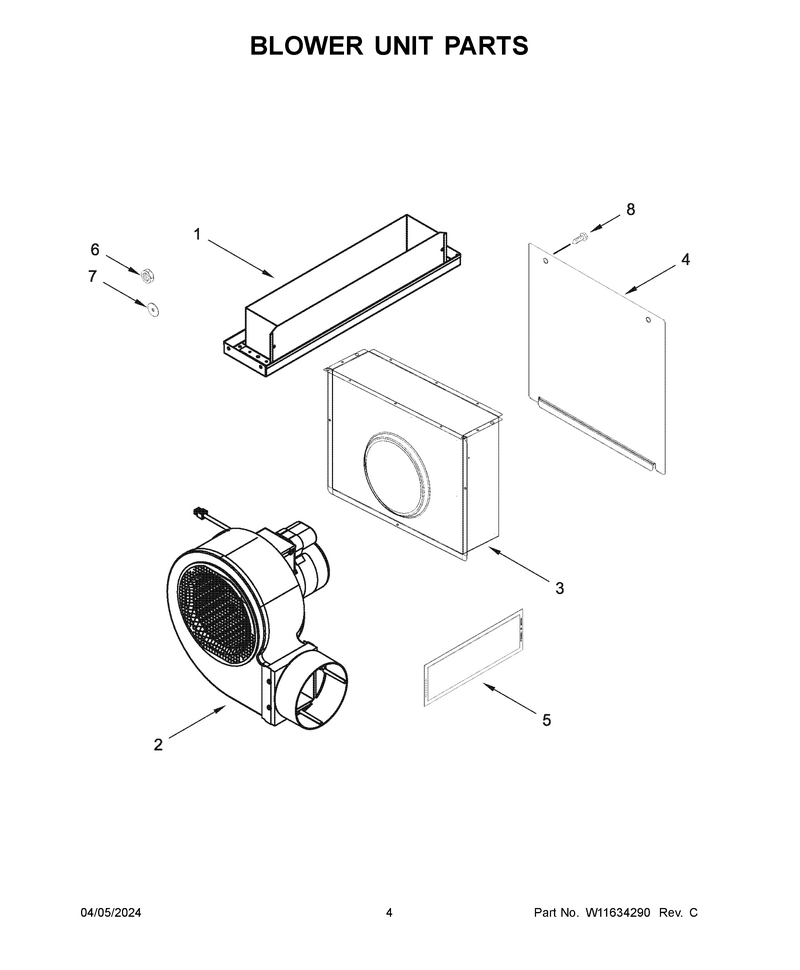

03 - Blower Unit Parts

...
...
1
Assembly, Top Plenum WPL-W10836514
...
2
Motor-Blwr WPL-W11083804
...
3
Assembly, Lower Plenum WPL-W10837738
...
4
Panel, Lower Plenum Access WPL-W10837737
...
5
Filter WPL-W10905834
...
6
Locknut WPL-WPY707702
...
7
Washer WPL-7109P086-60
...
8
Screw WPL-WPY706189

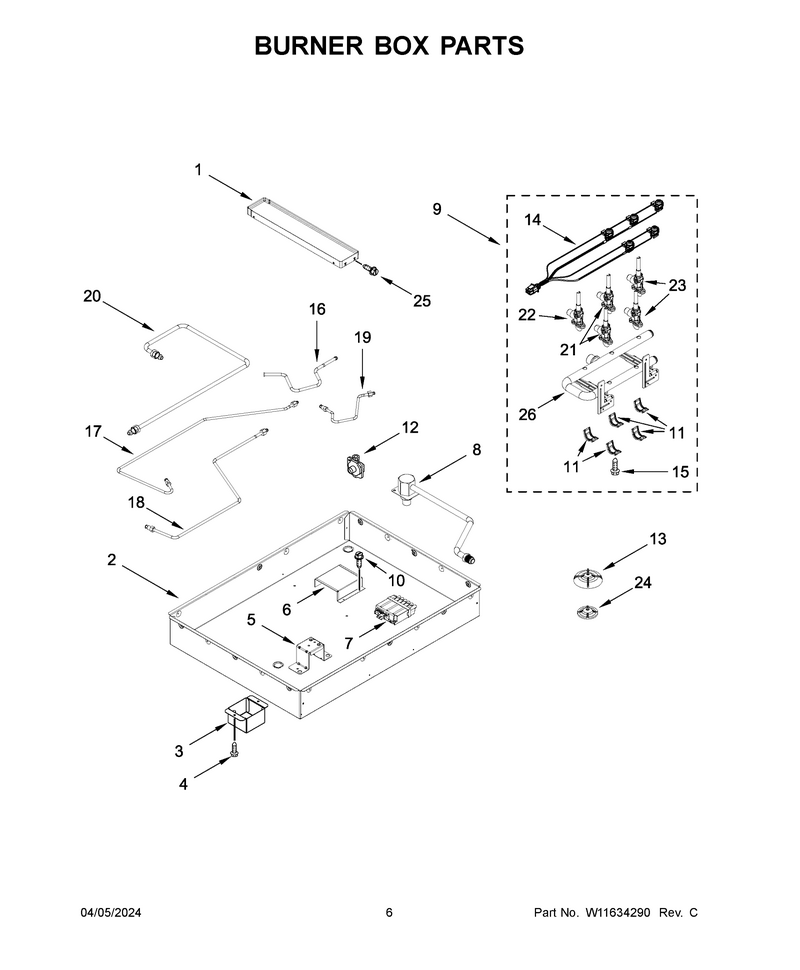

04 - Burner Box Parts

...
...
1
Tray, Spill WPL-W10235990
...
2
Box, Burner (Not Serviced) WPL---
...
3
Cover, Blower Motor Harness WPL-W10258697
...
4
Screw WPL-WP90767
...
5
Bracket, Hat WPL-W10811211
...
6
Cover, Spark WPL-W10894861
...
7
Module-Spk WPL-WPW10475150
...
8
Fitting,gas Supply WPL-W10361756
...
9
Manifold Assembly WPL-W11512352
...
10
Screw WPL-W10852658
...
11
Bracket, Saddle Valve WPL-W10949105
...
12
Regulator WPL-W11087445
...
13
Seal, Switch Shaft WPL-W11507167
...
14
Harns-Wire WPL-W11752206
...
15
Screw WPL-W11577790
...
16
Tubing-Gas WPL-W11083758
...
17
Tubing-Gas WPL-W11083760
...
18
Tubing-Gas WPL-W11083761
...
19
Tubing-Gas WPL-W11083763
...
20
Tubing-Gas WPL-W11083765
...
21
Valve (Left Front & Center Rear) WPL-W11511837
...
22
Valve (Left Rear) WPL-W11511842
...
23
Valve (Center Front & Right Rear) WPL-W11511836
...
24
Seal, Downdraft Shaft WPL-W11508234
...
25
Screw WPL-WPY706189
...
26
Tube, Manifold (Not Serviced) WPL---

...
...
NI
Accessories, Filter (Ductless) WPL-W10177003
