Jenn-Air JFFCC72EHL04

Model: JFFCC72EHL04

Save Part Not Listed?
product name

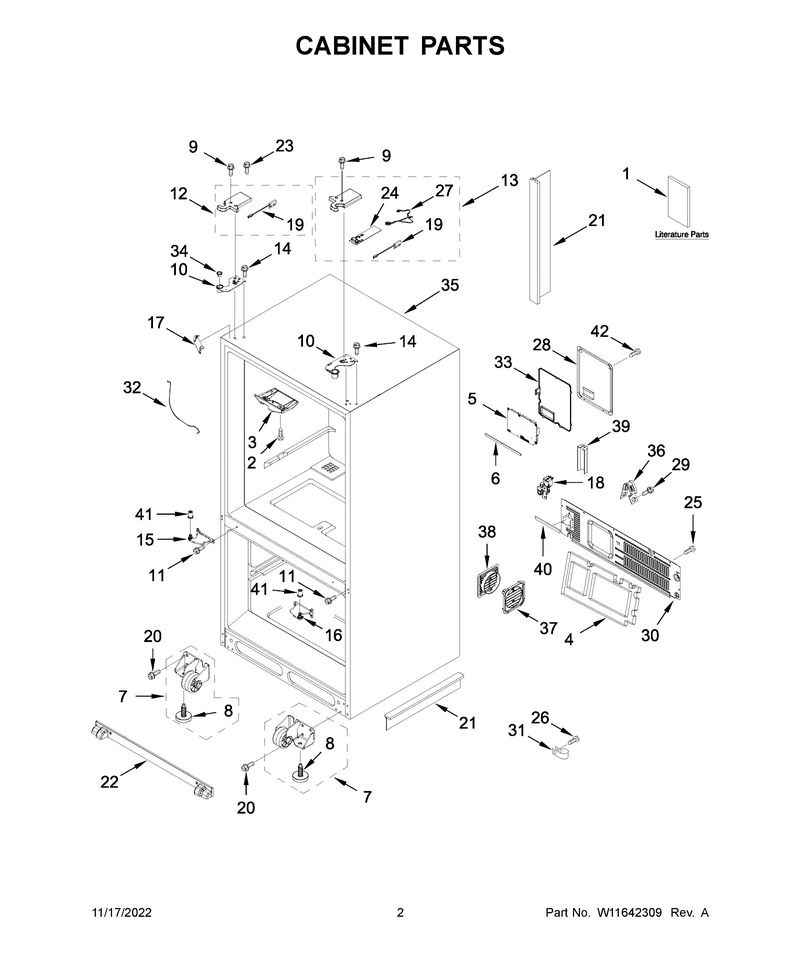

02 - Cabinet Parts

...
...
1
Tech Sheet, Owners Manual WPL-W11509210
...
1A
Energy Guide WPL-W11309660
...
1B
Tech Sheet (English) WPL-W11624280
...
1C
Tech Sheet (French) WPL-W11624281
...
2
Screw WPL-W10854958
...
3
Block, Pivot WPL-W10840311
...
4
Insulation WPL-W11688554
...
5
Cntrl-Elec WPL-W11664342
...
6
Gasket, Hv Box WPL-W10415341
...
7
Assembly, Roller (Left Hand) WPL-W11084045
...
7A
Assembly, Roller (Right Hand) WPL-W11084046
...
8
Brake, Roller WPL-W10846099
...
9
Screw WPL-WP98165
...
10
Hinge, Top (Right Hand) WPL-W11032620
...
10A
Hinge, Top (Left Hand) WPL-W11032616
...
11
Screw WPL-W11573362
...
12
Cover WPL-W11574772
...
13
Cover WPL-W11649816
...
14
Screw WPL-W11126052
...
15
Hinge, Center Left Hand (Grey) WPL-W10816322
...
16
Hinge, Center Right Hand (Grey) WPL-W10816323
...
17
Cover, Corner (Grey) WPL-W10868482
...
18
Valve WPL-W11567335
...
19
Switch WPL-W11608968
...
20
Screw (8) WPL-67006564
...
21
Divider, Air (Rear) WPL-W11466308
...
21A
Divider, Air (Rear (Short)) WPL-W11449545
...
21B
Divider, Air (Bottom) WPL-W10878920
...
22
Grille-Frt WPL-W10887787
...
23
Screw WPL-W11214483
...
24
Cntrl-Elec WPL-W11111702
...
25
Screw WPL-WPW10141645
...
26
Screw (3) WPL-67006425
...
27
Assembly, Hinge Wire WPL-W11535392
...
28
Cover, Control Box WPL-W10754144
...
29
Screw WPL-WPW10141645
...
30
Cover, Unit WPL-W11502635
...
31
Clamp WPL-W11456069
...
32
Tube, Icemaker Water (Includes Seal) WPL-W11518273
...
32A
Tube, Dispenser Water (Includes Seal) WPL-W11391304
...
33
Lid, Hv WPL-W10768379
...
34
Retainer, Door WPL-W10705239
...
35
Clamp, Power Cord WPL-549193
...
36
Following Parts Not Illustrated WPL-N/P
...
37
Assembly, Inner Air Tunnel (Includes Gasket) (Grey) WPL-W10838745
...
38
Assembly, Outer Air Tunnel (Includes Gasket) (Grey) WPL-W10838744
...
39
Cover, Valve WPL-W10208592
...
40
Gasket WPL-W11312190
...
41
Hing-Bushg WPL-W11223833
...
42
Screw WPL-W11686675

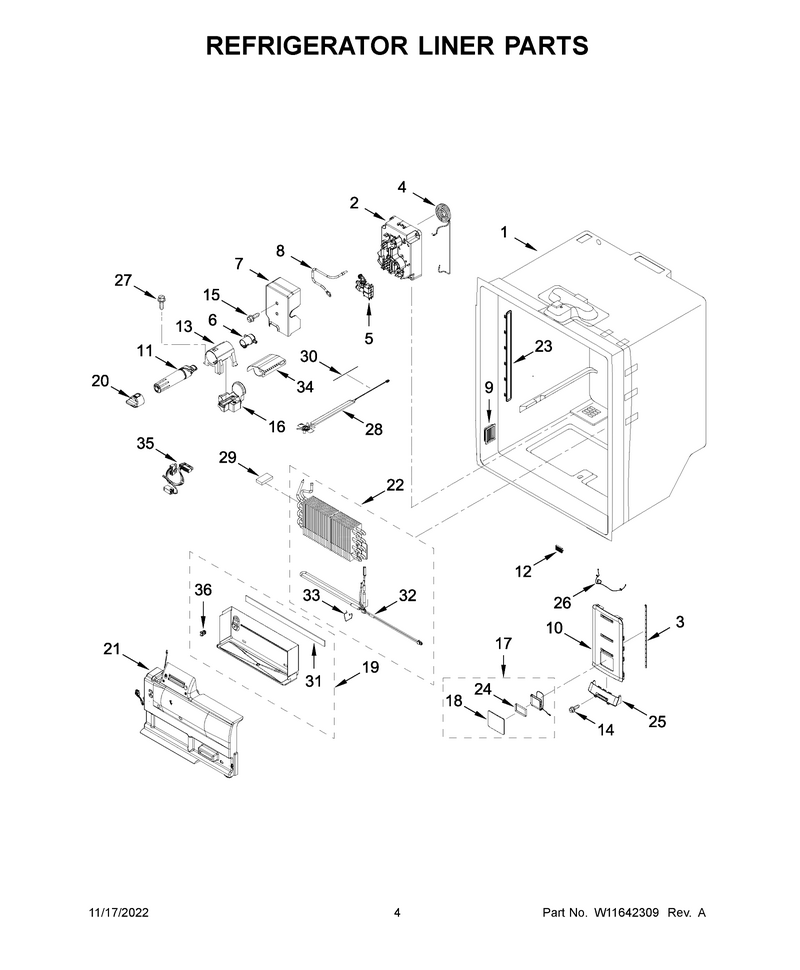

03 - Refrigerator Liner Parts

...
...
NI
Assembly, Valve Wire WPL-W11440889
...
1
Following Parts Not Illustrated WPL-N/P
...
2
Housing, Water Tank WPL-W10708473
...
3
Module WPL-W10890848
...
4
Reservoir, Water (Includes Filter Heater, Wire Ties, And Sealing Gaskets) WPL-W11451365
...
5
Valve WPL-W11567408
...
6
Housing, Water Filter (Includes Filter Heater And Sealing Gaskets) WPL-W11451366
...
7
Cover, Water Valve WPL-W10900012
...
8
Tube-Water WPL-W11727946
...
9
Cover, Cooling Duct WPL-W10815961
...
10
Cover, Air Tower WPL-W11259421
...
11
Filter WPL-EDR2RXD1
...
12
Antibacterial Filter WPL-W10311524
...
13
Bracket WPL-W11189600
...
14
Screw WPL-W10119266
...
15
Screw WPL-WP67006908
...
16
Insulation, Under Filter WPL-W11348541
...
17
Light Assy, Air Filter WPL-W11302423
...
18
Cover, Air Filter WPL-W11306609
...
19
Assembly, Heat Shield WPL-W11090564
...
20
Cap-Filter WPL-W11679634
...
21
Cover-Evap WPL-W11610998
...
22
Evaporator WPL-W11567406
...
22A
4/1.8 Nr Ms 00 (Capillary Tube To Evaporator) WPL-W11504450
...
22B
8 Nk Ms 00 (Suction Line To Evaporator) WPL-W11506619
...
23
Module WPL-W11649968
...
24
Insulator, Foam WPL-W10673897
...
25
Air-Tower WPL-W11024146
...
26
Harness, Air Tower Jumper WPL-W10848895
...
27
Screw WPL-WP489474
...
28
Heater WPL-W11024084
...
29
Gasket, Evaporator Air Dam WPL-W10818463
...
30
Sleeve WPL-W10910632
...
31
Gasket WPL-W11159756
...
32
Heater WPL-W11567407
...
33
Clip, Evaporator Heater WPL-W11493401
...
34
Cover, Filter WPL-W11307147
...
35
Assembly, Evaporator Jumper Wire WPL-W10911358
...
36
Clip, Evaporator WPL-10623002

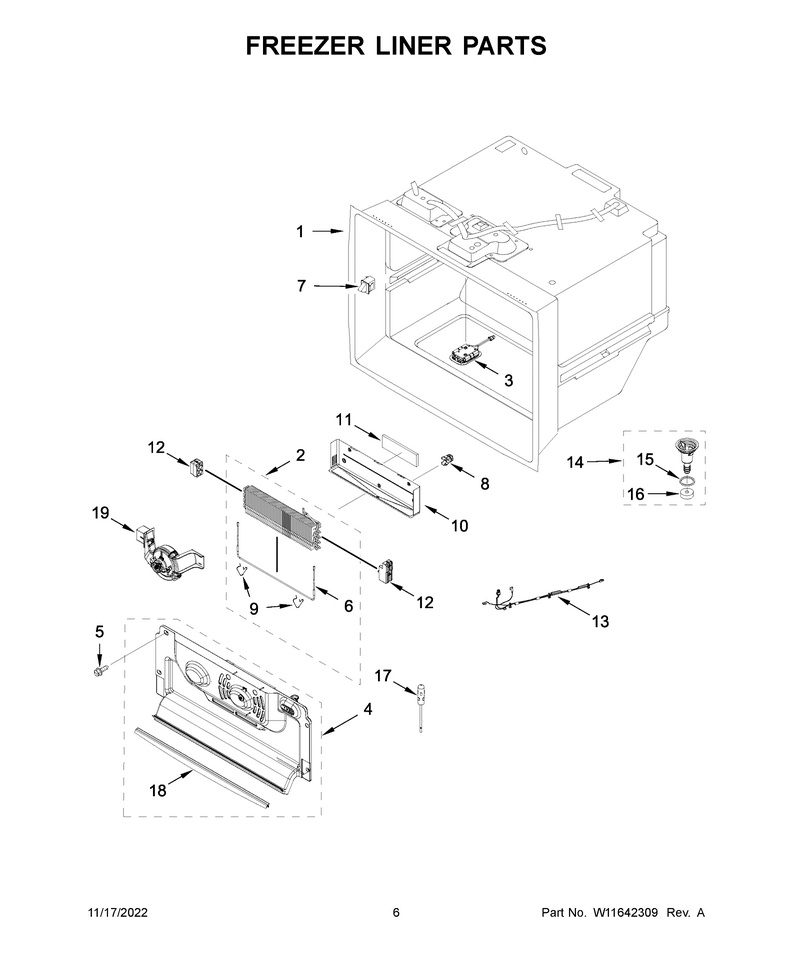

04 - Freezer Liner Parts

...
...
1
Following Parts Not Illustrated WPL-N/P
...
2
Evaporator WPL-W11565768
...
2A
8 Nk Al 00 (Suction Line To Evaporator) WPL-W11506620
...
2B
8 Nk Al 00 (Suction Line To Evaporator) WPL-W11506620
...
3
Module WPL-W11483116
...
4
Cover-Evap WPL-W11394920
...
5
Screw (3) WPL-67006425
...
6
Heater, Defrost WPL-W11384694
...
7
Switch WPL-W11291139
...
8
Clip, Evaporator WPL-10623002
...
9
Clip, Defrost Heater WPL-W11459749
...
10
Sheild, Fc Heat WPL-W11483266
...
11
Gasket, Drip Tray Rear WPL-W10683540
...
12
Dam, Air (Left Hand) WPL-W11483265
...
12A
Dam, Air (Right Hand) WPL-W10668198
...
13
Harns-Wire WPL-W11715973
...
14
Assembly, Drain Funnel WPL-W10503218
...
15
Seal- O Ri WPL-WPM0500703
...
16
Gasket- Dr WPL-WPB8381501
...
17
Thermistor WPL-W11724692
...
18
Seal, Crisp Front WPL-W10770923
...
19
Fan WPL-W11407678

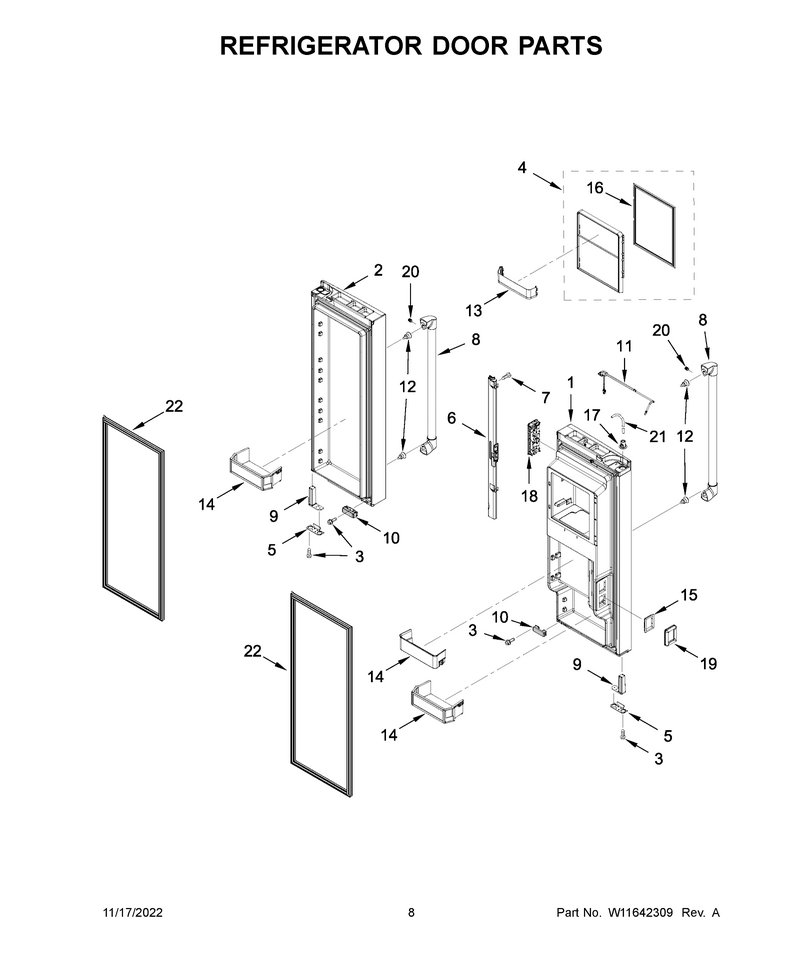

05 - Refrigerator Door Parts

...
...
1
Dor-Fip WPL-W11610988
...
2
Dor-Fip WPL-W10849511
...
3
Screw WPL-WPW10238319
...
4
Door-Ice WPL-W11594926
...
5
Stop-Door WPL-W11243377
...
6
Rail-Mulln WPL-W11649966
...
7
Screw WPL-W11311945
...
8
Handle WPL-W11254134
...
9
Closer WPL-W11163783
...
9A
Closer WPL-W11188796
...
10
Bumper, Door (Grey) WPL-W10798308
...
11
Following Parts Not Illustrated WPL-N/P
...
12
Screw WPL-W11449276
...
13
Trivet WPL-W10887799
...
14
Bin, Door (Medium) WPL-W10816355
...
14A
Bin, Door (Gallon) WPL-W10793381
...
15
Retainer, Door Duct WPL-W10834283
...
16
Gasket WPL-W11714865
...
17
Clip, Tube WPL-W11315303
...
18
Panel-Ui WPL-W11585971
...
19
Gasket, Cooling Duct WPL-W10828417
...
20
Screw WPL-W10907991
...
21
Tube, Dispenser Water WPL-W11518276
...
22
Gasket, Door (Grey) WPL-W10917313

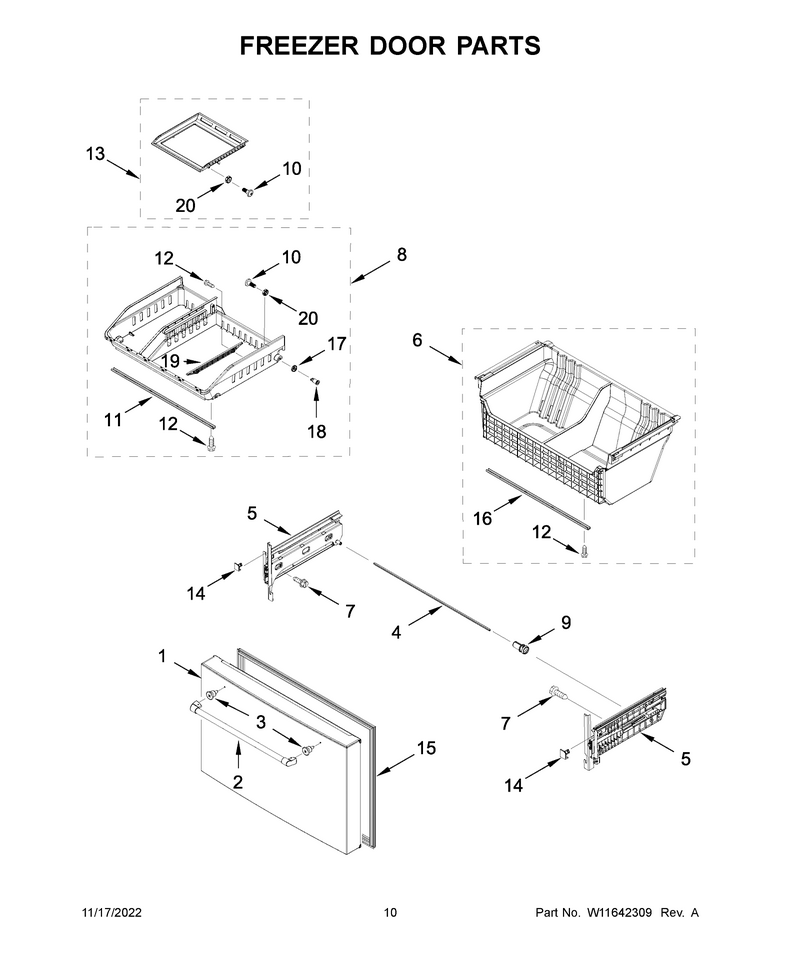

06 - Freezer Door Parts

...
...
1
Dor-Fip WPL-W10849519
...
2
Handle WPL-W11254135
...
3
Screw WPL-W11449276
...
4
Shaft WPL-W11173556
...
5
Assembly, Bracket (Left Hand) WPL-W10795844
...
5A
Assembly, Bracket (Right Hand) WPL-W10795848
...
6
Assembly, Bottom Pan WPL-W10795852
...
7
Screw WPL-WP67006908
...
8
Assembly, Top Pan WPL-W11124053
...
9
Collar WPL-WPW10277361
...
10
Screw WPL-67006692
...
11
Support WPL-W11677723
...
12
Screw WPL-WP489443
...
13
Bin-Freezr WPL-W10906611
...
14
Stop, Pan (Left Hand) WPL-W10795821
...
14A
Stop, Pan (Right Hand) WPL-W10795823
...
15
Gasket-Dor WPL-W11585972
...
16
Bar, Support WPL-W10697812
...
17
Roller WPL-W10874023
...
18
Axle, Roller WPL-W10839805
...
19
Rail, Guard WPL-W10830660
...
20
Roller WPL-W10795813

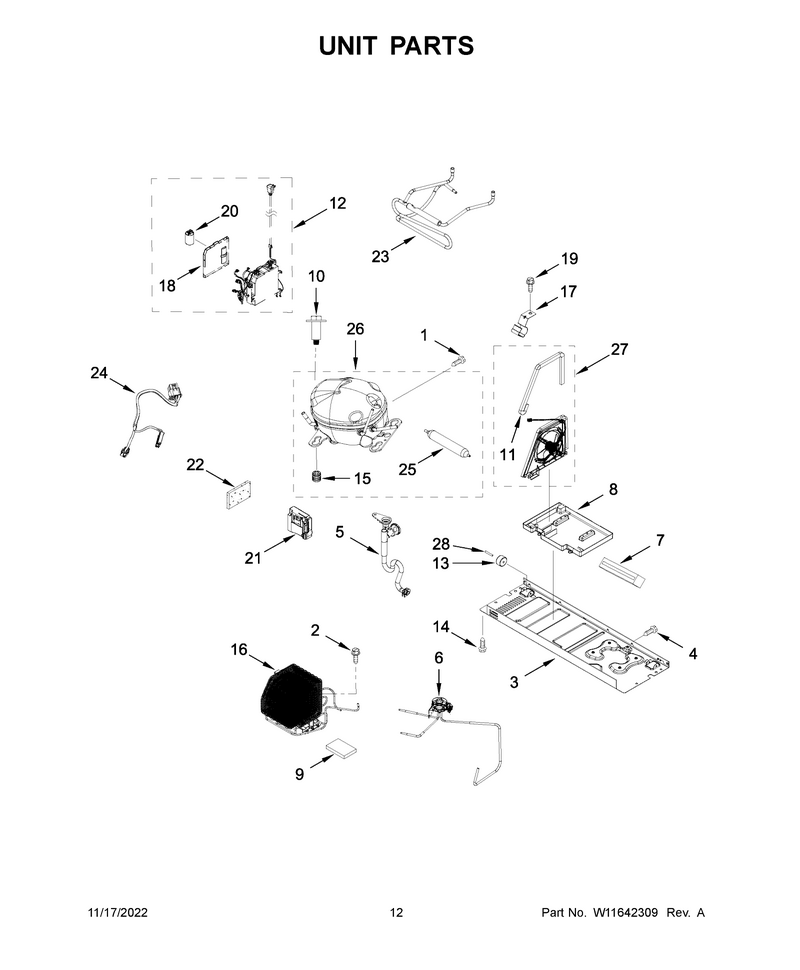

07 - Unit Parts

...
...
NI
Following Parts Not Illustrated WPL-N/P
...
1
Screw WPL-WPW10141625
...
2
Screw WPL-W10820084
...
3
Baseplate WPL-W11449163
...
4
Screw (3) WPL-67006425
...
5
Extension WPL-W11745091
...
6
Valve WPL-W11574310
...
6A
3 Nk Ms 00 (3-Way Valve To Rc Capillary Tube - Cut/splice Near Old Valve Body) WPL-W11506625
...
6B
3 Nk Ms 00 (3-Way Valve To Rc Capillary Tube - Cut/splice Near Old Valve Body) WPL-W11506625
...
6C
5/4 Nr Ms 00 (Suction Line To Condenser) WPL-W11504445
...
7
Insulation WPL-W11706809
...
8
Tray, Evaporator WPL-W11490557
...
9
Grommet WPL-W10852725
...
10
Screw WPL-W11417341
...
11
Gasket, Condenser Fan WPL-W10683708
...
12
Cntrl-Elec WPL-W11567409
...
13
Roller WPL-W10774846
...
14
Screw WPL-12992101
...
15
Grommet WPL-WPW10169124
...
16
Condenser WPL-W11567329
...
16A
5/4 Nr Ms 00 (Suction Line To Condenser) WPL-W11504445
...
16B
7/5 Nr Ms 00 (High Pressure Side To Compressor) WPL-W11504431
...
17
Bracket, Valve WPL-W10391376
...
18
Cover, Housing WPL-W11198954
...
19
Screw WPL-WPW10141645
...
20
Filter, Emi WPL-W10738041
...
21
Invrtr-Box WPL-W11578028
...
22
Insulation WPL-W11553819
...
23
Tube WPL-W11646687
...
24
Harness, Unit (Condenser Fan) WPL-W11440595
...
25
Drier-Tube WPL-W11109499
...
25A
5/4 Nr Ms 00 (Suction Line To Condenser) WPL-W11504445
...
25B
5 Nk Ms 00 (High Side To Condenser) WPL-W11506623
...
26
Compressor WPL-W11578205
...
26A
7/5 Nr Ms 00 (High Pressure Side To Compressor) WPL-W11504431
...
26B
8.5/8 Nr Ms 00 (Suction Tube To Compressor) WPL-W11504415
...
26C
6 Nk Ms 00 (Charging Tube To Compressor) WPL-W11506621
...
26D
Tube, Charging (1/4 In W/ Schrader Valve) WPL-W11506635
...
27
Fan WPL-W11574308
...
28
Axle, Roller (2) WPL-67006434

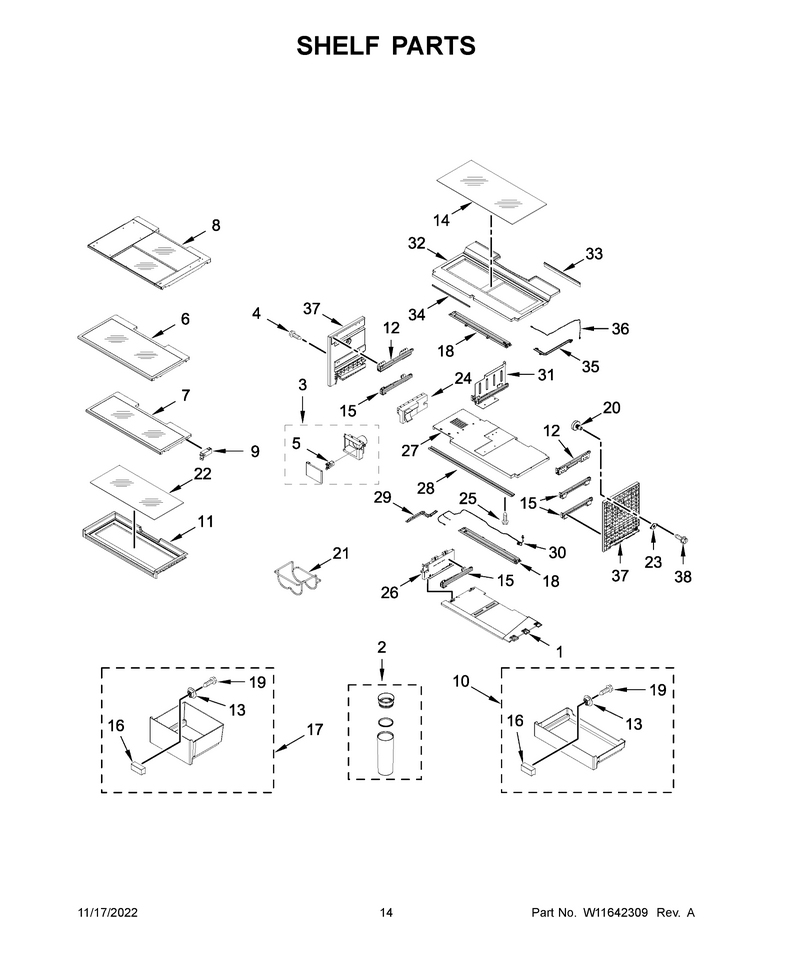

08 - Shelf Parts

...
...
1
Base WPL-W11086554
...
2
Container WPL-W10882409
...
3
Housing WPL-W11483207
...
4
Screw WPL-W10847999
...
5
Latch WPL-WP2223877
...
6
Shelf-Glas WPL-W10906768
...
7
Shelf-Glas WPL-W11262315
...
8
Shelf-Glas WPL-W10906770
...
9
Assembly, Block (Front Left/back Right) WPL-W10817923
...
9A
Assembly, Block (Front Right/back Left) WPL-W10817924
...
10
Pan, Pantry WPL-W10794366
...
11
Frame WPL-W11289961
...
12
Glide, Platter (Left Hand) WPL-W10816004
...
12A
Glide, Platter (Right Hand) WPL-W10814864
...
13
Spacer, Handle WPL-W10663641
...
14
Shelf-Glas WPL-W10887837
...
15
Glide, Crisper (Left Hand) WPL-W10816002
...
15A
Glide, Crisper (Right Hand) WPL-W10814859
...
16
Handle WPL-W10794362
...
17
Assembly, Crisper Pan WPL-W10794361
...
18
Assembly, Light WPL-W10921807
...
19
Screw WPL-W10903879
...
20
Knob, Side Support WPL-W10840921
...
21
Rack, Wine WPL-W10837214
...
22
Shelf-Glas WPL-W10906771
...
23
Flange, Side Support WPL-W10840918
...
24
Insulation WPL-W11084829
...
25
Screw WPL-W10847999
...
26
Support, Pantry WPL-W10794329
...
27
Cover WPL-W11086555
...
28
Bar, Support WPL-W10814884
...
29
Cover, Wiring Harness WPL-W10834719
...
30
Harns-Wire WPL-W11744510
...
31
Assembly, Center Support WPL-W10794337
...
32
Frame WPL-W11086556
...
33
Gasket, Crisper Cover (Rear) WPL-W10794336
...
34
Gasket, Crisper Cover (Front) WPL-W10794242
...
35
Cover, Wiring Harness WPL-W10854845
...
36
Jumper, Crisper Led WPL-W10835866
...
37
Support, Side (Left Hand) WPL-W10794317
...
37A
Support, Side (Right Hand) WPL-W10794320
...
38
Screw (Grey) WPL-W10834284

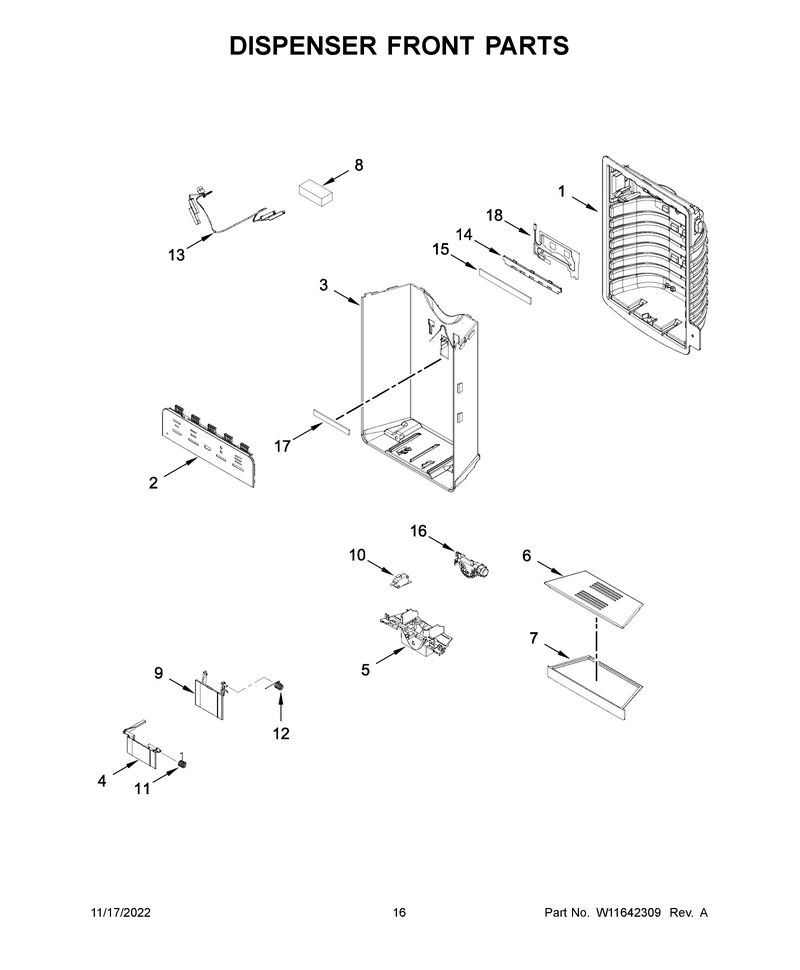

09 - Dispenser Front Parts

...
...
1
Following Parts Not Illustrated WPL-N/P
...
2
Panel-Ui WPL-W11585970
...
3
Wall, Dispenser False (Grey) WPL-W10792144
...
4
Pad WPL-W11679631
...
5
Seperator (Grey) WPL-W11048097
...
6
Grate, Drip WPL-W10848267
...
7
Tray, Drip (Grey) WPL-W10905360
...
8
Gasket, Foam WPL-W10882291
...
9
Paddle, Ice Dispenser (Chrome) WPL-W10792149
...
10
Switch WPL-W11087492
...
11
Spring, Torsion WPL-W10672578
...
12
Spring WPL-W11109505
...
13
Assembly, Paddle Jumper Wire WPL-W10704135
...
14
Bracket, User Interface Adapter WPL-W10757499
...
15
Gasket, User Interface Adapter WPL-W10696713
...
16
Door-Ice WPL-W11189145
...
17
Pad, Sound WPL-W10663699
...
18
Heater, Dispenser WPL-W10752689

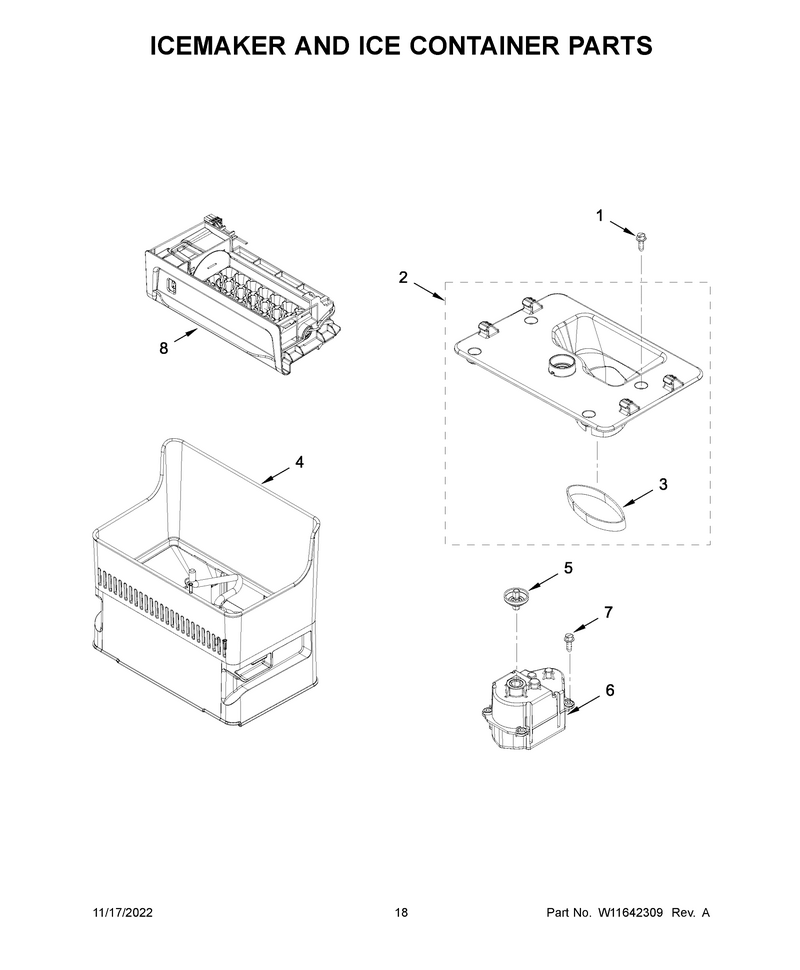

10 - Icemaker And Ice Container Parts

...
...
1
Screw WPL-WPW10272364
...
2
Plate, Ice Chute WPL-W10793258
...
3
Seal WPL-WPW10291905
...
4
Ice-Contnr WPL-W11585969
...
5
Shaft WPL-W11228132
...
6
Motor WPL-W10822606
...
7
Screw WPL-WP8281163
...
8
Icemaker WPL-W11557002

11 - Optional Parts

...
...
NI
Torx Screw Wrench, Torx Key WPL-1117510
