Jenn-Air JFC2290VTB1

Model: JFC2290VTB1

Save Part Not Listed?
product name

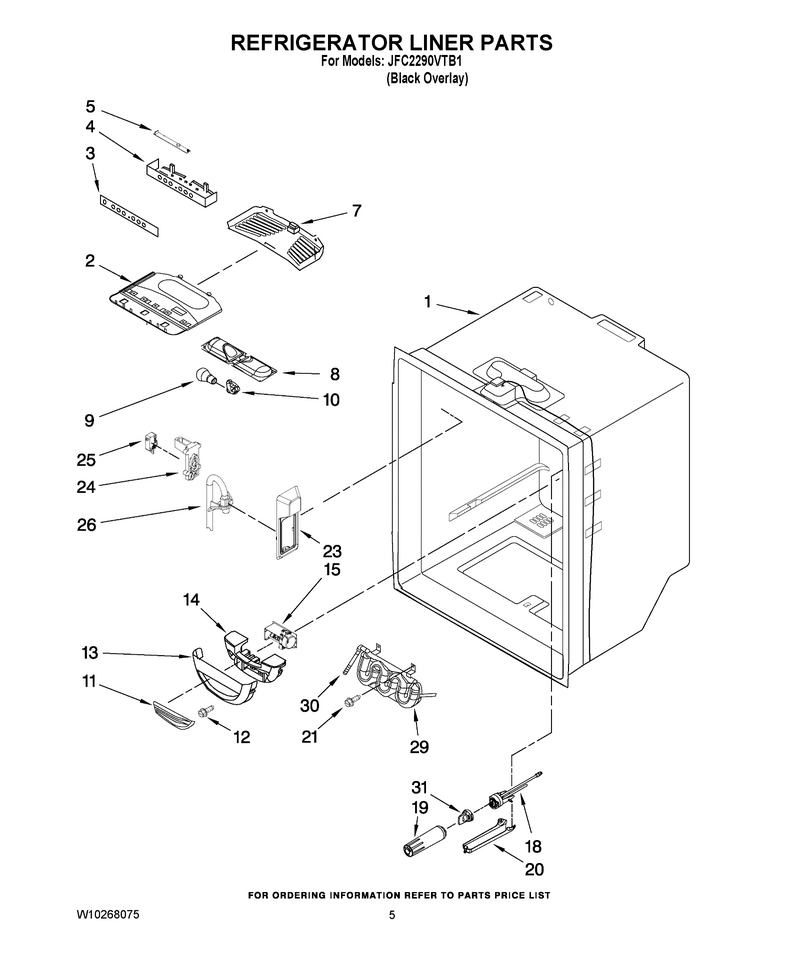

03 - Refrigerator Liner Parts

...
...
NI
Harns-Wire WPL-WPW10119821
...
1
Liner (Not A Serviceable Part) WPL---
...
2
Module, Light WPL-W10203323
...
3
Overlay WPL-W10205847
...
4
Housing WPL-W11416469
...
5
Cntrl-Elec WPL-WPW10116216
...
7
Cover WPL-W11284721
...
8
Housing, Light WPL-12806601
...
9
Bulb-Light WPL-W11679940
...
10
Socket WPL-W11447232
...
11
Insert, Damper Cover WPL-67003900
...
12
Screw WPL-WP400021-1
...
13
Cover-Box WPL-WP12806701
...
14
Insulation WPL-WP13012402
...
15
Control WPL-WPW10594329
...
18
Head-Filtr WPL-W11346623
...
19
Filter WPL-EDR4RXD1
...
20
Cover- Fil WPL-WP12568001
...
21
Screw WPL-WP98165
...
23
Cover WPL-W11243624
...
24
Cover WPL-W11243624
...
25
Switch WPL-WP12575502
...
26
Waterline, Dispenser WPL-W10117324
...
29
Reservoir WPL-W11229977
...
30
Fitting WPL-WP2300868
...
31
Cap-Filter WPL-W11395888

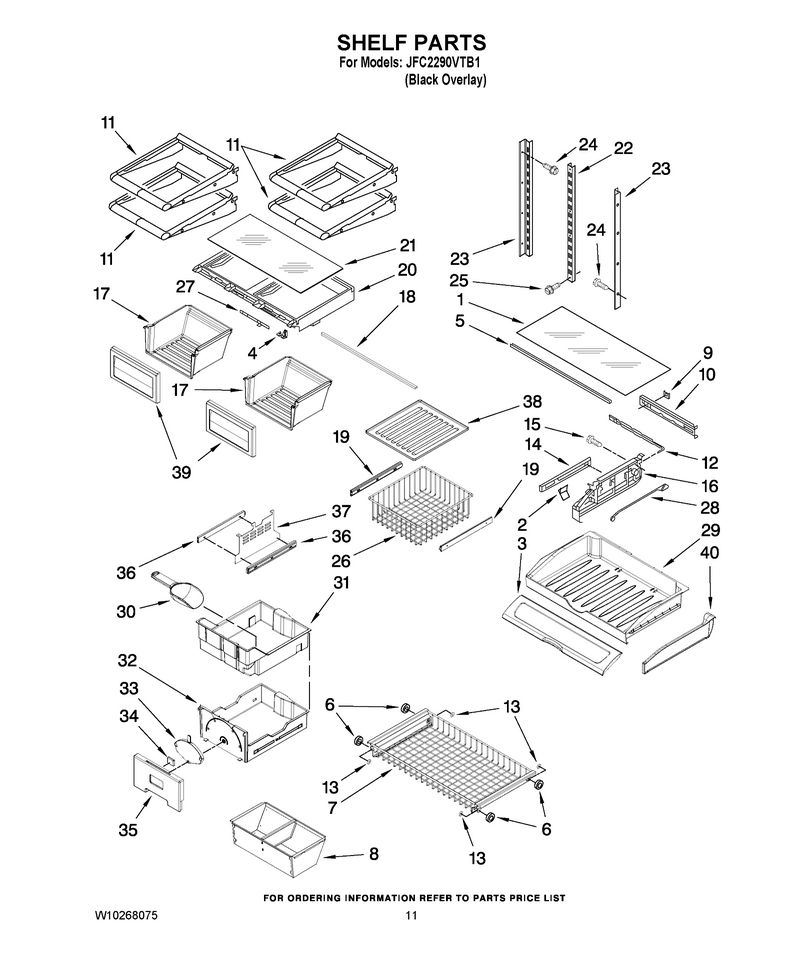

06 - Shelf Parts

...
...
1
Glass- Pan WPL-WP67002332
...
2
Knob WPL-W11498983
...
3
Cover WPL-WP12656822
...
4
Knob, Humidity Control (2) WPL-W10119222
...
5
Support WPL-WP12227305WD
...
6
Roller WPL-W11214482
...
7
Basket-Fzr WPL-WPW10119854
...
8
Bin Assembly WPL-W10144706
...
9
Gasket, Pantry WPL-67002329
...
10
Housing, Control WPL-12656202
...
11
Shelf-Glas WPL-WPW10156631
...
12
Slide- Tem WPL-WP67003793
...
13
Nut, Basket Roller WPL-2207415
...
14
Glide, Drawer (Right) WPL-W10132652
...
15
Screw WPL-WP98165
...
16
Endcap WPL-WPW10121977
...
17
Pan, Crisper WPL-W10119219
...
18
Brace, Crisper Frame WPL-W10490807
...
19
Glide WPL-WPW10170836
...
20
Frame WPL-WPW10119215
...
21
Shelf-Glas WPL-WP12204827
...
22
Ladder, Center WPL-67001073
...
23
Ladder, Side WPL-67001302
...
24
Screw (3) WPL-67006425
...
25
Screw WPL-W10709795
...
26
Basket, Upper WPL-W10120003
...
27
Slide, Humidity Control WPL-W10119217
...
28
Bar, Temp Control WPL-67003794
...
29
Pan-Utilty WPL-WP12655703
...
30
Scoop, Ice Pan WPL-W10182881
...
31
Pan, Ice WPL-W10120005
...
32
Pan-Ice WPL-WPW10120008
...
33
Lever, Ice Pan WPL-W10184030
...
34
Magnet-Dor WPL-W11175810
...
35
Front-Pan WPL-WPW10174720
...
36
Glide WPL-WPW10170835
...
37
Glide WPL-WPW10170987
...
38
Mat WPL-WPW10451455
...
39
Front, Crisper WPL-W10212414
...
40
Divider- P WPL-WP67002321

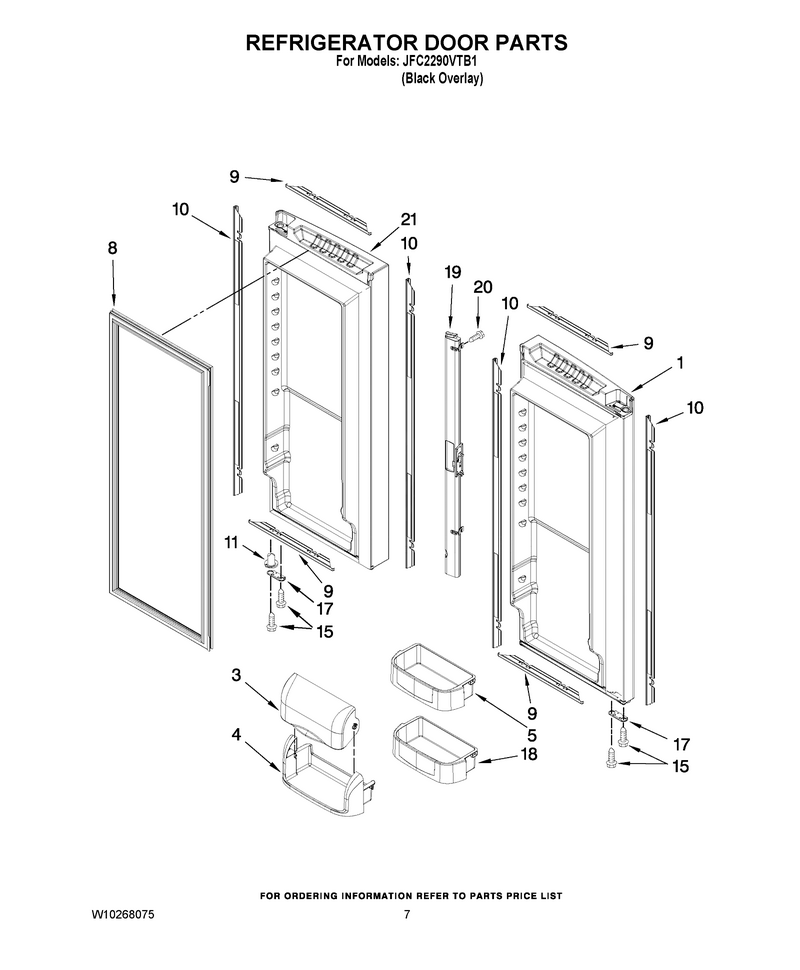

04 - Refrigerator Door Parts

...
...
1
Door, Refrigerator (Black, Lh) WPL-13094710BQ
...
3
Door Comp WPL-WP12744905
...
4
Tray- Dair WPL-WP67001279
...
5
Bin-Cntlvr WPL-WPW10119841
...
8
Gasket, Door (Black) WPL-W10830047
...
9
Trim, Top / Bottom WPL-W10130132
...
10
Trim-Door WPL-WPW10130136
...
11
Closer WPL-WP67003639
...
15
Screw WPL-WP98165
...
17
Stop, Door (Black) WPL-W10153126
...
18
Bin-Cntlvr WPL-WPW10119846
...
19
Rail-Mulln WPL-W11177241
...
20
Screw WPL-W11311945
...
21
Dor-Fip Bl WPL-13094741BQ

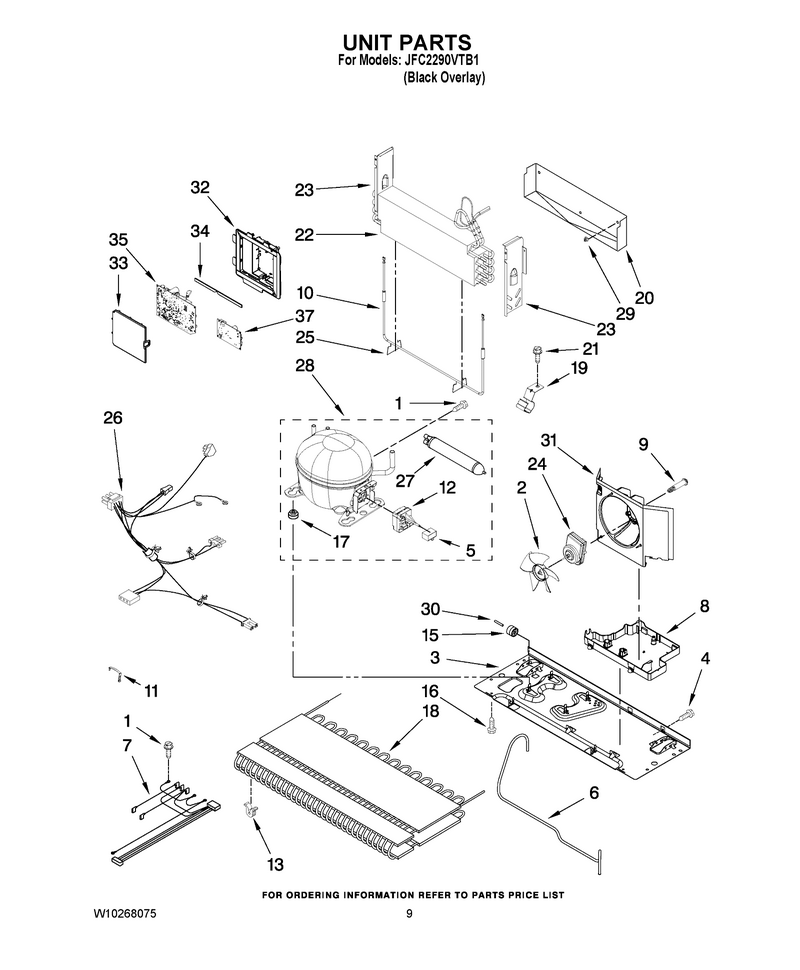

05 - Unit Parts

...
...
NI
Valve, Access (5/16``) WPL-978026
...
1
Screw WPL-12992301
...
2
Blade-Fan WPL-WP12825803
...
3
Plate WPL-W11727651
...
4
Screw (3) WPL-67006425
...
5
Capacitor WPL-WPW10662129
...
6
Tube WPL-WPW10233569
...
7
Harness, Evap. Heater WPL-W10211456
...
8
Pan-Drip WPL-WPW10655368
...
9
Screw WPL-W10829281
...
10
Heater WPL-W10825088
...
11
Clip WPL-W11661170
...
12
Start-Dev WPL-WPW10194431
...
13
Grommet WPL-WPW10137529
...
15
Roller WPL-WP67005149
...
16
Screw WPL-12992101
...
17
Grommet WPL-WPW10169124
...
18
Condenser WPL-WPW10346415
...
19
Clip, Drier WPL-10547003
...
20
Tray-Drip WPL-W11547653
...
21
Screw WPL-WP33001882
...
22
Kit, Evap Replacement WPL-12002041
...
23
Dam (Right Side) WPL-12225702
...
24
Motor-Cond WPL-W11613295
...
25
Clip WPL-W11673433
...
26
Harness, Unit With Power Cord WPL-W10256742
...
27
Drier-Uv WPL-WPW10143759
...
28
Compressor WPL-W10233960
...
29
Clip, Evaporator WPL-10623002
...
30
Axle, Roller (2) WPL-67006434
...
31
Shroud WPL-W11556315
...
32
Box, Hv Control WPL-W10119790
...
33
Cover WPL-W11226688
...
34
Gasket-Hv Box WPL-12957801
...
35
Cntrl-Elec WPL-WPW10120827
...
37
Cntrl-Elec WPL-WPW10356039

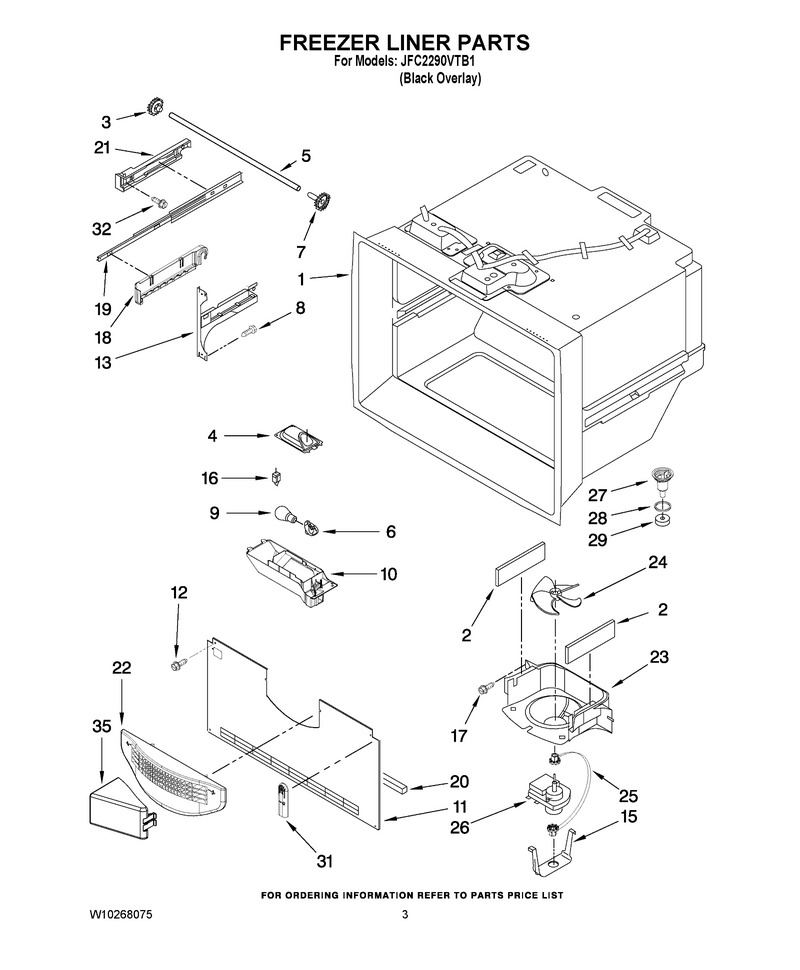

02 - Freezer Liner Parts

...
...
NI
Harness, Fz Module (Includes Thermistor) WPL-W10196195
...
1
Liner (Not A Seviceable Part) WPL---
...
2
Gasket WPL-W10856123
...
3
Gear (Left) (Includes Item 7) WPL-12002497
...
4
Housing WPL-W11702858
...
5
Shaft WPL-W11028221
...
6
Socket WPL-W11447232
...
7
Gear (Right) (Includes Item 3) WPL-12002497
...
8
Screw WPL-WP98165
...
9
Bulb-Light WPL-W11679940
...
10
Housing WPL-W11712699
...
11
Cover, Evaporator WPL-12226119
...
12
Screw (3) WPL-67006425
...
13
Bracket WPL-WPW10330994
...
15
Clip, Evap. Motor WPL-13058002
...
16
Switch WPL-W11396033
...
17
Screw WPL-WP98165
...
18
Cradle, Basket (Left) WPL-W10119848
...
19
Slide WPL-W11658403
...
20
Gasket WPL-W11159728
...
21
Bracket WPL-WPW10544403
...
22
Grille WPL-WPW10175909
...
23
Shroud WPL-WPW10167023
...
24
Blade-Fan WPL-WP2169142
...
25
Grommet WPL-W10121318
...
26
Motor-Evap WPL-WPW10128551
...
27
Funnel WPL-W10815413
...
28
Seal- O Ri WPL-WPM0500703
...
29
Gasket- Dr WPL-WPB8381501
...
31
Cover- Fz WPL-WP67003924
...
32
Screw WPL-WP489474
...
35
Diverter, Air WPL-W10157765

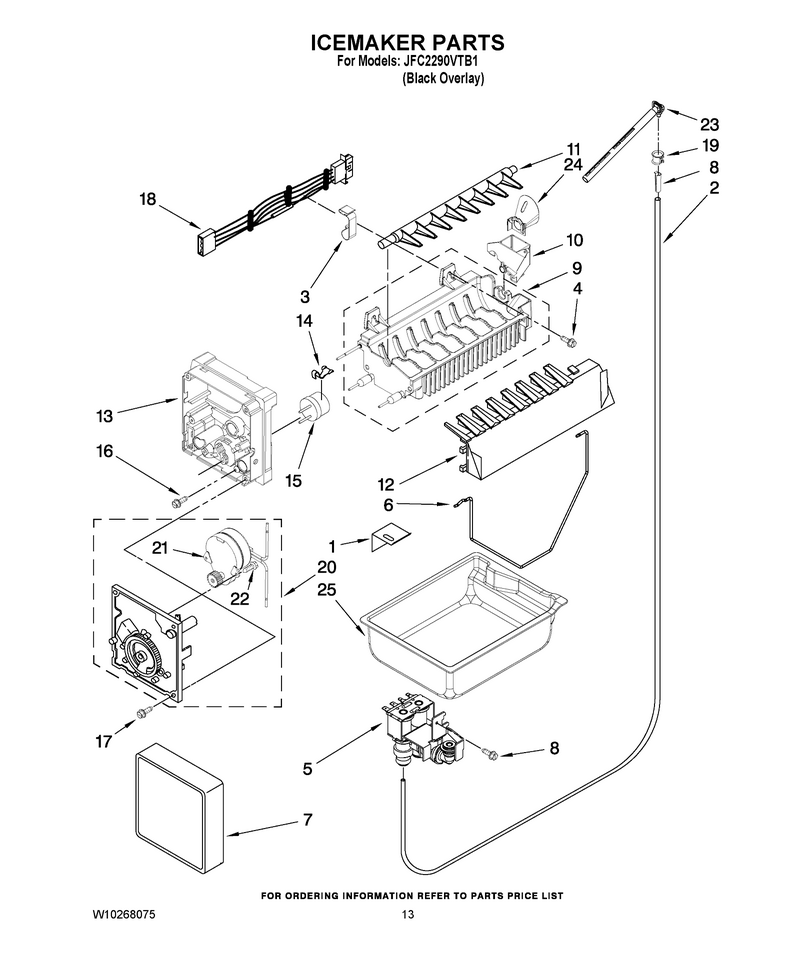

07 - Icemaker Parts

...
...
1
Bracket WPL-WP2256087
...
2
Tube-Water WPL-W11120581
...
3
Clamp, Wire WPL-10526701
...
4
Screw WPL-WP681249
...
5
Valve WPL-WP12544124
...
6
Arm-Shut WPL-WP67004028
...
7
Cover-Frnt WPL-WPW10289690
...
8
Insert- Pl WPL-WPA3223101
...
9
Mold-Ice WPL-WPW10190929
...
10
Cup, Water Fill WPL-W10122561
...
11
Arm-Ejectr WPL-WP627843
...
12
Arm-Stripr WPL-WP2182124
...
13
Housing-Im WPL-WP2195914
...
14
Clip WPL-WP2315522
...
15
Bimetl-Def WPL-WP627985
...
16
Screw WPL-8533917
...
17
Screw WPL-WP489464
...
18
Harns-Wire WPL-WPD7813010
...
19
Clip- Spee WPL-WPM0114003
...
20
Module Assembly (Includes Items 21 & 22) WPL-8201515
...
21
Motor (Not Available, Order No.20) WPL---
...
22
Screw WPL-489136
...
23
Tube-Water WPL-W11176463
...
24
Funnel, Fill Tube WPL-12918001
...
25
Pan, Ice WPL-W10120005
...
100
Ice Maker Assy. WPL-D7824706Q

...
...
NI
Kit, Insulation (2 Pcs. X 3`` X 24`` X 48``) WPL-876370

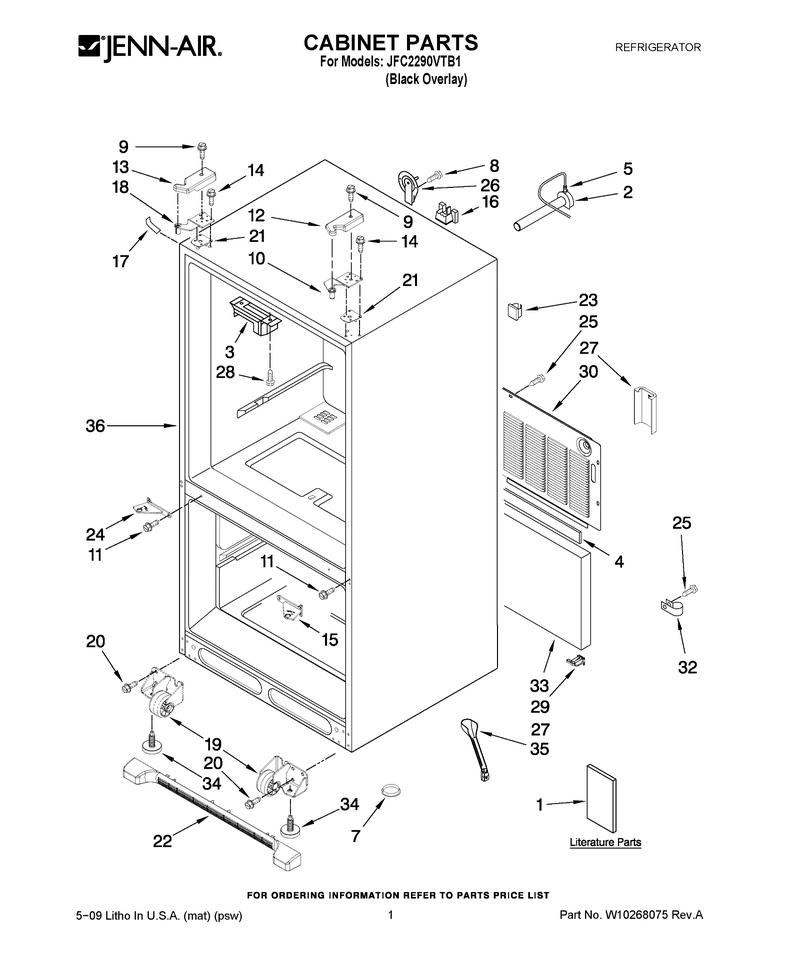

01 - Cabinet Parts

...
...
1
Tag, Energy WPL-12828196SP
...
2
Tube-Water WPL-W11176463
...
3
Trim-Brkr WPL-W11024160
...
4
Gasket WPL-B5759655
...
5
Clip- Spee WPL-WPM0114003
...
7
Plug, Button WPL-A3076901
...
8
Screw WPL-WP98165
...
9
Screw WPL-12992603
...
10
Hinge, Top Right WPL-W10210891
...
11
Screw WPL-WP67006380
...
12
Cover, Right Hinge (Black) WPL-W10153131
...
13
Cover, Hinge Left Hand (Black) WPL-W10892762
...
14
Screw WPL-WP489349
...
15
Hinge, Center (Rt) (Black) WPL-W10210883
...
16
Block- Fil WPL-WP12777701
...
17
Cover, Corner (Blk) WPL-67003485
...
18
Hinge, Top (Left Hand) WPL-W10892768
...
19
Roller-Cab WPL-WPW10515763
...
20
Screw (8) WPL-67006564
...
21
Shim, Hinge (Left) WPL-12999501
...
22
Grille-Frt WPL-WPW10534153
...
23
Clip WPL-WPM0104106
...
24
Hinge, Center (Lt) (Stainless) WPL-W10210882
...
25
Screw (3) WPL-67006425
...
26
Cover, Water Line WPL-12726003
...
27
Guard, Water Valve (Dual) WPL-W10208593
...
28
Screw WPL-W10854958
...
29
Sweep, Dual Tube WPL-12831101
...
30
Cover-Back WPL-WPW10211855
...
32
Clamp WPL-W10833902
...
33
Insulation WPL-W11706807
...
34
Leveler WPL-WPW10141622
...
35
Tube-Drain WPL-W10619951
...
36
Cabinet (Not A Servicable Part) WPL---

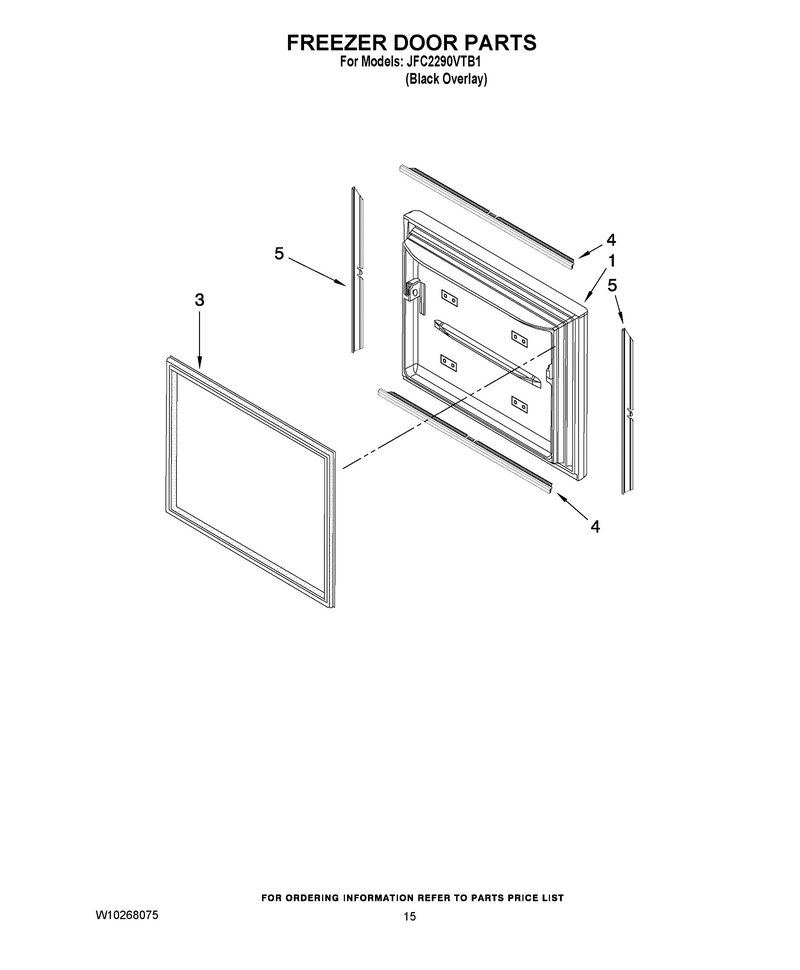

08 - Freezer Door Parts

...
...
1
Dor-Fip Bl WPL-13094914BQ
...
3
Gasket, Door (Black) WPL-W10436252
...
4
Trim, Top / Bottom WPL-W10130133
...
5
Trim, Side WPL-W10130137
