Jenn-Air JFC2290REM04

Model: JFC2290REM04

Save Part Not Listed?
product name

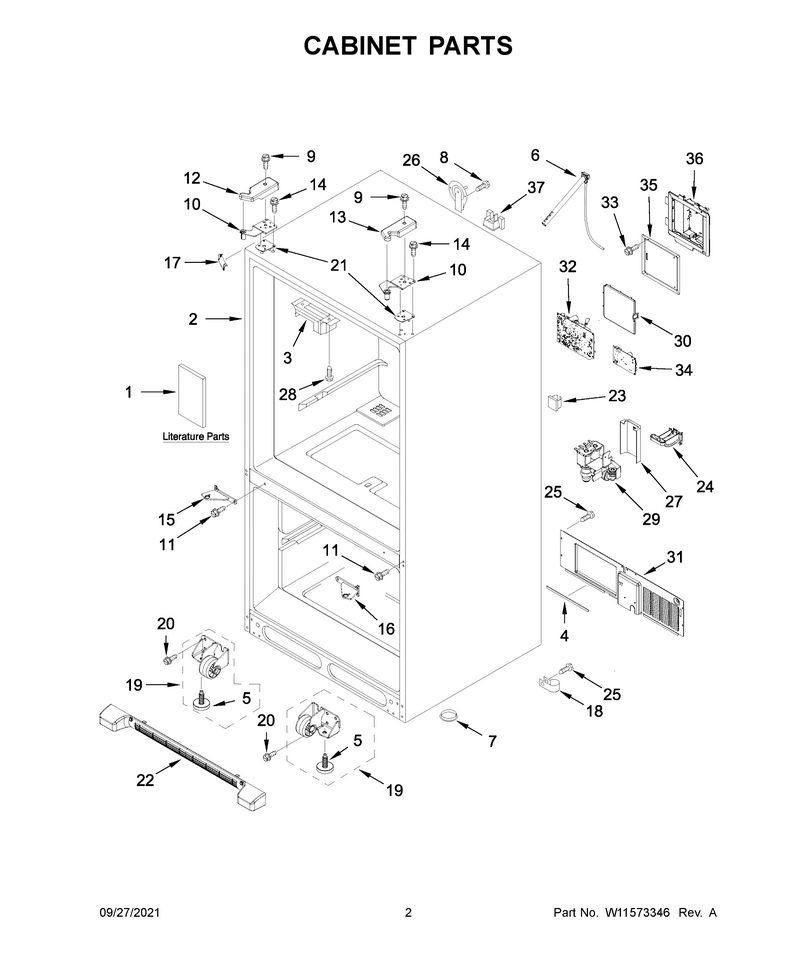

02 - Cabinet Parts

...
...
1
Tech Sheet WPL-W11542406
...
1A
Use And Care Guide WPL-W11468670
...
1B
Energy Guide WPL-W11308940
...
2
Following Parts Not Illustrated WPL-N/P
...
3
Trim-Brkr WPL-W11024160
...
4
Gasket WPL-W11534848
...
5
Leveler WPL-WPW10141622
...
6
Tube-Water WPL-W11181718
...
7
Plug, Button WPL-A3076901
...
8
Screw WPL-WP98165
...
9
Screw WPL-12992603
...
10
Hinge, Top (Left Hand) WPL-W10892768
...
10A
Hinge, Top (Right Hand) WPL-W10210891
...
11
Screw WPL-W11573362
...
12
Cover, Hinge Left Hand (Grey) WPL-W11039391
...
13
Cover WPL-WPW10120103
...
14
Screw WPL-WP489349
...
15
Hinge-Door WPL-W10861742
...
16
Hinge, Center Right Hand (Grey) WPL-W10135097
...
17
Filler WPL-WP12587703AP
...
18
Clamp WPL-W11456069
...
19
Roller-Cab WPL-WPW10515763
...
19A
Roller-Cab WPL-WPW10515762
...
20
Screw (8) WPL-67006564
...
21
Shim, Hinge (Left Hand) WPL-12999501
...
21A
Shim, Hinge (Right Hand) WPL-12999502
...
22
Grille WPL-WPW10534155
...
23
Clip WPL-WPM0104106
...
24
Sweep, Dual Tube WPL-W10528513
...
25
Screw WPL-WPW10141645
...
26
Cover, Water Line WPL-12726003
...
27
Guard, Dual Water Valve WPL-W10208593
...
28
Screw WPL-W11693756
...
29
Valve WPL-W11524655
...
30
Lid, Hv Control Box WPL-W10296541
...
31
Cover-Back WPL-WPW10211855
...
32
Cntrl-Elec WPL-WPW10120827
...
33
Screw WPL-W11686675
...
34
Cntrl-Elec WPL-WPW10356039
...
35
Cover, Control Box WPL-12961602
...
36
Box, Hv Control WPL-W10119790
...
37
Block WPL-W11686793

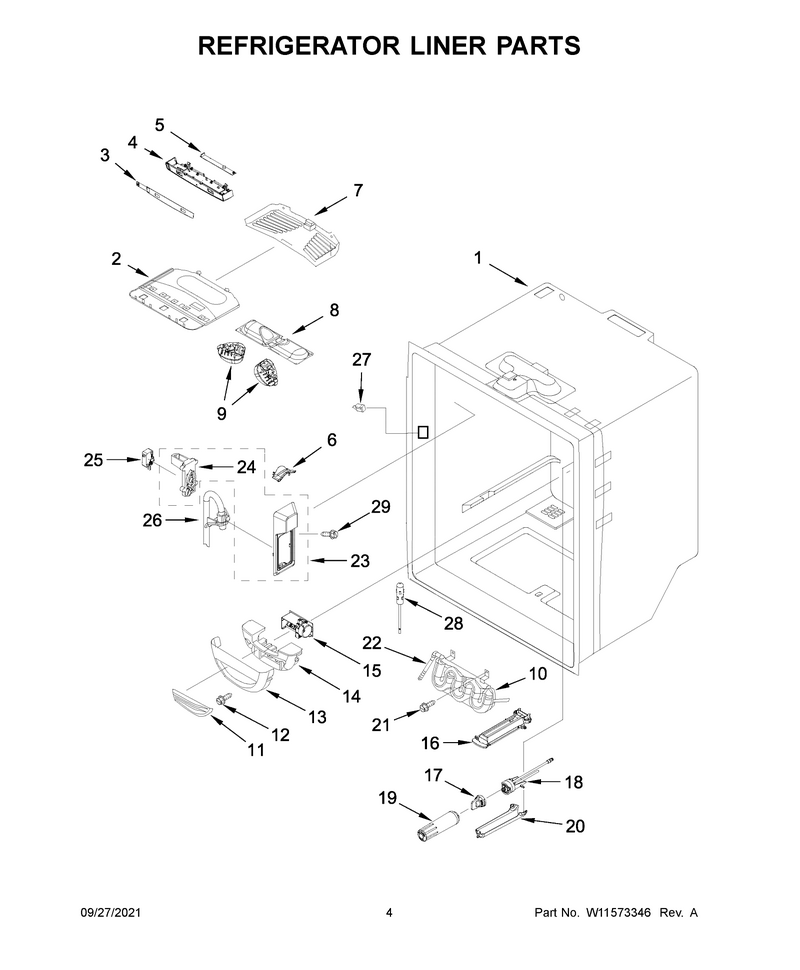

03 - Refrigerator Liner Parts

...
...
NI
Harns-Wire WPL-W11084235
...
1
Following Parts Not Illustrated WPL-N/P
...
2
Module, Light WPL-W10464766
...
3
Overlay WPL-W11422122
...
4
Housing WPL-W11416469
...
5
Cntrl-Elec WPL-W11558535
...
6
Cover, Waterline WPL-W10116529
...
7
Cover WPL-W11284721
...
8
Housing, Light WPL-W10443023
...
9
Module WPL-W11602886
...
10
Reservoir WPL-W11361728
...
11
Insert, Damper Cover WPL-67003900
...
12
Screw WPL-WP400021-1
...
13
Cover-Box WPL-WP12806701
...
14
Insulation WPL-WP13012402
...
15
Control WPL-WPW10594329
...
16
Bracket, Filter Base WPL-67006325
...
17
Cap-Filter WPL-W11395888
...
18
Head-Filtr WPL-W11346623
...
19
Filter WPL-EDR4RXD1
...
20
Cover-Filt WPL-WP67006331
...
21
Screw WPL-WP98165
...
22
Fitting WPL-WP2300868
...
23
Cover WPL-W11243624
...
24
Cover WPL-W11243624
...
25
Switch WPL-WP12575502
...
26
Waterline, Dispenser WPL-W10117324
...
27
Switch WPL-W11291138
...
28
Thermistor WPL-W11690896
...
29
Screw WPL-W10854958

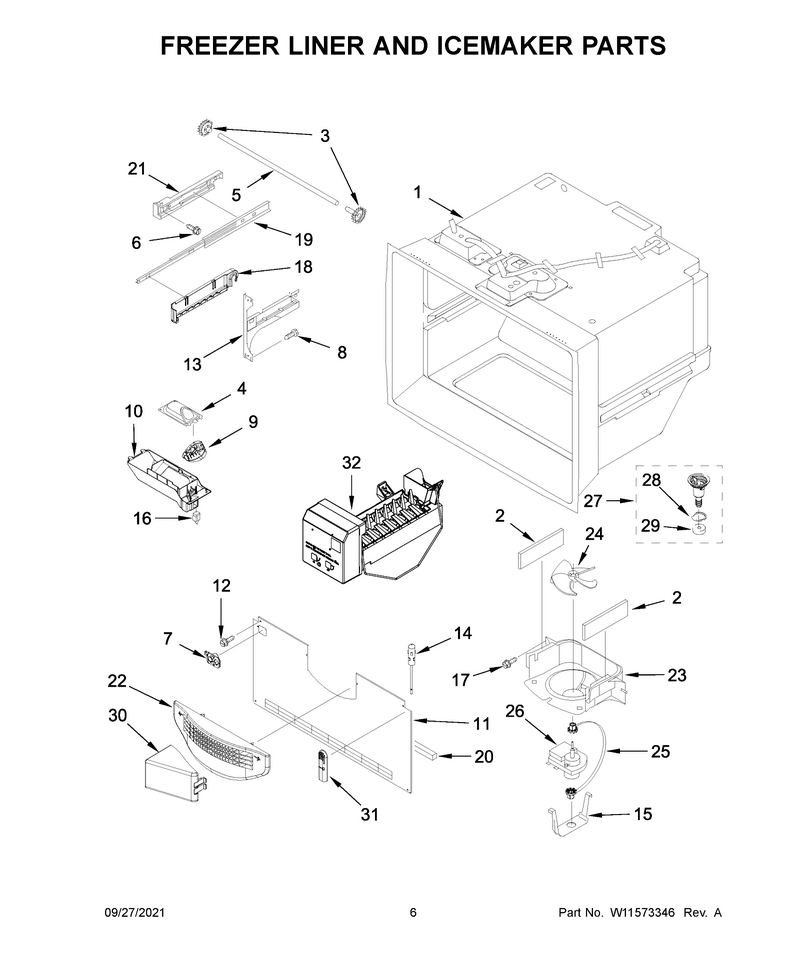

04 - Freezer Liner And Icemaker Parts

...
...
NI
Harness, Lights (Freezer) WPL-W10196195
...
1
Following Parts Not Illustrated WPL-N/P
...
2
Gasket WPL-W10856123
...
3
Gear WPL-12002497
...
4
Housing WPL-W11702858
...
5
Shaft WPL-W11028221
...
6
Screw WPL-WP489474
...
7
Guide, Fill Tube WPL-W11412315
...
8
Screw WPL-WP98165
...
9
Module WPL-W11602886
...
10
Housing WPL-W11712699
...
11
Cover, Evaporator WPL-W11331291
...
12
Screw (3) WPL-67006425
...
13
Bracket WPL-WPW10330994
...
13A
Bracket WPL-WPW10330995
...
14
Thermistor WPL-W10316760
...
15
Clip, Evaporator Motor WPL-13058002
...
16
Switch WPL-W11396033
...
17
Screw WPL-WP98165
...
18
Cradle, Basket (Left Hand) WPL-W10119848
...
18A
Cradle, Basket (Right Hand) WPL-W10119849
...
19
Slide WPL-W11658403
...
20
Gasket WPL-W11159728
...
21
Bracket WPL-WPW10544403
...
21A
Bracket WPL-WPW10544404
...
22
Grille WPL-WPW10175909
...
23
Shroud WPL-WPW10167023
...
24
Blade-Fan WPL-WP2169142
...
25
Grommet, Fan Motor WPL-W10121318
...
26
Motor-Evap WPL-WPW10128551
...
27
Funnel WPL-W10815413
...
28
Seal- O Ri WPL-WPM0500703
...
29
Gasket- Dr WPL-WPB8381501
...
30
Diverter, Air WPL-W10157765
...
31
Cover- Fz WPL-WP67003924
...
32
Icemaker WPL-W11692158

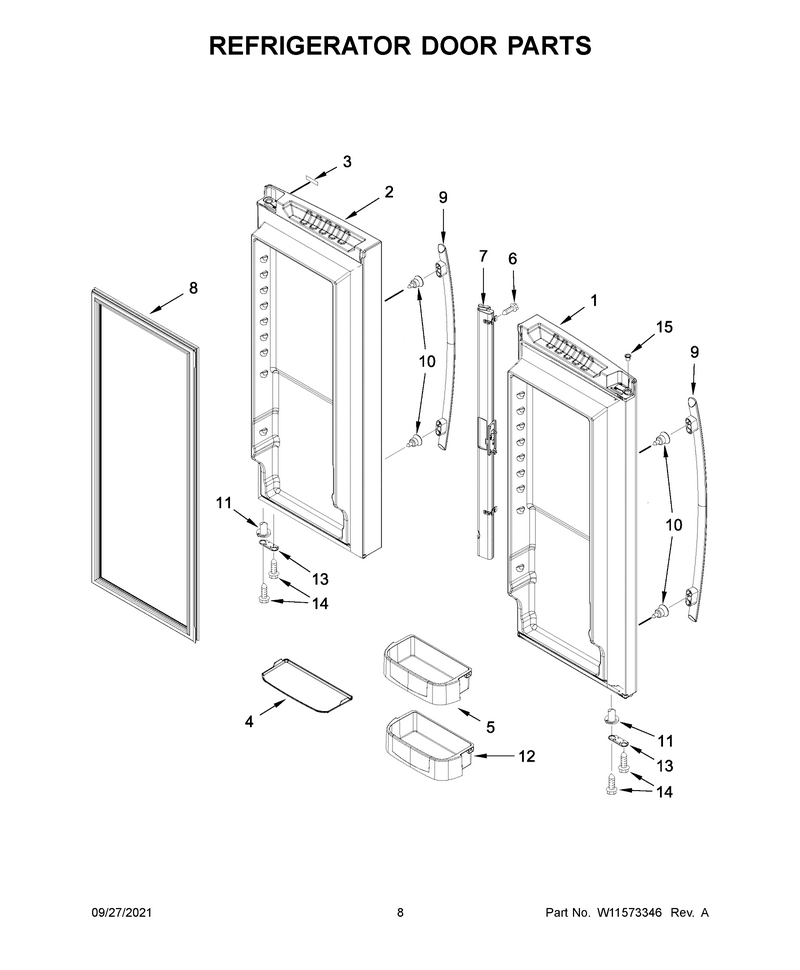

05 - Refrigerator Door Parts

...
...
1
Dor-Fip Ss WPL-13094747SQ
...
2
Dor-Fip Ss WPL-13094739SQ
...
3
Nameplate WPL-WPW10214168
...
4
Mat WPL-W11510594
...
4A
Mat WPL-W11510593
...
5
Bin-Cntlvr WPL-WPW10119841
...
6
Screw WPL-W11311945
...
7
Rail-Mulln WPL-W11177238
...
8
Gasket, Door (Grey) WPL-W10830046
...
9
Handle WPL-WPW10298244
...
10
Screw WPL-W11449276
...
11
Closer WPL-WP12028505AP
...
12
Bin-Cntlvr WPL-WPW10119846
...
13
Stop-Door WPL-WPW10120097
...
14
Screw WPL-WP67006908
...
15
Clip, Bushing WPL-12996601

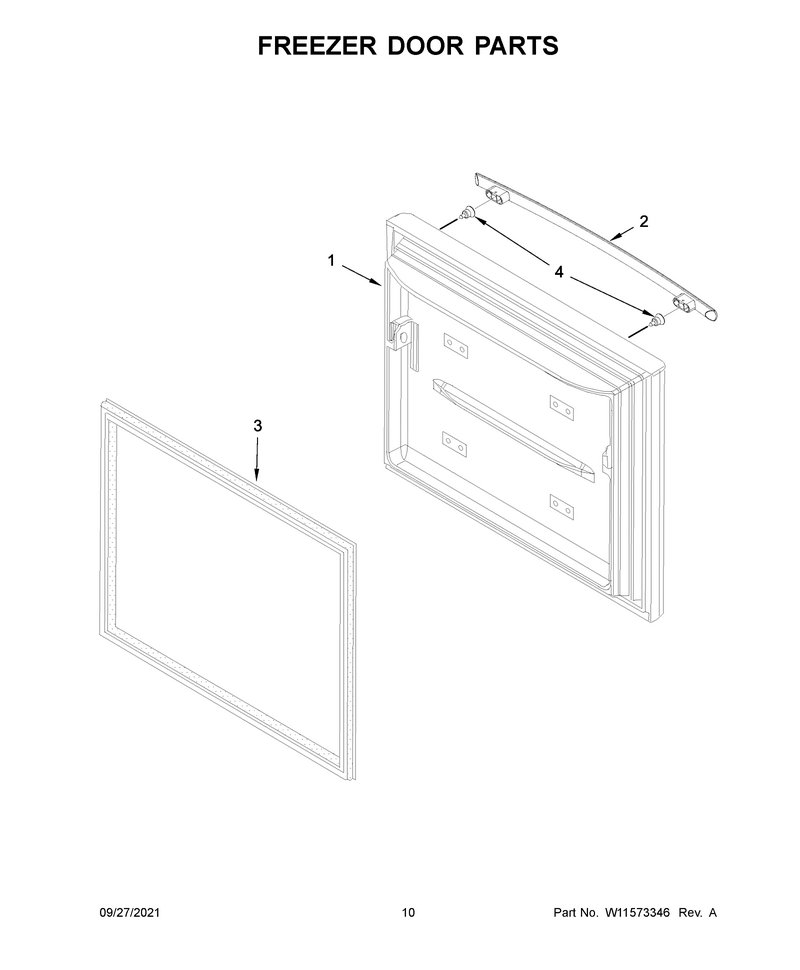

06 - Freezer Door Parts

...
...
1
Dor-Fip Ss WPL-13094917SQ
...
2
Handle WPL-WPW10298179
...
3
Gasket, Door (Grey) WPL-W10443320
...
4
Screw WPL-W11449276

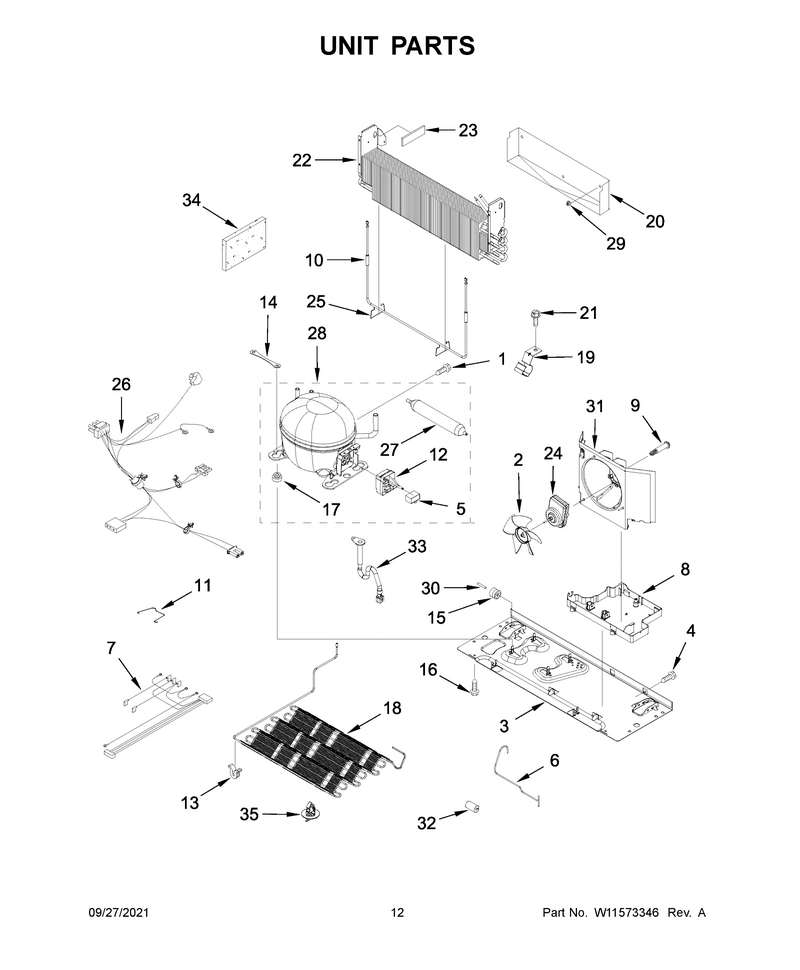

07 - Unit Parts

...
...
NI
Following Parts Not Illustrated WPL-N/P
...
1
Screw WPL-12992301
...
2
Blade-Fan WPL-WP12825803
...
3
Plate WPL-W11727651
...
4
Screw (3) WPL-67006425
...
5
Capacitor WPL-WPW10350564
...
6
Condenser WPL-W11644420
...
7
Harness, Evaporator Heater WPL-W11305543
...
8
Pan-Drip WPL-WPW10655368
...
9
Screw WPL-W10829281
...
10
Heater WPL-W11547652
...
11
Clip WPL-W11561264
...
12
Start-Dev WPL-W11561262
...
13
Grommet WPL-WPW10137529
...
14
Strap, Compressor WPL-W10236396
...
15
Roller WPL-WP67005149
...
16
Screw WPL-12992101
...
17
Grommet WPL-WPW10169124
...
18
Condenser WPL-W11644420
...
18A
5 Nk Ms 00 (High Side To Condenser) WPL-W11506623
...
18B
6/5 Nr Ms 00 (Suction Line To Condenser) WPL-W11504432
...
19
Clip, Drier WPL-W10281329
...
20
Tray-Drip WPL-W11547653
...
21
Screw WPL-WP33001882
...
22
Evap Repar WPL-W11598433
...
22A
8/2 Nr Al 00 (Capillary Tube To Evaporator) WPL-W11504423
...
22B
8.5/8 Nr Ms 00 (Suction Tube To Compressor) WPL-W11504415
...
23
Gasket WPL-W11451451
...
24
Motor-Cond WPL-W11613295
...
25
Clip, Heater WPL-W11380964
...
26
Harness, Mc (Includes Power Cord) WPL-W11525280
...
27
Drier-Tube WPL-W11109499
...
27A
5/4 Nr Ms 00 (Suction Line To Condenser) WPL-W11504445
...
27B
5/1.8 Nr Ms 00 (Capillary Tube To Drier) WPL-W11504447
...
28
Compressor WPL-W11557425
...
28A
8.5/6 Nr Ms 00 (Suction Tube To Compressor) WPL-W11504416
...
28B
7/5 Nr Ms 00 (High Pressure Side To Compressor) WPL-W11504431
...
28C
6 Nk Ms 00 (Charging Tube To Compressor) WPL-W11506621
...
28D
Tube, Charging (1/4 In W/ Schrader Valve) WPL-W11506635
...
29
Clip, Evaporator WPL-10623002
...
30
Axle, Roller (2) WPL-67006434
...
31
Shroud WPL-W11556315
...
32
Grommet WPL-W10852725
...
33
Tube-Drain WPL-W10619951
...
34
Insulation WPL-W11553819
...
35
Clip, Condenser WPL-W10815863

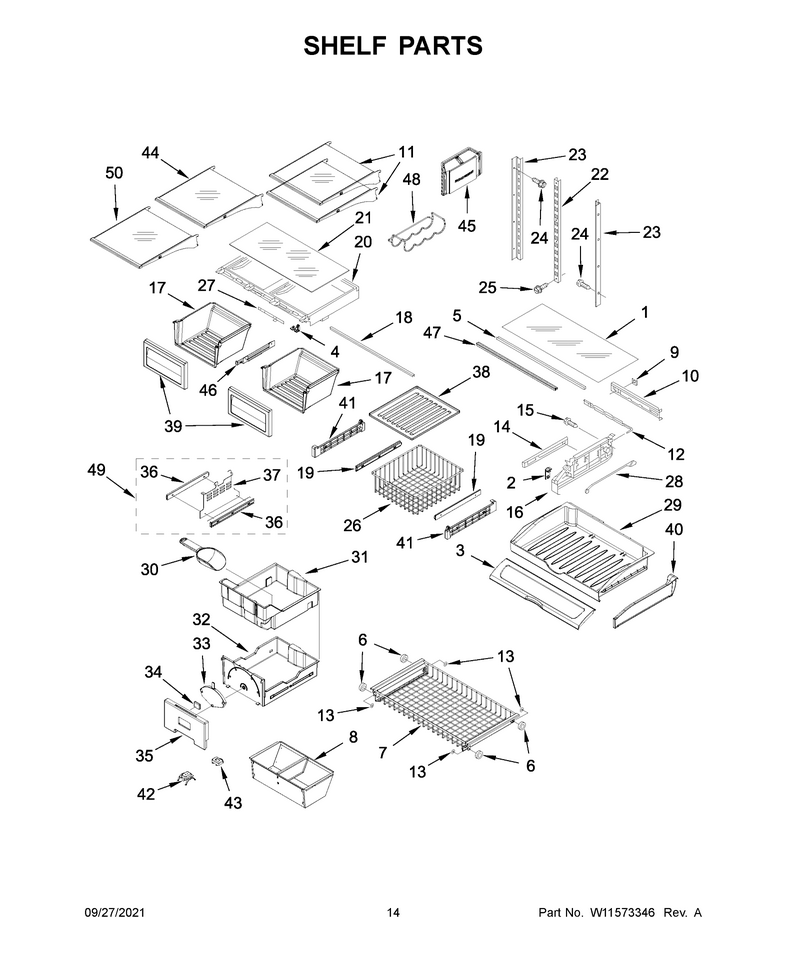

08 - Shelf Parts

...
...
1
Glass- Pan WPL-WP67002332
...
2
Knob WPL-W11498983
...
3
Cover WPL-WP12656822
...
4
Knob, Humidity Control WPL-W10119222
...
5
Support WPL-WP12227305WD
...
6
Roller WPL-W11214482
...
7
Basket-Fzr WPL-WPW10119854
...
8
Assembly, Bin WPL-W10144706
...
9
Gasket, Pantry WPL-67002329
...
10
Housing, Control WPL-12656202
...
11
Shelf-Glas WPL-W11032133
...
12
Slide- Tem WPL-WP67003793
...
13
Nut, Hex WPL-2207415
...
14
Glide WPL-WPW10132653
...
14A
Glide, Drawer (Right Hand) WPL-W10132652
...
15
Screw WPL-WP98165
...
16
Endcap WPL-WPW10122078
...
16A
Endcap WPL-WPW10121977
...
17
Pan, Crisper WPL-W10119219
...
18
Brace, Crisper Frame WPL-W10490807
...
19
Glide WPL-WPW10170836
...
20
Frame WPL-WPW10119215
...
21
Shelf-Glas WPL-WP12204827
...
22
Ladder, Center WPL-W10273463
...
23
Ladder WPL-WPW10569182
...
24
Screw WPL-W10215666
...
25
Screw (3) WPL-67006425
...
26
Basket, Upper Freezer WPL-W10120003
...
27
Slide, Humidity Control WPL-W10119217
...
28
Bar, Temp Control WPL-67003794
...
29
Pan-Utilty WPL-WP12655703
...
30
Scoop, Ice Pan WPL-W10182881
...
31
Pan, Ice WPL-W10120005
...
32
Pan-Ice WPL-WPW10120008
...
33
Lever, Ice Pan WPL-W10184030
...
34
Magnet-Dor WPL-W11175810
...
35
Front-Pan WPL-WPW10174720
...
36
Glide WPL-WPW10170835
...
37
Glide WPL-WPW10170987
...
38
Mat WPL-WPW10451455
...
39
Front, Crisper WPL-W10212414
...
40
Divider- P WPL-WP67002321
...
41
Adapter, Basket (Left Hand) WPL-W10163084
...
41A
Adapter, Basket (Right Hand) WPL-W10163087
...
42
Housing, Coupler WPL-W10121004
...
43
Latch, Coupler WPL-W10121002
...
44
Shelf-Glas WPL-W11032132
...
45
Assembly, Produce Preserver WPL-W10826105
...
46
Slide, Crisper (Left Hand) WPL-2302952
...
46A
Slide, Crisper (Right Hand) WPL-2302953
...
47
Trim-Shelf WPL-W11210956
...
48
Rack-Wine WPL-W11214481
...
49
Glide WPL-WPW10170987
...
50
Shelf-Glas WPL-W11094557

...
...
NI
Torx Screw Wrench, Torx Key WPL-1117510
