Jenn-Air JFC2089WTB5

Model: JFC2089WTB5

Save Part Not Listed?
product name

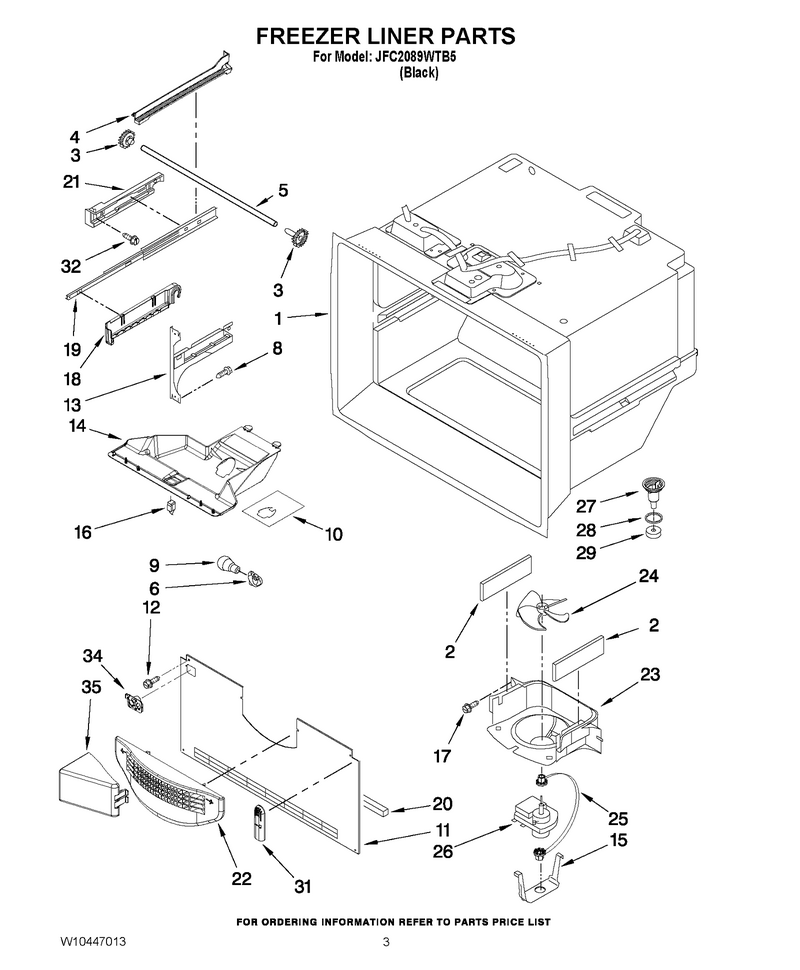

02 - Freezer Liner Parts

...
...
1
Liner (Not A Seviceable Part) WPL-N/P
...
2
Gasket WPL-W10856123
...
3
Gear-( L & R ) WPL-12002497
...
4
Rack, Side (Right Hand) WPL-W10516604
...
5
Shaft WPL-W11028221
...
6
Socket WPL-W11447232
...
8
Screw WPL-WP98165
...
9
Bulb-Light WPL-W11679940
...
10
Shield WPL-W11469652
...
11
Cover-Evap WPL-W11727809
...
12
Screw (3) WPL-67006425
...
13
Bracket WPL-WPW10330993
...
14
Housing WPL-WPW10277025
...
15
Clip, Evap. Motor WPL-13058002
...
16
Switch WPL-W11396033
...
17
Screw WPL-WP98165
...
18
Bracket WPL-WPW10281116
...
19
Slide WPL-W11658403
...
20
Gasket WPL-W11159728
...
21
Bracket WPL-WPW10284692
...
22
Grille WPL-WPW10175909
...
23
Shroud WPL-WPW10167023
...
24
Blade-Fan WPL-WP2169142
...
25
Grommet WPL-W10121318
...
26
Motor-Evap WPL-WPW10128551
...
27
Funnel WPL-W10815413
...
28
Seal- O Ri WPL-WPM0500703
...
29
Gasket- Dr WPL-WPB8381501
...
31
Cover- Fz WPL-WP67003924
...
32
Screw WPL-WP489474
...
34
Guide, Fill Tube WPL-W11448709
...
35
Diverter, Air WPL-W10157765

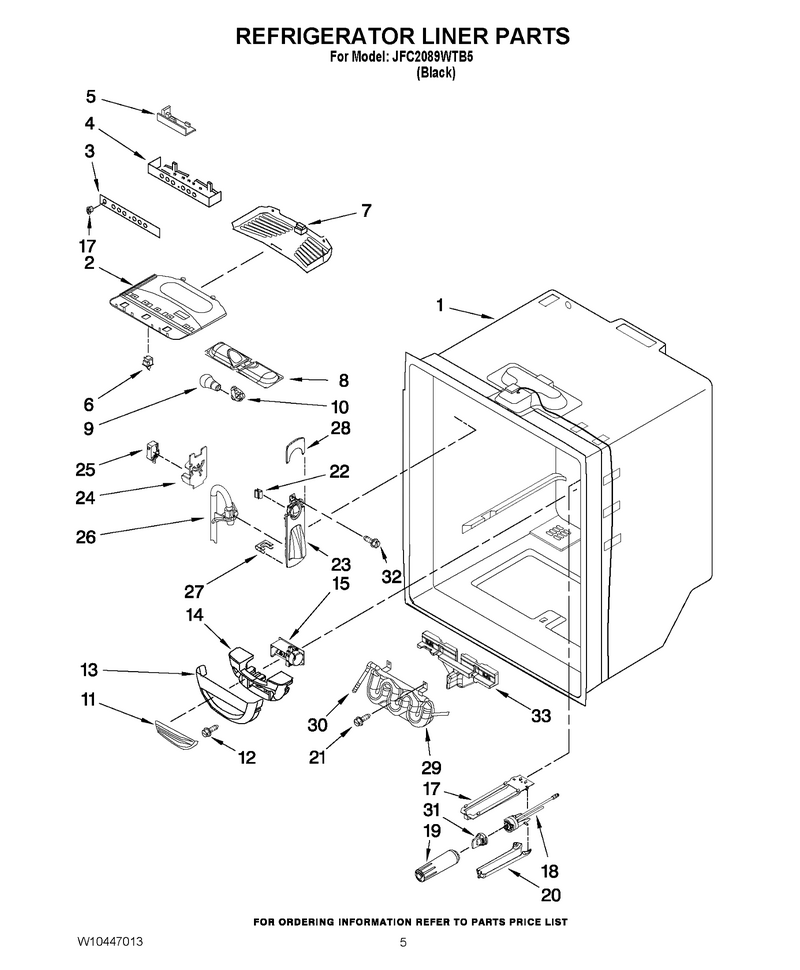

03 - Refrigerator Liner Parts

...
...
NI
Harns-Wire WPL-WPW10224292
...
1
Liner (Not A Serviceable Part) WPL-N/P
...
2
Module, Light WPL-67004078
...
3
Overlay WPL-W10316408
...
4
Housing WPL-W11416469
...
5
Cntrl-Elec WPL-WPW10428901
...
6
Switch WPL-W11384469
...
7
Cover WPL-W11284721
...
8
Housing, Light WPL-12806601
...
9
Bulb-Light WPL-W11679940
...
10
Socket WPL-W11447232
...
11
Insert, Damper Cover WPL-67003900
...
12
Screw WPL-WP400021-1
...
13
Cover-Box WPL-WP12806701
...
14
Insulation WPL-WP13012402
...
15
Control WPL-WPW10594329
...
17
Plate- Fil WPL-WP67001668
...
18
Head-Filtr WPL-W11346623
...
19
Filter WPL-EDR4RXD1
...
20
Cover- Fil WPL-WP12568001
...
21
Screw WPL-WP67006415
...
22
Clip WPL-W10819546
...
23
Cover WPL-W10720642
...
24
Plate, Switch WPL-12707303SP
...
25
Switch- Li WPL-WP12575501
...
26
Guide WPL-W11677725
...
27
Clip, Waterline WPL-67002816
...
28
Cover WPL-W11519867
...
29
Reservoir WPL-W11229977
...
30
Fitting WPL-WP2300868
...
31
Cap-Filter WPL-W11395888
...
32
Screw (3) WPL-67006425
...
33
Insulation WPL-WPW10163893

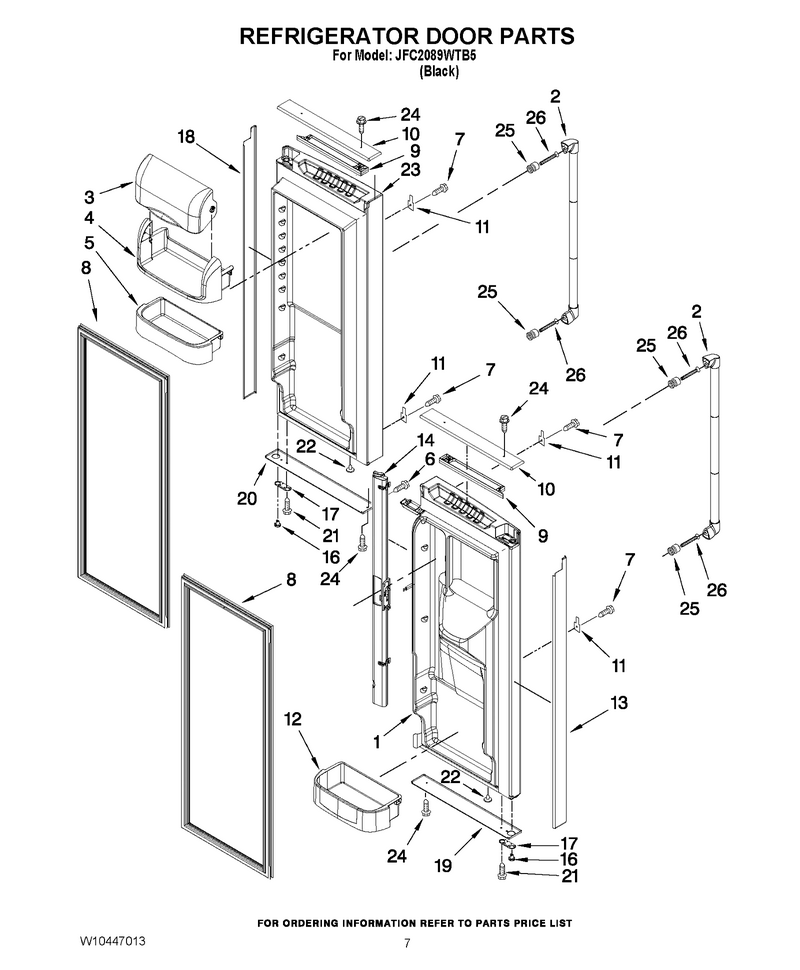

04 - Refrigerator Door Parts

...
...
1
Dor-Fip Bl WPL-13109307BQ
...
2
Handle WPL-WPW10298244
...
3
Door-Comp WPL-WP67003637
...
4
Tray- Dair WPL-WP67001279
...
5
Bucket, Ref Dr (Med) WPL-67004748
...
6
Screw WPL-W11311945
...
7
Screw WPL-WP489128
...
8
Gasket-Fip WPL-W11368721
...
9
Extension, French Door (Black) WPL-12752801B
...
10
Trim, Top (Rh) WPL-12752908S1
...
11
Clip WPL-67002451
...
12
Bucket, Ref Dr Gal WPL-67004749
...
13
Trim, Door (Rt-Stnls) WPL-67006513
...
14
Rail-Mulln WPL-WP12722803B
...
16
Closer WPL-WP67003639
...
17
Stop-Door WPL-W11708403
...
18
Trim, Door (Lt-Stnls) WPL-67006228
...
19
Trim, Bottom (Rh) WPL-12752909S1
...
20
Trim, Bottom (Lh) WPL-12752910S1
...
21
Screw WPL-WP98165
...
22
Bushing- D WPL-WP67002721
...
23
Dor-Fip Bl WPL-13109308BQ
...
24
Screw WPL-WP98165
...
25
Plate WPL-WP67006113
...
26
Screw WPL-WPW10133608

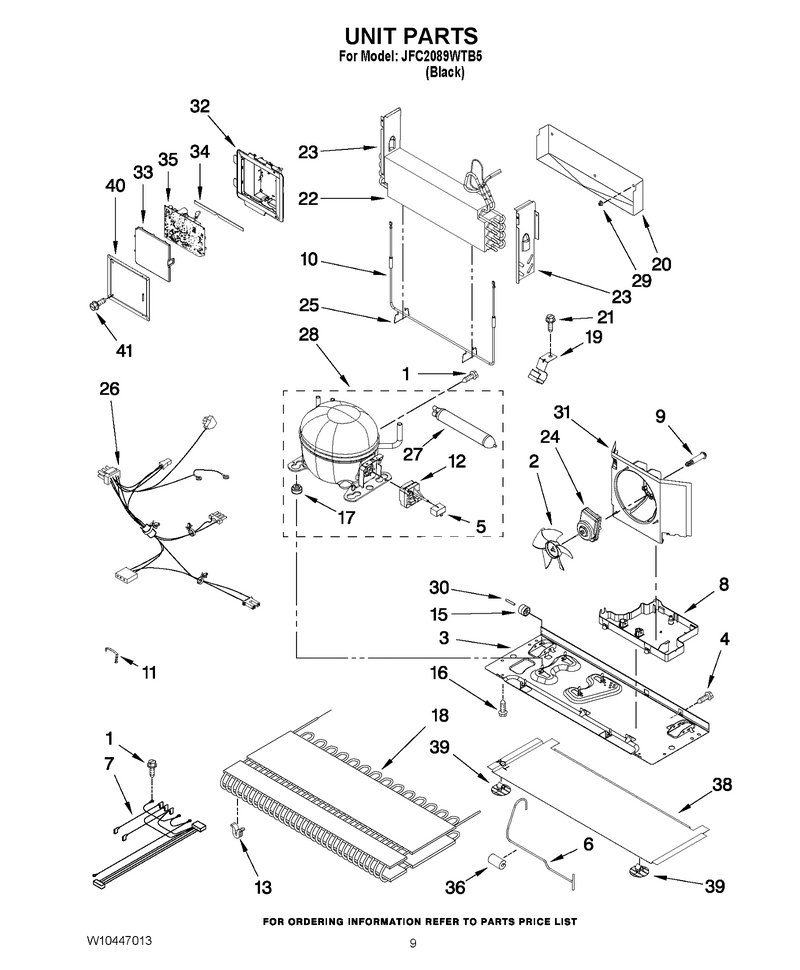

05 - Unit Parts

...
...
NI
Valve, Access (1/2``) WPL-978028
...
1
Screw WPL-12992301
...
2
Blade-Fan WPL-WP12825803
...
3
Plate WPL-W11727651
...
4
Screw (3) WPL-67006425
...
5
Capacitor WPL-WPW10662129
...
6
Tube WPL-WPW10233569
...
7
Harness, Evap. (Heater) WPL-W10292242
...
8
Pan-Drip WPL-WPW10655368
...
9
Screw WPL-W10829281
...
10
Heater WPL-W10825088
...
11
Clip WPL-W11661170
...
12
Start-Dev WPL-WPW10194431
...
13
Grommet WPL-WPW10137529
...
15
Roller WPL-WP67005149
...
16
Screw WPL-12992101
...
17
Grommet WPL-WPW10169124
...
18
Condenser WPL-WPW10346415
...
19
Clip, Drier WPL-W10281329
...
20
Tray-Drip WPL-W11547653
...
21
Screw WPL-WP33001882
...
22
Evaporator WPL-W11256565
...
23
Dam (Right Side) WPL-12225702
...
24
Motor-Cond WPL-W11613295
...
25
Clip WPL-W11673433
...
26
Harness, Unit (Includes Power Cord) WPL-W11224411
...
27
Drier-Uv WPL-WPW10143759
...
28
Compressor WPL-W10233960
...
29
Clip, Evaporator WPL-10623002
...
30
Axle, Roller (2) WPL-67006434
...
31
Shroud WPL-W11556315
...
32
Box, Hv Control WPL-W10257665
...
33
Cover WPL-W11226688
...
34
Gasket, Hv Control WPL-67006429
...
35
Cntrl-Elec WPL-WPW10317076
...
36
Grommet WPL-W10852725
...
38
Extension, Basepan WPL-W10206338
...
39
Fastener, Basepan WPL-W10206339
...
40
Cover, Control Box WPL-12961602
...
41
Screw WPL-W11686675

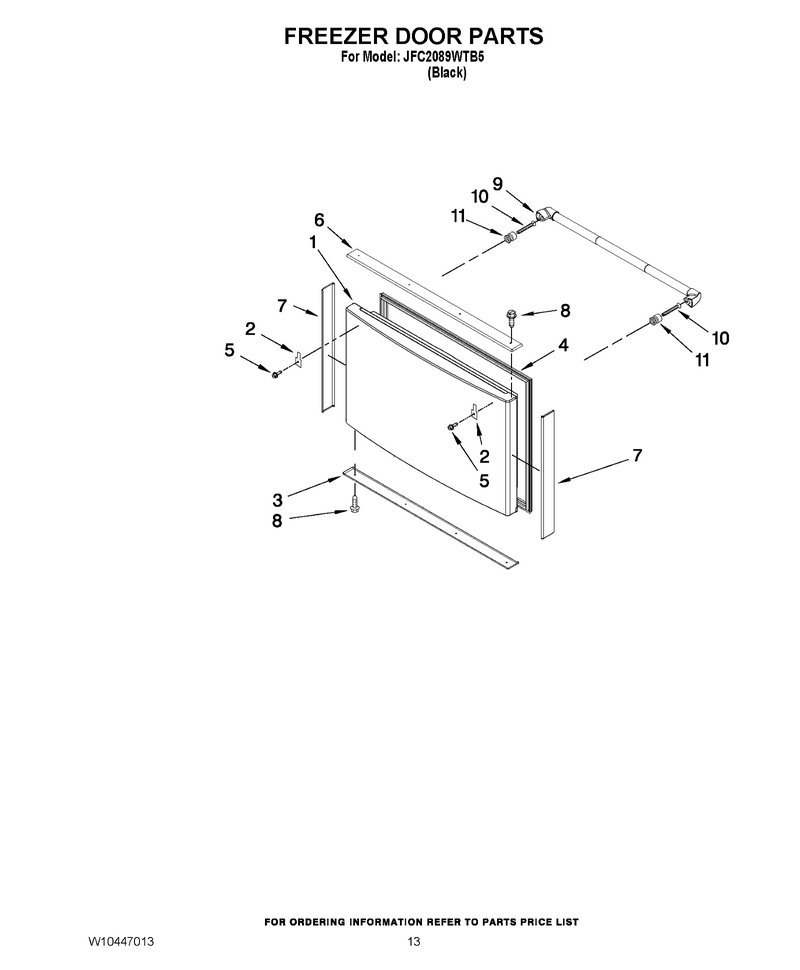

07 - Freezer Door Parts

...
...
1
Dor-Fip Bl WPL-13109205BQ
...
2
Clip WPL-67002451
...
3
Trim, Bottom WPL-12521108S1
...
4
Gasket, Door (Black) WPL-W10436252
...
5
Screw WPL-WP489128
...
6
Trim, Top WPL-12521109S1
...
7
Trim, Vertical WPL-12694508S1
...
8
Screw WPL-WP3400805
...
9
Handle WPL-WPW10298179
...
10
Screw WPL-WPW10133608
...
11
Plate WPL-WP67006113

...
...
NI
Bag, Insulation (36-5/8`` X 46``) WPL-606755

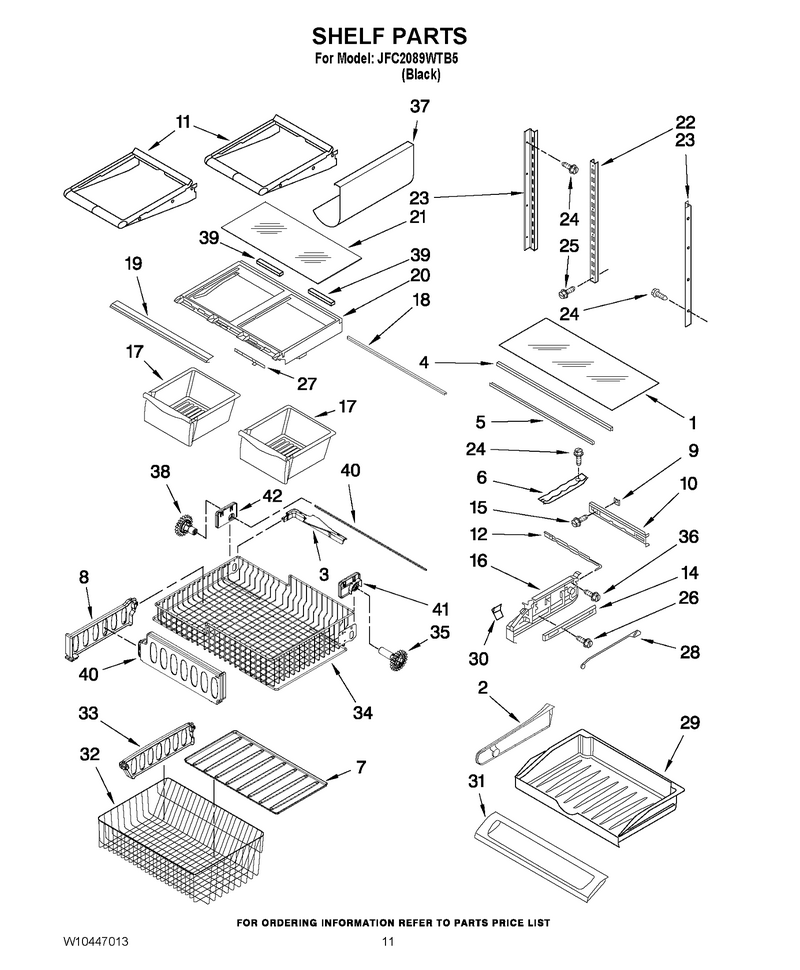

06 - Shelf Parts

...
...
1
Shelf-Glas WPL-W11125512
...
2
Divider- P WPL-WP67002321
...
3
Lift, Bail Arm WPL-W10149389
...
4
Extr- Glas WPL-WP67006010
...
5
Support WPL-WP12227305WD
...
6
Track WPL-WP67001719
...
7
Mat WPL-WP12727304
...
8
Divider, Upper Basket WPL-W10241046
...
9
Gasket, Pantry WPL-67002329
...
10
Housing, Control WPL-12656202
...
11
Shelf-Glas WPL-WP12463911
...
12
Slide- Tem WPL-WP67003793
...
14
Glide WPL-WPW10235370
...
15
Screw (3) WPL-67006425
...
16
Endcap WPL-WP12656105
...
17
Pan- Crisp WPL-WP67002659
...
18
Brace- Cri WPL-WP12227304WD
...
19
Trim-Shelf WPL-WPW10231478
...
20
Frame WPL-WP67006185
...
21
Shelf-Glas WPL-WP67006655
...
22
Ladder, Center WPL-W10273463
...
23
Ladder, Side WPL-W10251971
...
24
Screw (3) WPL-67006425
...
25
Screw (2) WPL-W10215666
...
26
Screw WPL-WP98165
...
27
Slide WPL-WP67005864
...
28
Bar, Temp Control WPL-67003794
...
29
Pan-Utilty WPL-W11490183
...
30
Knob WPL-W11498983
...
31
Cover WPL-W10827015
...
32
Basket, Lower WPL-W10503185
...
33
Divider, Lower Basket WPL-W10150061
...
34
Basket, Freezer (Upper) WPL-W10348245
...
35
Gear WPL-WPW10474715
...
36
Screw WPL-WP67006415
...
37
Rack, Bottle WPL-W10367642N
...
38
Gear WPL-WPW10474716
...
39
Gasket WPL-WPW10177506
...
40
Shaft WPL-W11173556
...
41
Mount, Right WPL-W10348260
...
42
Mount, Left WPL-W10348259

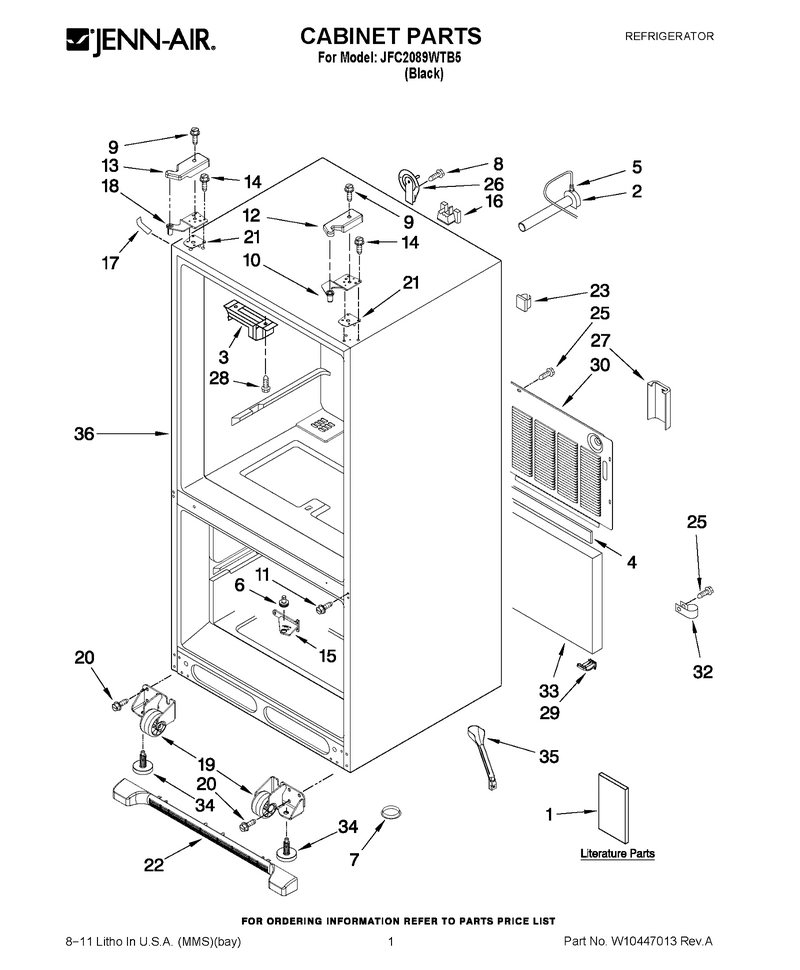

01 - Cabinet Parts

...
...
1
Tag, Energy WPL-W10280181
...
2
Tube-Water WPL-W11176463
...
3
Block- Piv WPL-WP67003405
...
4
Gasket WPL-B5759655
...
5
Clip- Spee WPL-WPM0114003
...
6
Pin WPL-WP67006642
...
7
Plug, Button WPL-A3076901
...
8
Screw WPL-WP98165
...
9
Screw WPL-WP8281196
...
10
Hinge, Top Right WPL-12626910ED
...
11
Screw WPL-WP67006380
...
12
Cover, Right Hinge (Black) WPL-12629801B
...
13
Cover, Left Hinge (Black) WPL-W10217485
...
14
Screw WPL-WP489349
...
15
Hinge, Center (Black) WPL-12692302ED
...
16
Block- Fil WPL-WP12777701
...
17
Cover, Corner (Blk) WPL-67003485
...
18
Hinge, Top Left WPL-12626911ED
...
19
Roller-Cab WPL-WPW10515763
...
20
Screw (8) WPL-67006564
...
21
Shim, Hinge WPL-12579702
...
22
Grille-Frt WPL-WPW10534153
...
23
Clip WPL-WPM0104106
...
25
Screw (3) WPL-67006425
...
26
Cover, Water Line WPL-12726003
...
27
Guard-Water Valve WPL-W10208593
...
28
Screw WPL-WP7101P126-60
...
29
Sweep, Dual Tube WPL-12831101
...
30
Cover-Back WPL-WPW10211855
...
32
Clamp WPL-W11456069
...
33
Insulation WPL-W11706807
...
34
Leveler WPL-WPW10141622
...
35
Tube-Drain WPL-W10619951
...
36
Cabinet (Not A Servicable Part) WPL-N/P

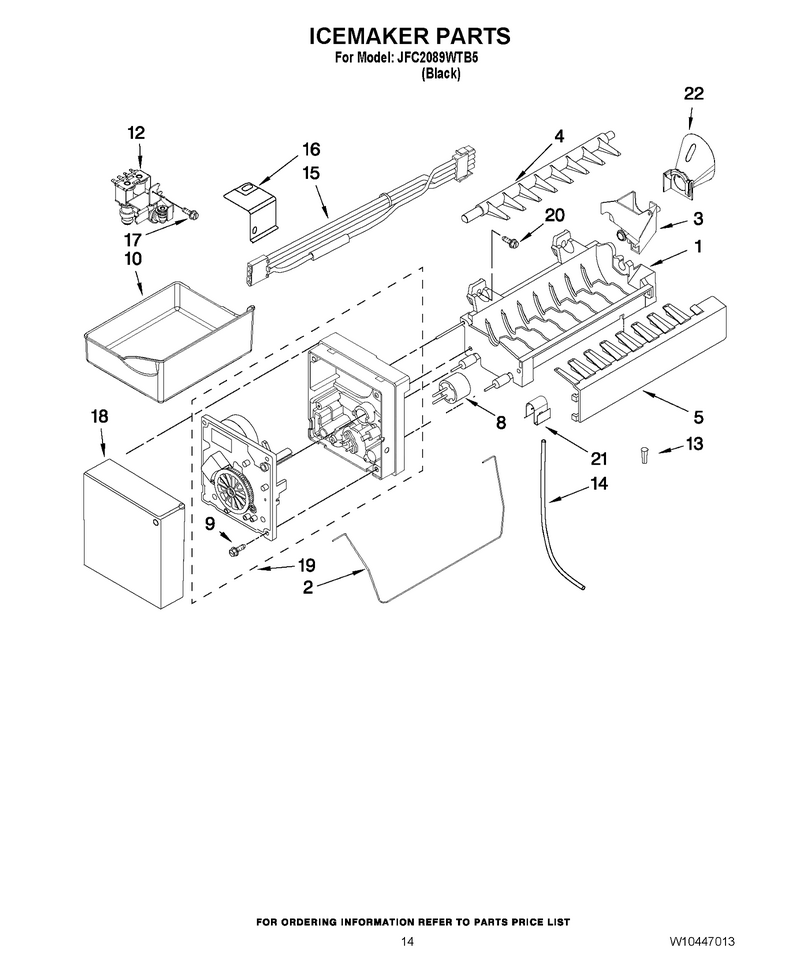

08 - Icemaker Parts

...
...
NI
Coupling WPL-W11033771
...
1
Mold-Ice WPL-WPW10300025
...
2
Arm-Shut WPL-WPW10378255
...
3
Cup, Fill WPL-W10410073
...
4
Ejector WPL-W10318914
...
5
Arm-Stripr WPL-WPW10122563
...
8
Bimetl-Def WPL-WP627985
...
9
Screw WPL-WP489464
...
10
Pan-Ice WPL-WPW10171529
...
12
Valve WPL-WPW10420083
...
13
Insert- Pl WPL-WPA3223101
...
14
Tube-Water WPL-W11120581
...
15
Harns-Wire WPL-WPW10458985
...
16
Bracket WPL-WP2256087
...
17
Screw WPL-WP489128
...
18
Cover WPL-W10377174
...
19
Motor-Modl WPL-WPW10281342
...
20
Screw (3) WPL-W10001240
...
21
Clip WPL-WP628379
...
22
Funnel, Fill Tube WPL-12918001
...
100
Icemaker WPL-W10884390
