Jenn-Air JFC2089WEM1

Model: JFC2089WEM1

Save Part Not Listed?
product name

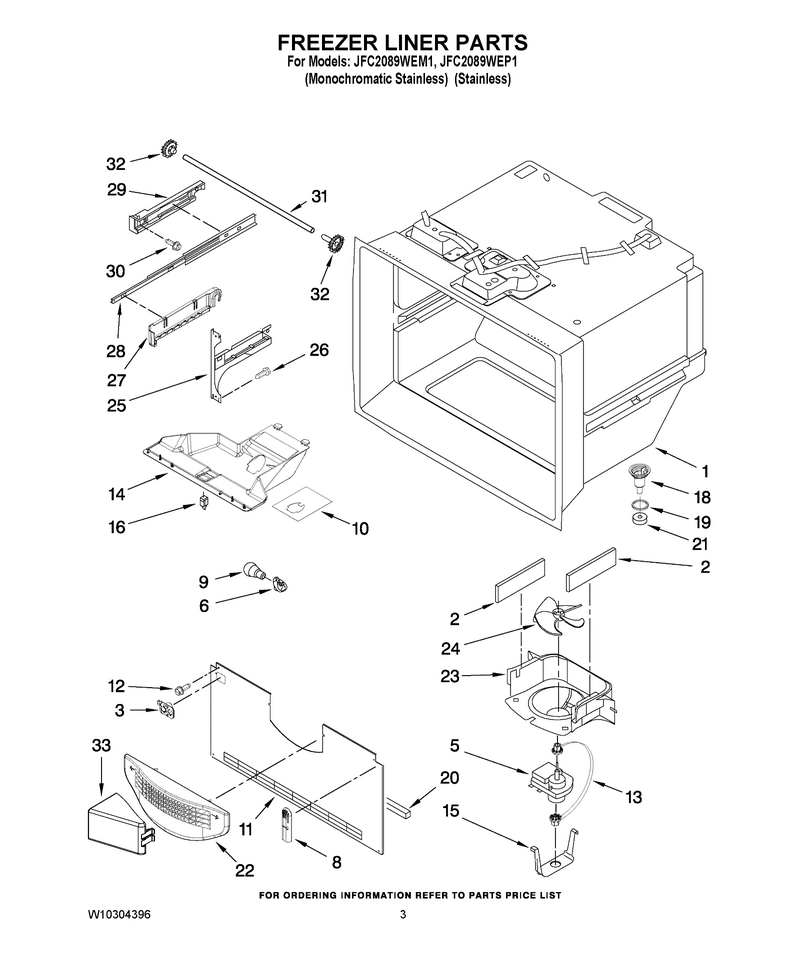

02 - Freezer Liner Parts

...
...
1
Liner (Not A Seviceable Part) WPL-N/P
...
2
Gasket WPL-W10856123
...
3
Guide, Fill Tube WPL-W11448709
...
5
Motor-Evap WPL-W11024089
...
6
Socket WPL-W11447232
...
8
Cover- Fz WPL-WP67003924
...
9
Bulb-Light WPL-W11679940
...
10
Shield WPL-W11469652
...
11
Cover-Evap WPL-W11727809
...
12
Screw (3) WPL-67006425
...
13
Grommet WPL-W11690160
...
14
Housing WPL-WPW10277025
...
15
Clip, Evap. Motor WPL-13058002
...
16
Switch WPL-W11396033
...
18
Funnel WPL-W10815413
...
19
Seal- O Ri WPL-WPM0500703
...
20
Gasket WPL-W11159728
...
21
Gasket- Dr WPL-WPB8381501
...
22
Grille WPL-WPW10175909
...
23
Shroud WPL-WPW10167023
...
24
Blade-Fan WPL-WP2169142
...
25
Bracket WPL-WPW10330994
...
26
Screw WPL-WP98165
...
27
Bracket WPL-WPW10281116
...
28
Slide WPL-W11658403
...
29
Bracket WPL-WPW10284693
...
30
Screw WPL-WP489474
...
31
Shaft WPL-W11028221
...
32
Gear (Includes Lh & Rh) WPL-12002497
...
33
Diverter, Air WPL-W10157765

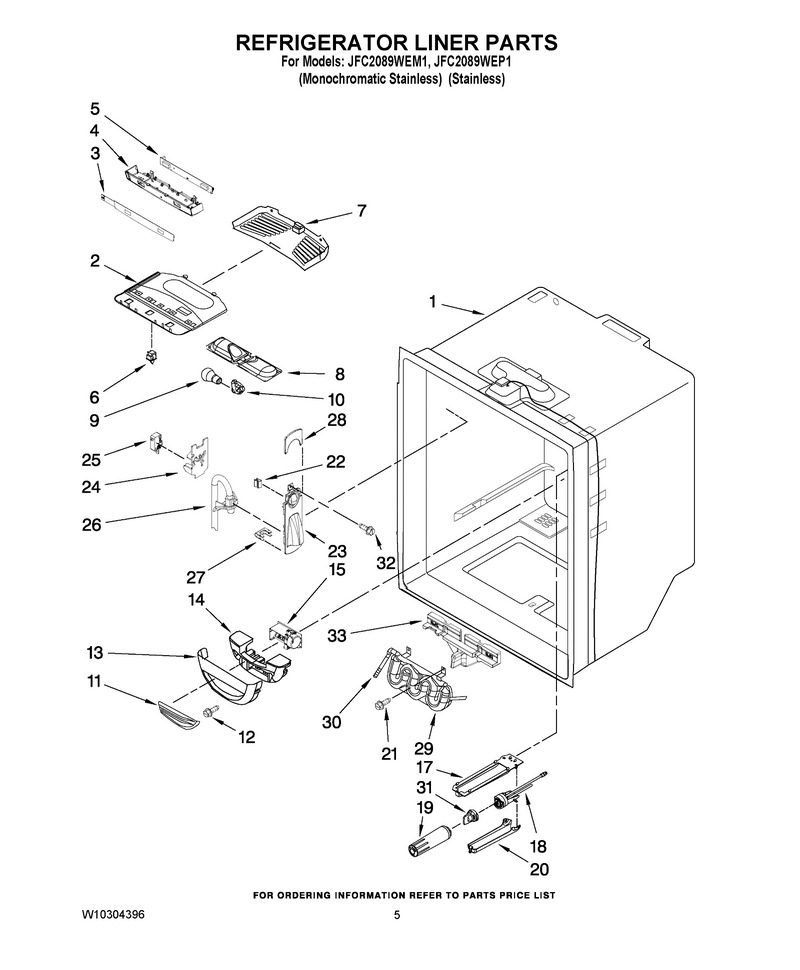

03 - Refrigerator Liner Parts

...
...
NI
Harns-Wire WPL-WPW10224292
...
1
Liner (Not A Serviceable Part) WPL-N/P
...
2
Module, Light WPL-67004078
...
3
Overlay WPL-W10316408
...
4
Housing WPL-W11416469
...
5
Cntrl-Elec WPL-WPW10319823
...
6
Switch WPL-W11384469
...
7
Cover WPL-W11284721
...
8
Housing, Light WPL-12806601
...
9
Bulb-Light WPL-W11679940
...
10
Socket WPL-W11447232
...
11
Insert, Damper Cover WPL-67003900
...
12
Screw WPL-WP400021-1
...
13
Cover-Box WPL-WP12806701
...
14
Insulation WPL-WP13012402
...
15
Control WPL-WPW10594329
...
17
Plate- Fil WPL-WP67001668
...
18
Head-Filtr WPL-W11346623
...
19
Filter WPL-EDR4RXD1
...
20
Cover- Fil WPL-WP12568001
...
21
Screw WPL-WP67006415
...
22
Clip WPL-W10819546
...
23
Cover WPL-W10720642
...
24
Plate, Switch WPL-12707303SP
...
25
Switch- Li WPL-WP12575501
...
26
Guide WPL-W11677725
...
27
Clip, Waterline WPL-67002816
...
28
Cover WPL-W11519867
...
29
Reservoir WPL-W11229977
...
30
Fitting WPL-WP2300868
...
31
Cap-Filter WPL-W11395888
...
32
Screw (3) WPL-67006425
...
33
Insulation WPL-WPW10163893

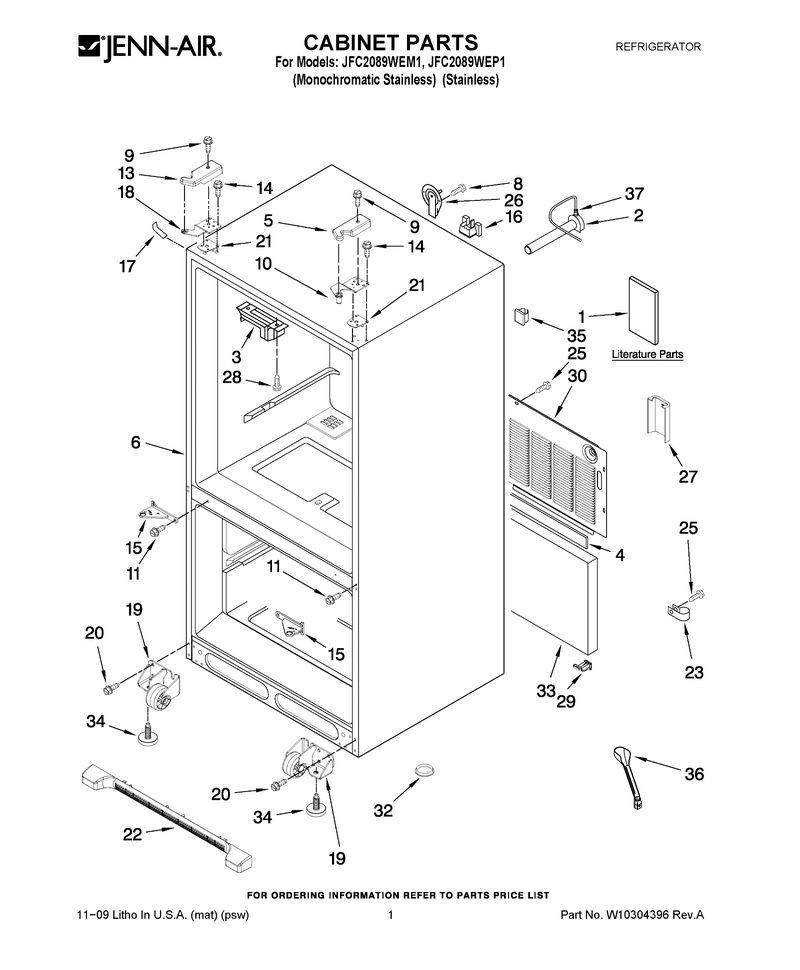

01 - Cabinet Parts

...
...
1
Energy Guide WPL-W10280181
...
2
Tube-Water WPL-W11176463
...
3
Block- Piv WPL-WP67003405
...
4
Gasket WPL-B5759655
...
5
Cover, Right Hinge (Black) WPL-12684202B
...
6
Cabinet (Not A Serviceable Part) WPL-N/P
...
8
Screw WPL-WP98165
...
9
Screw WPL-WP8281196
...
10
Hinge-Door WPL-WP12566606ED
...
11
Screw WPL-WP67006380
...
13
Cover, Left Hinge (Black) WPL-W10177767
...
14
Screw WPL-WP489349
...
15
Hinge, Center WPL-12655102AP
...
16
Block- Fil WPL-WP12777701
...
17
Filler WPL-WP12587703AP
...
18
Hinge-Door WPL-WP12566607ED
...
19
Roller-Cab WPL-WPW10515763
...
20
Screw (8) WPL-67006564
...
21
Shim, Hinge WPL-12579702
...
22
Grille WPL-WPW10534155
...
23
Clamp WPL-W10833902
...
25
Screw (3) WPL-67006425
...
26
Cover, Water Line WPL-12726003
...
27
Guard-Water Valve WPL-W10208593
...
28
Screw WPL-WP7101P126-60
...
29
Sweep, Dual Tube WPL-12831101
...
30
Cover-Back WPL-WPW10211855
...
32
Plug, Button WPL-A3076901
...
33
Insulation WPL-W11706807
...
34
Leveler WPL-WPW10141622
...
35
Clip WPL-WPM0104106
...
36
Tube-Drain WPL-W10619951
...
37
Clip- Spee WPL-WPM0114003

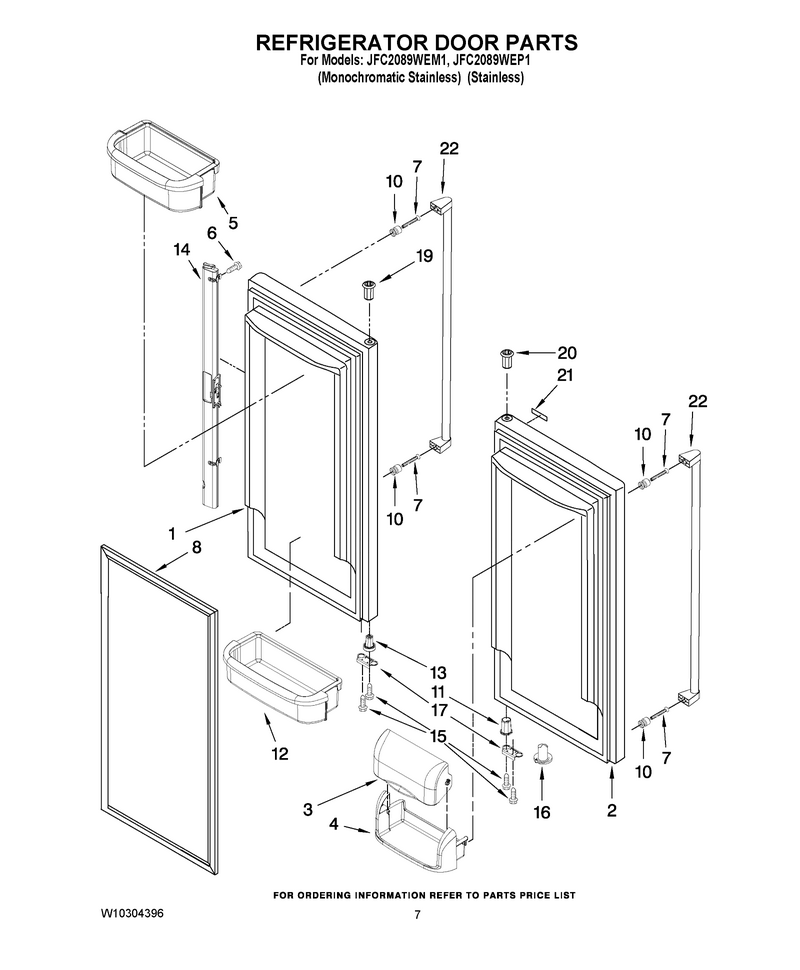

04 - Refrigerator Door Parts

...
...
1
Door, Left (Stainless) WPL-13024084SQ
...
2
Door, Right (Stainless) WPL-13024085SQ
...
3
Door-Comp WPL-WP67003637
...
4
Tray- Dair WPL-WP67001279
...
5
Bucket, Ref Dr (Med) WPL-67004748
...
6
Screw WPL-W11311945
...
7
Screw, Handle WPL-67006901
...
8
Gasket, Door (Grey) WPL-W10830162
...
10
Plate WPL-WP67006113
...
11
Hing-Bushg WPL-W10853652
...
12
Bucket, Ref Dr Gal WPL-67004749
...
13
Hing-Bushg WPL-W11245157
...
14
Rail-Mulln WPL-WP12722803AP
...
15
Screw WPL-WP98165
...
16
Closer WPL-WP12028505AP
...
17
Stop-Door WPL-W11401472
...
19
Bushing, Door (Upper Left) (Black) WPL-12395501B
...
20
Bushing, Door (Upper Right) (Apollo Grey) WPL-10961006AP
...
21
Nameplate WPL-W11636815
...
22
Handle WPL-WPW10210624

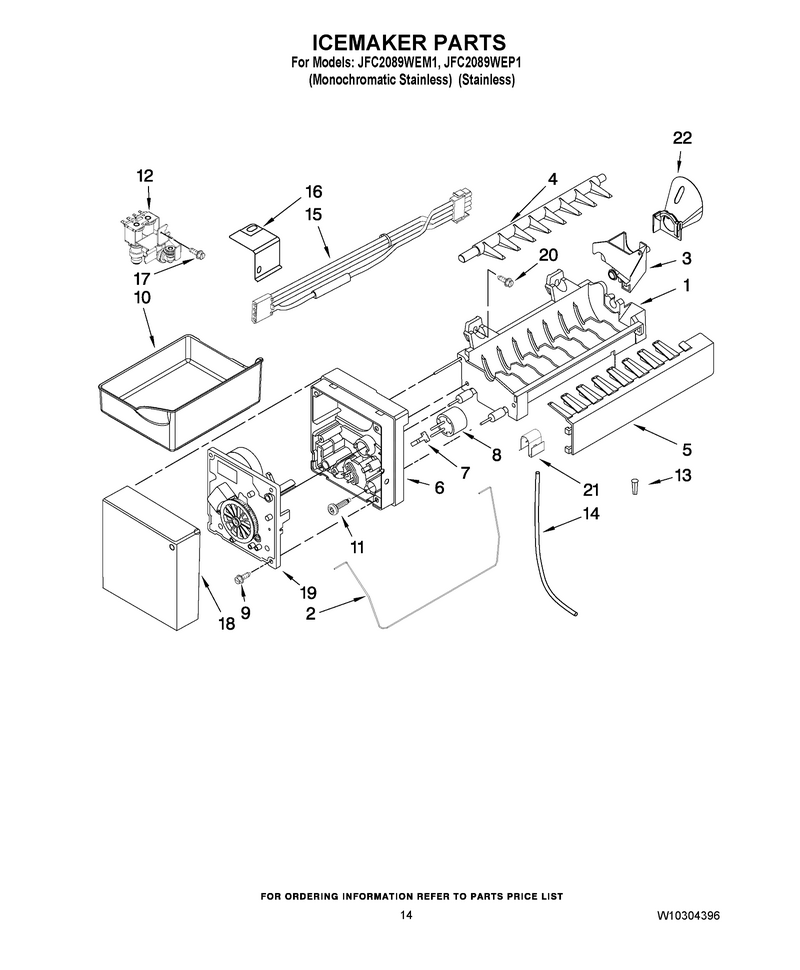

08 - Icemaker Parts

...
...
NI
Coupling WPL-W11033771
...
1
Mold-Ice WPL-WPW10190929
...
2
Arm-Shut WPL-W11285509
...
3
Cup, Water Fill WPL-W10122561
...
4
Arm-Ejectr WPL-WP627843
...
5
Arm-Stripr WPL-WP2182124
...
6
Housing-Im WPL-WP2195914
...
7
Clip WPL-WP2315522
...
8
Bimetl-Def WPL-WP627985
...
9
Screw WPL-WP489464
...
10
Pan-Ice WPL-WPW10171529
...
11
Screw (2) WPL-8533917
...
12
Valve WPL-WP12544124
...
13
Insert- Pl WPL-WPA3223101
...
14
Tube-Water WPL-W11120581
...
15
Harns-Wire WPL-WPD7813010
...
16
Bracket WPL-WP2256087
...
17
Screw WPL-WP489128
...
18
Cover-Frnt WPL-WPW10289690
...
19
Module Assembly (Includes Items 21 & 22) WPL-8201515
...
20
Screw WPL-WP681249
...
21
Clip WPL-WP628379
...
22
Funnel, Fill Tube WPL-12918001
...
100
Ice Maker Assy. WPL-D7824706Q

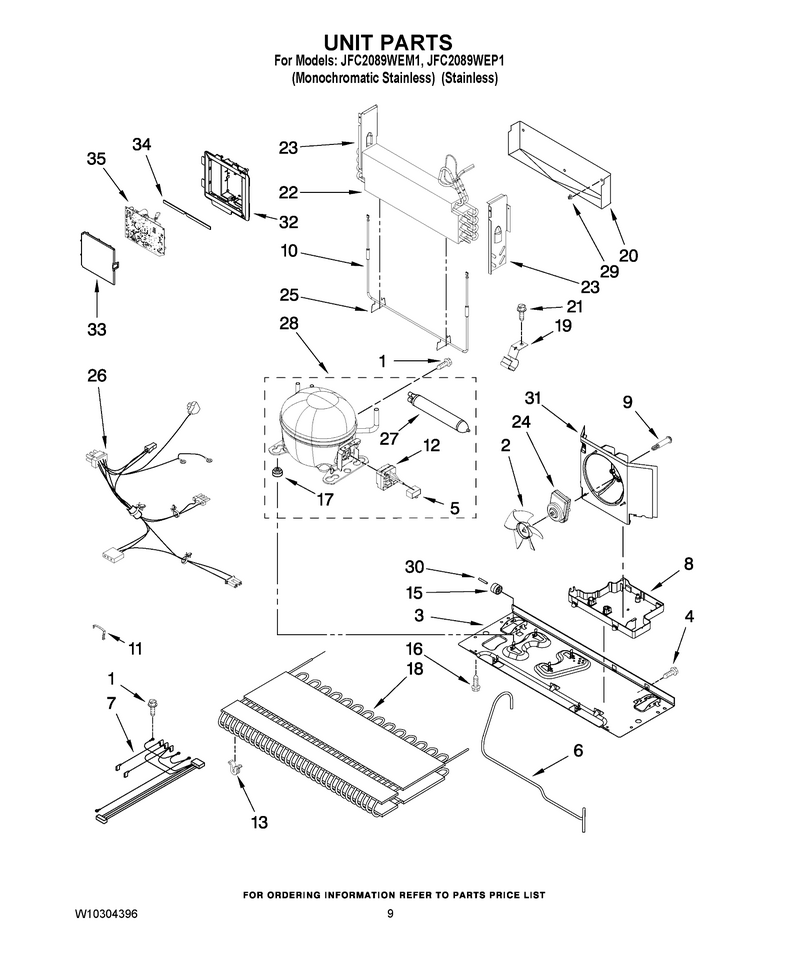

05 - Unit Parts

...
...
NI
Valve, Access (3/8``) WPL-978027
...
1
Screw WPL-12992301
...
2
Blade-Fan WPL-WP12825803
...
3
Plate WPL-W11727651
...
4
Screw (3) WPL-67006425
...
5
Capacitor WPL-WPW10662129
...
6
Tube WPL-WPW10217747
...
7
Harns-Wire WPL-W10911102
...
8
Pan-Drip WPL-WPW10655368
...
9
Screw WPL-W10829281
...
10
Heater WPL-W10825088
...
11
Strap, Bale WPL-W10204187
...
12
Start-Dev WPL-WPW10197428
...
13
Grommet WPL-WPW10137529
...
15
Roller WPL-WP67005149
...
16
Screw WPL-12992101
...
17
Grommet WPL-WPW10169124
...
18
Condenser WPL-WPW10346415
...
19
Clip, Drier WPL-10547003
...
20
Tray-Drip WPL-W11547653
...
21
Screw WPL-WP33001882
...
22
Kit, Evap Replacement WPL-12002041
...
23
Dam (Left Side) WPL-12225602
...
24
Motor-Cond WPL-W11613295
...
25
Clip WPL-W11673433
...
26
Harness, Unit (Includes Power Cord) WPL-W11224411
...
27
Drier-Uv WPL-WPW10143759
...
28
Compressor Kit (Contains Items 12, 17, 27, & 29) WPL-W10160407
...
29
Clip, Evaporator WPL-10623002
...
30
Axle, Roller (2) WPL-67006434
...
31
Shroud WPL-W11556315
...
32
Box, Hv Control WPL-W10257665
...
33
Lid, Hv Box WPL-W10296541
...
34
Gasket-Hv Box WPL-12957801
...
35
Cntrl-Elec WPL-WPW10317076

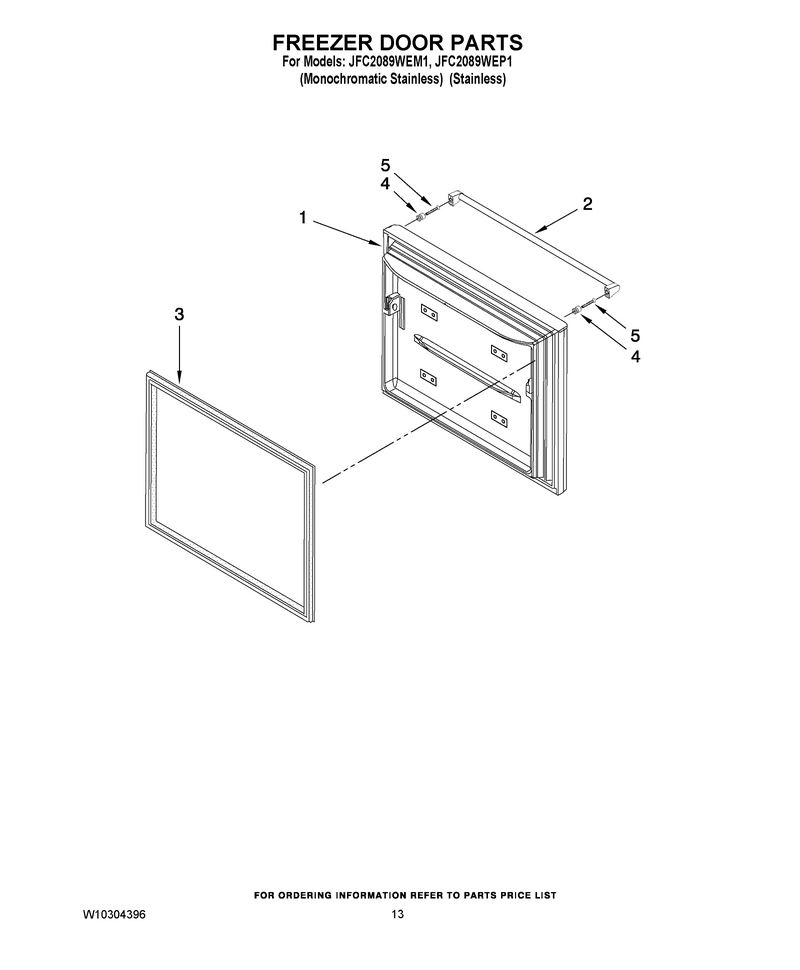

07 - Freezer Door Parts

...
...
1
Door, Freezer (Stainless) WPL-13092253SQ
...
2
Handle WPL-WPW10298179
...
3
Gasket, Door (Apollo Grey) WPL-W10443320
...
4
Plate WPL-WP67006113
...
5
Screw, Handle WPL-67006901

...
...
NI
Paint, Touch-Up (1/2oz.) (White) WPL-72017

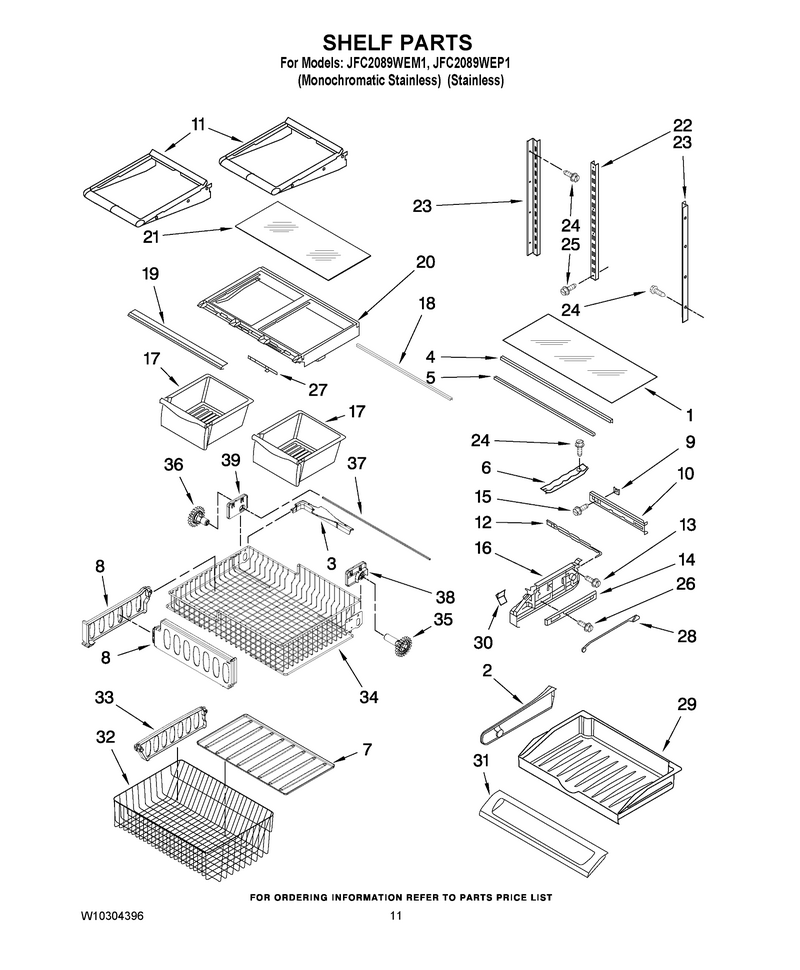

06 - Shelf Parts

...
...
1
Shelf-Glas WPL-W11125512
...
2
Divider- P WPL-WP67002321
...
3
Lift, Bail Arm WPL-W10149389
...
4
Extr- Glas WPL-WP67006010
...
5
Support WPL-WP12227305WD
...
6
Track WPL-WP67001719
...
7
Tray, Basket (Lower) WPL-W10332340
...
8
Divider, Upper Basket WPL-W10241046
...
9
Gasket, Pantry WPL-67002329
...
10
Housing, Control WPL-12656202
...
11
Shelf-Glas WPL-WP12463911
...
12
Slide- Tem WPL-WP67003793
...
13
Screw WPL-WP67006415
...
14
Glide WPL-WPW10235370
...
15
Screw (3) WPL-67006425
...
16
Endcap WPL-WP12656105
...
17
Pan- Crisp WPL-WP67002659
...
18
Brace- Cri WPL-WP12227304WD
...
19
Trim-Shelf WPL-WPW10231478
...
20
Frame WPL-WP67006185
...
21
Shelf-Glas WPL-WP67006655
...
22
Ladder, Center WPL-W10273463
...
23
Ladder, Side WPL-W10251971
...
24
Screw (3) WPL-67006425
...
25
Screw WPL-W10709795
...
26
Screw WPL-WP98165
...
27
Slide WPL-WP67005864
...
28
Bar, Temp Control WPL-67003794
...
29
Pan-Utilty WPL-W11490183
...
30
Knob WPL-W11498983
...
31
Cover WPL-W10827015
...
32
Basket, Lower WPL-W10503185
...
33
Divider, Lower Basket WPL-W10150061
...
34
Basket, Freezer (Upper) WPL-W10348245
...
35
Gear WPL-WPW10474715
...
36
Gear WPL-WPW10474716
...
37
Shaft WPL-W11173556
...
38
Mount-Gear (Right Hand) WPL-W10348260
...
39
Mount-Gear (Left Hand) WPL-W10348259
