Jenn-Air JFC2089BEM04

Model: JFC2089BEM04

Save Part Not Listed?
product name

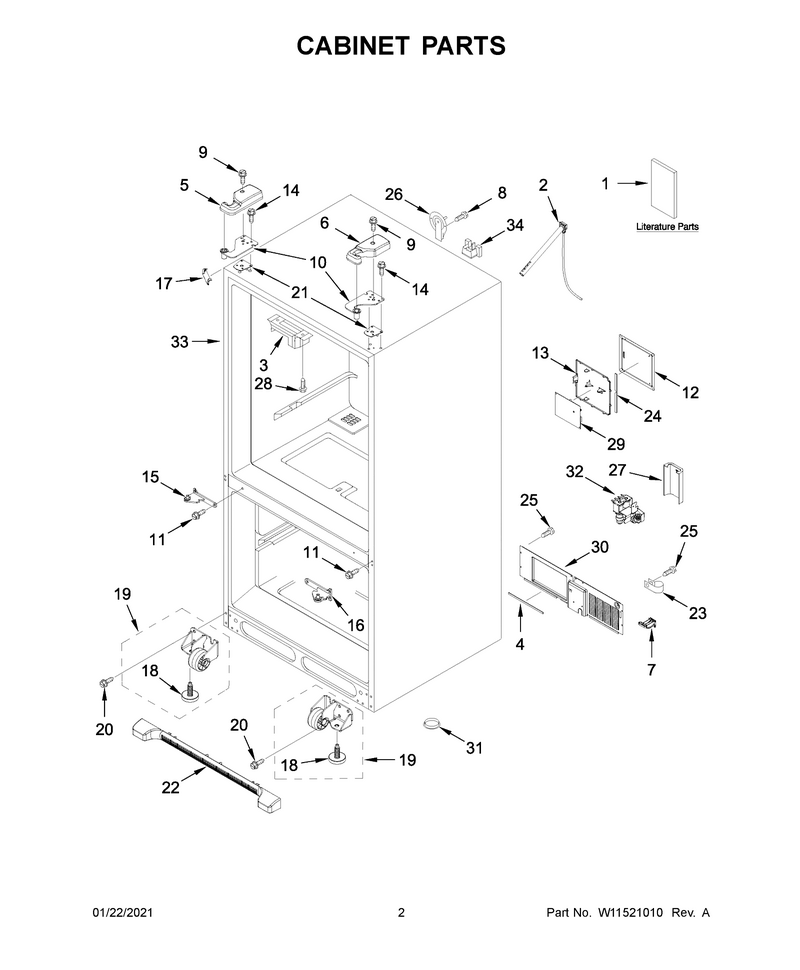

02 - Cabinet Parts

...
...
1
Tech Sheet WPL-W10787422
...
1A
Use And Care Guide WPL-W11298862
...
1B
Energy Guide WPL-W11308938
...
2
Tube-Water WPL-W11181718
...
3
Block- Piv WPL-WP67003405
...
4
Gasket WPL-W11250029
...
5
Cover WPL-WPW10337648
...
6
Cover WPL-WPW10191117
...
7
Sweep, Dual Tube WPL-W10528513
...
8
Screw WPL-WP98165
...
9
Screw WPL-WP8281196
...
10
Hinge-Door WPL-W11592375
...
10A
Hinge-Door WPL-W11592374
...
11
Screw WPL-W11573362
...
12
Cover, Control Box WPL-12961602
...
13
Cover WPL-W11226688
...
14
Screw WPL-WP489349
...
15
Hinge-Door WPL-W10917991
...
16
Hinge-Door WPL-W11747628
...
17
Filler WPL-WP12587703AP
...
18
Leveler WPL-WPW10141622
...
19
Roller-Cab WPL-WPW10515763
...
19A
Roller-Cab WPL-WPW10515762
...
20
Screw (8) WPL-67006564
...
21
Shim, Hinge (Left Hand) WPL-12999501
...
21A
Shim, Hinge (Right Hand) WPL-12999502
...
22
Grille WPL-WPW10534155
...
23
Clamp WPL-W11456069
...
24
Gasket, Control Box WPL-12957801
...
25
Screw WPL-WPW10141645
...
26
Cover, Water Line WPL-12726003
...
27
Guard, Dual Water Valve WPL-W10208593
...
28
Screw WPL-W11693756
...
29
Cntrl-Elec WPL-WPW10317076
...
30
Cover-Back WPL-WPW10211855
...
31
Plug, Button WPL-A3076901
...
32
Valve WPL-WPW10420083
...
33
Following Parts Not Illustrated WPL-N/P
...
34
Block WPL-W11686793

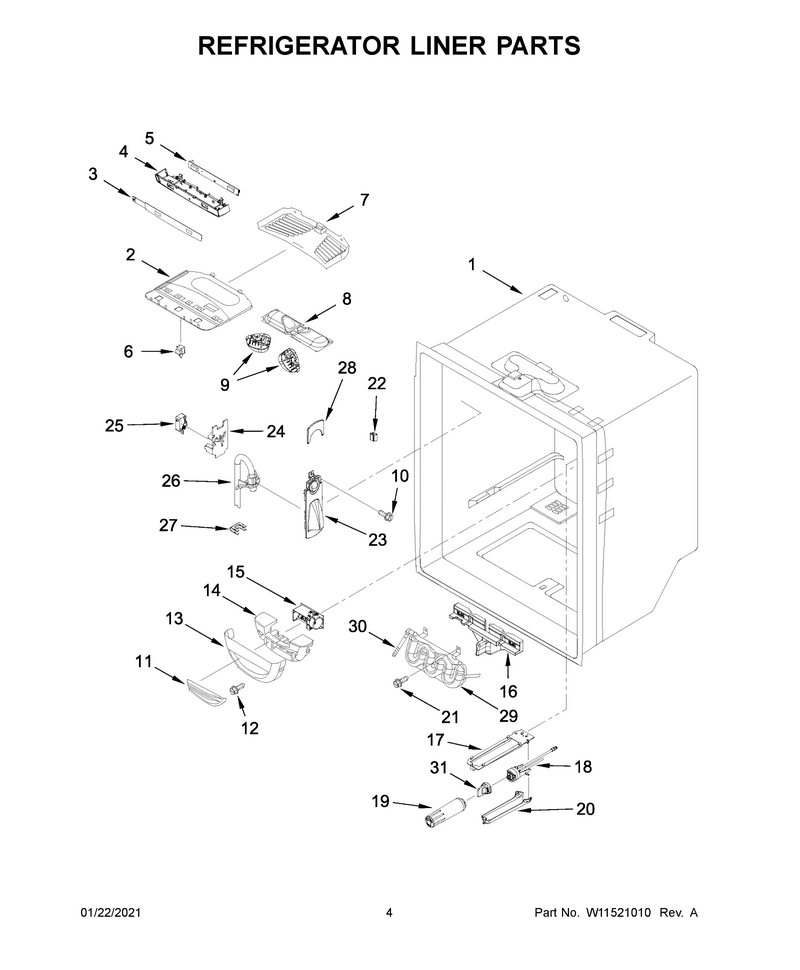

03 - Refrigerator Liner Parts

...
...
NI
Harns-Wire WPL-WPW10224292
...
1
Following Parts Not Illustrated WPL-N/P
...
2
Module, Light WPL-W10464764
...
3
Overlay WPL-W11721626
...
4
Housing WPL-W11416469
...
5
Cntrl-Elec WPL-WPW10746274
...
6
Switch WPL-W11384469
...
7
Cover WPL-W11284721
...
8
Housing, Light WPL-W10443023
...
9
Module WPL-W11602886
...
10
Screw WPL-W10854958
...
11
Insert, Damper Cover WPL-67003900
...
12
Screw WPL-WP400021-1
...
13
Cover-Box WPL-WP12806701
...
14
Insulation WPL-WP13012402
...
15
Control WPL-WPW10594329
...
16
Insulation WPL-WPW10163893
...
17
Plate- Fil WPL-WP67001668
...
18
Head-Filtr WPL-W11346623
...
19
Filter WPL-EDR4RXD1
...
20
Cover- Fil WPL-WP12568001
...
21
Screw WPL-WP67006415
...
22
Clip WPL-W10819546
...
23
Cover WPL-WPW10585703
...
24
Plate WPL-W11515355
...
25
Switch- Li WPL-WP12575501
...
26
Guide WPL-W11677725
...
27
Clip, Waterline WPL-67002816
...
28
Cover WPL-W11519867
...
29
Reservoir WPL-W11229977
...
30
Fitting WPL-WP2300868
...
31
Cap-Filter WPL-W11395888

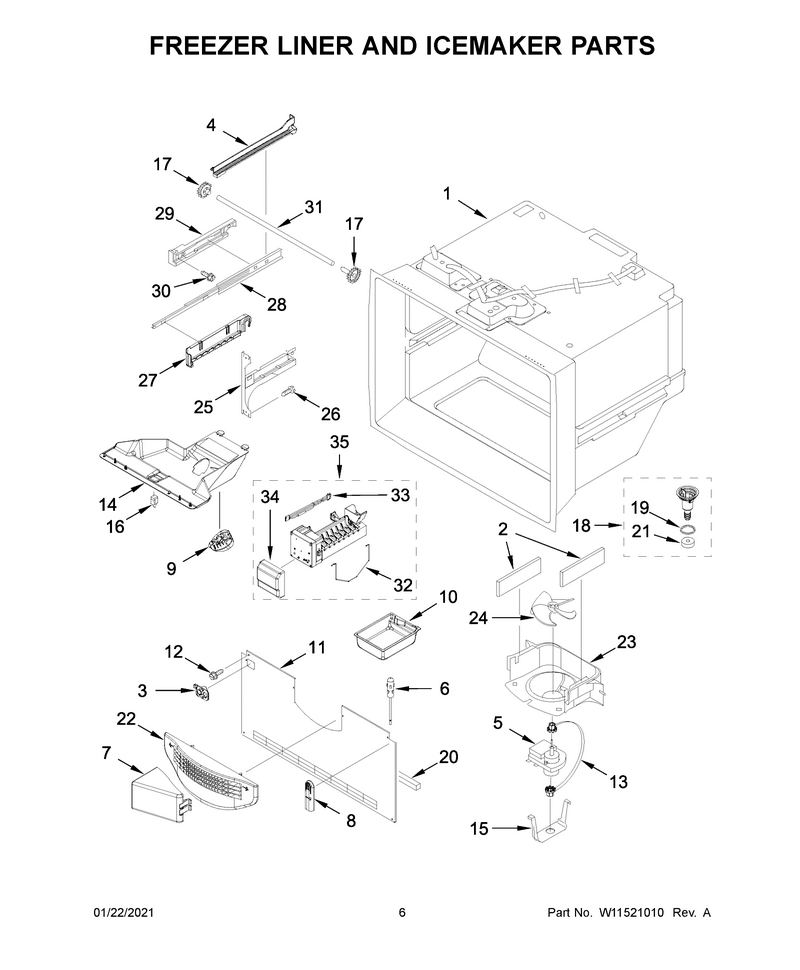

04 - Freezer Liner And Icemaker Parts

...
...
1
Following Parts Not Illustrated WPL-N/P
...
2
Gasket WPL-W10856123
...
3
Guide, Fill Tube WPL-W11448709
...
4
Rack, Side (Left Hand) WPL-W10516605
...
4A
Rack, Side (Right Hand) WPL-W10516604
...
5
Motor-Evap WPL-W11024089
...
6
Thermistor WPL-W10316760
...
7
Diverter, Air WPL-W10157765
...
8
Cover- Fz WPL-WP67003924
...
9
Module WPL-W11602886
...
10
Pan-Ice WPL-WPW10171529
...
11
Cover-Evap WPL-W11727809
...
12
Screw (3) WPL-67006425
...
13
Grommet WPL-W11690160
...
14
Housing WPL-WPW10277025
...
15
Clip, Evaporator Motor WPL-13058002
...
16
Switch WPL-W11396033
...
17
Gear WPL-12002497
...
18
Funnel WPL-W10815413
...
19
Seal- O Ri WPL-WPM0500703
...
20
Gasket WPL-W11159728
...
21
Gasket- Dr WPL-WPB8381501
...
22
Grille WPL-WPW10175909
...
23
Shroud WPL-WPW10167023
...
24
Blade-Fan WPL-WP2169142
...
25
Bracket WPL-WPW10330994
...
25A
Bracket WPL-WPW10330995
...
26
Screw WPL-WP98165
...
27
Bracket WPL-WPW10281115
...
27A
Bracket WPL-WPW10281116
...
28
Slide WPL-W11658403
...
29
Bracket WPL-WPW10284692
...
29A
Bracket WPL-WPW10284693
...
30
Screw WPL-WP489474
...
31
Shaft WPL-W11028221
...
32
Arm-Shut WPL-W11285509
...
33
Harns-Wire WPL-W10886932
...
34
Cover-Frnt WPL-WPW10289690
...
35
Icemaker WPL-W10884390

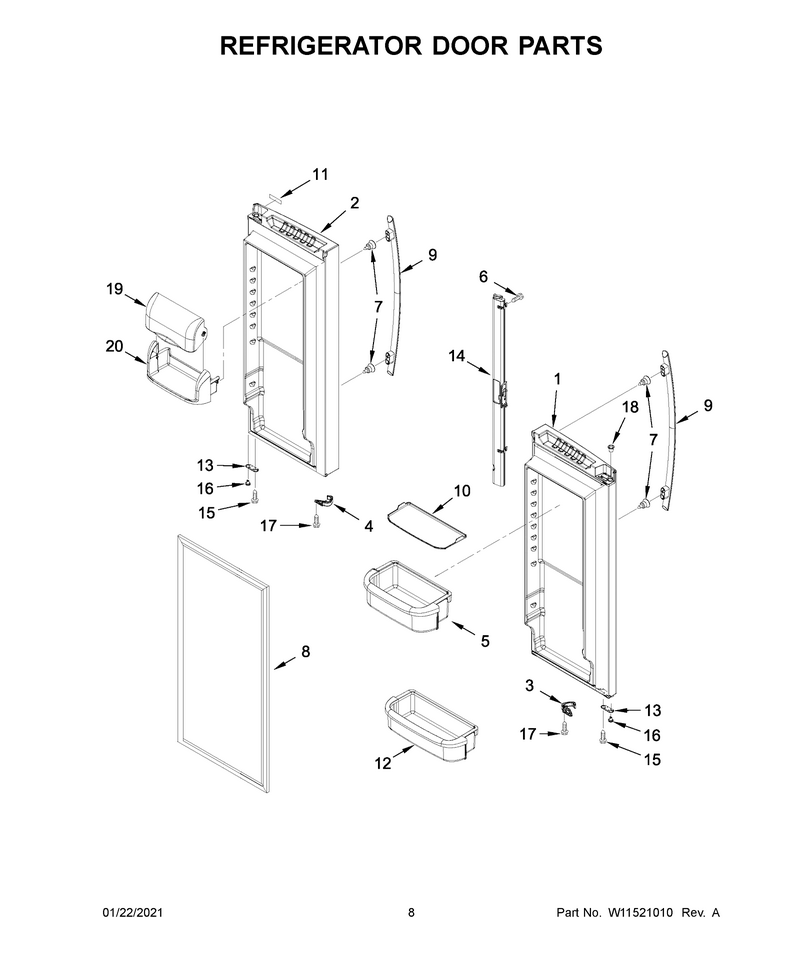

05 - Refrigerator Door Parts

...
...
1
Dor-Fip Ss WPL-13107881SQ
...
2
Door, Right (Stainless) WPL-13107855SQ
...
3
Closer WPL-W10918008
...
4
Closer WPL-W10918010
...
5
Bin-Cntlvr WPL-WPW10371194
...
6
Screw WPL-W11311945
...
7
Screw WPL-W11449276
...
8
Gasket, Door (Grey) WPL-W10830162
...
9
Handle WPL-WPW10298179
...
10
Mat WPL-W11402028
...
10A
Mat WPL-WPW10450021
...
11
Nameplate WPL-WPW10214168
...
12
Bin-Cntlvr WPL-WPW10289497
...
13
Stop-Door WPL-W11703060
...
14
Rail-Mulln WPL-WP12722803AP
...
15
Screw WPL-WP98165
...
16
Closer WPL-WP12028505AP
...
17
Screw WPL-WP67006908
...
18
Clip, Bushing WPL-12996601
...
19
Door-Comp WPL-WP67003637
...
20
Tray- Dair WPL-WP67001279

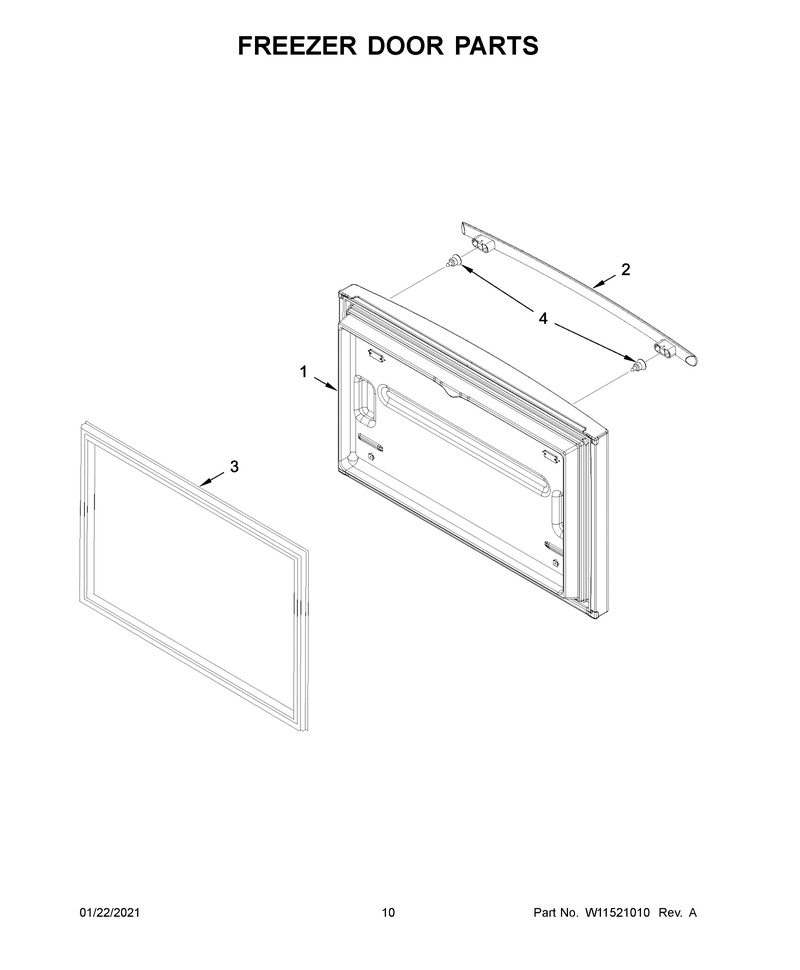

06 - Freezer Door Parts

...
...
1
Dor-Fip Ss WPL-12977864SQ
...
2
Handle WPL-WPW10564657
...
3
Gasket, Door (Grey) WPL-W10443320
...
4
Screw WPL-W11449276

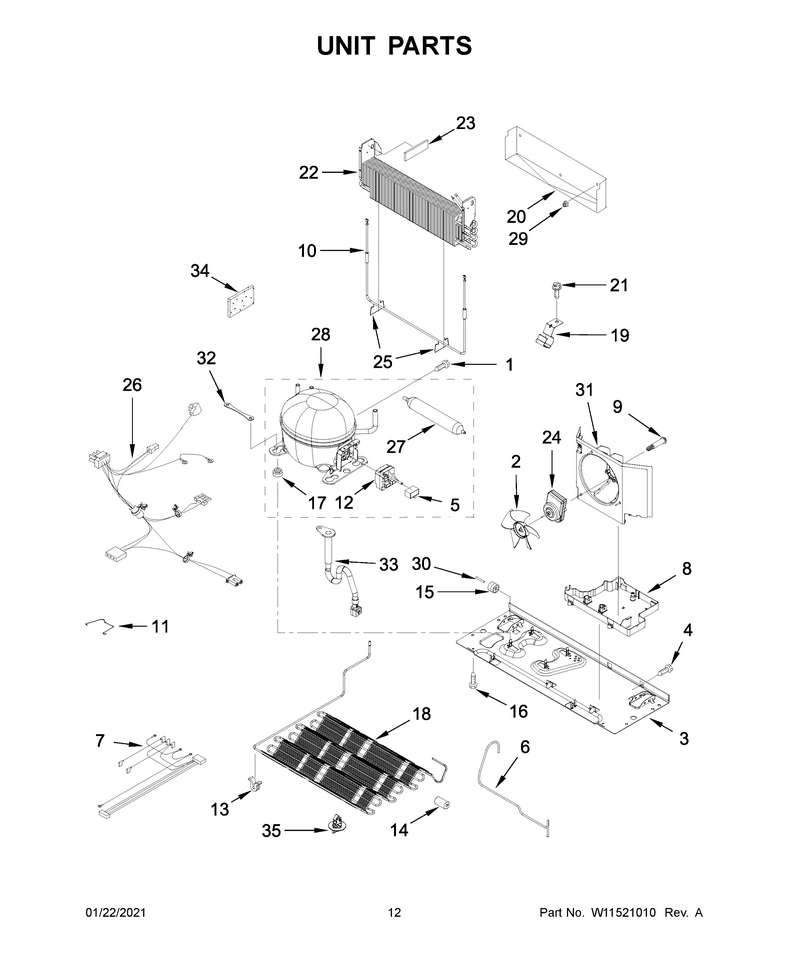

07 - Unit Parts

...
...
NI
Following Parts Not Illustrated WPL-N/P
...
1
Screw WPL-12992301
...
2
Blade-Fan WPL-WP12825803
...
3
Plate WPL-W11727651
...
4
Screw (3) WPL-67006425
...
5
Capacitor WPL-WPW10350564
...
6
Condenser WPL-W11644420
...
7
Harness, Evaporator Heater WPL-W11174745
...
8
Pan-Drip WPL-WPW10655368
...
9
Screw WPL-W10829281
...
10
Heater WPL-WP12729123
...
11
Clip WPL-W11092534
...
12
Start-Dev WPL-W10873801
...
13
Grommet WPL-WPW10137529
...
14
Grommet WPL-W10852725
...
15
Roller WPL-WP67005149
...
16
Screw WPL-12992101
...
17
Grommet WPL-WPW10169124
...
18
Condenser WPL-W11644420
...
19
Clip, Drier WPL-W10281329
...
20
Tray-Drip WPL-W11547653
...
21
Screw WPL-WP33001882
...
22
Evaporator WPL-W11256565
...
23
Gasket WPL-W11451451
...
24
Motor-Cond WPL-W11613295
...
25
Clip WPL-W11673433
...
26
Harness, Unit (Includes Power Cord) WPL-W11224411
...
27
Drier-Uv WPL-WPW10143759
...
28
Compressor WPL-W10233960
...
29
Clip, Evaporator WPL-10623002
...
30
Axle, Roller (2) WPL-67006434
...
31
Shroud WPL-W11556315
...
32
Strap, Compressor WPL-W10236396
...
33
Tube-Drain WPL-W10619951
...
34
Insulation WPL-W11553819
...
35
Clip, Condenser WPL-W10815863

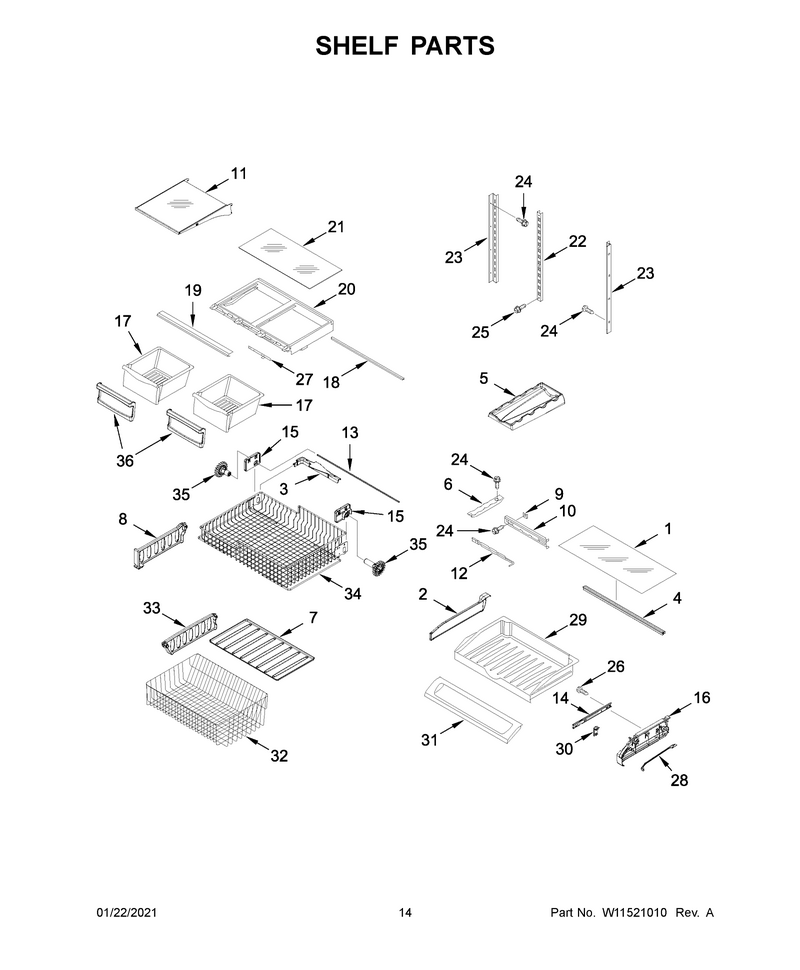

08 - Shelf Parts

...
...
1
Shelf-Glas WPL-W11125512
...
2
Divider- P WPL-WP67002321
...
3
Lift, Bail Arm WPL-W10149389
...
4
Support, Glass (Includes Pantry Brace) WPL-W10528933
...
5
Trivet, Bottle WPL-67001656
...
6
Track WPL-WP67001719
...
7
Mat WPL-WP12727304
...
8
Divider, Basket (Upper) WPL-W10241046
...
9
Gasket, Pantry WPL-67002329
...
10
Housing, Control WPL-12656202
...
11
Shelf-Glas WPL-W11026424
...
12
Slide- Tem WPL-WP67003793
...
13
Shaft WPL-W11173556
...
14
Glide WPL-WPW10235370
...
15
Mount, Gear (Left Hand) WPL-W10348259
...
15A
Mount, Gear (Right Hand) WPL-W10348260
...
16
Endcap WPL-WP12656105
...
16A
Endcap WPL-WP12656018
...
17
Pan- Crisp WPL-WP67002659
...
18
Brace, Crisper Cover WPL-W10832723
...
19
Trim-Shelf WPL-WPW10231485
...
20
Frame WPL-WP67006185
...
21
Shelf-Glas WPL-WP67006655
...
22
Ladder, Center WPL-W10273463
...
23
Ladder WPL-WPW10569182
...
24
Screw (3) WPL-67006425
...
25
Screw WPL-W10215666
...
26
Screw WPL-WP98165
...
27
Slide WPL-WP67005864
...
28
Bar, Temp Control WPL-67003794
...
29
Pan-Utilty WPL-W11490183
...
30
Knob WPL-W11498983
...
31
Cover WPL-W10827015
...
32
Basket-Fzr WPL-W11289962
...
33
Divider, Basket (Lower) WPL-W10150061
...
34
Basket-Fzr WPL-W11268538
...
35
Gear WPL-WPW10474716
...
35A
Gear WPL-WPW10474715
...
36
Front- Cri WPL-WP67005923

...
...
NI
Torx Screw Wrench, Torx Key WPL-1117510
