Jenn-Air JF36NXFXDE05

Model: JF36NXFXDE05

Save Part Not Listed?
product name

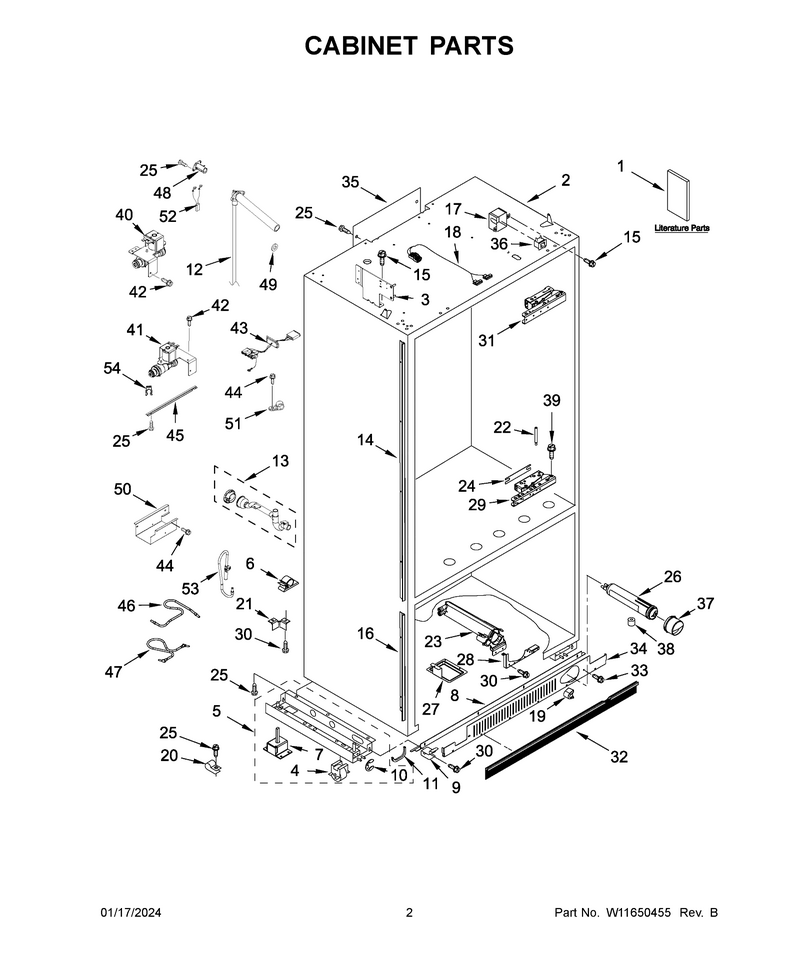

02 - Cabinet Parts

...
...
NI
Template, Grill (Wood Panel) WPL-W10744761
...
1
Use And Care Guide WPL-W11511882
...
1A
Energy Guide WPL-W11112721
...
1B
Installation Instructions WPL-W11511880
...
1C
Tech Sheet WPL-W11511885
...
1D
Wiring Diagram WPL-W11511887
...
2
Cabinet (Not A Serviceable Part) WPL---
...
3
Bracket, Grille (Includes Rivet Nut) Left Hand (Grey) WPL-W11042558
...
3A
Bracket, Grille (Includes Rivet Nut) Right Hand (Grey) WPL-W11042559
...
4
Roller-Cab WPL-WPW10138054
...
5
Support WPL-W10860229
...
5A
Support WPL-W10860448
...
6
Clip WPL-W10663352
...
7
Leveler, Adjustable WPL-2005032
...
8
Trim, Top Grille (Grey) WPL-W10634858
...
9
Bracket WPL-W10839844
...
10
Ring, Retainer WPL-2006841
...
11
Grommet, Crossover Tube WPL-2307584
...
12
Assembly, Water Inlet Tube WPL-2317847
...
13
Assembly, Drain Tube WPL-W11291510
...
14
Trim, Side Left Hand (Grey) WPL-W10687588
...
14A
Trim, Side Right Hand (Grey) WPL-W10687582
...
15
Screw WPL-WP965173
...
16
Trim, Side Left Hand (Grey) WPL-W10714137
...
16A
Trim, Side Right Hand (Grey) WPL-W10687583
...
17
Cover WPL-W11624203
...
18
Assembly, Top Switch Jumper Wire WPL-W10740131
...
19
Button WPL-WP2260503B
...
20
Clamp WPL-W10833902
...
21
Bracket, Base Support (Rear) WPL-2006617
...
22
Pin, Door Stop WPL-W10234202
...
23
Housing WPL-WPW10121140
...
24
Spacer, Hinge WPL-W10291661
...
25
Screw WPL-W11624204
...
26
Filter WPL-EDR3RXD1
...
27
Tray, Filter Drip WPL-2318189
...
28
Bracket, Filter WPL-W10674648
...
29
Hinge-Door WPL-W10828686
...
30
Screw WPL-WP8533928
...
31
Hinge, Top Left Hand (Grey) WPL-W10691145
...
31A
Hinge-Door WPL-W11700299
...
32
Grille-Frt WPL-WPW10188547
...
33
Screw WPL-WP489464
...
34
Grille-Frt WPL-W11739145
...
35
Cover, Air Duct WPL-2215612
...
36
Switch WPL-W11624786
...
37
Cap-Filter WPL-W11238395
...
38
Spacer WPL-2005433
...
39
Screw WPL-W11721628
...
40
Valve-Inlt WPL-W11246413
...
41
Valve-Inlt WPL-W11225845
...
42
Screw WPL-WP489069
...
43
Assembly, Water Valve Wire WPL-W11479397
...
44
Screw WPL-WP489464
...
45
Support, Valve WPL-2320559
...
46
Tube, Filter Inlet WPL-W10619899
...
47
Tube, Filter Outlet WPL-W10635851
...
48
Heater WPL-WP2221240
...
49
Gasket WPL-WP1106508
...
50
Shield, Valve Electrical WPL-W10619291
...
51
Clamp WPL-W11456069
...
52
Assembly, Fill Tube Heater Wire WPL-W10482373
...
53
Tube-Water WPL-W11690636
...
54
Locking Ring (1/4") WPL-W10782423
...
54A
Locking Ring(5/16") WPL-W10782424

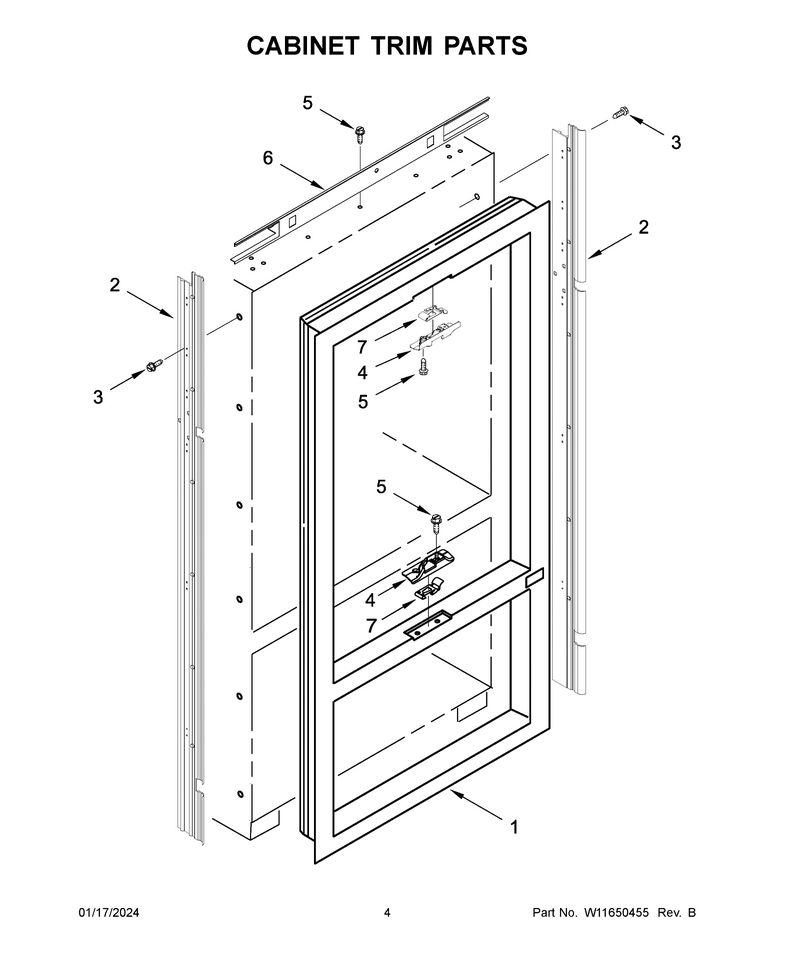

03 - Cabinet Trim Parts

...
...
1
Breaker, Trim (Not Serviced) WPL---
...
2
Assembly, Trim (Includes Blind Threaded Insert) Left Hand (Black) WPL-W10714136
...
2A
Assembly, Trim (Includes Blind Threaded Insert) Right Hand (Black) WPL-W10714135
...
3
Screw WPL-WPW10141645
...
4
Block, Pivot Top (Grey) WPL-W10672299
...
4A
Block, Pivot Bottom (Grey) WPL-W10672301
...
5
Screw WPL-W11624204
...
6
Switch WPL-W11623180
...
7
Contact, Mullion (Top) WPL-2309230
...
7A
Contact, Mullion (Bottom) WPL-2309231

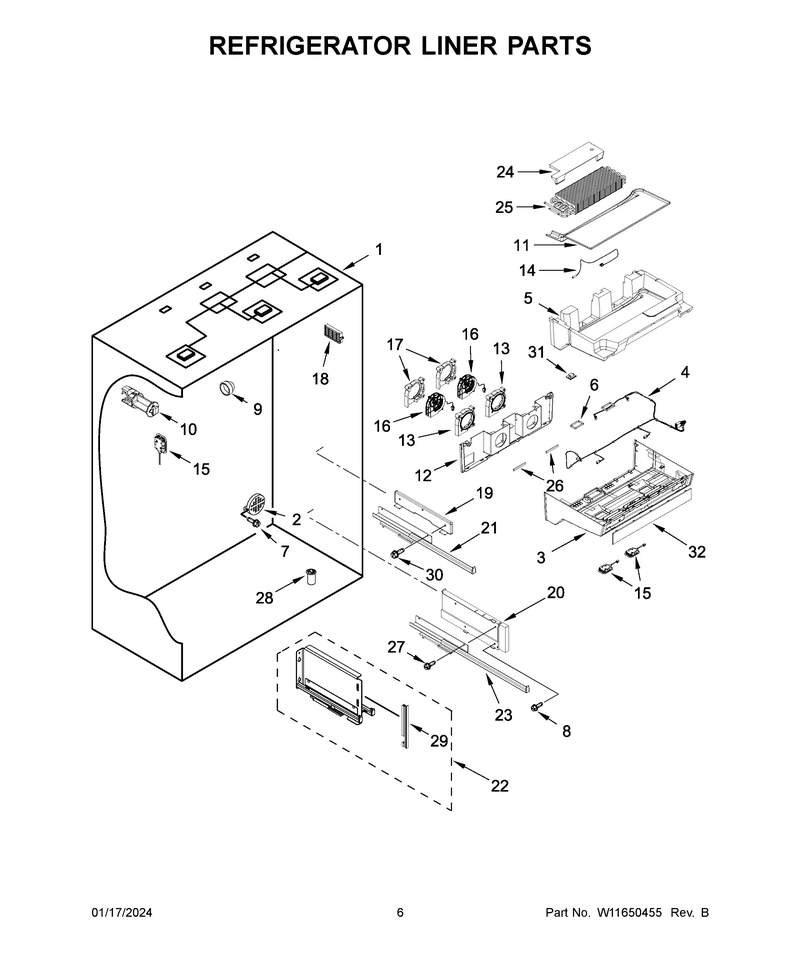

04 - Refrigerator Liner Parts

...
...
1
Liner, Refrigerator (Not Servicable) WPL---
...
2
Cover, Air Return (Grey) WPL-W10606740
...
3
Cover, Evaporator (Grey) WPL-W10636487
...
4
Harns-Wire WPL-W11661567
...
5
Insulation WPL-W11712700
...
6
Gasket, Evaporator Outlet WPL-W10638137
...
7
Screw (Black) WPL-W10678210
...
8
Screw WPL-W10215666
...
9
Support, Evaporator Assembly WPL-W10699426
...
10
Clip, Evaporator Mounting WPL-W10555493
...
11
Shield, Evaporator Heat WPL-W10555480
...
12
Housing, Rear Evaporator Cover (Grey) WPL-W10636488
...
13
Housing, Fan (Front) WPL-W10538315
...
14
Thermistor WPL-W11661569
...
15
Module WPL-W11484836
...
16
Fan WPL-W11678257
...
17
Housing, Fan (Rear) WPL-W10538317
...
18
Antibacterial Filter WPL-W10311524
...
19
Spacer, Crisper Slide (Grey) WPL-W10569851
...
20
Spacer, Deli Left Hand (Grey) WPL-W10569848
...
20A
Spacer, Deli Right Hand (Grey) WPL-W10569845
...
21
Slide, Crisper Pan (Left Hand) WPL-W10569887
...
21A
Slide, Crisper Pan (Right Hand) WPL-W10569886
...
22
Assembly, Center Bracket WPL-W10654278
...
23
Slide, Deli Pan (Left Hand) WPL-W10569890
...
23A
Slide, Deli Pan (Right Hand) WPL-W10615641
...
24
Insulation, Evaporator (Upper) WPL-W10555472
...
25
Evaporator WPL-W11649687
...
26
Gasket, Evaporator Housing (Rear) WPL-W10740077
...
27
Screw WPL-WP3400886
...
28
Releas-Vac WPL-WP2210509
...
29
Trim, Center Bracket (Grey) WPL-W10604667
...
30
Screw WPL-WP8533928
...
31
Clip, Wiring WPL-W10741189
...
32
Panel-Ui WPL-W11411871

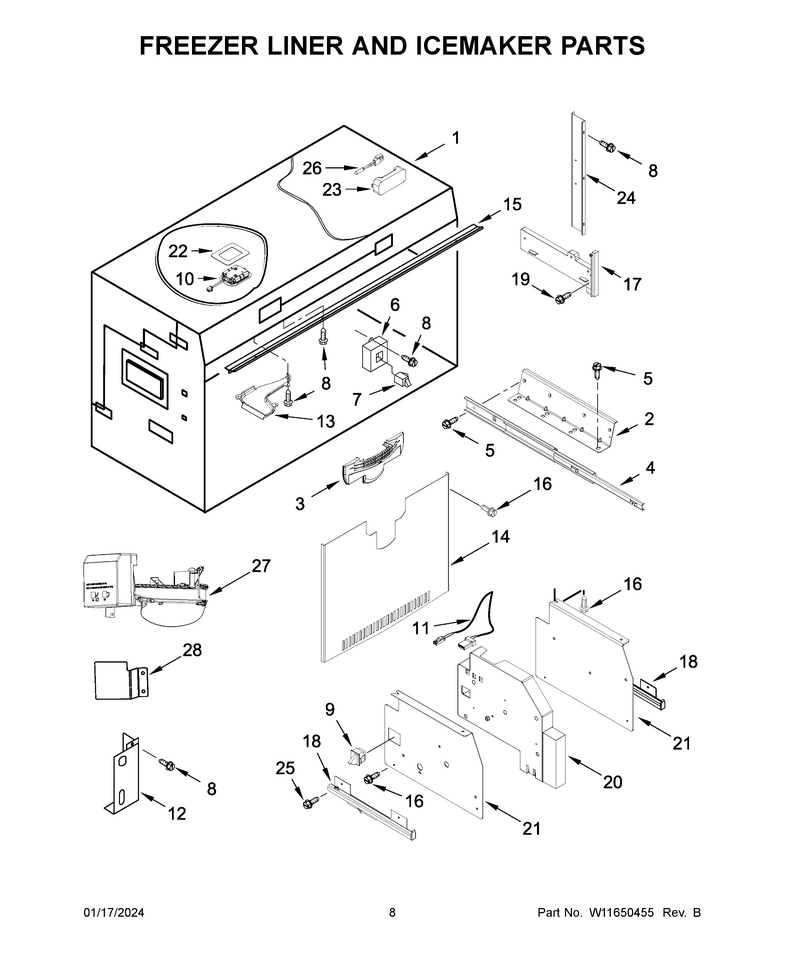

05 - Freezer Liner And Icemaker Parts

...
...
1
Liner, Freezer (Not Servicable) WPL---
...
2
Support, Drawer Slide (Grey) WPL-W10744327
...
3
Grille, Freezer Air (Grey) WPL-W10541687
...
4
Slide WPL-W11650036
...
5
Screw WPL-W10061370
...
6
Cover, Light Switch (Grey) WPL-W10606833
...
7
Switch WPL-W11670534
...
8
Screw WPL-W11624204
...
9
Switch WPL-W11289496
...
10
Module WPL-W11484836
...
11
Assembly, Ice Bucket Switch Wire WPL-W10568445
...
12
Cover, Icemaker Wiring WPL-W11575966
...
13
Duct, Air Flow WPL-W10552980
...
14
Cover, Evaporator (Charcoal Sparkle) WPL-W11523760
...
15
Assembly, Air Deflector WPL-W10710400
...
16
Screw WPL-WPW10001160
...
17
Spacer, Drawer Left Hand (Grey) WPL-W10664385
...
17A
Spacer, Drawer Right Hand (Grey) WPL-W10664383
...
18
Slide, Freezer Bin (Left Hand) WPL-2306117
...
18A
Slide, Freezer Bin (Right Hand) WPL-2306116
...
19
Screw WPL-WP488163
...
20
Divider, Freezer (Grey) WPL-W10647421
...
21
Support, Slide (Left Hand) WPL-W10600630
...
21A
Support, Slide (Right Hand) WPL-W10600626
...
22
Shim, Led WPL-W10672548
...
23
Cover, Thermistor WPL-W10609678
...
24
Assembly, Evaporator Cover Rail WPL-W10538780
...
25
Screw WPL-WP488163
...
26
Thermistor WPL-W11724692
...
27
Icemaker WPL-W11744241
...
28
Extension, Icemaker Wiring Cover WPL-W11639152

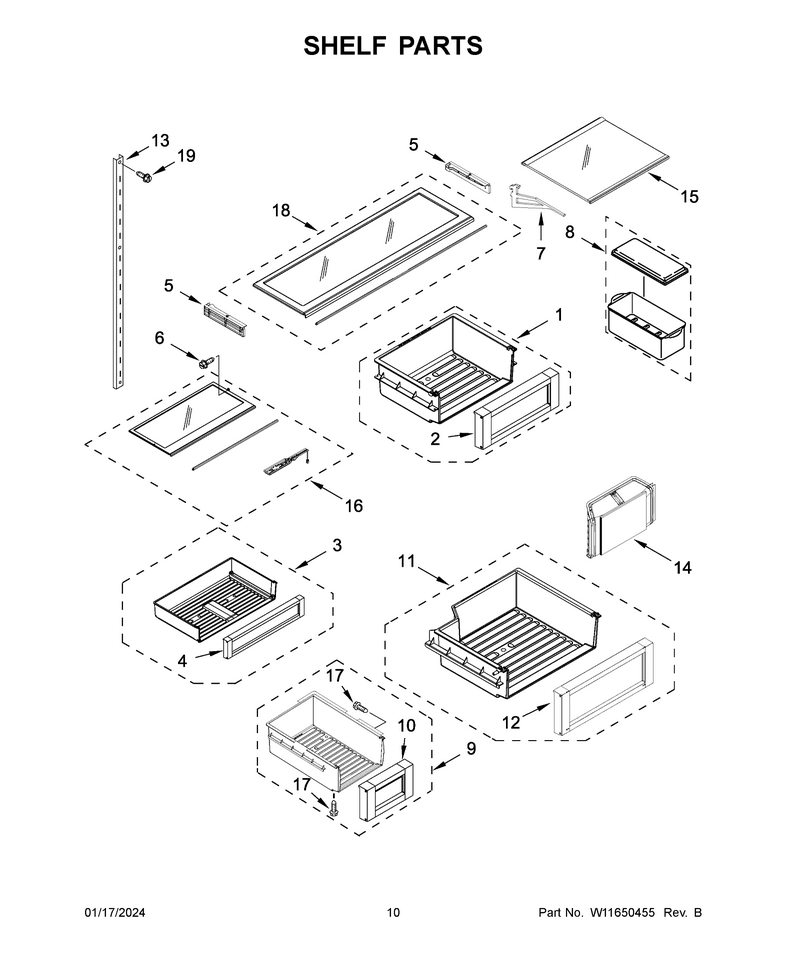

06 - Shelf Parts

...
...
1
Assembly, Crisper Pan WPL-W10529500
...
2
Assembly, Crisper Pan Front WPL-W10529477
...
3
Assembly, Deli Pan WPL-W10529502
...
4
Assembly, Deli Pan Front WPL-W10529485
...
5
Support, Crisper Cover Left Hand (Grey) WPL-W10569842
...
5A
Support, Crisper Cover Right Hand (Grey) WPL-W10569839
...
6
Screw WPL-W10851443
...
7
Support WPL-W11690161
...
8
Egg-Contnr WPL-WP2221071A
...
9
Assembly, Ice Pan WPL-W10626679
...
10
Assembly, Ice Pan Front WPL-W10626676
...
11
Assembly, Freezer Pan WPL-W10626680
...
12
Assembly, Freezer Pan Front WPL-W10626677
...
13
Ladder, Shelf Left Hand (Grey) WPL-W10743252
...
13A
Ladder, Shelf Right Hand (Grey) WPL-W10743251
...
13B
Ladder, Shelf Center (Grey) WPL-W10743232
...
14
Assembly, Produce Preserver WPL-W10826105
...
15
Shelf-Glas WPL-WPW10198700
...
16
Shelf-Glas WPL-WPW10569933
...
17
Screw WPL-WP488787
...
18
Shelf-Glas WPL-WPW10569936
...
19
Screw (Black) WPL-W10678207

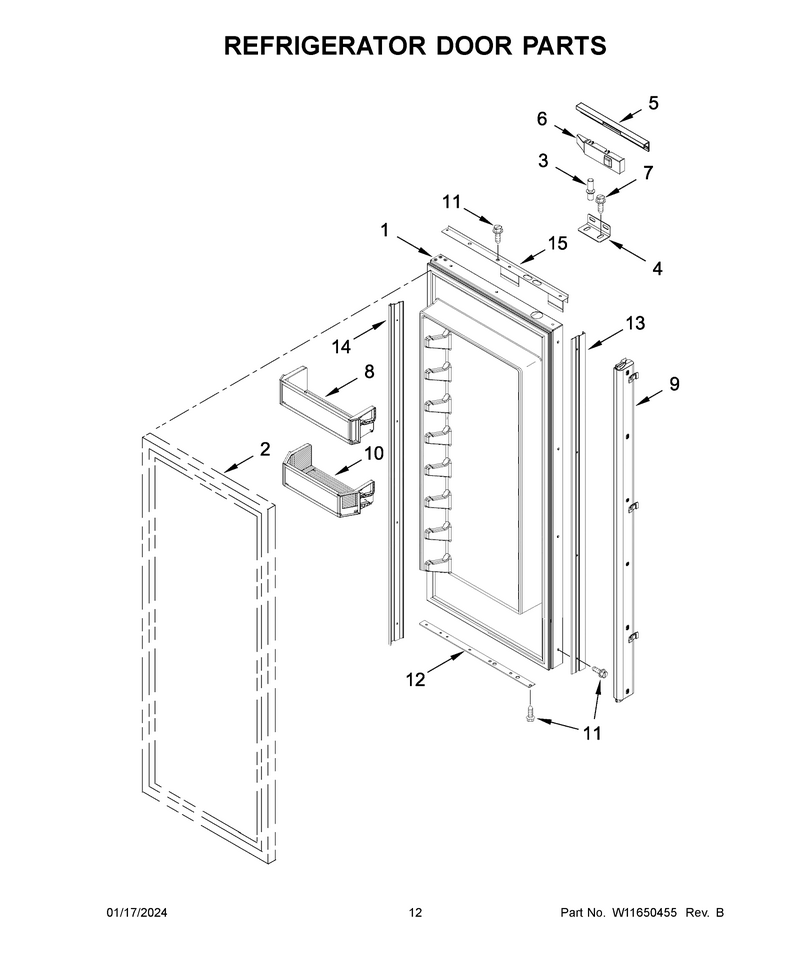

07 - Refrigerator Door Parts

...
...
NI
Mat, Door Bin WPL-W10772222
...
1
Dor-Fip WPL-W10782236
...
1A
Dor-Fip WPL-W10782253
...
2
Gasket, Door (Not Available Separately-Must Order Refrigerator Door) WPL---
...
3
Pin, Top Door WPL-W10234194
...
4
Bracket, Panel Mounting (Grey) WPL-W10606841
...
5
Cover, Door (Top) Left Hand (Grey) WPL-W10582015
...
5A
Cover, Door (Top) Right Hand (Grey) WPL-W10726561
...
6
Insert, Door Arm Top (Grey) WPL-W10606813
...
6A
Insert, Door Arm Bottom (Grey) WPL-W10606814
...
7
Screw WPL-WPW10142233
...
8
Bin, Door (Shallow) WPL-W10578270
...
9
Assembly, Mullion (Charcoal Sparkle) WPL-W11590870
...
10
Bin, Door (Gallon) WPL-W11350963
...
11
Screw WPL-W10851443
...
12
Trim, Door (Bottom) Left Hand (Grey) WPL-W10564260
...
12A
Trim, Door (Bottom) Right Hand (Grey) WPL-W10564267
...
13
Trim, Door (Handle Side) Left Hand (Grey) WPL-W10606806
...
13A
Trim, Door (Handle Side) Right Hand (Grey) WPL-W10606802
...
14
Trim, Door (Hinge Side) (Grey) WPL-W10606803
...
15
Trim, Door (Top) Left Hand (Grey) WPL-W10564257
...
15A
Trim, Door (Top) Right Hand (Grey) WPL-W10564262

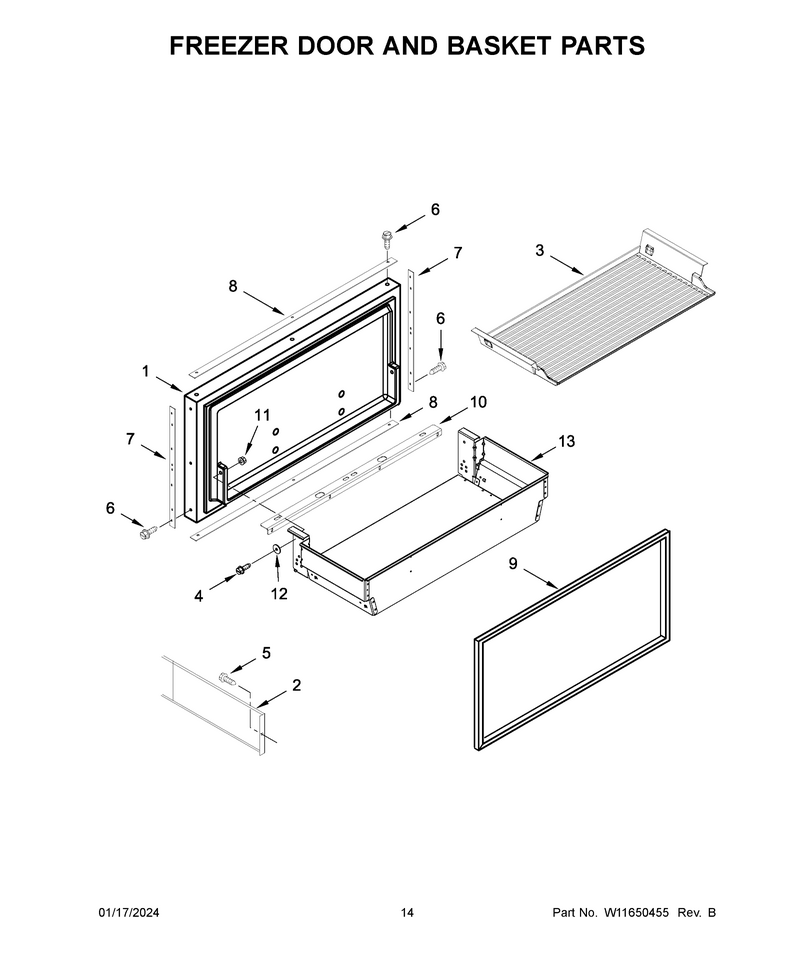

08 - Freezer Door And Basket Parts

...
...
1
Dor-Fip WPL-W10782355
...
2
Divider, Basket (Grey) WPL-W10606764
...
3
Mat, Basket WPL-W10665412
...
4
Screw WPL-W10761334
...
5
Screw (Black) WPL-W10678208
...
6
Screw WPL-W10851443
...
7
Trim, Door (Side) (Grey) WPL-W10611111
...
8
Trim, Door (Top And Bottom) (Grey) WPL-W10611110
...
9
Gasket-Fip WPL-W11625088
...
10
Bracket WPL-W11256496
...
11
Nut WPL-W10771111
...
12
Washer WPL-W10001190
...
13
Assembly, Freezer Basket (Grey) WPL-W10774209

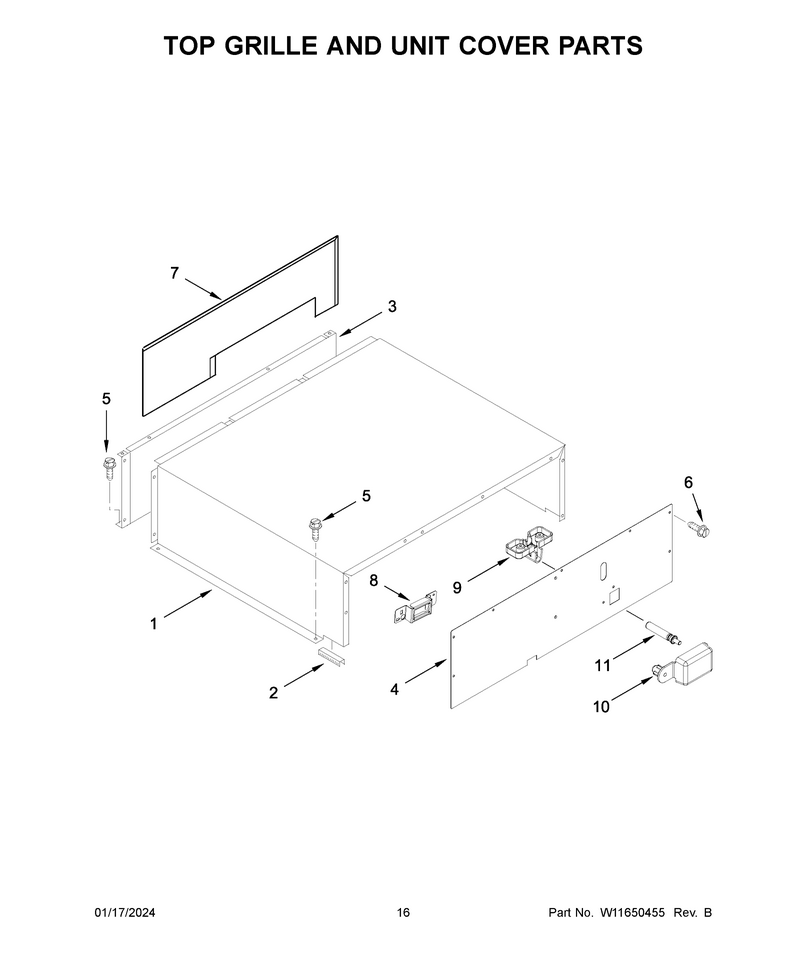

09 - Top Grille And Unit Cover Parts

...
...
1
Cover, Unit WPL-W10545068
...
2
Grommet, Flexible WPL-2215910
...
3
Panel, Unit Back WPL-2256466
...
4
Cover, Unit Front WPL-W11435372
...
5
Screw WPL-WP965173
...
6
Screw WPL-WP489069
...
7
Insulation, Unit Back Panel WPL-W11244166
...
8
Cover, Safety Switch WPL-W11356980
...
9
Damper, Mount WPL-W10646967
...
10
Damper, Door WPL-W10770988
...
11
Plate WPL-W11251734

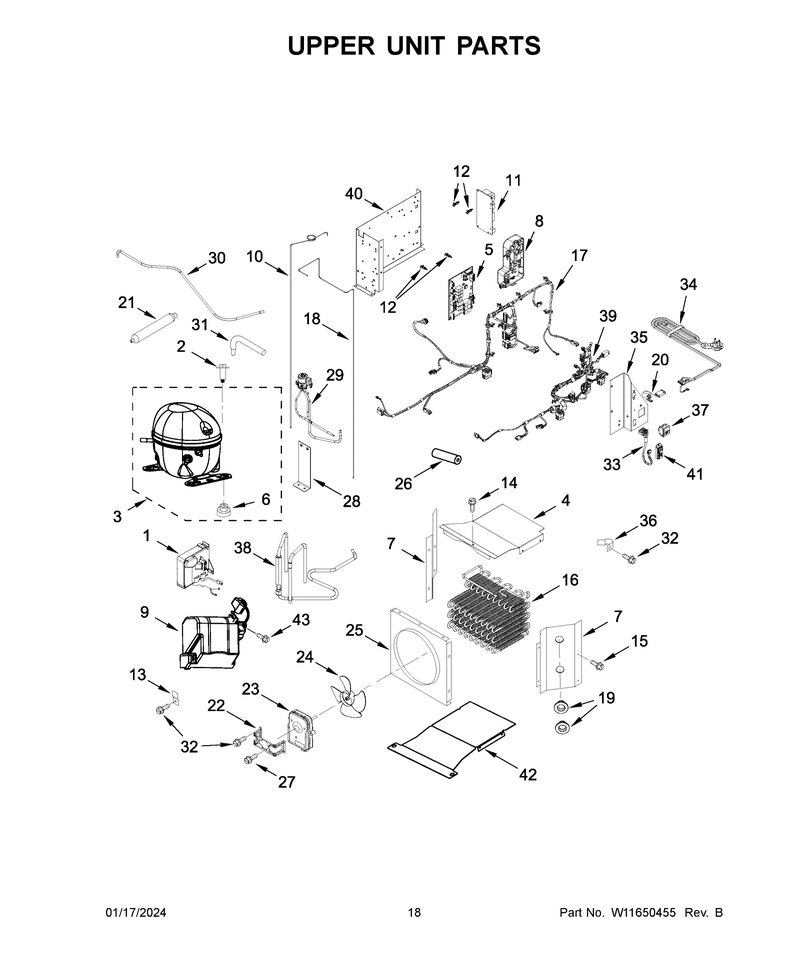

10 - Upper Unit Parts

...
...
NI
Refrigerant Charge 56.7 Grams (R600a) WPL---
...
1
Invrtr-Box WPL-W11655239
...
2
Screw WPL-W11661574
...
3
Compressor WPL-W11557671
...
4
Cover WPL-W11756951
...
5
Cntrl-Elec WPL-WPW10739408
...
6
Grommet WPL-W11661108
...
7
Plate WPL-W11756945
...
7A
Plate WPL-W11756946
...
8
Invrtr-Box WPL-W11368839
...
9
Cover WPL-W11247667
...
10
Tube, Discharge/drain Pan Heater WPL-W11517121
...
11
Cntrl-Elec WPL-WPW10624574
...
12
Spacer WPL-WP2203075
...
13
Bracket, Inverter Mounting WPL-2256328
...
14
Screw WPL-WP965173
...
15
Screw WPL-WP489069
...
16
Condenser WPL-W11408149
...
17
Assembly, Hv Wire WPL-W11442534
...
18
Tube, Heat Loop WPL-W11408687
...
19
Mounting Grommet, Condenser WPL-W10587113
...
20
Assembly, Jumper Wire (Power Switch To Power Cord) WPL-2310195
...
21
Drier-Tube WPL-W11109499
...
22
Bracket, Fan Motor WPL-W10414681
...
23
Motor-Cond WPL-W11127829
...
24
Blade-Fan WPL-WPW10139483
...
25
Orifice, Fan WPL-W10415670
...
26
Sleeve WPL-W11751592
...
27
Screw WPL-WP8533993
...
28
Bracket, 3-Way Valve WPL-W11233715
...
29
Valve WPL-W11647768
...
30
Tube, Condenser/drier WPL-W11415021
...
31
Tube, Process WPL-W11482820
...
32
Screw WPL-W11624204
...
33
Assembly, Humidity Sensor Wire WPL-W11534165
...
34
Cord, Power WPL-2310196
...
35
Bracket, Control Assembly WPL-W11435371
...
36
Clamp, Plastic WPL-W11234470
...
37
Switch WPL-W11623128
...
38
Assembly, Suction Tube WPL-W11511844
...
39
Assembly, Lv Wire WPL-W11442533
...
40
Housing, Control Board Mounting WPL-W10550831
...
41
Assembly, Humidity Sensor Wire WPL-W10625259
...
42
Plate WPL-W11756954
...
43
Screw WPL-WP9741232

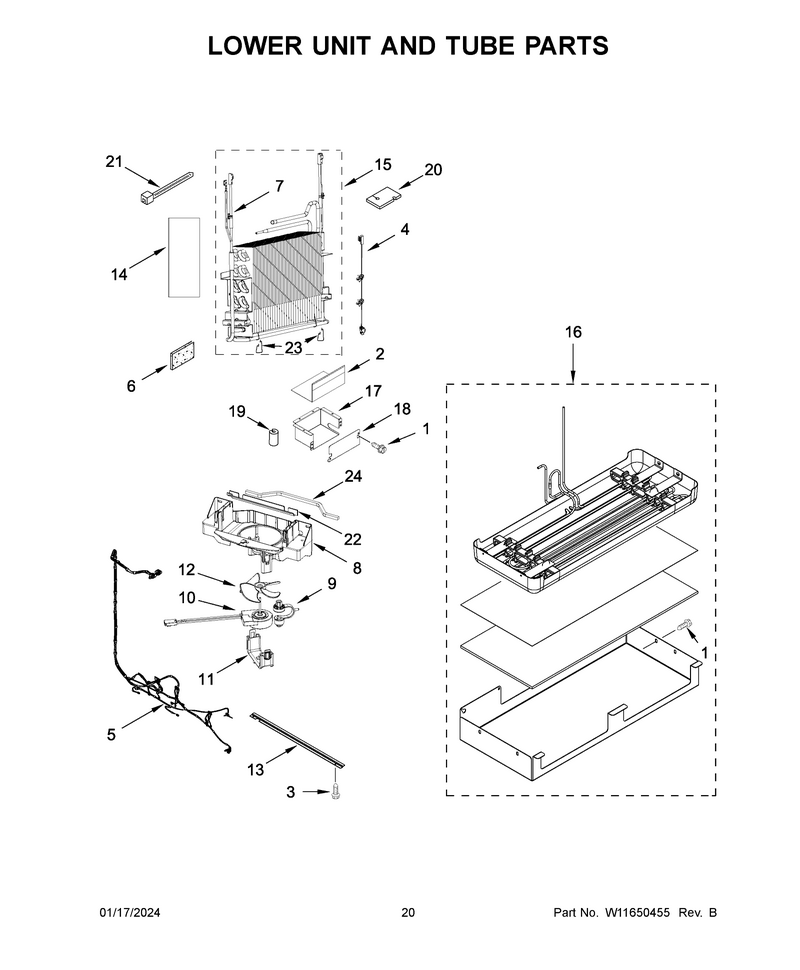

11 - Lower Unit And Tube Parts

...
...
1
Screw WPL-WP489069
...
2
Shelf, Wiring Cover WPL-W10321050
...
3
Screw WPL-W11624204
...
4
Thermistor WPL-W11649686
...
5
Assembly, Freezer Wire (Not Serviced) WPL---
...
6
Insulation WPL-W11553819
...
7
Heater, Defrost WPL-W11311043
...
8
Shroud, Evaporator Fan WPL-W10803566
...
9
Grommet- F WPL-W11676465
...
10
Motor-Evap WPL-W11396715
...
11
Clip WPL-W11712696
...
12
Blade-Fan WPL-WP2163777
...
13
Support, Drain Pan WPL-2320554
...
14
Gasket, Evaporator Bypass WPL-W11556942
...
15
Evaporator WPL-W11649689
...
16
Assembly, Drain Pan WPL-W10735008
...
17
Cover-Wire WPL-W11756952
...
18
Cover-Wire WPL-WPW10309012
...
19
Grommet WPL-W10852725
...
20
Block, Evaporator Side WPL-W11550598
...
21
Tie-Wire WPL-WPW10339879
...
22
Diverter, Air Shroud WPL-W10567169
...
23
Clip, Defrost Heater WPL-W11538317
...
24
Gasket, Foam WPL-W10762685

...
...
NI
Torx Screw Wrench, Torx Key WPL-1117510
Schematic Image Zoomed
Scroll to zoom • Drag to pan • Click to close
Press Esc or click background to close Pinch to zoom • Tap to close
Shopper Approved
USA Today Champions 2025
BBB Accredited
Newsweek Best Online Shops 2025
Google Reviews
Processing
