Jenn-Air JES1450FS3

Model: JES1450FS3

Save Part Not Listed?
product name

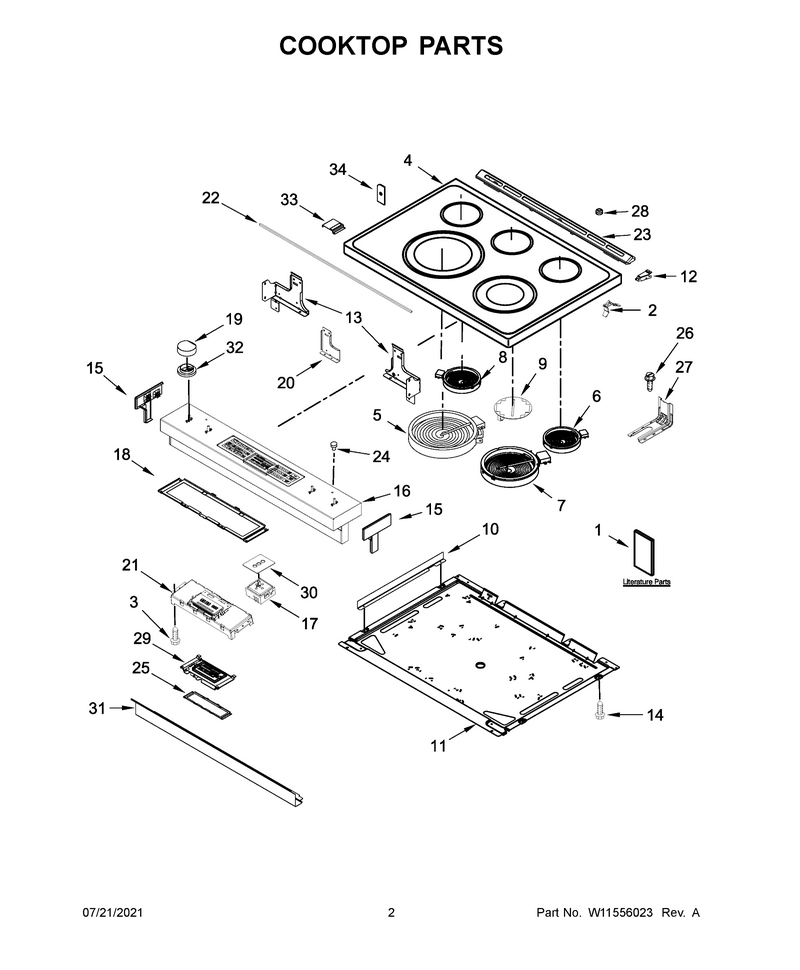

02 - Cooktop Parts

...
...
NI
Screw, Ground WPL-3400964
...
1
Instructions, Installation WPL-W11047682
...
1A
Use And Care Guide WPL-W10896664
...
1B
Tech Sheet WPL-W11382913
...
1C
Quick Start Guide WPL-W10400064
...
1D
Quick Start Guide (French) WPL-W10400065
...
2
Spring WPL-WPW10225448
...
3
Screw WPL-W11233072
...
4
Cooktop WPL-W10738936
...
5
Elmnt-Surf WPL-W10823720
...
6
Elmnt-Surf WPL-W11171119
...
7
Elmnt-Surf WPL-WPW10251108
...
8
Elmnt-Surf WPL-WPW10342780
...
9
Elmnt-Surf WPL-W11041453
...
10
Bracket, Radiant WPL-W11175271
...
11
Pan, Radiant WPL-W10536275
...
12
Brace, Corner (Left) WPL-W10162253
...
12A
Brace, Corner (Right) WPL-W10162252
...
13
Support, Cooktop (Right) WPL-W10289169
...
13A
Support, Cooktop (Left) WPL-W10289170
...
14
Screw WPL-W11244557
...
15
Endcap (Stainless (Left)) WPL-W10557751
...
15A
Endcap (Stainless (Right)) WPL-W10557754
...
16
Panl-Cntrl WPL-W10921961
...
17
Switch-Inf WPL-W11129442
...
17A
Switch-Inf WPL-W10911303
...
17B
Switch-Inf WPL-W10917724
...
18
Bracket , Control WPL-W10557780
...
19
Knob WPL-W11233555
...
20
Bracket, Console (Center) WPL-W10598048
...
21
Cntrl-Elec WPL-W11297273
...
22
Gasket WPL-W10802441
...
23
Trim-Vent WPL-W11170796
...
24
Lens-Light WPL-WP3196068
...
25
Bracket, Control WPL-W10558372
...
26
Anchor-Tip WPL-WP7101P485-60
...
27
Anchor-Tip WPL-W11502257
...
28
Bumper WPL-W11104127
...
29
Cntrl-Elec WPL-W11120573
...
30
Gasket- In WPL-WP71002569
...
31
Console, Lower Panel (Stainless) WPL-W10565662
...
32
Bezel (Stainless) WPL-W10663810
...
33
Shield, Keypad WPL-W11158783
...
34
Gasket WPL-W10882900

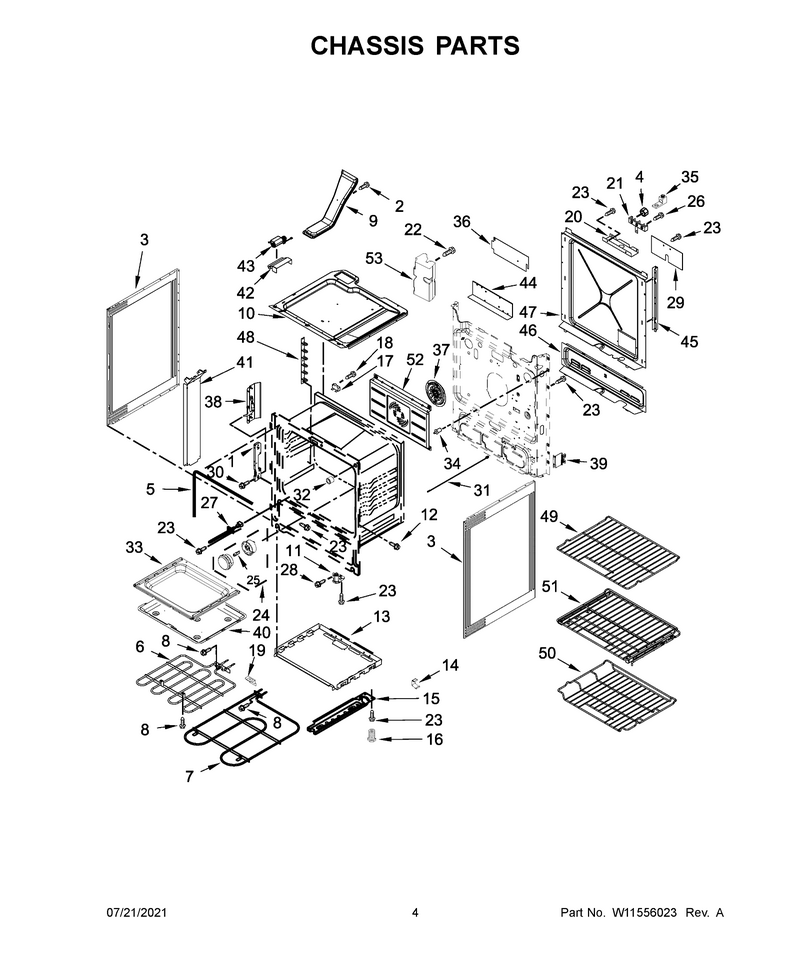

03 - Chassis Parts

...
...
NI
Insulation WPL-W11688781
...
1
Hinge, Receiver WPL-W10634238
...
2
Screw WPL-W11233072
...
3
Panel-Side WPL-W11730303
...
4
Nut WPL-WP3400029
...
5
Gaskt-Door WPL-W11562931
...
6
Elmnt-Brol WPL-W11238400
...
7
Elmnt-Bake WPL-W10779716
...
8
Screw WPL-W11233072
...
9
Assembly, Flue WPL-W11122085
...
10
Box, Burner Si WPL-W10289168
...
11
Foot-Level WPL-WPW10341186
...
12
Screw WPL-WPW10067840
...
13
Shield, Bake WPL-W10541959
...
14
Clip, Panel WPL-W10137382
...
15
Rail-Base WPL-WPW10306546
...
15A
Rail-Base WPL-WPW10306546
...
16
Foot-Level WPL-WPW10058460
...
17
Fuse-Thrml WPL-WP3196548
...
18
Screw WPL-3196172
...
19
Support, Oven Bottom WPL-W10035900
...
20
Brkt-Srvce WPL-W11728255
...
21
Block-Term WPL-WPW10245259
...
22
Screw-Torx WPL-W11135756
...
23
Screw WPL-W11233072
...
24
Sockt-Lite WPL-W11594170
...
25
Bulb-Light WPL-WPW10571723
...
26
Screw WPL-WP3400016
...
27
Sensor WPL-W10833885
...
28
Screw WPL-WP3196557
...
29
Shield, Power Cord WPL-W10655441
...
30
Screw WPL-W10777162
...
31
Rod, Door Switch WPL-W11370463
...
32
Spacer WPL-W10877054
...
33
Bottm-Oven WPL-W10777210
...
34
Swtch-Lite WPL-WP9757262
...
35
Connector WPL-WPW10281322
...
36
Shield, Wire WPL-W11117035
...
37
Fan-Convct WPL-W11414552
...
38
Receiver, Slow Close Hinge WPL-W10605411
...
39
Bracket, Oven Support WPL-W10273002
...
40
Bake Pan WPL-W11379357
...
41
Duct, Cover WPL-W10162255
...
42
Duct, Cooling WPL-W10162254
...
43
Fan-Blwr WPL-W11107275
...
44
Shield, Heat WPL-W10162260
...
45
Channel, Rear WPL-W10162241
...
46
Cover, Wire WPL-W10162248
...
47
Cover, Back WPL-W11379354
...
48
Rack, Ladder WPL-W10603482
...
49
Rack-Oven WPL-W11699908
...
50
Rack-Oven WPL-W11256463
...
51
Rack-Oven WPL-W11225131
...
52
Baffle, Full Convection WPL-W10554262
...
53
Anchor-Tip WPL-W11217187

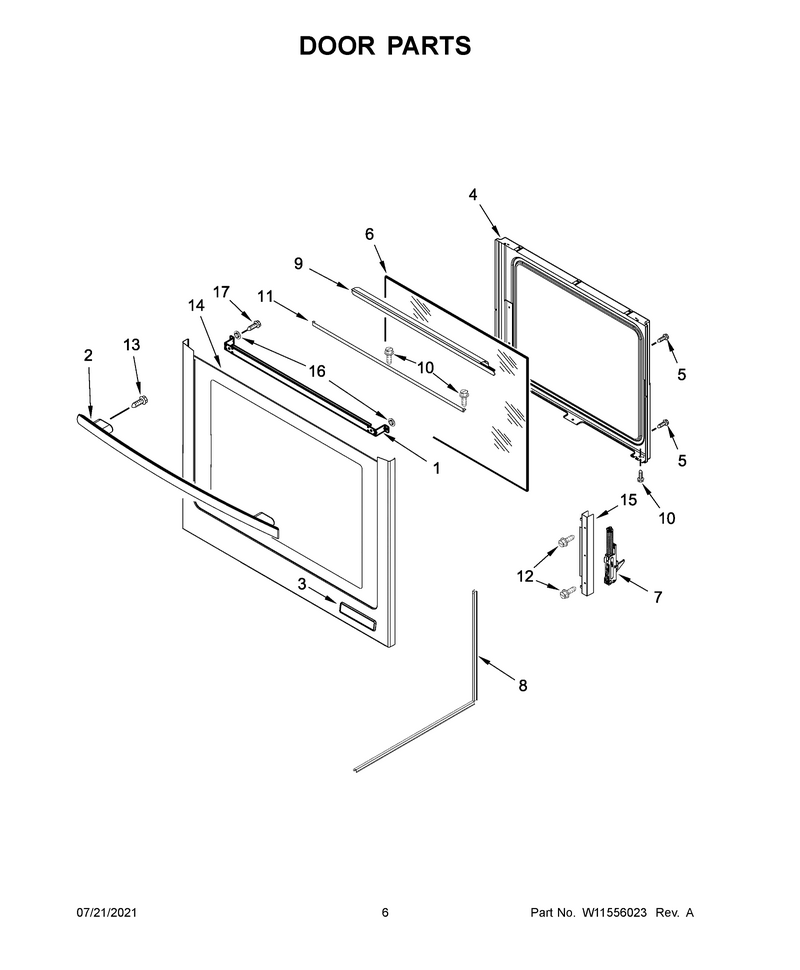

04 - Door Parts

...
...
1
Bracket, Glass Upper Handle WPL-W10541911
...
2
Hndle-Door WPL-W11195001
...
3
Nameplate WPL-WPW10214168
...
4
Liner-Door WPL-W10902192
...
5
Screw WPL-WPW10031790
...
6
Glass-Door WPL-W11339500
...
7
Hinge-Door WPL-W11226493
...
8
Spacr-Glas WPL-W11673273
...
9
Trim-Vent WPL-W11251351
...
10
Screw WPL-W11245710
...
11
Rail, Horizontal Support WPL-W10813140
...
12
Screw WPL-W10777162
...
13
Screw WPL-WP8533988
...
14
Glass-Door WPL-WPW10634268
...
15
Support WPL-W11744483
...
16
Washer WPL-W11676355
...
17
Screw WPL-WP8533988

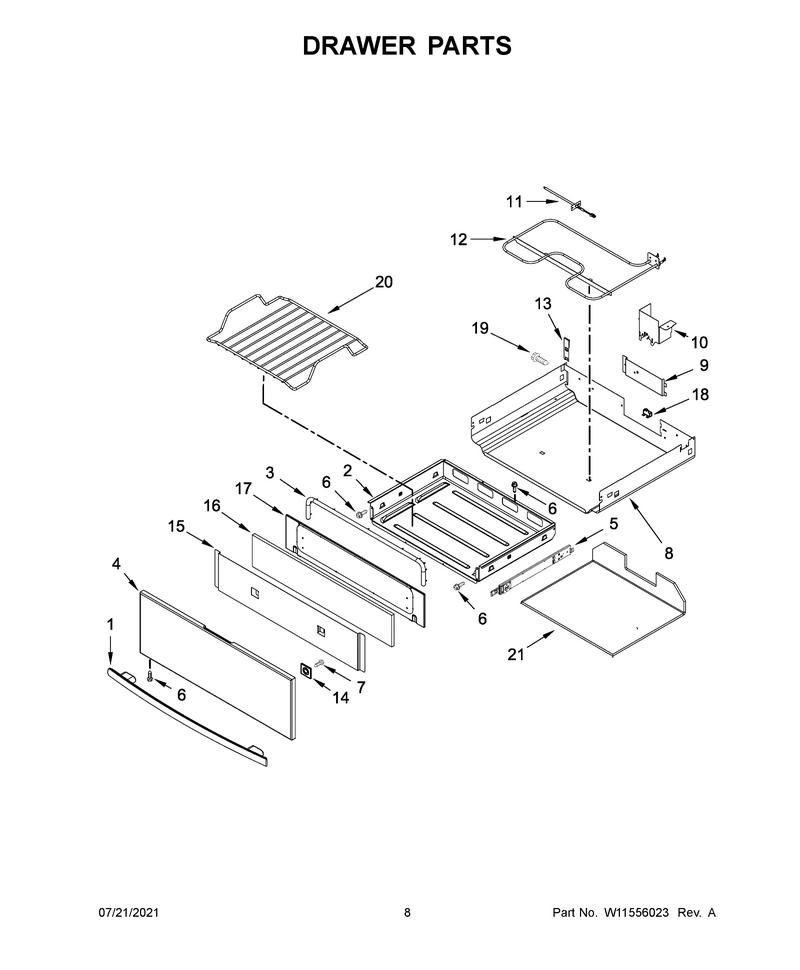

05 - Drawer Parts

...
...
1
Hndle-Door WPL-W11195001
...
2
Drawr-Util WPL-W11036176
...
3
Seal, Drawer WPL-W10550987
...
4
Panel, Drawer Front (Stainless) WPL-W10541958
...
5
Slide-Drwr WPL-W11670722
...
5A
Slide-Drwr WPL-W11670723
...
6
Screw WPL-WP3196557
...
7
Screw WPL-WP8533988
...
8
Enclosure, Warming WPL-W10634260
...
9
Cover, Gas Valve WPL-W10727084
...
10
Cover, Wire WPL-W10634259
...
11
Sensor WPL-W11676788
...
12
Element, Bake WPL-W10541944
...
13
Cover, Side WPL-W10551019
...
14
Spacer WPL-W11190816
...
15
Insulation, Drawer Front WPL-W10551018
...
16
Insulation WPL-W11688515
...
17
Panel, Front Inner WPL-W10541947
...
18
Fuse, Thermal WPL-W10729897
...
19
Screw WPL-W11169708
...
20
Rack, Bake Drawer WPL-W10602493
...
21
Insulation WPL-W11688775

...
...
NI
Backsplash Assembly (Stainless) WPL-W10655450
