Jenn-Air JED4430KS00

Model: JED4430KS00

Save Part Not Listed?
product name

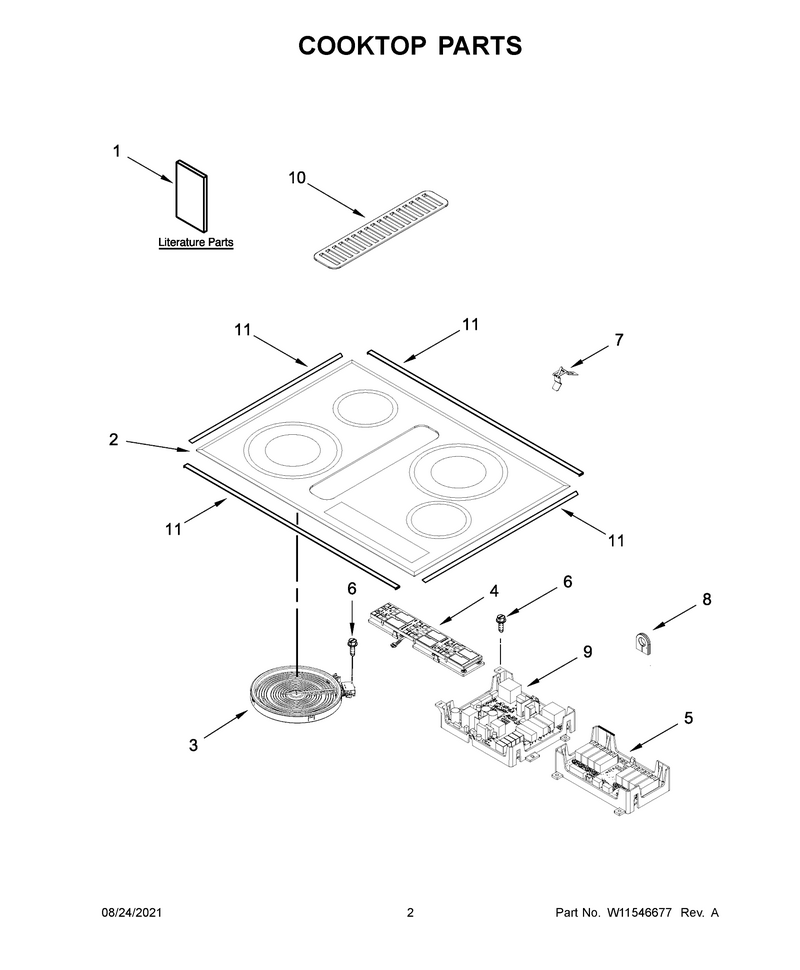

02 - Cooktop Parts

...
...
NI
Tape WPL-WP8286642
...
1A
Instructions, User WPL-W11439177
...
1B
Sheet, Tech WPL-W11031713
...
1C
Diagram, Wiring WPL-W10917819
...
1
Instructions, Installation WPL-W11439180
...
2
Cooktop WPL-W11557674
...
2A
Cooktop WPL-W11557675
...
3
Elmnt-Surf WPL-W11517959
...
3A
Elmnt-Surf WPL-WPW10342780
...
3B
Elmnt-Surf WPL-W11171119
...
4
Display WPL-W11083931
...
5
Cntrl-Elec WPL-W11083951
...
6
Screw WPL-WP90767
...
7
Spring WPL-WPW10225448
...
8
Grommet, Wire (Gray) (Large Hole) WPL-W10324729
...
9
Cntrl-Elec WPL-W11556188
...
10
Grille WPL-W11476087
...
11
Trim-Cktop WPL-W11091955

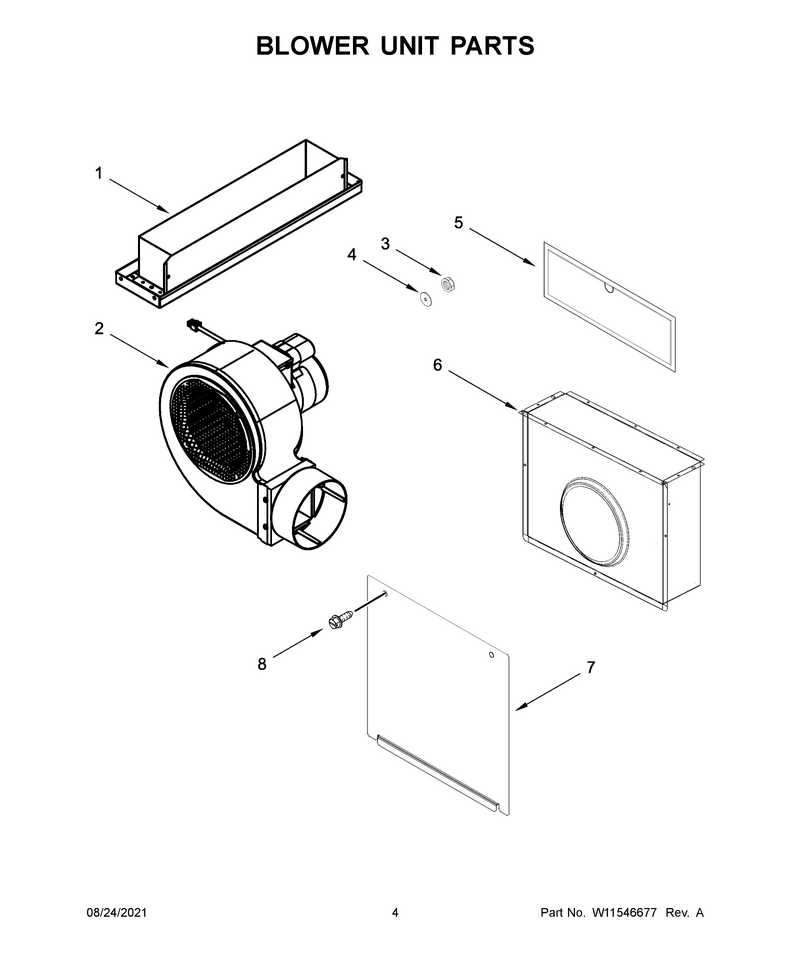

03 - Blower Unit Parts

...
...
1
Assembly, Top Plenum WPL-W10872755
...
2
Motor-Blwr WPL-W11083804
...
3
Locknut WPL-WPY707702
...
4
Washer WPL-7109P086-60
...
5
Filter WPL-W10905834
...
6
Assembly, Lower Plenum WPL-W10837738
...
7
Panel, Lower Plenum Access WPL-W10837737
...
8
Screw WPL-WPY706189

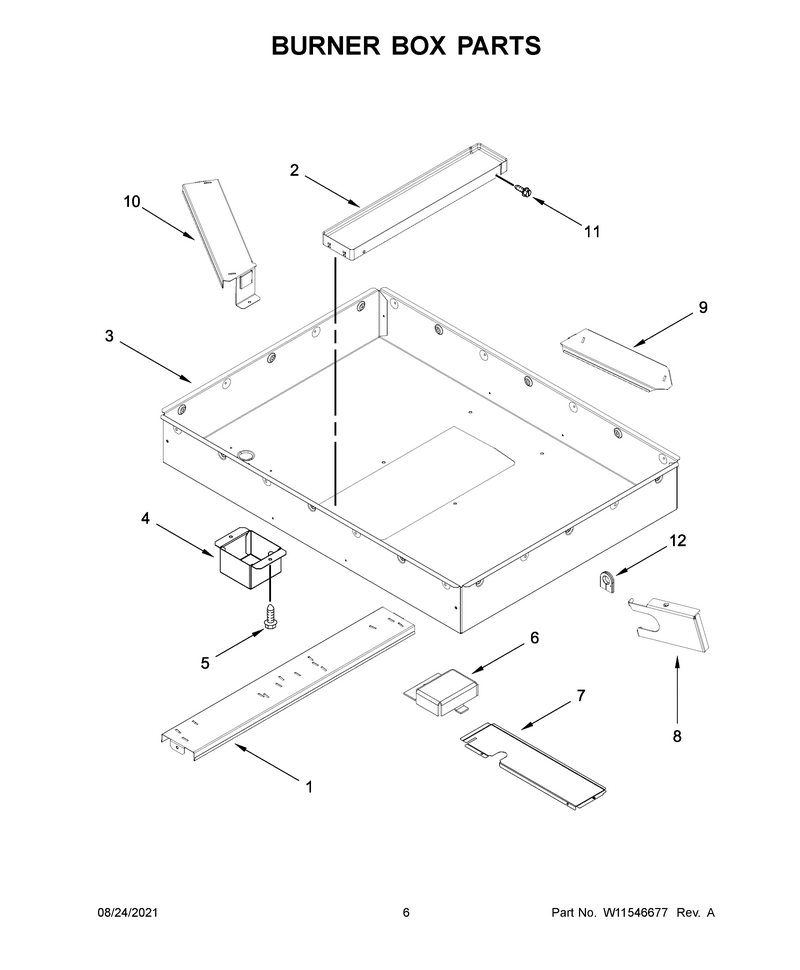

04 - Burner Box Parts

...
...
1
Rail, Straight WPL-W10815392
...
2
Tray, Spill WPL-W10235990
...
3
Following Parts Not Illustrated WPL-N/P
...
4
Cover, Blower Motor Harness WPL-W10258697
...
5
Screw WPL-WP90767
...
6
Cover, Connector WPL-8285593
...
7
Shield, Heat WPL-W10842296
...
8
Shield, Side Heat WPL-W10874833
...
9
Rail, Front WPL-W10858345
...
10
Rail, Rear WPL-W10858346
...
11
Screw WPL-WPY706189
...
12
Grommet, Wire (Gray) (Large Hole) WPL-W10324729

...
...
NI
Following Parts Not Illustrated WPL-N/P
