Jenn-Air JEC4536KS00

Model: JEC4536KS00

Save Part Not Listed?
product name

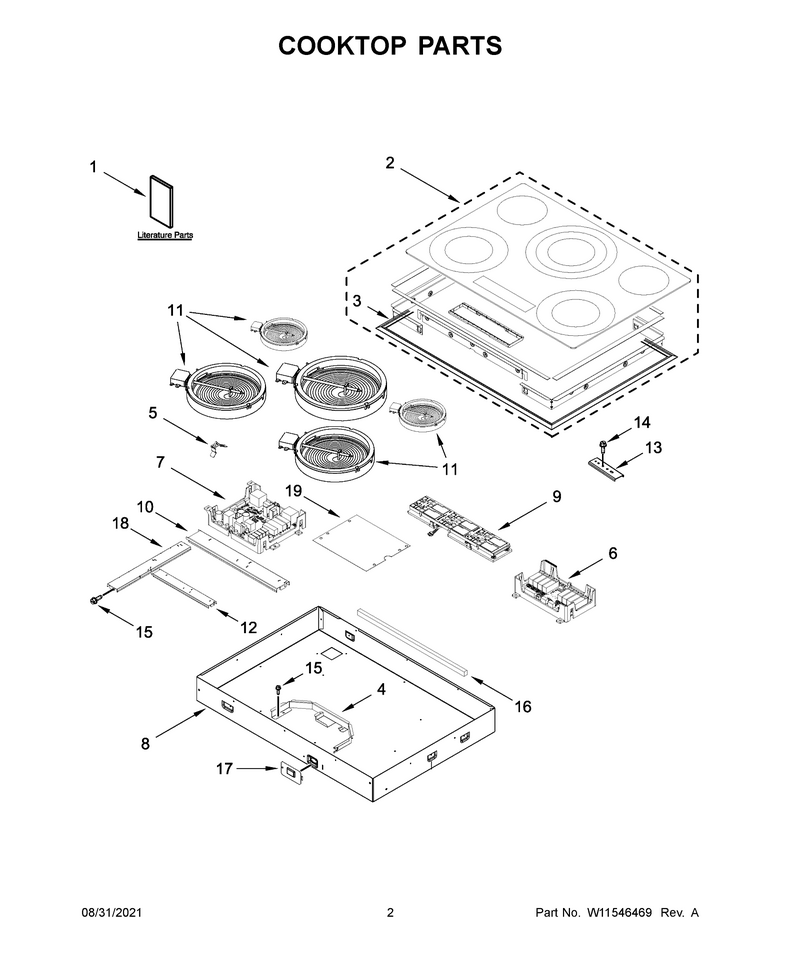

02 - Cooktop Parts

...
...
NI
Insulation WPL-W11261074
...
1
Installation Instructions WPL-W11439183
...
1A
Instructions, Undercounter Install WPL-W10351318
...
1B
Owner's Manual WPL-W11439184
...
1C
Diagram, Wiring WPL-W11238373
...
2
Cooktop WPL-W11283299
...
2A
Cooktop WPL-W11283508
...
3
Assembly, Trim (For Stainless Models) WPL-W10422109
...
4
Shield, Heat WPL-W11110726
...
5
Spring WPL-WPW10225448
...
6
Cntrl-Elec WPL-W11282854
...
7
Cntrl-Elec WPL-W11350287
...
8
Following Parts Not Illustrated WPL-N/P
...
9
Display WPL-W11556186
...
10
Rail, Auxiliar WPL-W11110717
...
11
Elmnt-Surf WPL-W11517959
...
11A
Elmnt-Surf WPL-W11171119
...
11B
Elmnt-Surf WPL-WPW10298145
...
12
Rail, Horizontal WPL-W11106010
...
13
Hardware WPL-8186533
...
14
Screw WPL-WP3400093
...
15
Screw WPL-WP90767
...
16
Seal-Foam WPL-W11260678
...
17
Following Parts Not Illustrated WPL-N/P
...
18
Rail, Short Cooktop WPL-W11110716
...
19
Pad, Insulation WPL-W11242976

...
...
NI
Accessories, Cleaner, Cooktop WPL-W10355051
