Jenn-Air JDRP648HL01

Model: JDRP648HL01

Save Part Not Listed?
product name

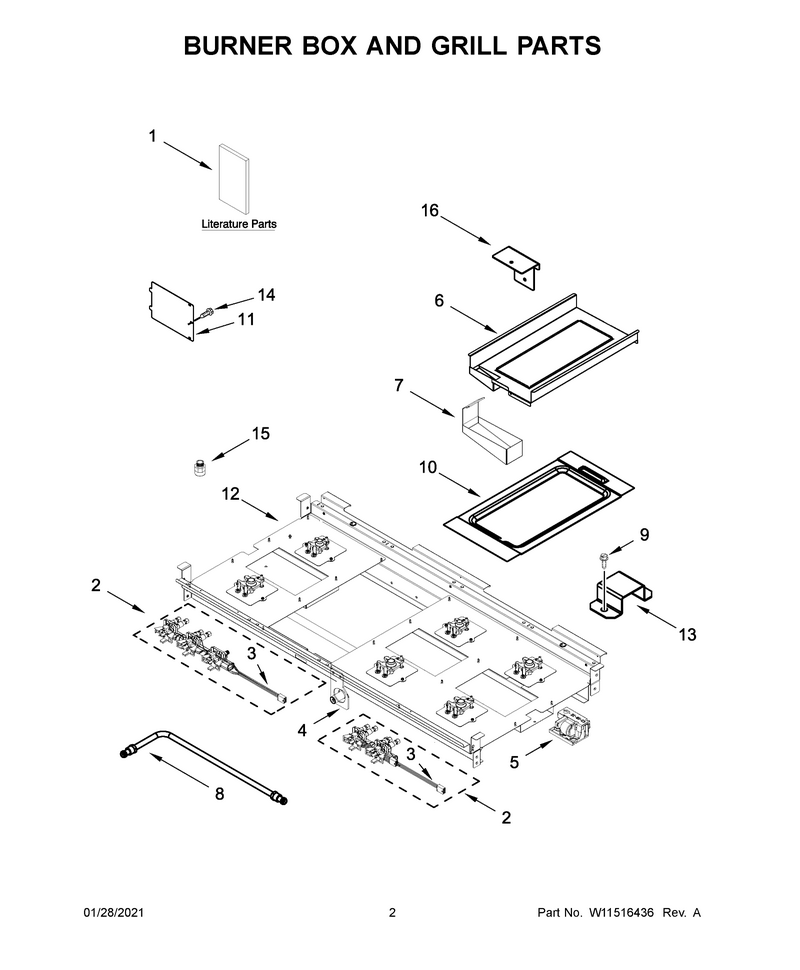

02 - Burner Box And Grill Parts

...
...
NI
Cnvrsn-Kit WPL-W11428599
...
1
Guide, Use And Care WPL-W11114330
...
1A
Instructions, Installation WPL-W11114333
...
1B
Guide, Quick Start WPL-W11177312
...
1C
Guide, Internet Connectivity WPL-W11184746
...
1D
Diagram, Wiring (Cooktop) WPL-W11266584
...
1E
Diagram, Wiring (Oven) WPL-W11202370
...
1F
Sheet, Tech WPL-W11202265
...
2
Manifold WPL-W11328262
...
2A
Manifold WPL-W11320019
...
2B
Manifold WPL-W11320017
...
3
Harns-Wire WPL-W11328263
...
3A
Harns-Wire WPL-W11320016
...
4
Brkt-Mntg WPL-W11320153
...
5
Module-Spk WPL-W11319687
...
6
Tray-Drip WPL-W11328011
...
7
Tray-Drip WPL-W11328012
...
8
Tubing-Gas WPL-W11328265
...
8A
Tubing-Gas WPL-W11328266
...
8B
Tubing-Gas WPL-W11328267
...
9
Screw WPL-WP7101P434-60
...
10
Deflctr-Ht WPL-W11328372
...
11
Cover, Ignition WPL-W10115843
...
12
Following Parts Not Illustrated WPL-N/P
...
13
Bracket, Grill Orifice Holder WPL-W11174418
...
14
Screw WPL-WP90767
...
15
Adapter, Male WPL-4453116
...
16
Bracket, Grill Grease Capture WPL-W11285353

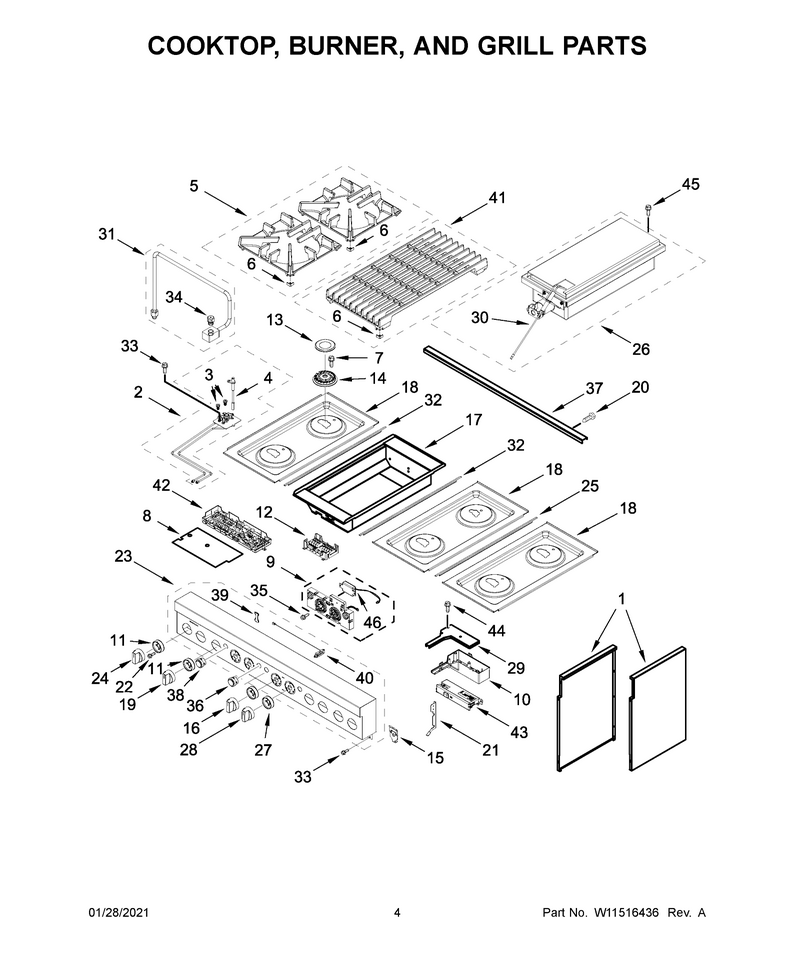

03 - Cooktop, Burner, And Grill Parts

...
...
1
Side-Compt WPL-W11321067
...
1A
Side-Compt WPL-W11320596
...
2
Holder-Orf WPL-W11319741
...
2A
Holder-Orf WPL-W11319746
...
2B
Holder-Orf WPL-W11327979
...
2C
Holder-Orf WPL-W11327980
...
2D
Holder-Orf WPL-W11327981
...
2E
Holder-Orf WPL-W11327982
...
3
Spud-Orfce WPL-W11643164
...
3A
Orifice, Main (15.4k) (Left Rear And Right Front) WPL-W10892418
...
3B
Orifice, Main (7.2k) (Left Center Rear) WPL-W10892440
...
3C
Spud-Orfce WPL-W11661909
...
3D
Orifice, Simmer (2.0k) (Left Center Rear) WPL-W10892429
...
4
Igntr-Surf WPL-W11573760
...
4A
Igniter (Left Center Rear) WPL-W11238756
...
5
Grate-Brnr WPL-W11515370
...
6
Pad-Grate WPL-W11550692
...
7
Screw WPL-W11323260
...
8
Insulator WPL-W11320149
...
9
Cntrl-Elec WPL-W11492266
...
10
Cover-Cntl WPL-W11320411
...
11
Accessory Parts, Brass, Surface And Gril WPL-W11316873
...
12
Cntrl-Elec WPL-W11317945
...
13
Cap-Burner WPL-W11319224
...
14
Burnr-Head WPL-W11319683
...
14A
Burnr-Head WPL-W11319673
...
15
Clip WPL-W11318207
...
16
Knob WPL-W11596839
...
17
Box-Burner WPL-W11328566
...
18
Cooktop WPL-W11316696
...
18A
Cooktop WPL-W11316697
...
18B
Cooktop WPL-W11328972
...
19
Knob WPL-W11620700
...
20
Screw WPL-W11233072
...
21
Bracket, Moving Console (Left) WPL-W10130760
...
21A
Bracket, Moving Console (Right) WPL-W10130759
...
22
Screw WPL-W11509770
...
23
Panl-Cntrl WPL-W11444409
...
24
Knob WPL-W11574368
...
25
Trim, T-Strip (Black) WPL-W10271524
...
26
Burnr-Gril WPL-W11328568
...
27
Accessory Parts, Chrome, Oven WPL-W11317499
...
28
Knob WPL-W11574369
...
29
Cover-Cntl WPL-W11320410
...
30
Igntr-Surf WPL-W11328571
...
31
Holder-Orf WPL-W11517686
...
32
Trim, L-Strip WPL-W10291193
...
33
Screw WPL-WP90767
...
34
Orifice, Grill (18k) (Center) WPL-W11419282
...
35
Screw WPL-WP3400814
...
36
Buttn-Push WPL-W11319196
...
37
Trim-Top WPL-W11320157
...
38
Buttn-Push WPL-W11318857
...
39
Light-Ind WPL-W11318856
...
40
Antenna WPL-W11318855
...
41
Grate-Gril WPL-W11515378
...
42
Cntrl-Elec WPL-W11328373
...
43
Cntrl-Elec WPL-W11234290
...
44
Screw WPL-W10709795
...
45
Screw WPL-WP3196557
...
46
Speaker WPL-W11123146

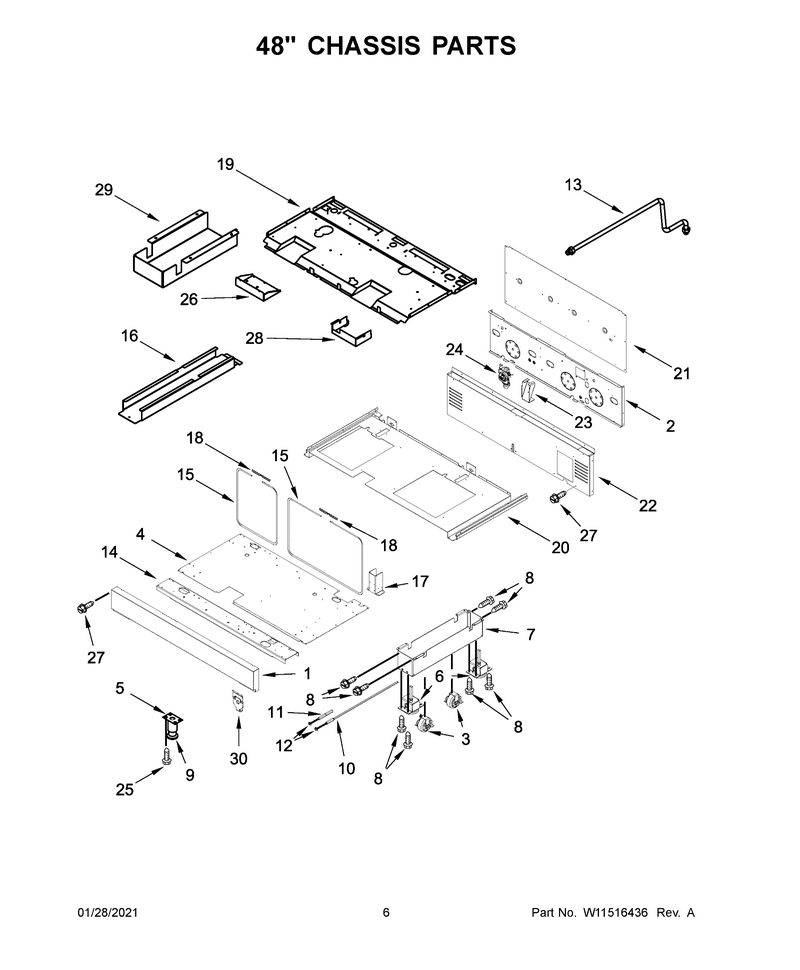

04 - 48" Chassis Parts

...
...
1
Plate-Covr WPL-W11317946
...
2
Cover-Rear WPL-W11388050
...
3
Roller-Cab WPL-WPW10138054
...
4
Duct WPL-W11320536
...
5
Plate-Mtg WPL-WP9759118
...
6
Foot-Level WPL-W10859931
...
7
Base, Leveling Leg WPL-W10908710
...
8
Screw WPL-WP4449743
...
9
Foot-Level WPL-WP9759117
...
10
Shaft, Long WPL-W10115869
...
11
Shaft, Short WPL-W10115793
...
12
E-Ring WPL-489504
...
13
Tubing-Gas WPL-W11320154
...
14
Support, Channel WPL-W11369238
...
15

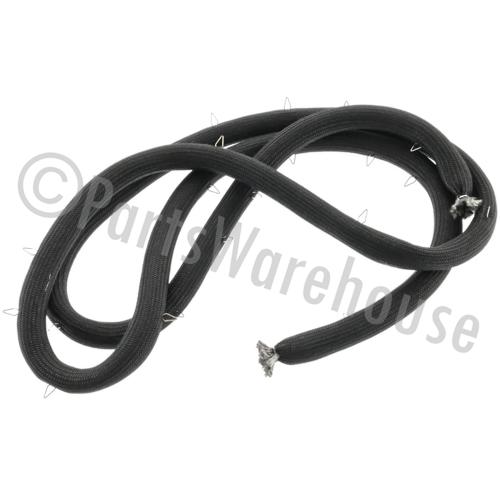

Gasket-Ovn WPL-W11675844
...
15A
Gasket, Cavity (18 In) WPL-W11115326
...
16
Duct-Chassis, Rear WPL-W11050145
...
17
Column, Central WPL-W10115819
...
18
Retainer, Gasket (9 In Long) WPL-W11362015
...
19
Top-Oven WPL-W11388055
...
20
Bottm-Main WPL-W11320545
...
21
Cover-Rear WPL-W11320600
...
22
Cover-Rear WPL-W11320599
...
23
Brkt-Mntg WPL-W11320155
...
24
Regulator WPL-W11106948
...
25
Screw WPL-3400518
...
26
Drawer WPL-W11320147
...
27
Screw WPL-WP90767
...
28
Cabinet, Appliance Manager WPL-W11369237
...
29
Channel, Wire WPL-W11368831
...
30
Clip WPL-W11318207

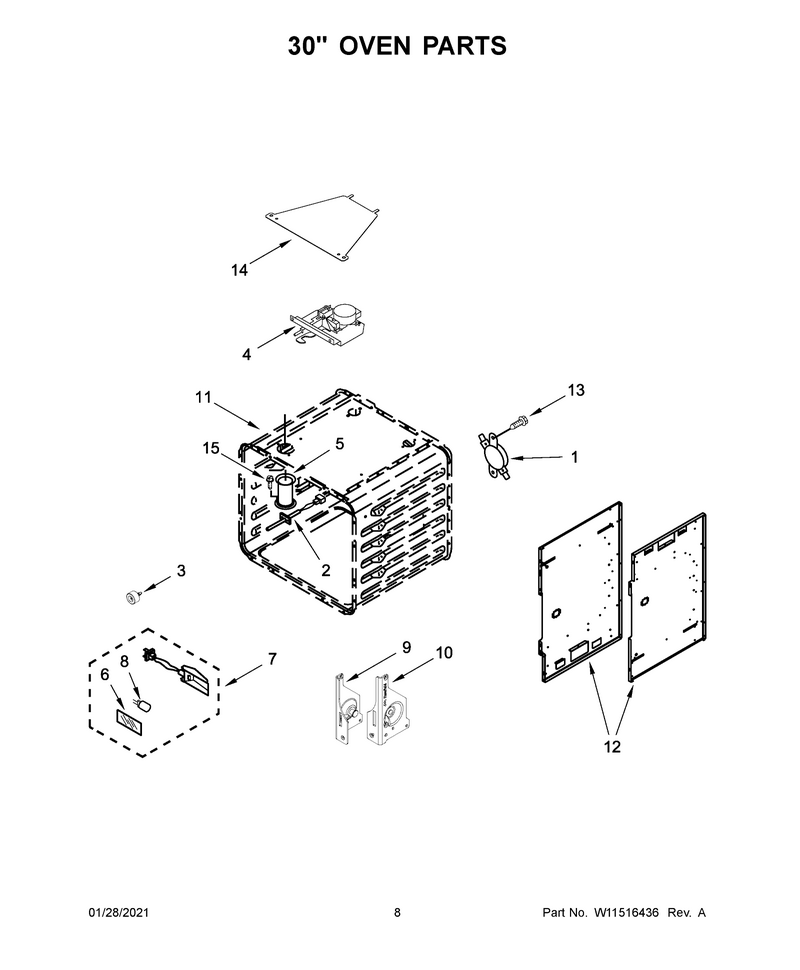

05 - 30" Oven Parts

...
...
NI
Nut WPL-WP3400968
...
1
Thrmst-Fix WPL-WP4449751
...
2
Sensor WPL-W10859573
...
3
Bumper WPL-WPW10351278
...
4
Latch-Door WPL-W11029221
...
5
Tube-Vent WPL-W11318343
...
6
Lens, Light WPL-W10169756
...
7
Light-Oven WPL-W11233684
...
8
Bulb-Light WPL-WPW10169757
...
9
Hinge-Recv WPL-W11318331
...
10
Hinge-Recv WPL-W11317948
...
11
Following Parts Not Illustrated WPL-N/P
...
12
Panel-Cbnt WPL-W11320145
...
12A
Panel-Cbnt WPL-W11320144
...
13
Screw WPL-WP90767
...
14
Cover, Latch WPL-W10160858
...
15
Screw WPL-W11233072

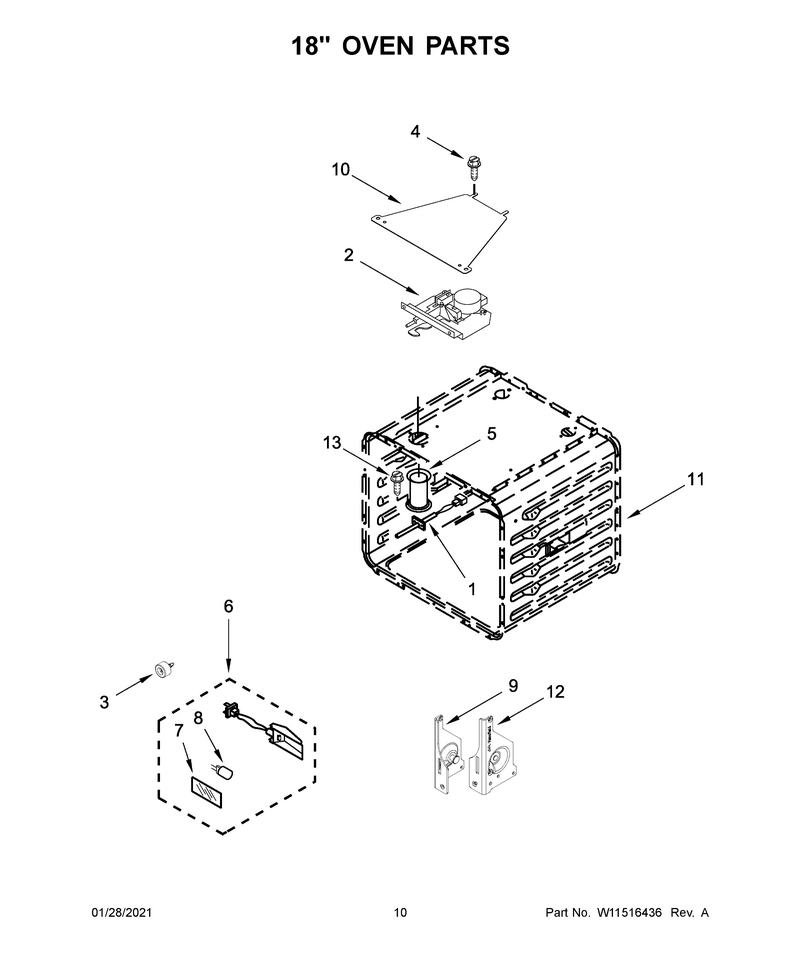

06 - 18" Oven Parts

...
...
NI
Nut WPL-WP3400968
...
1
Sensor WPL-W10859573
...
2
Latch-Door WPL-W11029221
...
3
Bumper WPL-WPW10351278
...
4
Screw WPL-WP90767
...
5
Tube, Vent WPL-W10288078
...
6
Light-Oven WPL-W11233684
...
7
Lens, Light WPL-W10169756
...
8
Bulb-Light WPL-WPW10169757
...
9
Hinge-Recv WPL-W11318331
...
10
Cover, Latch WPL-W10160858
...
11
Following Parts Not Illustrated WPL-N/P
...
12
Hinge-Recv WPL-W11317948
...
13
Screw WPL-W11233072

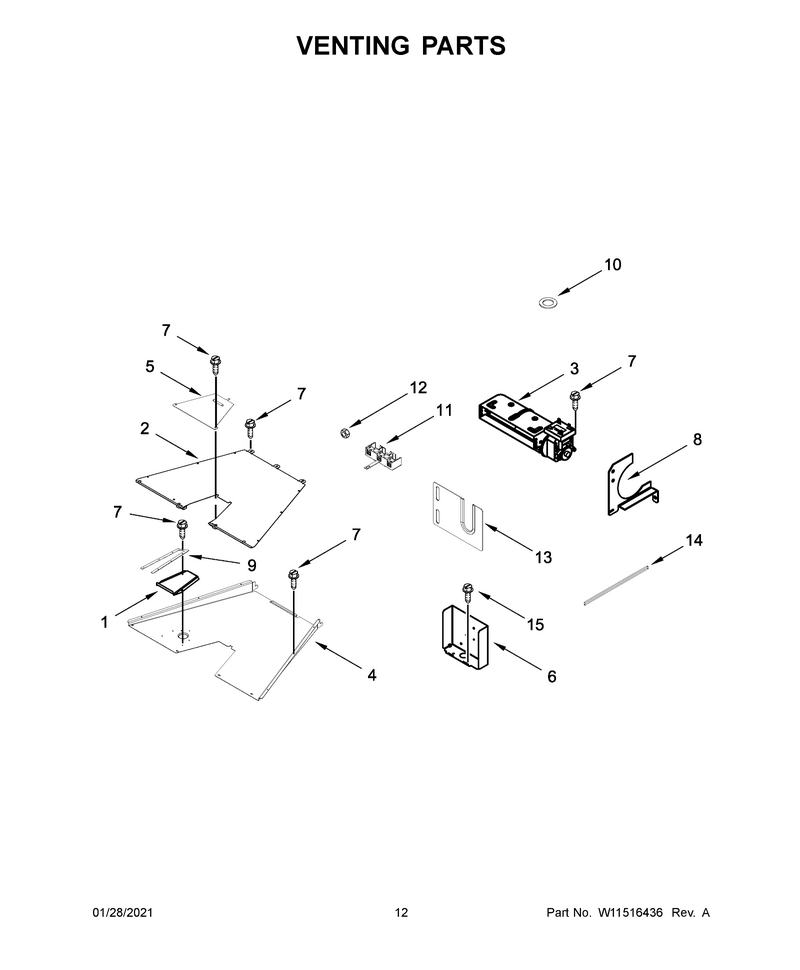

07 - Venting Parts

...
...
1
Slope, Exhaust Vent (30 In) WPL-W10818234
...
1A
Slope, Exhaust Vent (18 In) WPL-W10818235
...
2
Panel-Vent WPL-W11320402
...
2A
Vent-Exhst WPL-W11320597
...
3
Blower WPL-W11248652
...
4
Panel-Vent WPL-W11320403
...
4A
Panel-Vent WPL-W11320598
...
5
Cover-Ltch WPL-W11320405
...
6
Box, Terminal WPL-W11353392
...
7
Screw WPL-WP90767
...
8
Bracket, Blower Mount WPL-W11047754
...
9
Seal, Vent Slope (30 In) WPL-W10270397
...
9A
Seal, Vent Slope (18 In) WPL-W10270402
...
10
Seal, Chimney WPL-W10270396
...
11
Block-Term WPL-WP9761958
...
12
Nut WPL-WP112432
...
13
Covr-Acess WPL-W11320407
...
14
Gasket WPL-W11175143
...
15
Screw WPL-W11169708

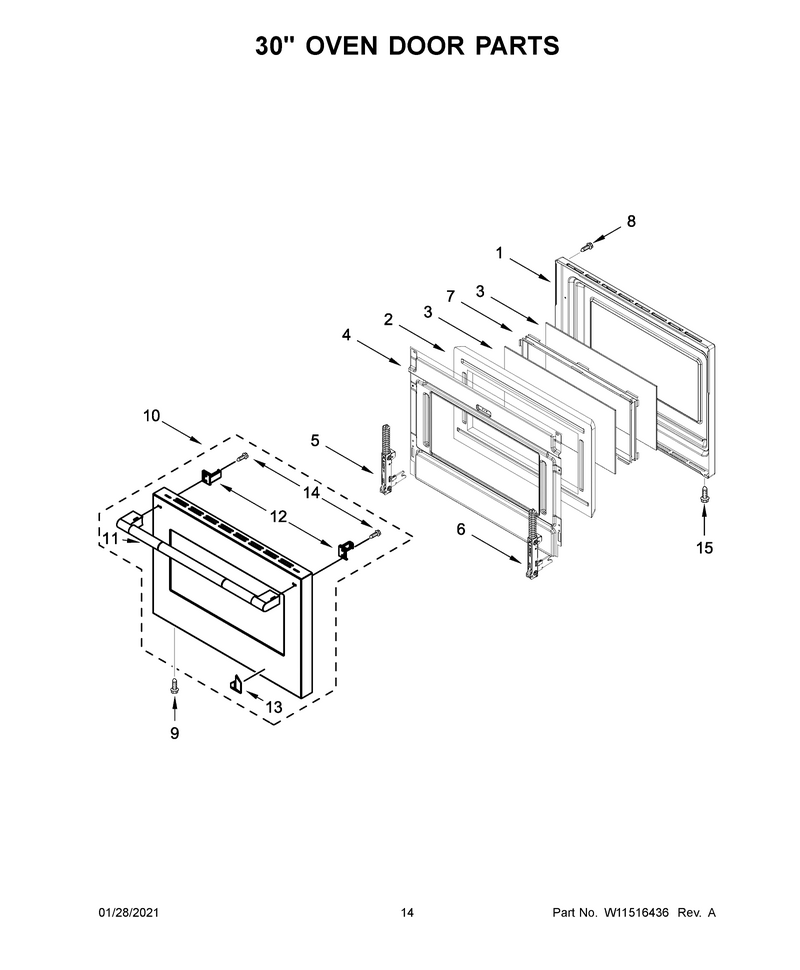

08 - 30" Oven Door Parts

...
...
1
Frame-Glas WPL-W11318831
...
2
Insulation WPL-W11688537
...
3
Glass-Door WPL-W11318823
...
4
Retainer WPL-W11318344
...
5
Hinge-Door WPL-W11643630
...
6
Hinge-Door WPL-W11643898
...
7
Frame-Wndw WPL-WPW10272594
...
8
Screw WPL-W11712404
...
9
Screw WPL-W10162096
...
10
Glass-Door WPL-W11315557
...
11
Hndle-Door WPL-W11317501
...
12
Brkt-Mntg WPL-W11317513
...
13
Nameplate WPL-W11317500
...
14
Screw WPL-WPW10276043
...
15
Screw WPL-W11193480

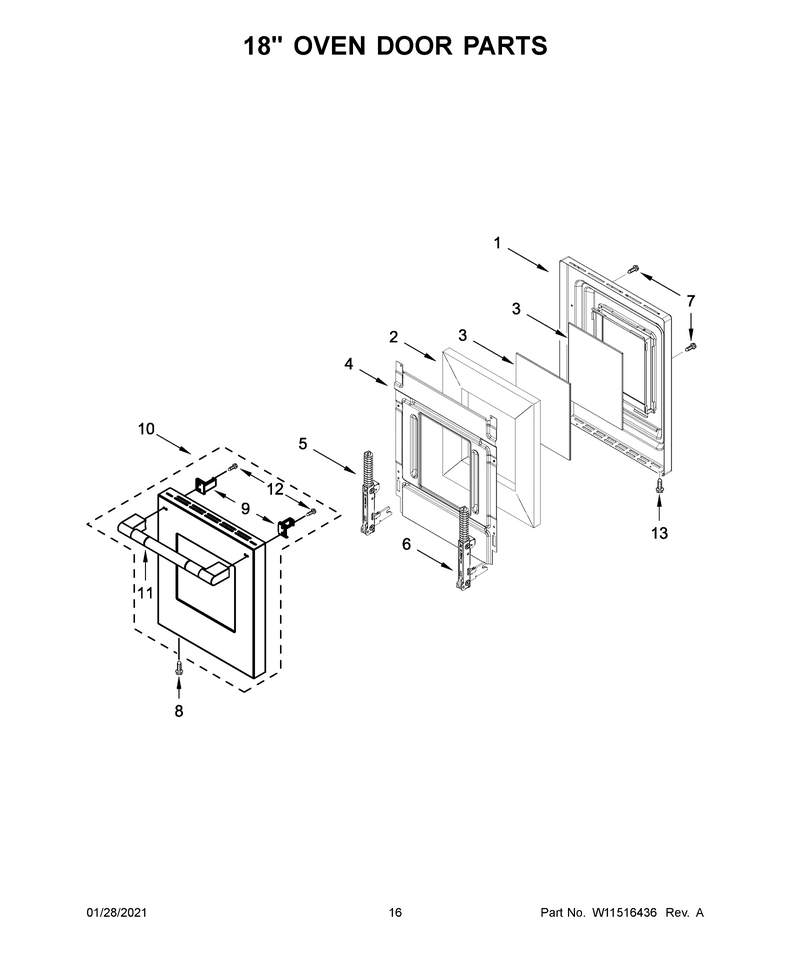

09 - 18" Oven Door Parts

...
...
1
Frame-Glas WPL-W11318335
...
2
Insulation WPL-W11317950
...
3
Glass-Door WPL-W11317951
...
4
Retainer WPL-W11318328
...
5
Hinge-Door WPL-W11643896
...
6
Hinge-Door WPL-W11643900
...
7
Screw WPL-W11712404
...
8
Screw WPL-W10162096
...
9
Brkt-Mntg WPL-W11317513
...
10
Glass-Door WPL-W11315559
...
11
Hndle-Door WPL-W11317517
...
12
Screw WPL-WPW10276043
...
13
Screw WPL-W11193480

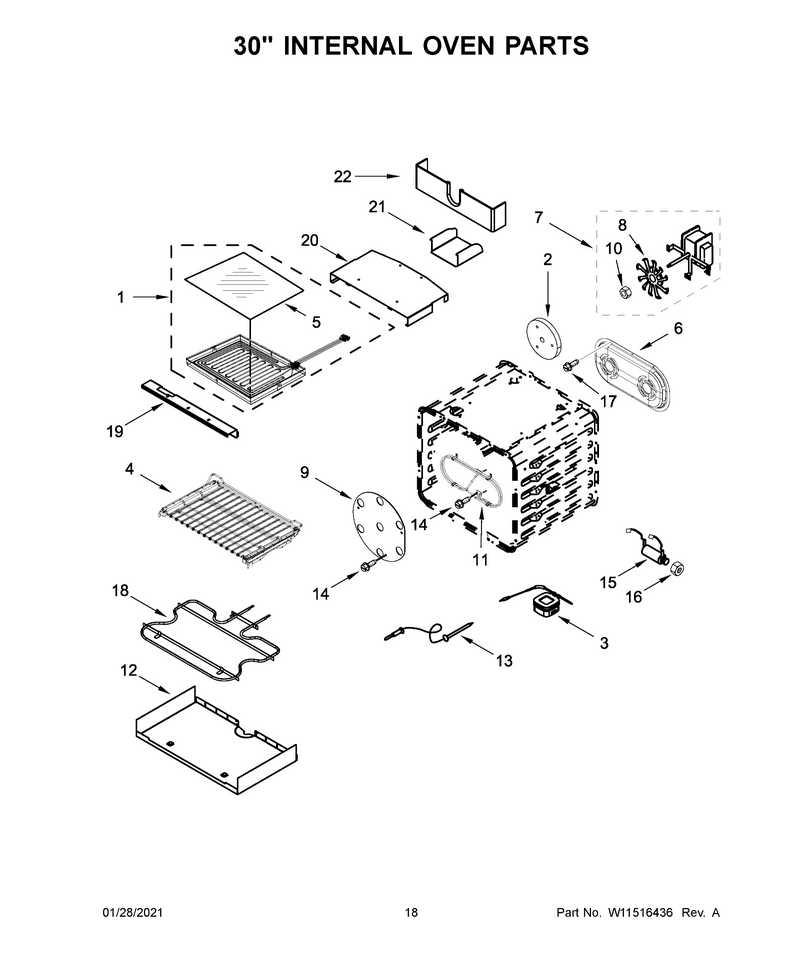

10 - 30" Internal Oven Parts

...
...
1
Element, Broil WPL-W11210530
...
2
Insulation WPL-W11688507
...
3
Probe-Meat WPL-W11318341
...
4
Rack-Oven WPL-W11563568
...
5
Glass, Broil Element WPL-W11193191
...
6
Baffle, Convection WPL-W11232487
...
7
Motor-Fan WPL-W11685616
...
8
Fan-Convct WPL-W11320150
...
9
Plate, Fan WPL-W10261523
...
10
Nut WPL-W10794042
...
11
Element, Convection WPL-W10116434
...
12
Tray-Bake WPL-W11320540
...
13
Probe-Meat WPL-WP9755542
...
14
Screw WPL-WP4449154
...
15
Jack-Probe WPL-8186589
...
16
Locknut WPL-W11231343
...
17
Screw WPL-W10739592
...
18
Element, Hidden Bake WPL-W10115995
...
19
Bracket, Broil Front WPL-W11112336
...
20
Bracket, Broil Top WPL-W11158843
...
21
Cover, Broil Terminal WPL-W11111391
...
22
Cover Plate, Terminal Hole WPL-W11170823

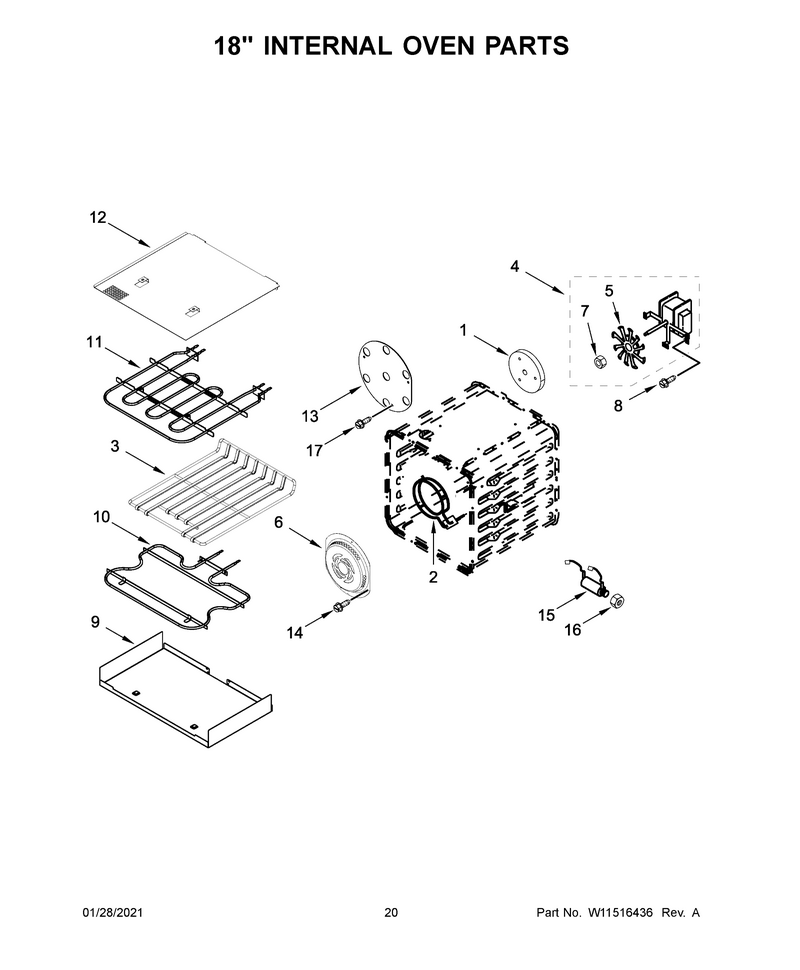

11 - 18" Internal Oven Parts

...
...
1
Insulation WPL-W11688507
...
2
Element WPL-W11643125
...
3
Rack, Oven (18 In) WPL-W11111351
...
4
Motor-Fan WPL-W11685616
...
5
Fan-Convct WPL-W11320150
...
6
Cover, Fan WPL-W11368180
...
7
Nut WPL-W10794042
...
8
Screw WPL-WP4449154
...
9
Tray-Bake WPL-W11320538
...
10
Element, Hidden Bake WPL-W11045324
...
11
Element, Broil WPL-W10116010
...
12
Shield, Element Broil WPL-W10160855
...
13
Plate, Fan WPL-W10261523
...
14
Screw WPL-W10739592
...
15
Jack-Probe WPL-8186589
...
16
Locknut WPL-W11231343
...
17
Screw WPL-W10850807

...
...
NI
Chrome, Surface And Grill WPL-W11323061
