Jenn-Air JDRP536HL01

Model: JDRP536HL01

Save Part Not Listed?
product name

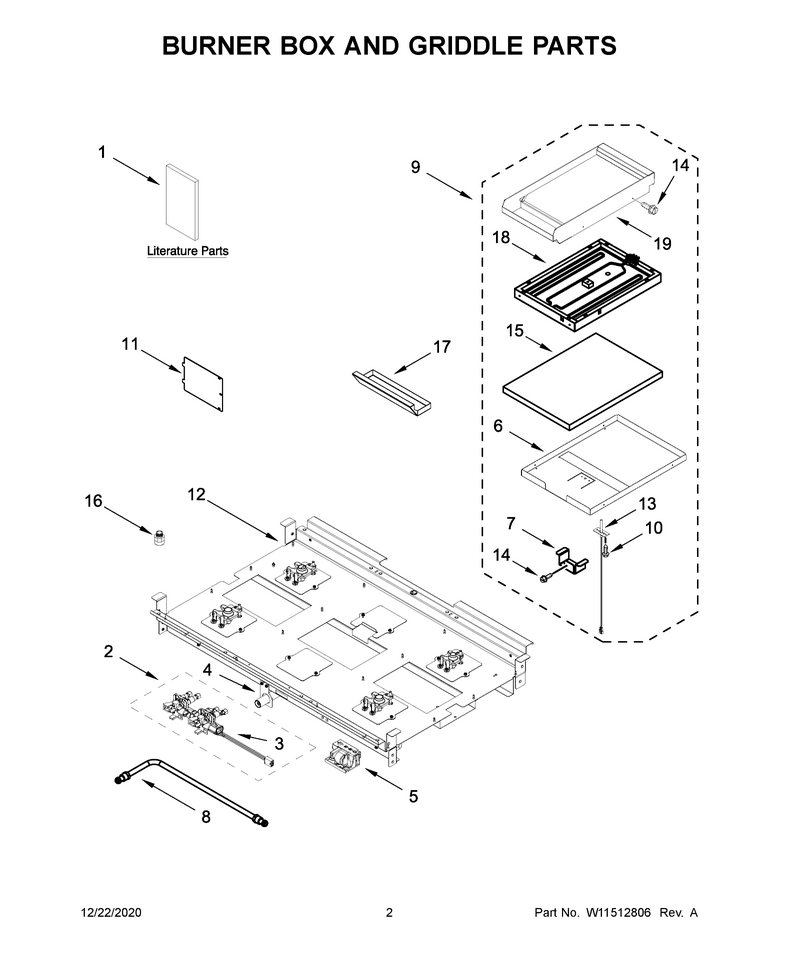

02 - Burner Box And Griddle Parts

...
...
NI
Cnvrsn-Kit WPL-W11428599
...
1
Guide, Use And Care WPL-W11114330
...
1A
Guide, Quick Start WPL-W11177312
...
1B
Instructions, Installation WPL-W11114333
...
1C
Guide, Internet Connectivity WPL-W11184746
...
1D
Diagram, Wiring (Cooktop) WPL-W11266585
...
1E
Diagram, Wiring (Oven) WPL-W11202363
...
1F
Sheet, Tech WPL-W11202265
...
2
Manifold WPL-W11333175
...
2A
Manifold WPL-W11333176
...
3
Harns-Wire WPL-W11320016
...
4
Brkt-Mntg WPL-W11320153
...
5
Module-Spk WPL-W11319687
...
6
Tray, Griddle Insulation WPL-W11330430
...
7
Brkt-Mntg WPL-W11319226
...
8
Tubing-Gas WPL-W11333177
...
8A
Tubing-Gas WPL-W11333178
...
9
Module WPL-W11602621
...
10
Screw WPL-W10491985
...
11
Cover, Ignition WPL-W10115843
...
12
Following Parts Not Illustrated WPL-N/P
...
13
Sensor WPL-W11319618
...
14
Screw WPL-W10162096
...
15
Insulation WPL-W11319228
...
16
Adapter, Male WPL-4453116
...
17
Tray, Griddle Drip WPL-W10276497
...
18
Elmnt-Gril WPL-W11319602
...
19
Griddle WPL-W11602622

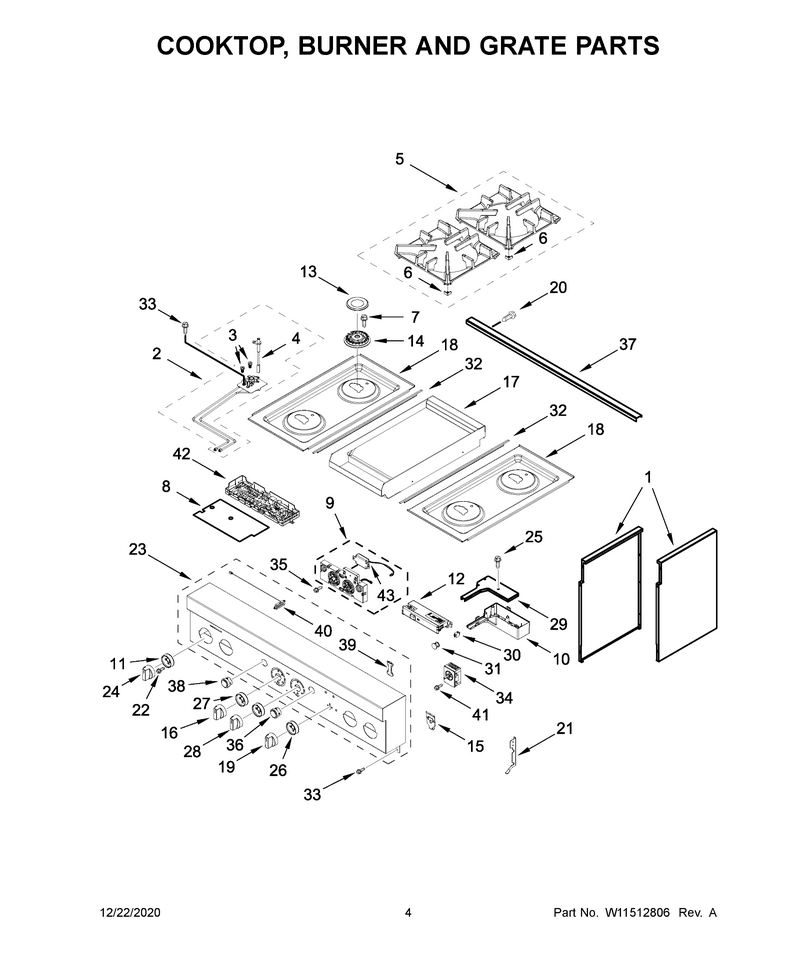

03 - Cooktop, Burner And Grate Parts

...
...
1
Side-Compt WPL-W11333179
...
1A
Side-Compt WPL-W11333303
...
2
Holder-Orf WPL-W11333305
...
2A
Holder-Orf WPL-W11333306
...
2B
Holder-Orf WPL-W11333307
...
2C
Holder-Orf WPL-W11333309
...
3
Spud-Orfce WPL-W11643164
...
3A
Orifice, Main (15.4k) (Left Rear And Right Front) WPL-W10892418
...
3B
Orifice, Main (7.2k) (Left Center Rear) WPL-W10892440
...
3C
Spud-Orfce WPL-W11661909
...
3D
Orifice, Simmer (2.0k) (Left Center Rear) WPL-W10892429
...
4
Igntr-Surf WPL-W11573760
...
4A
Igniter (Left Center Rear) WPL-W11238756
...
5
Grate-Brnr WPL-W11515370
...
6
Pad-Grate WPL-W11550692
...
7
Screw WPL-W11323260
...
8
Insulator WPL-W11320149
...
9
Cntrl-Elec WPL-W11492269
...
10
Cover-Cntl WPL-W11320411
...
11
Accessory Parts, Brass, Surface And Gril WPL-W11316873
...
12
Cntrl-Elec WPL-W11234290
...
13
Cap-Burner WPL-W11328971
...
14
Burnr-Head WPL-W11319683
...
14A
Burnr-Head WPL-W11319673
...
15
Clip WPL-W11318207
...
16
Knob WPL-W11596839
...
17
Module WPL-W11602621
...
18
Cooktop WPL-W11316696
...
18A
Cooktop WPL-W11334155
...
19
Knob WPL-W11316866
...
20
Screw WPL-W11233072
...
21
Bracket, Moving Console (Left) WPL-W10130760
...
21A
Bracket, Moving Console (Right) WPL-W10130759
...
22
Screw WPL-W11509770
...
23
Panl-Cntrl WPL-W11444077
...
24
Knob WPL-W11574368
...
25
Screw WPL-W10709795
...
26
Accessory Parts, Brass, Griddle WPL-W11317495
...
27
Accessory Parts, Chrome, Oven WPL-W11317499
...
28
Knob WPL-W11574369
...
29
Cover-Cntl WPL-W11320410
...
30
Light, Indicator Housing WPL-W10116114
...
31
Lens, Indicator Light WPL-W10294500
...
32
Trim, L-Strip WPL-W10291193
...
33
Screw WPL-WP90767
...
34
Switch-Inf WPL-W11318834
...
35
Screw WPL-WP3400814
...
36
Buttn-Push WPL-W11319196
...
37
Trim, Island WPL-W11156416
...
38
Buttn-Push WPL-W11318857
...
39
Light-Ind WPL-W11318856
...
40
Antenna WPL-W11318855
...
41
Screw WPL-WP7101P309-60
...
42
Cntrl-Elec WPL-W11690997
...
43
Speaker WPL-W11123146

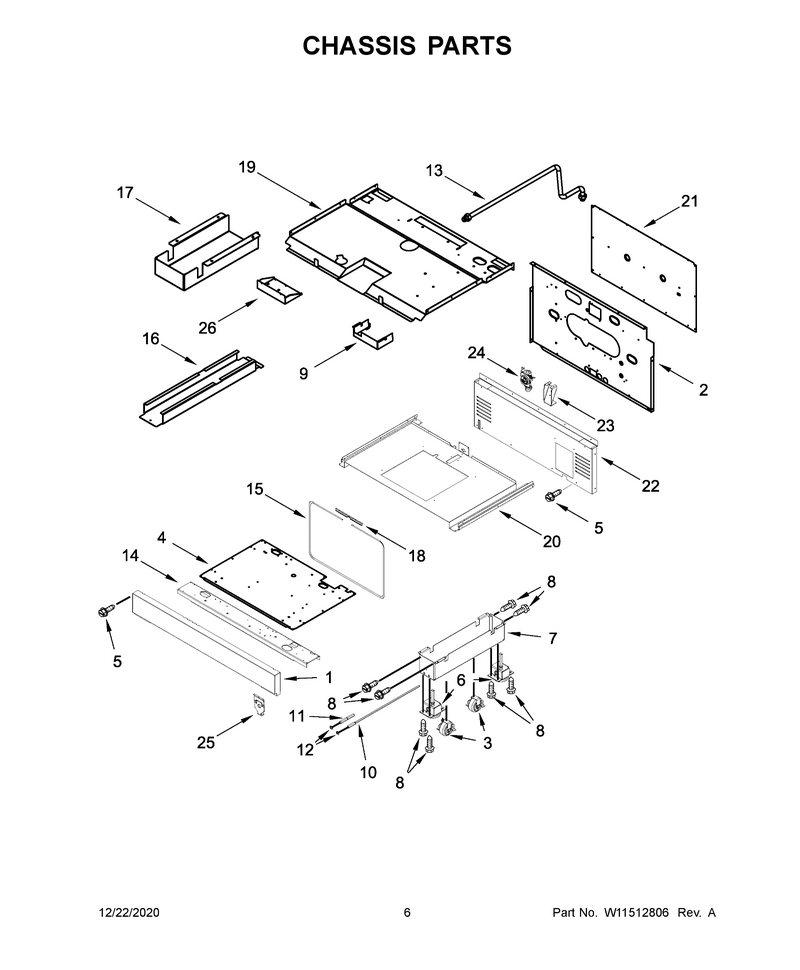

04 - Chassis Parts

...
...
1
Plate-Covr WPL-W11333399
...
2
Back, Chassis WPL-W11324988
...
3
Roller-Cab WPL-WPW10138054
...
4
Duct, Bottom (36 In) WPL-W11095572
...
5
Screw WPL-WP90767
...
6
Foot-Level WPL-W10859931
...
7
Base, Leveling Leg WPL-W10908710
...
8
Screw WPL-WP4449743
...
9
Cabinet, Appliance Manager WPL-W11369237
...
10
Shaft, Long WPL-W10115869
...
11
Shaft, Short WPL-W10115793
...
12
E-Ring WPL-489504
...
13
Tubing-Gas WPL-W11320154
...
14
Support, Channel WPL-W11087493
...
15
Gasket-Ovn WPL-W11676901
...
16
Duct-Chassis, Rear WPL-W11050145
...
17
Channel, Wire WPL-W11368831
...
18
Retainer, Gasket (9 In Long) WPL-W11362015
...
19
Top, Chassis WPL-W11324985
...
20
Chassis, Bottom WPL-W11040801
...
21
Panel, Back Top WPL-W11103333
...
22
Panel, Back Bottom WPL-W11034133
...
23
Brkt-Mntg WPL-W11320155
...
24
Regulator WPL-W11106948
...
25
Clip WPL-W11318207
...
26
Drawer WPL-W11320147

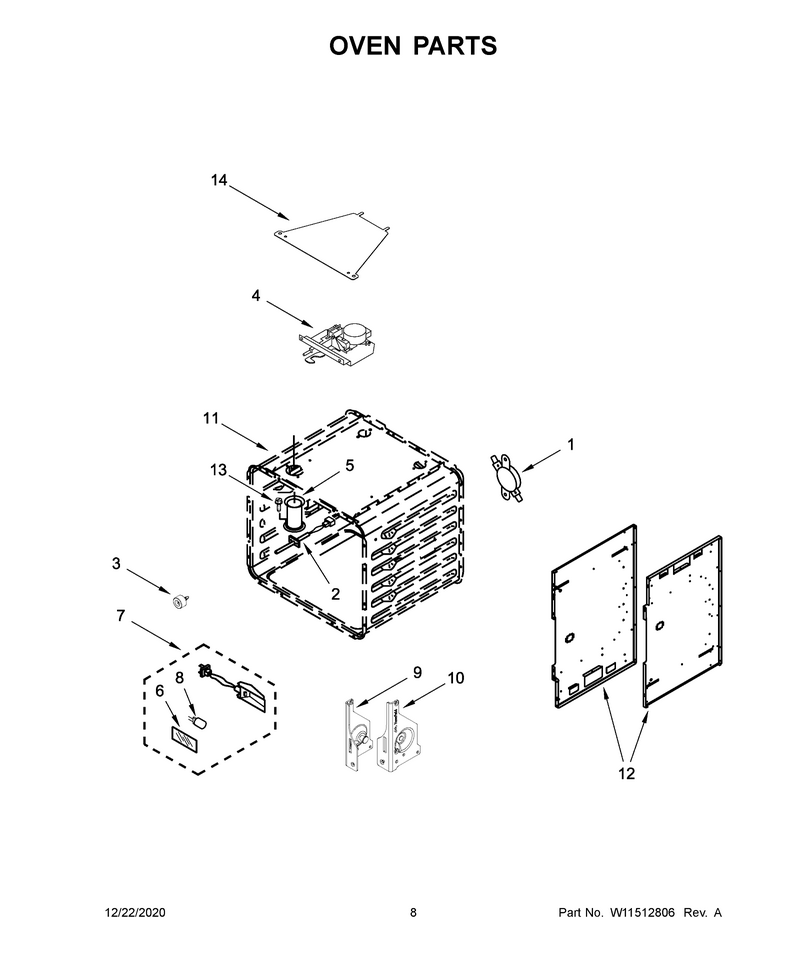

05 - Oven Parts

...
...
NI
Nut WPL-WP3400968
...
1
Thrmst-Fix WPL-WP4449751
...
2
Sensor WPL-W10859573
...
3
Bumper WPL-WPW10351278
...
4
Latch-Door WPL-W11029221
...
5
Tube-Vent WPL-W11318343
...
6
Lens, Light WPL-W10169756
...
7
Light-Oven WPL-W11233684
...
8
Bulb-Light WPL-WPW10169757
...
9
Hinge-Recv WPL-W11318331
...
10
Hinge-Recv WPL-W11317948
...
11
Following Parts Not Illustrated WPL-N/P
...
12
Panel-Cbnt WPL-W11320145
...
12A
Panel-Cbnt WPL-W11320144
...
13
Screw WPL-W11233072
...
14
Cover, Latch WPL-W10160858

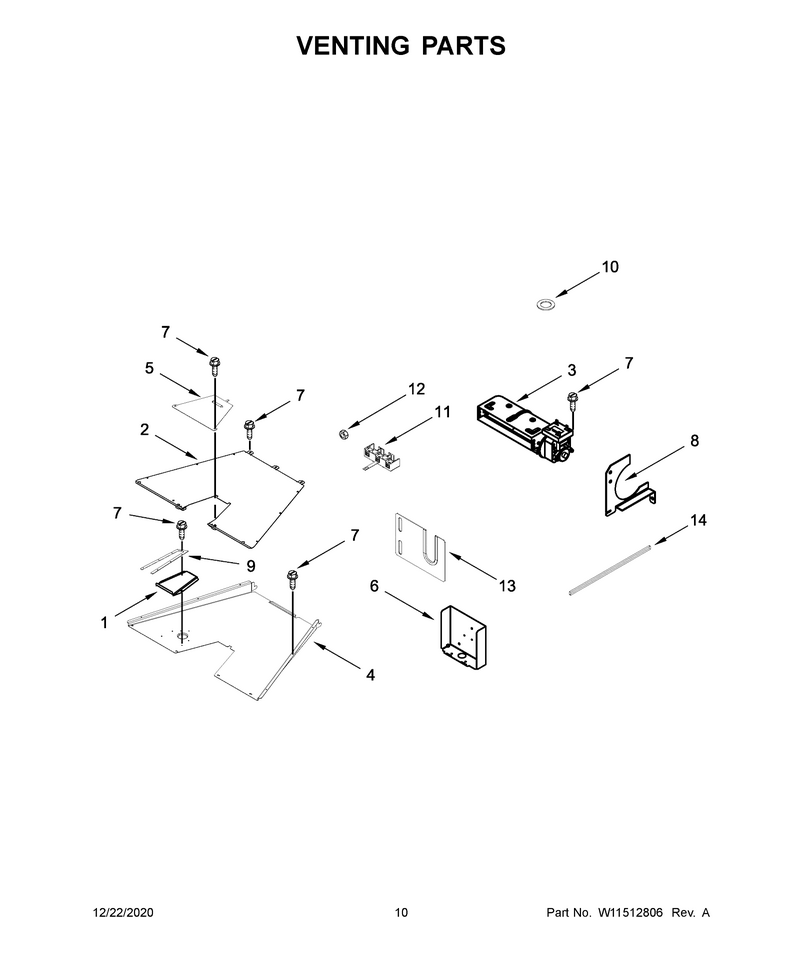

06 - Venting Parts

...
...
1
Slope, Exhaust Vent (30 In) WPL-W10818234
...
2
Panel-Vent WPL-W11320402
...
3
Blower WPL-W11248652
...
4
Panel-Vent WPL-W11320403
...
5
Cover-Ltch WPL-W11320405
...
6
Box, Terminal WPL-W11353392
...
7
Screw WPL-WP90767
...
8
Bracket, Blower Mount WPL-W11047754
...
9
Seal, Vent Slope (30 In) WPL-W10270397
...
10
Seal, Chimney WPL-W10270396
...
11
Block-Term WPL-WP9761958
...
12
Nut WPL-WP112432
...
13
Covr-Acess WPL-W11320407
...
14
Gasket WPL-W11175143

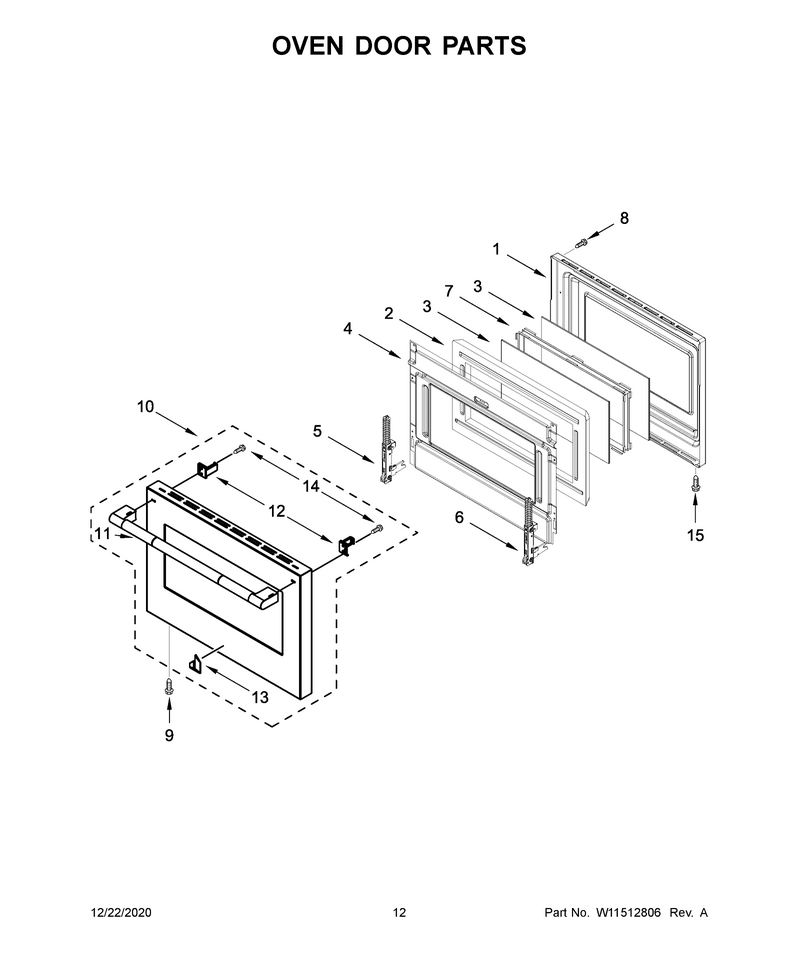

07 - Oven Door Parts

...
...
1
Frame-Glas WPL-W11334152
...
2
Insulation WPL-W11688331
...
3
Glass-Door WPL-W11334153
...
4
Retainer, Glass WPL-W11194820
...
5
Hinge-Door WPL-W11568941
...
6
Hinge-Door WPL-W11568813
...
7
Frame, Glass WPL-W11194814
...
8
Screw WPL-W11712404
...
9
Screw WPL-W10162096
...
10
Glass-Door WPL-W11315585
...
11
Hndle-Door WPL-W11334156
...
12
Brkt-Mntg WPL-W11317513
...
13
Nameplate WPL-W11317500
...
14
Screw WPL-WPW10276043
...
15
Screw WPL-W11193480

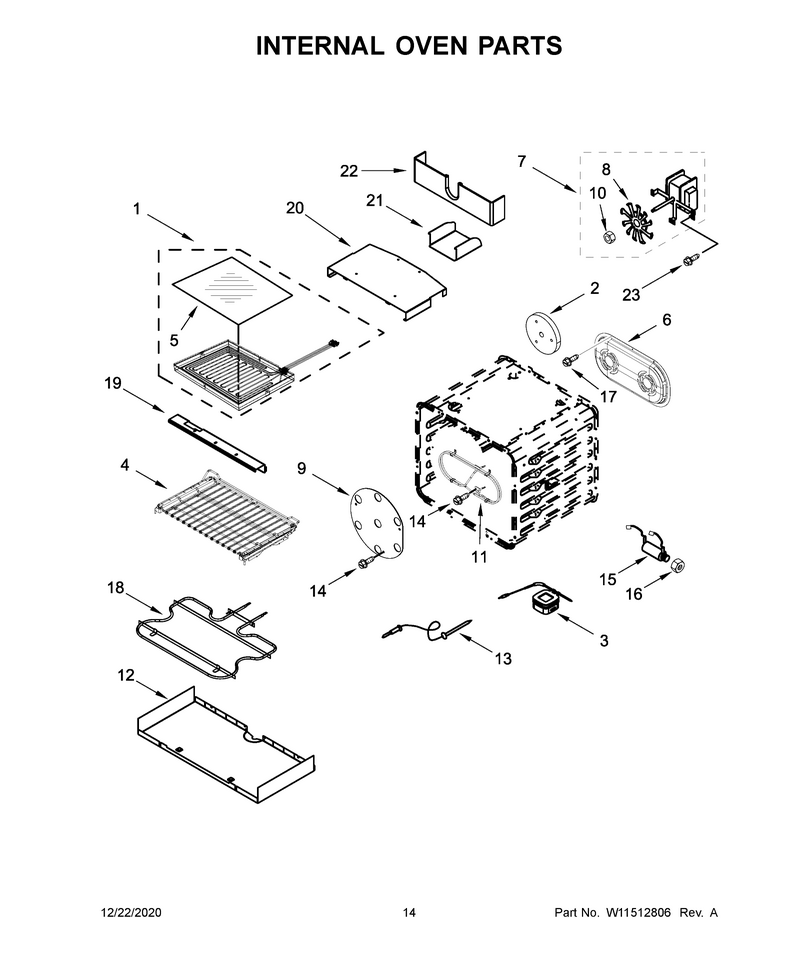

08 - Internal Oven Parts

...
...
1
Element, Broil WPL-W11210530
...
2
Insulation WPL-W11688507
...
3
Probe-Meat WPL-W11318341
...
4
Rack-Oven WPL-W11545292
...
5
Glass, Broil Element WPL-W11193191
...
6
Baffle, Convection WPL-W11232487
...
7
Motor-Fan WPL-W11685616
...
8
Fan-Convct WPL-W11320150
...
9
Plate, Fan WPL-W10261523
...
10
Nut WPL-W10794042
...
11
Element, Convection WPL-W10116434
...
12
Tray, Hidden Bake WPL-W11106922
...
13
Probe-Meat WPL-WP9755542
...
14
Screw WPL-WP4449154
...
15
Jack-Probe WPL-8186589
...
16
Locknut WPL-W11231343
...
17
Screw WPL-W10739592
...
18
Elmnt-Bake WPL-W10860270
...
19
Bracket, Broil Front WPL-W11112336
...
20
Bracket, Broil Top WPL-W11158843
...
21
Cover, Broil Terminal WPL-W11111392
...
22
Cover Plate, Terminal Hole WPL-W11170823
...
23
Screw WPL-W10850807

...
...
NI
Chrome, Surface And Grill WPL-W11323061
