Jenn-Air JDB1275AWY1

Model: JDB1275AWY1

Save Part Not Listed?
product name

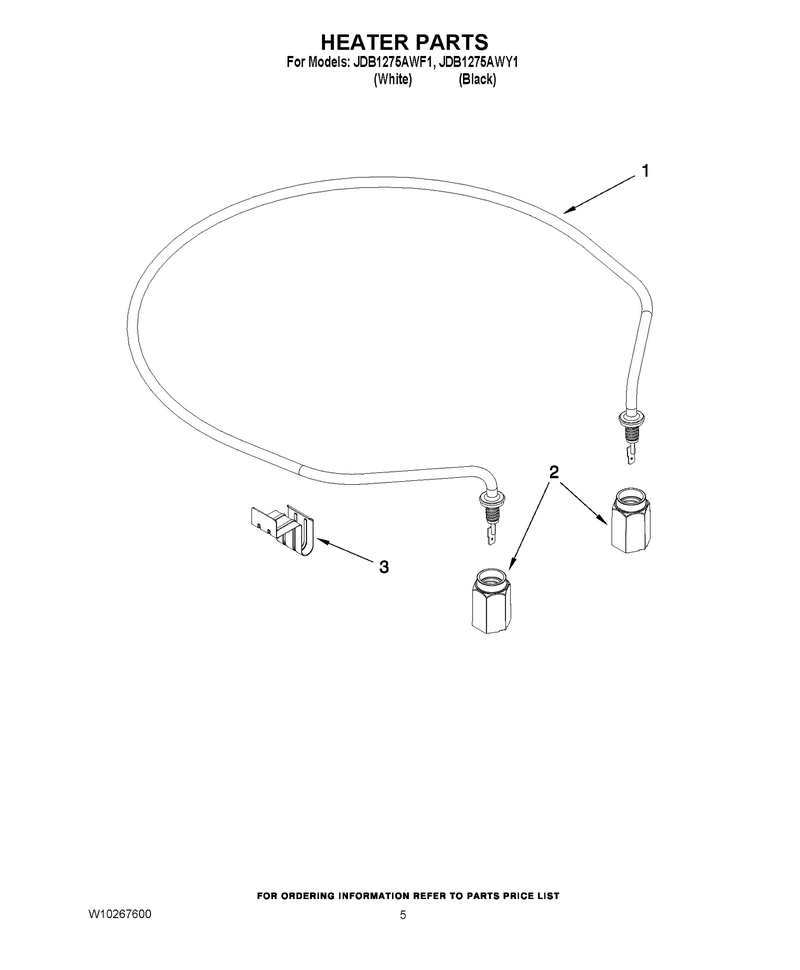

05 - Heater Parts

...
...
1
Heater Element Assembly W/ Gasket WPL-W10283681
...
2
Nut, Heater WPL-99003033
...
3
Bracket, Heater Support WPL-99003032

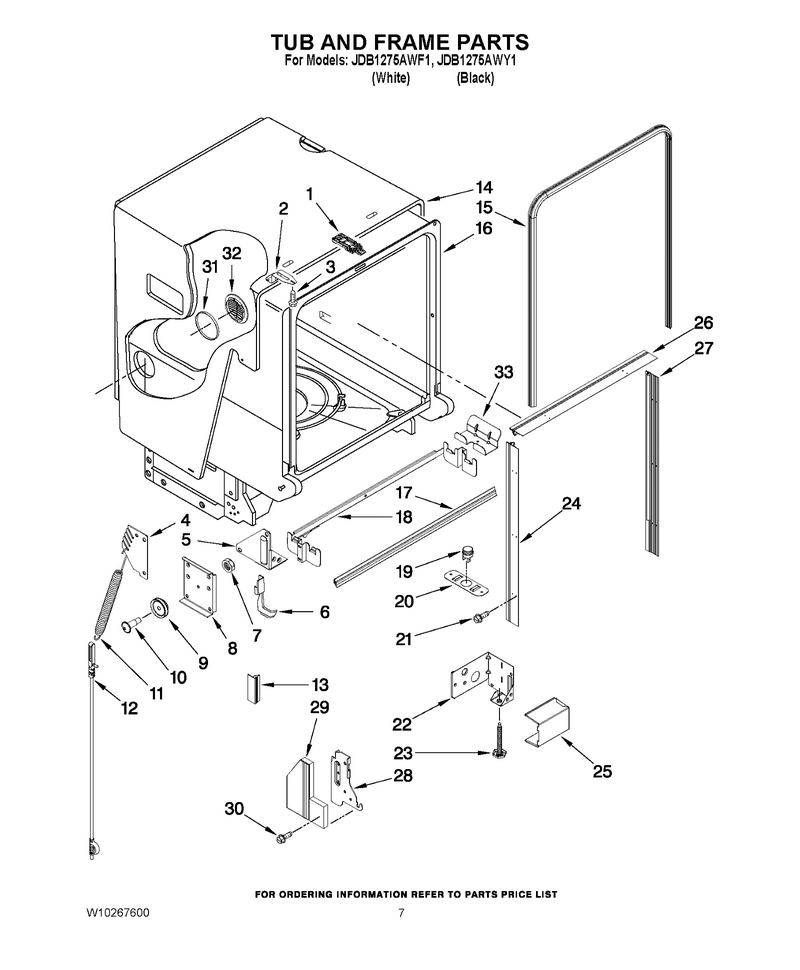

07 - Tub And Frame Parts

...
...
1
Strike WPL-WPW10119337
...
2
Bracket- C WPL-WP6-916881
...
3
Screwr WPL-6-912799
...
4
Bracket, Spring Adjustment WPL-6-918346
...
5
Bracket, Support WPL-99002636
...
6
Trim WPL-WP99003039
...
7
Nut WPL-99003688
...
8
Bracket, Cable WPL-W10173920
...
9
Roller- Ca WPL-WP99002608
...
10
Screw WPL-WP99003687
...
11
Spring- Do WPL-WP99003118
...
12
Door Cable WPL-WP99003446
...
13
Gap Seal, Toe Kick (White) WPL-99002703
...
14
Pad-Ins WPL-WPW10223013
...
15
Seal- Door WPL-WP99003337
...
16
Tub Assembly (Not Serviced) WPL-N/P
...
17
Trim WPL-WP99003041
...
18
Bracket, Support (Rear) WPL-W10167660
...
19
Thermostat, Limiting WPL-99002633
...
20
Clip, Thermostat WPL-W10167658
...
21
Screw, Trim Mounting WPL-99002692
...
22
Bracket, Junction Box WPL-99002637
...
23
Levler-Leg WPL-WPW10143258
...
24
Strip, Trim Left WPL-W10164700
...
25
Cover, Junction Box WPL-99002638
...
26
Strip, Trim Top WPL-W10164702
...
27
Strip, Trim Right WPL-W10164701
...
28
Support WPL-WPW10117485
...
29
Backer, Hinge (Right) WPL-W10174581
...
30
Screw WPL-99003155
...
31
Seal- Air WPL-WP99002150
...
32
Grill, Air/water Inlet WPL-6-918397
...
33
Clamp, Rear Support WPL-W10167916

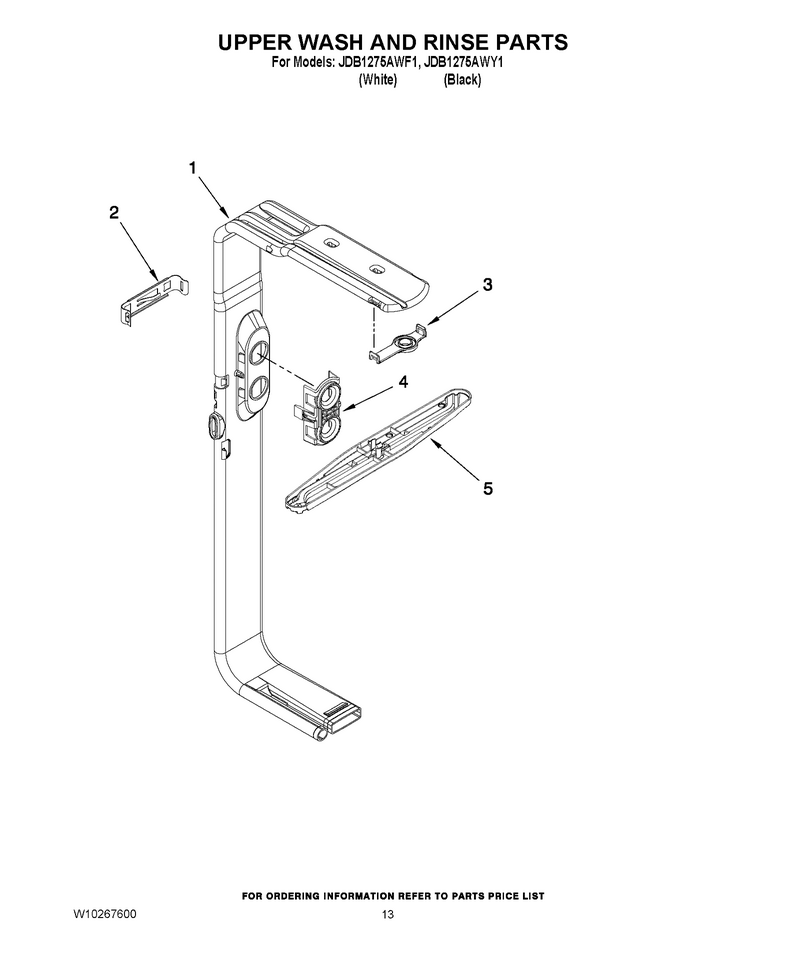

10 - Upper Wash And Rinse Parts

...
...
1
Tube-Feed WPL-WP99003081
...
2
Bracket- M WPL-WP99002643
...
3
Retainer WPL-WP99002753
...
4
Tube WPL-WP6-917647
...
5
Arm-Spray WPL-WP6-917644

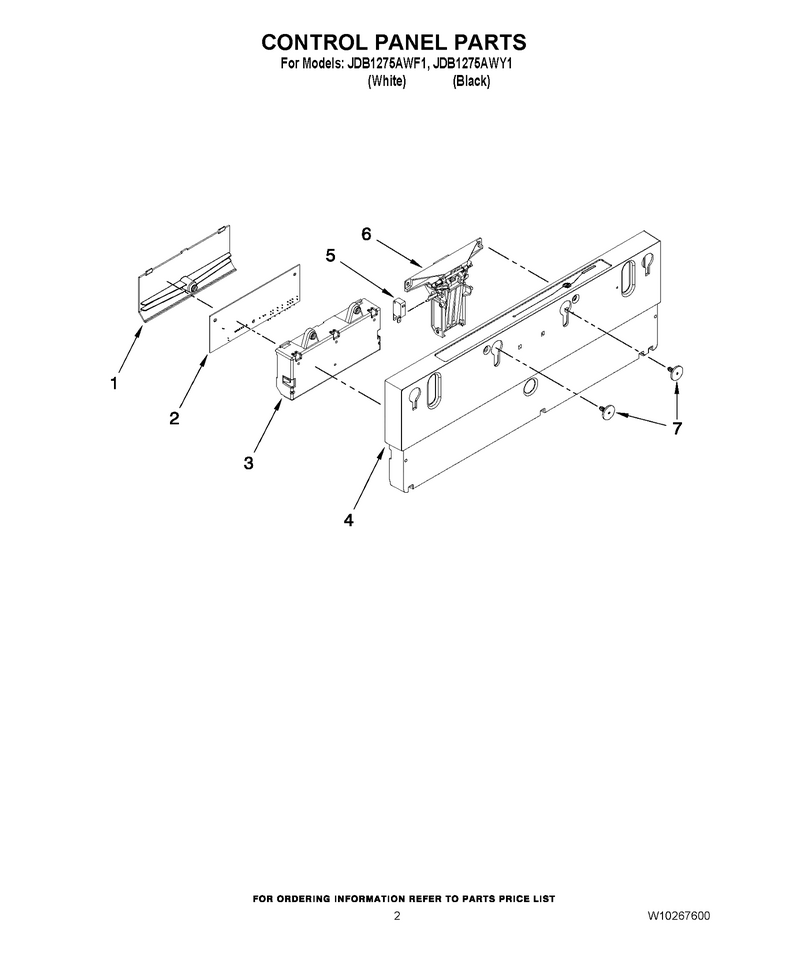

02 - Control Panel Parts

...
...
1
Housing, Board (Top) WPL-99002575
...
2
Cntrl-Elec WPL-WPW10218836
...
3
Cover WPL-WP99002576
...
4
Panel, Control WPL-W10161783
...
5
Switch- Do WPL-WP99002751
...
6
Latch-Door WPL-WPW10275768
...
7
Fastener, Panel WPL-99003096

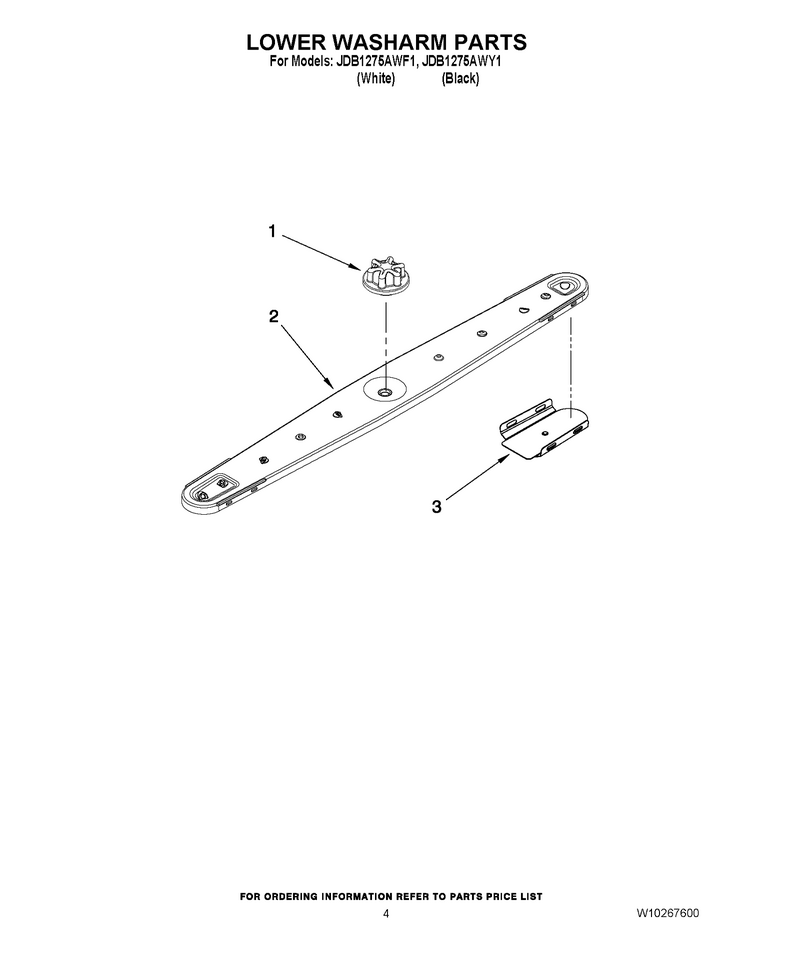

04 - Lower Washarm Parts

...
...
1
Cap- Wash WPL-WP99003083
...
2
Arm- Lower WPL-WP6-918806
...
3
Shield, Radiant WPL-W10218606

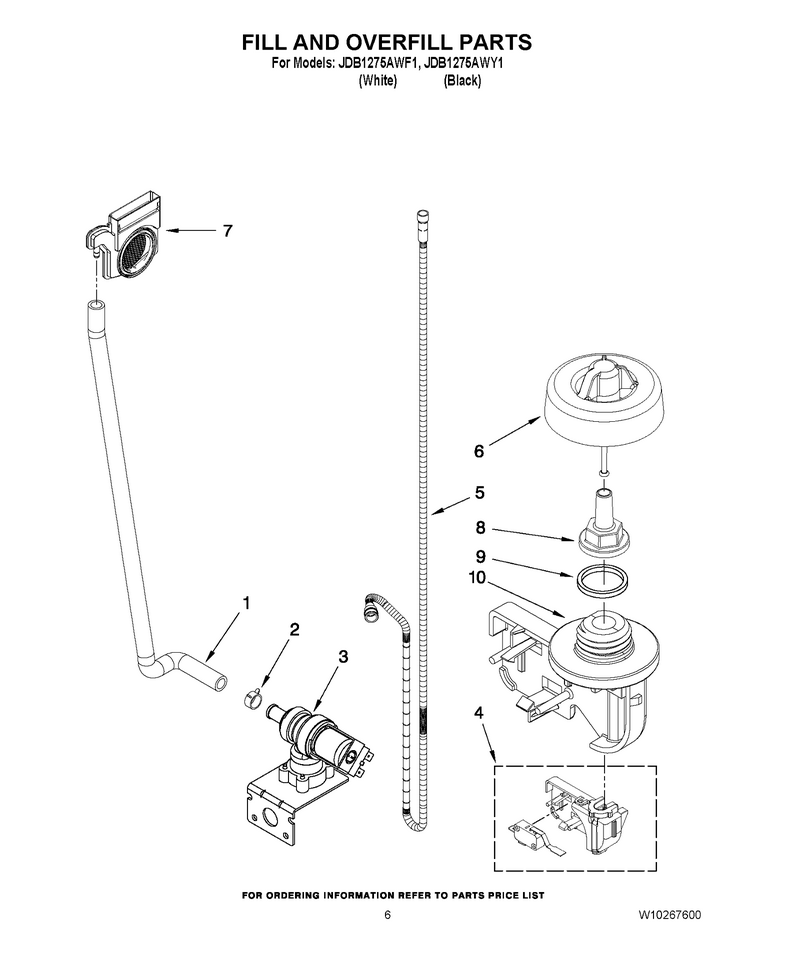

06 - Fill And Overfill Parts

...
...
1
Hose- Inje WPL-WP99002852
...
2
Clamp WPL-WP596669
...
3
Valve-Inlt WPL-W11082871
...
4
Housing WPL-WPW10205539
...
5
Hose- Drai WPL-WP99002652
...
6
Float WPL-W10202536
...
7
Inlet-Air WPL-WP99003028
...
8
Float WPL-WPW10268755
...
9
Standpipe WPL-W10833055
...
10
Holder, Float Switch WPL-W10130109

...
...
NI
Paint, Touch-Up (1/2oz.) (Black) WPL-72032

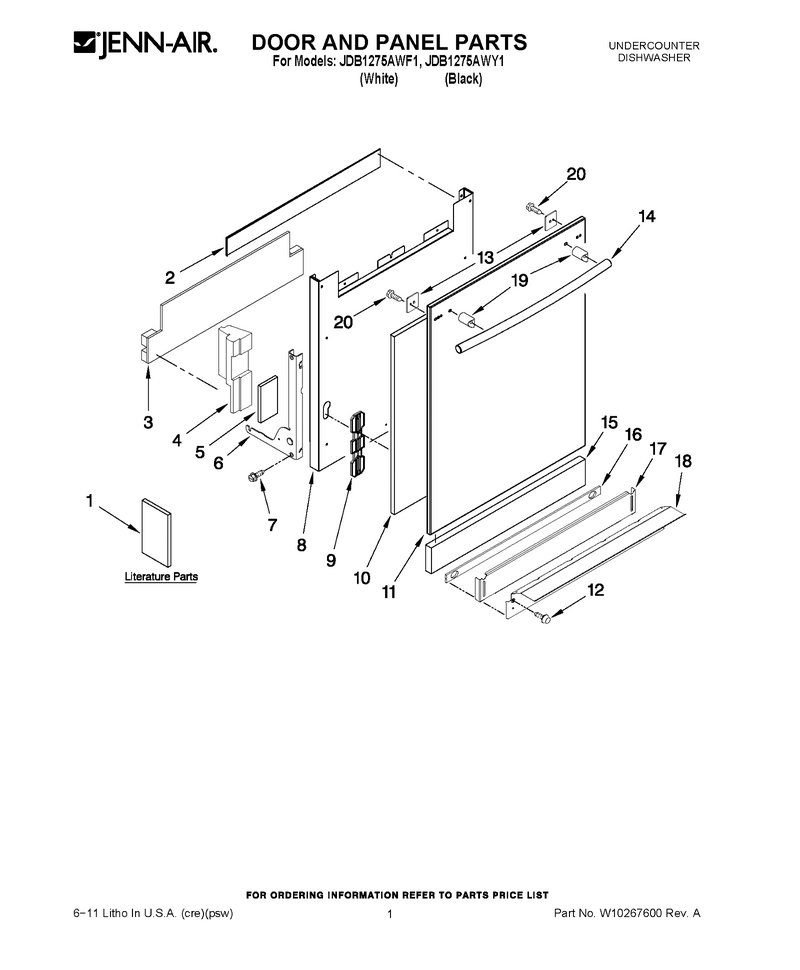

01 - Door And Panel Parts

...
...
1
Guide, Use & Care WPL-W10157785
...
2
Insulation, Door WPL-99002693
...
3
Barrier, Foam WPL-99003048
...
4
Block, Foam (Left) WPL-99003046
...
5
Wrap, Foam WPL-99003049
...
6
Bracket WPL-WPW10118637
...
7
Screw WPL-99001075
...
8
Support, Inner Door WPL-99003433
...
9
Anchor, Panel Fastener WPL-99003095
...
10
Pad, Foam WPL-99003093
...
11
Panel, Front (Black (Also Order 99003444 Facia)) WPL-99003090
...
12
Screw WPL-WP6-912366
...
13
Plate, Handle (Black) WPL-W10167659
...
14
Handle, Door WPL-99003088
...
15
Shield WPL-WP6-920587
...
16
Damper, Toe Panel (White) WPL-99002698
...
17
Panel-Toe WPL-WP6-917688
...
18
Support, Front (White) WPL-99002860
...
19
Stud, Handle WPL-6918667
...
20
Screw WPL-99003154

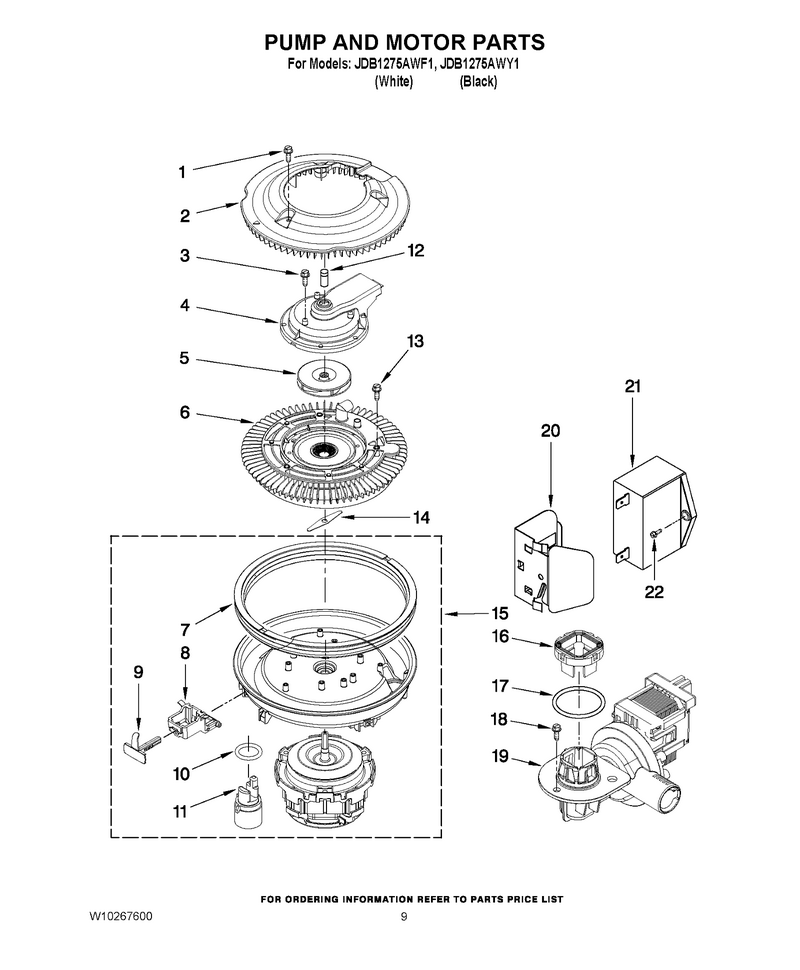

08 - Pump And Motor Parts

...
...
1
Screw WPL-99002666
...
2
Guard, Filter WPL-W10166790
...
3
Screw WPL-99002668
...
4
Discharge, Housing Assembly WPL-W10212444
...
5
Impeller WPL-WP99002659
...
6
Accumulatr WPL-WPW10192799
...
7
Gasket WPL-12002361
...
8
Lever, Motor Mount WPL-99003056
...
9
Plunger, Motor Mount WPL-99003057
...
10
O-Ring, Turbidity Sensor WPL-99002651
...
11
Sensor WPL-WPW10120019
...
12
Pivot, Wash Arm WPL-6-916824
...
13
Screw WPL-99002664
...
14
Chopper WPL-6-919353
...
15
Wash Motor Assy. WPL-6-919963
...
16
Baffle WPL-WP6-919119
...
17
O-Ring- Dr WPL-WP99002857
...
18
Screw WPL-99002740
...
19
Pump-Drain WPL-W10421247
...
20
Sheild, Capacitor WPL-W10167912
...
21
Capacitor- WPL-WP99002665
...
22
Screw WPL-99002601

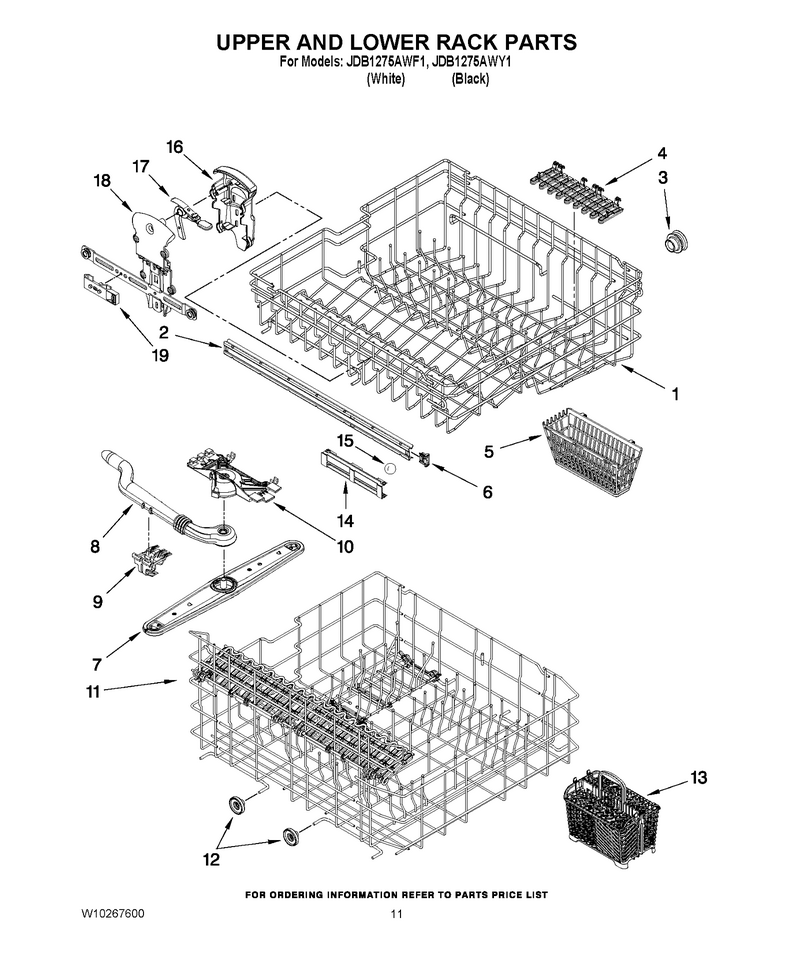

09 - Upper And Lower Rack Parts

...
...
1
Dishrack, Upper WPL-W10203875
...
2
Track WPL-WPW10144736
...
3
Wheel WPL-WP99003148
...
4
Shelf, Cup WPL-99003252
...
5
Baskt-Ware WPL-W11175758
...
6
Stop WPL-WPW10169391
...
7
Arm- Wash WPL-WP99003070
...
8
Wash Manifold Assembly WPL-99003142
...
9
Clip, Upper Wash Manifold (Back) WPL-99003071
...
10
Clip, Upper Wash Manifold (Front) WPL-99003072
...
11
Dishrack, Lower WPL-W10203867
...
12
Wheel WPL-WP99003149
...
13
Baskt-Ware WPL-WP6-918873
...
14
Guide WPL-W10877169
...
15
Bearing- B WPL-WP99003068
...
16
Cover, Rack Adjuster WPL-99003191
...
17
Lever, Rack Adjuster WPL-99003276
...
18
Rack, Adjuster (Left) WPL-W10153535
...
19
Stabilizer, Rack Adjuster WPL-99003278

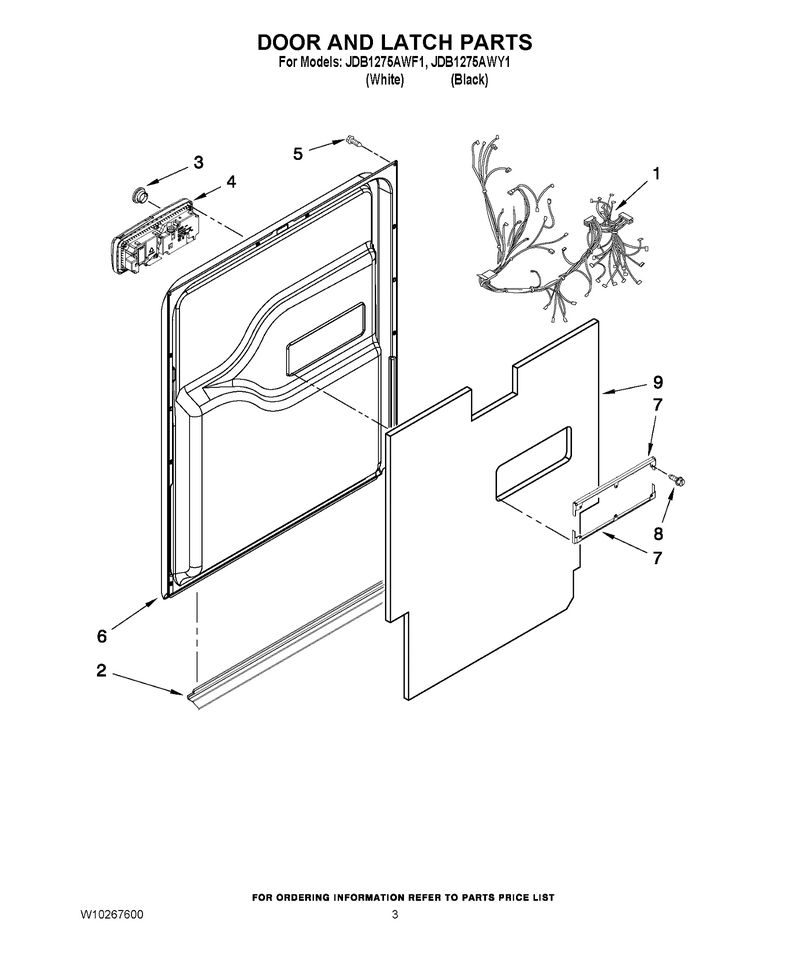

03 - Door And Latch Parts

...
...
1
Harness, Wiring WPL-W10237912
...
2
Seal- Door WPL-WP99003045
...
3
Cap, Rinse Aid WPL-99003060
...
4
Dispenser WPL-WP99003317
...
5
Screw WPL-WPY912620
...
6
Inner Door W/ Damper WPL-W10203664
...
7
Bracket, Dispenser WPL-99002465
...
8
Screw WPL-WP33002917
...
9
Insulation, Door WPL-99003044
