Jenn-Air JCB2058GEW (BOM: PJCB2058GW0)

Model: JCB2058GEW (BOM: PJCB2058GW0)

Save Part Not Listed?
product name

...
...
1
Gasket- Dr WPL-WPB8381501
...
2
Seal- O Ri WPL-WPM0500703
...
3
Funnel WPL-W10815413
...
4
Pop Rivet WPL-A4539607
...
5
Cover, Corner (Wht) WPL-67003484
...
6
Tube, Drain WPL-67001066
...
7
Clip, Drain Tube WPL-67001067
...
8
Plug, Button WPL-A3076901
...
9
Screw WPL-WP67006715
...
10
Hinge, Bottom E-Ct (Wht) WPL-67001239
...
11
Screw WPL-WP98165
...
12
Feet-Lvlng WPL-W11177593
...
13
Toe Grille Assy (Wht) WPL-67002223
...
14
Ladder, Center WPL-67001073
...
15
Ladder, L/r Side WPL-67002489
...
16
Screw WPL-W10709795
...
17
Screw (3) WPL-67006425
...
18
Basket, Upper WPL-67003319
...
19
End Cap, Basket 36 WPL-67003598
...
20
Basket, Lower Fz WPL-67003124
...
21
Handle, Basket/shelf WPL-67003040
...
22
Divider, Basket (Upper) WPL-67001723
...
23
Screw WPL-W10856125
...
24
Cover, Lwr Hinge (Wht) WPL-12561901W
...
25
Divider, Basket (Lwr) WPL-67003171
...
26
Slide- Dra WPL-WP67002365
...
27
Screw WPL-WP90767
...
28
Adapter, Side (Rt) WPL-67002626
...
29
Screw WPL-WP489474
...
30
Bracket, Slide (Rt) WPL-67002369
...
31
Screw WPL-WP488234
...
32
Bracket, Door WPL-67001262
...
33
Tray, Basket (Lower) WPL-W10332340
...
34
Screw (3) WPL-67006425

...
...
1
Sheet, Tech Data WPL-67003126
...
2
Manual, Use & Care WPL-67003127
...
3
Tag, Energy WPL-67003320
...
4
Manual, Service 2002 Bott Mt WPL-16021484

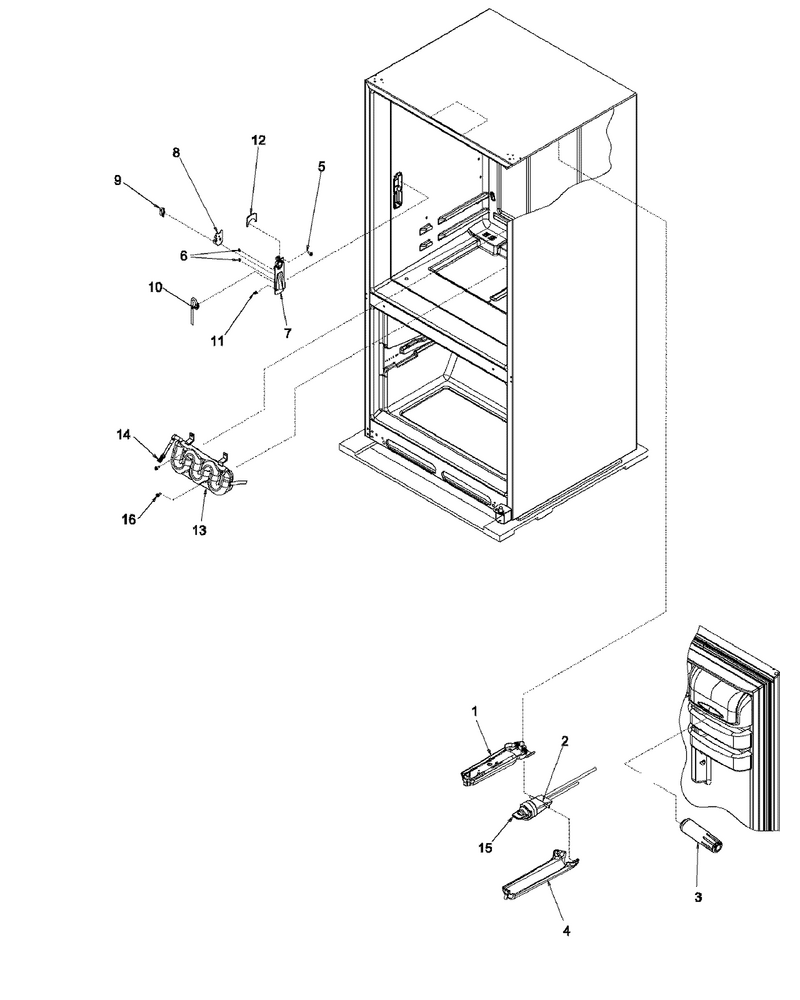

11 - Water Dispenser/filter

...
...
1
Plate- Fil WPL-WP67001668
...
2
Housing- W WPL-WP67001669
...
3
Filter, Water Generic WPL-67006470
...
4
Cover- Fil WPL-WP12568001
...
5
Screw (3) WPL-67006425
...
6
Clip WPL-W10819546
...
7
Cover WPL-W10720642
...
8
Plate, Switch WPL-12707303SP
...
9
Switch- Li WPL-WP12575501
...
10
Guide WPL-W11677725
...
11
Clip, Waterline WPL-67002816
...
12
Cover WPL-W11519867
...
13
Kit, Water Tank WPL-12002023
...
14
Fitting WPL-WP2300868
...
15
Cap-Filter WPL-W11395888
...
16
Screw WPL-WP98165

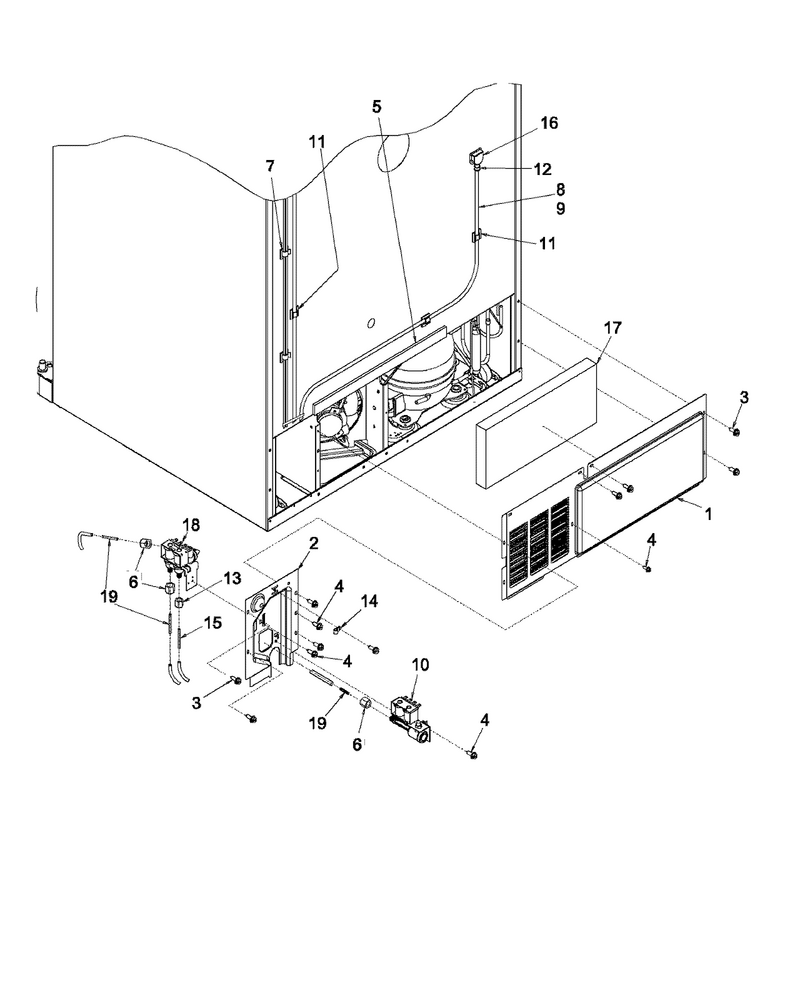

01 - Cabinet Back

...
...
1
Back, Mc WPL-12575102ED
...
2
Cover, Water Valve WPL-67002514
...
3
Screw (3) WPL-67006425
...
4
Screw, 8-32 X 3/8 WPL-681390
...
5
Gasket, Mc Back WPL-B5759649
...
6
Nut WPL-8201513
...
7
Clip, Cord WPL-M0104102
...
8
Tube-Water WPL-W10823511
...
9
Insert- Pl WPL-WPA3223101
...
10
Valve-Inlt WPL-WP12544002
...
11
Clip WPL-WPM0104106
...
12
Clip- Spee WPL-WPM0114003
...
13
Nut WPL-WP627018
...
14
Clamp WPL-W10833902
...
15
Spring WPL-WPA1055105
...
16
Tube-Water WPL-W11176463
...
17
Fiber, Acoustic WPL-67003796
...
18
Valve-Inlt WPL-12002193
...
19
Spring, Anti-Kink WPL-A1055104
...
20
Cord-Power WPL-WP67006506

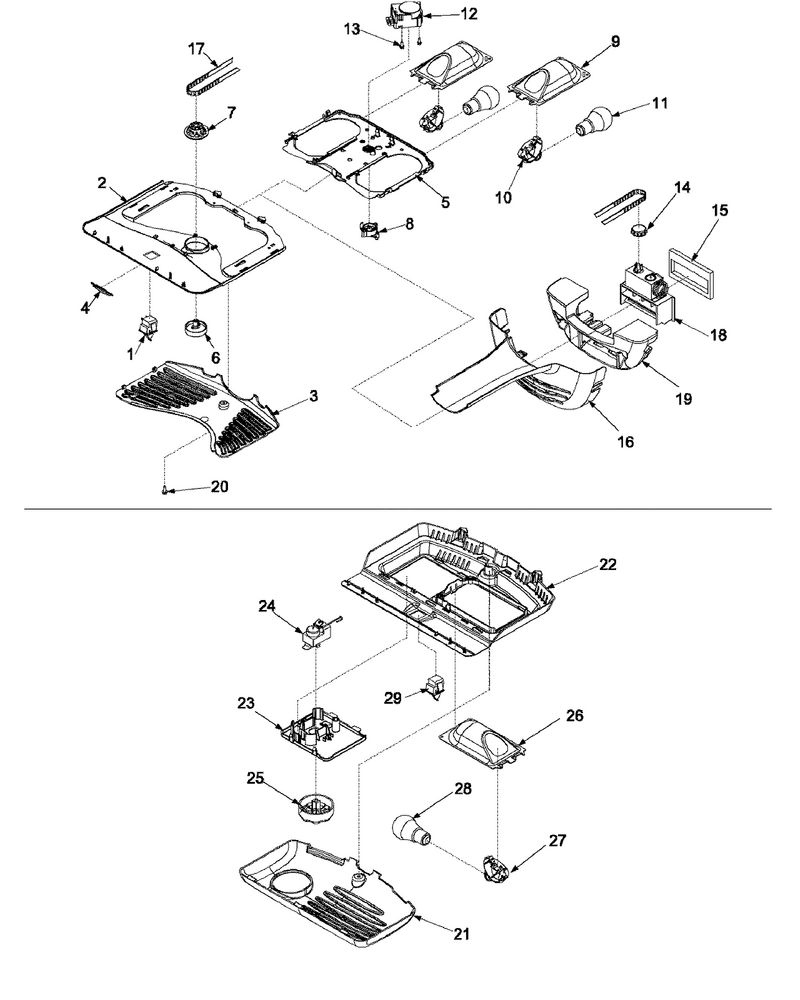

03 - Controls

...
...
1
Switch WPL-W11384469
...
2
Module, Light WPL-67002087
...
3
Cover, Ref Light WPL-67002301
...
4
Logo, Light Module WPL-67003119
...
5
Housing WPL-WP67002085
...
6
Knob, Front Damper WPL-67003120
...
7
Knob, Gear WPL-67001033
...
8
Tensioner, Belt WPL-67001034
...
9
Housing WPL-W11702858
...
10
Socket WPL-W11447232
...
11
Light Bulb WPL-8009
...
12
Timer- Def WPL-WP67001036
...
13
Screw WPL-M0216705
...
14
Gear, Damper WPL-67001037
...
15
Gasket, Damper WPL-67001038
...
16
Cover, Damper WPL-67003121
...
17
Belt, Damper WPL-67002482
...
18
Damper Gea WPL-WP67003410
...
19
Insulation WPL-12650002
...
20
Screw WPL-WP98165
...
21
Cover, Fz Light WPL-67001285
...
22
Module- Fz WPL-WP12476002
...
23
Panel, Fz Control Mounting WPL-67001045
...
24
Control- F WPL-WP67003000
...
25
Knob, Fz Control WPL-67003420
...
26
Housing WPL-W11702858
...
27
Socket WPL-W11447232
...
28
Light Bulb WPL-8009
...
29
Switch WPL-W11396033
...
30
Harness, Ff Module WPL-67002453
...
31
Harness, Fz Module WPL-67001049

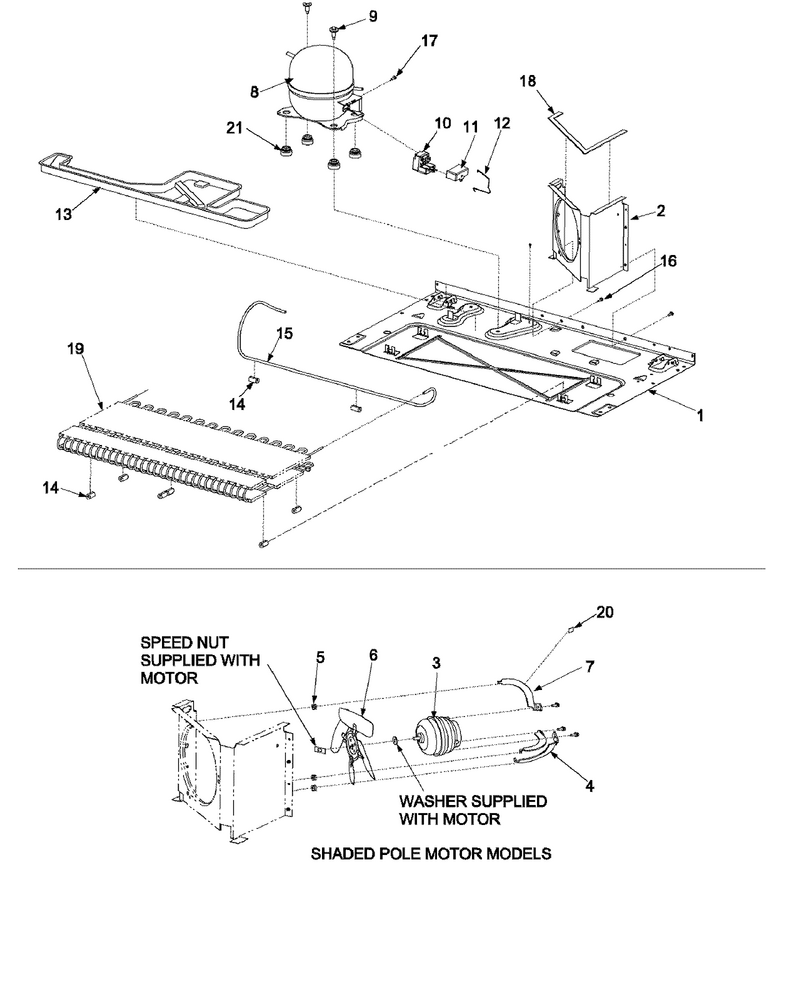

02 - Compressor

...
...
1
Basepan WPL-12457108
...
2
Shroud, Condenser WPL-12687101
...
3
Motor-Cond WPL-833697
...
4
Bracket, Cond Mtr WPL-67001311
...
5
Grommet, Fan Brkt WPL-12578701
...
6
Blade- Con WPL-WP12587601
...
7
Screw WPL-WPM0223816
...
8
Compressor Kit (Contains Items 12, 17, 27, & 29) WPL-W10160407
...
9
Screw, Shldr WPL-M0221523
...
10
Overload WPL-WP12555902
...
11
Capacitor WPL-WP65889-4
...
12
Strap, Bale WPL-12576801
...
13
Pan, Drain 2 Way WPL-67007176
...
14
Grommet (2) WPL-67005680
...
15
Tube- Disc WPL-WP12532603Q
...
16
Screw (3) WPL-67006425
...
17
Screw WPL-12992301
...
18
Seal-Strip WPL-WP854334
...
19
Condenser WPL-WP67006131
...
20
Gasket WPL-B5759611
...
21
Grommet, Compressor WPL-67003493
...
22
Harness, Mc WPL-67002666

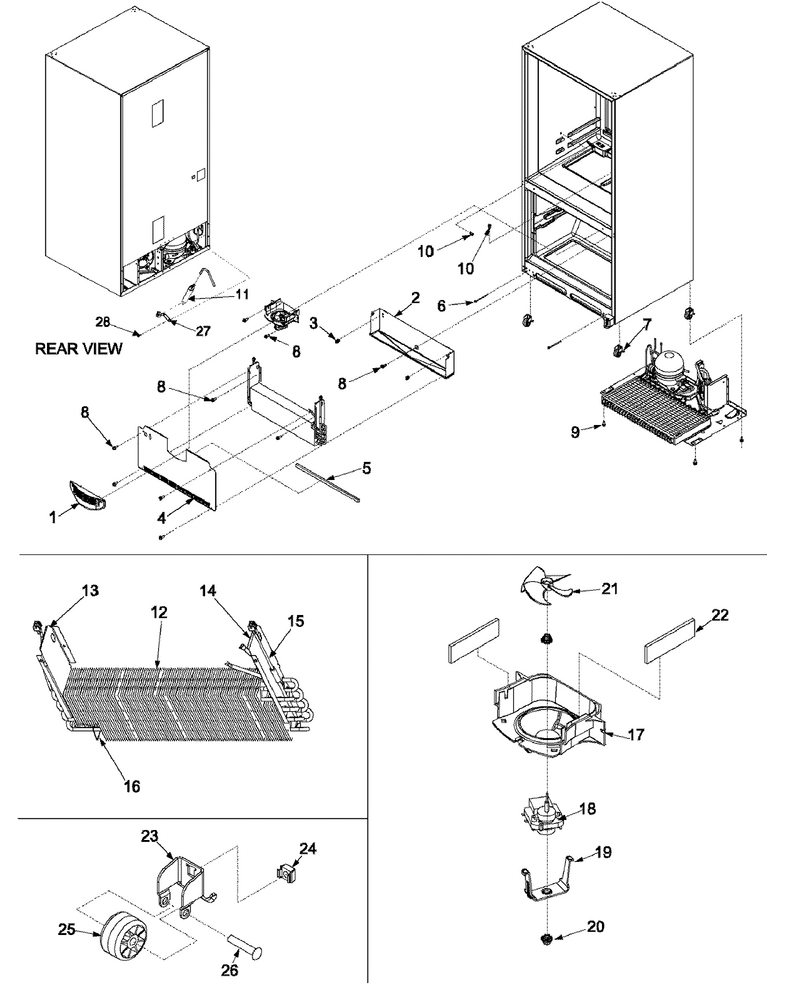

04 - Evaporator Area & Rollers

...
...
1
Grille WPL-WPW10175909
...
2
Tray-Drip WPL-W11547653
...
3
Clip, Evaporator WPL-10623002
...
4
Cover- Eva WPL-12226109
...
5
Gasket WPL-W11159728
...
6
Screw, Roller (Rear) WPL-67006697
...
7
Roller Bracket Assy WPL-67002227
...
8
Screw (3) WPL-67006425
...
9
Screw, Tf WPL-M0260242
...
10
Grommet, Screw WPL-M0580205
...
11
Drier WPL-WPB2150504
...
12
Kit, Evaporator WPL-12001919
...
13
Dam, Left Return WPL-67001083
...
14
Dam, Right Return WPL-67001084
...
15
Heater- De WPL-WP67002493
...
16
Clip WPL-W11673433
...
17
Shroud, Evap Fan WPL-67002777
...
18
Motor-Evap WPL-WPW10128551
...
19
Clip, Evap Motor WPL-12217805
...
20
Grommet- F WPL-WP67002780
...
21
Blade-Fan WPL-WP2169142
...
22
Gasket WPL-W10856123
...
23
Bracket, Foot WPL-12456801V
...
24
Nut, Speed WPL-M0286708
...
25
Roller WPL-WP10450603
...
26
Rivet WPL-M1205302
...
27
Clip, Drier WPL-10547002
...
28
Screw WPL-W10709801
...
29
Harness, Evap Heater WPL-67002008
...
30
Thermostat Kit WPL-12001937

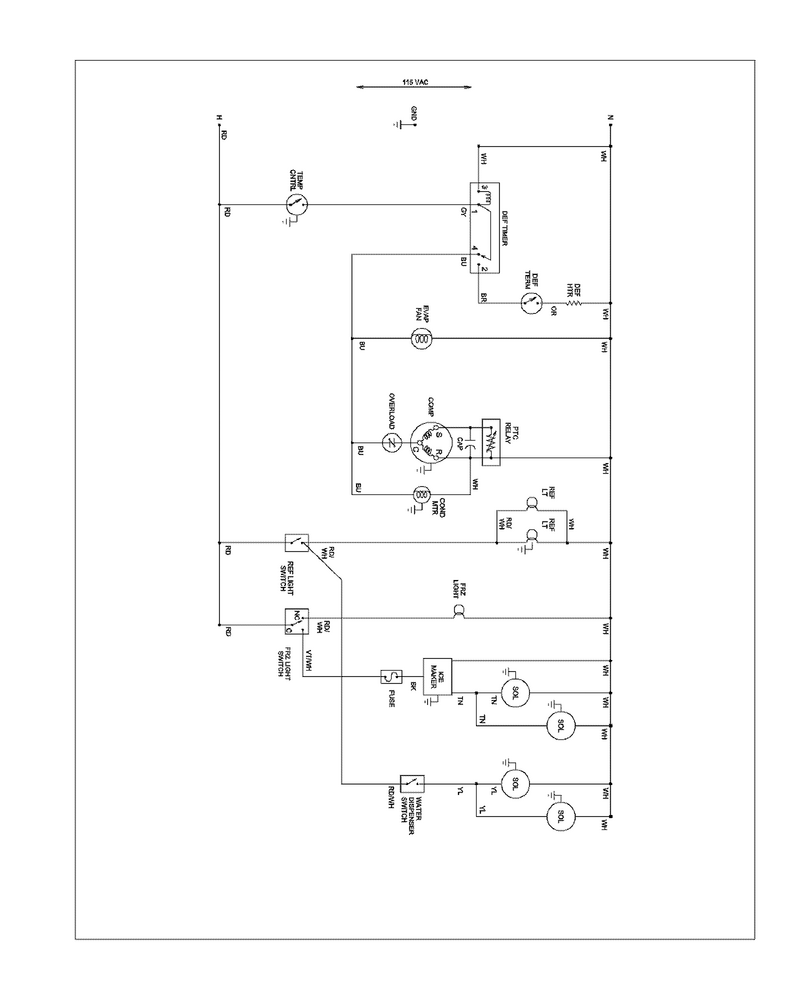

12 - Wiring Information

...
...
NI
Wiring Information WPL-15003053

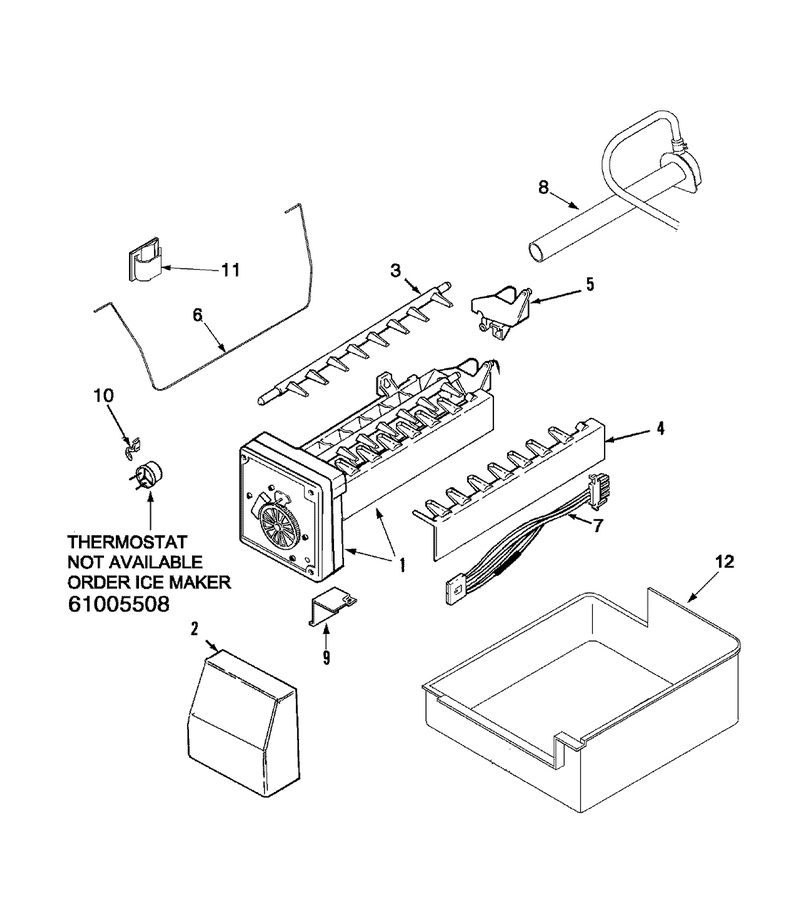

06 - Ice Maker

...
...
1
Screw WPL-WP98165
...
2
Cover-Frnt WPL-WPW10289690
...
4
Arm-Stripr WPL-WP2182124
...
5
Cup-Fill WPL-WP628356
...
6
Arm-Shut WPL-WP67004028
...
7
Harns-Wire WPL-WPD7813010
...
8
Tube-Water WPL-W11176463
...
9
Bracket WPL-WP2256087
...
10
Clip WPL-WP2315522
...
11
Clip WPL-WPM0104106
...
12
Pan-Ice WPL-WP67001255
...
13
Coupling WPL-W11033771
...
14
Icemaker Install Kit WPL-8003RP

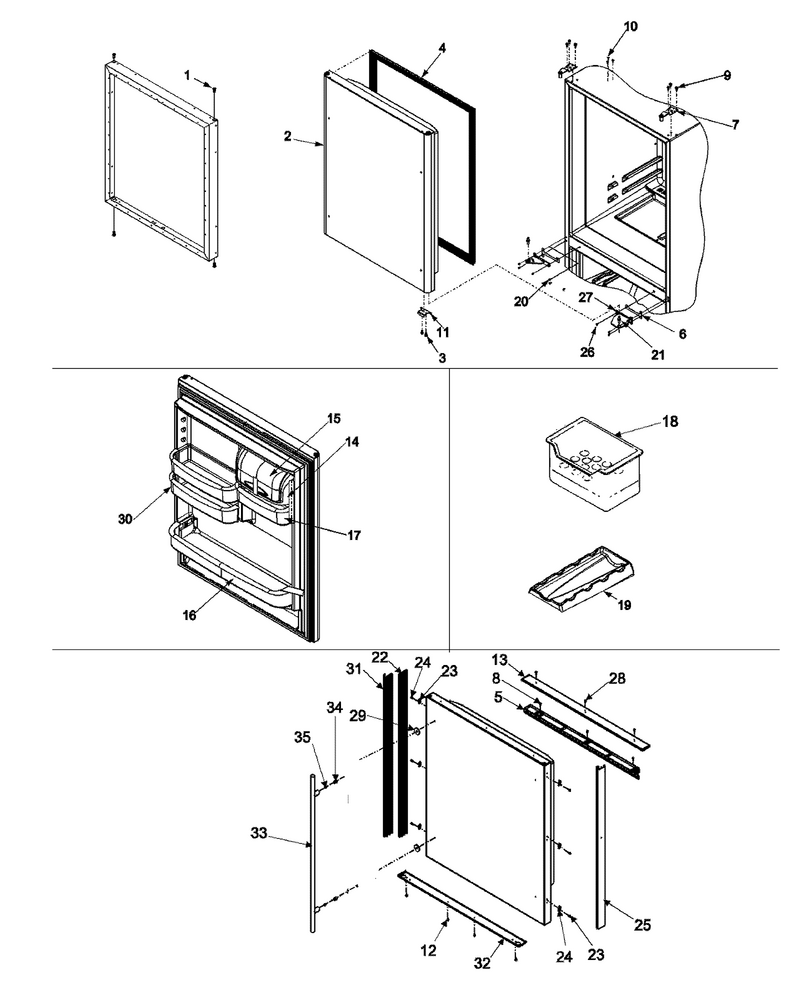

08 - Refrigerator Door

...
...
1
Bushing- D WPL-WP67004977
...
2
Door Assy., Ref. Foam (Wht) WPL-67002423
...
3
Screw WPL-WPW10348409
...
4
Gasket-Fip WPL-W10443317
...
5
Extension, Ref Dr (Wht) WPL-12059101
...
6
Shim- Non WPL-WPM0274057
...
7
Hinge,top(Lt-Wht) WPL-67002520
...
8
Screw WPL-WP489474
...
9
Screw WPL-WP489349
...
10
Button- Pl WPL-WP67001130
...
11
Stop, Door (White) WPL-12968202W
...
12
Screw WPL-WPW10348409
...
13
Trim, Door Top (Stnls) WPL-67002252
...
14
Tray- Dair WPL-WP67001279
...
15
Door-Comp WPL-WP67003637
...
16
Retainer, Ref Dr WPL-67003027
...
17
Bin-Cntlvr WPL-WPW10371195
...
18
Tray, Egg WPL-67215-2
...
19
Trivet, Bottle WPL-67001656
...
20
Screw WPL-WP489349
...
21
Closer WPL-12002311
...
22
Trim, Vertical (Lt-Stnls) WPL-67003116
...
23
Screw WPL-WP489399
...
24
Clip WPL-67002451
...
25
Trim,vertical (Rt-Stnls)xx WPL-67002201
...
26
Screw WPL-WP67006380
...
27
Hinge, Center (Apollo Grey) WPL-12655102AP
...
28
Screw WPL-W11245710
...
29
Spacer, Handle WPL-67003113
...
30
Bin, Shelf (3) (Large) WPL-67005464
...
31
Trim, Vertical (Lt-Stnls) WPL-67002435
...
32
Trim, Door Bottom (Stnls) WPL-67002194
...
33
Handle WPL-12002472
...
34
Mount, Handle WPL-67006109
...
35
Screw (1) 10-16 X 1 1/2 WPL-340184

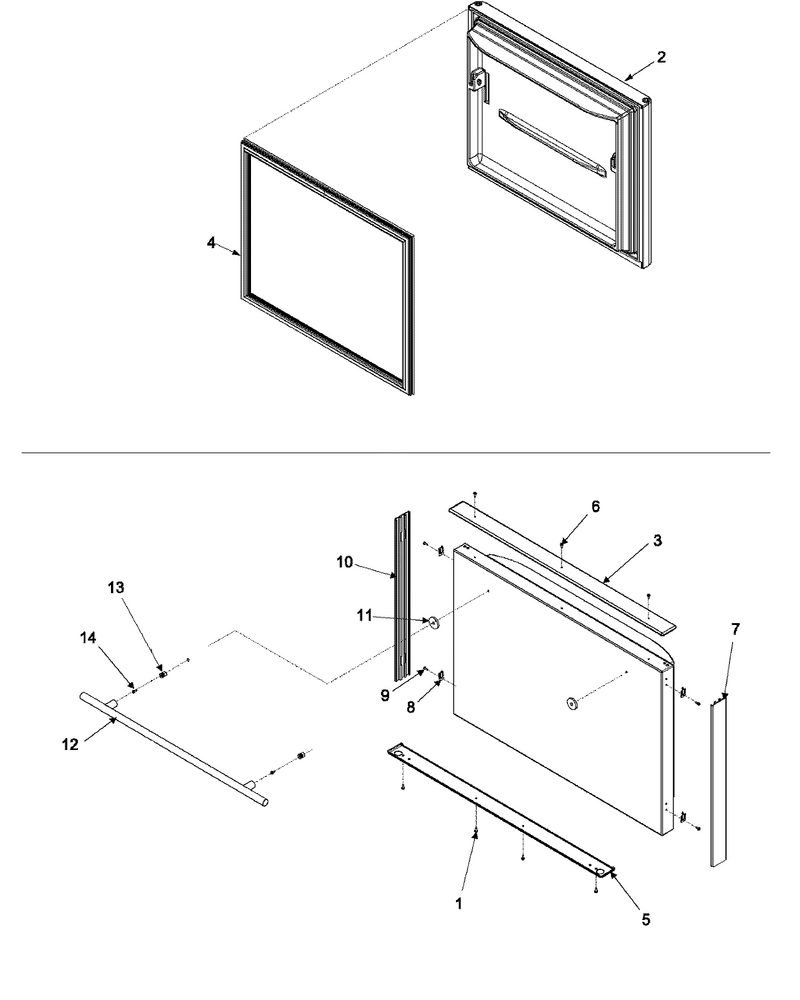

05 - Freezer Door

...
...
1
Screw WPL-W11245710
...
2
Door Assy., Frz. Foam (Wht) WPL-67002424
...
3
Trim, Door Top (Stnls) WPL-67002252
...
4
Gasket, Fz Door (Wht) WPL-12683806W
...
5
Trim, Door Bottom (Stnls) WPL-67002194
...
6
Screw WPL-W11245710
...
7
Trim, Fz Door Side (Stnls) WPL-67002995
...
8
Clip WPL-67002451
...
9
Screw WPL-WP489399
...
10
Trim, Fz Door Side (Stnls) WPL-67002995
...
11
Spacer, Handle WPL-67003113
...
12
Handle WPL-12002472
...
13
Mount, Handle WPL-67006109
...
14
Screw (1) 10-16 X 1 1/2 WPL-340184

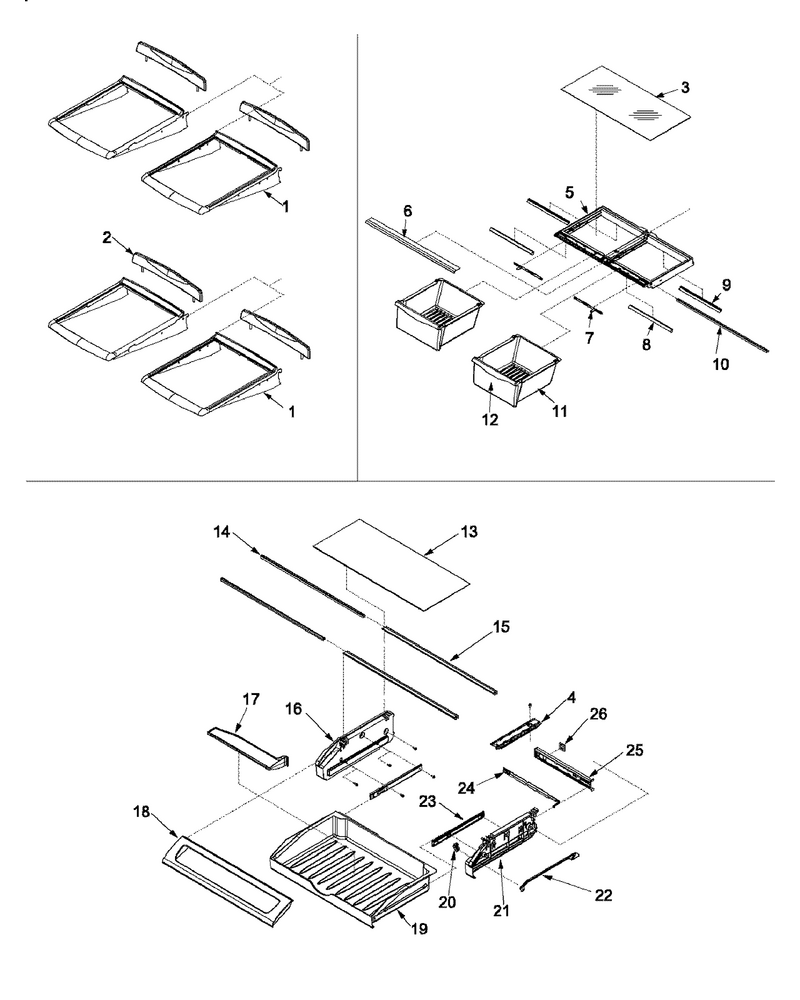

09 - Refrigerator Shelving

...
...
1
Shelf, Glide WPL-67003021
...
2
Extension, Ref Shelf WPL-67003051
...
3
Shelf-Glas WPL-WP67006655
...
4
Screw (3) WPL-67006425
...
5
Frame WPL-WP67006185
...
6
Extr, 36`` Crisper Front WPL-67003045
...
7
Slide WPL-WP67005864
...
8
Seal- Fron WPL-WP67003417
...
9
Seal- Rear WPL-WP67002513
...
10
Brace- Cri WPL-WP12227304WD
...
11
Pan- Crisp WPL-WP67002659
...
12
Front, Crisper Pan WPL-67003122
...
13
Glass- Pan WPL-WP67002332
...
14
Support WPL-WP12227305WD
...
15
Extr- Glas WPL-WP67006010
...
16
Endcap WPL-WP12656105
...
17
Divider- P WPL-WP67002321
...
18
Cover WPL-W10827015
...
19
Pan-Utilty WPL-W11490183
...
20
Knob WPL-W11498983
...
21
Screw-Sm WPL-M0238636
...
22
Bar, Temp Control WPL-67003794
...
23
Screw WPL-WPW10348409
...
24
Slide- Tem WPL-WP67003793
...
25
Housing, Control WPL-12656202
...
26
Gasket, Pantry WPL-67002329
...
27
Crisper Assy. WPL-67003123
