Jenn-Air JBSS48E22L00

Model: JBSS48E22L00

Save Part Not Listed?
product name

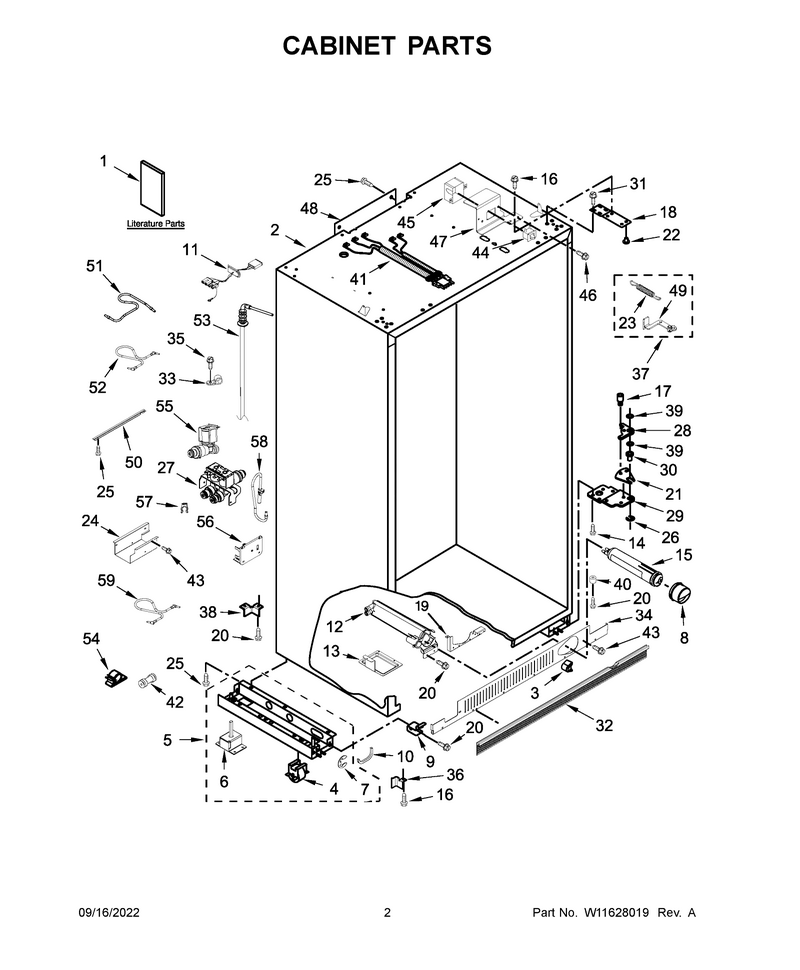

02 - Cabinet Parts

...
...
1
Use And Care Guide WPL-W11490758
...
1A
Energy Guide WPL-W11443716
...
1B
Tech Sheet WPL-W11494195
...
1C
Installation Instructions WPL-W11590464
...
2
Following Parts Not Illustrated WPL-N/P
...
3
Button WPL-WP2260503B
...
4
Roller-Cab WPL-WPW10138054
...
5
Support WPL-W10860229
...
5A
Support WPL-W10860448
...
6
Leveler, Adjustable WPL-2005032
...
7
Ring, Retainer WPL-2006841
...
8
Cap-Filter WPL-W11238395
...
9
Bracket WPL-W10839844
...
10
Grommet, Crossover Tube WPL-2307584
...
11
Harness, Water Valve WPL-W11421923
...
12
Housing WPL-WPW10121140
...
13
Tray, Filter Drip WPL-2318189
...
14
Screw WPL-3400525
...
15
Filter WPL-EDR3RXD1
...
16
Screw WPL-WP489399
...
17
Screw WPL-3400230
...
18
Hinge, Top WPL-2257644
...
19
Bracket, Filter WPL-W10674648
...
20
Screw WPL-WP489464
...
21
Hing-Bushg WPL-WP2004994
...
22
Hing-Bushg WPL-W11500952
...
23
Spring WPL-WP2004517
...
24
Shield, Water Valve WPL-W11439643
...
25
Screw WPL-WP489069
...
26
Ring-E WPL-WP489236
...
27
Valve-Inlt WPL-WPW10279866
...
28
Gap-Hinge WPL-W11700297
...
29
Hinge-Door WPL-W10527053
...
29A
Hinge-Door WPL-WP2006780
...
30
Hing-Bushg WPL-WP2302876
...
31
Screw WPL-W11721628
...
32
Grille-Frt WPL-W10859915
...
33
Clamp, Tube WPL-489348
...
34
Grille-Frt WPL-W11169715
...
35
Screw WPL-W11624204
...
36
Bracket, Support (Left Hand) WPL-2006616
...
36A
Bracket, Support (Right Hand) WPL-2006556
...
37
Etension WPL-WPW10121046
...
37A
Extension WPL-WP2307857
...
38
Bracket, Base Support (Rear) WPL-2006617
...
39
Washer WPL-WP2006346
...
40
Spacer WPL-2005433
...
41
Assembly, Switch Wire WPL-W10780213
...
42
Fitting WPL-WP2300868
...
43
Screw WPL-WP489464
...
44
Switch WPL-W11396033
...
44A
Switch WPL-W11291138
...
45
Cover WPL-W11756944
...
46
Screw WPL-WP965173
...
47
Bracket, Switch (Left Hand) WPL-W11610480
...
47A
Bracket, Switch (Right Hand) WPL-W11610479
...
48
Cover, Air Duct WPL-2215612
...
49
Extension WPL-W11298172
...
49A
Extension WPL-W10847927
...
50
Support, Valve WPL-2320559
...
51
Tube-Water WPL-W11663448
...
52
Tube-Water WPL-W11634221
...
53
Tube-Inlet WPL-W11212166
...
54
Clip WPL-W10663352
...
55
Valve-Inlt WPL-W11246413
...
56
Bracket WPL-W10847867
...
57
Locking Ring(5/16") WPL-W10782424
...
57A
Locking Ring (1/4") WPL-W10782423
...
58
Tube-Water WPL-W11634223
...
59
Tube-Water WPL-W11533506

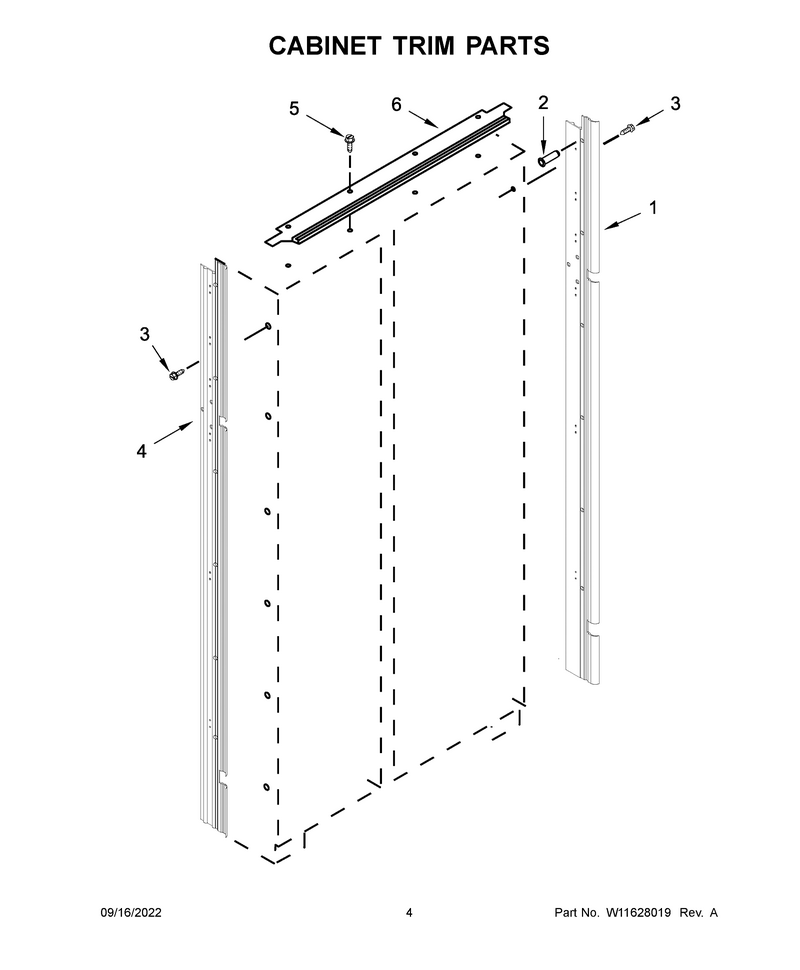

03 - Cabinet Trim Parts

...
...
1
Trim-Cabnt WPL-W11173663
...
2
Insert WPL-WPW10121451
...
3
Screw WPL-W11624204
...
4
Trim-Cabnt WPL-W11173662
...
5
Screw WPL-WP489069
...
6
Trim, Top Cabinet (Aluminum) WPL-2314018

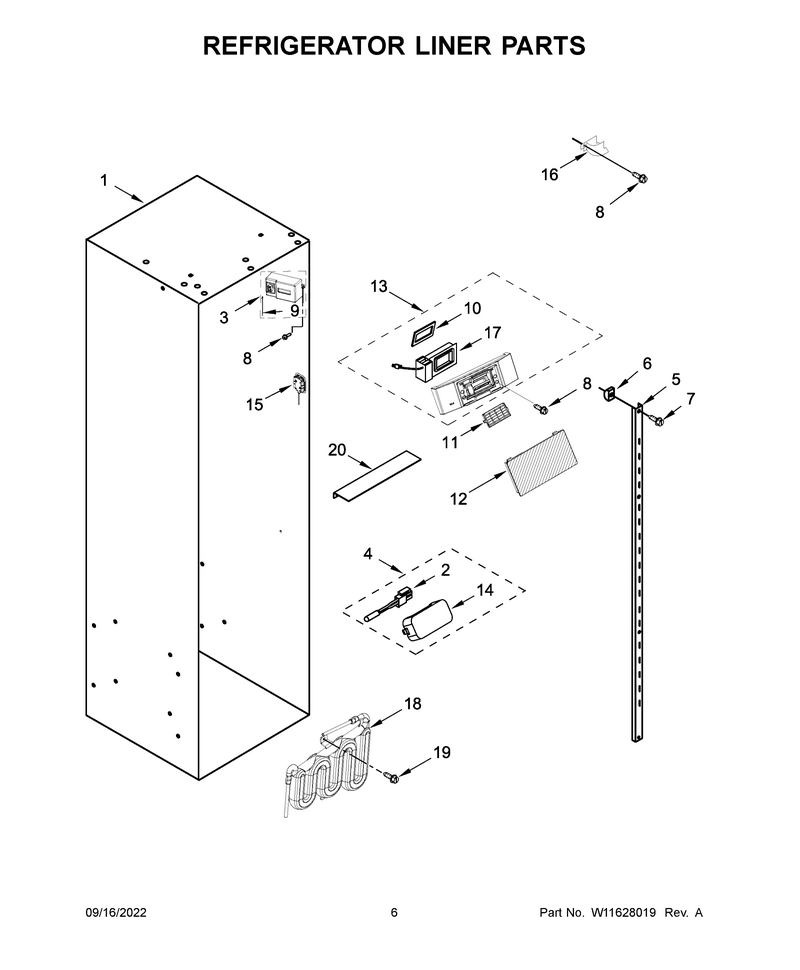

04 - Refrigerator Liner Parts

...
...
1
Following Parts Not Illustrated WPL-N/P
...
2
Thermistor WPL-WP2188820
...
3
Cover WPL-W11744513
...
4
Cover WPL-W11759117
...
5
Ladder, Shelf WPL-W11481489
...
6
Support, Ladder WPL-2259445
...
7
Screw (Black) WPL-W10678207
...
8
Screw (Black) WPL-W10678210
...
9
Thermistor WPL-WP2302937
...
10
Gasket, Air Baffle WPL-W11480891
...
11
Antibacterial Filter WPL-W10311524
...
12
Cover, Diffuser Assembly WPL-W11480887
...
13
Diffuser WPL-W11741459
...
14
Cover WPL-W11235125
...
15
Module WPL-W11484836
...
16
Guard, Air Return WPL-W10775705
...
17
Air-Baffle WPL-WP2220377
...
18
Reservoir, Water WPL-W11463083
...
19
Screw WPL-W10141518
...
20
Diverter, Crisper Cover WPL-W10782835

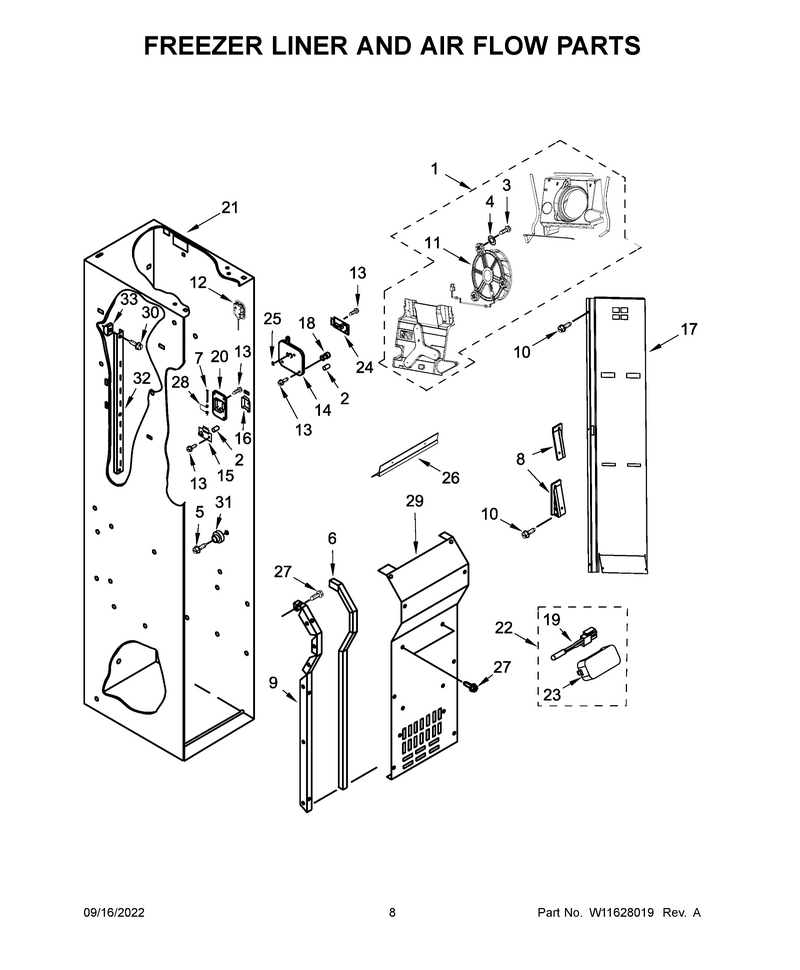

05 - Freezer Liner And Air Flow Parts

...
...
1
Motor-Evap WPL-W11631626
...
2
Tube, Circuit Board WPL-2198665
...
3
Screw WPL-WP488729
...
4
Washer WPL-3400916
...
5
Screw (Black) WPL-W10784949
...
6
Gasket, Evaporator Cover WPL-W11467832
...
7
Pin-Door WPL-WP2198634
...
8
Wedge, Air Duct (Left Hand) WPL-W10769280
...
8A
Wedge, Air Duct (Right Hand) WPL-W10769279
...
9
Rail-Evap WPL-W11756941
...
9A
Rail-Evap WPL-W11756942
...
10
Screw WPL-WP98008545
...
11
Motor-Evap WPL-W11618271
...
12
Module WPL-W11484836
...
13
Screw, 6-19 X .250 WPL-2006254
...
14
Cover, Receiver WPL-W11603666
...
15
Cntrl-Elec WPL-W11629974
...
16
Flipper WPL-W11603665
...
17
Duct, Air WPL-W11469467
...
18
Lens WPL-WP2198643
...
19
Thermistor WPL-WP2188820
...
20
Cover WPL-W11603664
...
21
Following Parts Not Illustrated WPL-N/P
...
22
Cover WPL-W11759117
...
23
Cover WPL-W11235125
...
24
Cntrl-Elec WPL-W11629974
...
25
Slide, Icemaker Shut Off WPL-W11603667
...
26
Support, Air Duct WPL-W10745665
...
27
Screw (Black) WPL-W10678210
...
28
Spring WPL-WP2198635
...
29
Cover, Evaporator WPL-W11460632
...
30
Screw (Black) WPL-W10678207
...
31
Assembly, Shelf Stud (Includes Screw) WPL-W10789219
...
32
Ladder, Shelf WPL-W11481486
...
33
Support, Ladder WPL-2259445

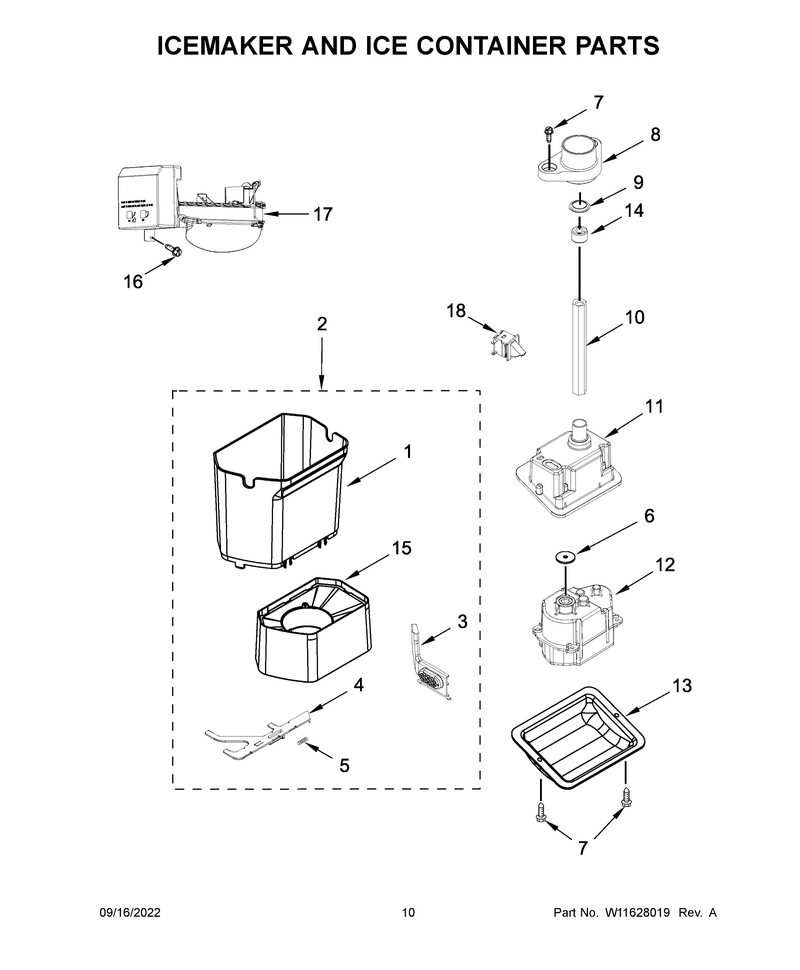

06 - Icemaker And Ice Container Parts

...
...
1
Bin-Ice WPL-WP2222970
...
2
Assembly, Ice Container WPL-W11452364
...
3
Button, Bin WPL-W11455248
...
4
Latch, Bin WPL-W10134785
...
5
Spring WPL-WP2198608
...
6
Washer WPL-WPW10254073
...
7
Screw WPL-WP8281163
...
8
Clip, Shaft WPL-W10785288
...
9
Seal WPL-WP2198628
...
10
Shaft WPL-WP2318082
...
11
Enclosure, Motor WPL-W11461791
...
12
Motor WPL-W10822606
...
13
Cover, Dispenser Motor WPL-W11459587
...
14
Sleeve WPL-WP2315559
...
15
Bin, Crusher WPL-W11452366
...
16
Screw (Black) WPL-W10678210
...
17
Icemaker WPL-W11735838
...
18
Switch, Auger Motor WPL-W11592420

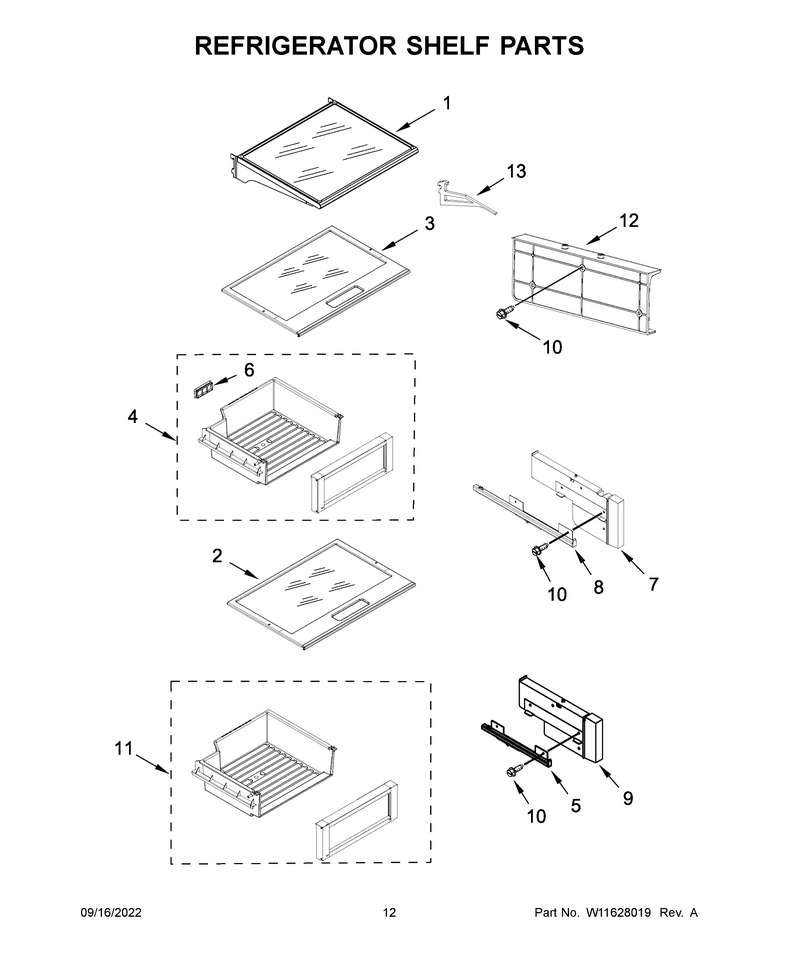

07 - Refrigerator Shelf Parts

...
...
1
Shelf-Glas WPL-WPW10187538
...
2
Shelf-Glas WPL-W11630243
...
3
Shelf-Glas WPL-W11630595
...
4
Pan-Crispr WPL-W11630279
...
5
Slide, Meat Pan (Left Hand) WPL-W10844011
...
5A
Slide, Meat Pan (Right Hand) WPL-W10732727
...
6
Duct, Deli Pan WPL-2307810
...
7
Spacer, Crisper WPL-W11451491
...
8
Slide, Crisper (Left Hand) WPL-W10844010
...
8A
Slide, Crisper (Right Hand) WPL-W10732303
...
9
Spacer, Meat WPL-W11451493
...
10
Screw WPL-WP8533928
...
10A
Screw WPL-WP3400886
...
11
Pan-Meat WPL-W11630280
...
12
Spacer, Shelf Ls WPL-W11451492
...
13
Support WPL-W11690161

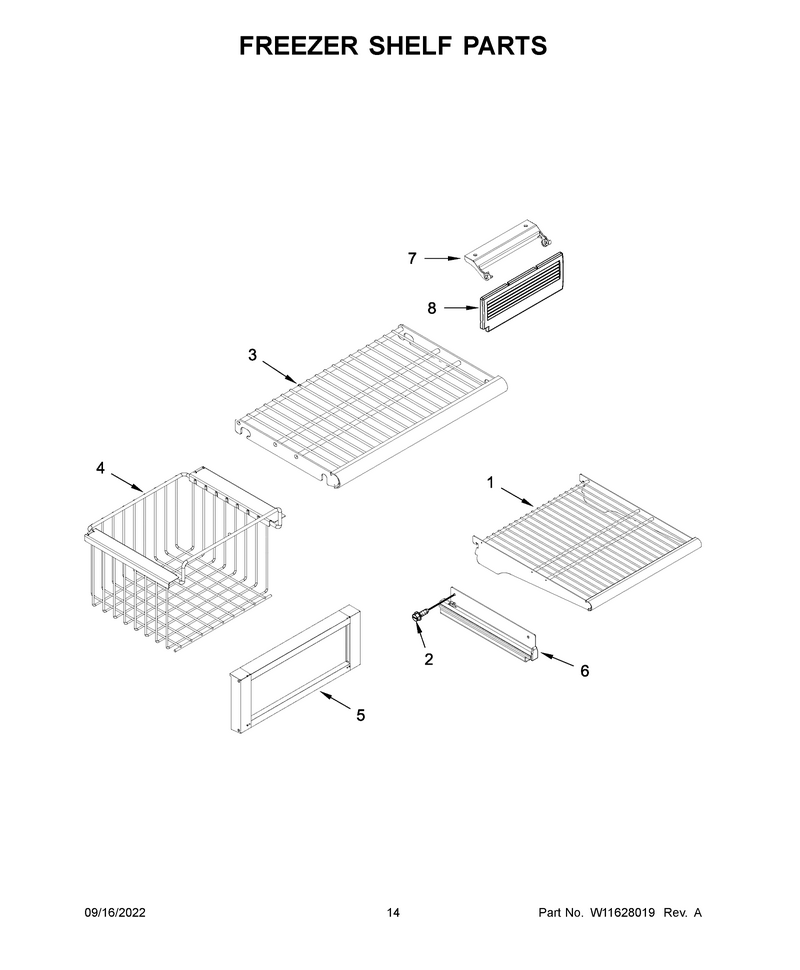

08 - Freezer Shelf Parts

...
...
1
Shelf, Wire WPL-W11455935
...
2
Screw WPL-WP8533928
...
3
Shelf, Fixed WPL-W11455933
...
4
Basket, Freezer WPL-W11452326
...
5
Front, Freezer Basket WPL-W11452330
...
6
Slide WPL-WP2259318
...
6A
Slide, Basket (Right Hand) WPL-2259317
...
7
Bracket, Icemaker Cover WPL-W10749631
...
8
Cover, Icemaker WPL-W11567127

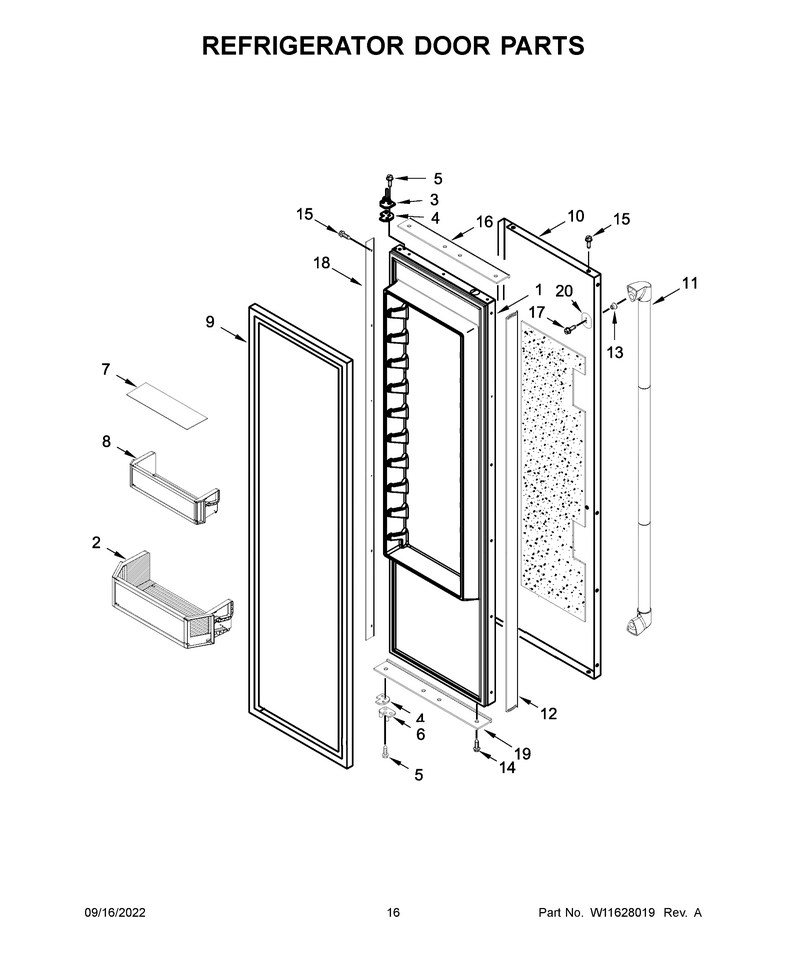

09 - Refrigerator Door Parts

...
...
1
Dor-Fip Ss WPL-W10800808
...
2
Bin, Gallon Door WPL-W11450421
...
3
Hinge-Door WPL-W11673500
...
4
Hinge-Door WPL-W11673500
...
5
Screw WPL-W11474472
...
6
Hinge Assembly, Bottom WPL-2302878
...
7
Mat WPL-W11454936
...
7A
Mat WPL-W11454936
...
8
Bin, Shallow Door WPL-W11450407
...
9
Gasket-Fip WPL-W10800810
...
10
Door-Skin WPL-W10800812
...
11
Handle, Door (Stainless) WPL-W11358123
...
12
Spacer, Handle Side Door WPL-W10758377
...
13
Stud-Hndle WPL-W11631830
...
14
Screw WPL-W10759522
...
15
Screw WPL-WP8281250
...
16
Spacer, Door (Top) WPL-W10766560
...
17
Screw WPL-WP308544
...
18
Spacer, Hinge Side Door WPL-W10758378
...
19
Spacer, Door (Bottom) WPL-W10766561
...
20
Plate, Handle Door WPL-W10127710

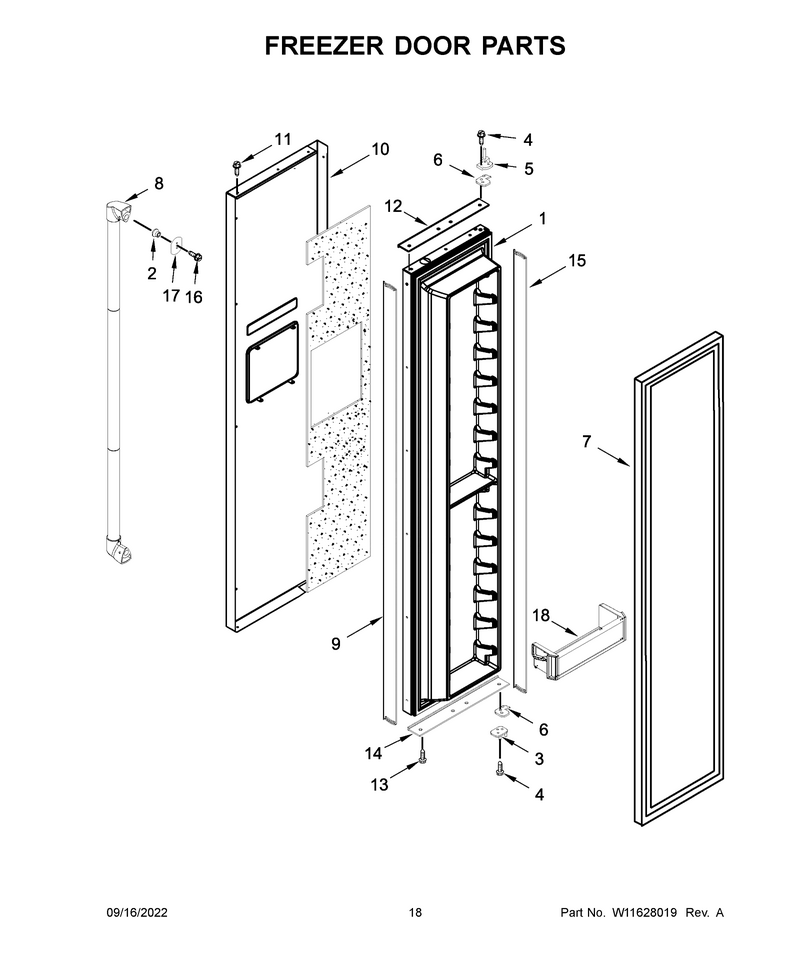

10 - Freezer Door Parts

...
...
1
Dor-Fip WPL-W11633128
...
2
Stud-Hndle WPL-W11631830
...
3
Hinge-Door WPL-W11752085
...
4
Screw WPL-W11474472
...
5
Hinge-Door WPL-W11673500
...
6
Hinge-Door WPL-W11673500
...
7
Gasket-Fip WPL-W10800818
...
8
Handle, Door (Stainless) WPL-W11358123
...
9
Spacer, Handle Side Door WPL-W10758377
...
10
Door-Skin WPL-W11633384
...
11
Screw WPL-WP8281250
...
12
Spacer, Door (Top) WPL-W10758114
...
13
Screw WPL-W10759522
...
14
Spacer, Door (Bottom) WPL-W10766559
...
15
Spacer, Hinge Side Door WPL-W10758378
...
16
Screw WPL-WP308544
...
17
Plate, Handle Door WPL-W10127710
...
18
Bin, Shallow WPL-W11450414

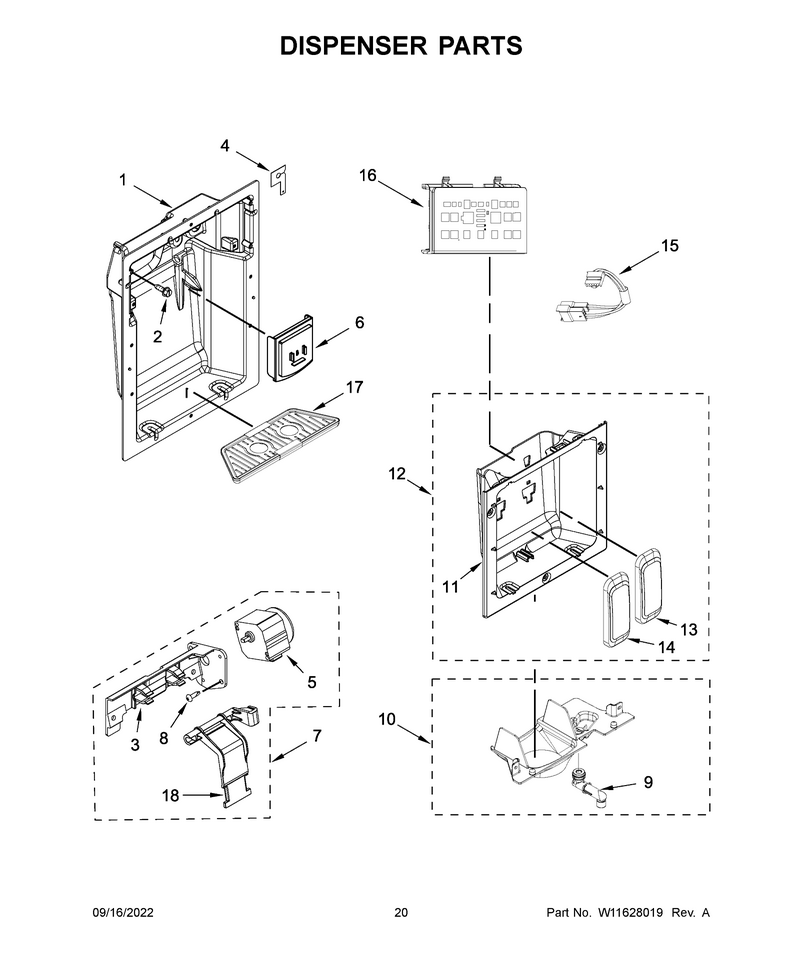

11 - Dispenser Parts

...
...
1
Following Parts Not Illustrated WPL-N/P
...
2
Screw WPL-WP489069
...
3
Bracket, Motor WPL-W10542660
...
4
Clip, Wiring WPL-2305447
...
5
Motor WPL-WPW10205979
...
6
Door-Chute WPL-WPW10504458
...
7
Motor WPL-WPW10546285
...
8
Screw WPL-WP4449745
...
9
Spigot WPL-WP2305235
...
10
Separator, Dispenser WPL-W11649219
...
11
Following Parts Not Illustrated WPL-N/P
...
12
Cover-Frnt WPL-W11634220
...
13
Pad WPL-W11629729
...
14
Pad WPL-W11629728
...
15
Wire-Jumpr WPL-W11629730
...
16
Panel-Ui WPL-W11626108
...
17
Tray-Drip WPL-W11630205
...
18
Support, Ice Door WPL-W10542663

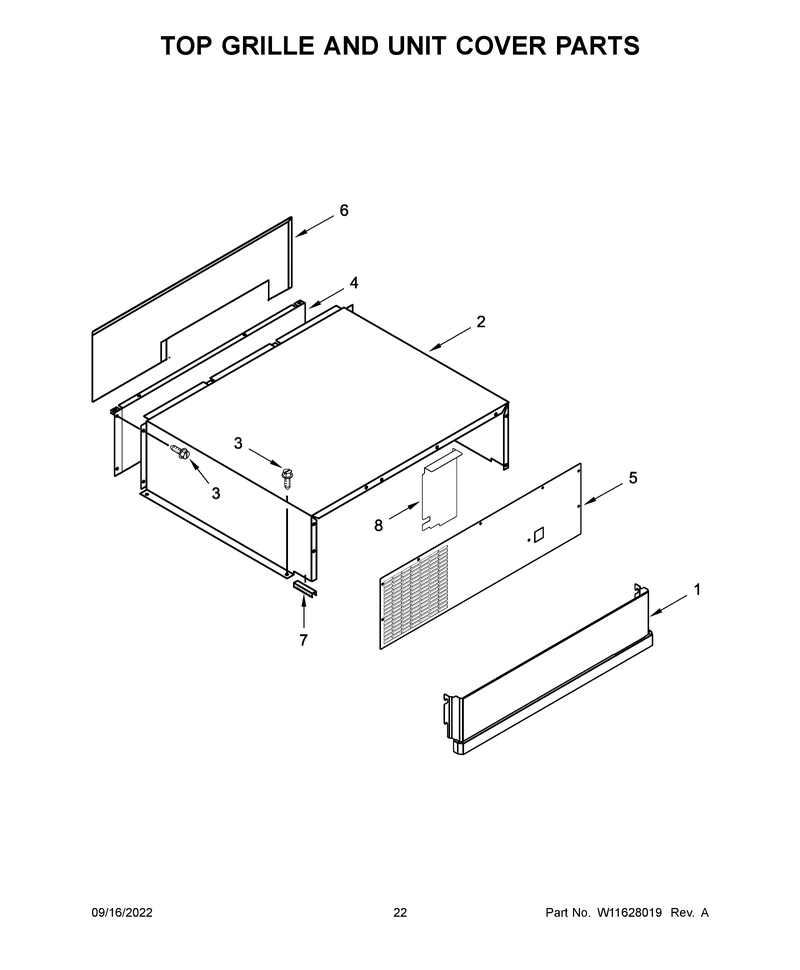

12 - Top Grille And Unit Cover Parts

...
...
1
Grill-Uppr WPL-W11624932
...
2
Cover, Unit WPL-W10545068
...
3
Screw WPL-WP489069
...
4
Panel, Unit Back WPL-2256466
...
5
Cover, Unit Front WPL-W11435372
...
6
Insulation, Unit Back Panel WPL-W11244166
...
7
Grommet, Flexible WPL-2215910
...
8
Divider, Unit Air WPL-W10645086

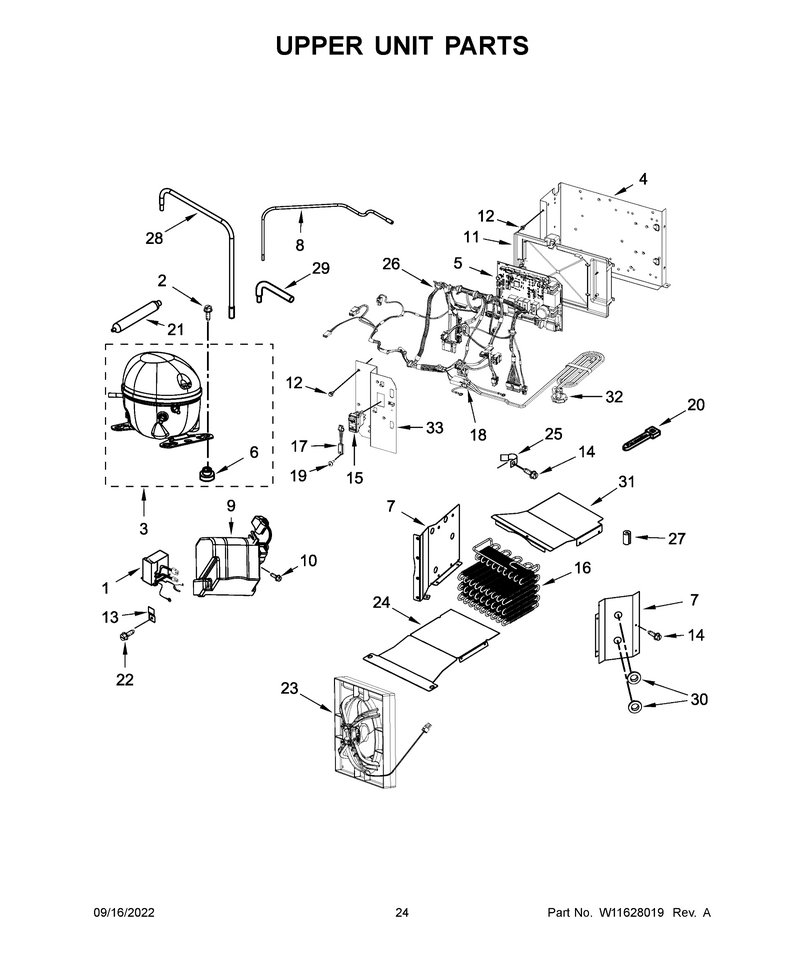

13 - Upper Unit Parts

...
...
NI
Following Parts Not Illustrated WPL-N/P
...
1
Invrtr-Box WPL-W11623097
...
2
Grommet (4) ((Production)) WPL-876811
...
3
Compressor WPL-W11557671
...
3A
8.5/8 Nr Ms 00 (Suction Tube To Compressor) WPL-W11504415
...
3B
7/5 Nr Ms 00 (High Pressure Side To Compressor) WPL-W11504431
...
3C
8.5/6 Nr Ms 00 (Suction Tube To Compressor) WPL-W11504416
...
4
Housing, Control Board Mounting WPL-W10550831
...
5
Cntrl-Elec WPL-W11752963
...
6
Grommet WPL-W11661108
...
7
Plate WPL-W11756945
...
7A
Plate WPL-W11756946
...
8
Tube, Heat Loop Transition WPL-W11460409
...
9
Cover WPL-W11247667
...
10
Screw WPL-WP9741232
...
11
Housing WPL-W11623130
...
12
Screw WPL-WP965173
...
13
Bracket, Inverter Mounting WPL-2256328
...
14
Screw WPL-WP489069
...
15
Switch WPL-W11623128
...
16
Condenser WPL-W11408149
...
16A
5/4 Nr Ms 00 (Suction Line To Condenser) WPL-W11504445
...
16B
5/4 Nr Ms 00 (Suction Line To Condenser) WPL-W11504445
...
17
Sensor WPL-W11627456
...
18
Assembly, Jumper Wire (Power Switch To Power Cord) WPL-2310195
...
19
Screw WPL-W10068580
...
20
Tie-Wire WPL-WPW10339879
...
21
Drier-Tube WPL-W11109499
...
21A
5/4 Nr Ms 00 (Suction Line To Condenser) WPL-W11504445
...
21B
6/5 Nr Ms 00 (Suction Line To Condenser) WPL-W11504432
...
22
Screw WPL-W11624204
...
23
Motor-Cond WPL-W11623099
...
24
Plate WPL-W11756954
...
25
Clamp, Plastic WPL-W11234470
...
26
Harness, Unit Wire WPL-W11421662
...
27
Grommet WPL-W10852725
...
28
Tube, Drier Transition WPL-W11411473
...
29
Tube, Process WPL-W11482820
...
30
Mounting Grommet, Condenser WPL-W10587113
...
31
Cover WPL-W11756951
...
32
Cord, Power WPL-2310196
...
33
Bracket, Control Assembly WPL-W11435371

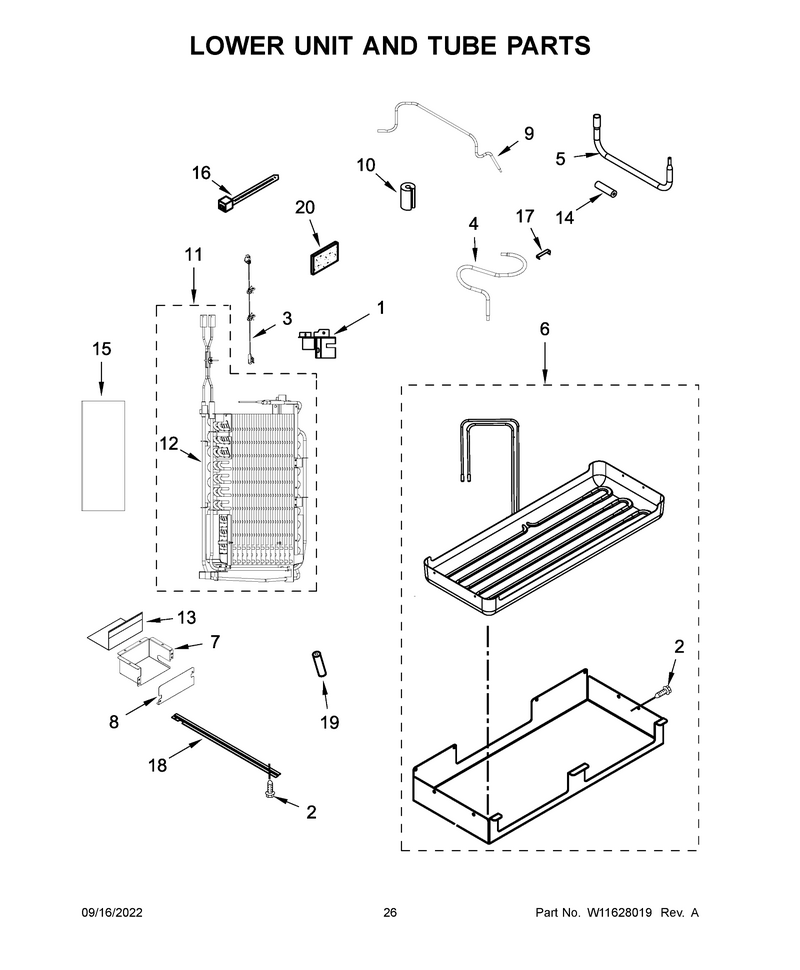

14 - Lower Unit And Tube Parts

...
...
1
Bracket WPL-W11756943
...
2
Screw WPL-WP489069
...
3
Thermistor WPL-W11629268
...
4
Tube, Oil Trap Suction WPL-W11444578
...
5
Tube, Transition (Drier/restrictor) WPL-W11530767
...
6
Heater-Pan WPL-W11623101
...
7
Cover-Wire WPL-WPW10309012
...
8
Cover-Wire WPL-W11756952
...
9
Tube, Discharge WPL-W11444570
...
10
Dampener WPL-W11715935
...
11
Evaporator WPL-W11629714
...
11A
4/1.8 Nr Ms 00 (Capillary Tube To Evaporator) WPL-W11504450
...
11B
8 Nk Al 00 (Suction Line To Evaporator) WPL-W11506620
...
12
Heater WPL-W11626107
...
13
Shelf, Wiring Cover WPL-W10321050
...
14
Sleeve WPL-W11751592
...
15
Gasket, Evaporator Bypass WPL-W11475798
...
16
Tie-Wire WPL-WPW10339879
...
17
Clip, Heat Exchanger WPL-W10169509
...
18
Support, Drain Pan WPL-2320554
...
19
Dampener WPL-2215648
...
20
Insulation WPL-W11553819

...
...
NI
Torx Screw Wrench, Torx Key WPL-1117510
Schematic Image Zoomed
Scroll to zoom • Drag to pan • Click to close
Press Esc or click background to close Pinch to zoom • Tap to close
Shopper Approved
USA Today Champions 2025
BBB Accredited
Newsweek Best Online Shops 2025
Google Reviews
Processing
