Jenn-Air JBSS42E22L00

Model: JBSS42E22L00

Save Part Not Listed?
product name

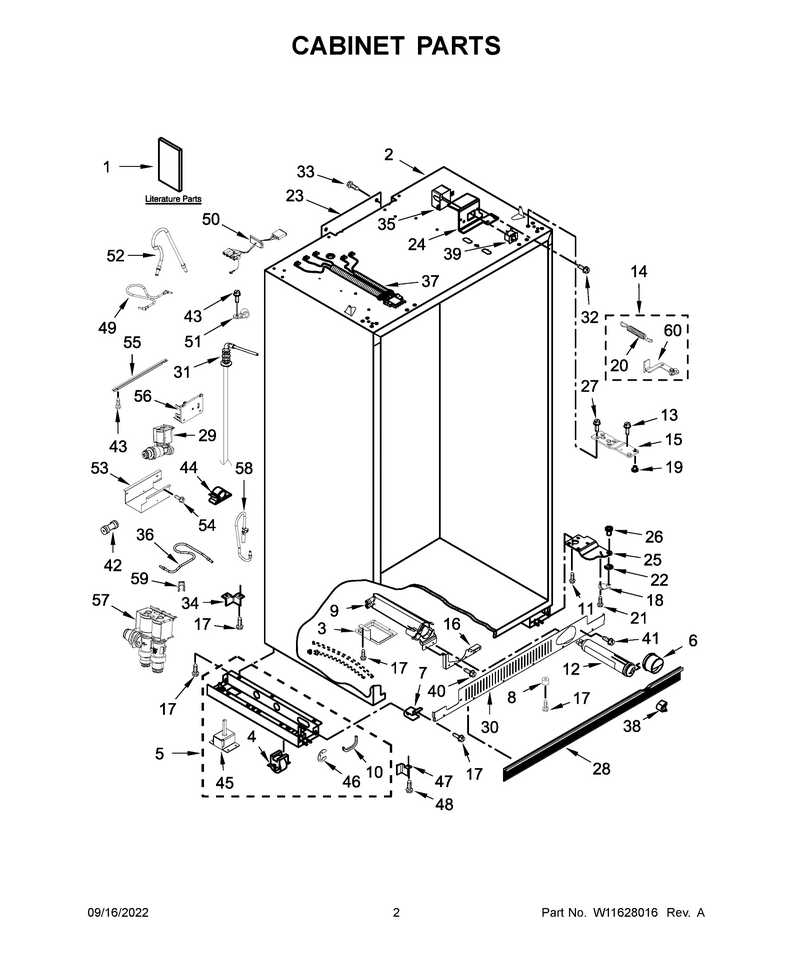

02 - Cabinet Parts

...
...
1
Use And Care Guide WPL-W11490758
...
1A
Energy Guide WPL-W11443682
...
1B
Installation Instructions WPL-W11590464
...
1C
Tech Sheet WPL-W11494195
...
2
Following Parts Not Illustrated WPL-N/P
...
3
Tray, Filter Drip WPL-2318189
...
4
Roller-Cab WPL-WPW10138054
...
5
Support WPL-W10860229
...
5A
Support WPL-W10860448
...
6
Cap-Filter WPL-W11238395
...
7
Bracket WPL-W10839844
...
8
Spacer WPL-2005433
...
9
Housing WPL-WPW10121140
...
10
Grommet, Crossover Tube WPL-2307584
...
11
Screw WPL-3400525
...
12
Filter WPL-EDR3RXD1
...
13
Screw WPL-WP8281164
...
14
Etension WPL-WPW10121046
...
14A
Extension WPL-WP2307857
...
15
Hinge, Top WPL-2257644
...
16
Bracket, Filter WPL-W10674648
...
17
Screw WPL-WP489464
...
18
Hing-Bushg WPL-WP2004994
...
19
Hing-Bushg WPL-W11500952
...
20
Spring WPL-WP2004517
...
21
Screw WPL-3400230
...
22
Ring-E WPL-WP489236
...
23
Cover, Air Duct WPL-2215612
...
24
Bracket, Switch (Left Hand) WPL-W11610480
...
24A
Bracket, Switch (Right Hand) WPL-W11610479
...
25
Hinge-Door WPL-W10527053
...
25A
Hinge-Door WPL-WP2006780
...
26
Hing-Bushg WPL-WP2302876
...
27
Screw WPL-W11721628
...
28
Grille-Frt WPL-WPW10188549
...
29
Valve-Inlt WPL-W11246413
...
30
Grille-Frt WPL-WPW10182717
...
31
Tube-Inlet WPL-W11212166
...
32
Screw WPL-WP965173
...
33
Screw (Black) WPL-W10678210
...
34
Bracket, Base Support (Rear) WPL-2006617
...
35
Cover WPL-W11756944
...
36
Tube-Water WPL-W11533506
...
37
Assembly, Switch Wire WPL-W10780213
...
38
Button WPL-WP2260503B
...
39
Switch WPL-W11396033
...
39A
Switch WPL-W11291138
...
40
Screw WPL-WP8281163
...
41
Screw WPL-WP489464
...
42
Fitting WPL-WP2300868
...
43
Screw WPL-W11624204
...
44
Clip WPL-W10663352
...
45
Leveler, Adjustable WPL-2005032
...
46
Ring, Retainer WPL-2006841
...
47
Bracket, Support (Left Hand) WPL-2006616
...
47A
Bracket, Support (Right Hand) WPL-2006556
...
48
Screw WPL-WPW10141604
...
49
Tube-Water WPL-W11663448
...
50
Harness, Water Valve WPL-W11421923
...
51
Clamp, Tube WPL-489348
...
52
Tube-Water WPL-W11634221
...
53
Shield, Water Valve WPL-W11439643
...
54
Screw WPL-WP489128
...
55
Support, Valve WPL-2320559
...
56
Bracket WPL-W10847867
...
57
Valve-Inlt WPL-WPW10279866
...
58
Tube-Water WPL-W11634223
...
59
Locking Ring(5/16") WPL-W10782424
...
59A
Locking Ring (1/4") WPL-W10782423
...
60
Extension WPL-W11298172
...
60A
Extension WPL-W10847927

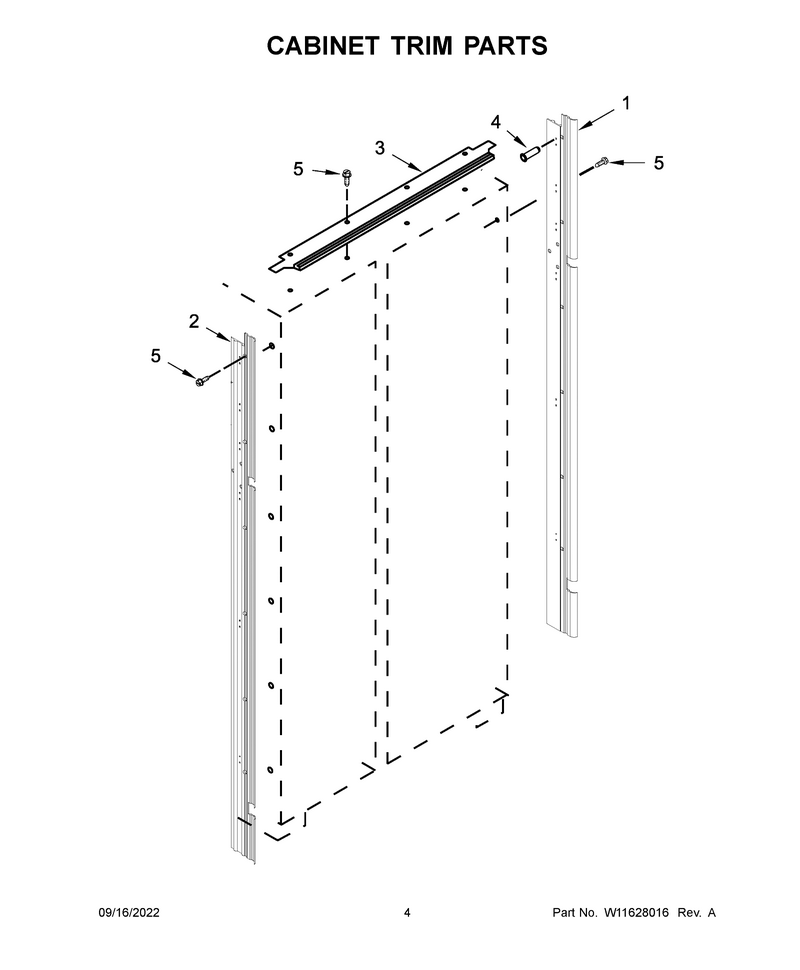

03 - Cabinet Trim Parts

...
...
1
Trim-Cabnt WPL-W11173663
...
2
Trim-Cabnt WPL-W11173662
...
3
Trim, Top (Aluminum) WPL-2314017
...
4
Insert WPL-WPW10121451
...
5
Screw WPL-W11624204

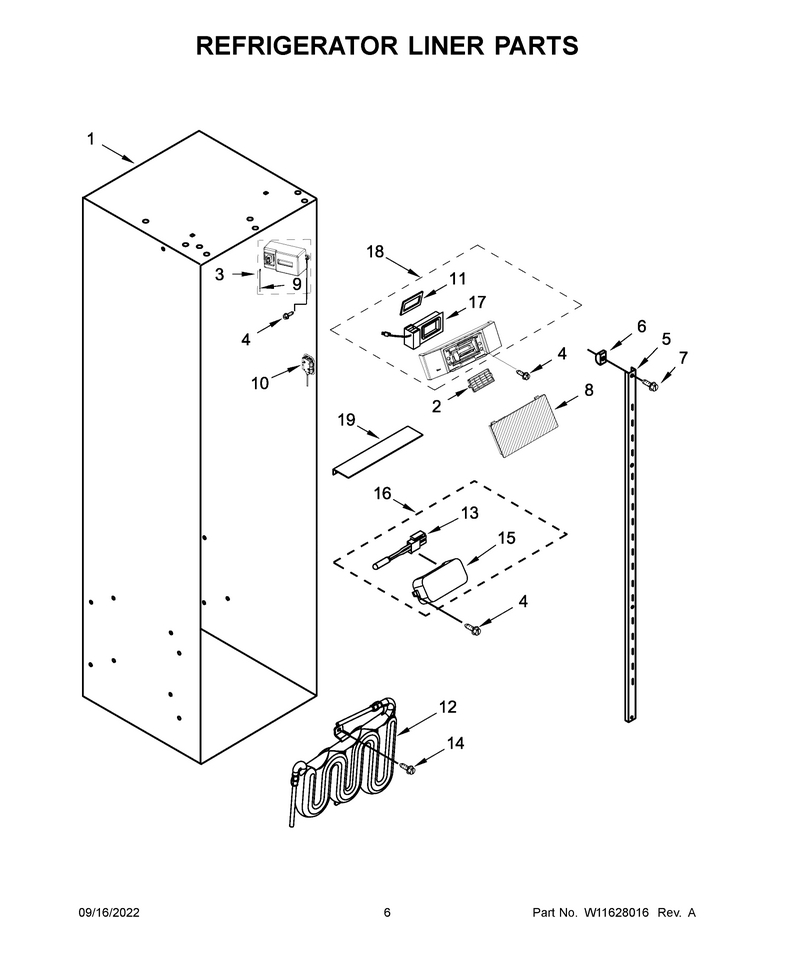

04 - Refrigerator Liner Parts

...
...
1
Following Parts Not Illustrated WPL-N/P
...
2
Antibacterial Filter WPL-W10311524
...
3
Cover WPL-W11744513
...
4
Screw (Black) WPL-W10678210
...
5
Ladder, Shelf WPL-W11481489
...
6
Support, Ladder WPL-2259445
...
7
Screw (Black) WPL-W10678207
...
8
Cover, Diffuser Assembly WPL-W11480887
...
9
Thermistor WPL-WP2302937
...
10
Module WPL-W11484836
...
11
Gasket, Air Baffle WPL-W11480891
...
12
Reservoir, Water WPL-W11463083
...
13
Thermistor WPL-WP2188820
...
14
Screw WPL-W10141518
...
15
Cover WPL-W11235125
...
16
Cover WPL-W11759117
...
17
Air-Baffle WPL-WP2220377
...
18
Diffuser WPL-W11741459
...
19
Diverter, Crisper Cover WPL-W10782834

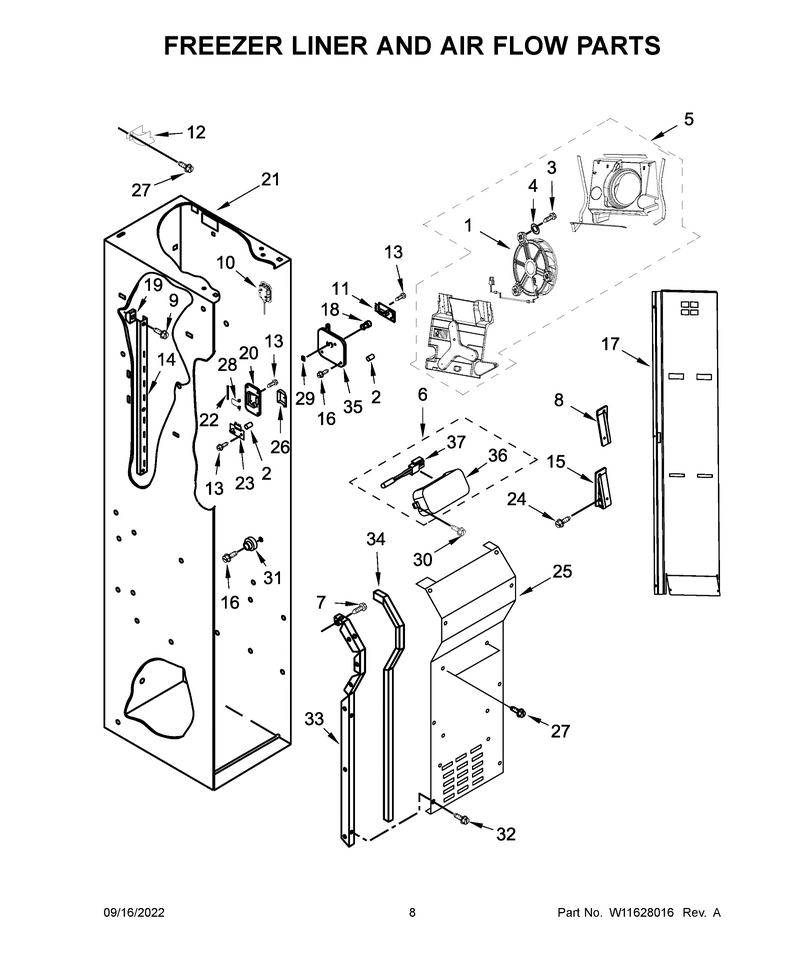

05 - Freezer Liner And Air Flow Parts

...
...
1
Motor-Evap WPL-W11618271
...
2
Tube, Circuit Board WPL-2198665
...
3
Screw WPL-WP488729
...
4
Washer WPL-3400916
...
5
Motor-Evap WPL-W11631623
...
6
Cover WPL-W11759117
...
7
Screw WPL-W11624204
...
8
Wedge, Air Duct (Right Hand) WPL-W10769279
...
9
Screw (Black) WPL-W10678207
...
10
Module WPL-W11484836
...
11
Cntrl-Elec WPL-W11629974
...
12
Guard, Air Return WPL-W10775705
...
13
Screw, 6-19 X .250 WPL-2006254
...
14
Ladder, Shelf WPL-W11481486
...
15
Wedge, Air Duct (Left Hand) WPL-W10769280
...
16
Screw (Black) WPL-W10784949
...
17
Duct, Air WPL-W11469465
...
18
Lens WPL-WP2198643
...
19
Support, Ladder WPL-2259445
...
20
Cover WPL-W11603664
...
21
Following Parts Not Illustrated WPL-N/P
...
22
Pin-Door WPL-WP2198634
...
23
Cntrl-Elec WPL-W11629974
...
24
Screw WPL-WP98008545
...
25
Cover-Evap WPL-W11756949
...
26
Flipper WPL-W11603665
...
27
Screw (Black) WPL-W10678210
...
28
Spring WPL-WP2198635
...
29
Slide, Icemaker Shut Off WPL-W11603667
...
30
Screw WPL-WP489069
...
31
Assembly, Shelf Stud (Includes Screw) WPL-W10789219
...
32
Screw WPL-WP8281163
...
33
Rail-Evap WPL-W11756941
...
33A
Rail-Evap WPL-W11756942
...
34
Gasket, Evaporator Cover WPL-W11467832
...
35
Cover, Receiver WPL-W11603666
...
36
Cover WPL-W11235125
...
37
Thermistor WPL-WP2188820

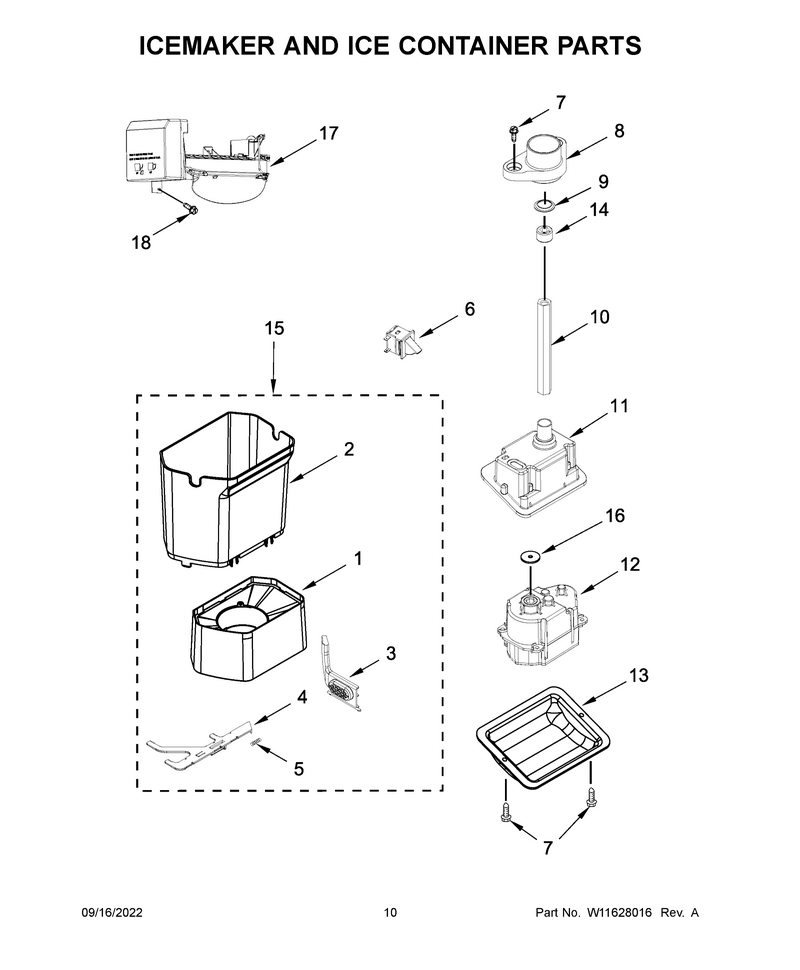

06 - Icemaker And Ice Container Parts

...
...
1
Bin, Crusher WPL-W11452365
...
2
Bin-Ice WPL-WP2222965
...
3
Button, Bin WPL-W11455248
...
4
Latch, Bin WPL-W10134783
...
5
Spring WPL-WP2198608
...
6
Switch, Auger Motor WPL-W11592420
...
7
Screw WPL-WP8281163
...
8
Clip, Shaft WPL-W10785288
...
9
Seal WPL-WP2198628
...
10
Shaft WPL-WP2318082
...
11
Enclosure, Motor WPL-W11461791
...
12
Motor WPL-W10822606
...
13
Cover, Dispenser Motor WPL-W11459587
...
14
Sleeve WPL-WP2315559
...
15
Assembly, Ice Container WPL-W11452363
...
16
Washer WPL-WPW10254073
...
17
Icemaker WPL-W11735838
...
18
Screw (Black) WPL-W10678210

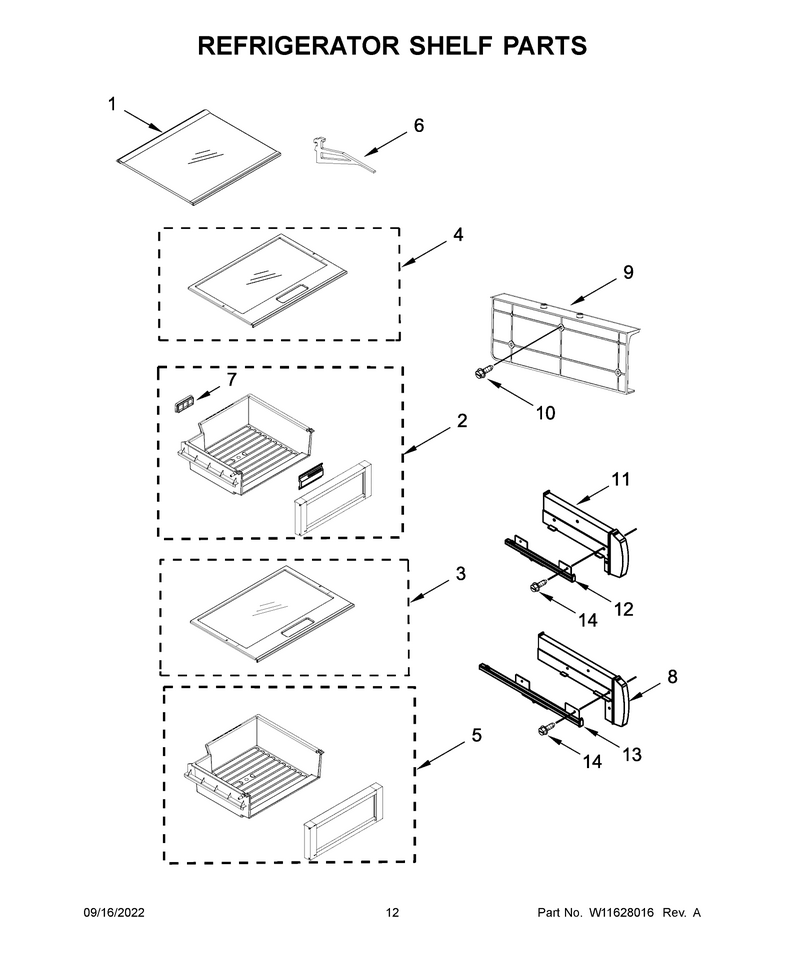

07 - Refrigerator Shelf Parts

...
...
1
Shelf-Glas WPL-WPW10187535
...
2
Pan-Crispr WPL-W11623363
...
3
Shelf-Glas WPL-W11626006
...
4
Shelf-Glas WPL-W11634219
...
5
Pan-Meat WPL-W11626007
...
6
Support WPL-W11690161
...
7
Duct, Deli Pan WPL-2307810
...
8
Spacer, Crisper WPL-W11451491
...
9
Spacer, Shelf Ls WPL-W11451492
...
10
Screw WPL-WP8533928
...
11
Spacer, Meat WPL-W11451493
...
12
Slide, Meat Pan (Left Hand) WPL-W10844011
...
12A
Slide, Meat Pan (Right Hand) WPL-W10732727
...
13
Slide, Crisper (Left Hand) WPL-W10844010
...
13A
Slide, Crisper (Right Hand) WPL-W10732303
...
14
Screw WPL-WP3400886

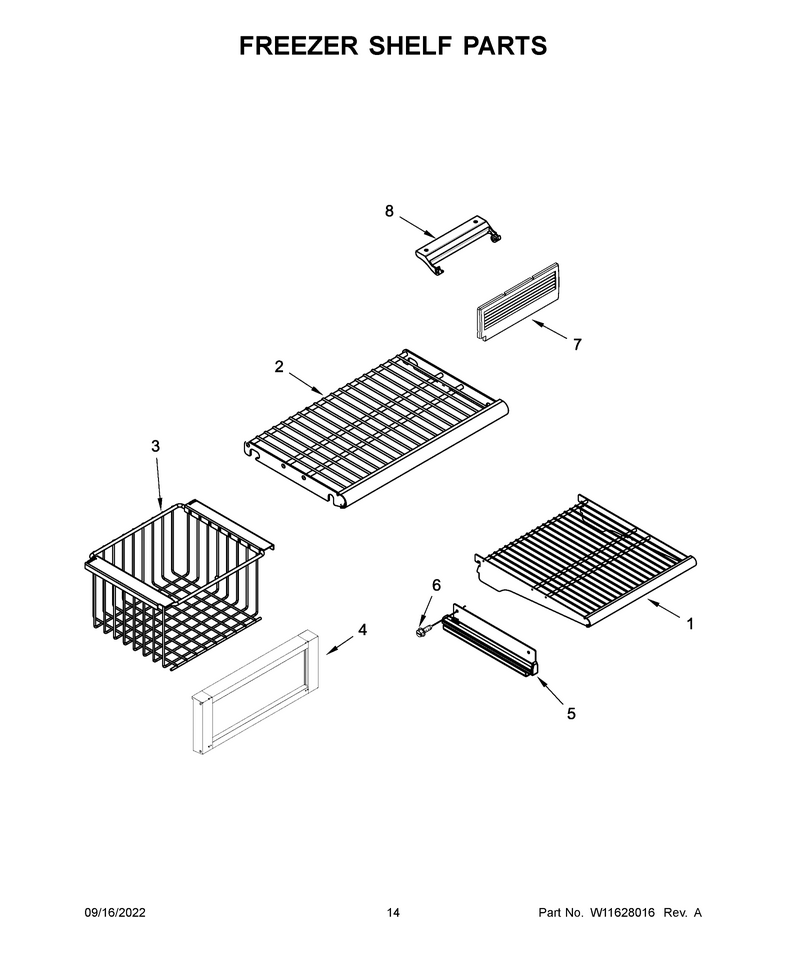

08 - Freezer Shelf Parts

...
...
1
Shelf, Fc Wire WPL-W11455934
...
2
Shelf, Fixed WPL-W11455932
...
3
Basket-Fzr WPL-W11690617
...
4
Front Assembly, Basket WPL-W11452329
...
5
Slide WPL-WP2259318
...
5A
Slide, Basket (Right Hand) WPL-2259317
...
6
Screw WPL-WP8533928
...
7
Cover, Icemaker WPL-W11567129
...
8
Bracket, Icemaker Cover WPL-W10749631

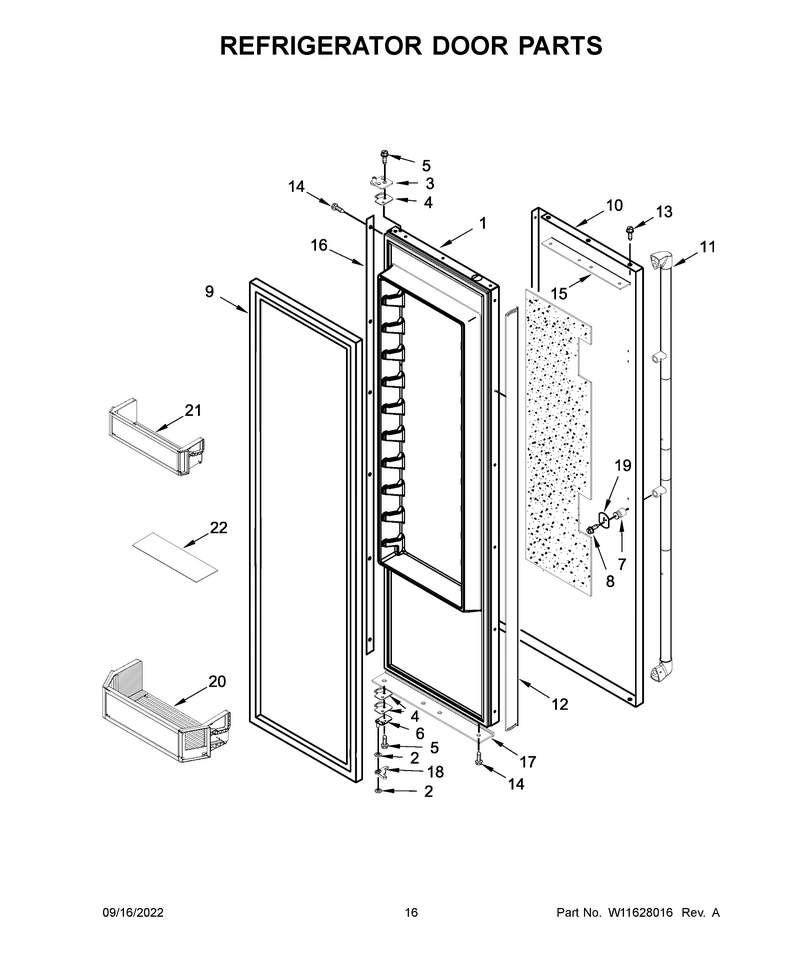

09 - Refrigerator Door Parts

...
...
1
Dor-Fip WPL-W10800807
...
2
Washer WPL-WP2006346
...
3
Hinge-Door WPL-W11673500
...
4
Hinge-Door WPL-W11673500
...
5
Screw WPL-W11474472
...
6
Hinge Assembly, Bottom WPL-2302878
...
7
Stud-Hndle WPL-W11631830
...
8
Screw WPL-WP308544
...
9
Gasket-Fip WPL-W10800817
...
10
Door-Skin WPL-W10800811
...
11
Handle, Door (Stainless) WPL-W11358123
...
12
Spacer, Handle Side Door WPL-W10758377
...
13
Screw WPL-W10759522
...
14
Screw WPL-WP8281250
...
15
Spacer, Door Skin (Top) WPL-W10761892
...
16
Spacer, Hinge Side Door WPL-W10758378
...
17
Spacer, Door Skin Bottom WPL-W10761895
...
18
Gap-Hinge WPL-W11700297
...
19
Plate, Handle Door WPL-W10127710
...
20
Bin, Gallon Door WPL-W11450399
...
21
Bin, Shallow Door WPL-W11450385
...
22
Mat WPL-W11454935
...
22A
Mat WPL-W11454935

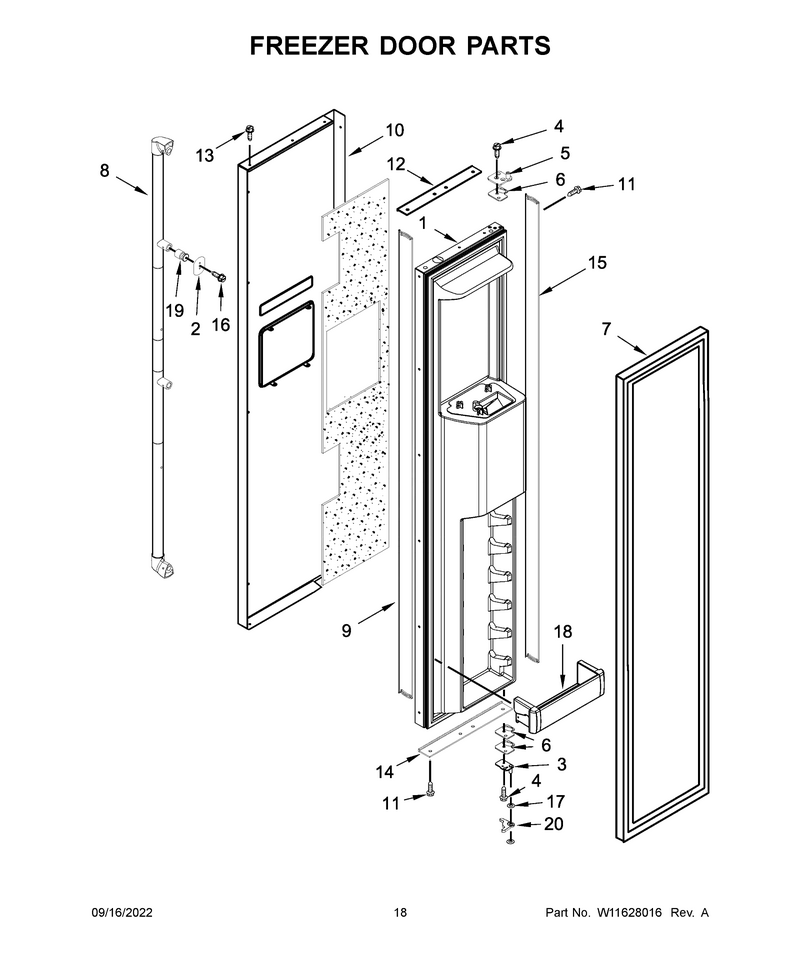

10 - Freezer Door Parts

...
...
1
Dor-Fip WPL-W11633035
...
2
Plate, Handle Door WPL-W10127710
...
3
Hinge-Door WPL-W11752085
...
4
Screw WPL-W11474472
...
5
Hinge-Door WPL-W11673500
...
6
Hinge-Door WPL-W11673500
...
7
Gasket-Fip WPL-W10800809
...
8
Handle, Door (Stainless) WPL-W11358123
...
9
Spacer, Handle Side Door WPL-W10758377
...
10
Door-Skin WPL-W11633383
...
11
Screw WPL-WP8281250
...
12
Spacer, Door Skin (Top) WPL-W10758115
...
13
Screw WPL-W10759522
...
14
Spacer, Door Skin (Bottom) WPL-W10758142
...
15
Spacer, Hinge Side Door WPL-W10758378
...
16
Screw WPL-WP308544
...
17
Gap-Hinge WPL-W11700297
...
18
Bin, Fc Shallow Door WPL-W11450392
...
19
Stud-Hndle WPL-W11631830
...
20
Washer WPL-WP2006346

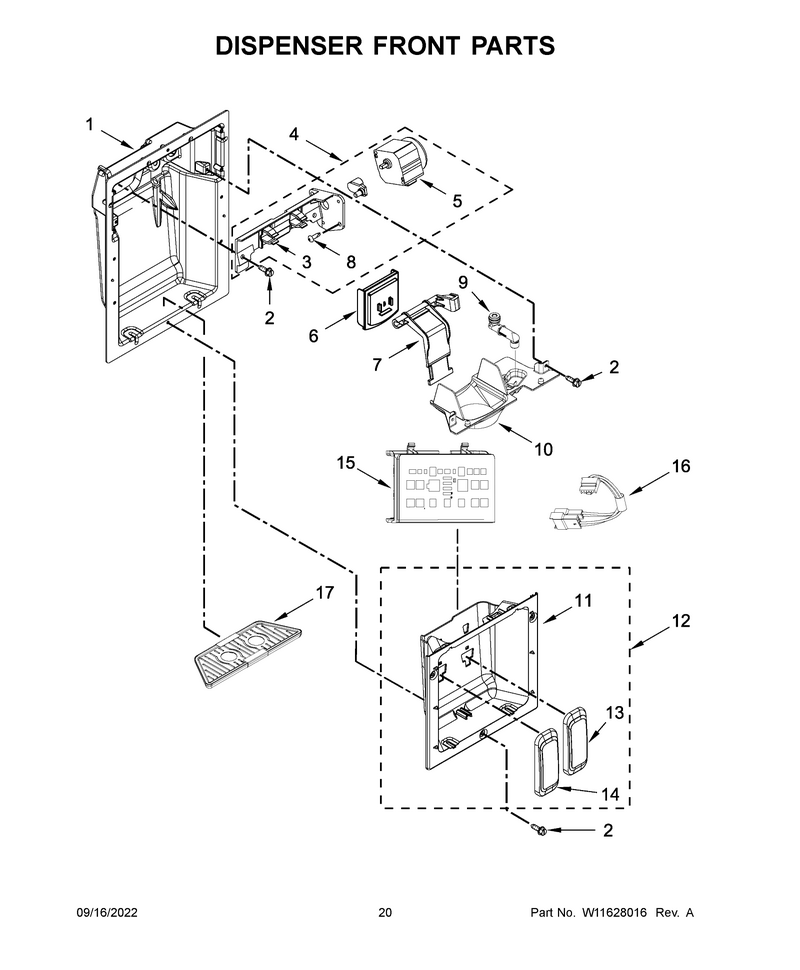

11 - Dispenser Front Parts

...
...
1
Following Parts Not Illustrated WPL-N/P
...
2
Screw WPL-WP8281163
...
3
Bracket, Motor WPL-W10542660
...
4
Motor WPL-WPW10546285
...
5
Motor WPL-WPW10205979
...
6
Door-Chute WPL-WPW10504458
...
7
Support, Ice Door WPL-W10542663
...
8
Screw WPL-WP4449745
...
9
Spigot WPL-WP2305235
...
10
Separator, Dispenser WPL-W11649219
...
11
Following Parts Not Illustrated WPL-N/P
...
12
Cover-Frnt WPL-W11634220
...
13
Pad WPL-W11629729
...
14
Pad WPL-W11629728
...
15
Panel-Ui WPL-W11626108
...
16
Wire-Jumpr WPL-W11629730
...
17
Tray-Drip WPL-W11630205

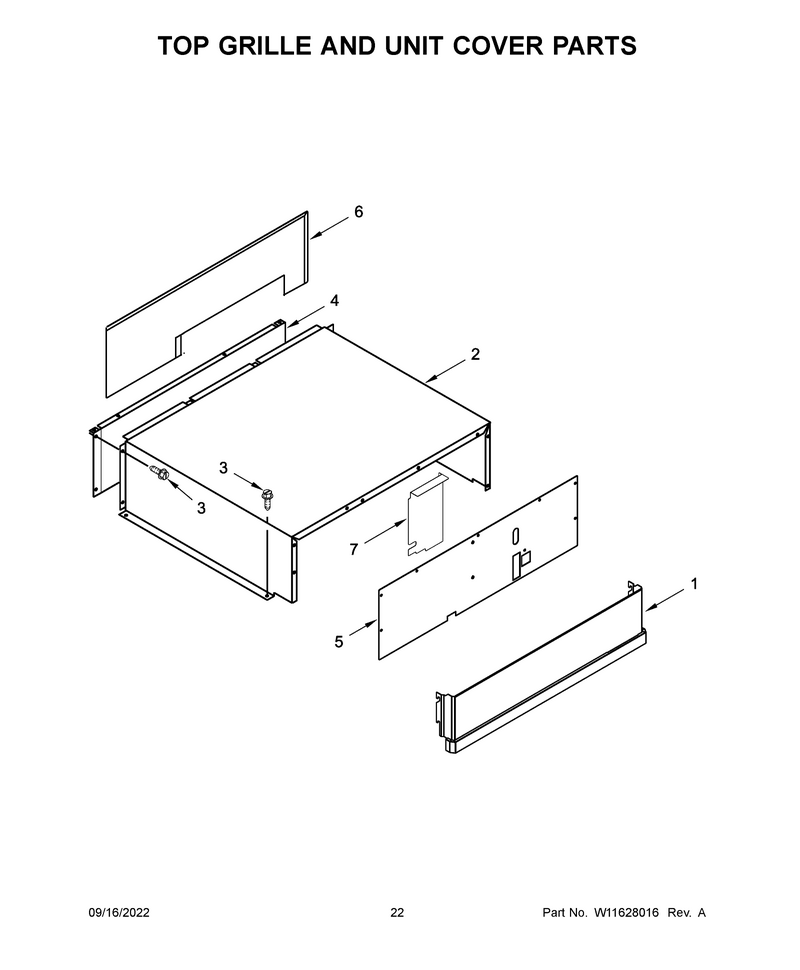

12 - Top Grille And Unit Cover Parts

...
...
1
Grill-Uppr WPL-W11712702
...
2
Cover, Unit WPL-W10545068
...
3
Screw WPL-WP489069
...
4
Panel, Unit Back WPL-2256466
...
5
Cover, Unit Front WPL-W11435372
...
6
Insulation, Unit Back Panel WPL-W11244166
...
7
Divider, Unit Air WPL-W10645086

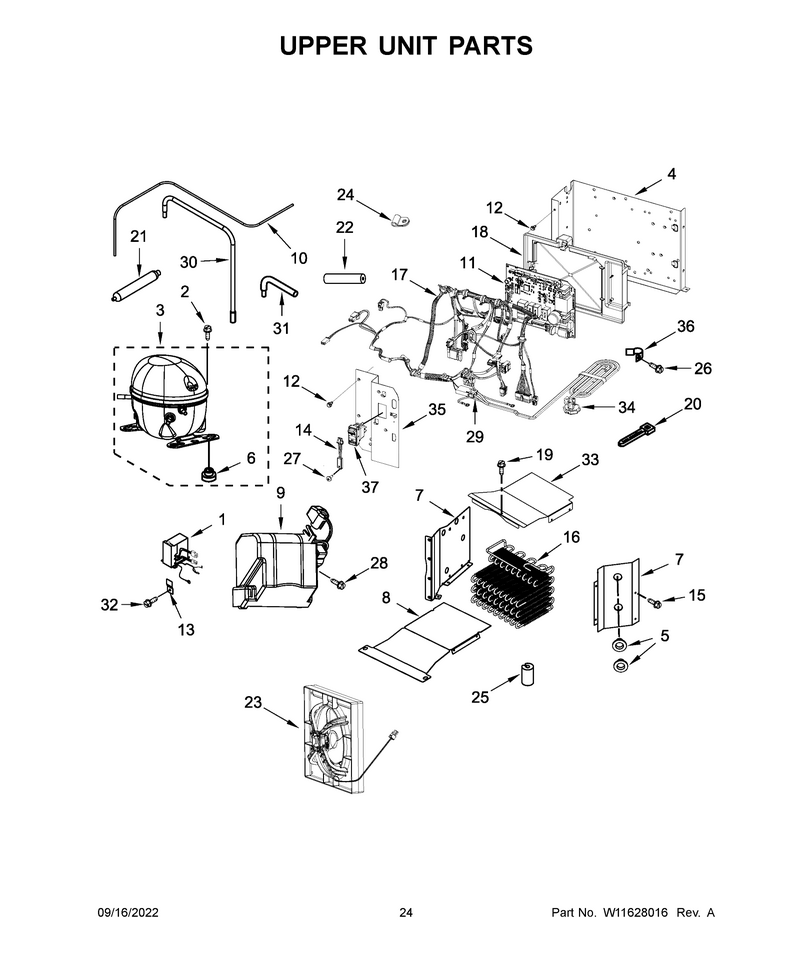

13 - Upper Unit Parts

...
...
NI
Following Parts Not Illustrated WPL-N/P
...
1
Invrtr-Box WPL-W11623097
...
2
Grommet (4) ((Production)) WPL-876811
...
3
Compressor WPL-W11557671
...
3A
8.5/8 Nr Ms 00 (Suction Tube To Compressor) WPL-W11504415
...
3B
7/5 Nr Ms 00 (High Pressure Side To Compressor) WPL-W11504431
...
3C
8.5/6 Nr Ms 00 (Suction Tube To Compressor) WPL-W11504416
...
4
Housing, Control Board Mounting WPL-W10550831
...
5
Mounting Grommet, Condenser WPL-W10587113
...
6
Grommet WPL-W11661108
...
7
Plate WPL-W11756945
...
7A
Plate WPL-W11756946
...
8
Plate WPL-W11756954
...
9
Cover WPL-W11247667
...
10
Tube, Heat Loop Transition WPL-W11460408
...
11
Cntrl-Elec WPL-W11752963
...
12
Screw WPL-WP965173
...
13
Bracket, Inverter Mounting WPL-2256328
...
14
Sensor WPL-W11627456
...
15
Screw WPL-WP489069
...
16
Condenser WPL-W11408149
...
16A
5/4 Nr Ms 00 (Suction Line To Condenser) WPL-W11504445
...
16B
5/4 Nr Ms 00 (Suction Line To Condenser) WPL-W11504445
...
17
Harness, Unit Wire WPL-W11421662
...
18
Housing WPL-W11623130
...
19
Screw WPL-WP489399
...
20
Tie-Wire WPL-WPW10339879
...
21
Drier-Tube WPL-W11109499
...
21A
5/4 Nr Ms 00 (Suction Line To Condenser) WPL-W11504445
...
21B
6/5 Nr Ms 00 (Suction Line To Condenser) WPL-W11504432
...
22
Sleeve WPL-W11751592
...
23
Motor-Cond WPL-W11623099
...
24
Clamp WPL-W10833902
...
25
Grommet WPL-W10852725
...
26
Screw WPL-WP489128
...
27
Screw WPL-W10068580
...
28
Screw WPL-WP9741232
...
29
Assembly, Jumper Wire (Power Switch To Power Cord) WPL-2310195
...
30
Tube, Drier Transition WPL-W11411473
...
31
Tube, Process WPL-W11482820
...
32
Screw WPL-W11624204
...
33
Cover WPL-W11756951
...
34
Cord, Power WPL-2310196
...
35
Bracket, Control Assembly WPL-W11435371
...
36
Clamp, Plastic WPL-W11234470
...
37
Switch WPL-W11623128

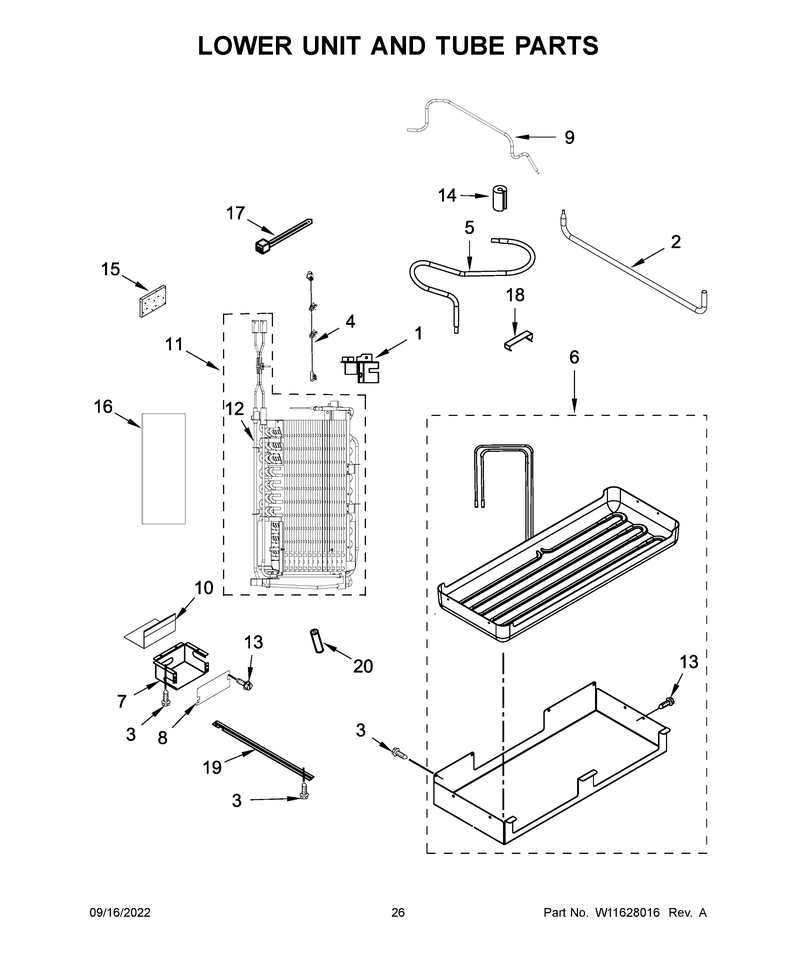

14 - Lower Unit And Tube Parts

...
...
1
Bracket WPL-W11756943
...
2
Tube, Transition (Drier/restrictor) WPL-W11530767
...
3
Screw WPL-W11624204
...
4
Thermistor WPL-W11629268
...
5
Tube, Oil Trap Suction WPL-W11444578
...
6
Heater-Pan WPL-W11623101
...
7
Cover-Wire WPL-WPW10309012
...
8
Cover-Wire WPL-W11756952
...
9
Tube, Discharge WPL-W11445483
...
10
Shelf, Wiring Cover WPL-W10321050
...
11
Evaporator WPL-W11629713
...
11A
4/1.8 Nr Ms 00 (Capillary Tube To Evaporator) WPL-W11504450
...
11B
8 Nk Al 00 (Suction Line To Evaporator) WPL-W11506620
...
12
Heater, Defrost WPL-W11267071
...
13
Screw WPL-WP489069
...
14
Dampener WPL-W11715935
...
15
Insulation WPL-W11553819
...
16
Gasket, Fc Evaporator Bypass WPL-W11448419
...
17
Tie-Wire WPL-WPW10339879
...
18
Clip, Heat Exchanger WPL-W10169509
...
19
Support, Drain Pan WPL-2320554
...
20
Dampener WPL-2215648
Schematic Image Zoomed
Scroll to zoom • Drag to pan • Click to close
Press Esc or click background to close Pinch to zoom • Tap to close
Shopper Approved
USA Today Champions 2025
BBB Accredited
Newsweek Best Online Shops 2025
Google Reviews
Processing
