Jenn-Air JBRFL30IGX10

Model: JBRFL30IGX10

Save Part Not Listed?
product name

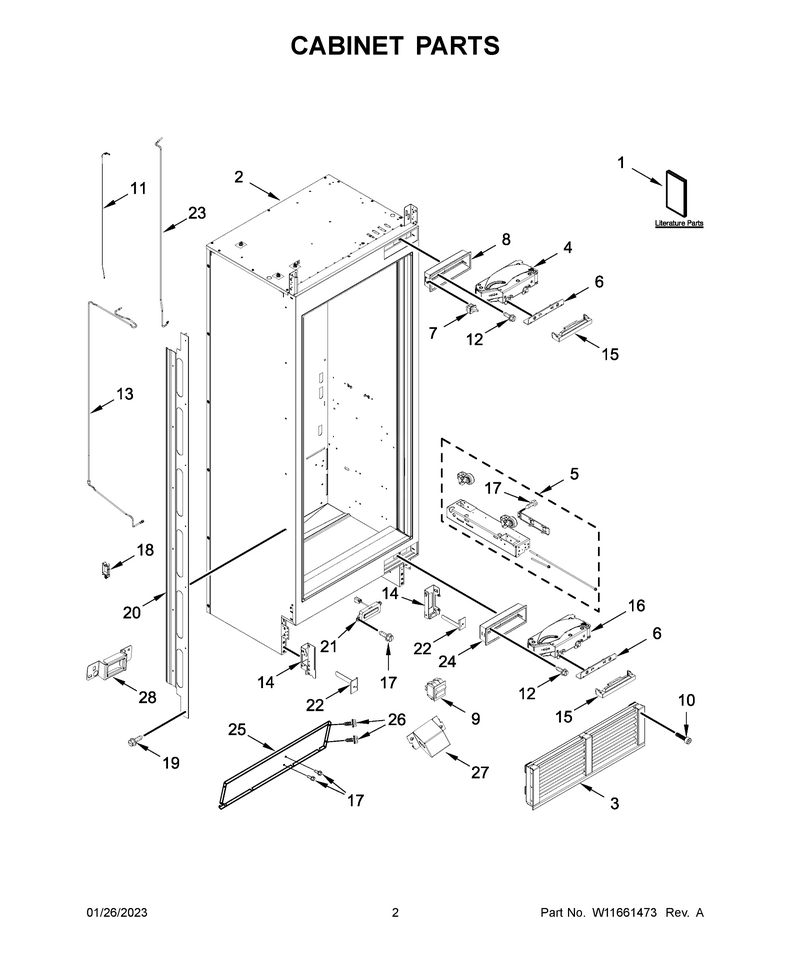

02 - Cabinet Parts

...
...
1
Use And Care Guide WPL-W11362247
...
1A
Energy Guide WPL-W10898663
...
1B
Installation Instructions WPL-W11362249
...
1C
Tech Sheet WPL-W11362242
...
2
Following Parts Not Illustrated WPL-N/P
...
3
Grille-Frt WPL-W11233347
...
4
Hinge-Door WPL-W11233362
...
5
Support WPL-W11233365
...
5A
Support WPL-W11233364
...
6
Bracket WPL-W11234860
...
7
Switch WPL-W11642199
...
8
Trim WPL-W11234282
...
9
Switch WPL-W11623128
...
10
Screw WPL-W11247538
...
11
Harness, Antenna WPL-W10897083
...
12
Screw (Black) WPL-W10678210
...
13
Tube-Water WPL-W11233369
...
14
Assemby, Grille Mount (Includes Nut) (Left Hand) WPL-W11028834
...
14A
Assemby, Grille Mount (Includes Nut) (Right Hand) WPL-W11028835
...
15
Cover WPL-W11235093
...
16
Hinge-Door WPL-W11233372
...
17
Screw WPL-WPW10141625
...
18
Clip WPL-W11233386
...
19
Screw WPL-WPW10141645
...
20
Trim WPL-W11233378
...
20A
Trim WPL-W11257221
...
21
Cntrl-Elec WPL-W11234285
...
22
Assembly, Adjustable Toekick (Left Hand) WPL-W10848725
...
22A
Assembly, Adjustable Toekick (Right Hand) WPL-W10848724
...
23
Tube-Water WPL-W11247672
...
24
Trim WPL-W11249239
...
25
Cover-Back WPL-W11618048
...
26
Screw WPL-WP489069
...
27
Cover, Power Switch WPL-W11415331
...
28
Cover, Safety Switch WPL-W11356980

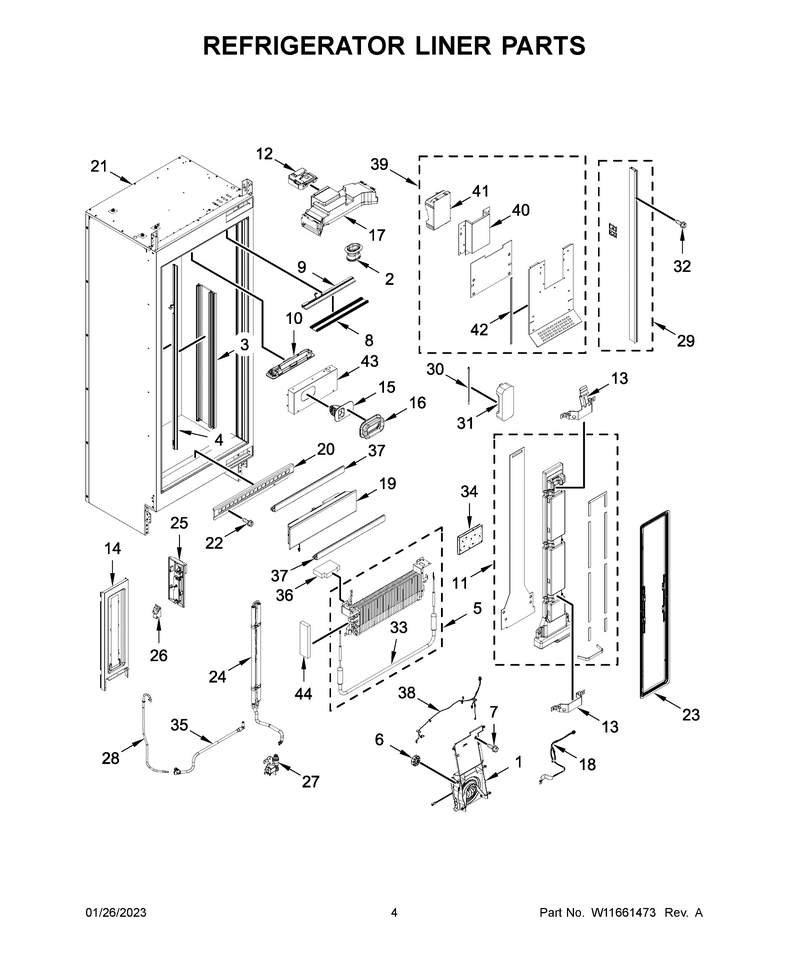

03 - Refrigerator Liner Parts

...
...
1
Fan WPL-W11233380
...
2
Fitting, Drain WPL-W10370680
...
3
Cover WPL-W11235099
...
4
Module WPL-W11233381
...
4A
Module WPL-W11233382
...
5
Evaporator WPL-W11645572
...
5A
(3/1.8 Nr Ms 00) (Capillary Tube To Evaporator) WPL-W11504451
...
5B
8 Nk Ms 00 (Suction Line To Evaporator) WPL-W11506619
...
6
Grommet, Motor WPL-W10225833
...
7
Screw (3) WPL-67006425
...
8
Cover WPL-W11235109
...
9
Module WPL-W11233383
...
10
Module WPL-W11233384
...
11
Gasket WPL-W11235114
...
12
Damper WPL-W11235115
...
13
Assembly, Air Tower Bracket (Includes Rubber Rivets, Washers And Screws) (Upper) WPL-W11036131
...
13A
Assembly, Air Tower Bracket (Includes Rubber Rivets, Washers And Screws) (Lower) WPL-W11036132
...
14
Shield WPL-W11234822
...
15
Duct WPL-W11235116
...
16
Gasket WPL-W11235118
...
17
Duct WPL-W11249240
...
18
Harns-Wire WPL-W11247700
...
19
Panel-Ui WPL-W11404241
...
20
Grille WPL-W11235122
...
21
Following Parts Not Illustrated WPL-N/P
...
22
Screw WPL-WP489069
...
23
Air-Tower WPL-W11235123
...
24
Reservoir WPL-W11603843
...
25
Cover WPL-W11247958
...
26
Switch WPL-WP12575502
...
27
Valve WPL-W11247961
...
28
Tube-Water WPL-W11248065
...
29
Ladder WPL-W11234825
...
29A
Ladder WPL-W11234551
...
30
Thermistor WPL-W11234826
...
31
Cover WPL-W11235125
...
32
Screw WPL-W11234828
...
33
Heater WPL-W11646154
...
34
Insulation WPL-W11553819
...
35
Tube-Water WPL-W11579165
...
36
Insulation WPL-W11306693
...
36A
Insulation WPL-W11306694
...
37
Support WPL-W11306285
...
37A
Support WPL-W11306286
...
38
Harns-Wire WPL-W11642297
...
39
Cover WPL-W11646156
...
40
Cover WPL-W11299623
...
41
Insulation WPL-W11299416
...
42
Wiper WPL-W11299413
...
43
Cover WPL-W11306289
...
44
Insulation WPL-W11306293
...
44A
Insulation WPL-W11306690

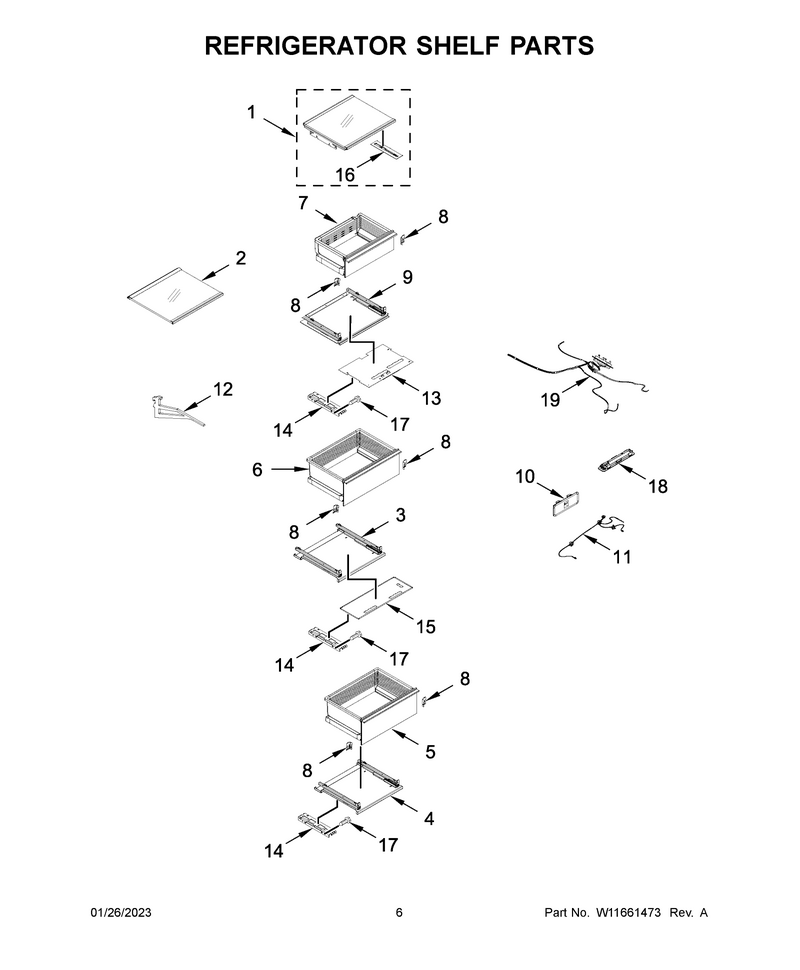

04 - Refrigerator Shelf Parts

...
...
1
Shelf-Glas WPL-W11234559
...
2
Shelf-Glas WPL-W11234495
...
3
Support WPL-W11232781
...
4
Support WPL-W11232782
...
5
Pan-Crispr WPL-W11249242
...
6
Pan-Crispr WPL-W11249243
...
7
Pan-Utilty WPL-W11234513
...
8
Retainer WPL-W11235126
...
8A
Retainer WPL-W11235128
...
9
Support WPL-W11232780
...
10
Housing WPL-W11234857
...
11
Harns-Wire WPL-W11234859
...
12
Support WPL-W11690161
...
13
Plate WPL-W11306695
...
14
Bracket WPL-W11302039
...
15
Plate WPL-W11306698
...
16
Thermistor (Includes Cover) WPL-W11265008
...
17
Screw WPL-W11247538
...
18
Module WPL-W11233384
...
19
Harness, Mullion WPL-W10818566

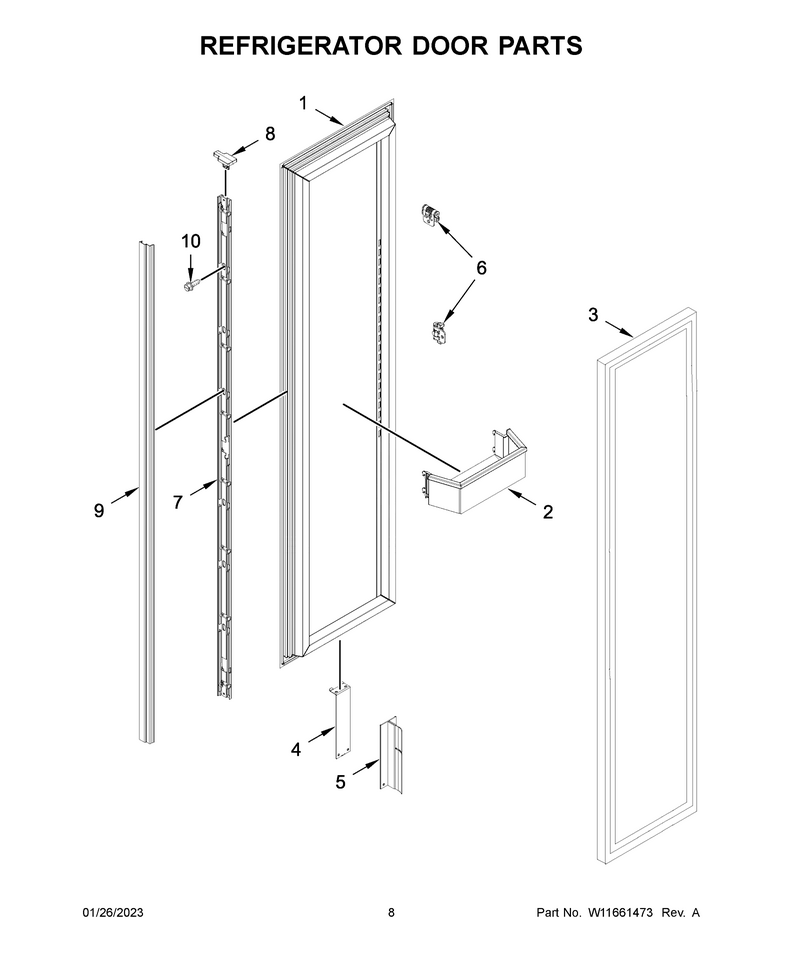

05 - Refrigerator Door Parts

...
...
NI
Spacer WPL-W11234308
...
1
Dor-Fip WPL-W11103545
...
2
Bin-Cntlvr WPL-W11233619
...
3
Gasket, Door (Black) WPL-W11038432
...
4
Bracket WPL-W11235096
...
5
Divider WPL-W11233377
...
6
Adapter WPL-W11235097
...
6A
Adapter WPL-W11235098
...
7
Bracket WPL-W11302040
...
8
Trim WPL-W11302061
...
9
Trim-Door WPL-W11299811
...
10
Screw WPL-W11302041

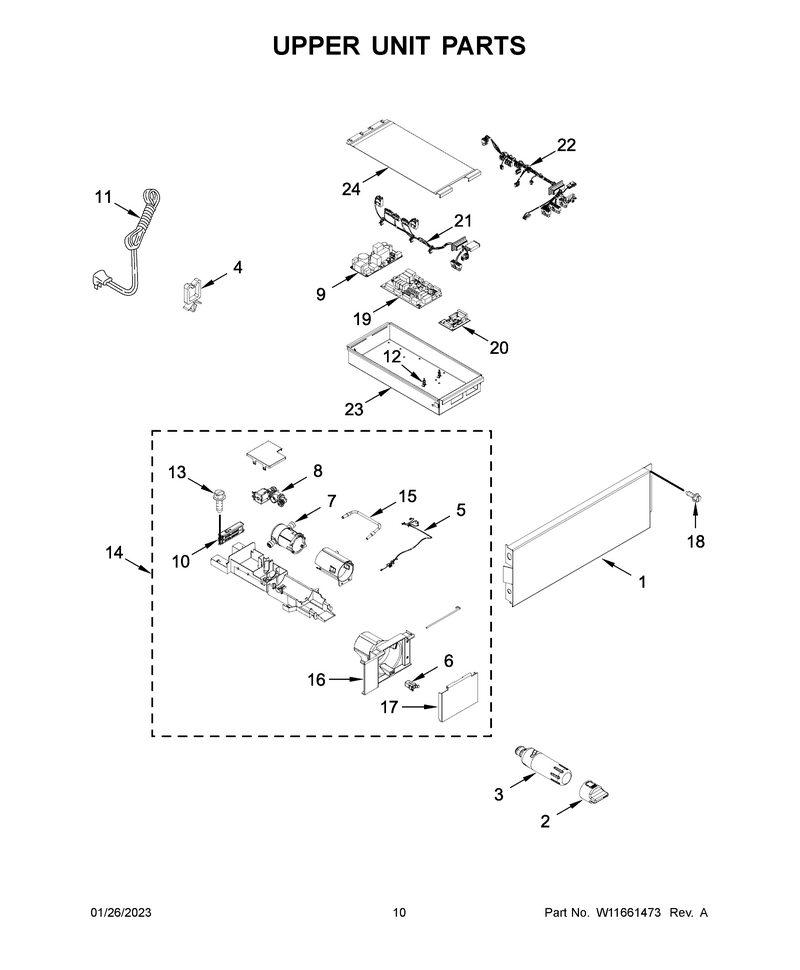

06 - Upper Unit Parts

...
...
1
Cover WPL-W11234861
...
2
Cap-Filter WPL-W11679634
...
3
Filter WPL-EDR2RXD1
...
4
Clamp WPL-W11233642
...
5
Harns-Wire WPL-W11233370
...
6
Latch WPL-W11299812
...
7
Housing WPL-W11194438
...
8
Valve WPL-W11248061
...
9
Cntrl-Elec WPL-WPW10624574
...
10
Cntrl-Elec WPL-W11234290
...
11
Cord, Power WPL-W11380825
...
12
Spacer WPL-WP2203075
...
13
Screw WPL-W11233373
...
14
Mount-Kit WPL-W11248063
...
15
Tube-Water WPL-W11233371
...
16
Housing WPL-W11247540
...
17
Cover-Filt WPL-W11247543
...
18
Screw WPL-W11247538
...
19
Cntrl-Elec WPL-W11645579
...
20
Cntrl-Elec WPL-W11233638
...
21
Harns-Wire WPL-W11304776
...
22
Harns-Wire WPL-W11646688
...
23
Mount-Tray WPL-W11302064
...
24
Lid WPL-W11302065

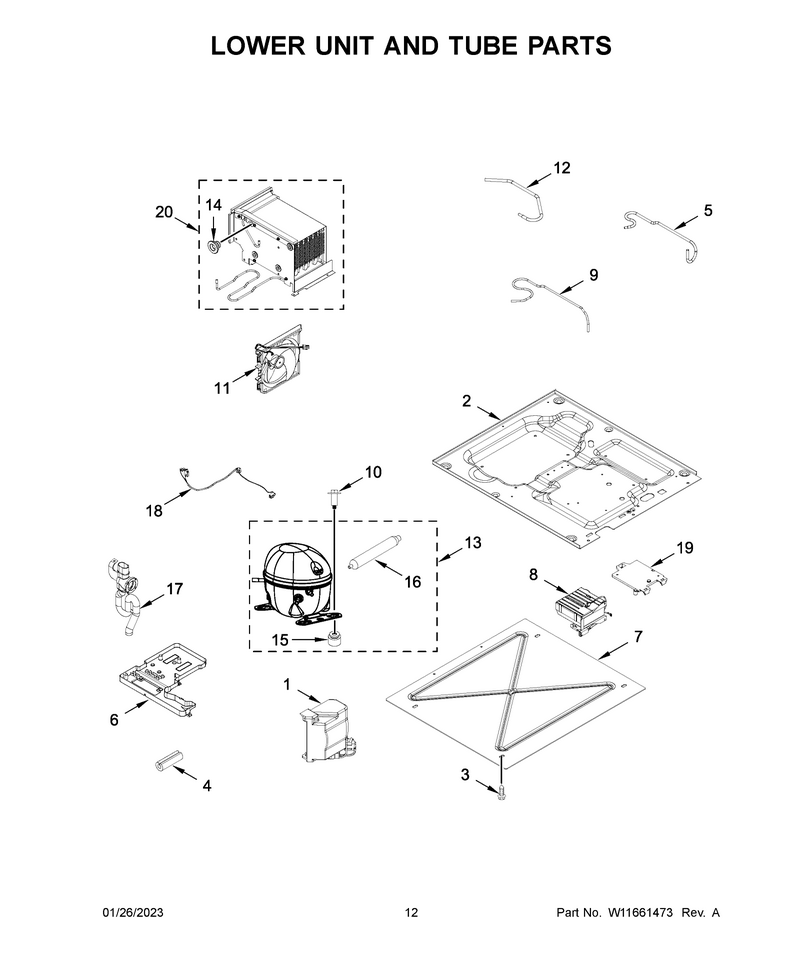

07 - Lower Unit And Tube Parts

...
...
NI
Following Parts Not Illustrated WPL-N/P
...
1
Cover WPL-W11247667
...
2
Base-Unit WPL-W11234853
...
3
Screw WPL-WPW10141625
...
4
Dampener WPL-W11233644
...
5
Tube WPL-W11644177
...
6
Tray-Evap WPL-W11234855
...
7
Plate WPL-W11234818
...
8
Invrtr-Box WPL-W11642201
...
9
Tube WPL-W11644175
...
10
Screw WPL-W11661574
...
11
Fan WPL-W11233637
...
12
Tube WPL-W11646198
...
13
Compressor WPL-W11557671
...
13A
8.5/8 Nr Ms 00 (Suction Tube To Compressor) WPL-W11504415
...
13B
(8/5 Nr Ms 00) (High Pressure Side To Compressor) WPL-W11504421
...
13C
8.5/6 Nr Ms 00 (Suction Tube To Compressor) WPL-W11504416
...
14
Mounting Grommet, Condenser WPL-W10587113
...
15
Grommet WPL-W11661108
...
16
Drier-Tube WPL-W11109499
...
16A
5/4 Nr Ms 00 (Suction Line To Condenser) WPL-W11504445
...
16B
5/1.8 Nr Ms 00 (Capillary Tube To Drier) WPL-W11504447
...
17
Extension WPL-W11232777
...
18
Harns-Wire WPL-W11644174
...
19
Bracket WPL-W11233633
...
20
Condenser WPL-W11233634
...
20A
5/4 Nr Ms 00 (Suction Line To Condenser) WPL-W11504445
...
20B
5 Nk Ms 00 (High Side To Condenser) WPL-W11506623

...
...
NI
Touch-Up Paint, Charcoal Sparkle (.6 Oz Touch-Up Bottle With Brush) WPL-W10756745
