Jenn-Air JBQ42BA

Model: JBQ42BA

Save Part Not Listed?
product name

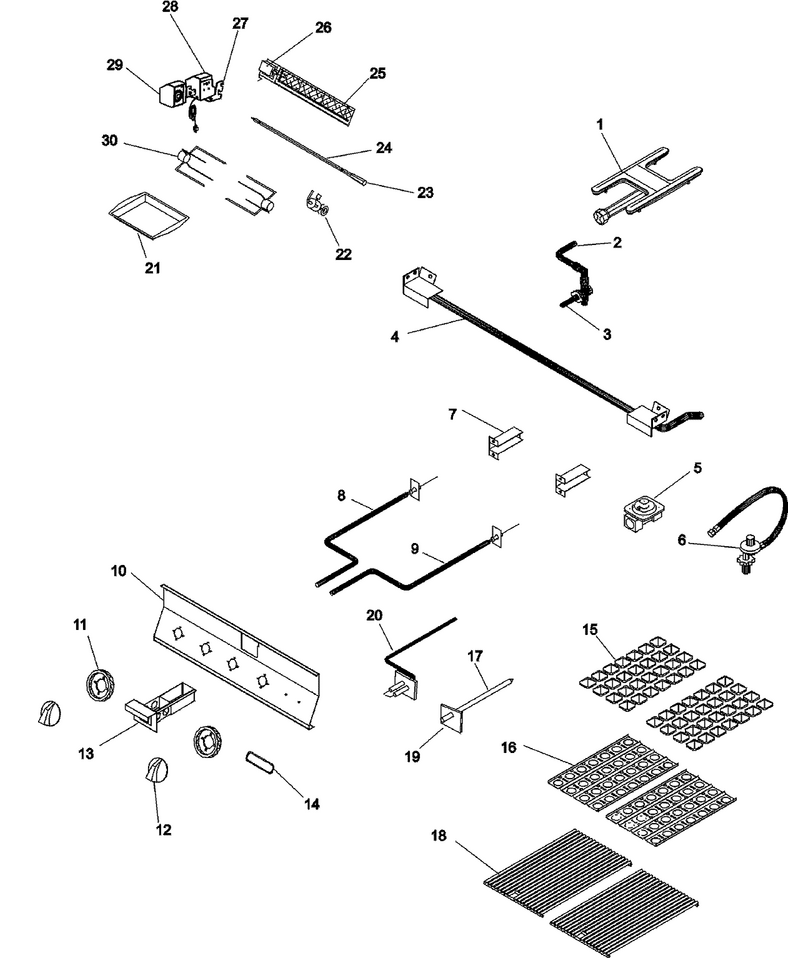

02 - Controls Jenn-Air

...
...
1
Burner,h Asy-Venturi/gask/bolt WPL-70002056
...
2
Tubing, Flex 3/8`` Ss X 7 1/2`` WPL-70002058
...
3
Elbow, 3/8`` X 1/8f 90 Degree WPL-70001485
...
4
Kit. Pipe Manifold 42 WPL-70002534
...
5
Regulator, Convertible WPL-70001038
...
6
Regulator Ng -For Built In Mod WPL-70002472
...
7
Washer, Lock WPL-70002427
...
8
Wire, Igniter To Module 33`` WPL-70002436
...
9
Wire, Igniter To Module 20`` WPL-70002413
...
10
Front Panel W/ Silkscreen, 42 WPL-70002684
...
11
Bezel WPL-70002470
...
12
Knob,diamond, Black Plastic WPL-70002468
...
13
Smoker Box, Assembly -Mbq WPL-70002546
...
14
Logo, Jenn-Air WPL-70001778
...
15
Briquettes-175pcs Box WPL-70002557
...
16
Tray, Briquette Mbq WPL-70002558
...
17
Burner, Smoker Tube WPL-70002422
...
18
Grate (13``) WPL-70001724
...
19
Bracket, Smoker Tube WPL-70002441
...
20
Electrode(Smoke Box) WPL-70002442
...
21
Procelain Broiler (Pan And Grid) WPL-4396923
...
22
Weight, Counter WPL-70001714
...
23
Handle, Spit WPL-70001712
...
24
Spit, Rotisserie, 42 WPL-70002540
...
25
Burner, Infrared (Large) WPL-70001718
...
26
Hood, Igniter Infra-Red WPL-70002445
...
27
Saddle, Spit WPL-70002397
...
28
Motor / Bracket Assy. 04 Bbq WPL-70002664
...
29
Light, Rotisserie WPL-70002447
...
30
Holder, Meat -Pair WPL-70001713

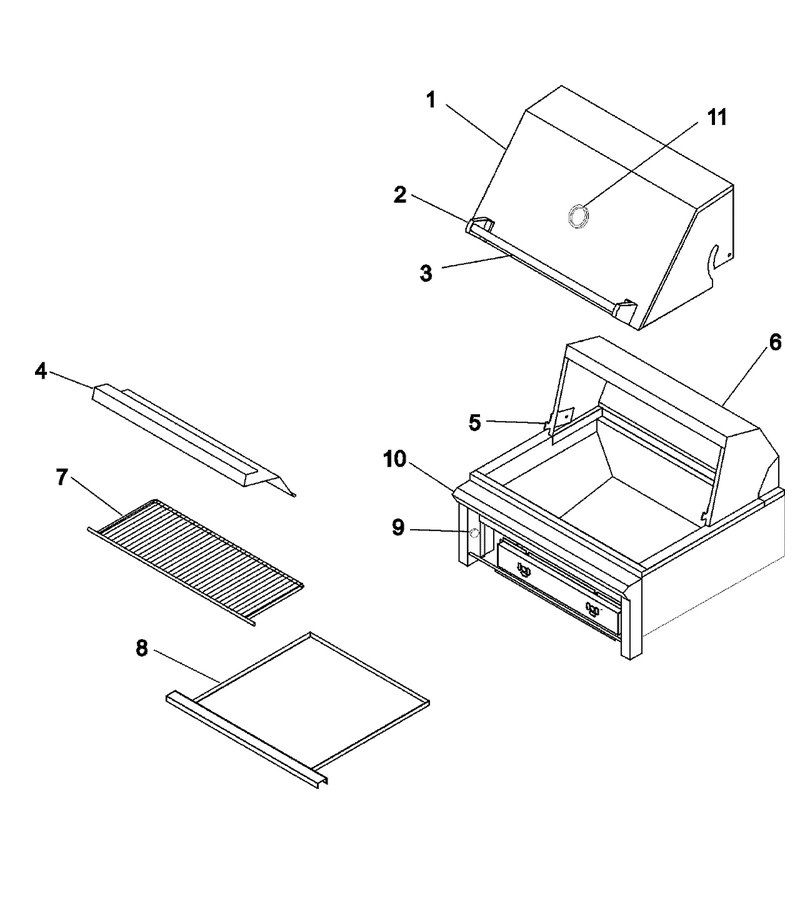

01 - Body Jenn-Air

...
...
1
Screw, Hinge Spacer WPL-70001792
...
2
Bracket, Handle Left Hand WPL-70002552
...
3
Tube, Handle-Mbq-42 (37 5/8) WPL-70002645
...
4
Deflector, Heat (Porc)mbq42 WPL-70001736
...
5
Saddle, Spit, No Holes WPL-70002633
...
6
Rear, Hood Assy, 42 Mbq WPL-70002678
...
7
Shelf, Warming 42 WPL-70002539
...
8
Kit, Drip Pan 42 WPL-70002527
...
9
Push Button-Dbq/jbq WPL-70002414
...
10
Bullnose 42`` Jbq WPL-70002559
...
11
Thermometer WPL-70002433
