Jenn-Air JBQ30BAM

Model: JBQ30BAM

Save Part Not Listed?
product name

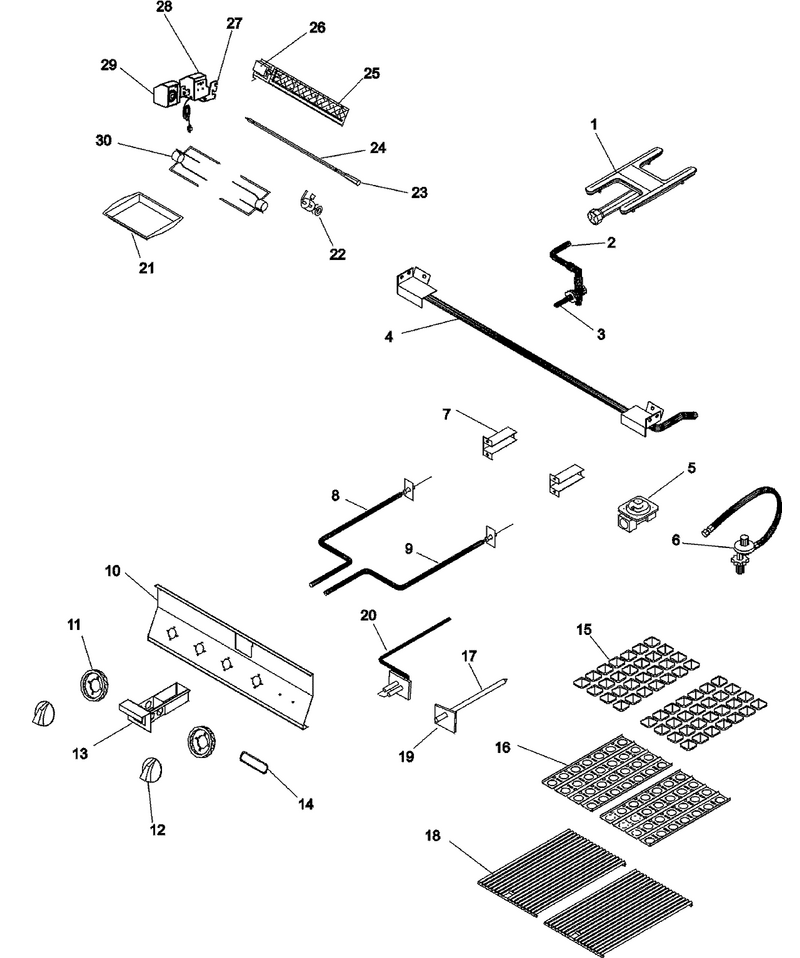

02 - Controls

...
...
1
Burner,h Asy-Venturi/gask/bolt WPL-70002056
...
2
Tubing, Flex 3/8`` Ss X 7 1/2`` WPL-70002058
...
3
Orifice No.42 - 0.0935 Bit Size WPL-70001779
...
4
Flare, Elbow WPL-70001817
...
5
Regulator, Convertible WPL-70001038
...
6
Regulator Convertable-Harper W WPL-70001708
...
7
Cover,igniter Main WPL-70001780
...
8
Wire, Igniter To Module 33`` WPL-70002436
...
9
Wire, Igniter To Module 20`` WPL-70002413
...
10
Panel, Control W/ Silk Screen WPL-70002437
...
11
Bezel WPL-70002470
...
12
Knob,diamond, Black Plastic WPL-70002468
...
13
Smoker Box, Assembly -Mbq WPL-70002546
...
14
Logo, Jenn-Air WPL-70001778
...
15
Briquettes-175pcs Box WPL-70002557
...
16
Tray, Rectangular WPL-70001750
...
17
Orifice,no.74, Smoker,lp,dbq/jbq WPL-70002583
...
18
Grate (13``) WPL-70001724
...
19
Bracket, Smoker Tube WPL-70002441
...
20
Electrode(Smoke Box) WPL-70002442
...
21
Procelain Broiler (Pan And Grid) WPL-4396923
...
22
Weight, Counter WPL-70001714
...
23
Handle, Spit WPL-70001712
...
24
Rotisserie,spit Rod Dobq/mbq30 WPL-70002635
...
25
Burner, Infrared (Small) WPL-70001717
...
26
Hood, Igniter Infra-Red WPL-70002445
...
27
Saddle, Spit WPL-70002397
...
28
Drm1,rotiserie Mtr. 100 Lb. WPL-70002363
...
29
Light, Rotisserie WPL-70002447
...
30
Holder, Meat -Pair WPL-70001713

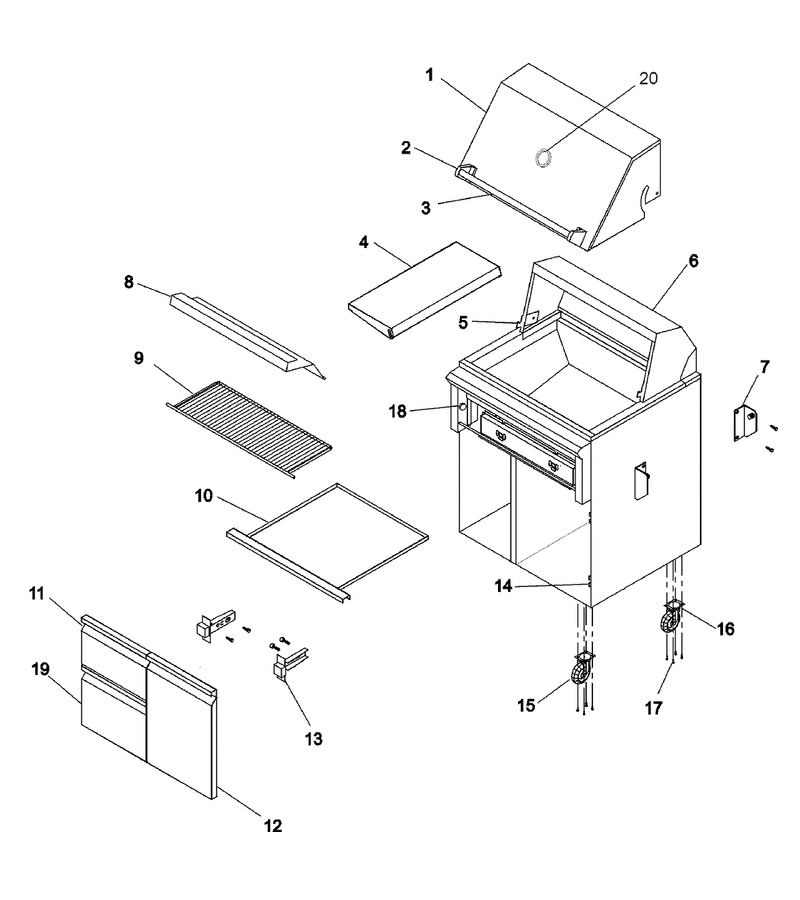

01 - Body

...
...
1
Nut, 1/4-20 W/pellet Ss WPL-70002450
...
2
Screw, 1/4-20 X 3/4 Ph Fill S/ WPL-70002428
...
3
Handle, Tube WPL-70002553
...
4
Shelf, Side WPL-70002451
...
5
Saddle, Spit WPL-70002397
...
6
Screw Delta 1/4x20x1/2 Ptm/s/s WPL-70001803
...
7
Screw, Panel WPL-70001999
...
8
Deflector, Heat (Porc)mbq30 WPL-70001735
...
9
Shelf, Warming WPL-70002400
...
10
Drip Pan 30`` Bbq - 2003 WPL-70002554
...
11
Drawer Small W/o Handles WPL-70002522
...
12
Door, Right Hand, 18 WPL-70002518
...
13
Hinge, Clip-On Delta WPL-70002219
...
14
Plate, Face WPL-70002076
...
15
Caster (Frt)(Locking) WPL-70001733
...
16
Caster (Rr)(Nonlocking) WPL-70001734
...
17
Screw 6-32x1/2pf M/s 18--8 Ss WPL-70001795
...
18
Wire, Button Igniter WPL-70002606
...
19
Tray, Shift Out WPL-70002457
...
20
Thermometer WPL-70002433
...
21
Manual, Jenn-Air - Jbq WPL-70002556
