Jenn-Air JBQ30BA

Model: JBQ30BA

Save Part Not Listed?
product name

02 - Controls

...
...
1
Burner,h Asy-Venturi/gask/bolt WPL-70002056
...
2
Tubing, Flex 3/8`` Ss X 7 1/2`` WPL-70002058
...
3
Orifice No.42 - 0.0935 Bit Size WPL-70001779
...
4
Assy, Pipe Manifold Pa & Pad WPL-70002448
...
5
Regulator, Convertible WPL-70001038
...
6
Regulator Convertable-Harper W WPL-70001708
...
7
Washer, Lock WPL-70002427
...
8
Wire, Igniter To Module 33`` WPL-70002436
...
9
Wire, Igniter To Module 20`` WPL-70002413
...
10
Panel, Control W/ Silk Screen WPL-70002437
...
11
Bezel WPL-70002470
...
12
Knob,diamond, Black Plastic WPL-70002468
...
13
Smoker Box, Assembly -Mbq WPL-70002546
...
14
Logo, Jenn-Air WPL-70001778
...
15
Briquettes-175pcs Box WPL-70002557
...
16
Tray, Briquette Mbq WPL-70002558
...
17
Burner, Smoker Tube WPL-70002422
...
18
Grate (13``) WPL-70001724
...
19
Bracket, Smoker Tube WPL-70002441
...
20
Electrode(Smoke Box) WPL-70002442
...
21
Procelain Broiler (Pan And Grid) WPL-4396923
...
22
Weight, Counter WPL-70001714
...
23
Handle, Spit WPL-70001712
...
24
Rotisserie,spit Rod Dobq/mbq30 WPL-70002635
...
25
Burner, Infrared (Small) WPL-70001717
...
26
Igniter, Infrared WPL-70001715
...
27
Saddle, Spit WPL-70002397
...
28
Drm1,rotiserie Mtr. 100 Lb. WPL-70002363
...
29
Light, Rotisserie WPL-70002447
...
30
Holder, Meat -Pair WPL-70001713

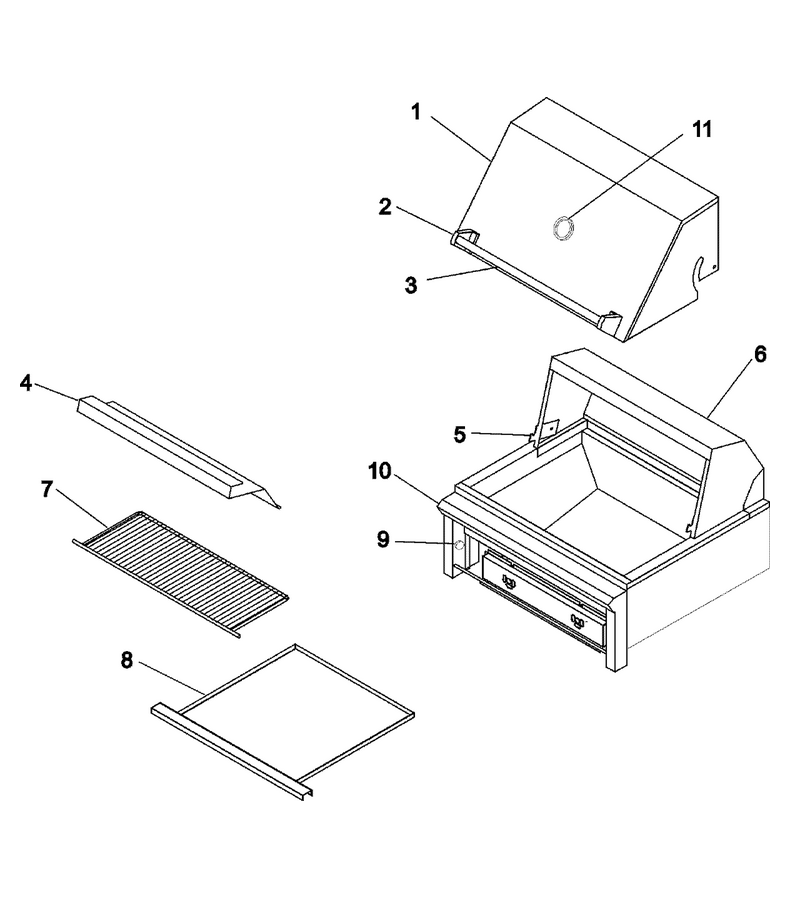

01 - Body

...
...
1
Spacer, Hood WPL-70002429
...
2
Screw, 1/4-20 X 3/4 Ph Fill S/ WPL-70002428
...
3
Handle, Tube WPL-70002553
...
4
Deflector, Heat (Porc)mbq30 WPL-70001735
...
5
Saddle, Spit WPL-70002397
...
6
Hood Rear Assy Jbq,dbq-30, 03 WPL-70002398
...
7
Shelf, Warming WPL-70002400
...
8
Drip Pan 30`` Bbq - 2003 WPL-70002554
...
9
Wire, Button Igniter WPL-70002606
...
10
Bull Nose Weld Assy, Jbq-30 WPL-70002555
...
11
Bezel, Thermostat (Chrome) WPL-70001078
...
12
Manual, Dynasty - Dbq, D/p WPL-70002432
