Jenn-Air JBBFX22NMX00

Model: JBBFX22NMX00

Save Part Not Listed?
product name

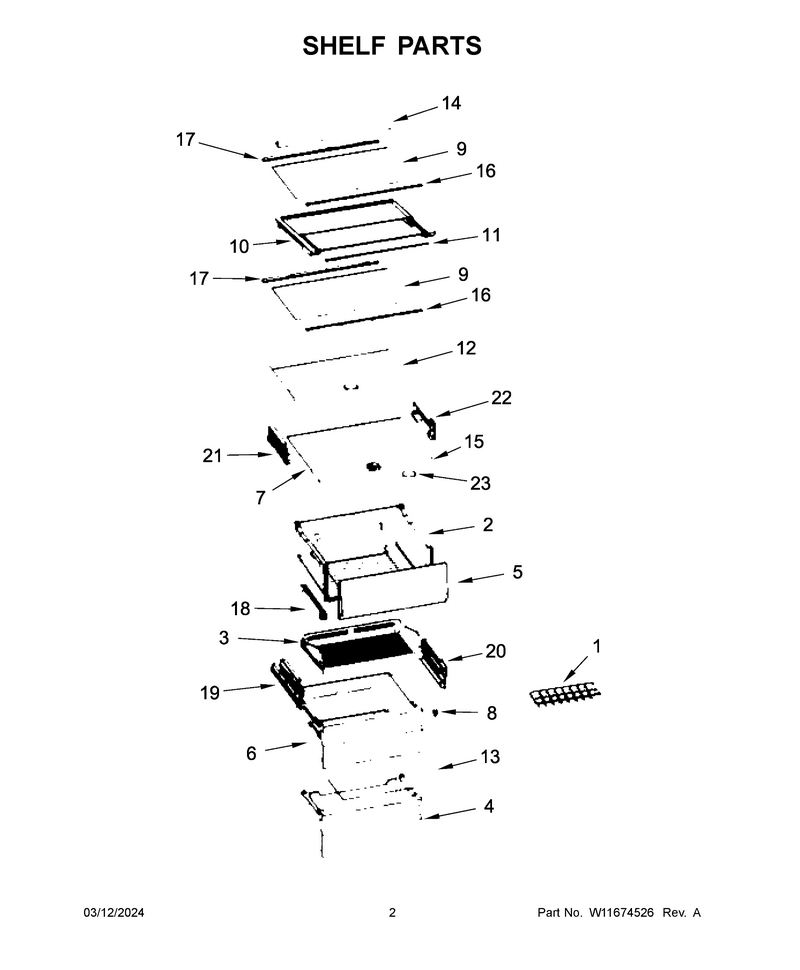

02 - Shelf Parts

...
...
1
Pan-Ice WPL-W11676128
...
2
Pan-Crispr WPL-W11676131
...
3
Pan-Crispr WPL-W11676135
...
4
Bin-Freezr WPL-W11675847
...
5
Front-Pan WPL-W11675853
...
6
Bin-Freezr WPL-W11675854
...
7
Shelf-Glas WPL-W11675855
...
8
Air-Baffle WPL-W11683459
...
9
Shelf-Glas WPL-W11675860
...
10
Shelf-Glas WPL-W11676149
...
11
Shelf-Glas WPL-W11676140
...
12
Assembly, Glass Shelf WPL-W11399066
...
13
Shelf-Glas WPL-W11676141
...
14
Bin WPL-W11676359
...
15
Frame WPL-W11676361
...
16
Trim-Shelf WPL-W11676446
...
17
Trim-Shelf WPL-W11676447
...
18
Rail WPL-W11682526
...
19
Track WPL-W11678795
...
20
Track WPL-W11678796
...
21
Track WPL-W11683456
...
22
Track WPL-W11683457
...
23
Knob WPL-W11683458

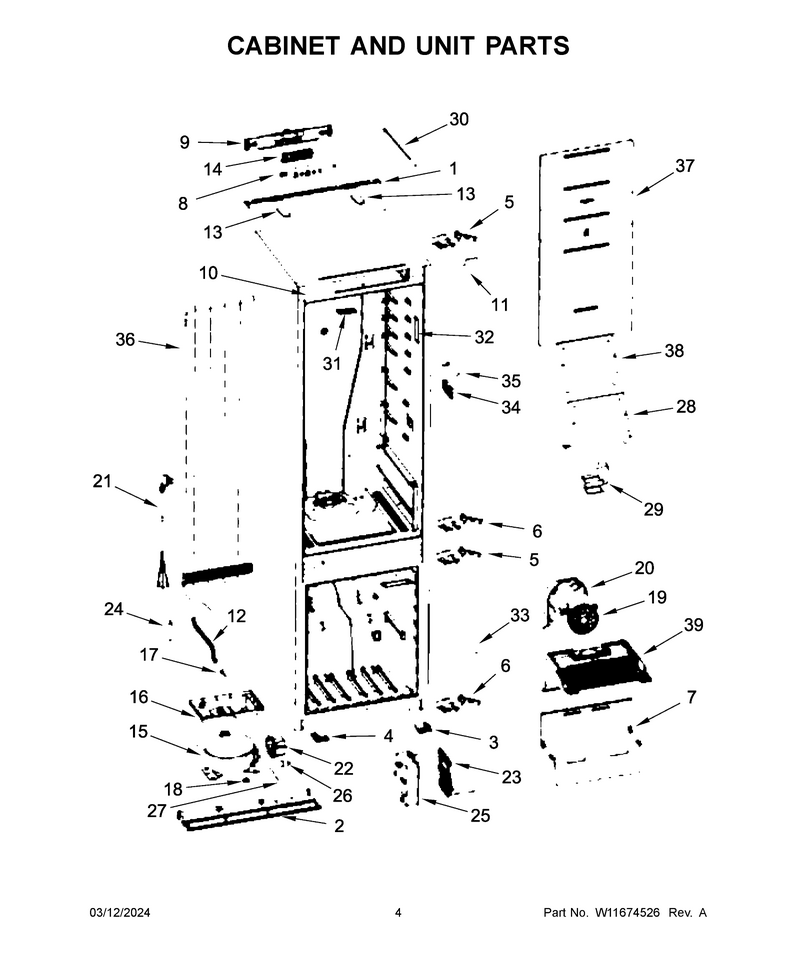

03 - Cabinet And Unit Parts

...
...
NI
Refrigerant Charge 34 Grams (R600a) WPL---
...
1
Fastener WPL-W11683460
...
2
Mounting Plate, Compressor WPL-W11361031
...
3
Foot, Left Hand WPL-W10642999
...
4
Food, Right Hand WPL-W10642997
...
5
Hinge, Top WPL-W11443325
...
6
Hinge-Door WPL-W11720847
...
7
Cover WPL-W11720840
...
8
Overlay WPL-W11676507
...
9
Support WPL-W11676509
...
10
Insert WPL-W11676517
...
11
Endcap WPL-W11676518
...
11A
Endcap WPL-W11676520
...
12
Tube-Drain WPL-W11676844
...
13
Cover WPL-W11726267
...
14
Control, Electronic WPL-W11681904
...
15
Compressor WPL-W11676523
...
16
Tray-Evap WPL-W11676545
...
17
Grommet WPL-W11676549
...
18
Grommet WPL-W11726269
...
19
Motor-Evap WPL-W11676558
...
20
Cover, Fan WPL-W11342724
...
21
Cord-Power WPL-W11676561
...
22
Cover-Term WPL-W11676562
...
23
Control, Electronic WPL-W11681906
...
24
Drier-Tube WPL-W11109499
...
25
Cover-Box WPL-W11676784
...
26
Overload WPL-W11676785
...
27
Clamp WPL-W11676786
...
28
Damper WPL-W11676787
...
29
Gasket WPL-W11676789
...
30
Switch WPL-W11676793
...
31
Module WPL-W11676831
...
32
Module WPL-W11676836
...
33
Cover WPL-W11684992
...
34
Cover WPL-W11676838
...
35
Sensor, Ambient WPL-W11677717
...
36
Condenser WPL-W11675693
...
37
Air-Tower WPL-W11676839
...
38
Cover-Duct WPL-W11676840
...
39
Evaporator WPL-W11726271

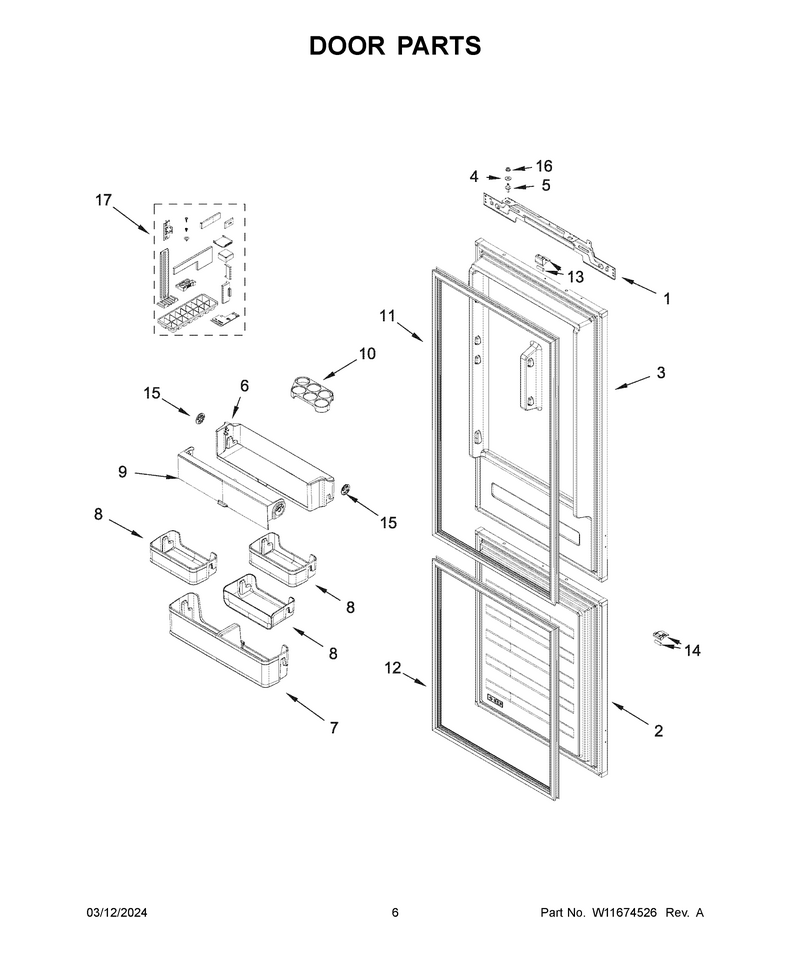

04 - Door Parts

...
...
1
Bracket WPL-W11726272
...
2
Door, Freezer WPL-W11681912
...
3
Door, Refrigerator WPL-W11681913
...
4
Washer WPL-W11726273
...
5
Screw WPL-W11726274
...
6
Door-Comp WPL-W11676910
...
7
Bin WPL-W11676911
...
8
Bin WPL-W11676912
...
9
Door-Comp WPL-W11676915
...
10
Holder, Egg WPL-W11387309
...
11
Gasket-Fip WPL-W11676918
...
12
Gasket-Fip WPL-W11676919
...
13
Support, Magnet WPL-W11681945
...
14
Cover WPL-W11678793
...
15
Hing-Bushg WPL-W11678794
...
16
Nut, Lock WPL-W10669328
...
17
Kit-Instal WPL-W11720868
