Jenn-Air JBBFR30NMX00

Model: JBBFR30NMX00

Save Part Not Listed?
product name

Popular Parts

Popular Parts

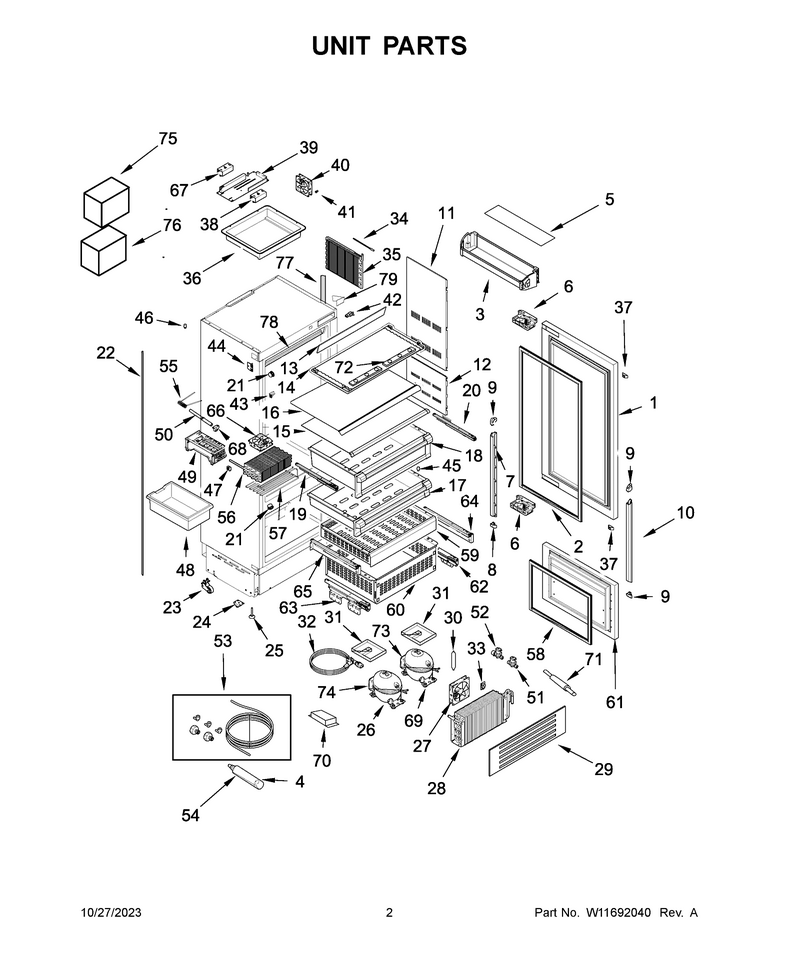

02 - Unit Parts

...
...
NI
Refrigerant Charge Refrigerator 48 Grams (R600a) Freezer 55 Grams (R600a) WPL---
...
1A
Door, Refrigerator (Lh Model) WPL-W11633285
...
1
Door, Refrigerator (Rh Model) WPL-W11633286
...
2
Gasket-Fip WPL-W11685838
...
3
Bin, Door WPL-W11633293
...
4
Housing WPL-W11686098
...
5
Mat WPL-W11686099
...
6
Hinge, Door (Rh Model) WPL-W11633301
...
6A
Hinge, Door (Lh Model) WPL-W11633300
...
7
Ladder WPL-W11686100
...
7A
Support WPL-W11686095
...
8
Endcap WPL-W11686659
...
9
Endcap WPL-W11686662
...
10
Ladder WPL-W11686660
...
11
Air Duct, Upper WPL-W11633308
...
12
Air Duct, Middle WPL-W11633309
...
12A
Air Duct, Lower WPL-W11633567
...
13
Cntrl-Elec WPL-W11685938
...
14
Cover WPL-W11686663
...
15
Shelf-Glas WPL-W11686664
...
16
Shelf-Glas WPL-W11686665
...
17
Drawer, Small Crisper WPL-W11633317
...
18
Drawer, Tall Crisper WPL-W11633318
...
19
Slide WPL-W11686777
...
20
Slide WPL-W11686778
...
21
Light, Led WPL-W11633321
...
22
Cover, Mounting Brackets WPL-W11633322
...
23
Roller-Cab WPL-W11686779
...
24
Roller-Cab WPL-W11686780
...
25
Leveler WPL-W11686781
...
26
Compressor WPL-W11685629
...
27
Motor-Cond WPL-W11685630
...
28
Condenser WPL-W11685781
...
29
Grille-Frt WPL-W11685785
...
30
Drier-Tube WPL-W11109499
...
31
Tray, Defrost Drain WPL-W11633331
...
32
Cord, Power WPL-W11633333
...
32A
Harns-Wire WPL-W11687136
...
33
Alarm-Fzr WPL-W11686782
...
34
Thermistor WPL-W11633336
...
35
Evaporator WPL-W11685805
...
36
Cover, Control Board WPL-W11633498
...
37
Bumper, Door WPL-W11633499
...
38
Invrtr-Box WPL-W11686988
...
39
Cntrl-Elec WPL-W11685633
...
40
Fan, Rc Evaporator WPL-W11633502
...
41
Grommet WPL-W11686989
...
42
Switch WPL-W11686990
...
43
Bracket WPL-W11686991
...
44
Bracket, Lateral Mounting WPL-W11633507
...
45
Thumb Screw, Drawers To Slides WPL-W11633508
...
46
Washer WPL-W11686096
...
47
Thermostat WPL-W11686992
...
48
Pan-Ice WPL-W11686993
...
49
Icemaker WPL-W11685631
...
50
Tube, Water Inlet WPL-W11633514
...
51
Valve WPL-W11685806
...
52
Valve WPL-W11685807
...
53
Kit, Filter Installation (Includes Water Filter, Filter Cap, 3/4" To 1/4" Adapter, Ice Scoop) WPL-W11633583
...
54
Filter WPL-EDR2RXD1
...
55
Heater WPL-W11687001
...
56
Evaporator WPL-W11685808
...
57
Heater WPL-W11685632
...
58
Gasket-Fip WPL-W11685809
...
59
Drawer, Freezer (Small) WPL-W11633540
...
60
Drawer, Freezer (Large) WPL-W11633541
...
61
Door, Freezer (Rh Model) WPL-W11633545
...
61A
Door, Freezer (Lh Model) WPL-W11633544
...
62
Slide WPL-W11687003
...
63
Slide WPL-W11687002
...
64
Slide WPL-W11687005
...
65
Slide WPL-W11687004
...
66
Fan, Fc Evaporator WPL-W11633551
...
67
Invrtr-Box WPL-W11687007
...
68
Support WPL-W11687134
...
69
Compressor WPL-W11685634
...
70
Filter, Emc WPL-W11633563
...
71
Valve WPL-W11687135
...
72
Module WPL-W11687137
...
73
Inverter, Refrigerator Compressor WPL-W11633574
...
74
Inverter, Freezer Compressor WPL-W11633575
...
75
Hardware, Panel Installation WPL-W11633581
...
76
Hardware, Anti-Tip WPL-W11633582
...
77
Ladder WPL-W11686097
...
78
Grill-Uppr WPL-W11685939
...
79
Bracket WPL-W11685940
...
79A
Bracket WPL-W11685941

...
...
NI
Accessory Parts Touch-Up Paint, Handle Kit, Custom Panels (Rise) WPL-W11644971
