Jenn-Air IMS100 (BOM: 7X28A)

Model: IMS100 (BOM: 7X28A)

Save Part Not Listed?
product name

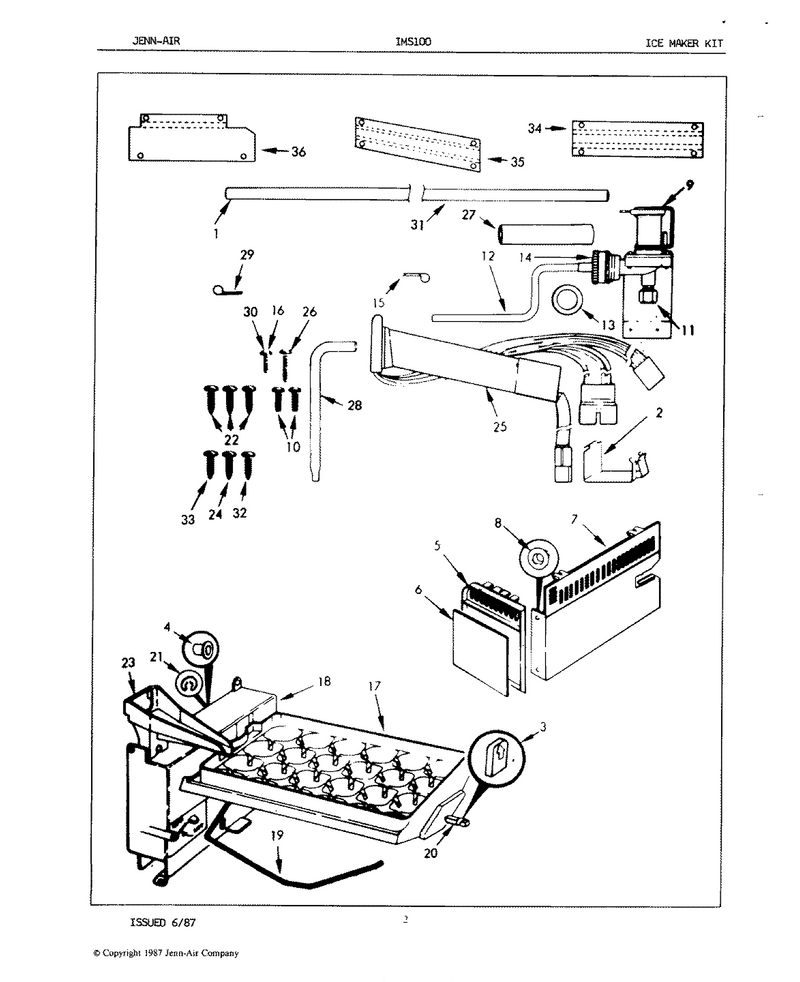

01 - Ice Maker Kit

...
...
1
Tubing WPL-65001-24
...
2
Clip WPL-57112-1
...
3
Clip, Drive Shaft WPL-65318-1
...
4
Washer WPL-420052-900
...
5
Front WPL-65069-6
...
6
Trim WPL-65283-8
...
7
Front, Shell WPL-2175619
...
8
Nut, Push-On WPL-431033-501
...
9
Valve-Inlt WPL-4318047
...
10
Screw WPL-WP250830
...
11
Nut WPL-WP627018
...
12
Inlet WPL-53855-3
...
13
Gasket- In WPL-WPY013783
...
14
Nut, Inlet Tubing WPL-24685-1
...
15
Clamp WPL-W10833902
...
16
Screw WPL-W11233072
...
17
Tray WPL-WP59688-1A
...
18
Icemaker WPL-MHIK7989
...
19
Arm, Sensor WPL-52307-2
...
20
Shaft, Drive WPL-65319-1
...
21
Ring, Retainer WPL-58706-1
...
22
Screw, Handle WPL-61002031
...
23
Spout, Fill WPL-53748-1
...
24
Screw WPL-405009-103
...
25
Wire Harness WPL-58397-3
...
26
Screw WPL-WP400021-1
...
27
Tube, Fill WPL-58461-2
...
28
Tube WPL-66759-1
...
29
Clamp WPL-WP488366
...
30
Screw WPL-W11233072
...
31
Tube WPL-WPB5705307
...
32
Screw WPL-W11380570
...
33
Screw WPL-WP3196163
...
34
Cover WPL-66380-1
...
35
Cover WPL-66379-1
...
36
Screw WPL-WP488729
