Jenn-Air HW200B

Model: HW200B

Save Part Not Listed?
product name

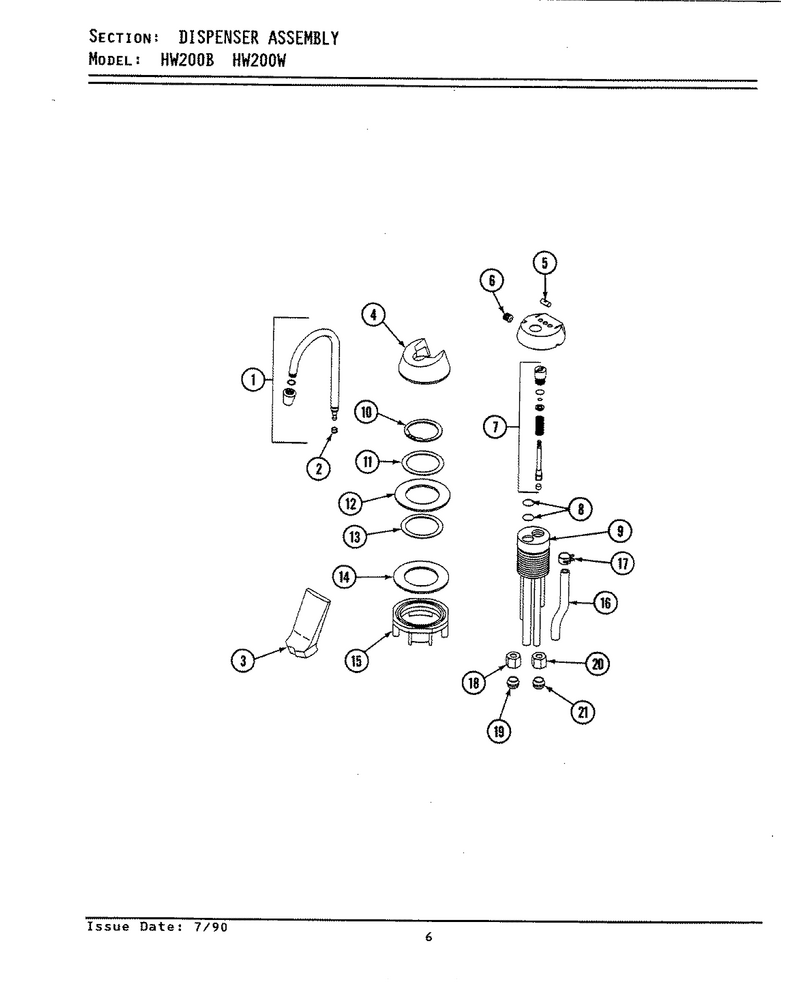

01 - Dispenser Assembly

...
...
1
Spout Assembly (Black) WPL-20200050
...
2
Gasket Spout Assembly WPL-20200051
...
3
Handle (Black) WPL-20200053
...
4
Cover,shroud (Black) WPL-20200055
...
5
Cover,inner (Black) WPL-20200057
...
6
Screw Set WPL-20200058
...
7
Valve Guide & Stem Assembly WPL-20200059
...
8
O Ring Gooseneck WPL-20200060
...
9
Valve Base Assembly WPL-20200061
...
10
Retainer Ring WPL-20200062
...
11
Washer Stainless WPL-20200063
...
12
Washer Black Backup WPL-20200065
...
13
Washer, Rubber WPL-20200066
...
14
Gasket Fiber WPL-20200067
...
15
Wing Nut WPL-20200068
...
16
Tube Vent WPL-20200019
...
17
Clamp Hose WPL-20200020
...
18
Nut WPL-WP245183
...
19
Sleeve Compression WPL-20200018
...
20
Nut Compression WPL-20200014
...
21
Dispenser,assembly (Black) WPL-20200072

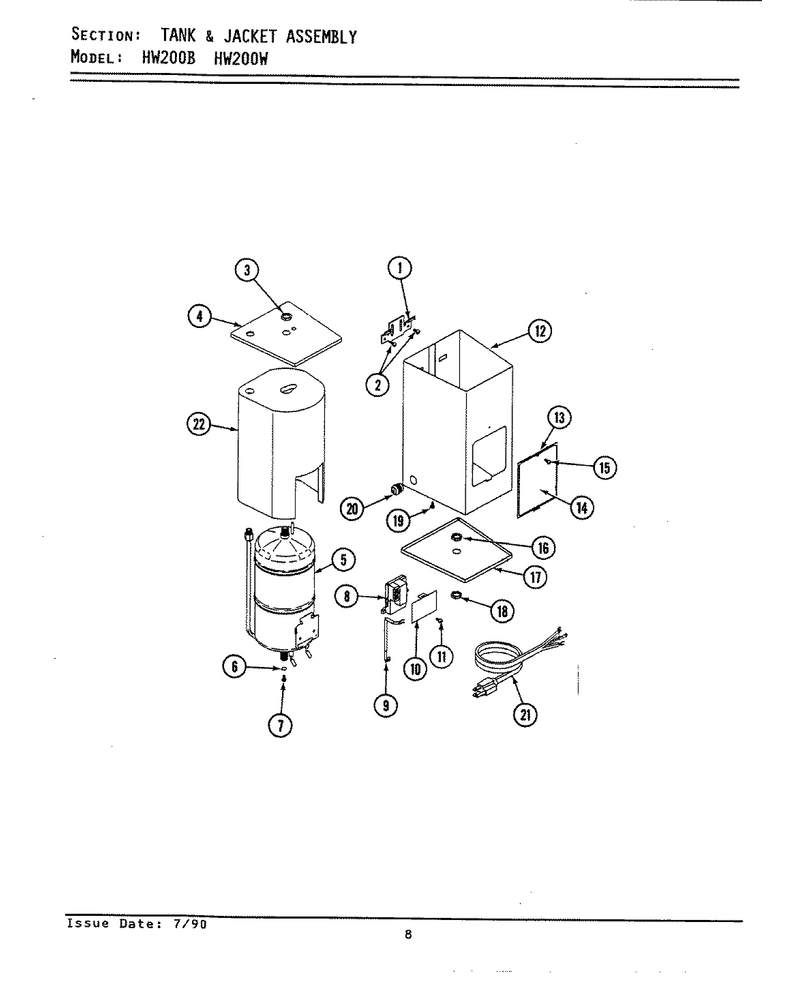

02 - Tank & Jacket Assembly

...
...
1
Bracket Wall WPL-20200027
...
2
Screw WPL-W11233072
...
3
Nut WPL-20200029
...
4
Cover Top WPL-20200030
...
5
Tank Assembly WPL-20200070
...
6
Ring-O WPL-WP910934
...
7
Screw Drain WPL-20200033
...
8
Thermostat WPL-20200034
...
9
Fuse Assy, Thermal WPL-20200035
...
10
Insulation Thermostat WPL-20200036
...
11
Screw WPL-WP74004005
...
12
Case Assembly WPL-20200038
...
13
Cover Nameplate WPL-20200039
...
14
Nameplate WPL-20200040
...
15
Screw WPL-WP74004005
...
16
Nut WPL-20200029
...
17
Cover Bottom WPL-20200043
...
18
Nut WPL-20200029
...
19
Screw WPL-WPW10068250
...
20
Bushing Cord WPL-20200046
...
21
Plug & Cord Assembly WPL-20200047
...
22
Insulation Tank WPL-20200048
