Jenn-Air GO106B

Model: GO106B

Save Part Not Listed?
product name

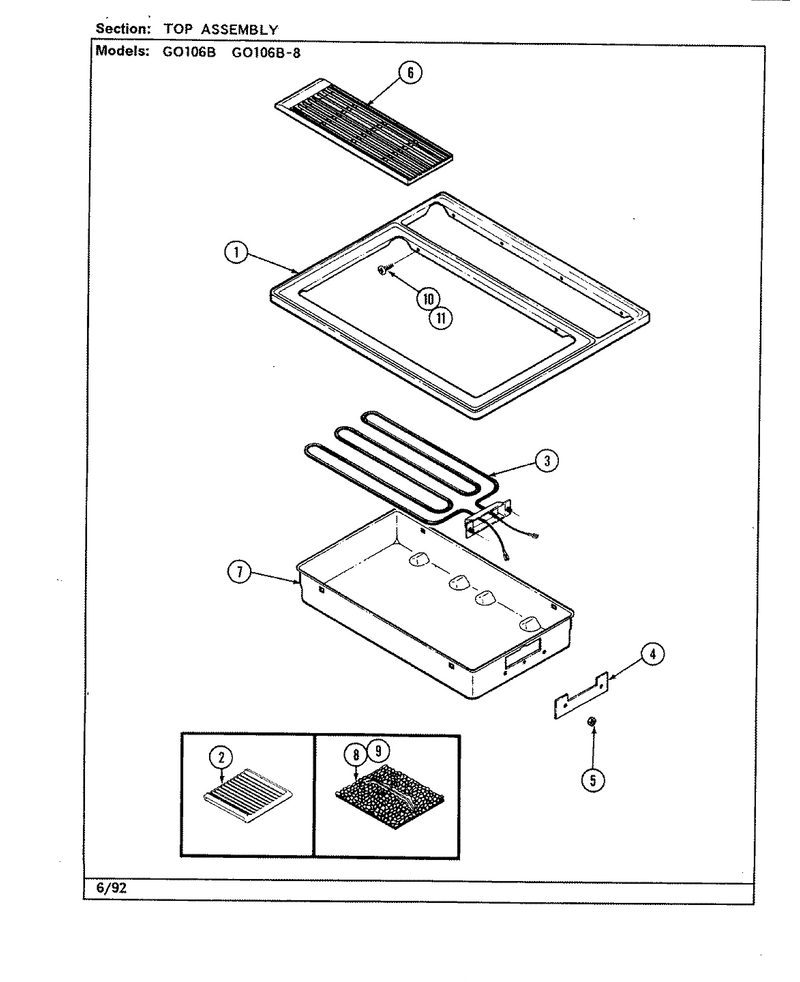

04 - Top Assembly

...
...
1
Top, Unit (Blk) WPL-Y704992
...
2
Grate, Grill WPL-703905
...
3
Element- G WPL-WP7406P229-60
...
4
Bracket, Stop WPL-Y705293
...
5
Nut K WPL-M0282005
...
6
Cover-Vent WPL-WP7772P007-60
...
7
Pan, Grill (Lt) WPL-705210
...
8
Plate, Rock WPL-708929
...
9
Support, Rock Plate WPL-700819
...
10
Screw WPL-W11233072
...
11
Screw WPL-WP74003976

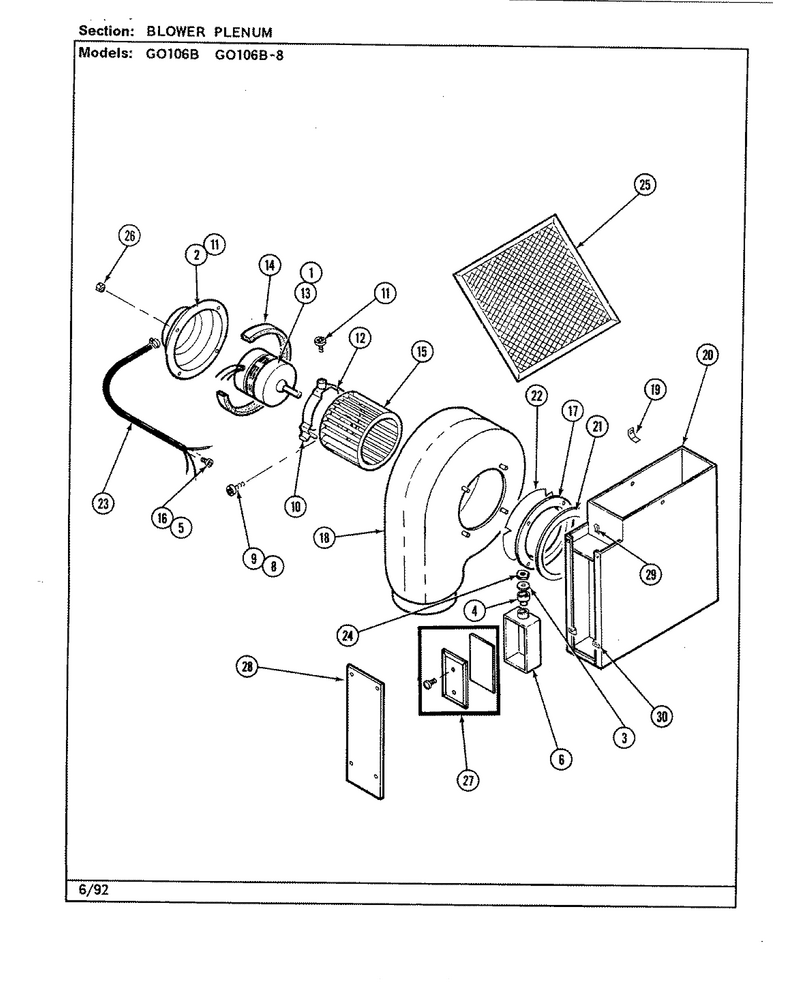

01 - Blower Plenum

...
...
1
Motor Assy. WPL-Y712613
...
2
Cover WPL-WP4005F513-80
...
3
Washer, Sealing WPL-705185
...
4
Connector, Conduit WPL-705187
...
5
Relief, Strain WPL-705186
...
6
Box, Single Gang WPL-705184
...
7
Locknut Cap, W/nylon Insert WPL-70288-9
...
8
Nut WPL-707161
...
9
Screw WPL-WP4381696
...
10
Isolator- WPL-WP71003558
...
11
Screw WPL-707407
...
12
Band, Motor WPL-3415F003-51
...
13
Motor WPL-Y704759
...
14
Elmnt-Surf WPL-WPY04100165
...
15
Wheel-Fan WPL-WPY707985
...
16
Bushing, Plenum WPL-Y705177
...
17
Ring, Inlet WPL-Y704758
...
18
Scroll, Blower Assy. WPL-712008
...
19
Retainer, Filter WPL-Y707688
...
20
Plenum-Air WPL-W10777871
...
21
Ring, Restrictor WPL-4026F009-51
...
22
Retainer WPL-8038P003-60
...
23
Cord, Power WPL-705178
...
24
Washer, Reducing WPL-705182
...
25
Filter- Gr WPL-WP707929
...
26
Locknut WPL-WPY707702
...
27
Cover Assy. WPL-Y705183
...
28
Screw WPL-703003
...
29
Hinge-Door WPL-WP74008014
...
30
Clip WPL-Y707831

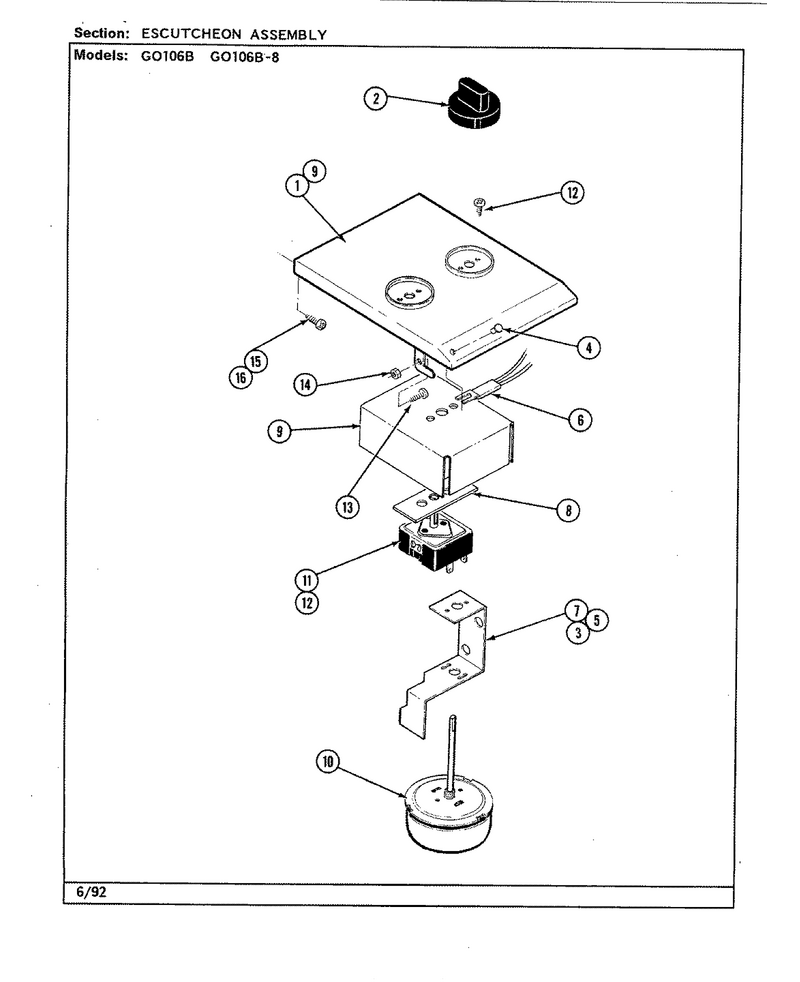

03 - Escutcheon Assembly

...
...
1
Escutcheon WPL-71003268
...
2
Knob, Control WPL-7737P077-60
...
4
Lens, Pilot Light WPL-705191
...
5
Screw WPL-WP90767
...
6
Light, Pilot WPL-705196
...
7
Bracket, Timer (Rt) WPL-704333
...
8
Gasket, Switch WPL-Y705255
...
9
Gasket, Escutcheon WPL-705188
...
10
Timer WPL-707732
...
11
Switch-Inf WPL-W11121638
...
12
Screw WPL-Y703935
...
13
Screw WPL-WP488234
...
14
Nut WPL-WP488130
...
15
Screw WPL-W11233072
...
16
Ballast WPL-700934
...
17
Manual, Service-No Refund WPL-16000448

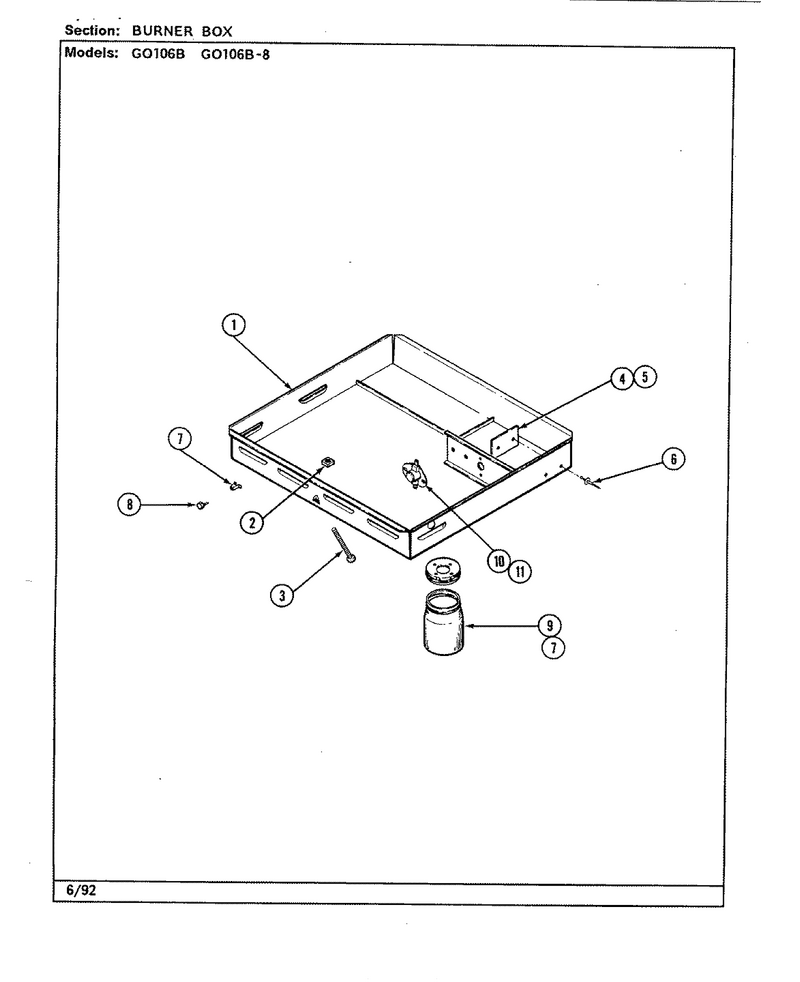

02 - Burner Box

...
...
1
Box, Burner WPL-Y701994
...
2
Nut WPL-M0282009
...
3
Screw WPL-Y707121
...
4
Insulator WPL-707746
...
5
Washer WPL-Y707664
...
6
Rivet WPL-WP210720
...
7
Lid-Jar WPL-WP5700M611-60
...
8
Screw WPL-WP90767
...
9
Jar- Drain WPL-WPY707869
