Jenn-Air GC50

Model: GC50

Save Part Not Listed?
product name

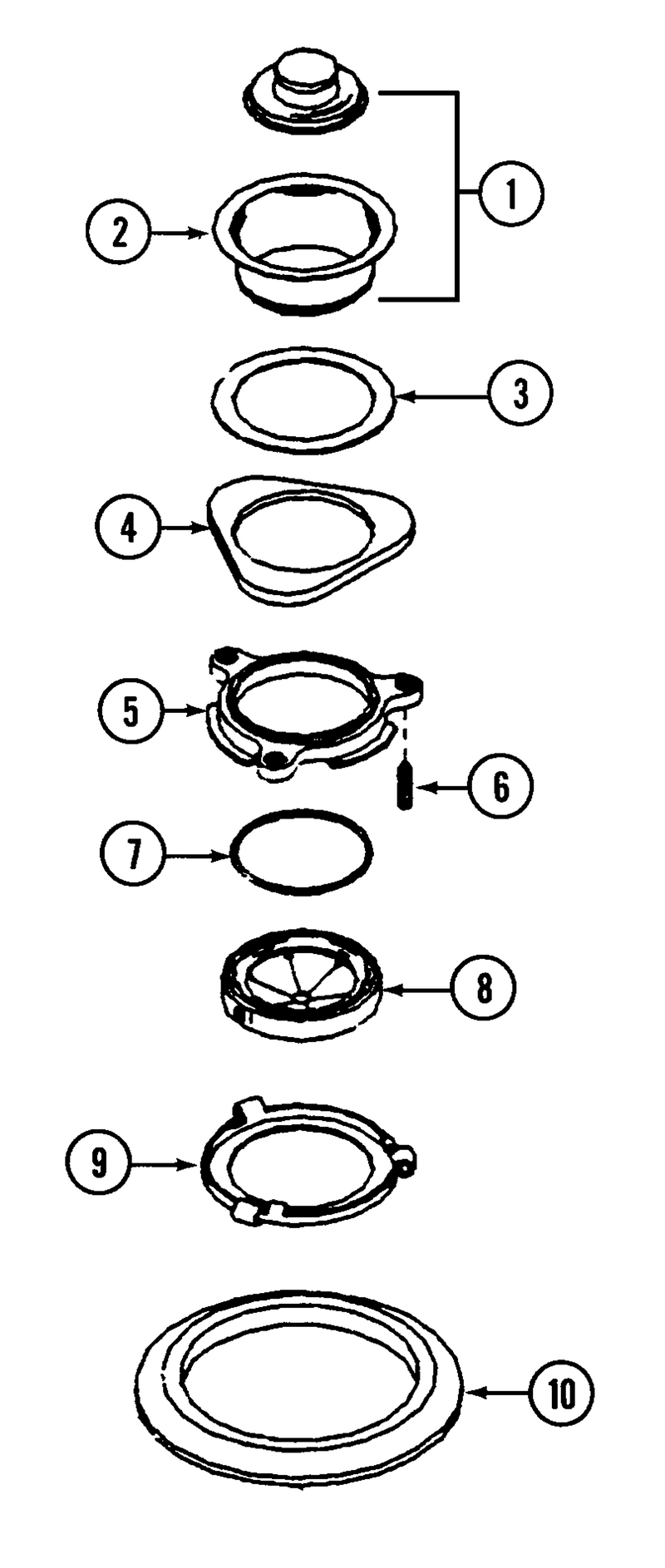

03 - Sink Flange

...
...
1
Stopper Assembly WPL-4211300
...
2
Flange, Strainer WPL-752550
...
3
Gasket, Fiber WPL-4211606
...
4
Flange, Backup WPL-Y752548
...
5
Flange, Mounting WPL-752546
...
6
Screw, Backup WPL-W10171103
...
7
Ring, Retaining WPL-83001001
...
8
Gasket, Mounting WPL-4211615
...
9
Flange, Body WPL-Y752551
...
10
Shell, Top Trim WPL-83001002

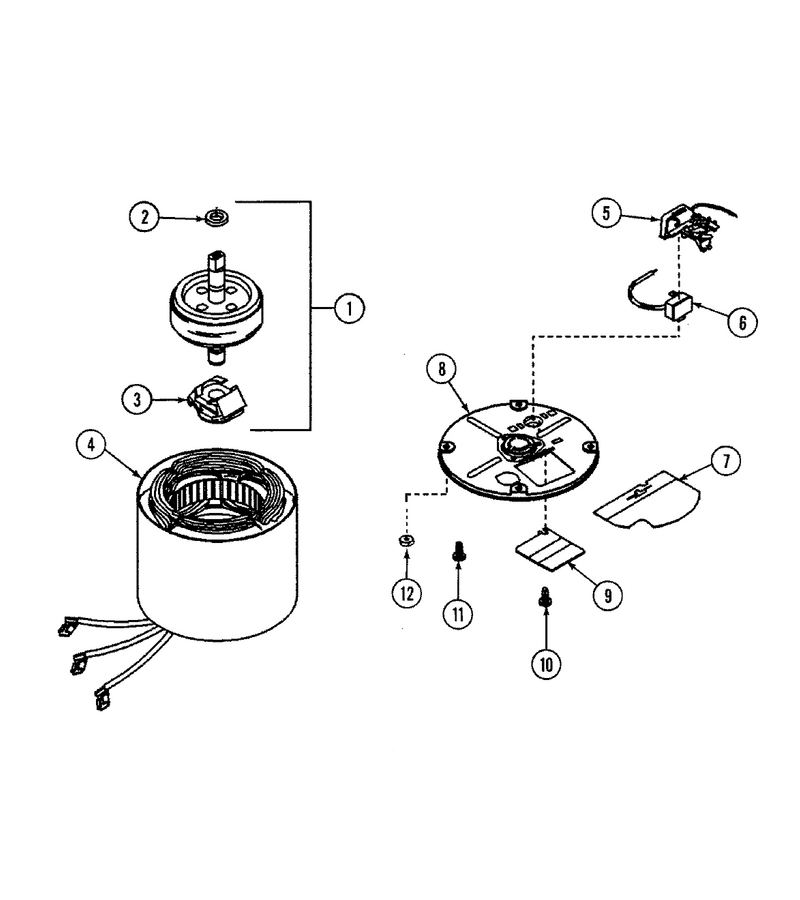

01 - Electrical Components

...
...
1
Rotor & Shaft Assembly WPL-752533
...
2
Washer, Thrust Rubber WPL-752525
...
3
Actuator Assy WPL-4211322
...
4
Stator Assembly WPL-752534
...
5
Switch Assembly, Start WPL-8174312
...
6
Protector, Overload WPL-Y08300044
...
7
Shield, Wire WPL-752542
...
8
End Frame Assy, Lower WPL-Y08300045
...
9
Cover, Terminal WPL-752538
...
10
Screw WPL-83001009
...
11
Screw WPL-WPW10068250
...
12
Wrench, Spanner WPL-20000084

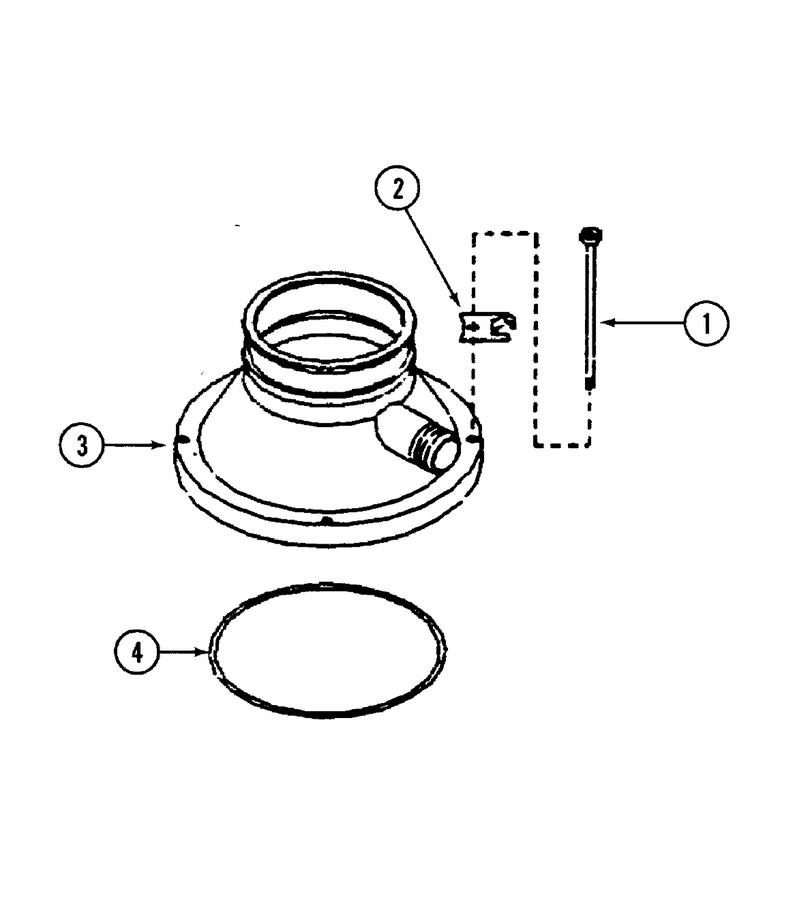

02 - Front View

...
...
1
Bolt, Through WPL-83001004
...
2
Bracket, Support WPL-08300021
...
3
Body, Container Assy. WPL-83001005
...
4
O-Ring WPL-Y752506

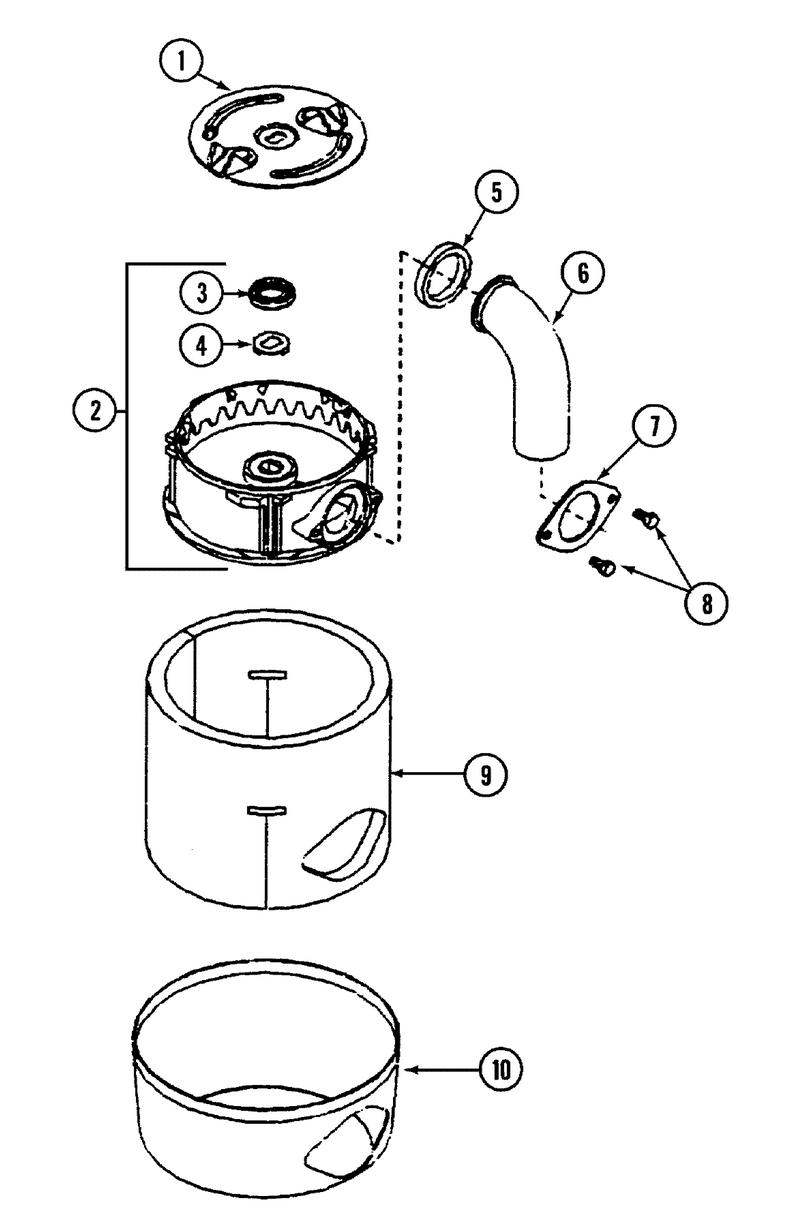

04 - Upper Housing (grinding)

...
...
1
Shredder, Rotor WPL-752530
...
2
Endbell Assy. (Upper) WPL-83001006
...
3
Seal, Water WPL-752543
...
4
Washer, Thrust WPL-752513
...
5
Gasket, Tailpipe WPL-752522
...
6
Tailpipe WPL-4211317
...
7
Flange, Tailpipe WPL-Y752523
...
8
Screw, Talpipe WPL-752504
...
9
Insulation WPL-08300025
...
10
Shell, Trim Bottom WPL-83001007
