Jenn-Air GC410

Model: GC410

Save Part Not Listed?
product name

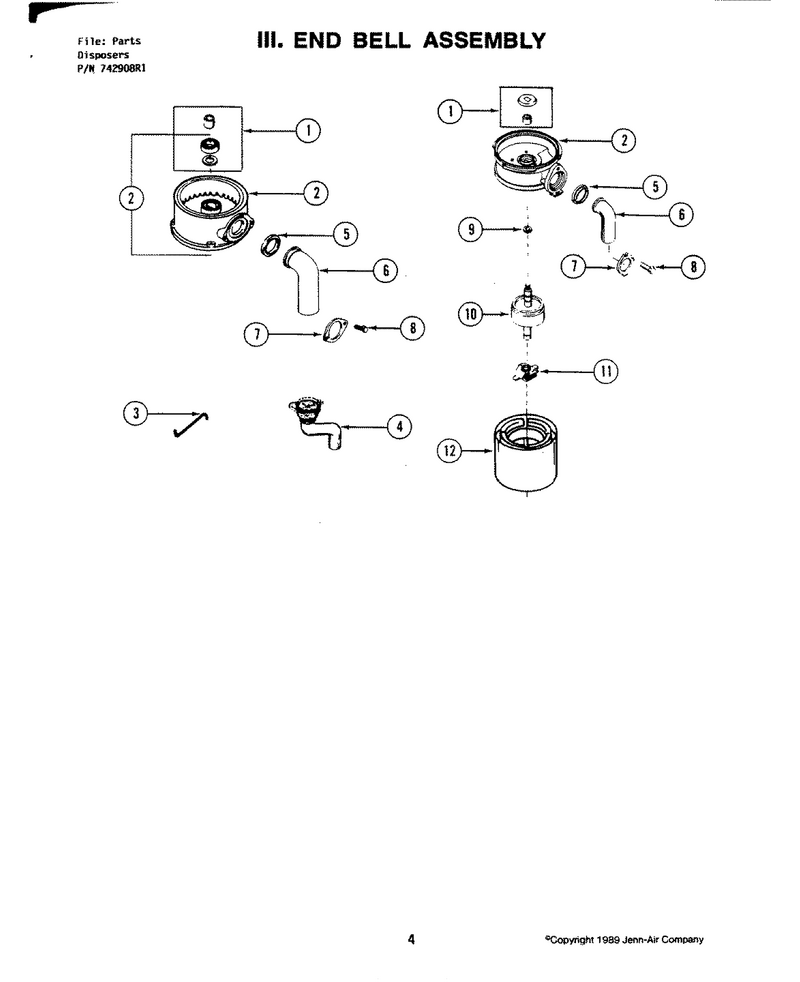

02 - End Bell Assembly

...
...
1
Slinger Kit WPL-752557
...
6
Tailpipe WPL-4211317
...
9
Washer, Thrust Rubber WPL-752525
...
11
Actuator Assy WPL-4211322

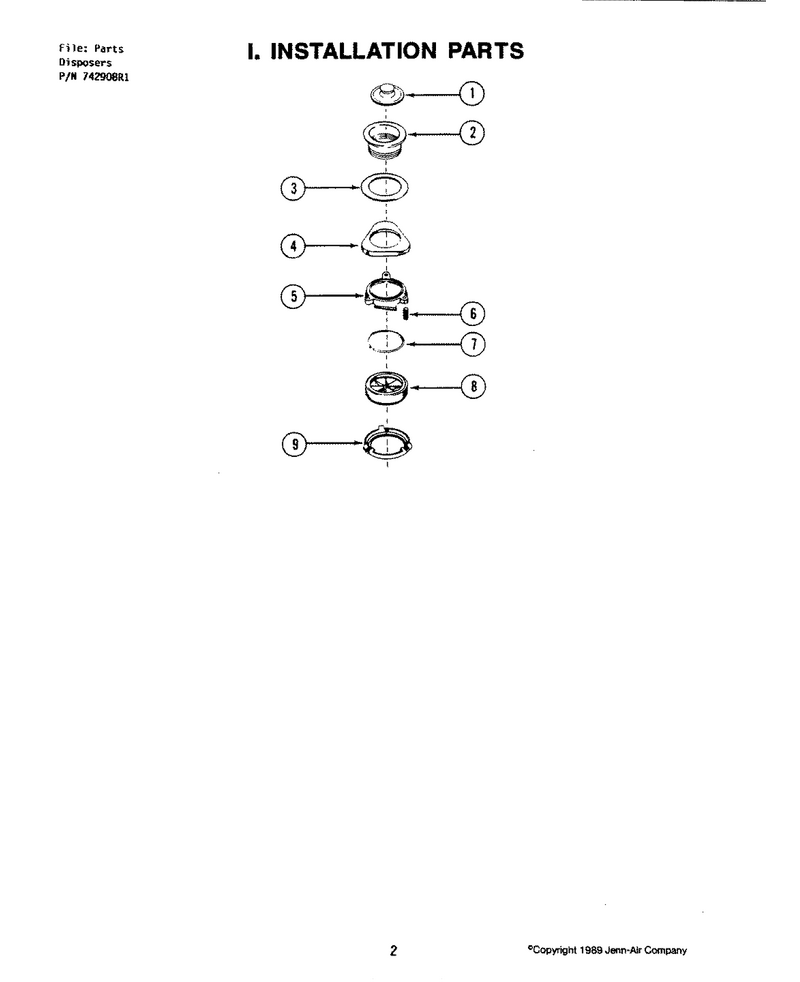

03 - Installation Parts

...
...
1
Stopper Assembly WPL-4211300
...
2
Flange, Strainer WPL-752550
...
3
Gasket, Fiber WPL-4211606
...
4
Flange, Backup WPL-Y752548
...
5
Flange, Mounting WPL-752546
...
7
Ring, Retaining WPL-Y752549
...
8
Gasket, Mounting WPL-4211615
...
9
Flange, Body WPL-Y752551

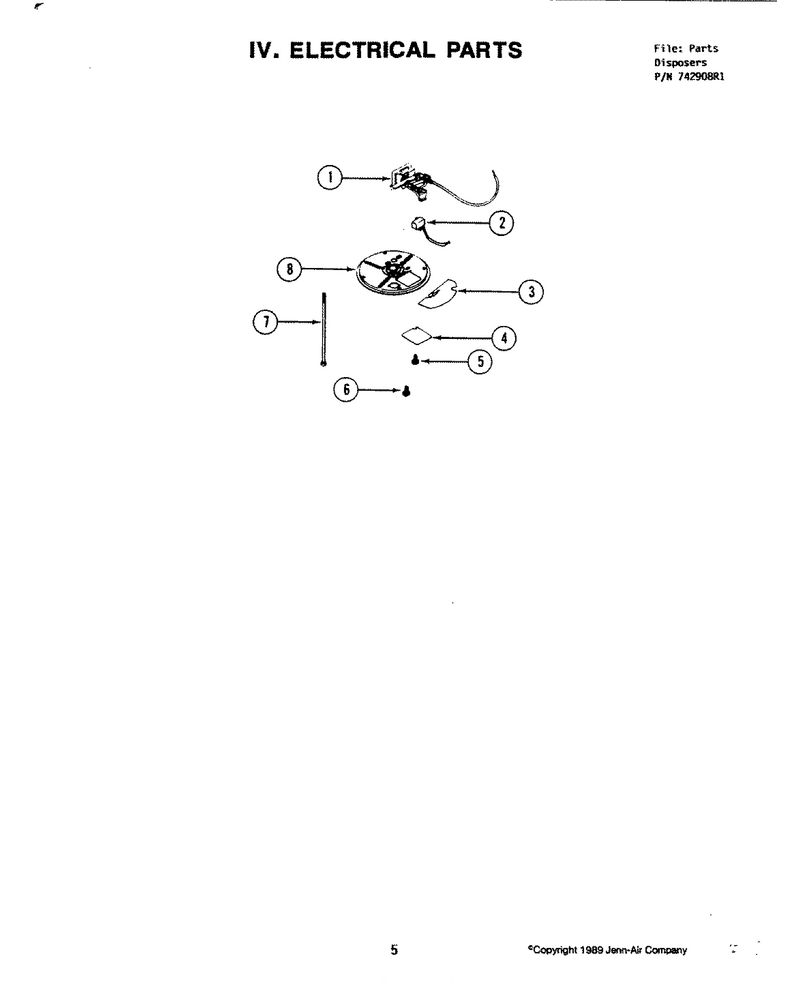

01 - Electrical Parts

...
...
1
Switch Assembly, Start WPL-8174312
...
3
Shield, Wire WPL-752542
...
4
Cover, Terminal WPL-752538
...
5
Screw, Terminal Cover WPL-752554
...
6
Screw WPL-WPW10068250
...
8
End Frame Assy, Lower WPL-Y08300045

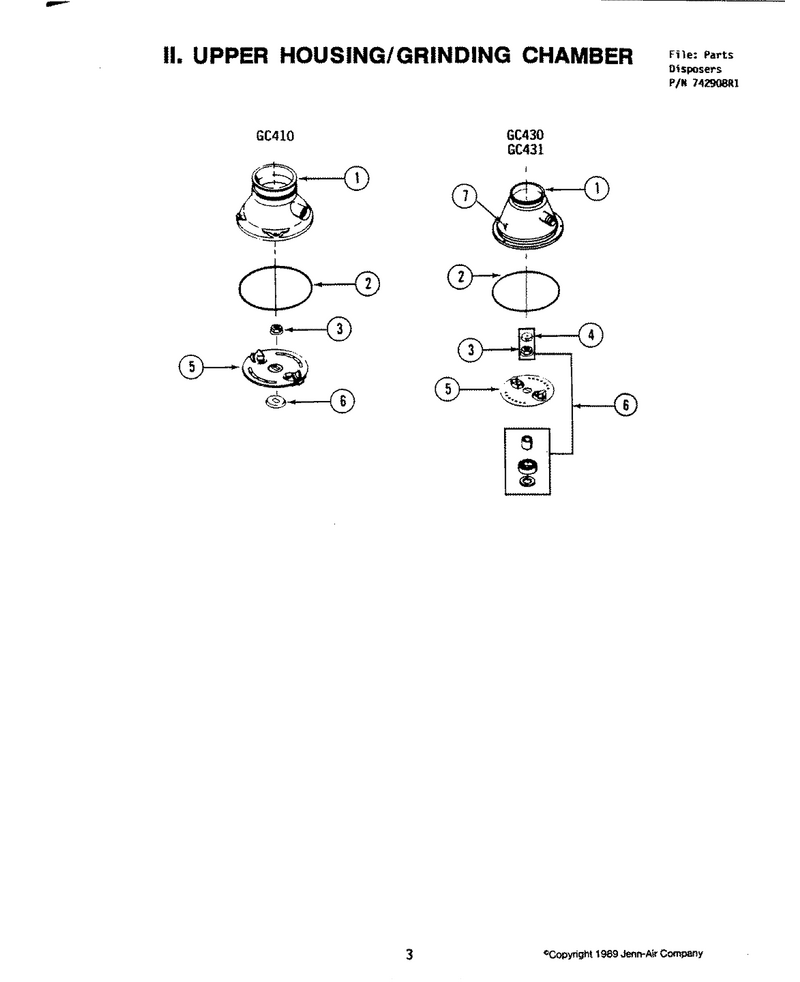

04 - Upper Housing

...
...
1
Body-Contain WPL-752528
...
2
O-Ring WPL-Y752506
