Jenn-Air GC100

Model: GC100

Save Part Not Listed?
product name

Popular Parts

Popular Parts

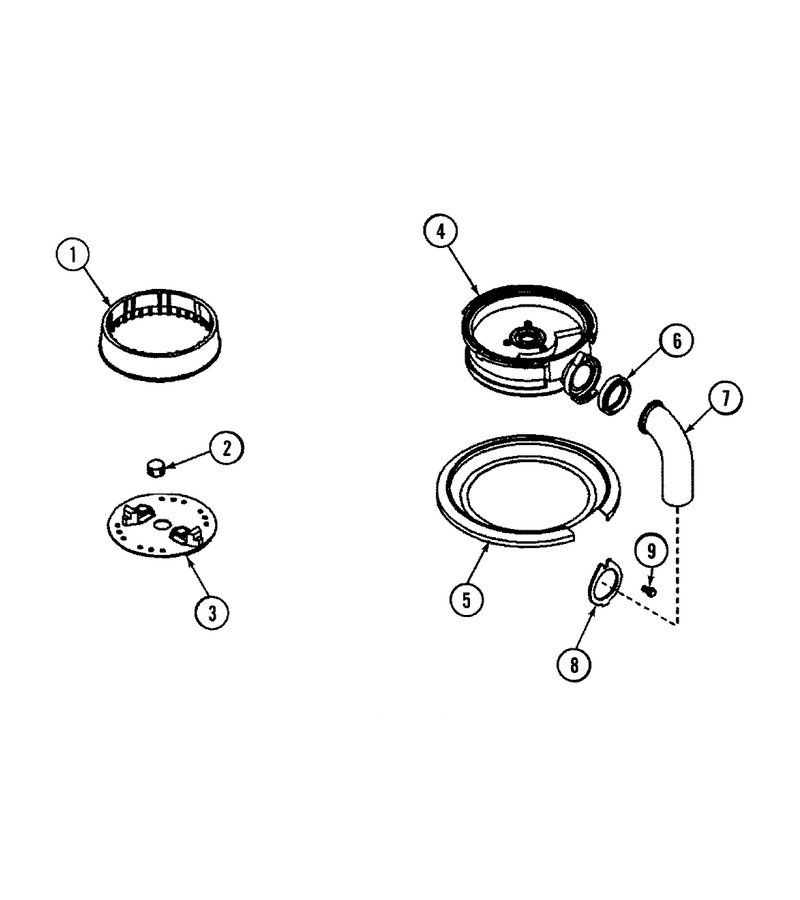

04 - Upper Housing (grinding)

...
...
1
Shredder, Stationary WPL-Y08300077
...
2
Plug WPL-752529
...
3
Shredder Assy., Rotating WPL-83001039
...
4
End Bell, Upper (Black) WPL-Y752560
...
5
Cover, Bottom Trim WPL-Y08300079
...
7
Tailpipe WPL-Y08300092
...
8
Flange, Tailpipe WPL-4211345
...
9
Screw WPL-Y752508

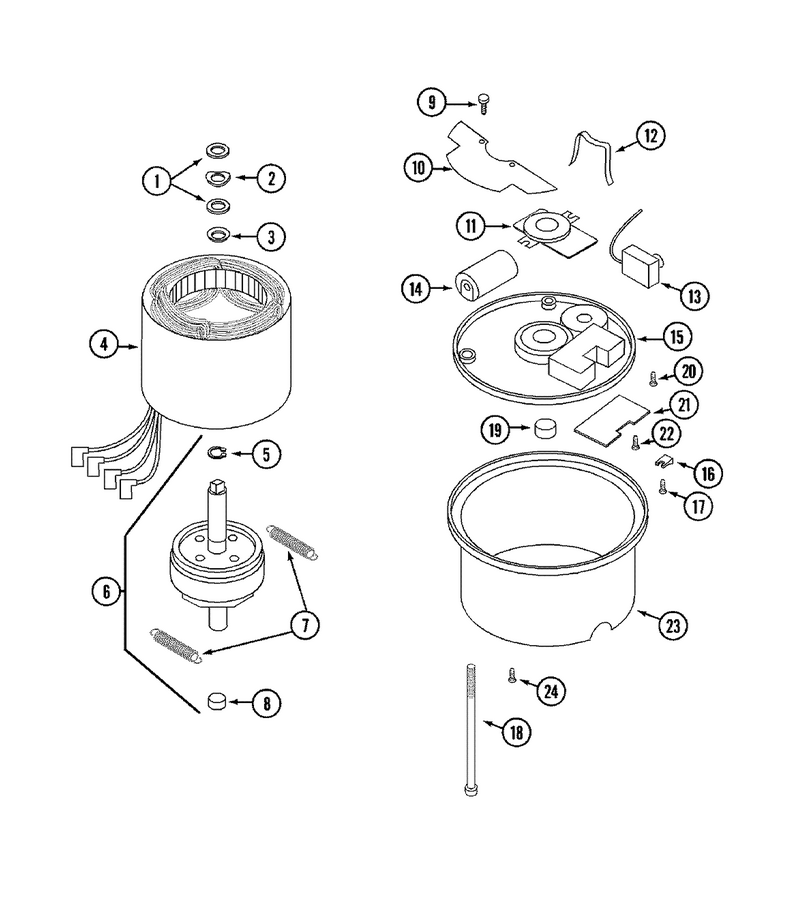

01 - Electrical Components

...
...
1
Washer, Thrust WPL-08300051
...
2
Washer, Spring WPL-08300052
...
3
Washer, Cup WPL-08300053
...
4
Stator Assy WPL-08300080
...
5
``c`` Ring WPL-Y08300056
...
6
Shaft Assembly WPL-08300041
...
7
Spring WPL-08300057
...
8
Transfer Assembly WPL-08300058
...
9
Screw WPL-08300059
...
10
Shield, Wire WPL-08300060
...
11
Switch, Start Assembly WPL-Y08300061
...
12
Clip, Overload WPL-08300062
...
13
Overload Assy WPL-Y08300082
...
14
Capacitor WPL-Y08300083
...
15
End Frame Assembly, Lower WPL-08300064
...
16
Clamp, Box WPL-08300065
...
17
Screw, Clamp Box WPL-83001011
...
18
Bolt, Thru WPL-08300067
...
19
Plug, Pipe WPL-08300091
...
20
Screw, Ground WPL-08300033
...
21
Cover, Terminal WPL-08300068
...
22
Screw WPL-08300059
...
23
Housing Assy, Lower WPL-08300038
...
24
Wrench Assembly WPL-20000083

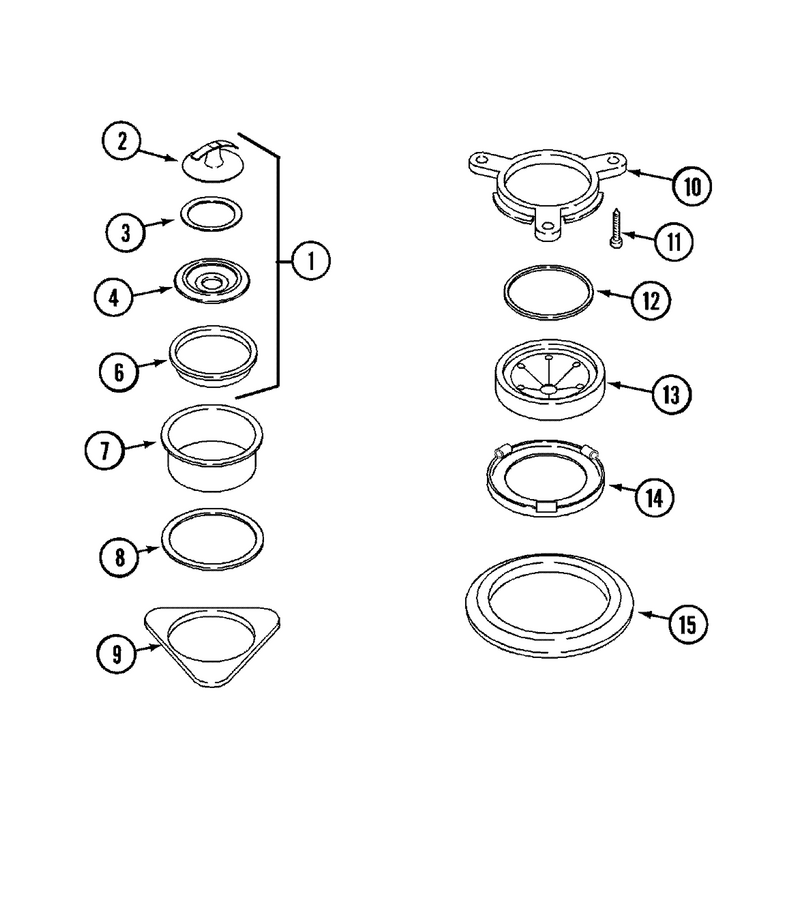

03 - Sink Flange

...
...
NI
Ring, Retaining WPL-83001015
...
1
Stopper Assy. WPL-83001013
...
2
Handle, Stopper WPL-83001014
...
3
Gasket, Stopper (Inner) WPL-4211355
...
4
Body, Stopper WPL-08300071
...
6
Gasket, Stopper WPL-Y08300004
...
7
Flange, Strainer WPL-752550
...
8
Gasket, Fiber WPL-4211606
...
9
Flange, Backup WPL-Y752548
...
10
Flange, Mounting WPL-752546
...
11
Screw, Backup WPL-W10171103
...
12
Ring, Retaining WPL-83001001
...
13
Gasket WPL-WP4211334
...
14
Flange, Body WPL-Y752551
...
15
Cover, Top Trim WPL-08300048

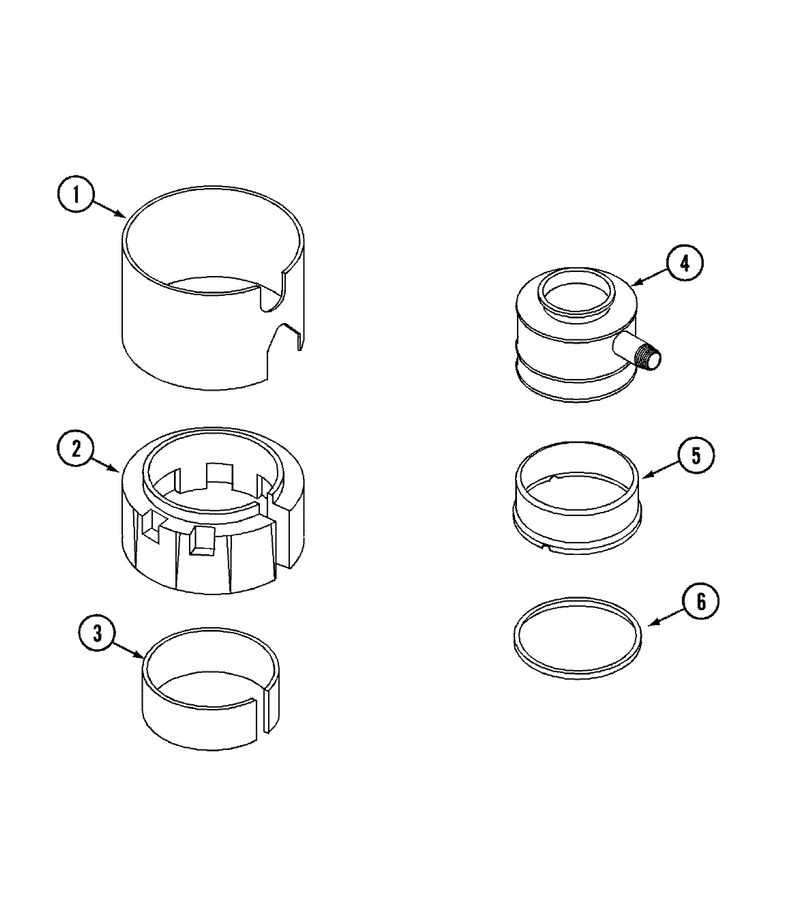

02 - Front View

...
...
1
Trim, Shell Assy. WPL-83001016
...
2
Insulation, Top WPL-08300073
...
3
Insulation, Sound WPL-08300074
...
4
Body Container Assy WPL-08300075
...
5
Body, Lower WPL-08300076
...
6
Gasket, Shredder WPL-Y08300078
