Jenn-Air GB60

Model: GB60

Save Part Not Listed?
product name

02 - Front View

...
...
1
Insulation, Switch Cover WPL-08300090
...
2
Cover, Switch WPL-08300093
...
3
Screw, Tapping (Switch Cover) WPL-Y08300094
...
4
Bracket, Wire Cover WPL-83001017
...
5
Switch Assy WPL-83001018
...
6
Body, Container Assy. WPL-83001019
...
7
Cover, Trim WPL-83001020
...
8
Body, Lower WPL-83001021
...
9
Gasket, Shredder WPL-Y08300078
...
10
Shredder, Stationary WPL-Y08300077
...
11
Trim, Shell Assy WPL-83001022
...
12
Clip, Trim Shell WPL-83001023

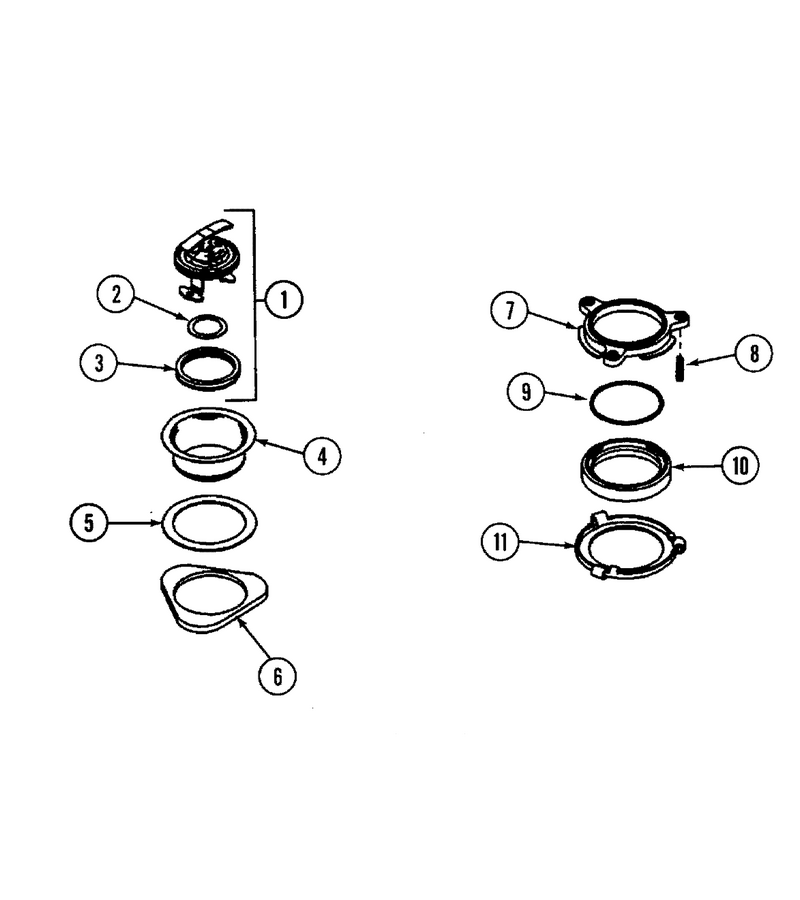

03 - Sink Flange

...
...
1
Lock Stopper Assy WPL-Y08300100
...
2
Gasket, Stopper (Inner) WPL-4211355
...
3
Gasket, Stopper (Outer) WPL-Y08300101
...
4
Flange, Strainer WPL-752550
...
5
Gasket, Fiber WPL-4211606
...
6
Flange, Backup WPL-Y752548
...
7
Flange, Mounting WPL-752546
...
8
Screw, Backup WPL-W10171103
...
9
Ring, Retaining WPL-Y752549
...
10
Gasket, Mounting WPL-4211411
...
11
Flange, Body WPL-Y752551

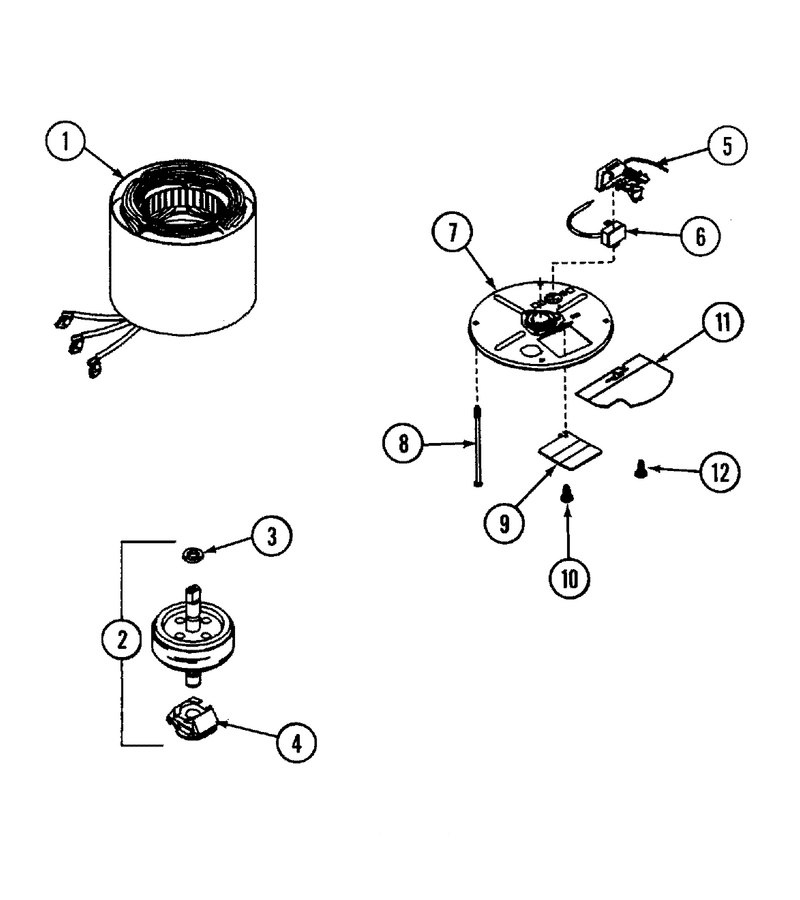

01 - Electrical Components

...
...
NI
Wrench, Spanner WPL-20000084
...
1
Stator Assy WPL-83001024
...
2
Shaft Assy WPL-83001025
...
3
Washer, Thrust Rubber WPL-752525
...
4
Actuator Assy WPL-4211322
...
5
Switch Assembly, Start WPL-8174312
...
6
Overload Assembly WPL-Y08300063
...
7
End Frame Assy, Lower WPL-Y08300045
...
8
Bolt, Thru WPL-752521
...
9
Cover, Terminal WPL-752538
...
10
Screw WPL-08300059
...
11
Shield, Wire WPL-752542
...
12
Screw WPL-WPW10068250

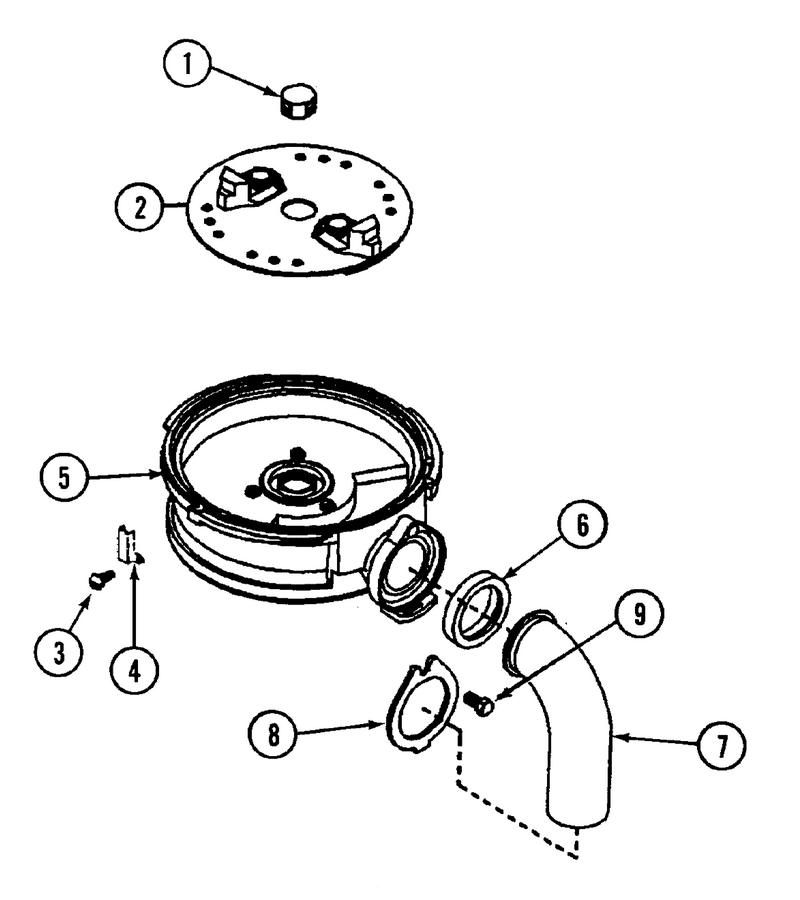

04 - Upper Housing (grinding)

...
...
1
Plug WPL-752529
...
2
Shredder Assy., Rotating WPL-83001039
...
3
Screw WPL-83001009
...
4
Shield, Wire Cover WPL-Y08300098
...
5
End Bell, Upper (Black) WPL-Y752560
...
6
Gasket, Tailpipe WPL-Y752505
...
7
Tailpipe WPL-4211317
...
8
Flange, Tailpipe WPL-4211345
...
9
Screw WPL-Y752508
