Jenn-Air D146-C

Model: D146-C

Save Part Not Listed?
product name

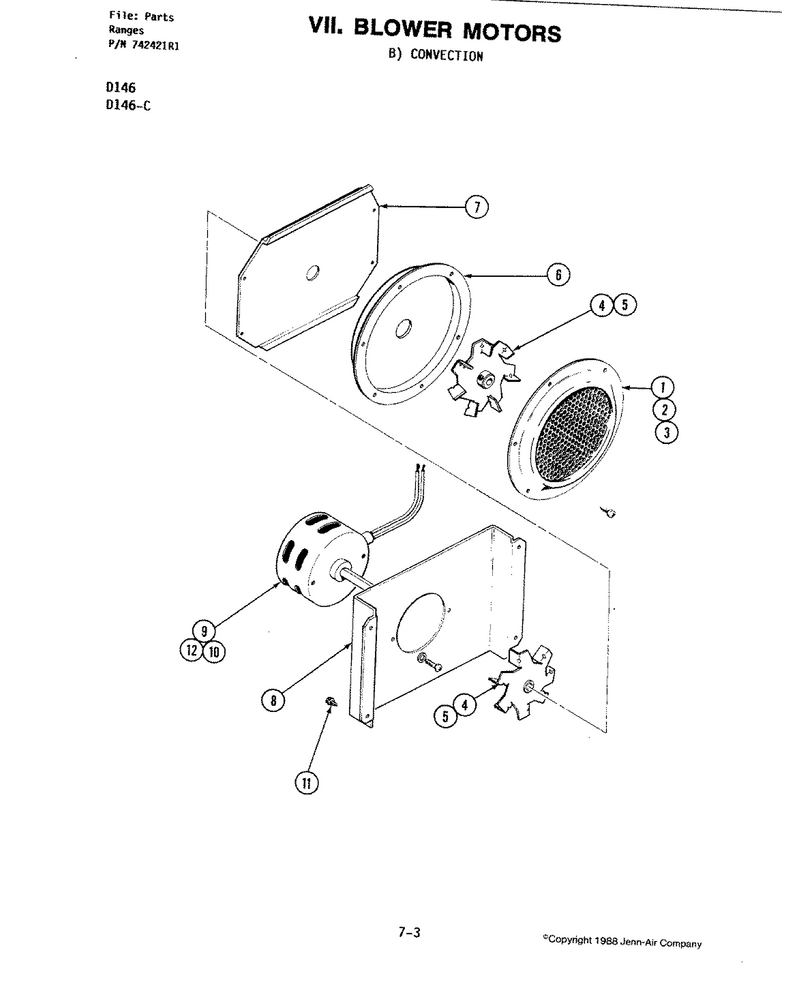

03 - Blower Motor (convection)

...
...
1
Plate, Convection Front WPL-701707
...
2
Screw WPL-WP1163283
...
3
Screw WPL-WP74003976
...
4
Wheel, Convection WPL-701711
...
5
Screw, Set WPL-701709
...
6
Plate, Convection Back WPL-701712
...
7
Cover, Motor Front WPL-701713
...
8
Plate, Motor Mount WPL-Y700601
...
9
Motor, Convect WPL-Y704972
...
10
Screw WPL-WP488234
...
11
Screw WPL-WP12990527
...
12
Washer, Lock WPL-715910

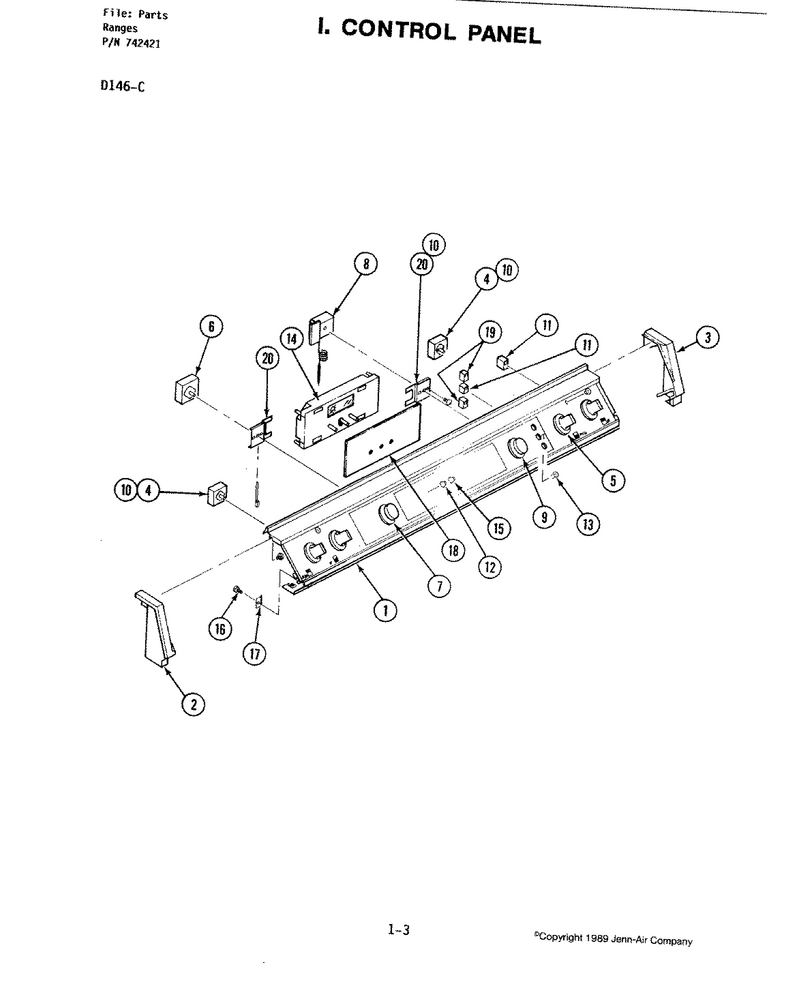

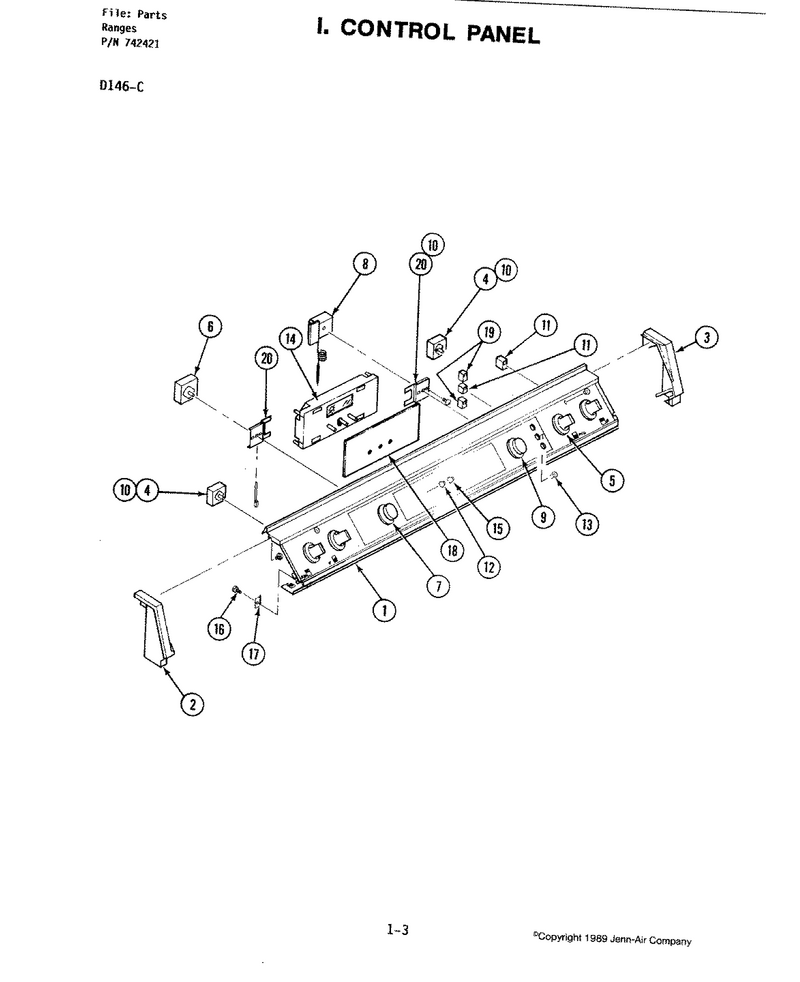

06 - Control Panel

...
...
1
Panel, Control (Blk) WPL-703961
...
2
Cap, End (Lt) WPL-702388
...
3
Cap, End (Rt) WPL-Y702387
...
4
Wire, Orange (Right) WPL-703523
...
5
Knob, Infinite (Blk) WPL-703900
...
6
Wire, Orange WPL-703749
...
7
Knob, Selector Switch (Blk) WPL-703901
...
8
Handle WPL-704996
...
9
Knob, Thermostat WPL-703917
...
10
Screw WPL-71002058
...
11
Light-Ind WPL-WP903115
...
12
Knob- Cloc WPL-WP7711P492-60
...
13
Lens, Pilot Light WPL-Y702615
...
14
Clock Kit, Electronic WPL-12200028
...
15
Tie-Wire WPL-WPW10339879
...
16
Screw, No.6-32 X 1/4 Inch WPL-212951
...
17
Bracket, Retaining WPL-702616
...
18
Lens, Clock (Blk) WPL-703668
...
19
Light, Indicator (250v) WPL-22001403
...
20
Harness, Wire (Limit) WPL-703833

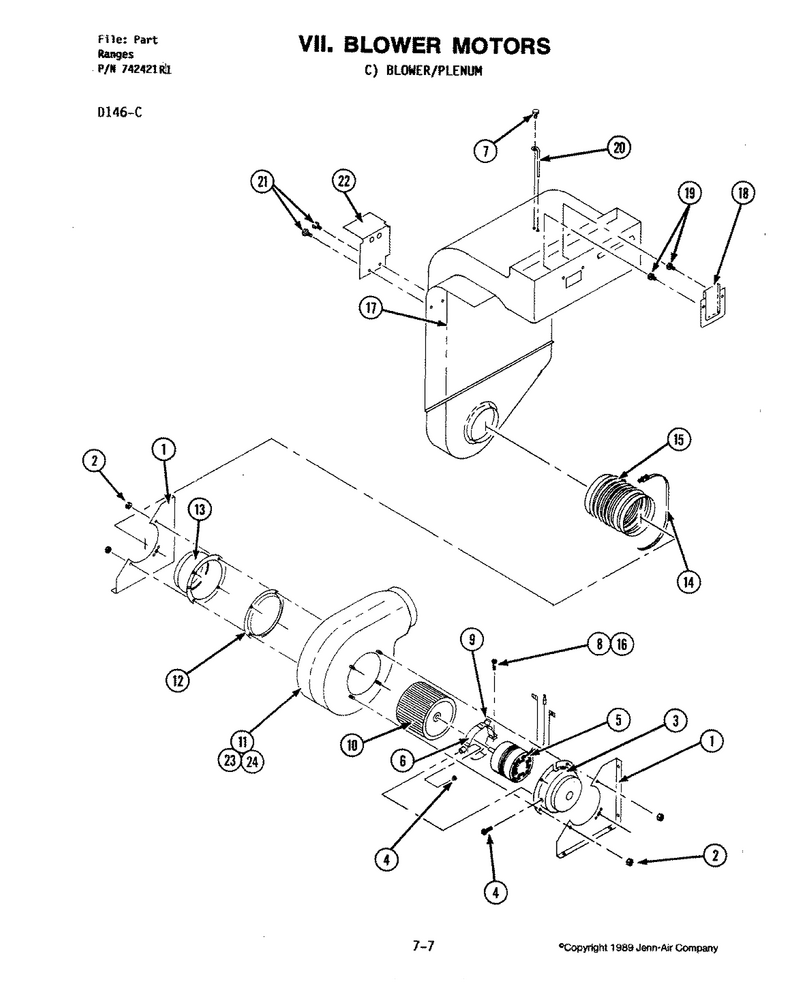

02 - Blower Motor

...
...
1
Brkt-Mntg WPL-WP3801F631-51
...
2
Locknut WPL-WPY707702
...
3
Cover WPL-WP4005F513-80
...
4
Screw WPL-707407
...
5
Motor WPL-Y704759
...
6
Band, Motor WPL-3415F003-51
...
7
Screw WPL-WP90767
...
8
Screw WPL-WP4381696
...
9
Isolator- WPL-WP71003558
...
10
Wheel-Fan WPL-WPY707985
...
11
Scroll, Blower Assy. WPL-712008
...
12
Ring, Inlet WPL-Y702295
...
13
Adapter, Restrictor Ring WPL-Y702296
...
14
Clamp, Hose WPL-Y702331
...
15
Duct, Flexible WPL-Y702326
...
16
Nut WPL-707161
...
17
Plenum, Upper WPL-7-12025
...
18
Cover, Vent WPL-Y702475
...
19
Screw WPL-W11233072
...
20
Stop, Filter WPL-Y702656
...
21
Screw WPL-WP90767
...
22
Filter- Gr WPL-WP71002111
...
23
Ring, Restrictor WPL-4026F009-51
...
24
Retainer WPL-8038P003-60

07 - Door

...
...
NI
Retainer, Glass WPL-Y704819
...
1
Frame, Oven Door (Blk) WPL-705003
...
2
Handle (Blk) WPL-704226
...
3
End Cap (Blk) WPL-Y704224
...
4
Screw WPL-W11233072
...
5
Glass, Screened (Black) WPL-705074K
...
6
Washer WPL-Y704230
...
7
Screw WPL-Y704231
...
8
Plate, Latch (Upper) WPL-Y712010
...
9
Liner, Oven Door Weld WPL-712189
...
10
Nut, Push In WPL-701643
...
11
Rivet WPL-WP210720
...
12
Pack, Window WPL-703804
...
13
Clip, Retainer WPL-Y700503
...
14
Insulation WPL-702293
...
15
Seal- Oven WPL-WPY702338
...
16
Plug, Oven Door Weld WPL-712011
...
17
Clip WPL-704487
...
18
Screw WPL-WPY706189
...
19
Bumper, Button WPL-Y704223
...
20
Insulation, Top WPL-701660
...
21
Insulation, Bottom WPL-702292
...
22
Bracket, Stand-Off WPL-701652
...
23
Baffle WPL-703782

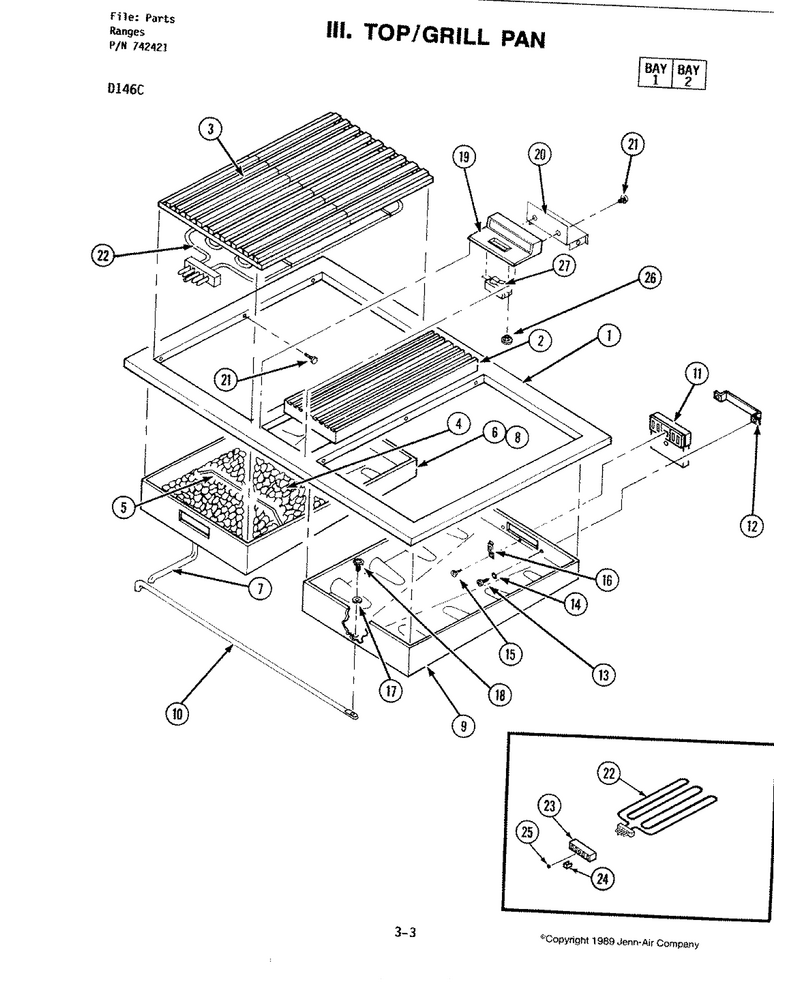

09 - Top

...
...
1
Top, Stainless Steel WPL-71001213
...
2
Grill, Air Blk WPL-Y704228
...
3
Grate, Grill WPL-703905
...
4
Plate, Rock WPL-708929
...
5
Support, Rock Plate WPL-700819
...
6
Pan, Grill (Lt) WPL-701955
...
7
Tube, Drain (Left) WPL-Y702463
...
8
Receptacle WPL-WPY702434
...
9
Pan, Grill (Rt) WPL-Y701956
...
10
Tube, Drain (Right) WPL-Y702327
...
11
Receptacle WPL-WPY702434
...
12
Bracket WPL-Y702698
...
13
Screw WPL-WP59002061
...
14
Washer WPL-Y707664
...
15
Screw WPL-WP489128
...
16
Clip WPL-74004835
...
17
Washer, Teflon WPL-702747
...
18
Nut, Drain Tube WPL-702748
...
19
Escutcheon WPL-12001669
...
20
Bracket, Filler WPL-Y04100754
...
21
Screw WPL-W11233072
...
22
Element WPL-WP5700M426-60
...
23
Block- Ter WPL-WPY708730
...
24
Clip, Shunt WPL-Y700450
...
25
Nut, Speed WPL-Y708862
...
26
Nut, Hex WPL-7103P166-60
...
27
Seal WPL-12200039

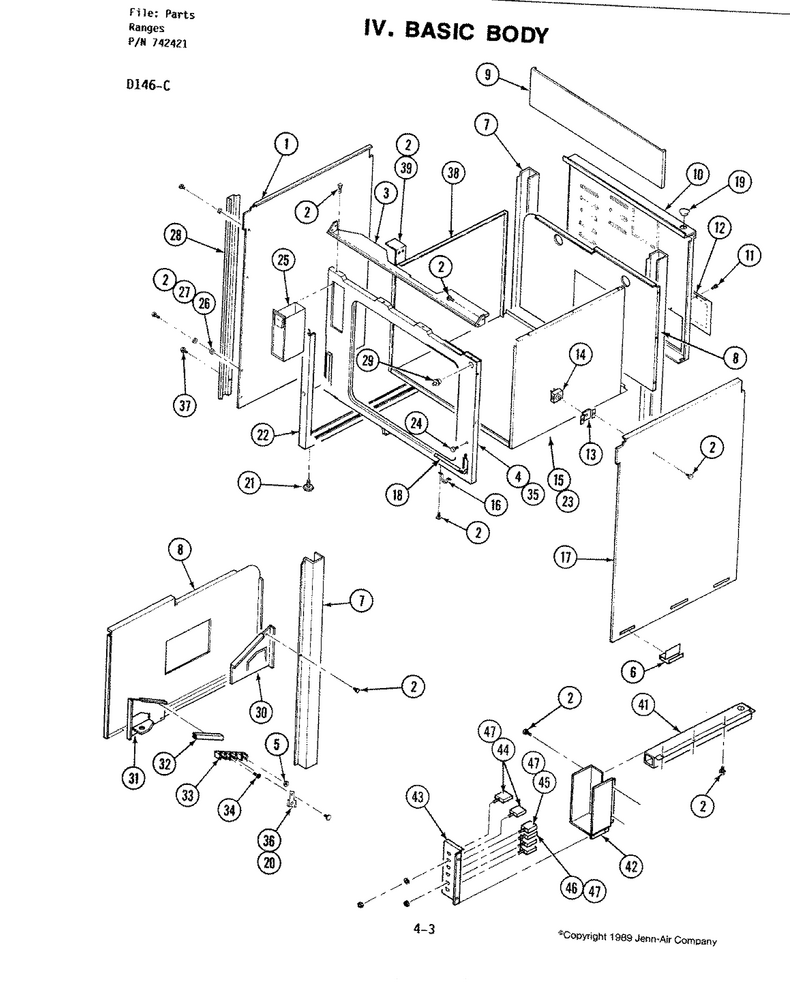

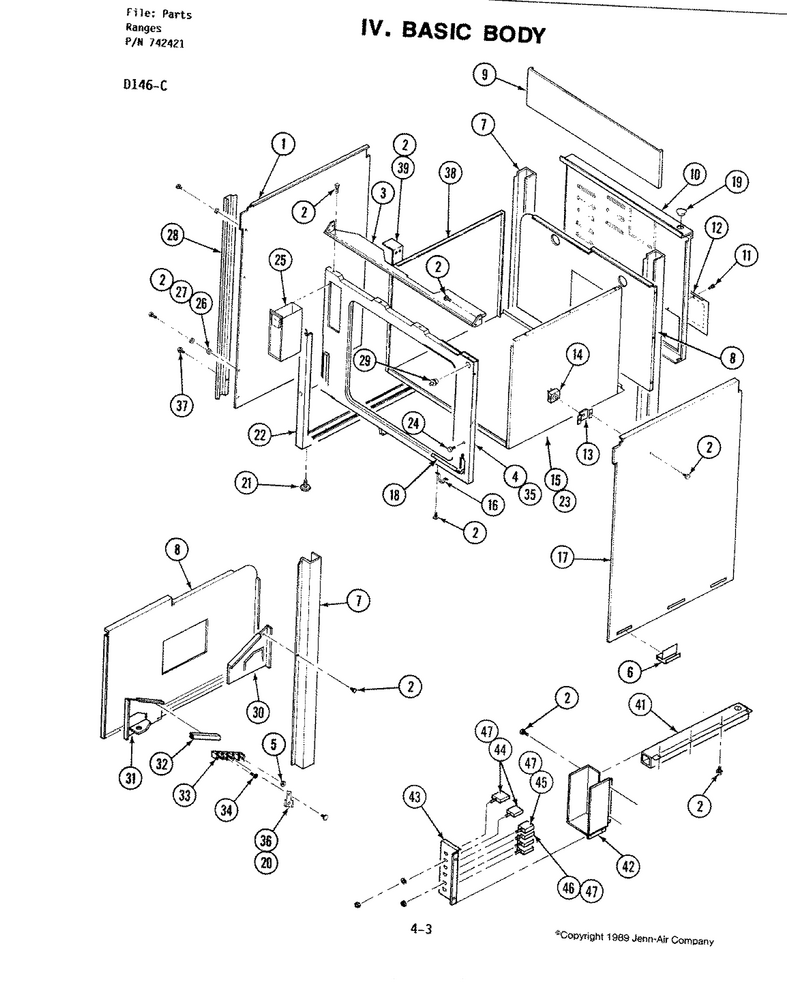

04 - Body

...
...
NI
Screw WPL-70273-1
...
1
Switch-Vac WPL-676289
...
2
Screw WPL-WP90767
...
3
Angle, Mount WPL-712002
...
4
Closure, Front WPL-702329
...
5
Nut, Hex WPL-712081
...
6
Clip, Spring WPL-Y702476
...
7
Support,tube WPL-704296
...
8
Back, Inner WPL-Y704735
...
9
Back, Unit WPL-704293
...
10
Cover, Rear WPL-704294
...
11
Screw WPL-703958
...
12
Cover, Access(R.h) WPL-702333
...
13
Bracket WPL-702729
...
14
Switch, Broil Cycle WPL-701698
...
15
Panel, Bottom & Side WPL-71001112
...
16
Bracket, Hat WPL-702658
...
17
Panel,side (Rt) WPL-703485
...
18
Kit- Hinge WPL-12200038
...
19
Strain, Relief WPL-Y702696
...
20
Screw WPL-WP71001171
...
21
Leveler WPL-W11117769
...
22
Rail, Support Assembly WPL-712000
...
23
Baffle, Inner WPL-704466
...
24
Screw WPL-715870
...
25
Container,grease Assembly WPL-Y712001
...
26
Washer, Conical WPL-702462
...
27
Washer, Flat WPL-712005
...
28
Trim, Side WPL-703486
...
29
Switch, Oven Light WPL-866294
...
30
Gussett (Lt) WPL-702557
...
31
Gussett (Rt) WPL-702556
...
32
Insulator WPL-702898
...
33
Block-Term WPL-WP8203546
...
34
Screw WPL-WP67006908
...
35
Screw WPL-W11233072
...
36
Strap, Ground WPL-Y702335
...
37
Screw WPL-WP90767
...
38
Panel, Inner (Lt) WPL-704302
...
39
Harness, Supply WPL-704307
...
41
Wireway WPL-703492
...
42
Enclosure, Circuit Breaker WPL-702523
...
43
Cover, Circuit Breaker WPL-70252-4
...
44
Breaker, Circuit (30 Amp) WPL-Y702613
...
45
Circuit Breaker (15 Amp) WPL-701774
...
46
Breaker, Circuit WPL-Y715443
...
47
Block, Terminal WPL-Y702607

05 - Body

...
...
1
Oven Assy. WPL-712599
...
2
Element- B WPL-WPY04100514
...
3
Screw WPL-WP179051
...
4
Element- B WPL-WPY04100514
...
5
Wire, Ground WPL-702643
...
6
Receptacle, Holder WPL-704142
...
7
Sockt-Lite WPL-WP74003387
...
8
Lens, Light WPL-Y704143
...
9
Light Bulb WPL-8009
...
10
Tube, Vent WPL-702290
...
11
Retainer, Lens WPL-Y704144
...
12
Screw WPL-WP90767
...
13
Tube, Vent WPL-701738
...
14
Shield, Vent WPL-Y702632
...
15
Screw WPL-WP1163283
...
16
Support, Rack WPL-702701
...
17
Rack, Oven WPL-Y702339
...
18
Procelain Broiler (Pan And Grid) WPL-4396923
...
19
Procelain Broiler (Pan And Grid) WPL-4396923
...
20
Screw WPL-701744
...
21
Clip, Bulb WPL-Y701541
...
22
Spacer, Oven WPL-701741
...
23
Nut, Tee WPL-715294
...
24
Washer WPL-701736
...
25
Limit, Oven WPL-Y702107
...
26
Terminal WPL-Y702711
...
27
Screw WPL-71002058
...
28
Screw WPL-WP355214
...
29
Rack, Oven (Offset) WPL-Y704662

01 - Blower Motor

...
...
1
Bracket, Mounting Motor WPL-Y702542
...
2
Motor, Fan WPL-Y702549
...
3
Blade, Fan WPL-Y702525
...
4
Unit, Back WPL-Y04100518
...
5
Screw WPL-WP90767
...
6
Nut K WPL-M0282005

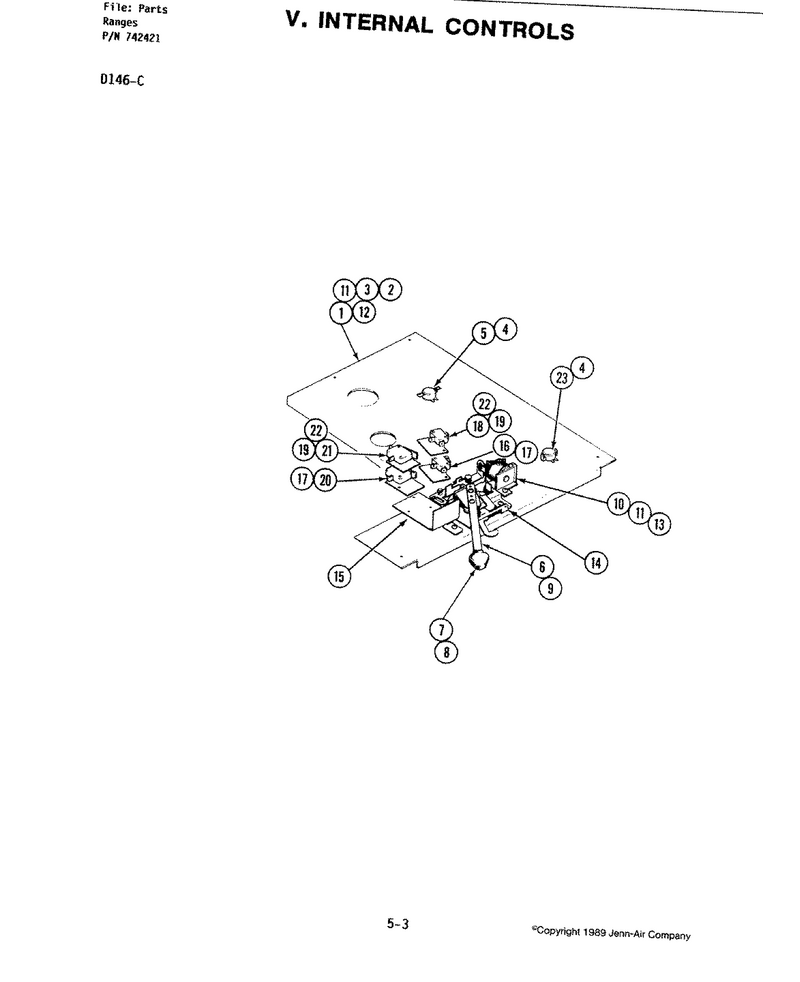

08 - Internal Controls

...
...
NI
Switch, Door WPL-702806
...
1
Panel, Top WPL-704669
...
2
Screw WPL-WP90767
...
3
Tie, Mount Cable WPL-702746
...
4
Screw WPL-WP12990527
...
5
Swtch-Sfty WPL-WP7403P899-60
...
6
Lever, Latch (Blk) WPL-Y704227
...
7
Knob (Blk) WPL-Y703932
...
8
Spring, Knob WPL-701671
...
9
Screw WPL-707407
...
10
Solenoid WPL-Y702526
...
11
Screw WPL-WP90767
...
12
Bracket,stiffener WPL-702697
...
13
Pin, Cotter WPL-Y701686
...
14
Latch Assy. WPL-Y703357
...
15
Shield, Switch WPL-701706
...
16
Switch, Solenoid WPL-Y702360
...
17
Insulator WPL-Y702350
...
18
Switch, Latch WPL-Y703732
...
19
Insulator WPL-703264
...
20
Switch, Rear (Bottom) WPL-Y704752
