product name

Jenn-Air A100B-C

Model: A100B-C

Save Part Not Listed?
product name

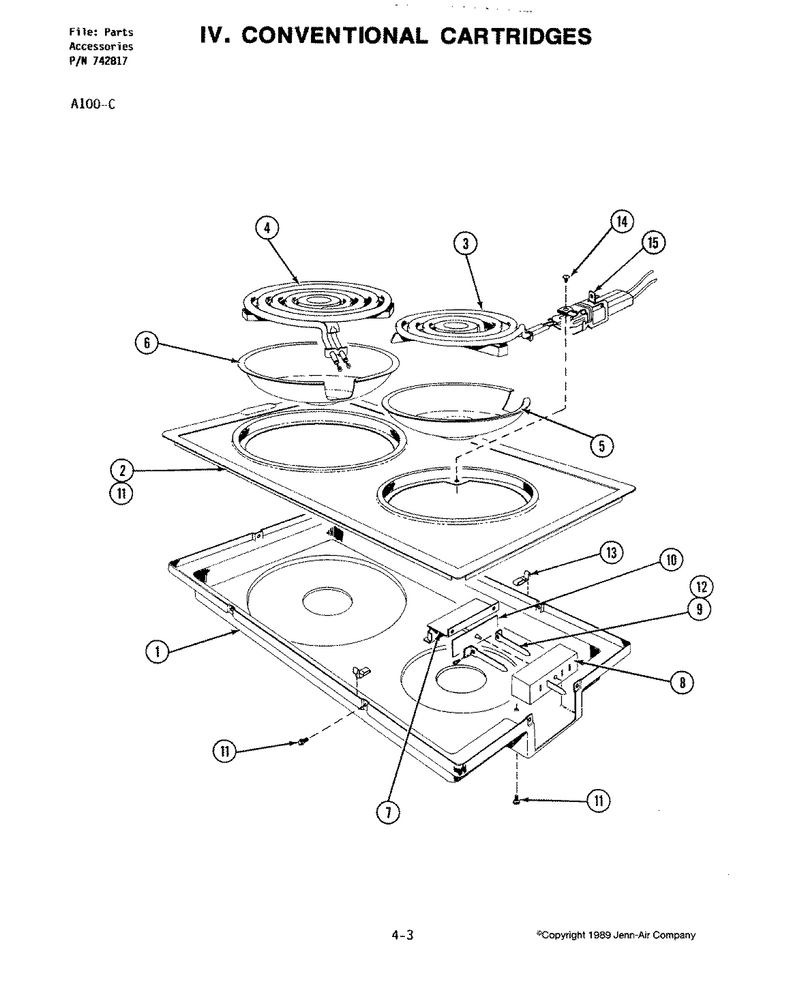

01 - Conventional Cartridge

...
...
1
Pan, Cartridge (Blk) WPL-703347
...
2
Cooktop WPL-WP2002F188-09
...
3
Elmnt-Surf WPL-WPY04100165
...
4
Elmnt-Surf WPL-WPY04100166
...
5
Pan, Drip (6``) WPL-715877
...
6
Pan, Drip (8``) WPL-715878
...
7
Bracket, Retaining Assy. WPL-Y700648
...
8
Block- Ter WPL-WPY708730
...
9
Spade, Contact WPL-Y708572
...
10
Insulator, Contact Spade WPL-708834
...
11
Screw WPL-WP12990527
...
12
Screw WPL-WP488234
...
13
Clip WPL-Y708910
...
14
Screw WPL-WP74004005
...
15
Bracket WPL-W10116809
...
16
Receptacle Assy. WPL-12001676
