Jenn-Air 87899

Model: 87899

Save Part Not Listed?
product name

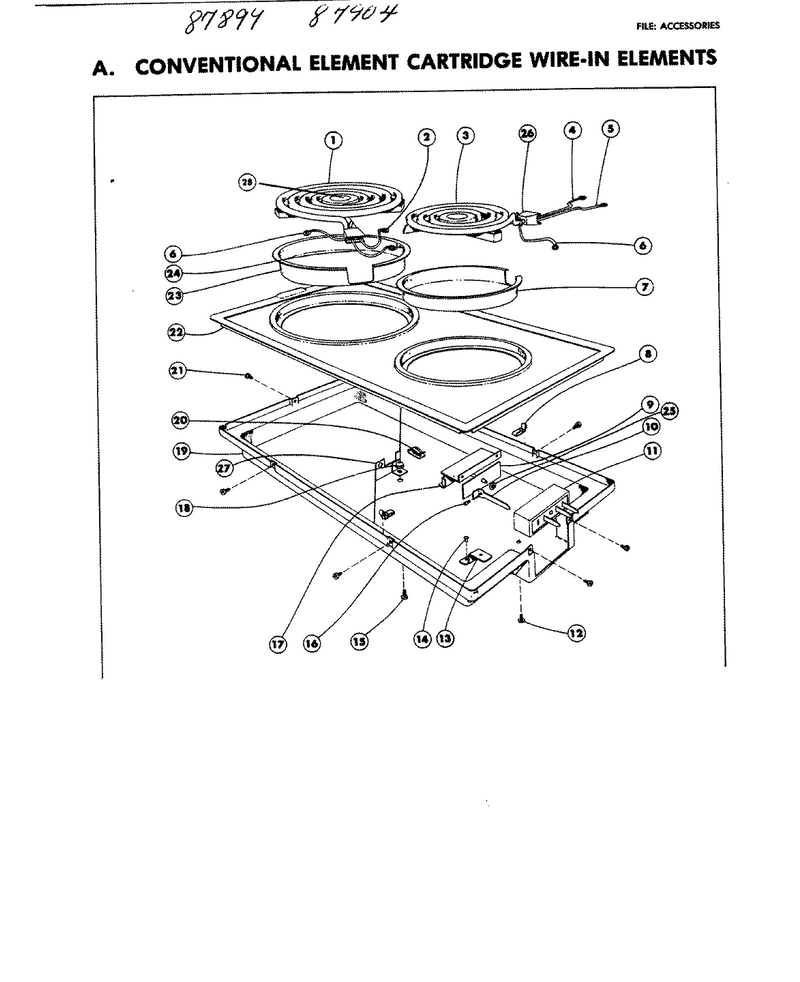

01 - Conventional Element Cartridge Wire-In

...
...
1
Burner Element 240v WPL-707728
...
2
Wire, Red WPL-Y708889
...
3
Burner (6``) WPL-Y707727
...
4
Wire Blue WPL-708892
...
5
Wire Yellow WPL-Y708891
...
6
Wire-Green WPL-708289
...
7
Pan, Drip (6``) WPL-715877
...
8
Clip WPL-Y708910
...
9
Insulator, Contact Spade WPL-708834
...
10
Spade, Contact WPL-Y708572
...
11
Block- Ter WPL-WPY708730
...
12
Screw WPL-WP59002061
...
13
Location Bracket WPL-708880
...
14
Rivet WPL-WP210720
...
15
Screw WPL-707667
...
16
Screw WPL-WP488234
...
17
Bracket, Retaining Assy. WPL-Y700648
...
18
Nut Acorn WPL-707835
...
19
Cartridge Pan WPL-708828
...
20
Clamp,cable WPL-707753
...
21
Screw WPL-WP12990527
...
22
Cartridge WPL-WP2002F208-50
...
23
Pan, Drip (8``) WPL-715878
...
24
Wire, Black WPL-Y708890
...
25
Nut, Speed WPL-Y708862
...
26
Crmc Block WPL-715805
...
27
No Longer Available WPL-788007
...
28
Medallion WPL-770200
