Jenn-Air 629.46965

Model: 629.46965

Save Part Not Listed?
product name

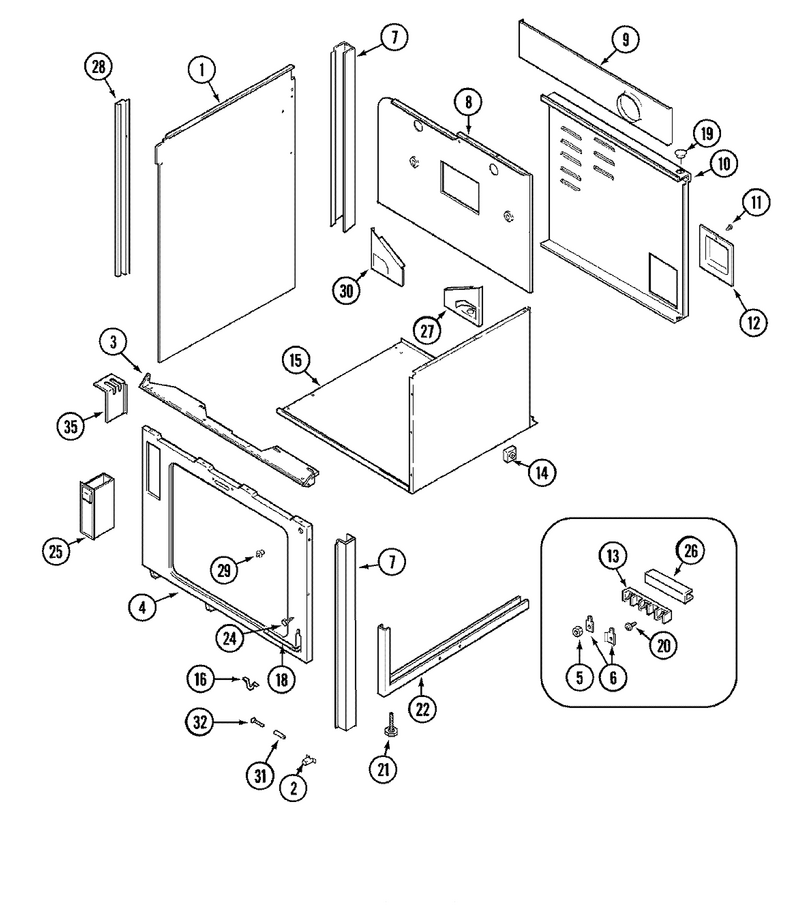

04 - Body

...
...
1
Panel, Side (Lh) WPL-Y04100629
...
2
Clip----S WPL-708763
...
3
Angle, Mount WPL-712002
...
4
Closure, Front WPL-702329
...
5
Nut WPL-707161
...
6
Strap, Ground WPL-Y702335
...
7
Support,tube WPL-704296
...
8
Back, Inner WPL-Y704735
...
9
Unit, Back WPL-Y04100518
...
10
Cover, Rear (Lower) WPL-702307
...
11
Screw WPL-WPY706189
...
12
Cover, Access(R.h) WPL-702333
...
13
Block-Term WPL-WP8203546
...
14
Switch, Broil Cycle WPL-704355
...
15
Angle, Oven Support WPL-702336
...
16
Bracket, Hat WPL-702658
...
17
Panel, Side (Rt) WPL-702300
...
18
Kit- Hinge WPL-12200038
...
19
Strain, Relief WPL-Y702696
...
20
Screw WPL-WP71001171
...
21
Leveler WPL-W11117769
...
22
Rail, Support Assembly WPL-712000
...
23
Baffle, Inner WPL-704466
...
24
Screw WPL-715870
...
25
Container,grease Assembly WPL-Y712001
...
26
Insulator WPL-702898
...
27
Gussett (Rt) WPL-702556
...
28
Trim, Side WPL-702337
...
29
Switch, Oven Light WPL-866294
...
30
Gussett (Lt) WPL-702557
...
31
Spacer WPL-702745
...
32
Screw WPL-WP67006908

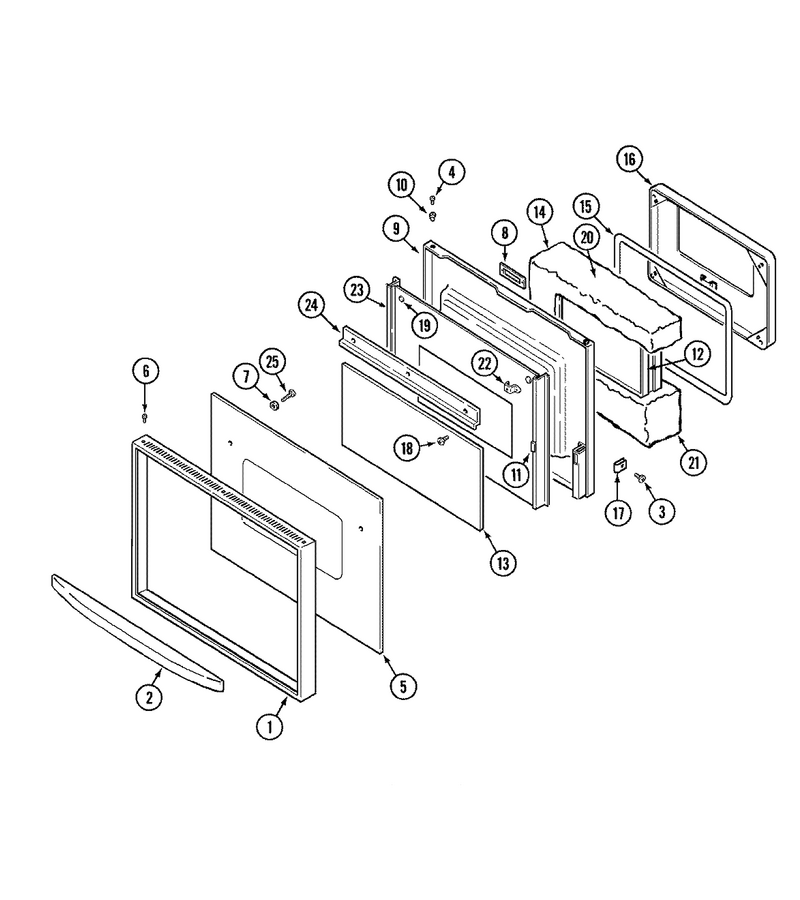

06 - Door

...
...
1
Frame (Wht) WPL-71002511
...
2
Handle, Door (Wht) WPL-71002513
...
3
Screw, Black WPL-71002514
...
4
Screw WPL-W11233072
...
5
Glass, Screened (Wht) WPL-71002516
...
6
Screw WPL-WPY706189
...
7
Washer WPL-Y700446
...
8
Plate, Latch (Upper) WPL-Y712010
...
9
Liner WPL-712567
...
10
Nut, Push In WPL-701643
...
11
Pad, Spacer WPL-715938
...
12
Window-Pac WPL-WP5700M600-60
...
13
Glass, Baffle WPL-Y704820
...
14
Insulation WPL-702293
...
15
Seal- Oven WPL-WPY702338
...
16
Plug, Oven Door Weld WPL-712011
...
17
Clip WPL-704487
...
18
Screw WPL-WPY706189
...
19
Bumper, Button WPL-Y704223
...
20
Insulation, Top WPL-701660
...
21
Insulation, Bottom WPL-702292
...
22
Bracket, Stand-Off WPL-701652
...
23
Baffle, Door WPL-71001294
...
24
Retainer, Glass WPL-Y704819
...
25
Screw WPL-71002517

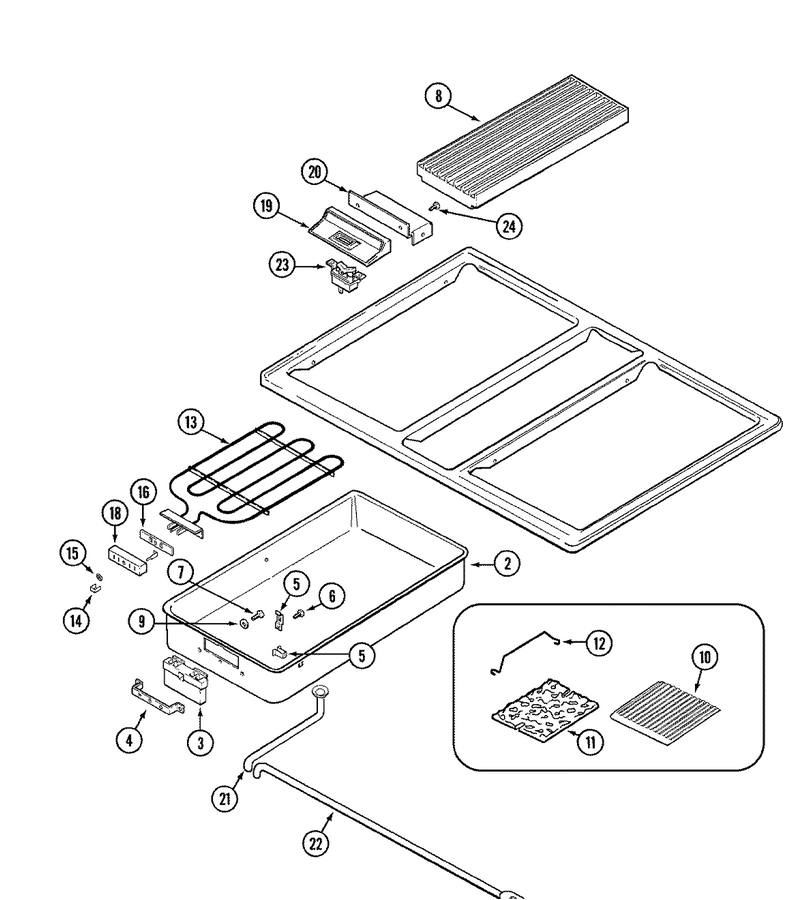

09 - Top Assembly

...
...
1
Top, Stainless Steel WPL-71001213
...
2
Kit, Wire WPL-Y712229
...
3
Receptacle WPL-WPY702434
...
4
Bracket WPL-Y702698
...
5
Clip WPL-74004835
...
6
Screw WPL-WP489128
...
7
Screw WPL-WP12990527
...
8
Grill, Air (Wht) WPL-71001451
...
9
Washer, Teflon WPL-702747
...
10
Nut, Drain Tube WPL-702748
...
11
Plate, Rock WPL-708929
...
12
Support, Rock Plate WPL-700819
...
13
Element, Grill WPL-71001573
...
14
Clip, Shunt WPL-Y700450
...
15
Nut, Speed WPL-Y708862
...
16
Insulator WPL-Y700449
...
17
Spade, Contact WPL-Y708572
...
18
Block- Ter WPL-WPY708730
...
19
Escutcheon (Wht) WPL-71002519
...
20
Bracket, Filler WPL-Y04100754
...
21
Tube, Drain (Left) WPL-Y702463
...
22
Tube, Drain (Right) WPL-Y702327
...
23
Seal WPL-12200039
...
24
Screw WPL-W11233072

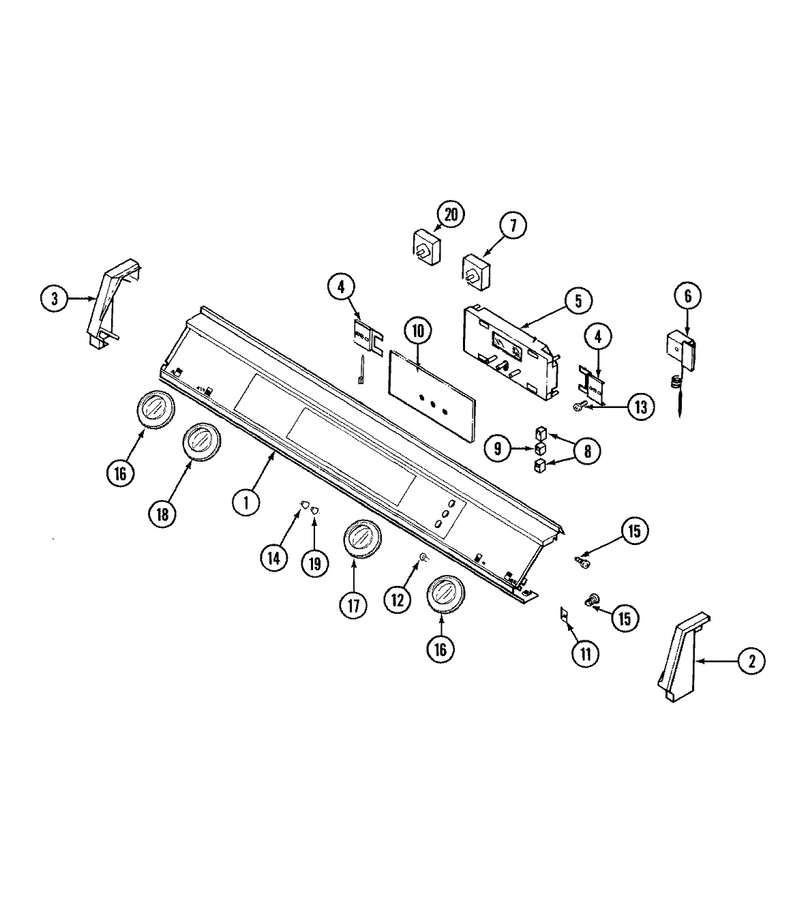

05 - Control Panel

...
...
1
Panel, Control (Wht) WPL-71002498
...
2
End Cap (Wht-Rt) WPL-71002506
...
3
End Cap (Wht-Lt) WPL-71002507
...
4
Bracket, Clock WPL-703667
...
5
Clock Kit, Electronic WPL-12200028
...
6
Thermostat WPL-WPY703674
...
7
Switch, Selector WPL-Y704850
...
8
Light, Indicator (250v) WPL-22001403
...
9
Light-Ind WPL-WP903115
...
10
Lens, Timer----Na WPL-04100132
...
11
Bracket, Retaining WPL-702616
...
12
Lens, Pilot Light WPL-Y702615
...
13
Screw WPL-71002058
...
14
Knob- Cloc WPL-WP7711P492-60
...
15
Screw, Hex WPL-71002505
...
16
Knob, Switch (Wht) WPL-71002510
...
17
Knob, Thermostat (Wht) WPL-71002504
...
18
Knob- Sele WPL-WPY704841
...
19
Knob- Cloc WPL-WP7711P492-60
...
20
Switch-Inf WPL-W11120791
...
21
Harness, Control----Na WPL-704854
...
22
Kenmore, U & C WPL-71002508
...
23
Guide, Quick Ref - Jenn-Air WPL-16000326

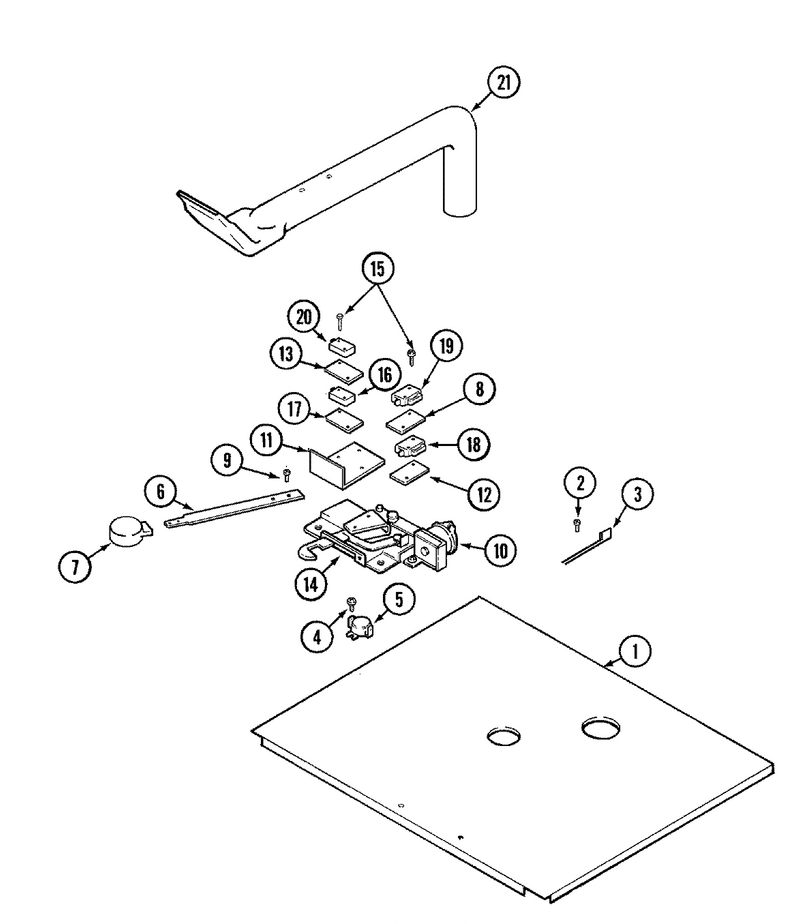

07 - Internal Controls

...
...
1
Panel, Top WPL-704669
...
2
Screw WPL-WP90767
...
3
Tie-Wire WPL-WPW10339879
...
4
Screw WPL-WP12990527
...
5
Swtch-Sfty WPL-WP7403P899-60
...
6
Lever, Latch (Wht) WPL-Y703848
...
7
Knob, Lever WPL-705118
...
8
Insulator WPL-703264
...
9
Screw WPL-707407
...
10
Solenoid WPL-Y702526
...
11
Shield, Switch WPL-701706
...
12
Bracket,stiffener WPL-702697
...
13
Insulator WPL-703264
...
14
Latch, Door WPL-71001168
...
15
Screw WPL-702807
...
16
Switch, Solenoid WPL-Y702360
...
17
Insulator WPL-Y702350
...
18
Switch, Rear (Bottom) WPL-Y704752
...
19
Switch, Door WPL-702806
...
20
Switch, Latch WPL-Y703732
...
21
Tube, Vent WPL-702290

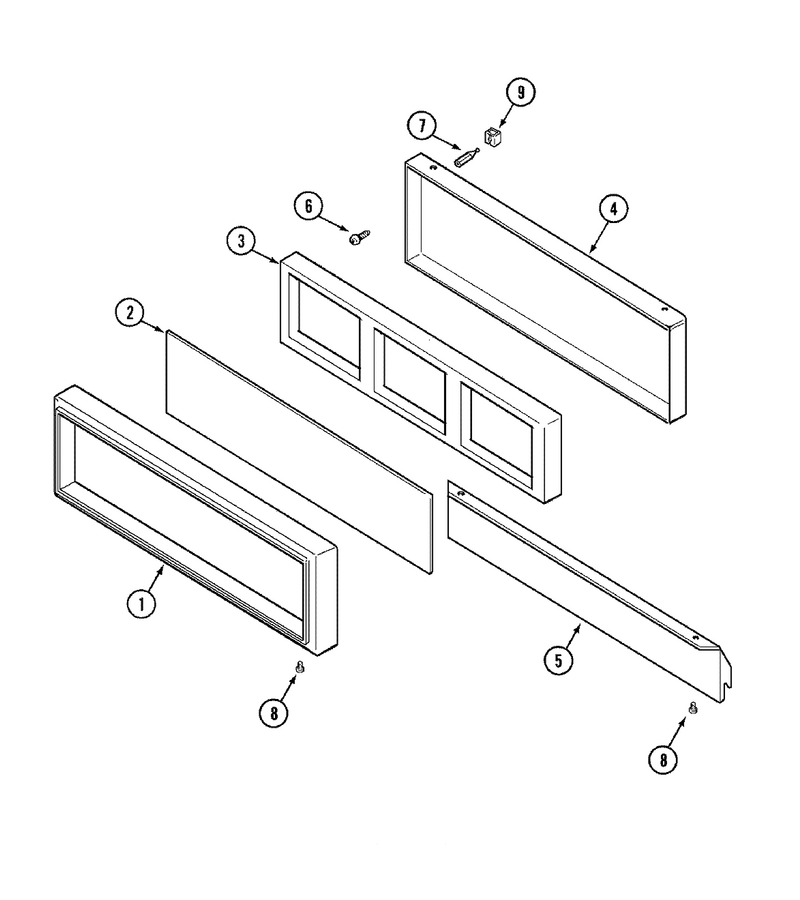

01 - Access Panel

...
...
1
Frame,door WPL-703434
...
2
Panel, Base (Wht) WPL-704480
...
3
Spacer, Base Door WPL-Y702896
...
4
Liner, Door WPL-Y702341
...
5
Panel, Kick WPL-Y702744
...
6
Screw WPL-71002058
...
7
Stud, Ball WPL-Y702633
...
8
Screw WPL-W11233072
...
9
Clip----S WPL-708763

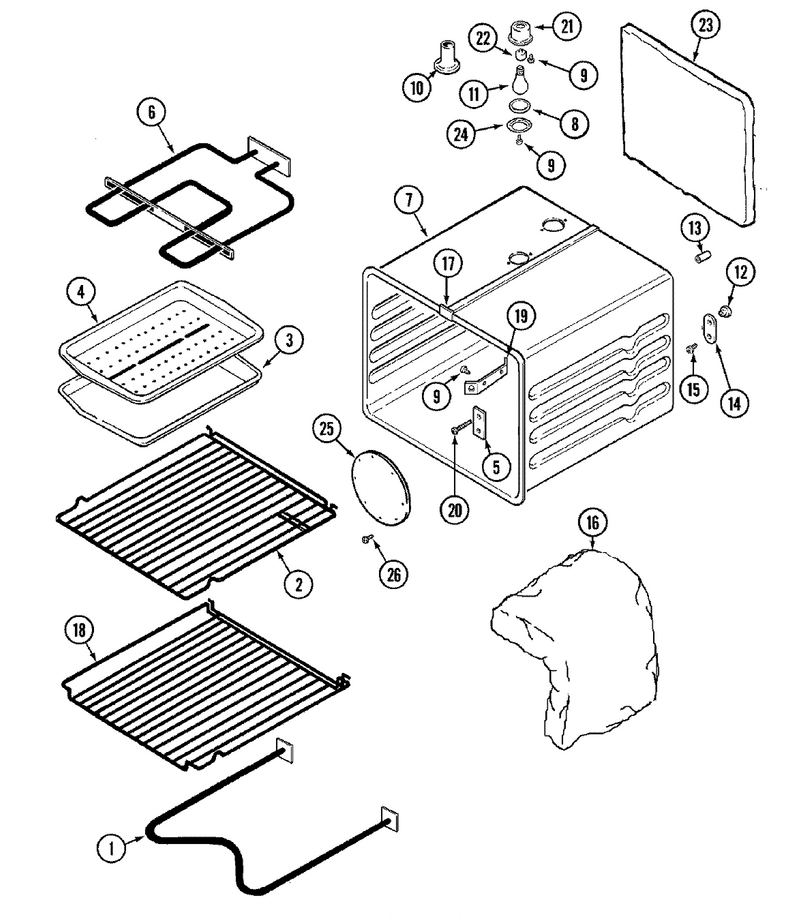

08 - Oven

...
...
1
Element- B WPL-WPY04100021
...
2
Rack, Oven WPL-Y704660
...
3
Procelain Broiler (Pan And Grid) WPL-4396923
...
4
Procelain Broiler (Pan And Grid) WPL-4396923
...
5
Wire, Ground WPL-702643
...
6
Element- B WPL-WPY04100514
...
7
Liner WPL-712584
...
8
Lens, Light WPL-Y704143
...
9
Screw WPL-WP1163283
...
10
Tube, Vent WPL-701738
...
11
Light Bulb WPL-8009
...
12
Nut, Tee WPL-715294
...
13
Spacer WPL-702745
...
14
Plate, Grounding WPL-701742
...
15
Screw WPL-705170
...
16
Insulation-Sides,top,bottom WPL-702282
...
17
Clip, Oven WPL-71001170
...
18
Rack, Oven (Offset) WPL-Y704662
...
19
Clip, Bulb WPL-Y701541
...
20
Screw WPL-WP179051
...
21
Receptacle, Holder WPL-704142
...
22
Sockt-Lite WPL-WP74003387
...
23
Insulation-Back WPL-702283
...
24
Retainer, Lens WPL-Y704144
...
25
Plate, Non-Convect WPL-705343
...
26
Screw WPL-WP74003976

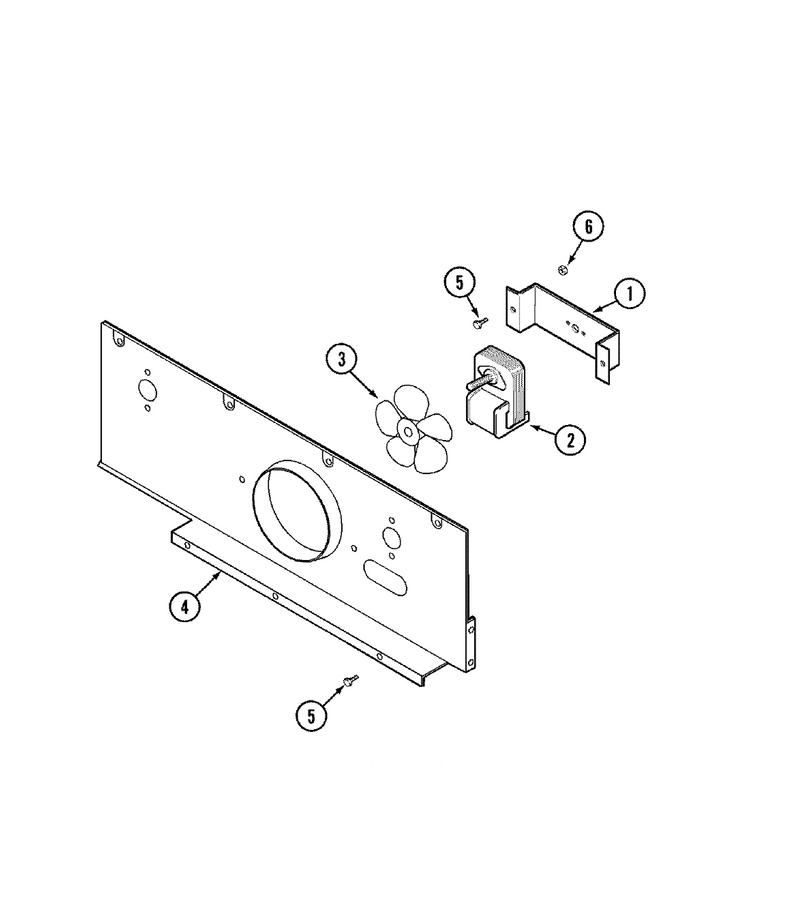

02 - Blower Motor-Cooling

...
...
1
Bracket, Mounting Motor WPL-Y702542
...
2
Motor, Fan WPL-Y702549
...
3
Blade, Fan WPL-Y702525
...
4
Unit, Back WPL-Y04100518
...
5
Screw WPL-WP90767
...
6
Nut K WPL-M0282005

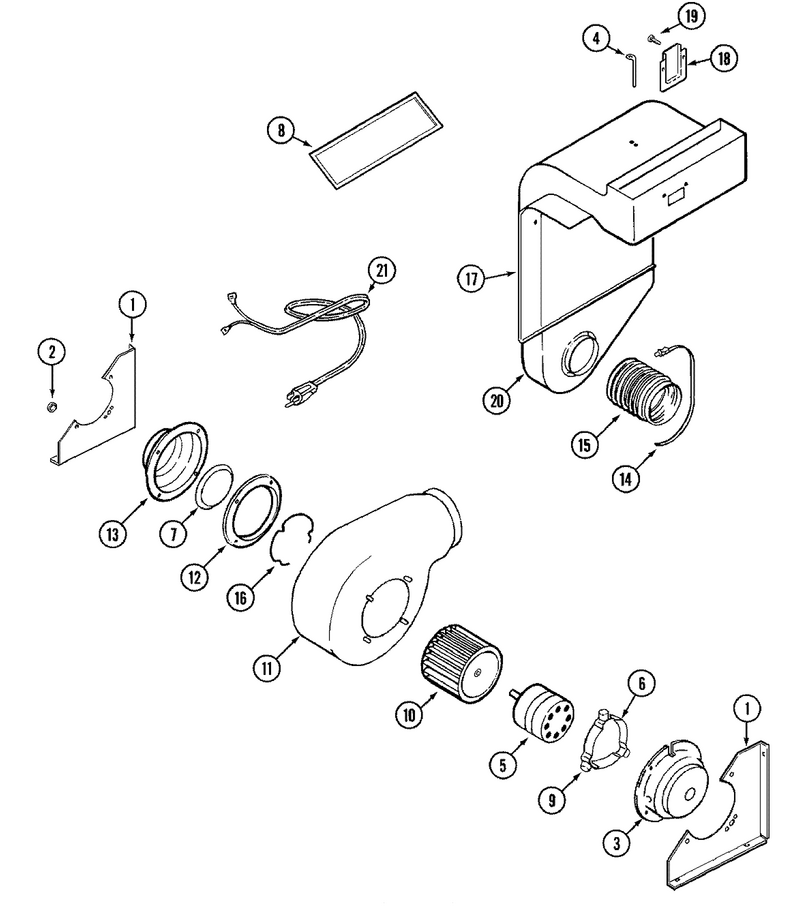

03 - Blower Motor-Plenum

...
...
1
Brkt-Mntg WPL-WP3801F631-51
...
2
Locknut WPL-WPY707702
...
3
Cover WPL-WP4005F513-80
...
4
Stop, Filter WPL-Y702656
...
5
Gasket WPL-715957K
...
6
Band, Motor WPL-3415F003-51
...
7
Ring, Restrictor WPL-4026F009-51
...
8
Filter- Gr WPL-WP71002111
...
9
Isolator- WPL-WP71003558
...
10
Wheel-Fan WPL-WPY707985
...
11
Scroll, Blower Assy. WPL-712008
...
12
Ring, Inlet WPL-Y704758
...
13
Adapter, Restrictor Ring WPL-Y702296
...
14
Clamp, Hose WPL-Y702331
...
15
Duct, Flexible WPL-Y702326
...
16
Retainer WPL-8038P003-60
...
17
Screw WPL-WP71001171
...
18
Cover, Vent WPL-Y702475
...
19
Screw WPL-W11233072
...
20
Plenum, Lower Assembly WPL-712007
...
21
Cord, Receptacle Motor WPL-702735
