Jenn-Air 629.21138

Model: 629.21138

Save Part Not Listed?
product name

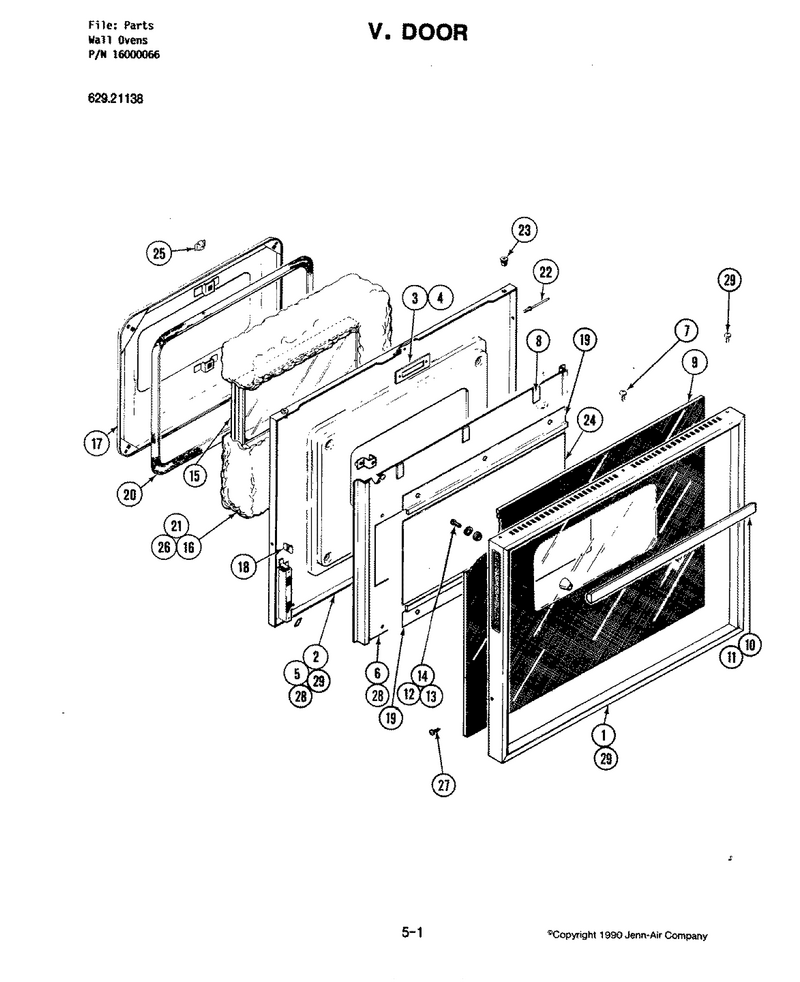

04 - Door

...
...
1
Frame, Oven Door WPL-705174
...
2
Liner, Door WPL-712188
...
3
Plate, Latch (Upper) WPL-Y712010
...
4
Rivet WPL-WP210720
...
5
Bracket, Stand-Off WPL-701652
...
6
Baffle WPL-712250
...
7
Screw WPL-WPY706189
...
8
Bumper, Button WPL-Y704223
...
9
Glass, Screened WPL-705289
...
10
Handle, Door WPL-705128
...
11
Post Mounting WPL-705125
...
12
Bushing WPL-Y704489
...
13
Washer WPL-Y700446
...
14
Screw WPL-Y700570
...
15
Window-Pac WPL-WP5700M600-60
...
16
Insulation, Bottom WPL-701658
...
17
Door Plug Weld WPL-Y04100664
...
18
Clip WPL-704487
...
19
Retainer, Glass WPL-Y704819
...
20
Seal- Oven WPL-WP701650
...
21
Insulation, Side WPL-701659
...
22
Rivet, Accordion WPL-70164-1
...
23
Nut, Push In WPL-701643
...
24
Glass, Baffle WPL-Y704820
...
25
Clip, Retainer WPL-Y700503
...
26
Insulation, Top WPL-701660
...
27
Screw, Flat WPL-704745
...
28
Screw WPL-WPY706189
...
29
Screw WPL-W11233072

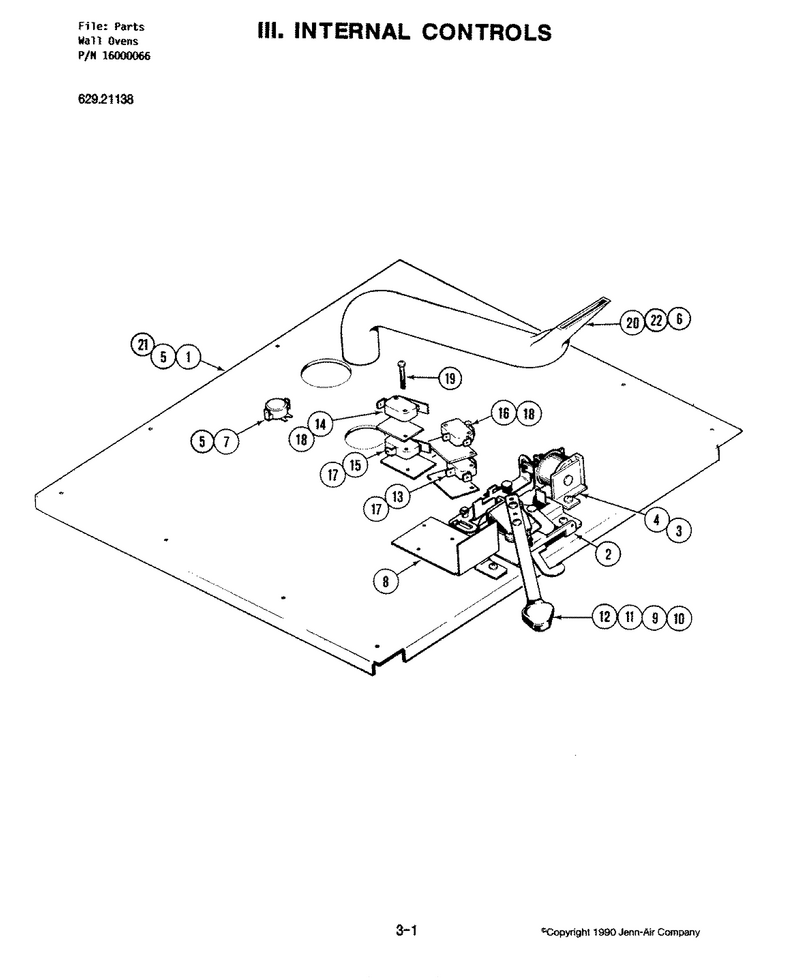

05 - Internal Controls

...
...
1
Panel, Top WPL-704684
...
2
Latch Assy. WPL-Y703357
...
3
Pin, Cotter WPL-Y701686
...
4
Solenoid WPL-Y702526
...
5
Screw WPL-WP12990527
...
6
Screw WPL-WP90767
...
7
Thermostat WPL-701687
...
8
Shield, Switch WPL-701706
...
9
Lever, Latch (Wht) WPL-Y703848
...
10
Screw WPL-707407
...
11
Spring, Knob WPL-701671
...
12
Knob, Lever WPL-705118
...
13
Switch, Solenoid WPL-Y702360
...
14
Switch, Door WPL-702806
...
15
Switch, Door WPL-702805
...
16
Switch, Latch WPL-Y703732
...
17
Insulator WPL-Y702350
...
18
Insulator WPL-703264
...
19
Screw WPL-702807
...
20
Tube, Vent WPL-701684
...
21
Screw WPL-WP71001171
...
22
Bracket, Vent Tube WPL-701680

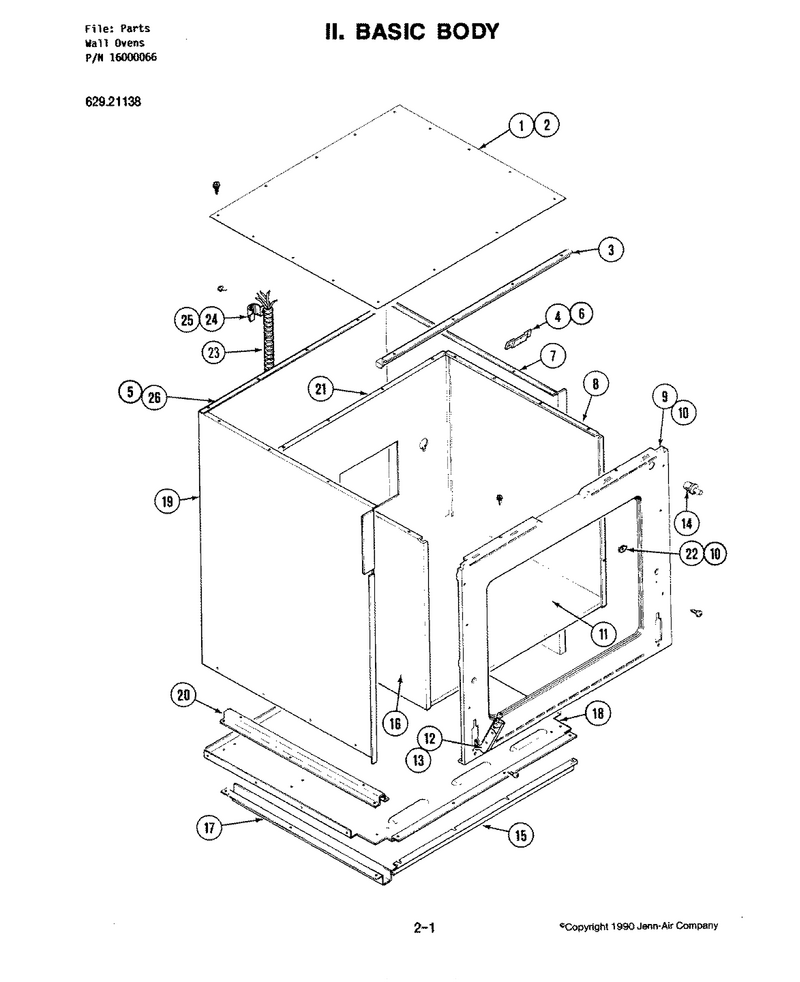

01 - Body

...
...
1
Top (Outer) WPL-701681
...
2
Screw WPL-WP12990527
...
3
Support, Top WPL-703095
...
4
Bracket, Vent Tube WPL-701680
...
5
Cover, Motor Opening WPL-703551
...
6
Screw WPL-WP90767
...
7
Panel, Outer (Rt) WPL-701672
...
8
Panel, Side (Rt) WPL-701676
...
9
Closure, Front WPL-703609
...
10
Screw WPL-W11233072
...
11
Panel, Bottom WPL-701669
...
12
Kit- Hinge WPL-12200038
...
13
Screw WPL-WP3196183
...
14
Switch, Oven Light WPL-866294
...
15
Trim, Oven (Lower) WPL-701848
...
16
Panel, Side (Lt) WPL-701697
...
17
Motor WPL-675835
...
18
Panel, Bottom (Outer) WPL-701668
...
19
Panel, Outer (Lt) WPL-701695
...
20
Support, Bottom WPL-701667
...
21
Panel, Rear WPL-704808
...
22
Clip, J WPL-Y700556
...
23
Cable Assy WPL-704902
...
24
Clamp, Conduit WPL-70169-2
...
25
Screw WPL-WP7101P126-60
...
26
Panel, Rear (Outer) WPL-70169-1

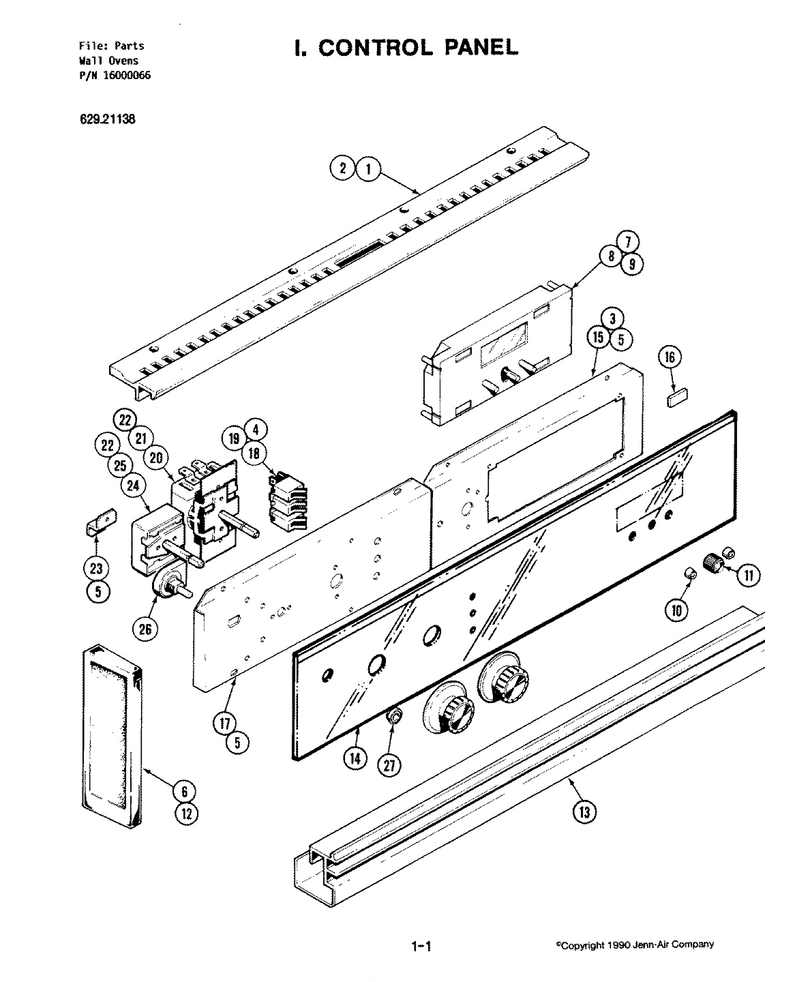

02 - Control Panel

...
...
1
Extrusion, Top WPL-701634
...
2
Screw WPL-712066
...
3
Plug, Hole WPL-702286
...
4
Lens-Light WPL-WPY700630
...
5
Screw WPL-WP12990527
...
6
End Cap (Lt-Chr) WPL-703137
...
7
Bracket, Timer WPL-703676
...
8
Clock Kit, Electronic WPL-12200028
...
9
Palnut WPL-703679
...
10
Knob- Cloc WPL-WP7711P492-60
...
11
Knob- Cloc WPL-WP7711P492-60
...
12
End Cap (Rt-Chr) WPL-703136
...
13
Extrusion, Bottom (Chr) WPL-704874--
...
14
Glass, Control Panel WPL-705129
...
15
Panel (Rt) WPL-703675
...
16
Pad, Spacer WPL-701618
...
17
Panel, Control (Lt) WPL-703722
...
18
Light, Indicator 240v WPL-Y702394
...
19
Light-Ind WPL-WP903115
...
20
Thermostat-Upper WPL-703080
...
21
Knob, Thermostat WPL-705121
...
22
Screw WPL-71002058
...
23
Angle, Attachment WPL-701609
...
24
Switch, Selector (Upper) WPL-703078
...
25
Knob- Sele WPL-WPY704841
...
26
Switch, Push WPL-704878
...
27
Bezel, Switch WPL-704897

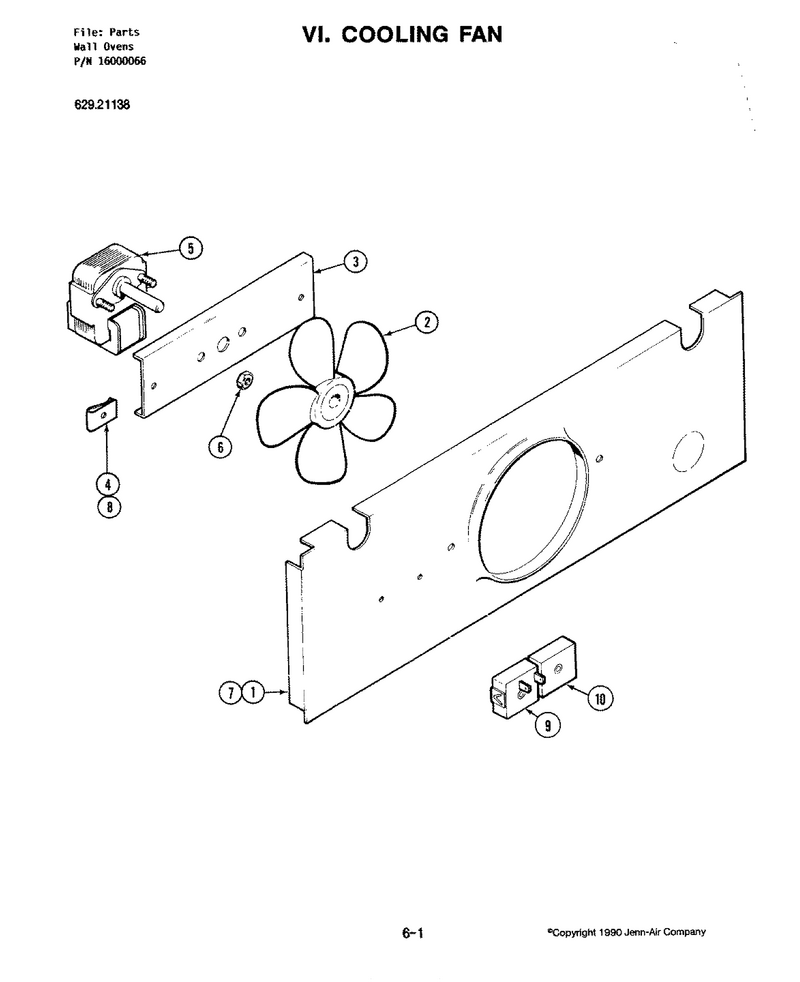

03 - Cooling Fan

...
...
1
Plate, Motor WPL-704336
...
2
Blade, Fan WPL-701718
...
3
Mount, Motor WPL-Y704732
...
4
Clip, J WPL-Y700556
...
5
Motor, Fan WPL-Y701721
...
6
Nut K WPL-M0282005
...
7
Screw WPL-WP90767
...
8
Screw WPL-WP90767
...
9
Insert WPL-706080
...
10
Switch, Broil Cycle WPL-704355

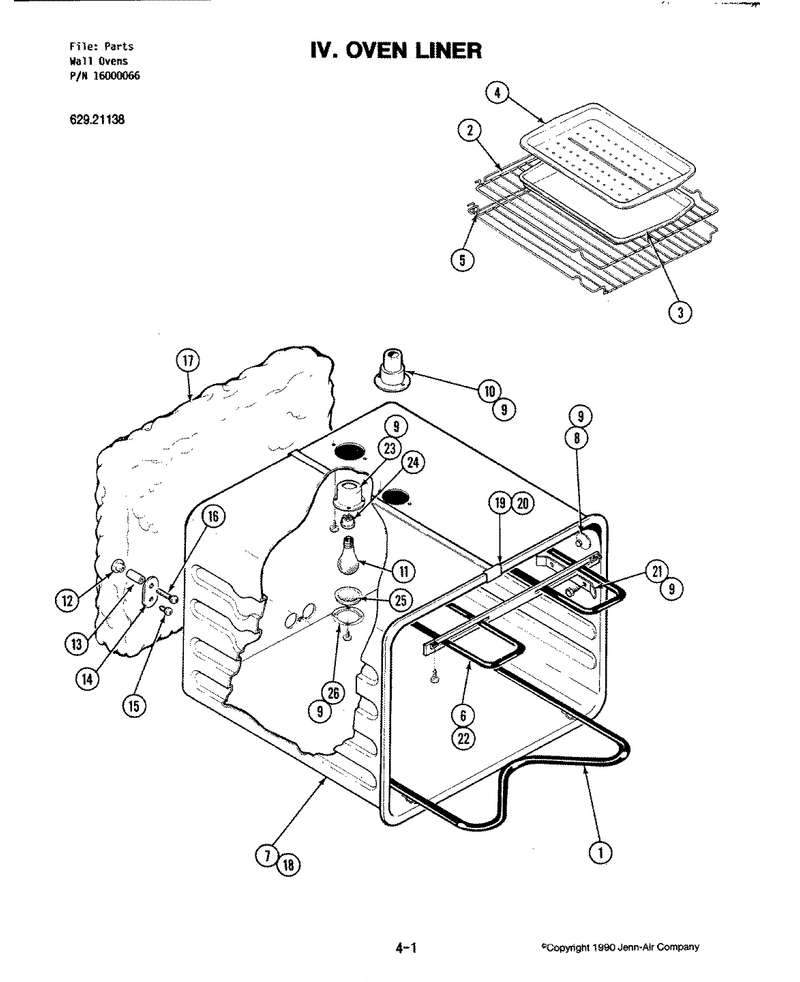

06 - Liner

...
...
1
Element, Bake WPL-Y704665
...
2
Rack, Oven WPL-Y704661
...
3
Procelain Broiler (Pan And Grid) WPL-4396923
...
4
Procelain Broiler (Pan And Grid) WPL-4396923
...
5
Rack, Oven (Offset) WPL-Y704663
...
6
Element- B WPL-WPY04100514
...
7
Oven Liner WPL-12001401
...
8
Cover, Meat Probe WPL-712088
...
9
Screw WPL-WP1163283
...
10
Tube, Vent WPL-701738
...
11
Light Bulb WPL-8009
...
12
Nut, Tee WPL-715294
...
13
Spacer, Oven WPL-701741
...
14
Plate, Grounding WPL-701742
...
15
Screw WPL-WP71001171
...
16
Screw WPL-705170
...
17
Insulation, Rear WPL-701703
...
18
Insulation, Wrap WPL-701702
...
19
Clip, Oven WPL-Y702618
...
20
Rivet WPL-WP210720
...
21
Clip, Bulb WPL-Y701541
...
22
Screw WPL-WP179051
...
23
Receptacle, Holder WPL-704142
...
24
Sockt-Lite WPL-WP74003387
...
25
Lens, Light WPL-Y704143
...
26
Retainer, Lens WPL-Y704144
