Jenn-Air 4001EMC

Model: 4001EMC

Save Part Not Listed?
product name

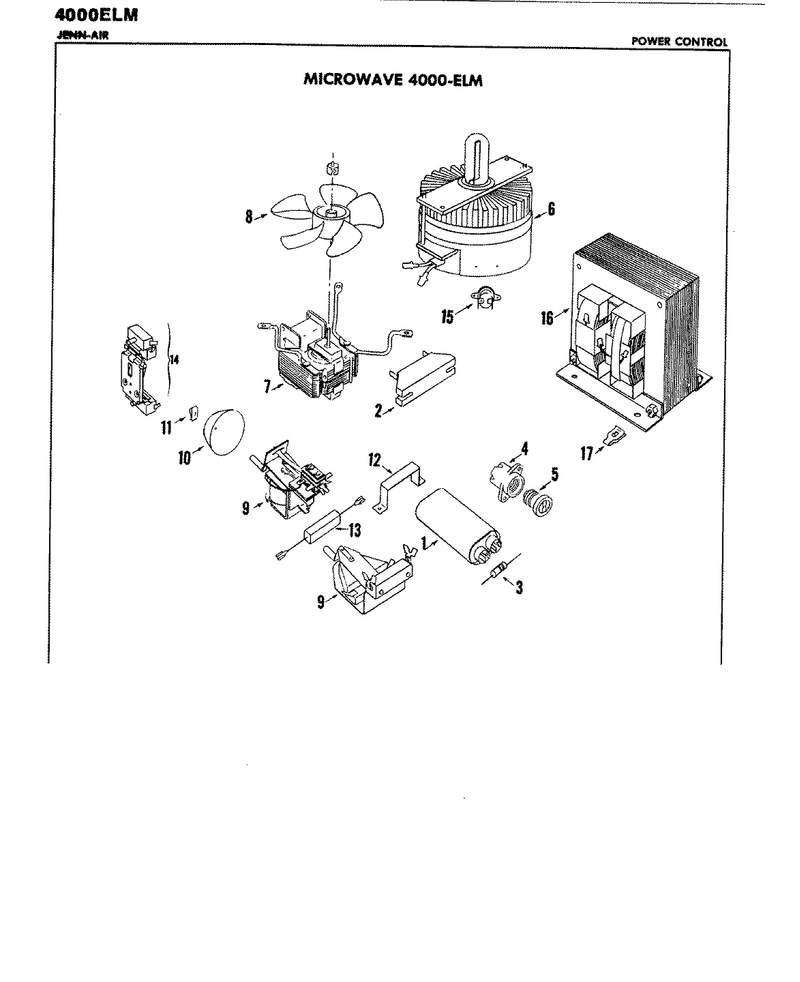

05 - Power Control

...
...
1
Capacitor WPL-771048
...
2
Diode WPL-771068
...
3
Resistor WPL-771163
...
4
Socket Fuse WPL-771212
...
5
Fuse WPL-771094
...
6
Magnetron WPL-771319
...
7
Motor WPL-771142
...
8
Screw WPL-W11233072
...
9
Screw Relay WPL-771187
...
10
Bell Timer WPL-771032
...
11
Fastner Bell WPL-771077
...
12
Retainer WPL-771165
...
13
Resistor WPL-771322
...
14
Interlock Switch Kit WPL-771279
...
15
Screw WPL-771180
...
16
Wire, Hi Voltage WPL-771326
...
17
Fastener WPL-771081

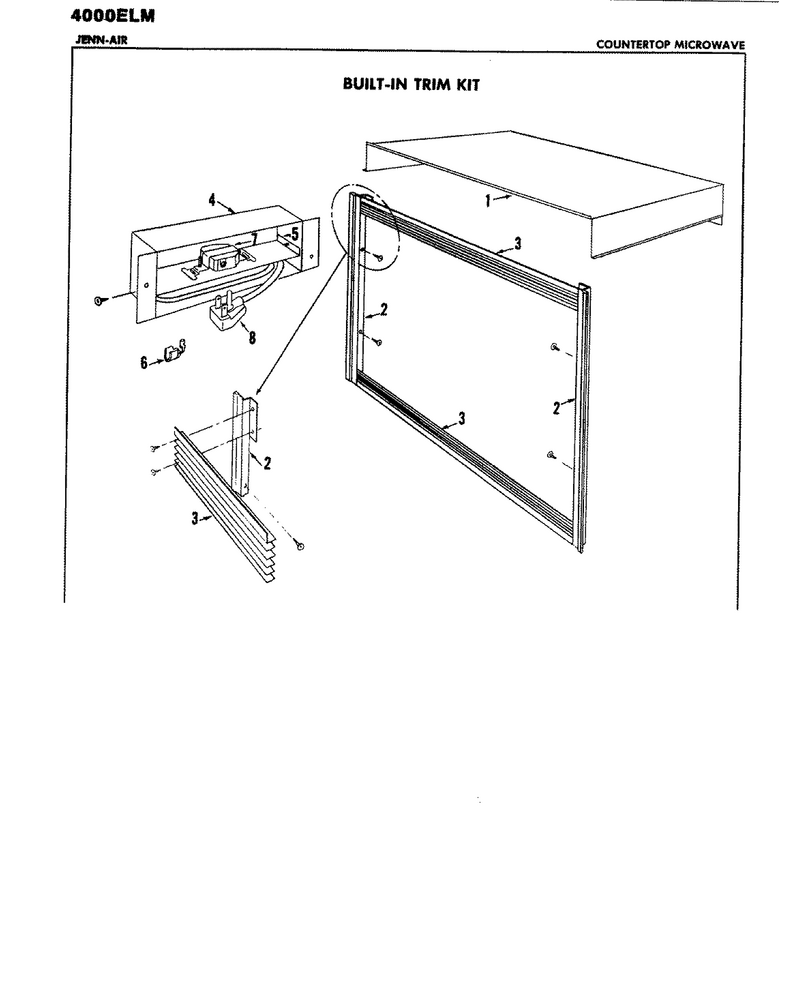

02 - Built-In Trim Kit

...
...
1
Cover-Exhaust WPL-771271
...
2
Trim-Vertical WPL-771277
...
3
Trim-Vent WPL-771278
...
4
Cover-Cord WPL-771272
...
5
Plate-Receptacle WPL-771273
...
6
Bushing WPL-771269
...
7
Screw WPL-771275
...
8
Power Cord WPL-771270

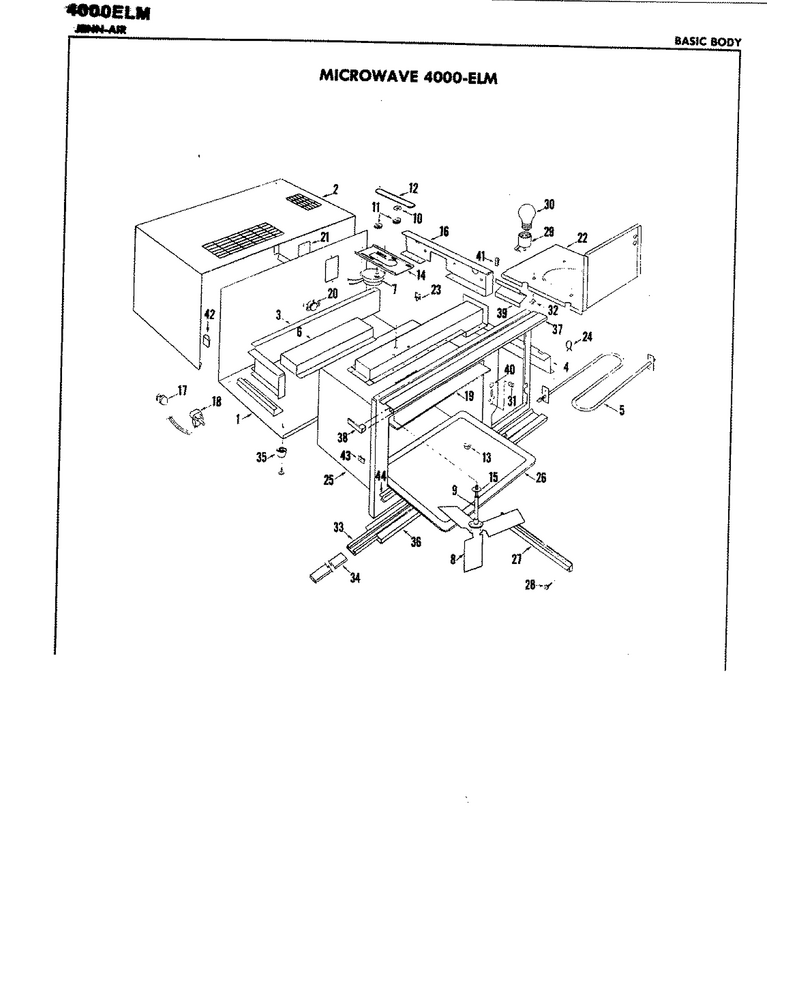

01 - Body

...
...
1
Wrapper WPL-771329
...
2
Wrapper-Top & Sides WPL-771265
...
3
Wrapper-External Vent WPL-771261
...
4
Angle Air Baffle WPL-771003
...
5
Element- Browner WPL-771072
...
6
Glide Tray WPL-771107
...
7
Motor WPL-771141
...
8
Fan Stirrer WPL-771076
...
9
Nut K WPL-M0282005
...
10
Fastener-Shaft Retainer WPL-771085
...
11
Grommet- Stirrer Pulley WPL-771110
...
12
Stirrer Drive, Belt WPL-771011
...
13
Bushing-Stirrer Shaft WPL-771029
...
14
Channel WPL-771039
...
15
Washer WPL-771257
...
16
Channel- Air Duct WPL-771040
...
17
Bushing-Strain Relief WPL-771028
...
18
Power Cord WPL-771055
...
19
Glass WPL-771101
...
20
Switch WPL-771231
...
21
Cover Light Access WPL-771336
...
22
Duct WPL-771070
...
23
Fastener-Stand Off WPL-771087
...
24
Fastener Purse Lock WPL-771088
...
25
Not Required Part Or See Note Front Oven Cavity & Wave Guide WPL-W10124350
...
26
Tray WPL-771244
...
27
Glide Tray WPL-771107
...
28
Screw WPL-771188
...
29
Shield WPL-771209
...
30
Light Bulb WPL-8009
...
31
Grommet WPL-771108
...
32
Fastener-Door Mounting WPL-771084
...
33
Cover WPL-771063
...
34
Seal WPL-771276
...
35
Spacer WPL-771217
...
36
Trim-Bottom WPL-771251
...
37
Screw WPL-771186
...
38
End Cap WPL-771035
...
39
Baffle Top Vent WPL-771008
...
40
Medallion WPL-771138
...
41
Fastener-Baffle & Shield WPL-771089
...
42
Fastener-Wrapper WPL-771086
...
43
Fastener-Door Mounting WPL-771084
...
44
Trim-Front Main WPL-771253

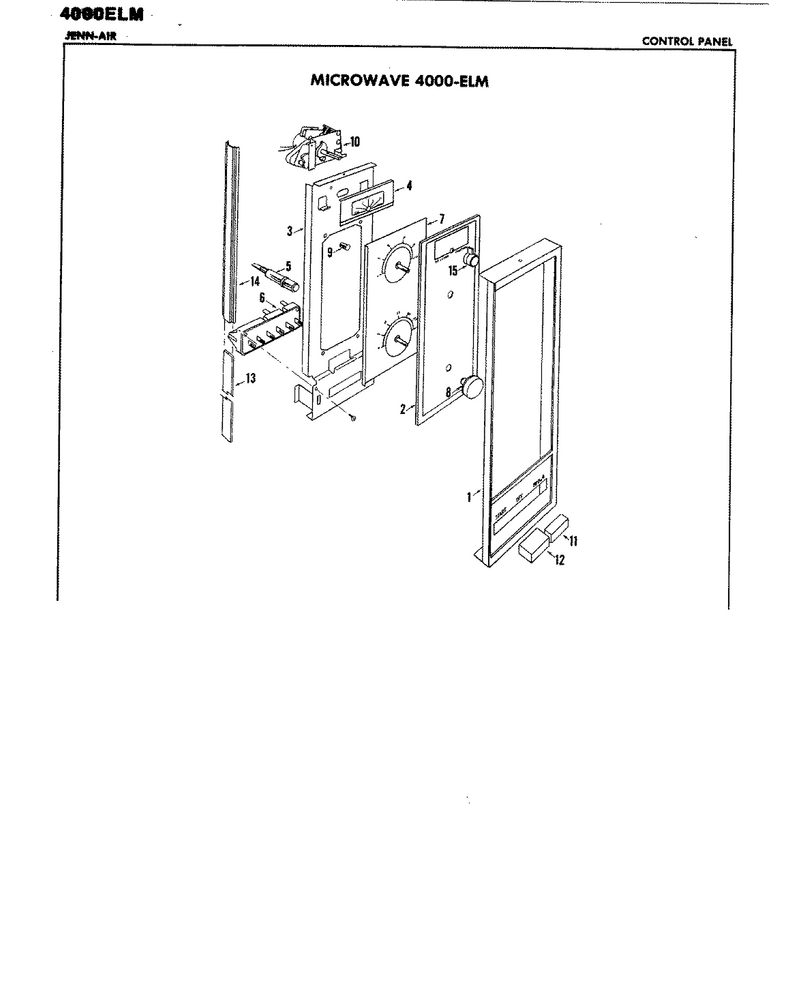

03 - Control Panel

...
...
1
Trim Control Panel WPL-771250
...
2
Glass Control Panel WPL-771104
...
3
Control Panel WPL-771147
...
4
Glass WPL-771102
...
5
Indicator Light WPL-771114
...
6
Sw Selector WPL-771313
...
7
Timer Dual WPL-771243
...
8
Switch WPL-771234
...
9
Clock Fastener WPL-771080
...
10
Switch WPL-771234
...
11
Button-Push WPL-771317
...
12
Angle Barr WPL-771320
...
13
Seal WPL-771201
...
14
Cover WPL-771065
...
15
Knob WPL-771131

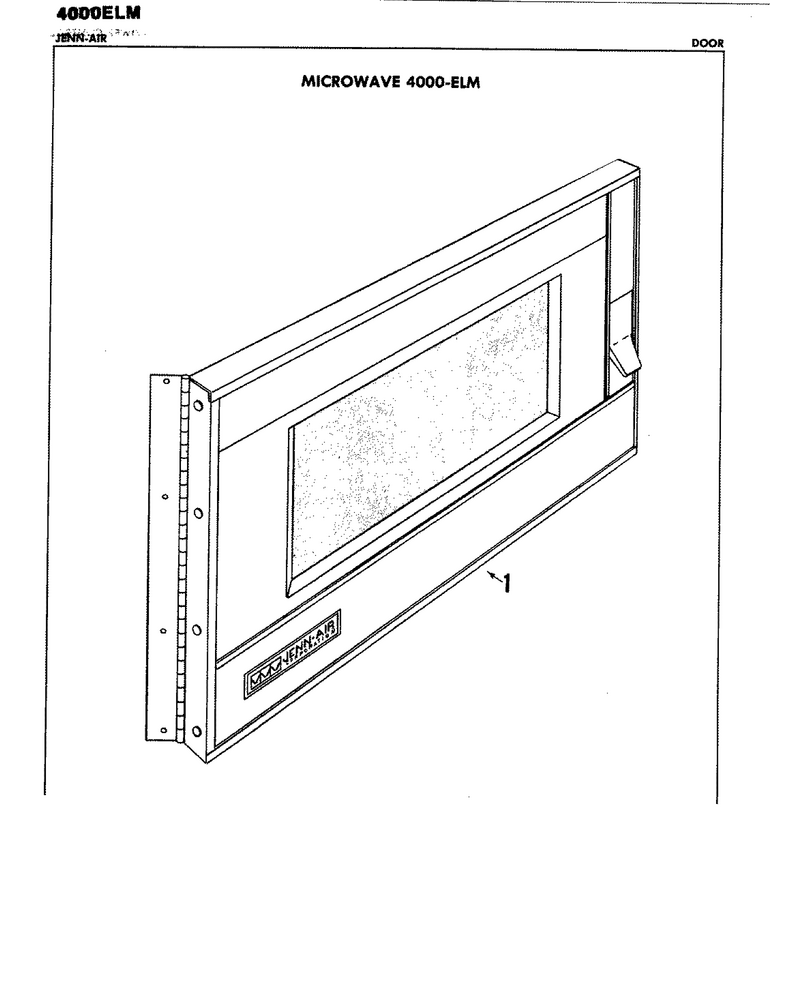

04 - Door

...
...
1
Screw WPL-771186
