Jenn-Air 3860ERS

Model: 3860ERS

Save Part Not Listed?
product name

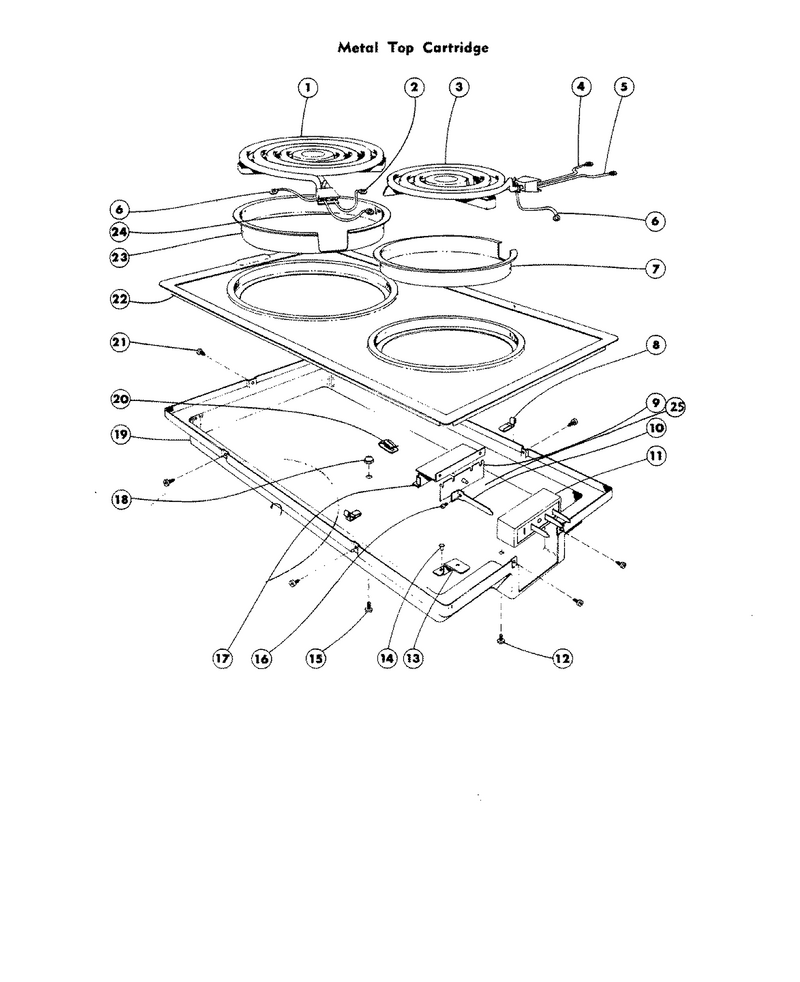

01 - Metal Top Cartridge

...
...
1
Burner Element 240v WPL-707728
...
2
Wire, Red WPL-Y708889
...
3
Burner (6``) WPL-Y707727
...
4
Wire Blue WPL-708892
...
5
Wire Yellow WPL-Y708891
...
6
Wire-Green WPL-708289
...
7
Pan, Drip (6``) WPL-715877
...
8
Clip WPL-Y708910
...
9
Insulator, Contact Spade WPL-708834
...
10
Spade, Contact WPL-Y708572
...
11
Block- Ter WPL-WPY708730
...
12
Screw WPL-WP59002061
...
13
Location Bracket WPL-708880
...
14
Rivet WPL-WP210720
...
15
Screw WPL-707667
...
16
Screw WPL-WP488234
...
17
Bracket, Retaining Assy. WPL-Y700648
...
18
Nut Acorn WPL-707835
...
19
Cartridge Pan WPL-708828
...
20
Clamp,cable WPL-707753
...
21
Screw WPL-WP59002061
...
22
Cartridge WPL-WP2002F208-50
...
23
Pan, Drip (8``) WPL-715878
...
24
Wire, Black WPL-Y708890
...
25
Nut, Speed WPL-Y708862

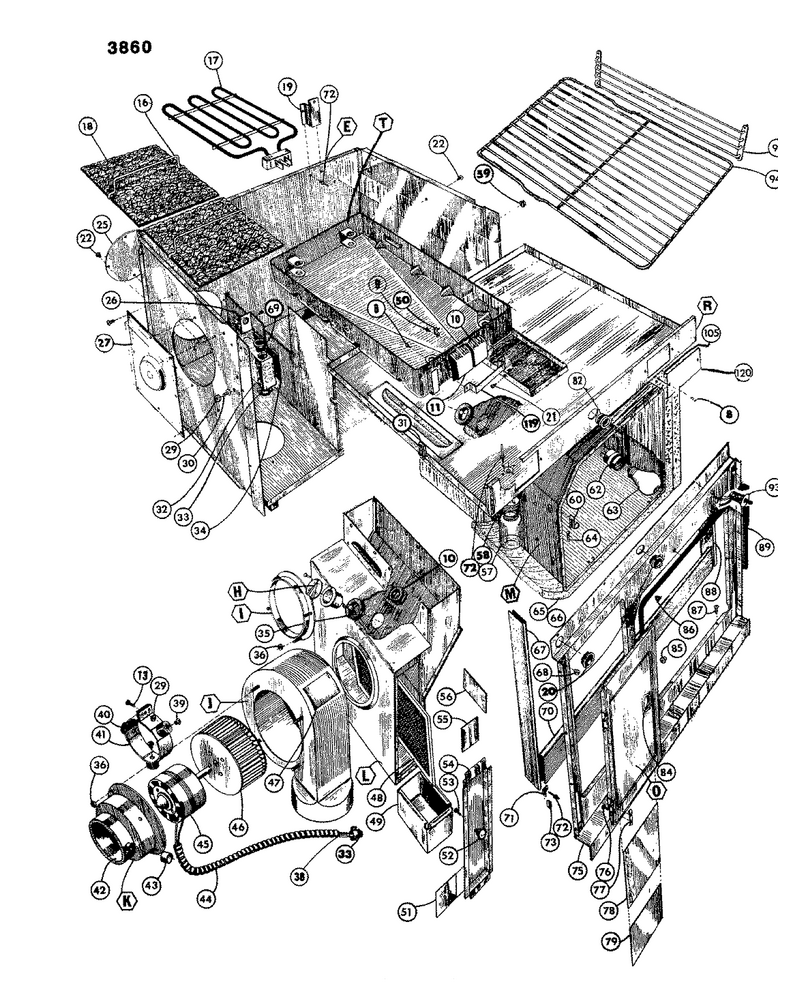

02 - Parts List

...
...
1
Burner (6``) WPL-Y707727
...
2
Burner Element 240v WPL-707728
...
3
Pan, Drip (6``) WPL-715877
...
4
Pan, Drip (8``) WPL-715878
...
5
Adaptor- R WPL-WPY707454
...
6
Adaptor- R WPL-WPY707453
...
7
Wire-Green WPL-708289
...
8
Screw WPL-WP59002061
...
9
Screw WPL-WP489128
...
10
Receptacle WPL-WPY708558
...
11
Receptacle WPL-Y715120
...
12
Insert, Burner Box WPL-Y707822
...
13
Screw WPL-WP4381696
...
14
Grate WPL-707886
...
15
Screw WPL-WP179051
...
16
Support, Rock Plate WPL-700819
...
17
Element, Grill WPL-787834
...
18
Basket, Char-Rock WPL-786513
...
19
Bracket, Support WPL-708589
...
20
Bushing WPL-Y707695
...
21
Screw WPL-WP59002061
...
22
Screw WPL-WP12990527
...
23
Screw WPL-W11233072
...
25
Cover, Exhauster WPL-708263
...
26
Cover, Wiring WPL-708653
...
27
Cover, Motor WPL-708254
...
28
End Cap WPL-708533
...
29
Nut WPL-707161
...
30
Screw WPL-WP179051
...
31
Clip WPL-707165
...
32
Handy Box WPL-701819
...
33
Connector, Conduit WPL-707085
...
34
Cover, Handy Box WPL-702225
...
35
Grommet WPL-708658
...
36
Locknut WPL-WPY707702
...
38
Bushing WPL-708185
...
39
Screw WPL-707407
...
40
Isolator- WPL-WP71003558
...
41
Band, Motor WPL-3415F003-51
...
42
Strip, Foam WPL-708280
...
43
Cap, Connector WPL-707767
...
44
Conduit, Metal WPL-Y705155
...
45
Motor-Blwr WPL-707704K
...
46
Wheel-Fan WPL-WPY707985
...
47
Caution Label WPL-708082
...
48
Filter- Gr WPL-WP707929
...
49
Grease Box WPL-708232
...
50
Clip WPL-74004835
...
51
Instruction Label WPL-708308
...
52
Door Knob WPL-708238
...
53
Screw WPL-WP7101P072-60
...
54
Door WPL-708204
...
55
Cleaning Label WPL-708111
...
56
Serial Label WPL-715133
...
57
Jar- Drain WPL-WPY707869
...
58
Lid-Jar WPL-WP5700M611-60
...
59
Nut WPL-708824
...
60
Clip- Ther WPL-WP7112P004-60
...
62
Oven Light Receptacle WPL-Y708236
...
63
Light Bulb WPL-8009
...
64
Tinnerman WPL-708736
...
65
Insulation, Oven Wrap WPL-708250
...
66
Insulation, Oven Back WPL-708251
...
67
Trim Side Left WPL-708555
...
68
Bumper, Button WPL-708361
...
69
Drain Tube WPL-708935
...
70
Trim Bottom WPL-708556
...
71
Trim Bracket WPL-708686
...
72
Rivet WPL-WP210720
...
73
U-Clip WPL-708735
...
74
Hinge Door WPL-708591
...
75
Front Closure WPL-715061
...
76
Screw WPL-W11084238
...
77
Tinnerman WPL-708804
...
78
Instruction Label WPL-708762
...
79
Wiring Diagram WPL-708953
...
80
Frame WPL-715130
...
81
Panbel, Outer Door WPL-708970
...
82
Bushing WPL-Y707695
...
83
Insulation WPL-715064
...
84
Grommet WPL-707082
...
85
Catch, Door WPL-707551
...
86
Clip, Gasket WPL-708734
...
87
Screw WPL-708765
...
88
Trim Side , Right WPL-708554
...
89
Gasket, Door WPL-715063
...
90
Door Handle WPL-Y708594
...
91
Screw WPL-708781
...
92
Screw WPL-708825
...
93
Switch Lite WPL-708619
...
94
Rack Oven WPL-708234
...
95
Rack Support WPL-708557
...
96
Breaker, Circuit WPL-Y715443
...
97
Knob- Swit WPL-WPY700854
...
98
Switch, Infinite WPL-Y707036
...
99
Seal-Swtch WPL-WP3188425
...
100
Control Panel WPL-715157
...
104
Outlet Switch For Fan WPL-708618
...
105
Insulation WPL-708253
...
106
Oven Element WPL-Y708267
...
107
Escutcheon WPL-708590
...
108
Glass WPL-770105
...
109
Pilot Light, Oven WPL-708620
...
111
Support Bracket WPL-Y708585
...
112
Thermostat WPL-708704
...
113
Trim, Knob T-Stat WPL-708305
...
114
Knob,thermo WPL-Y708894
...
115
Knob,thermo WPL-Y708894
...
116
End Cap (Right) WPL-708534
...
117
Spacer WPL-707840
...
119
Bracket WPL-708839
...
120
Cover Plate WPL-708646
...
121
Air Grill WPL-787717
...
122
Top Weld Assembly WPL-787700
...
123
Wrap Around WPL-787699
...
124
Vent Tube WPL-787733
...
125
Inlet Flange WPL-786719
...
126
Scroll, Blower Assy. WPL-712008
...
127
Mtr Cover WPL-708954
...
128
Plenum WPL-787722
...
129
Oven Liner+ WPL-787713
...
130
Door, Access WPL-787751
...
131
Liner, Oven Door WPL-787957
...
132
Box, Burner WPL-708854
...
133
Feature Panel WPL-787716
...
134
Pan WPL-787894
...
135
Washer WPL-Y707664
