Jenn-Air 3602ESC

Model: 3602ESC

Save Part Not Listed?
product name

Popular Parts

Popular Parts

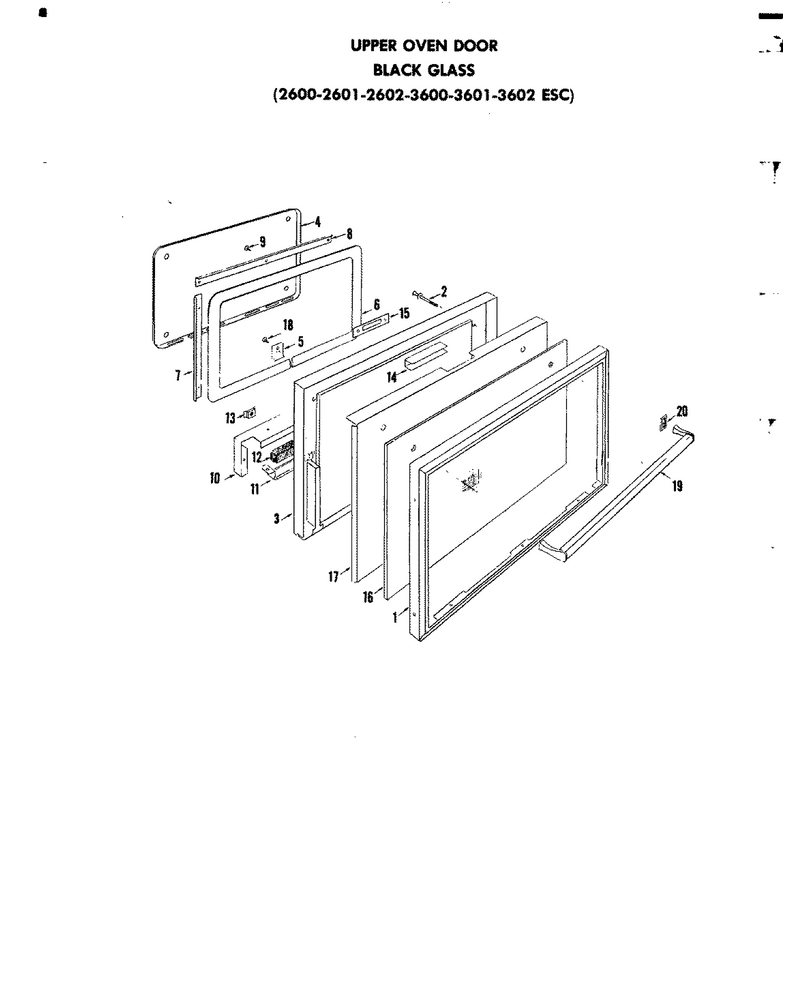

05 - Door (upper)

...
...
1
Trim-Door WPL-771246
...
2
Screw WPL-700748
...
3
Liner-Door WPL-771134
...
4
Liner Shield WPL-700783
...
5
Cover-Door Seal Ends WPL-771059
...
6
Seal Door WPL-771200
...
7
Cover Instrument (Top) WPL-771057
...
8
Angle-Seal WPL-771001
...
9
Screw WPL-7101P345-60
...
10
Shield-Wool WPL-771208
...
11
Bracket-Screen WPL-771020
...
12
Screen-Flame Arrester WPL-771170
...
13
Fastener WPL-771082
...
14
Channel Reinforcement WPL-771038
...
15
Screw WPL-771179
...
16
Glass WPL-771102
...
17
Insulation WPL-771124
...
18
Screw WPL-771186
...
19
Handle WPL-771111
...
20
Plate Instrument Mounting WPL-771150

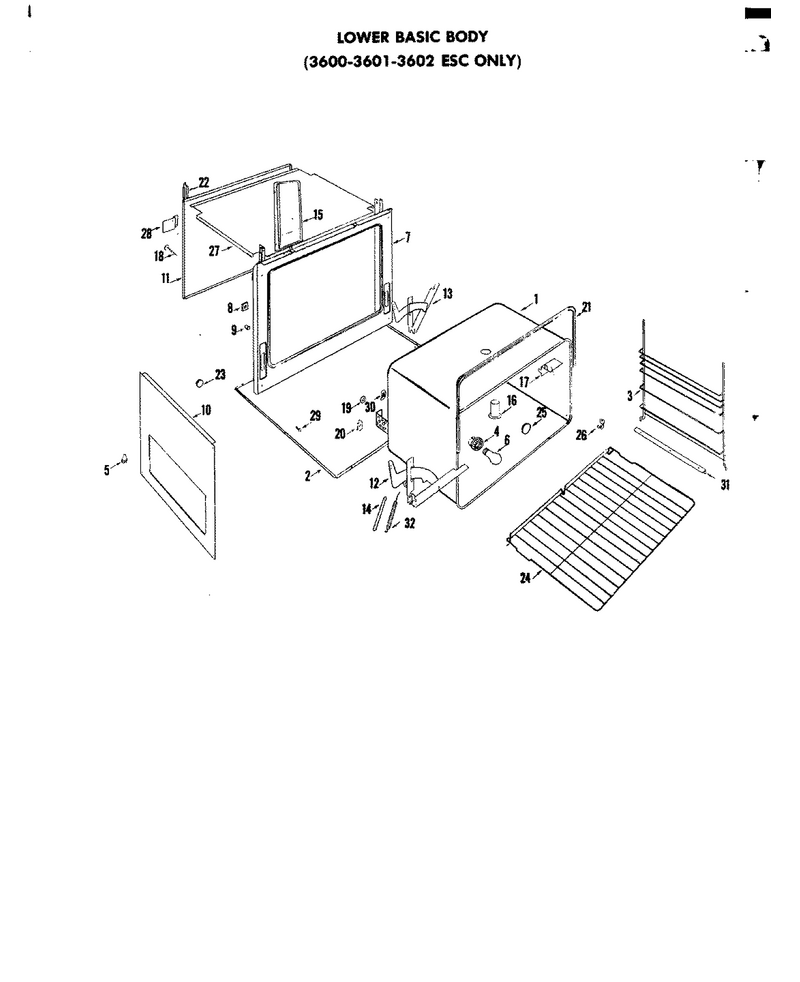

01 - Body (lower)

...
...
1
Buss Wire Brown WPL-700722
...
2
Base-Main (Inner) WPL-771009
...
3
Glide Rack WPL-700779
...
4
Lite Socket WPL-700775
...
5
Sleeve WPL-WPA0317601
...
6
Shield-Liner WPL-771135
...
7
Main Front WPL-700091
...
8
Spacer-Front Frame WPL-771213
...
9
Grommet WPL-771109
...
10
Wrapper-Side (Inner) WPL-771263
...
11
Screw WPL-W11233072
...
12
Oven Cam Door WPL-700485
...
13
Screw WPL-W11233072
...
14
Bracket WPL-771019
...
15
Duct, Air Vent WPL-700774
...
16
Tube-Vent WPL-700271
...
17
Spacer-Vent Tube WPL-771214
...
18
Screw WPL-771176
...
20
Fastener WPL-771081
...
21
Seal-Door WPL-700777
...
22
Screw WPL-W11233072
...
24
Rack-Oven WPL-771156
...
26
Fastener-Thermo Bulb Clip WPL-700776
...
27
Shield WPL-771205
...
31
Angle-Bulb-Shield WPL-700103
...
32
Brkt Ov Line WPL-700782

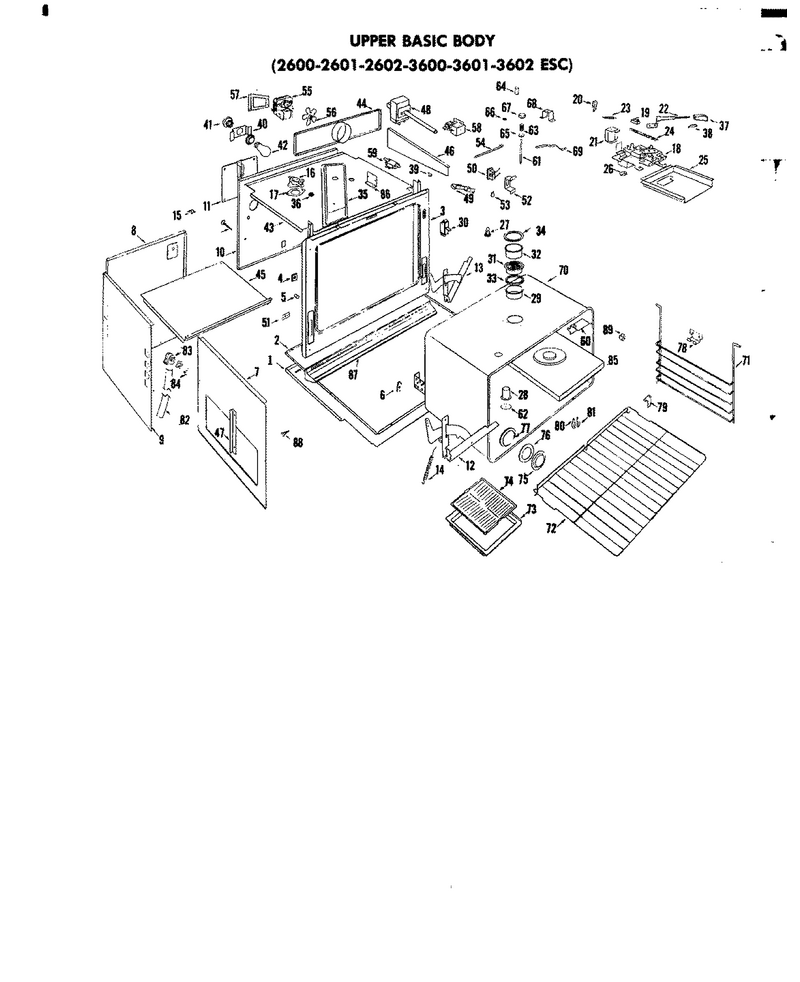

02 - Body (upper)

...
...
1
Base0main (Outer) WPL-700120
...
2
Base-Main (Inner) WPL-771009
...
3
Front-Main WPL-771092
...
4
Spacer-Front Frame WPL-771213
...
5
Grommet WPL-771109
...
6
Screw WPL-W11233072
...
7
Wrapper-Side (Inner) WPL-771263
...
8
Wrapper Back (Outer) WPL-70075-4
...
9
Wrapper WPL-771264
...
10
Screw WPL-W11233072
...
11
Screw WPL-W11233072
...
12
Oven Cam Door WPL-700485
...
13
Screw WPL-W11233072
...
14
Bracket WPL-771019
...
15
Clip Thermo Bulb WPL-700101
...
18
Door Latch WPL-700756
...
19
Screw WPL-771191
...
20
Handle-Solenoid Release WPL-771113
...
21
Control-Solenoid WPL-771050
...
22
Handle-Latching Mechanism WPL-771112
...
23
Spring WPL-771220
...
24
Spring Door Latch WPL-771219
...
25
Screw WPL-W11233072
...
27
Sleeve WPL-WPA0317601
...
28
Tube WPL-771254
...
30
Switch WPL-771235
...
31
Filter-Catalyst WPL-700769
...
32
Tube Vent WPL-700771
...
35
Screw WPL-771172
...
36
Nut K WPL-M0282005
...
37
Knob Door Latch Handle WPL-700760
...
38
Clip-Spring (Door Latch) WPL-771043
...
40
Screw WPL-W11233072
...
41
Socket-Oven Light WPL-771210
...
42
Light Bulb WPL-8009
...
43
Shield Top WPL-70076-2
...
44
Cover-Instrument WPL-771058
...
45
Cover Instrument (Top) WPL-771057
...
46
Baffle-Top(R.h.) WPL-771005
...
47
Screw WPL-W11233072
...
48
Screw WPL-W11233072
...
49
Screw WPL-W11233072
...
51
Screw WPL-WP7101P072-60
...
53
Clamp-Purselock WPL-771041
...
55
Motor-Fan WPL-707764
...
56
Blade WPL-771074
...
57
Bracket WPL-771014
...
59
Switch Fan Safety WPL-771230
...
60
Spacer-Vent Tube WPL-771214
...
61
Rod-Vent WPL-771168
...
62
Cover-Vent WPL-771062
...
63
Spring-Vent Closing WPL-771221
...
64
Hex Nut WPL-70076-1
...
65
Washer-Vent Cover WPL-771258
...
66
Retainer-Ring Clip WPL-771164
...
67
Cap, Vent Rod WPL-771036
...
68
Bracket-Vent WPL-771024
...
69
Bracket, Vent Actuator WPL-771025
...
70
Oven Lin Low WPL-70048-9
...
71
Ov Glide Rac WPL-70078-5
...
72
Rack-Oven WPL-771156
...
73
Broil Pan WPL-700787
...
74
Insert-Broiler Pan WPL-700162
...
75
Collar-Lens WPL-771046
...
76
Gasket WPL-700763
...
77
Tube-Oven Light WPL-771255
...
78
Br Glide Han WPL-700786
...
82
Conduit WPL-771049
...
83
Connector Conduit WPL-700765
...
84
Insulator-Bushing WPL-771126
...
87
Trim-Oven Vent WPL-771248
...
89
Clip Thermo Bulb WPL-700101
...
90
Fastener-Cable Clamp WPL-700766

04 - Door (lower)

...
...
1
Trim-Door WPL-771246
...
2
Screw WPL-700748
...
3
Reel-Cord WPL-702525
...
4
Glass WPL-771102
...
5
Glass-Inner WPL-700080
...
6
Spacer (Horizontal) WPL-700081
...
7
Spacer (Horizontal Lower) WPL-700082
...
8
Spacer (Vertical) WPL-700083
...
9
Seal WPL-700084
...
10
Insulation WPL-700086
...
11
Handle WPL-771111
...
12
Spacer-Handle WPL-771216

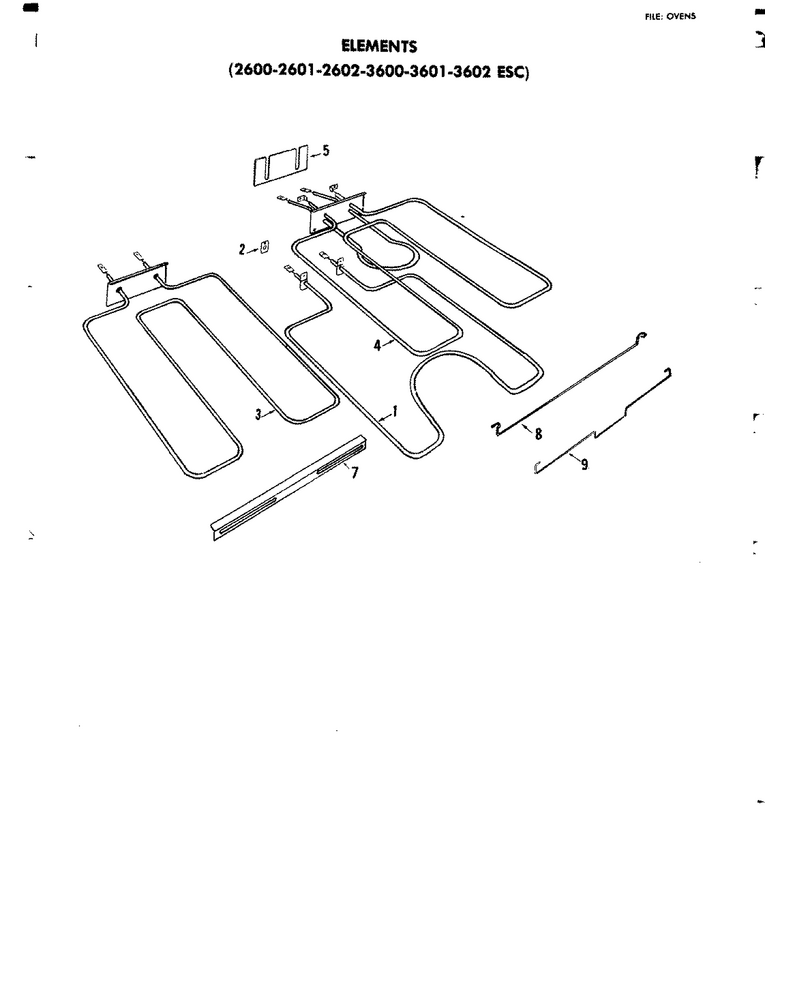

06 - Elements

...
...
1
Gasket- Do WPL-WP70048-3
...
2
Gasket-Bake Element WPL-771095
...
3
Br Ele Low WPL-Y700751
...
4
Br Ele Up WPL-Y700752
...
5
Screw WPL-771196
...
7
Support-Broil Element WPL-700133

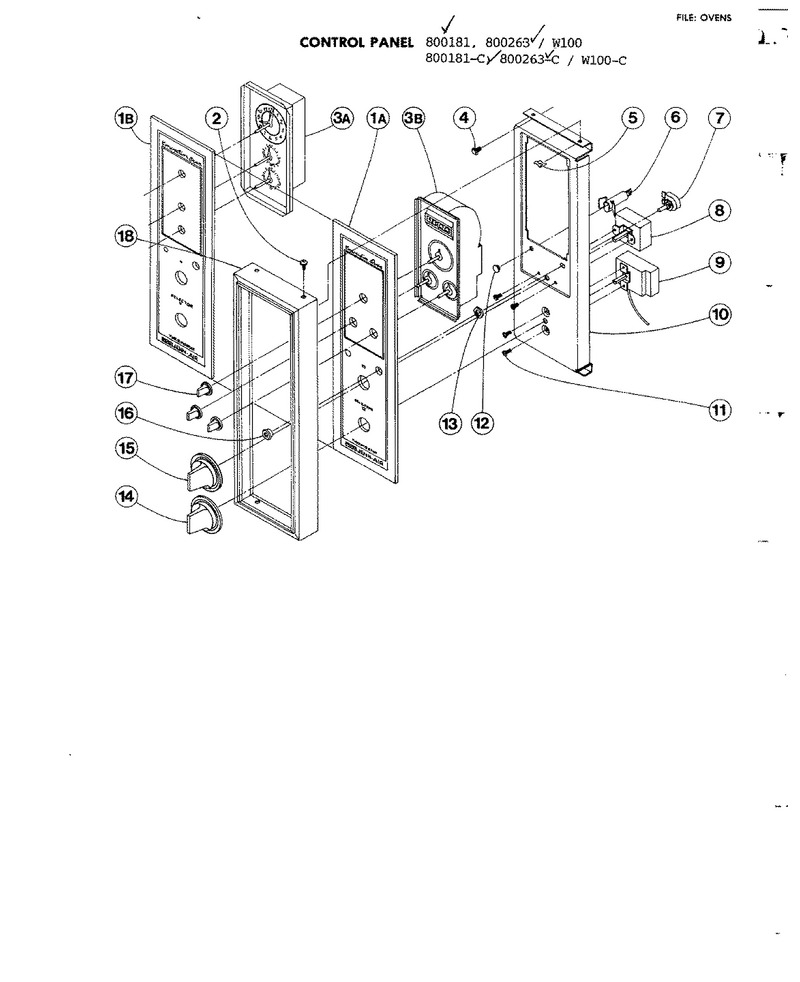

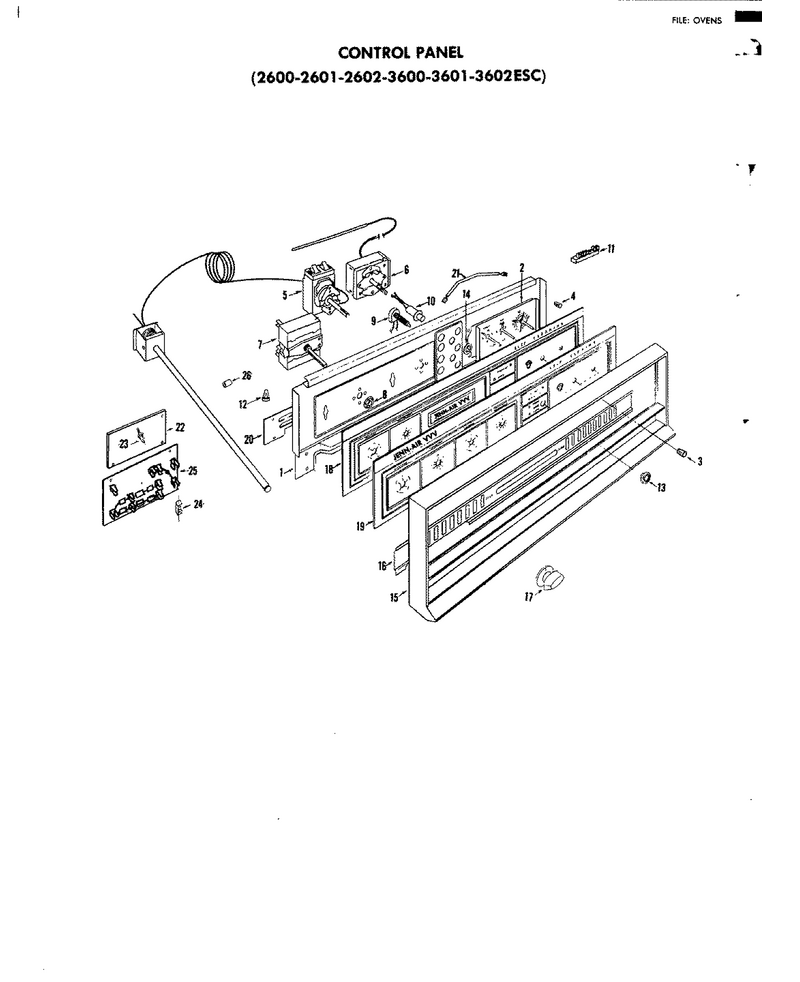

03 - Control Panel

...
...
1
Plate Instrument Mounting WPL-771150
...
2
Clock WPL-700436
...
3
Clock Knob WPL-700741
...
4
Clock Fastener WPL-771080
...
5
U Thermo WPL-700742
...
6
Screw WPL-700065
...
7
Switch, Selector WPL-700126
...
8
Nut Magnetron Mounting WPL-771145
...
9
Switch, Oven Light WPL-771225
...
10
Clean Light WPL-771117
...
11
Screw WPL-771182
...
13
Switch, Bezel WPL-771012
...
14
Ring WPL-771167
...
15
Frame WPL-771247
...
16
Vent, Trim WPL-771249
...
17
Knob WPL-771130
...
19
Con Pan Glas WPL-70078-4
...
20
Wire Shield WPL-771203
...
21
Resistor WPL-771160
...
26
Cover-Screw Tip WPL-771060
